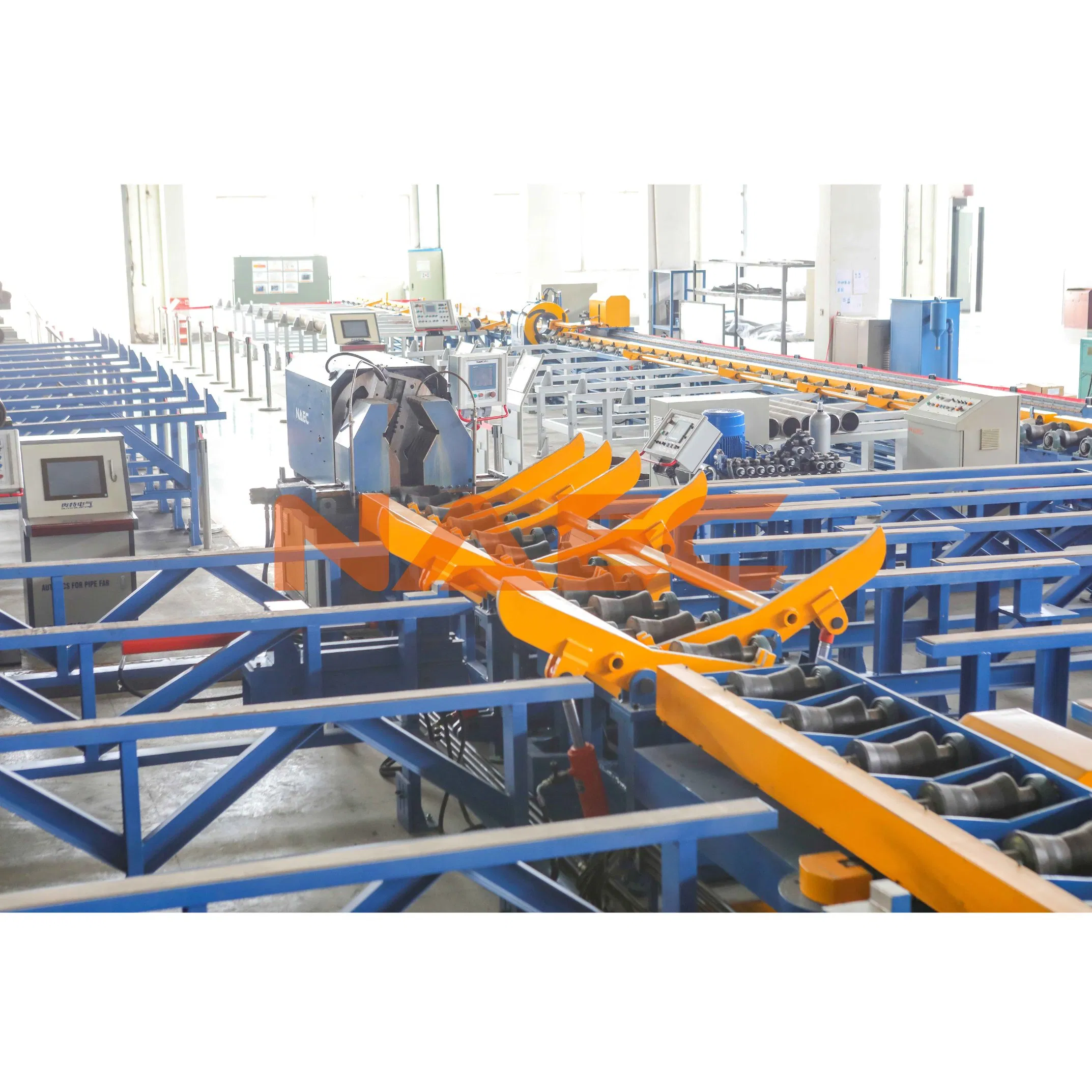

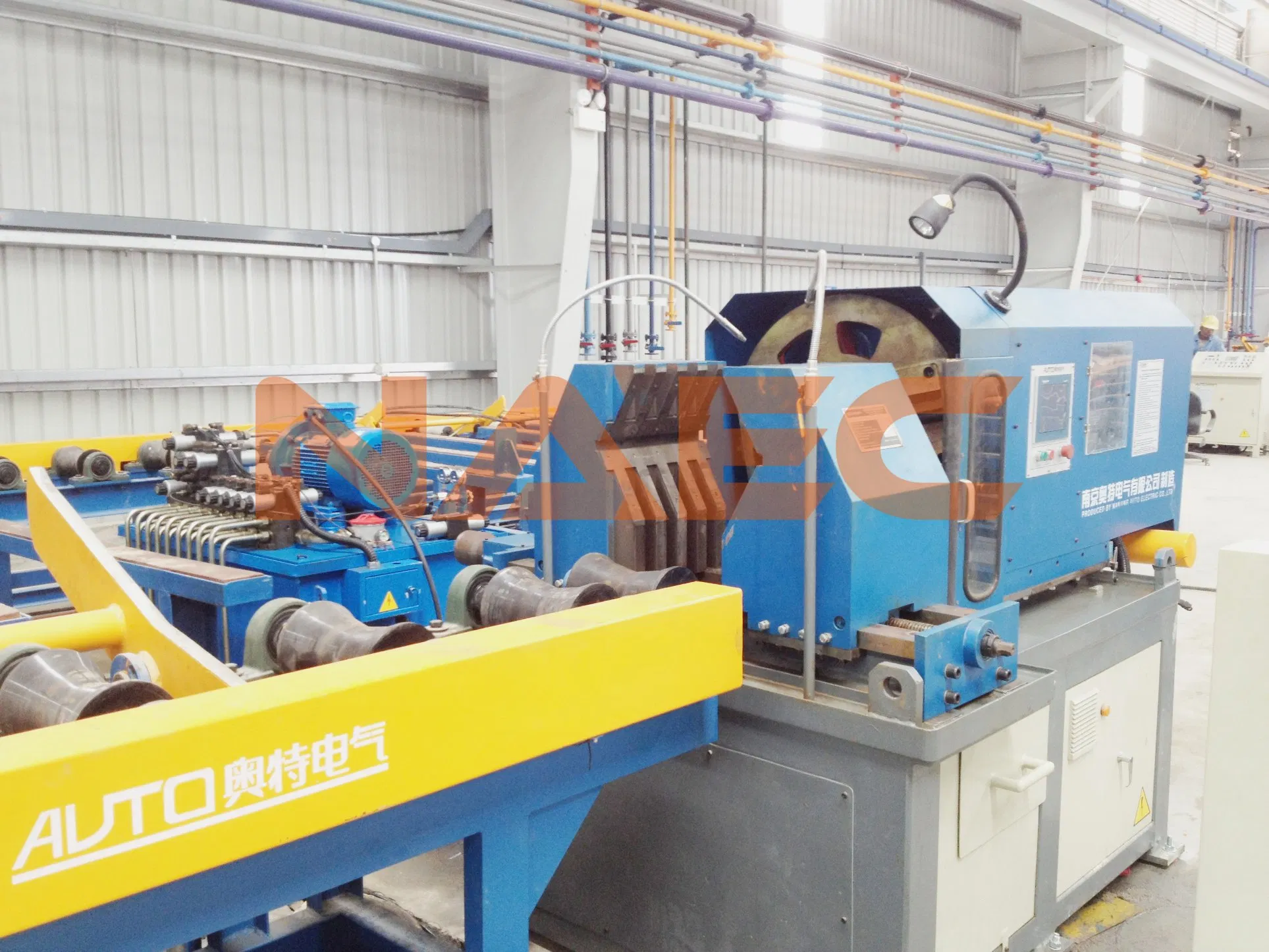

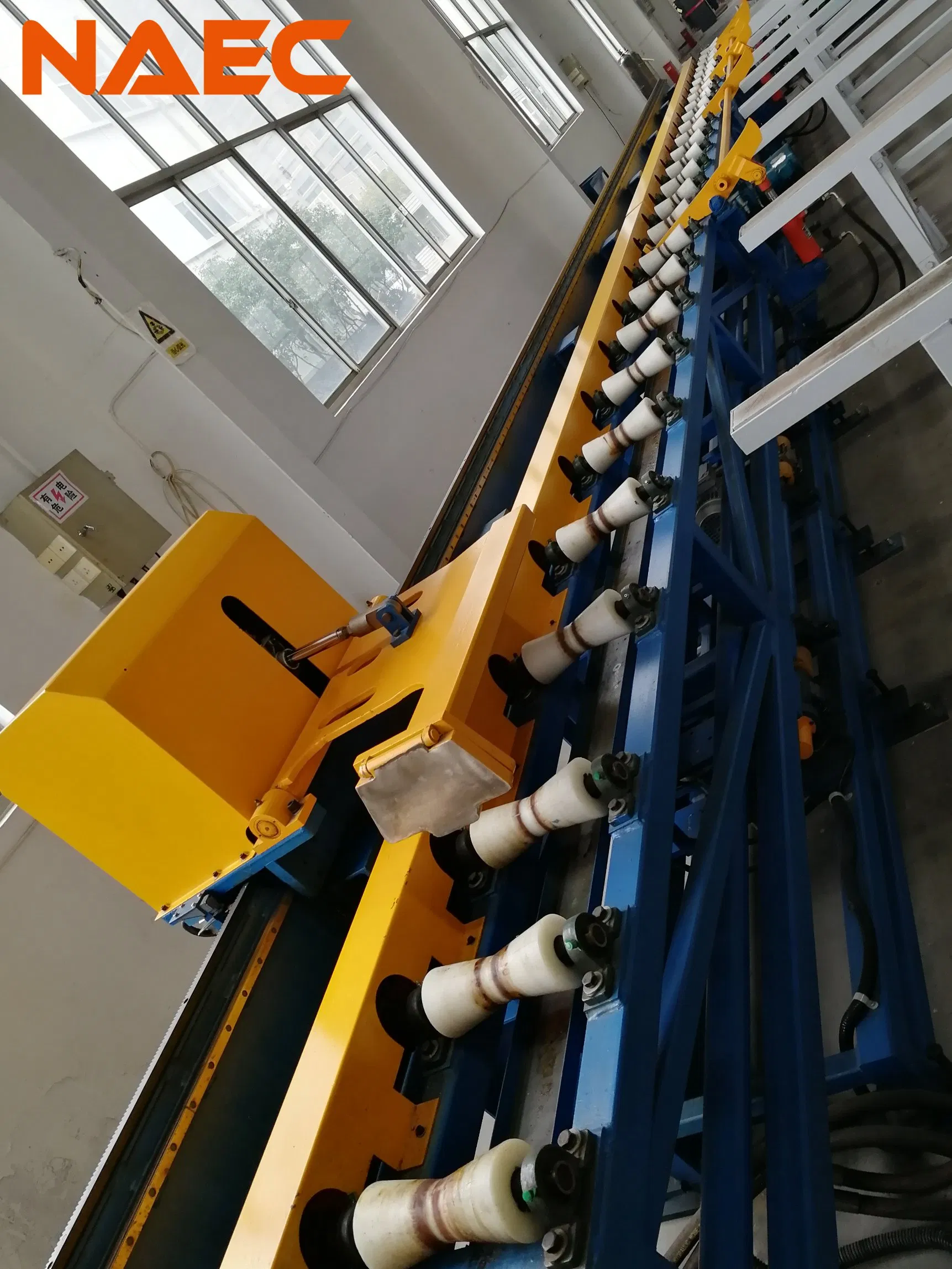

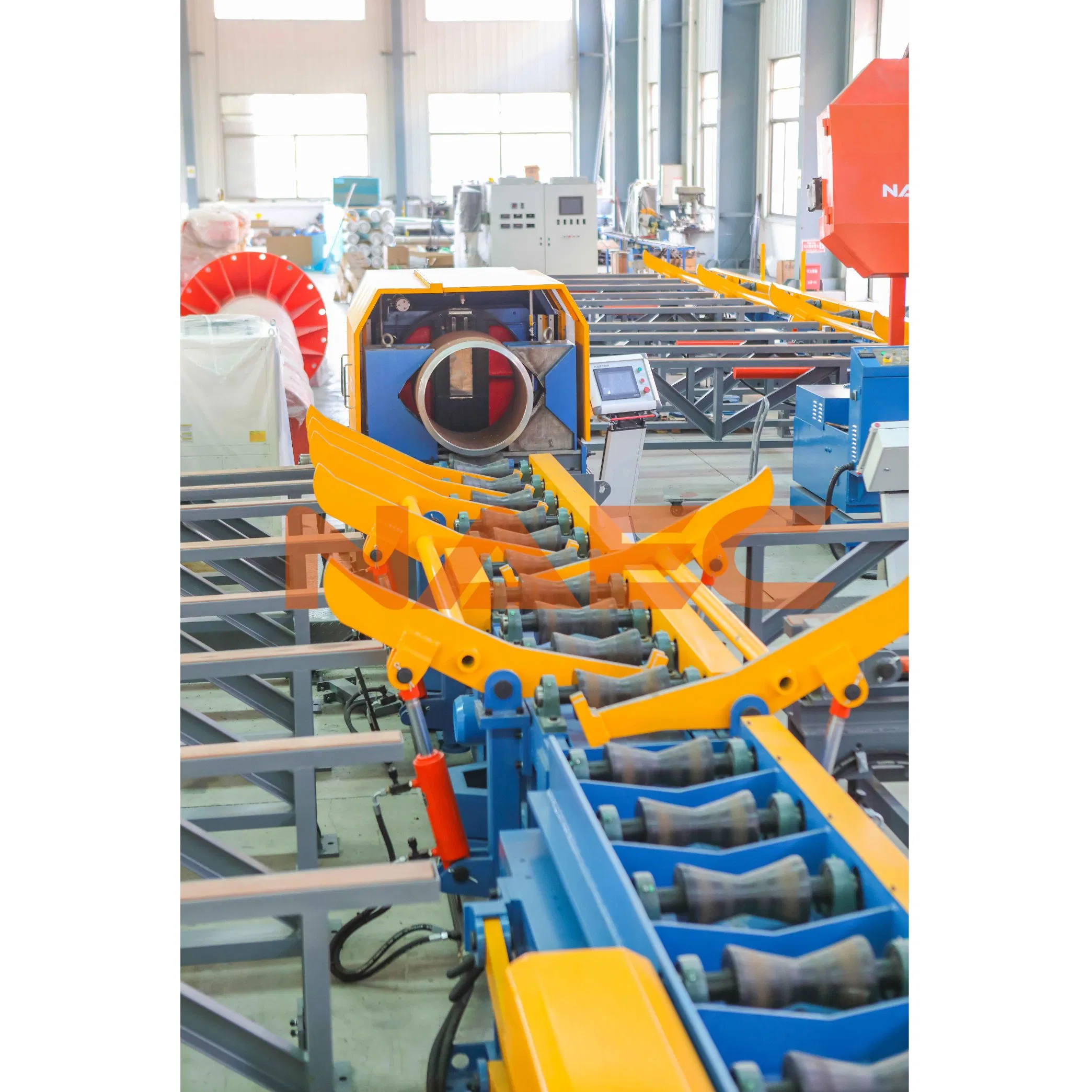

Pipe Conveying System for High Speed Pipe Cutting & Profiling Machine
Pipe Conveying System for High Speed Pipe Cutting & Profiling Machine
Pipe Conveying System for High Speed Pipe Cutting & Profiling Machine
Pipe Conveying System for High Speed Pipe Cutting & Profiling Machine
Pipe Conveying System for High Speed Pipe Cutting & Profiling Machine
1 / 5
Pipe Conveying System for High Speed Pipe Cutting & Profiling Machine
Pipe Conveying System for High Speed Pipe Cutting & Profiling Machine
Pipe Conveying System for High Speed Pipe Cutting & Profiling Machine
Pipe Conveying System for High Speed Pipe Cutting & Profiling Machine
Pipe Conveying System for High Speed Pipe Cutting & Profiling Machine

Pipe Conveying System for High Speed Pipe Cutting & Profiling Machine

Customization: Available
Structure: Conveyor System
Material: Stainless Steel
Send Inquiry

Product Description

Basic Information
Model NO.
AUTO
Material Feature
Oil, Heat, Fire Resistant
Application
Power Plant, Oil and Gas, Refinery
Condition
New
Conveying Speed
2-20m/Min
Usage
Pipe Spool Conveying
Capacity
200 Sets/Year
Origin
China
Product Description

Pipe Conveying System for High Speed Pipe Cutting & Profiling Machine

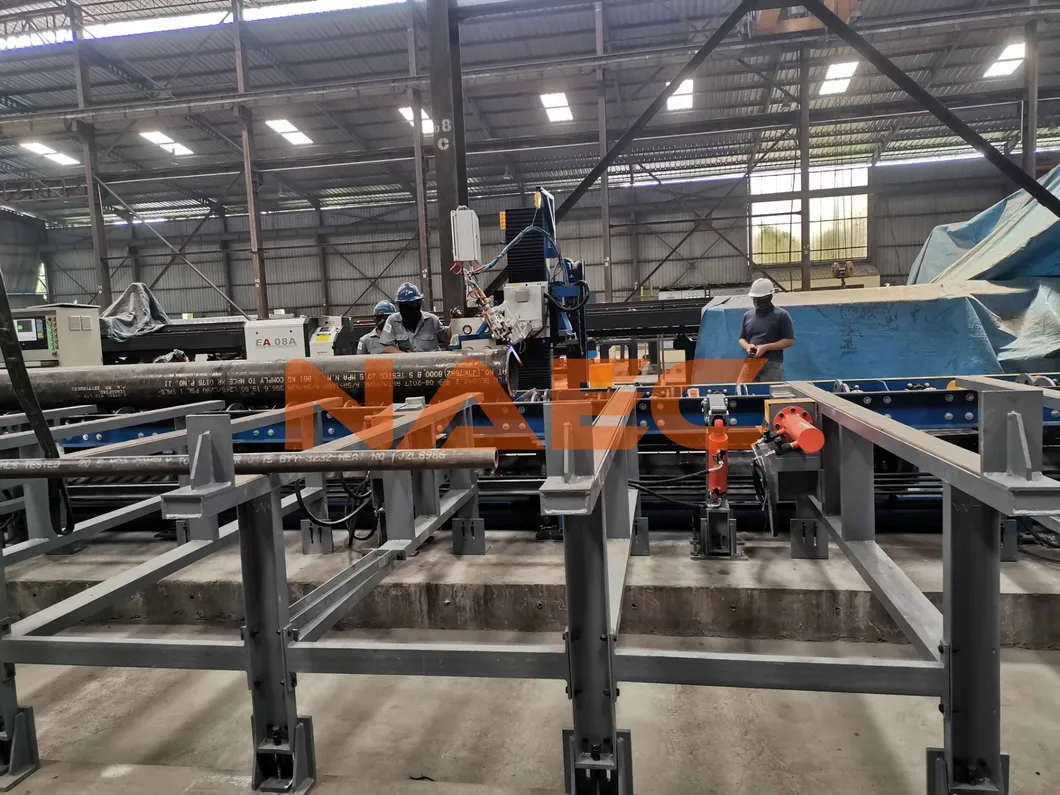

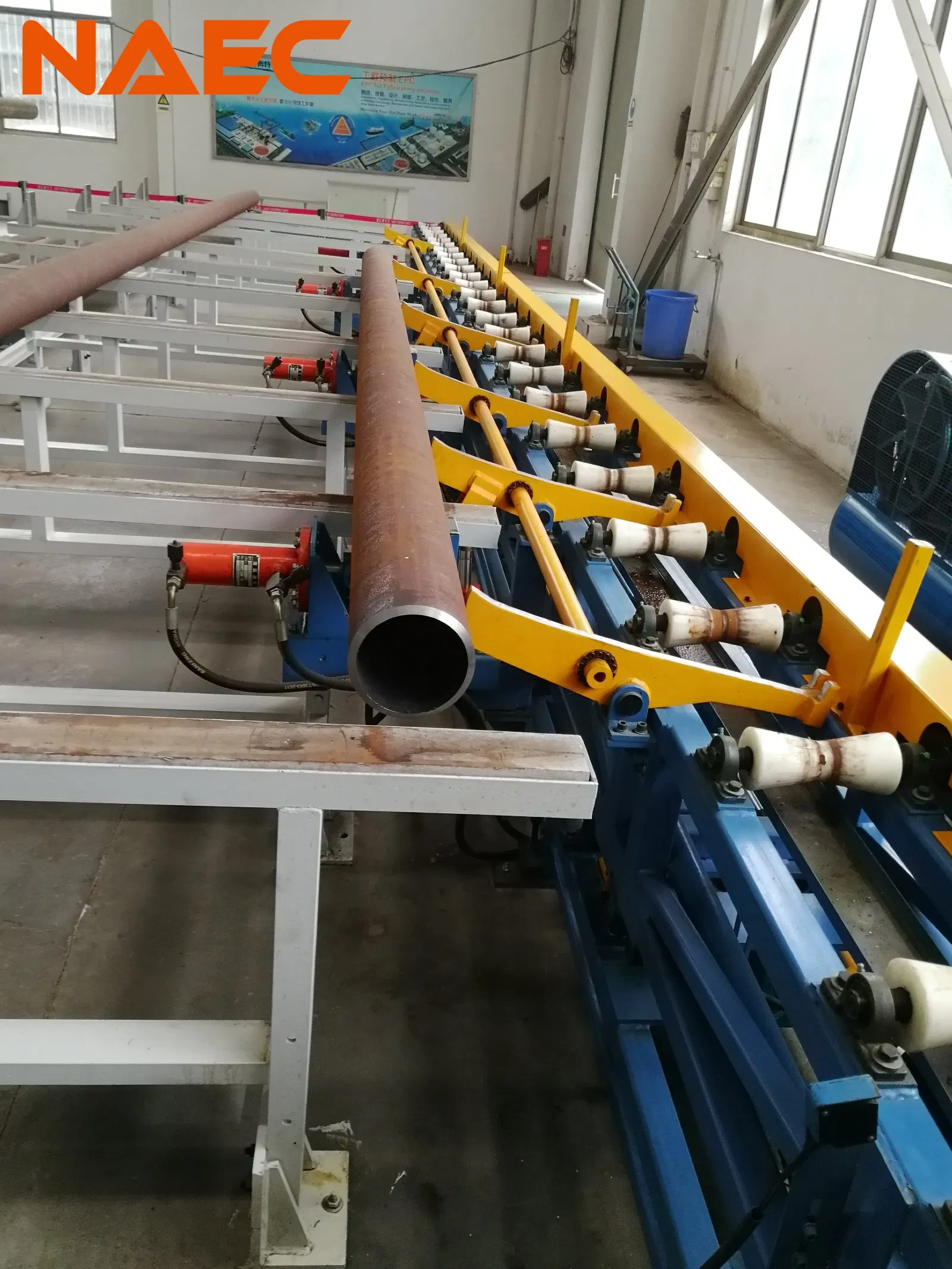

Pipe Conveying System

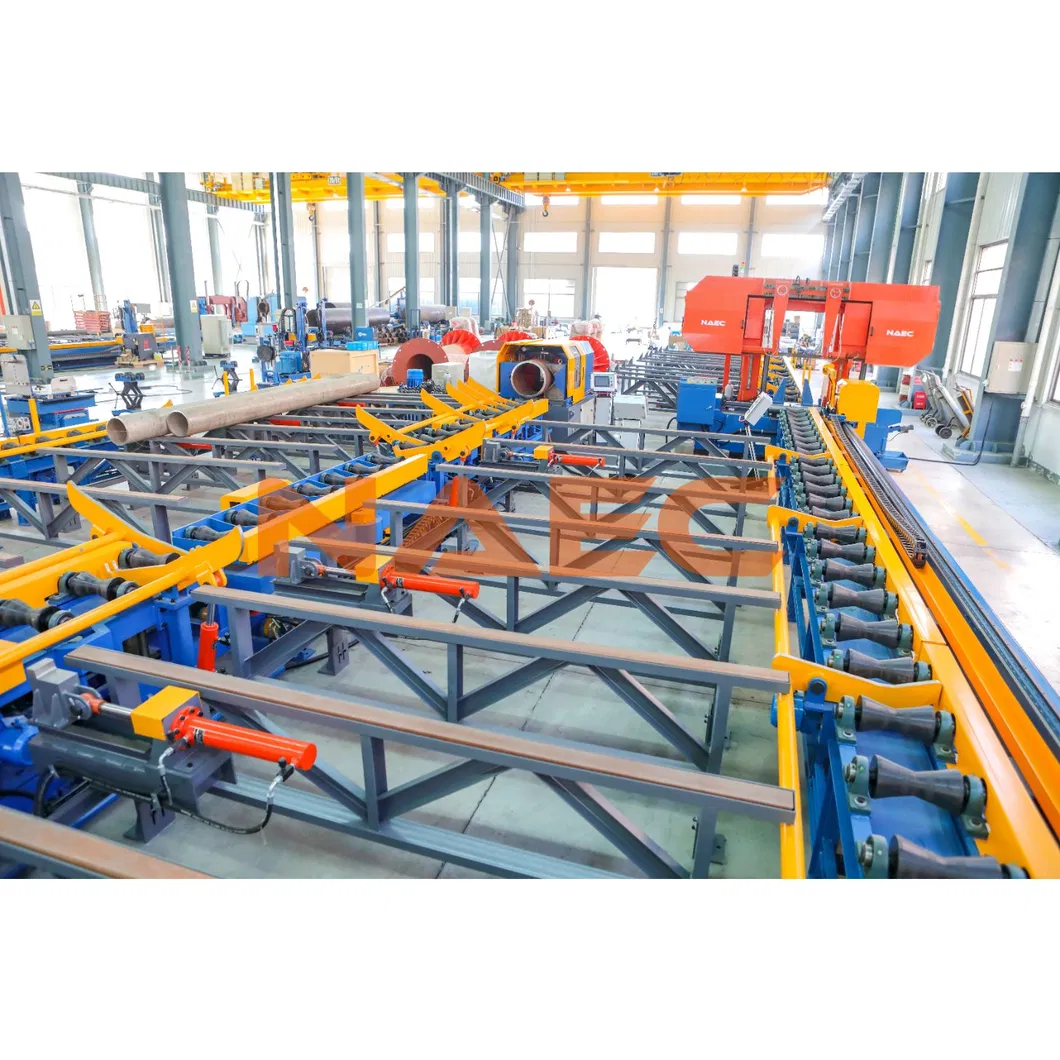

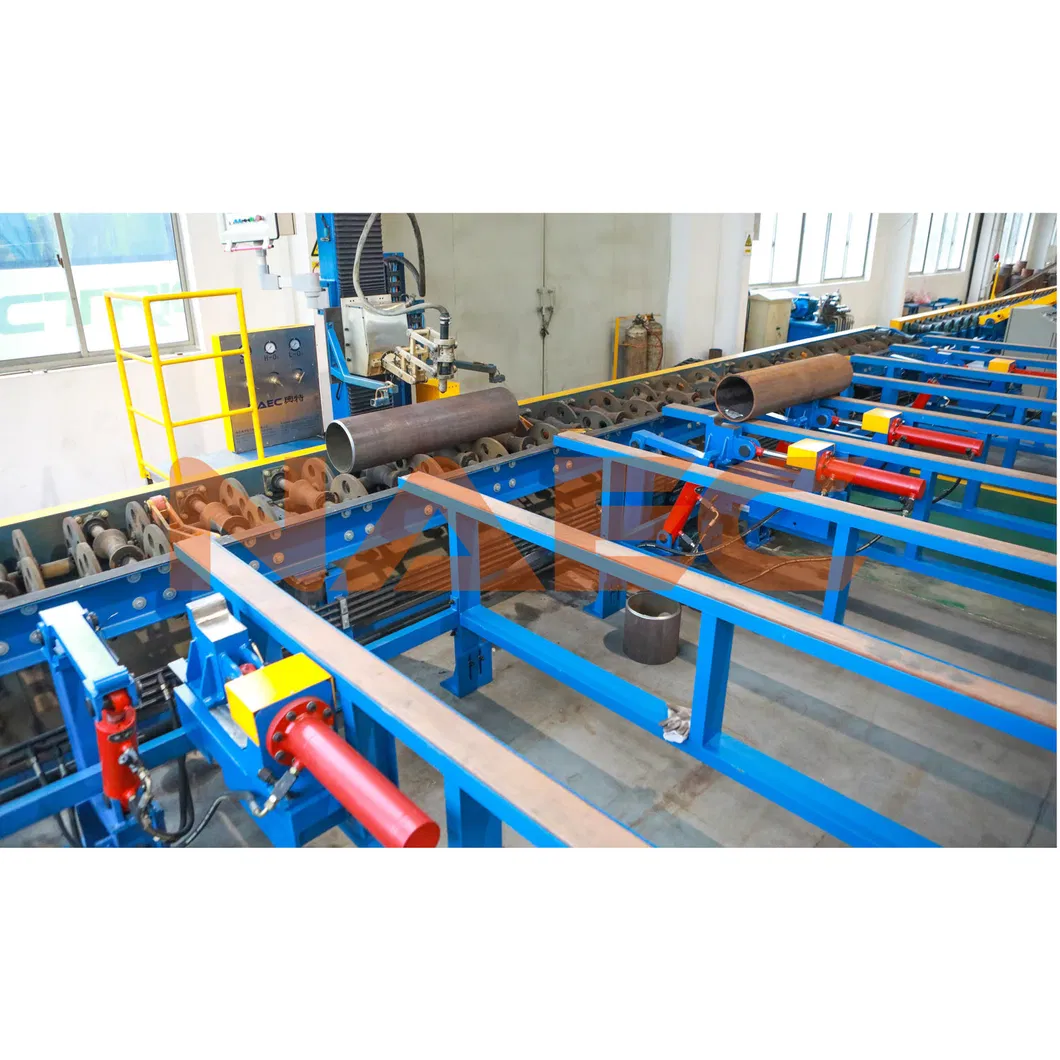

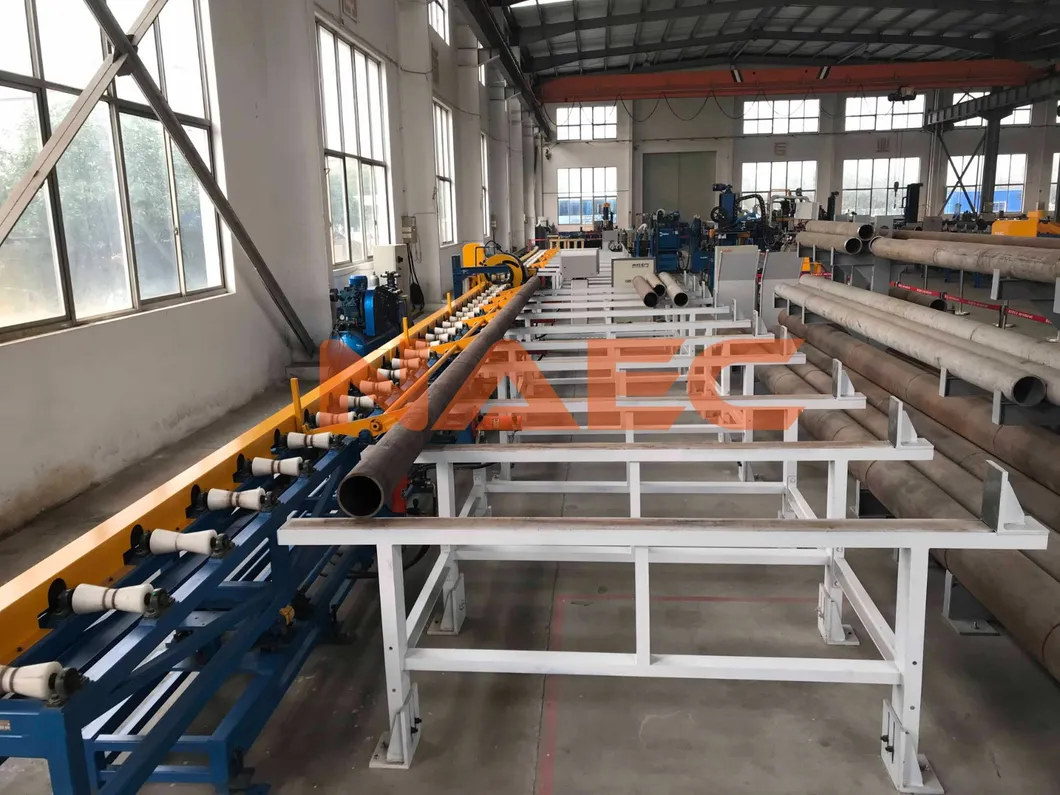

Pipe Conveying Details 1 Pipe Conveying Details 2 Pipe Conveying Details 3
  • Matched with pipe spool fabrication system
  • Transports pipes and fittings to different stations and areas
  • Easy and convenient for operation
  • Conveying speed: 2-20m/min

The Conveyor System is specially designed and developed to perfectly match single machines, forming a complete production line based on economic space occupation and maximum productivity. It consists of storage/buffer racks, kicking-in/kicking-out devices, and a motorized handling conveyor system, which greatly improves the efficiency of single machines and saves manpower & machine costs for workpiece transportation.

This Conveyor Logistics System can send cut and beveled pipes to fitting-up stations with an adjustable average speed of 2m-20m/min. The handling capacity is 750 kg/m and 8 tons/12m. It is capable of transferring pipes ranging from 1m to 12m in length.

Applicable Industries: It is widely used in oil and gas, refinery, petro-chemical, shipbuilding, offshore, power plant, nuclear plant industries, etc.

Frequently Asked Questions
What is the adjustable conveying speed of this system?
The system features an adjustable conveying speed ranging from 2m/min to 20m/min, allowing for flexibility based on production needs.
What pipe lengths can the conveyor system handle?
The system is designed to handle and transfer workpieces with lengths ranging from 1 meter up to 12 meters.
What is the maximum load capacity of the conveyor?
The handling capacity is approximately 750 kg per meter, with a total capacity of up to 8 tons for a 12-meter section.
Is the material resistant to harsh industrial environments?
Yes, the materials are specifically designed to be oil resistant, heat resistant, and fire resistant to ensure durability in heavy industrial settings.
Which industries typically use this conveying system?
This system is widely applied in Power Plants, Oil & Gas facilities, Refineries, Offshore & Shipbuilding, and Nuclear plants.
Does the system include buffer and kicking devices?
Yes, it consists of storage/buffer racks and kicking-in/kicking-out devices to automate the pipe handling process efficiently.
