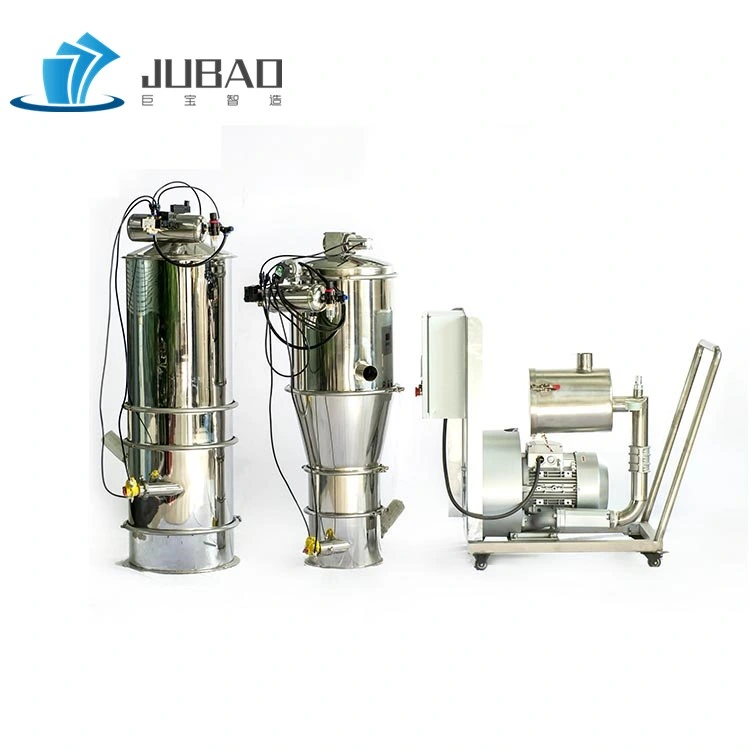

Pharmaceutical Powder Transfer Vacuum Pneumatic Conveying System

Customization:	Available
Material:	Stainless Steel
Material Feature:	Oil Resistant, Heat Resistant, Fire Resistant

📋

Basic Information

Model NO.

BVC-250

Application

Chemical Industry, Grain Transport, Mining Transport, Power Plant

Condition

New

HS Code

8428320000

Production Capacity

2000PCS/Year

Package

Plywooden Box

⚙️

Product Description

Pharmaceutical powder transfer vacuum pneumatic conveying system is a specialized pneumatic vacuum conveyor with a closed structure, providing an environment-friendly solution for powder and granule transfer. It utilizes the air pressure difference between the vacuum and the environmental space to create air flow within the pipe, driving the movement of materials.

Due to its completely closed design, this system is widely used for feeding materials into packaging machines, injection molding machines, shredders, and mixers.

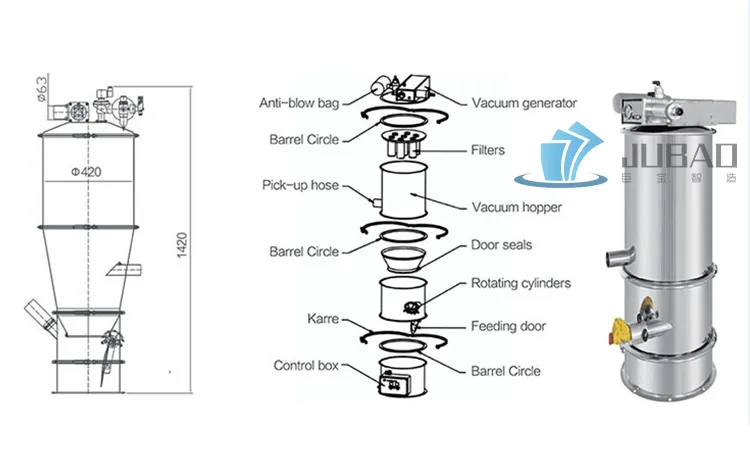

Structure of vacuum pneumatic conveying system

📸

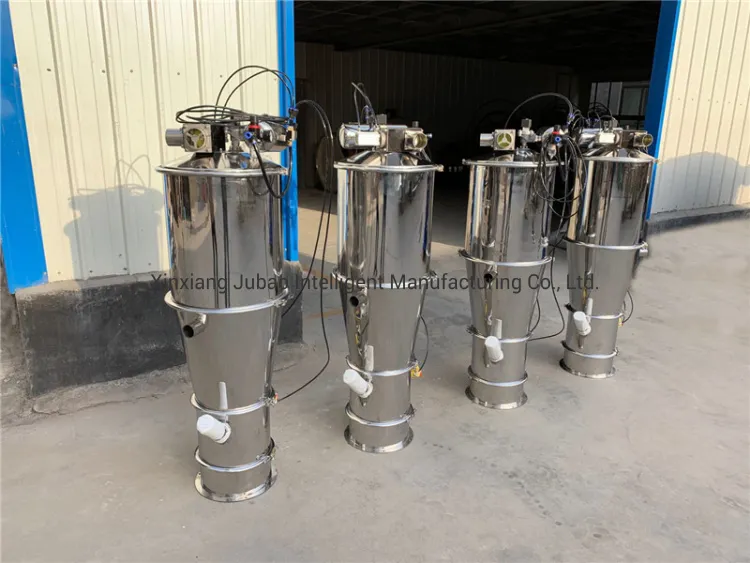

Detailed Production Photos

📊

Technical Parameters

Model	Power (KW)	Reference Conveying Capacity (kg/hour)
BVC250-1	1.5	200-400
BVC350-2	2.2	300-600
BVC350-3	3	400-1200
BVC450-4	5.5	800-2500
BVC450-6	5.5/7.5	1000-3000
BVC650-7	7.5	2000-600
BVC650-10-6	7.5/11	2000-6000 (distance: 10m)
BVC650-20-5	11	1500-5000 (distance: 20m)

📦

Packaging & Shipping

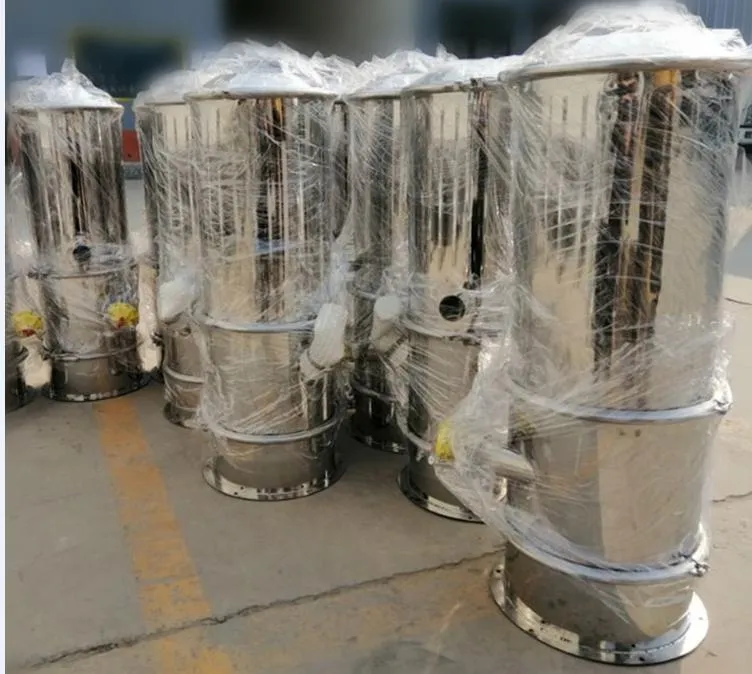

For maximum protection, we apply stretch film internally for moisture proofing and secure the equipment in standard fumigation plywooden boxes for international shipping.

💡

Selection Guide

To provide an accurate quotation for your pharmaceutical powder transfer system, please prepare the following information:

Type of product to be conveyed
Material moisture percentage (%)
Required capacity (kg/hour)
Horizontal conveying distance
Vertical conveying distance
Voltage and Frequency requirements (V/HZ)
Material preference (SS304 or SS316L stainless steel)

Frequently Asked Questions

What materials can be transported using this vacuum system?

It is specifically designed for various powders and granules, particularly in the pharmaceutical, chemical, and food industries.

Is the system dust-free?

Yes, the system features a completely closed structure which prevents dust leakage, making it environmentally friendly and safe for sensitive materials.

What is the maximum conveying capacity available?

Our standard models range from 200 kg/hour up to 6000 kg/hour, depending on the model and the conveying distance.

How is the vacuum pressure generated?

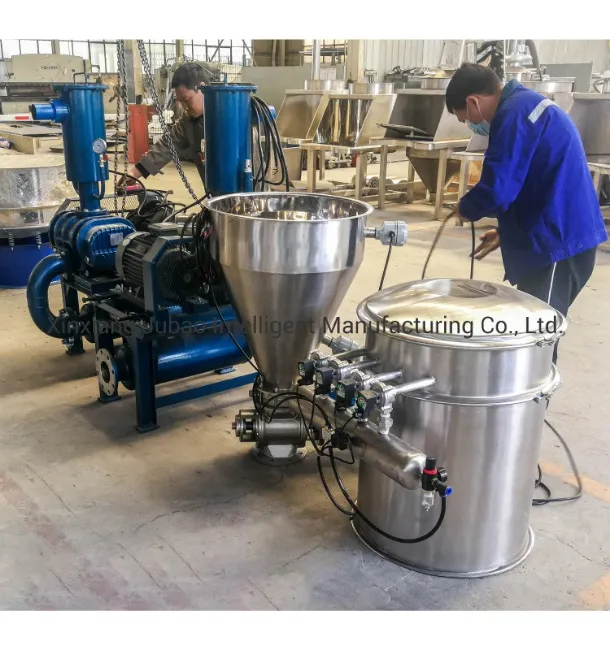

The system utilizes air pressure differences, often powered by electric vacuum pumps or Roots blowers depending on the specific application requirements.

What kind of maintenance does the pneumatic conveyor require?

Because it has few moving parts in contact with the product, maintenance is minimal, primarily involving periodic inspection of filters and seals.

Can the system integrate with existing machinery?

Absolutely. It is commonly used as a feeding system for packaging machines, mixers, and injection molding equipment.
