| Structure | Belt Conveyor | Material | Carbon Steel |
| Material Feature | Oil Resistant, Heat Resistant, Fire Resistant | Condition | New |
| Conveyor Length | 0.8km ~ 12km | Power | Max 8000kw |
| Conveying Capacity | 11,500t/H | Inclination | -28 to + 33 |
| Conveyor Width | Max 2.4m | Maximum Speed | 6.3 M/S |
| ISO Certification | 14001, 45001 | Origin | China |

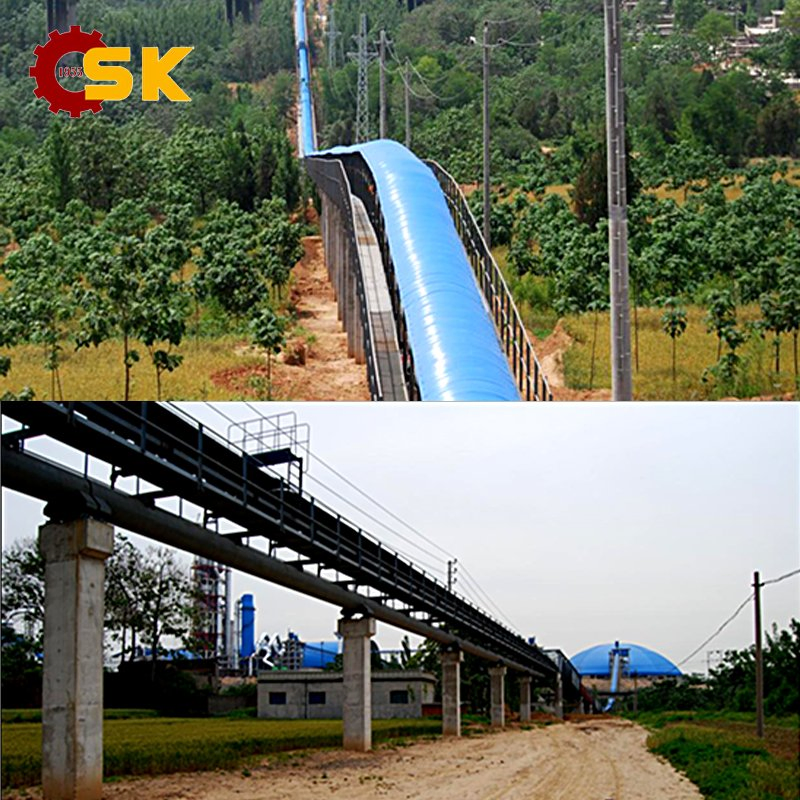

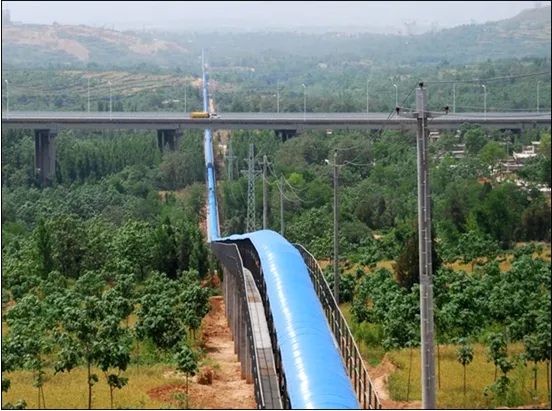

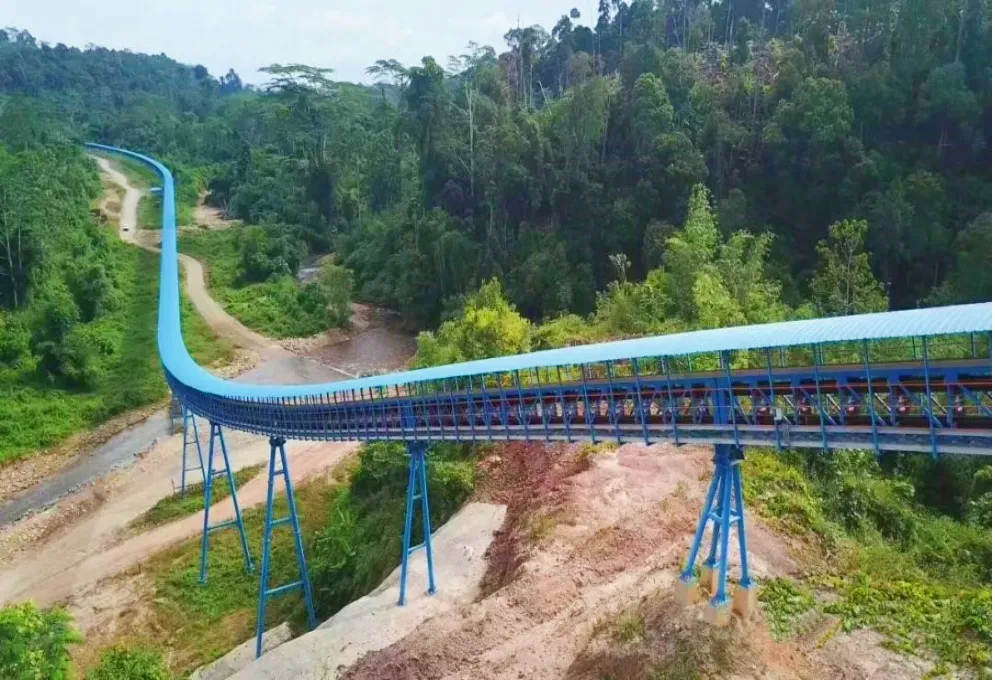

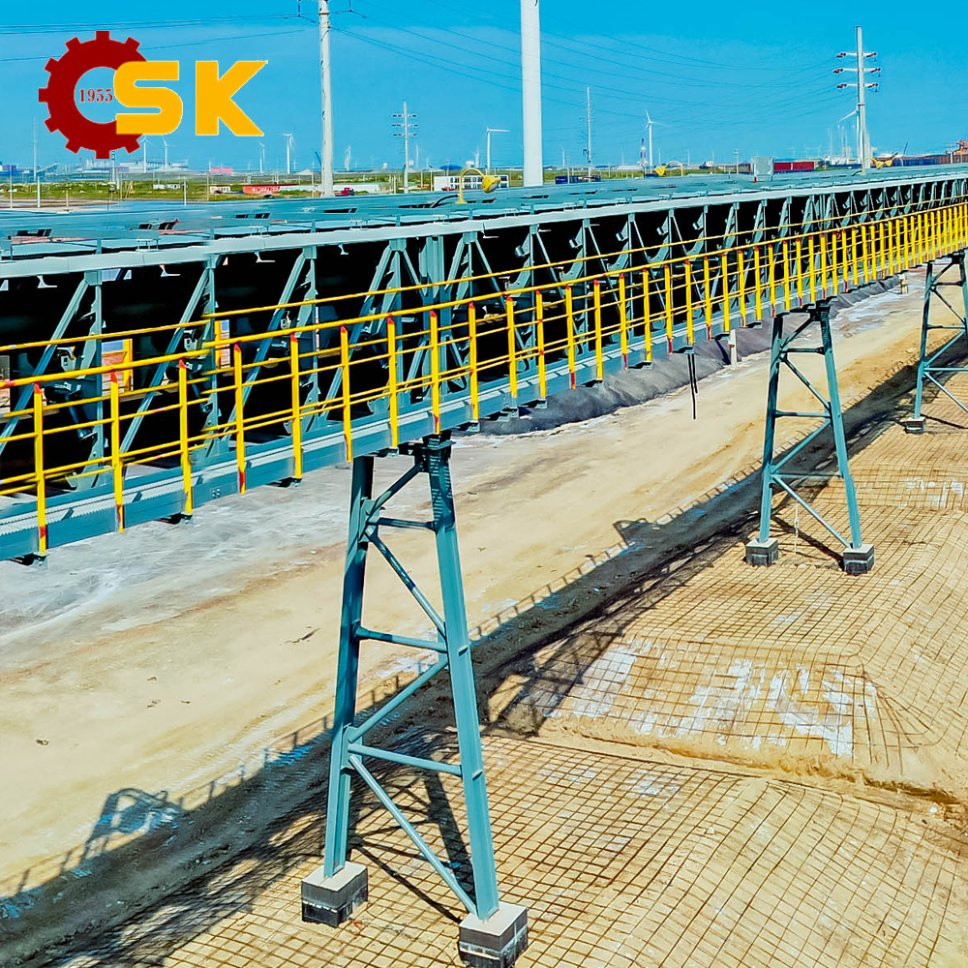

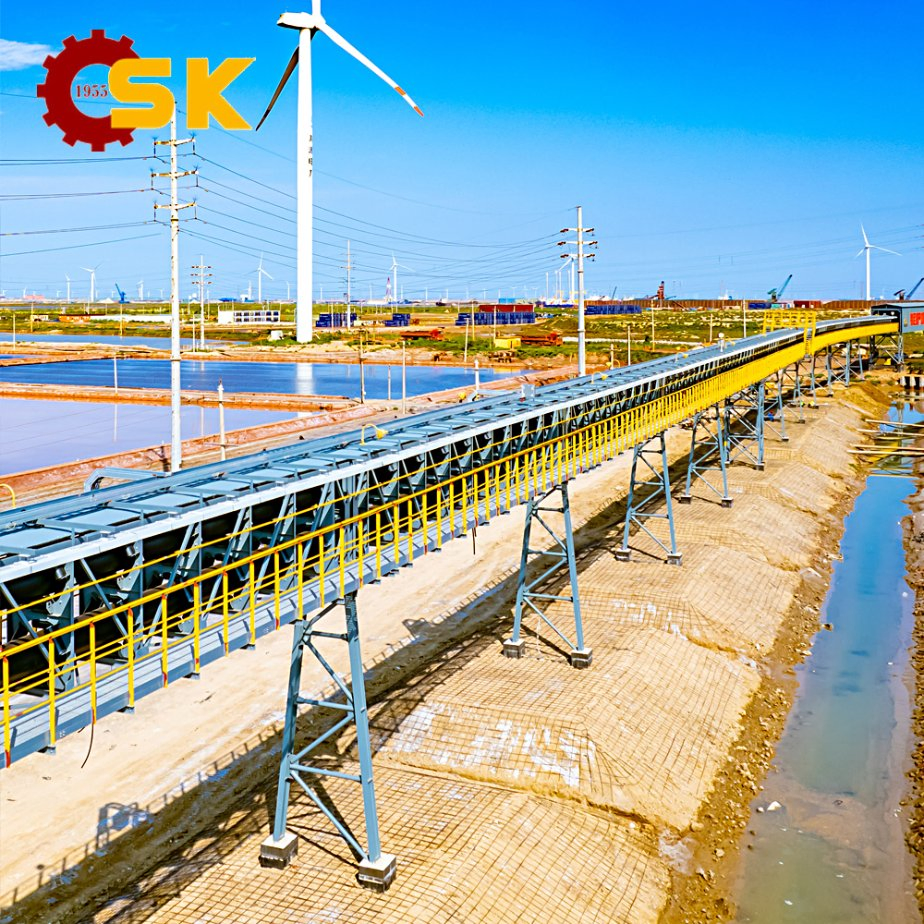

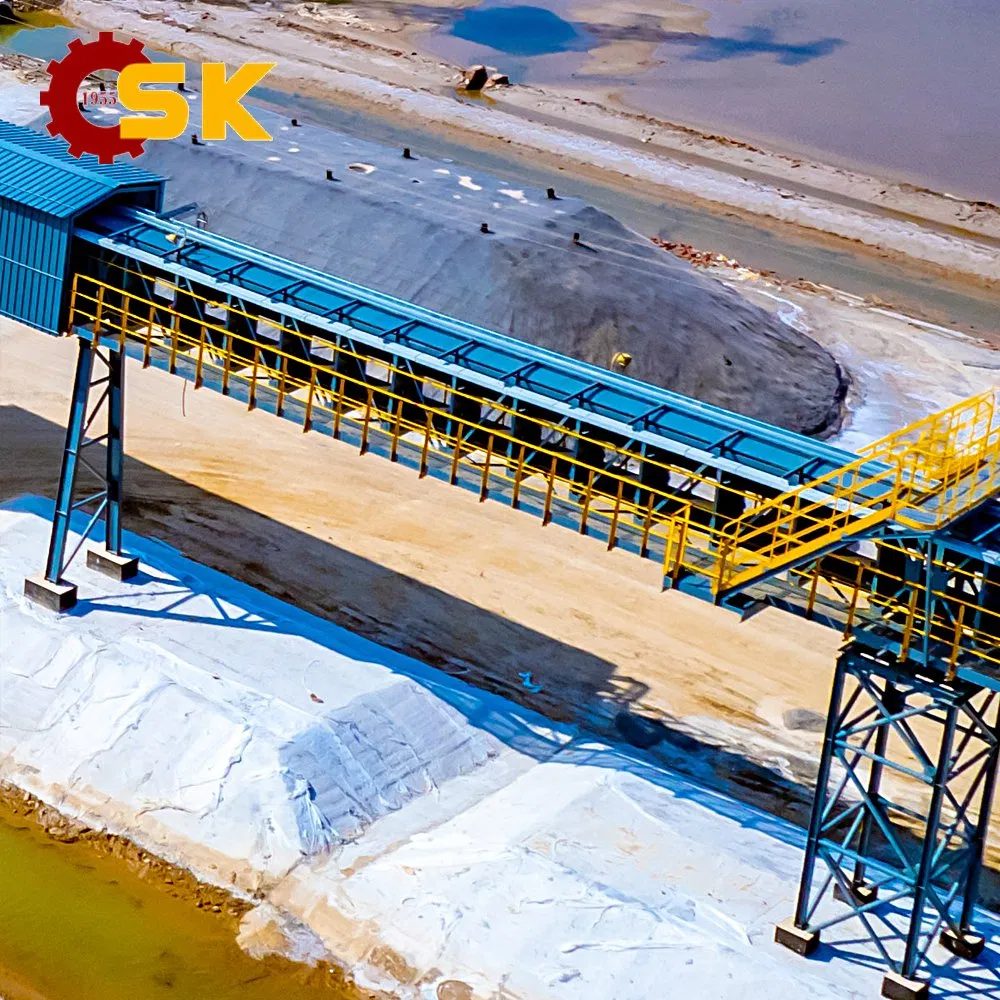

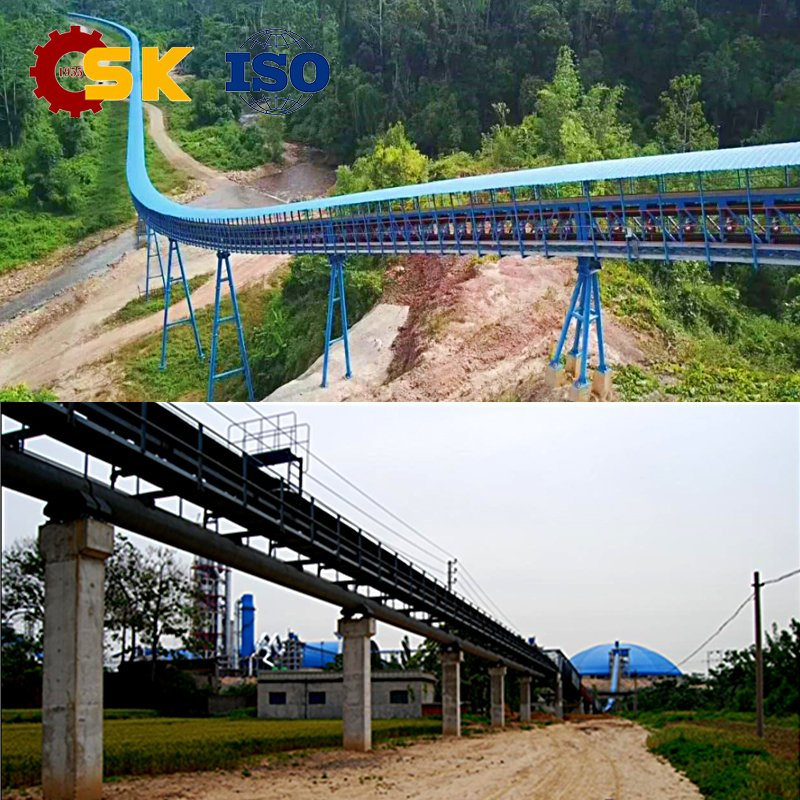

Long distance overland flat turn belt conveyor is a continuous conveying equipment that uses steel rope core conveyor belts as traction components. Its ultra long conveying distance and super large conveying capacity, as well as the multi-point horizontal turning curve conveying method, maximize high yield and efficient material transportation. It is a large-scale intelligent environmental protection and energy-saving conveying equipment used worldwide.

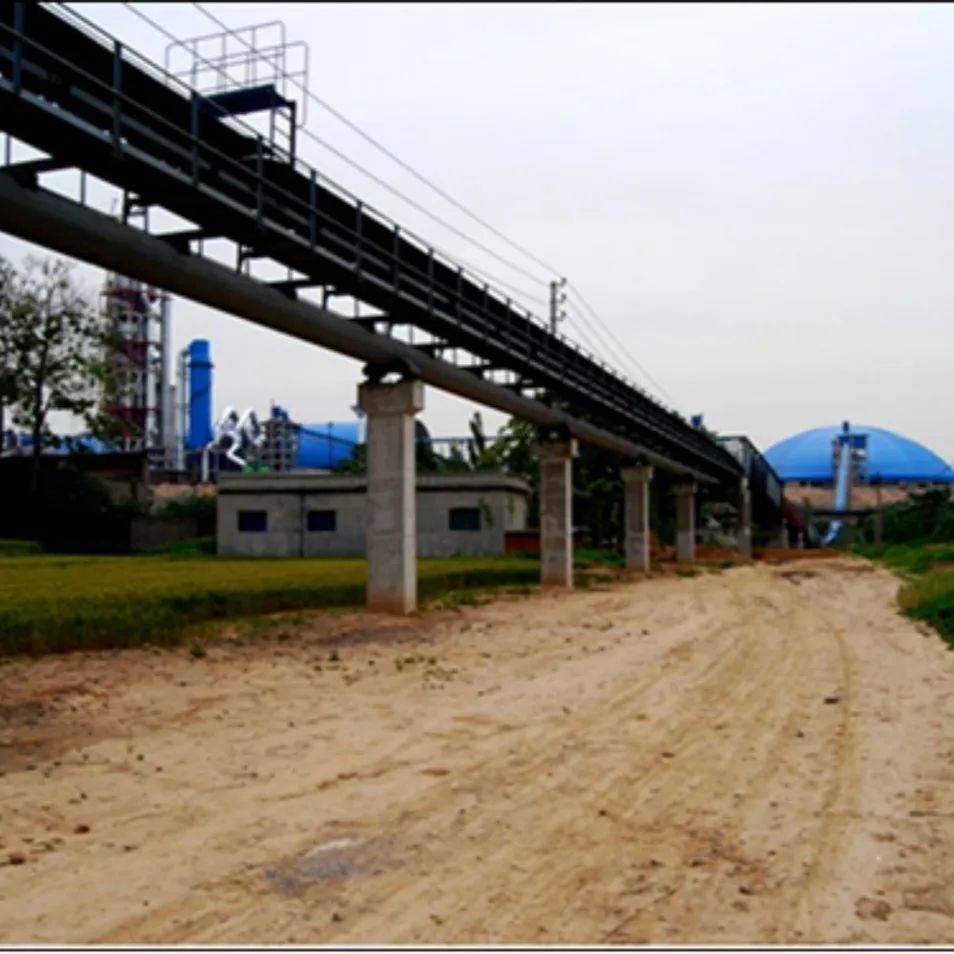

Technical Parameters:
Capacity: 1000t/h
Length: 6633m
Speed: 2.5m/s
Elevation Difference: -128m
The design range covers belt widths from 650mm to 2400mm, with maximum speeds up to 6.3m/s and conveying capacities reaching 13,000 t/h. Single conveyor distances can reach up to 12.6 km.

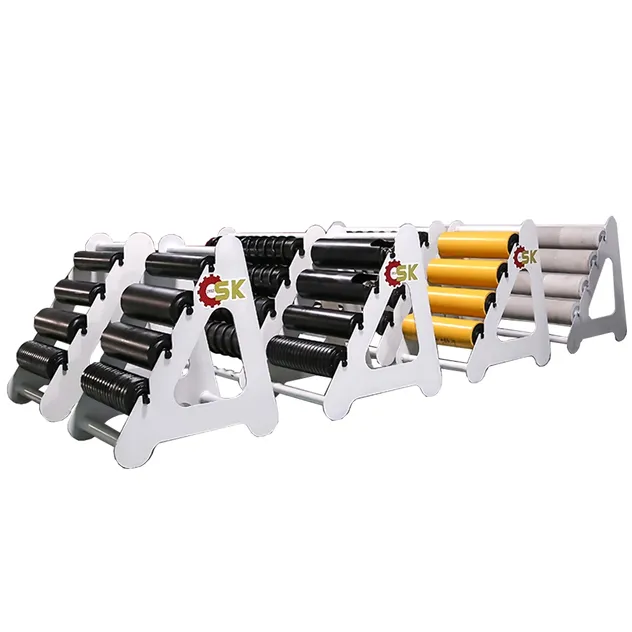

Roller Manufacturing

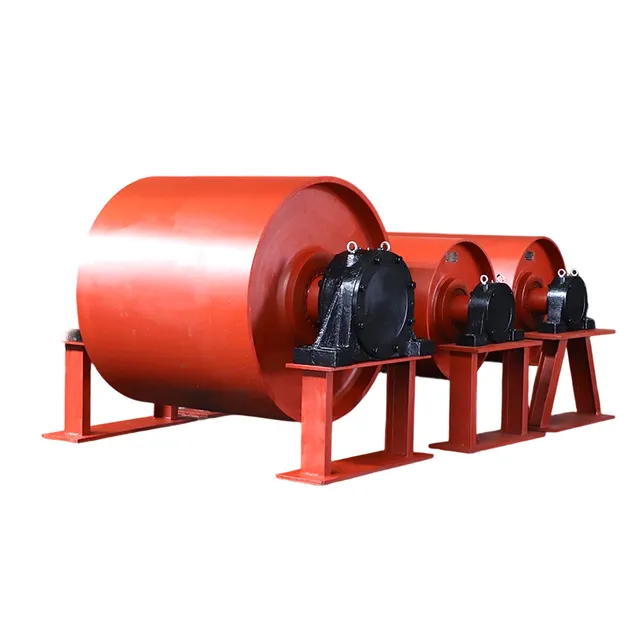

Pulley Manufacturing

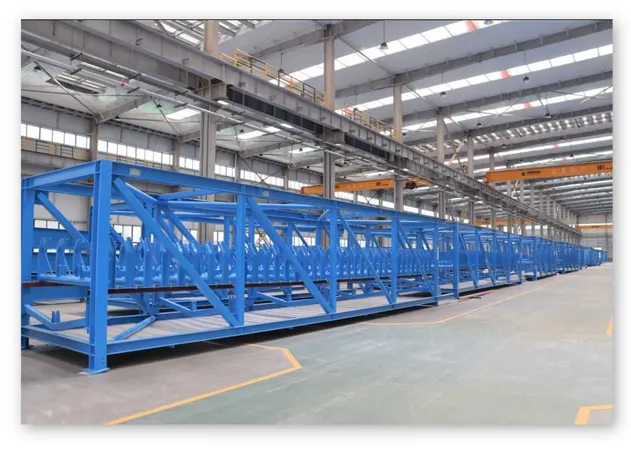

Steel Structures

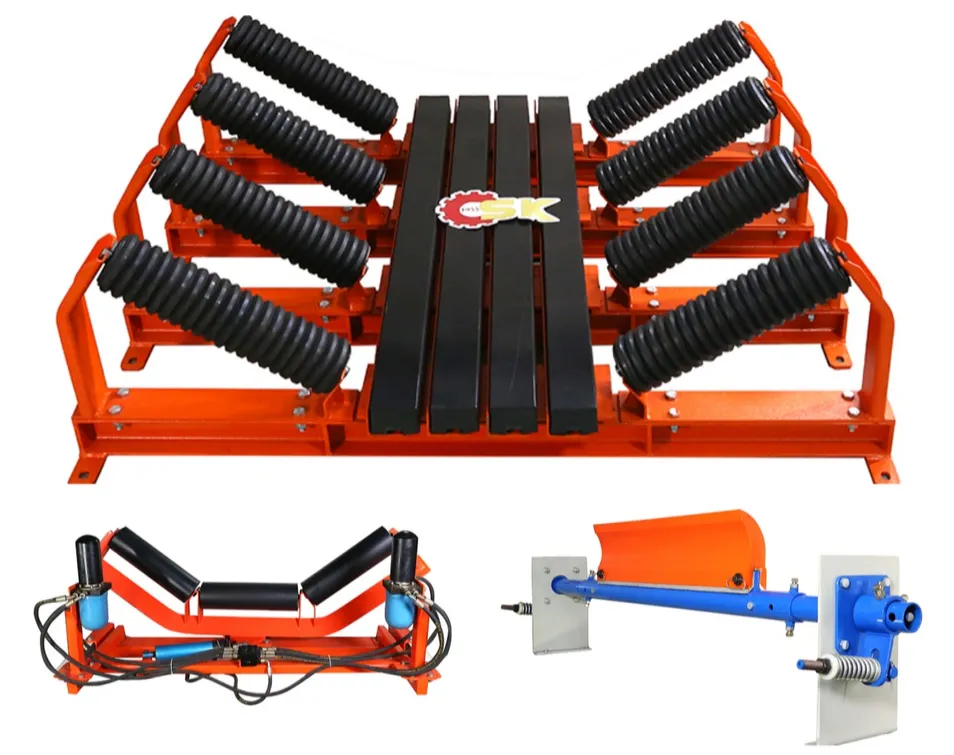

Auxiliary Systems: Cleaners, impact beds, guide chutes, and intelligent rapid loading systems.

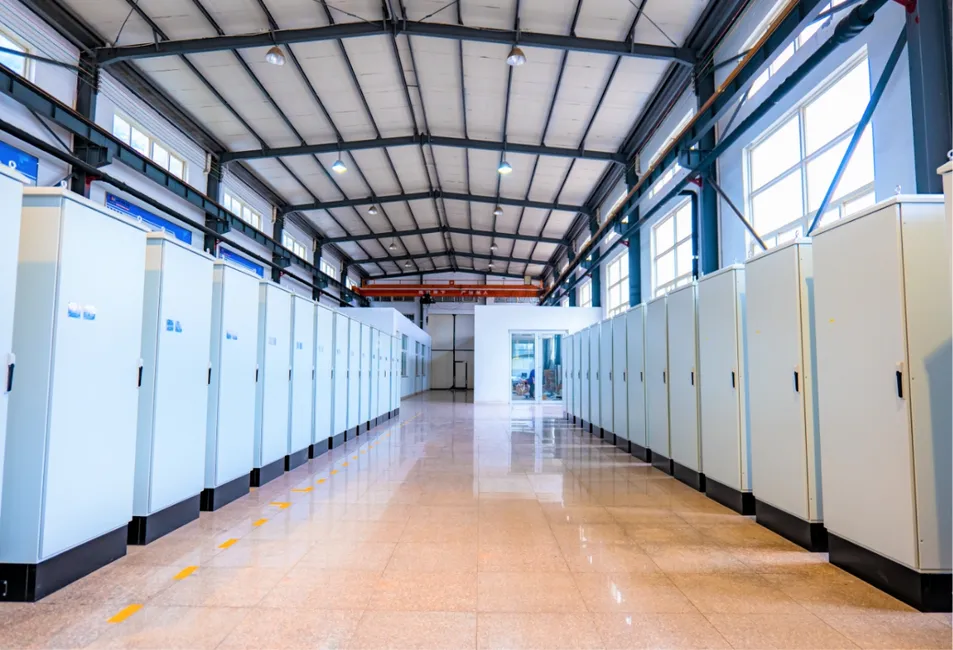

Electric Control: High-standard production for automatic terminal crimping and testing instruments.
