Hvt-450m/2 Hualian Manufacturer Automatic Food Tray Vacuum Packaging Packing Machine

Customization: Available
After-sales Service: Video Technical Support, Online Support
Warranty: 1 Year

Product Description

Overview
Basic Info.
Model NO. HVT-450M/2
Application Food
Power Electric
Automation Semi-Automatic
Inflatable Device With Inflatable Device
Type Rolling Vacuum Packing Machine
Condition New
Voltage (V/Hz) AC 380/50 220/50
Sealing Power (W) 2000
Ultimate Vacuum Pressure (Kpa) 1
Total Power (W) 3000
Vacuum Pump Rate 20
Transport Package Wooden Case
Specification CE
Origin China
HS Code 8422400000
Production Capacity 100PCS/Year
Packaging & Delivery
Package Size 145.00cm * 95.00cm * 155.00cm
Package Gross Weight 525.000kg
Product Description

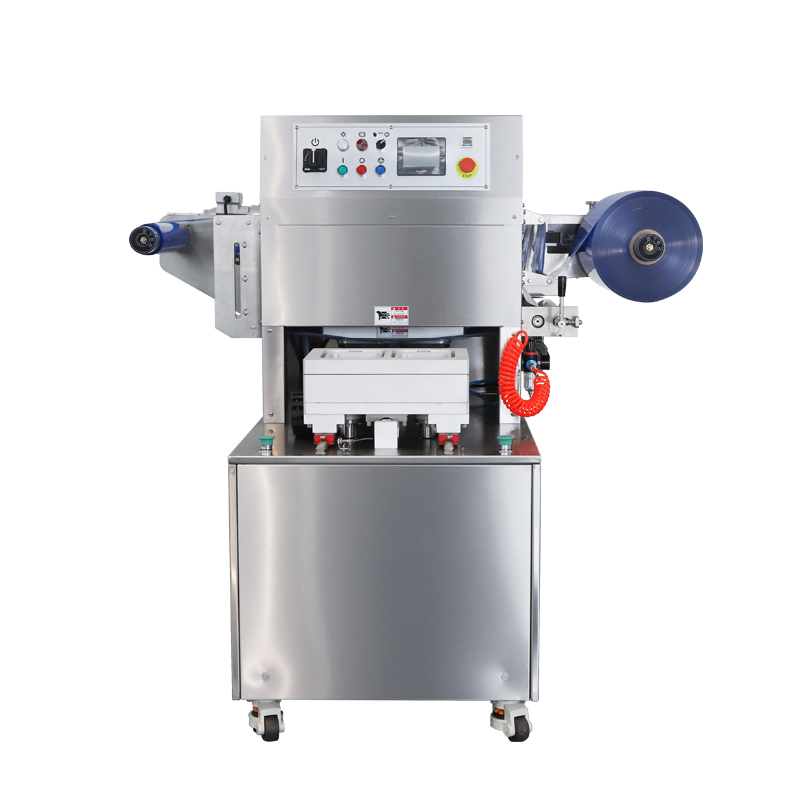

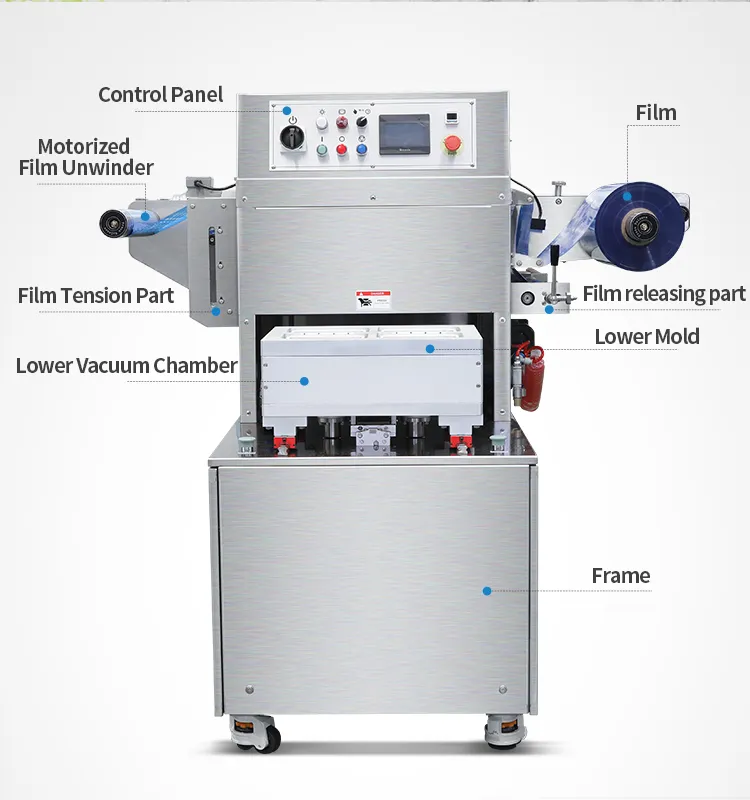

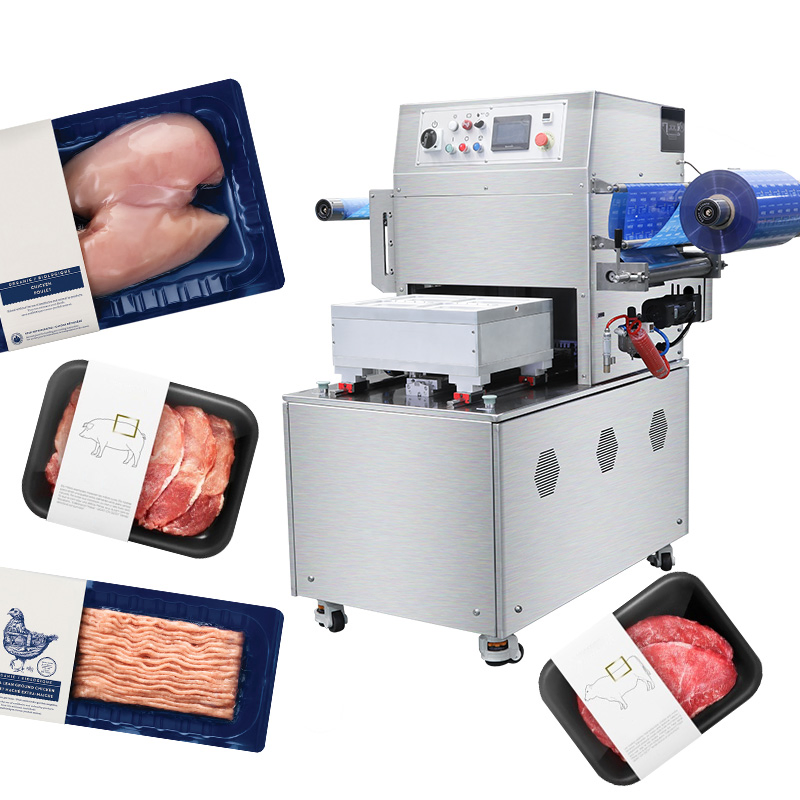

Gas Flushing Tray Sealing Machine (HVT-450M/2)
Description:

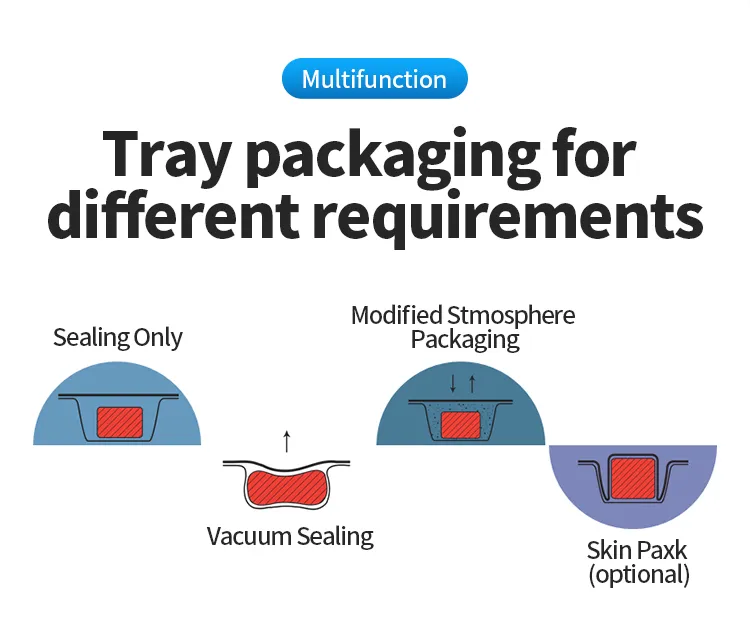

  • HVT series Semi-automatic Tray Vacuum Gas-flushing Sealing Packaging Machine, is a new type of widely-used packaging machine, which can automatically perform processes of vacuum, gas-flushing, sealing, printing (optional) & film-cutting, featuring high efficiency, good sealing, nice packing appearance & easy operation.
  • HVT-450M food tray sealing machine is designed with only one working chamber. Only after one packing cycle is finished can user take the packed tray(s) out then put new one(s) for another packing cycle.
  • HVT-450M automatic tray sealing machine is designed with two working chambers. When one working chamber is packing the tray(s), user can take the packed tray(s) out from another working chamber (if there's a packing cycle ahead) then put new one(s) for another packing cycle.
Features:

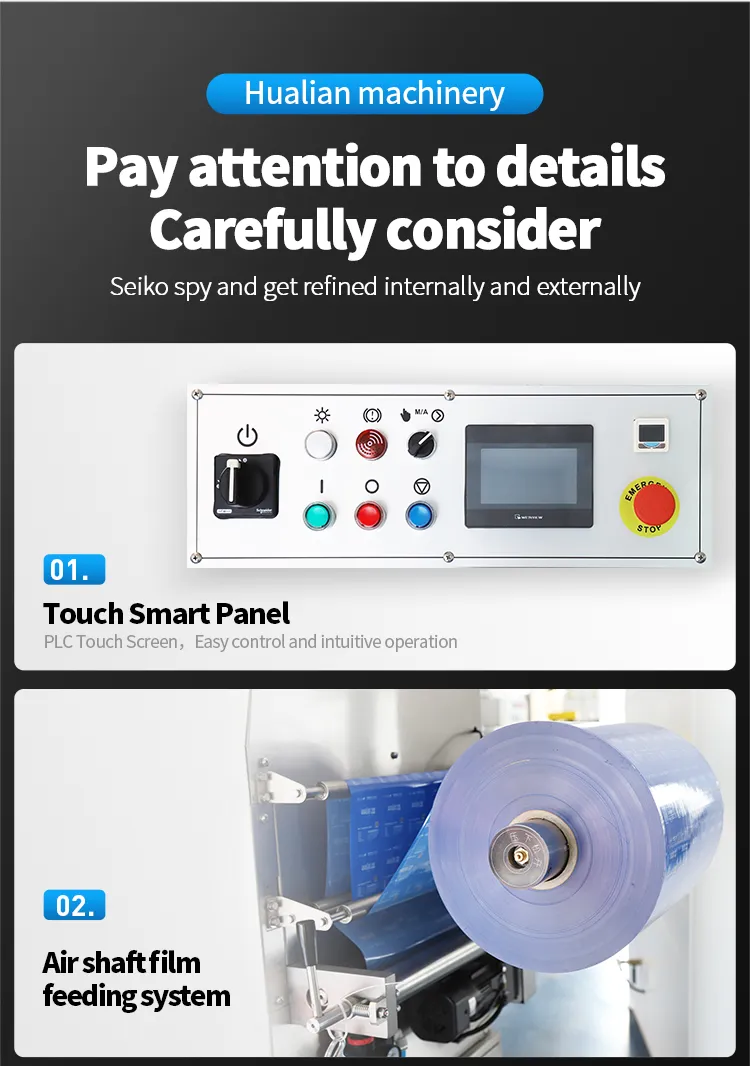

  • Adopt electricity, gas & mechanism control. The user interface is realized with the touch screen against programmable logic controller (PLC), featuring adjustable process parameters, easy & reliable control and low error rate.

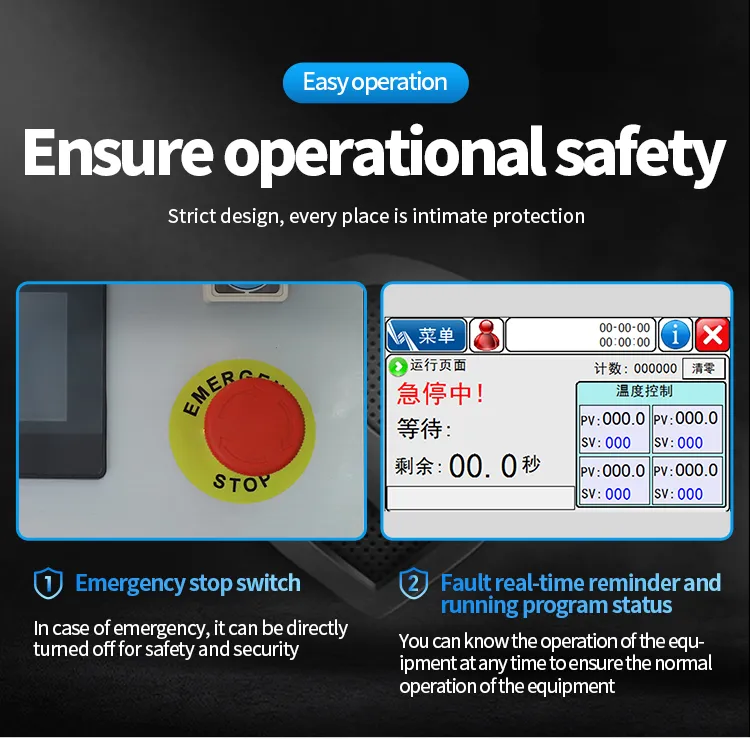

  • With real-time display function for process states & errors, user can follow up the process states to ensure normal operation.
  • Being designed with emergency stop switch, the running machine can be stopped urgently for the human & machine security when abnormal situation occurs.
  • HVT series Semi-automatic Tray Vacuum Gas-flushing Packaging Machine for tray in special size can be customized.
Application:
  • HVT series Semiautomatic Tray Vacuum Gas-flushing Packaging machine, apply to automatic film-sealing of the tray made of PP, PE material.
  • The vacuum gas-flushing packed tray (the products height must not exceed the tray height) can prolong the products shelf life while keeping the products to be fresh and preventing the products from moisture & mold, like the variety of fresh products, fast-food & lunch food in the supermarkets.
Suitable Tray & Film Material:
  • Tray material: PP, PE, PET
  • Film material: PET/CPP, PET/PE, OPP/CPP, EVOH, aluminum foil & other applicable compound film.
Parameter
Specifications HVT-450M/2 HVT-450F/2
Voltage (V/Hz) 380V/50HZ
Sealing Power (W) 2
Power (W) 3.68
Ultimate vacuum pressure (KPa) 1
Flushing gas N2 or N2+CO2
Pump capacity (m³/h) 63
Capacity (times/min) 6~7 (for only sealing);
2~3 (for vacuum, gas-flushing and sealing)
Cooling type Air cooling
External dimensions(L×W×H) (mm) 1360×840×1475 1300×940×1800
Net Weight (kg) 650 750
Product Gallery
Why Choose Us
  • Top Export Brand
  • Top 100 enterprises in packaging industry
  • Top 30 enterprises in packaging machinery industry
Quality Control:
  • Each machine is delivered with an Eligible Certification inside the package.
  • Shipping department inspects each item before packing to completely avoid manufacturing defects.
  • Main products have attained European CE certification.
Research And Development:
  • Obtained 39 national patents, including 2 invention patents.
  • Drafted national standard and industry standard for packaging machinery.
Global Marketing:
  • Over 200 agent network all over the world.
  • Products are exported to more than 100 countries globally.
FAQ
Are you a factory or a trading company?
We are a factory manufacturing packaging & printing machines and we provide perfect OEM and after-sale service. We export machines to over 108 countries since 1995.
Can you send me the video to show how the machine works?
Certainly, we have video of every standard machine and can send to you by Email or other way you want.
How can I pay my order?
We accept T/T, Western Union, and Online Payment.
Do you have any certificate?
We have passed ISO9001:2008, ISO14001, OHSAS18001 and obtained CE certificate and BSCI certificate from UL.
How about your warranty?
Our warranty is 12 months. The general after-sale service includes: 1) Permanent technical support. 2) Paid spare parts provided at any time. 3) Dealers in selected countries to offer local service.
Why does the model name of your machine look similar to other companies?
Since these machines have a long history and are very popular in the market, it is possible that some machine models are similar to others. The model itself does not make a big difference; the primary criteria depend on the technical support and quality of the machine.
