Customization: Available
After-sales Service: Provide
Warranty: 1 Year
Send Inquiry

Product Description

Basic Information
Model NO.
ZHJ-300
Automatic Grade
Automatic
Application
Cosmetics, Drinks, Skin Care, Dairy, Oil, Tea, Snack
Type
Filling and Sealing Machine
Forming Species
Cartoner
Forming Function
Forming, Filling, Seal
Driven Type
Pneumatic
Material Type
Solid
Packaging
Cartons
Packaging Material
Paper
Transport Package
Wooden Carton
Specification
2000x800x1800mm
Origin
China
HS Code
8422303090
Product Description
Cartoning Machine

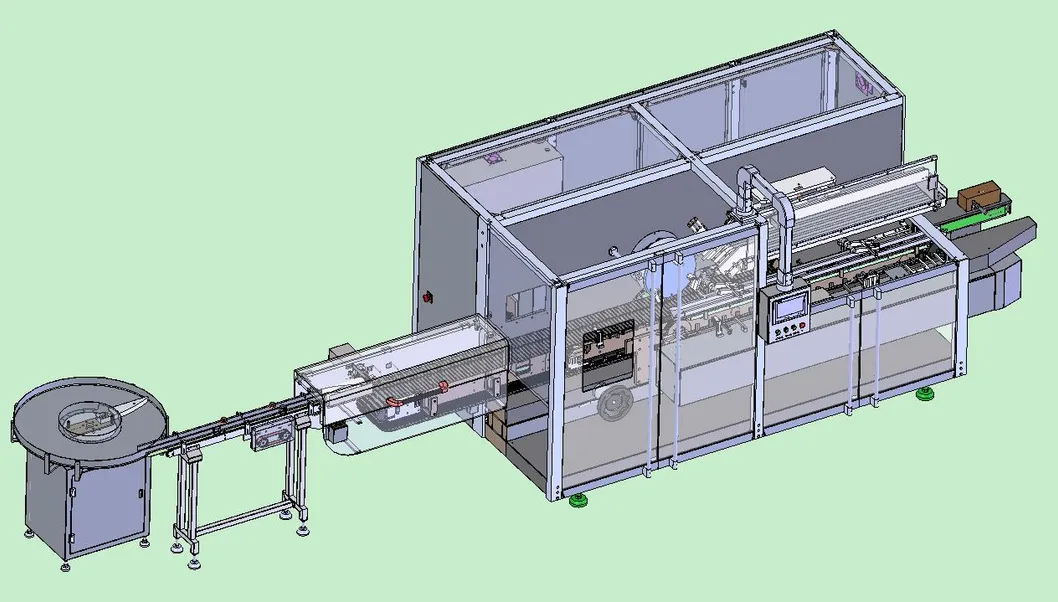

Cartoning Machine Detail

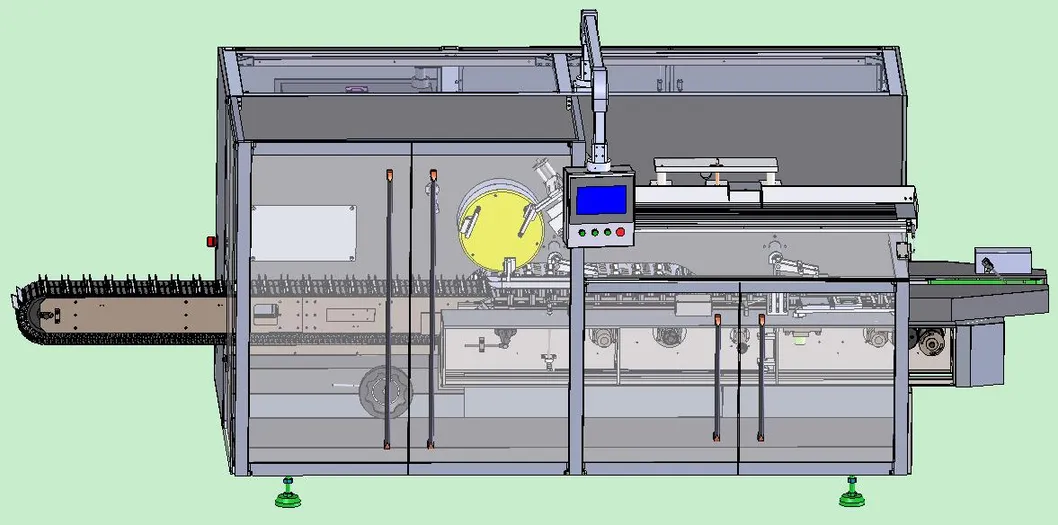

Cartoning Machine Overview

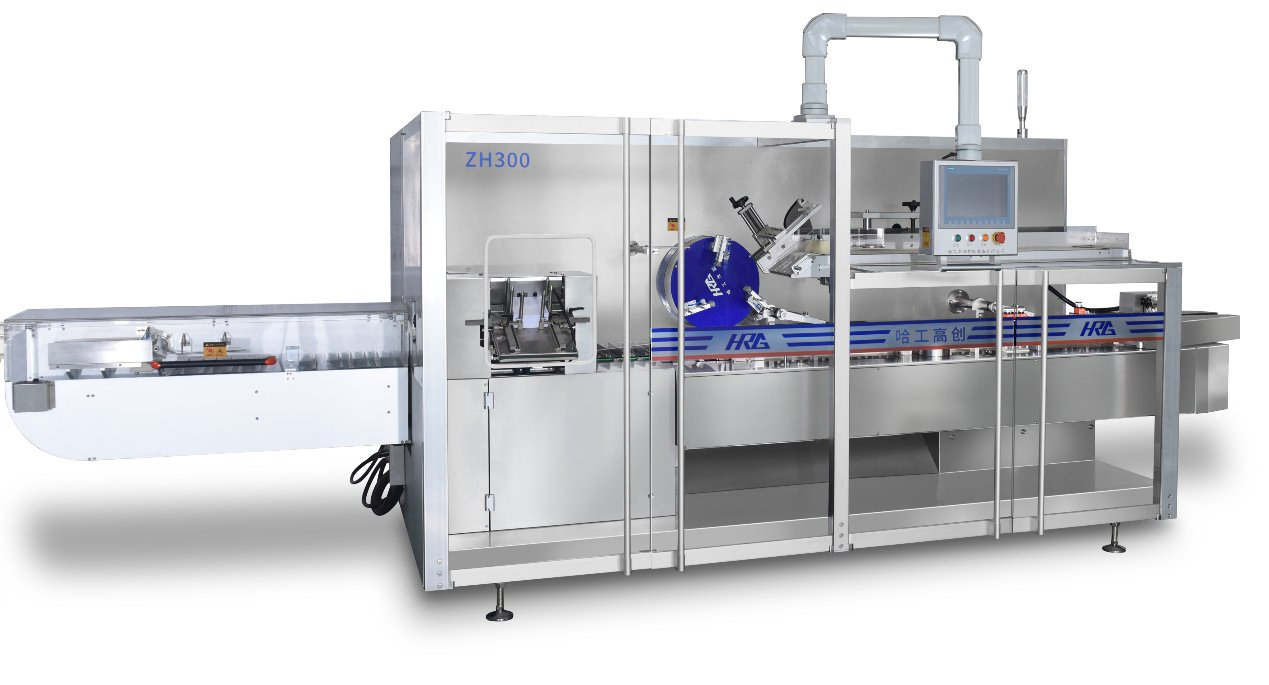

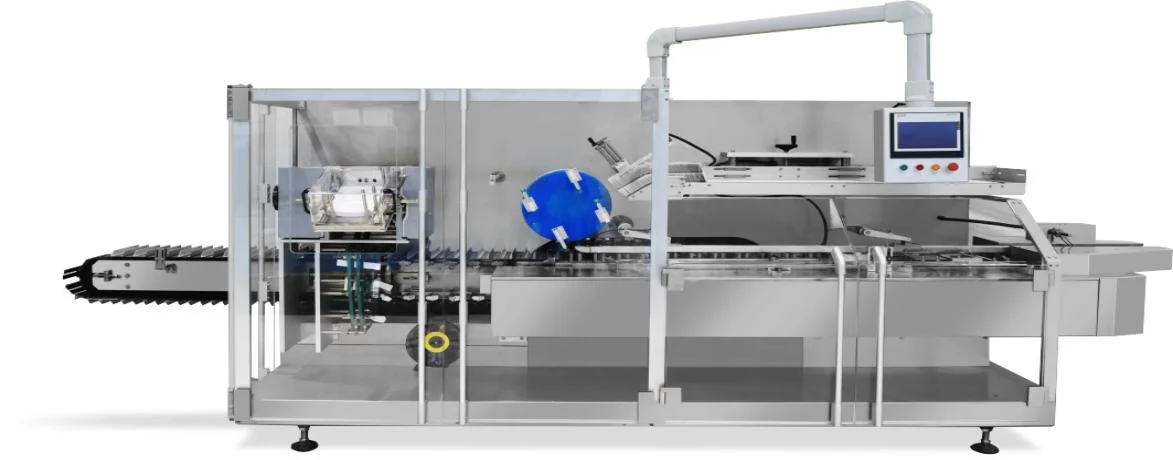

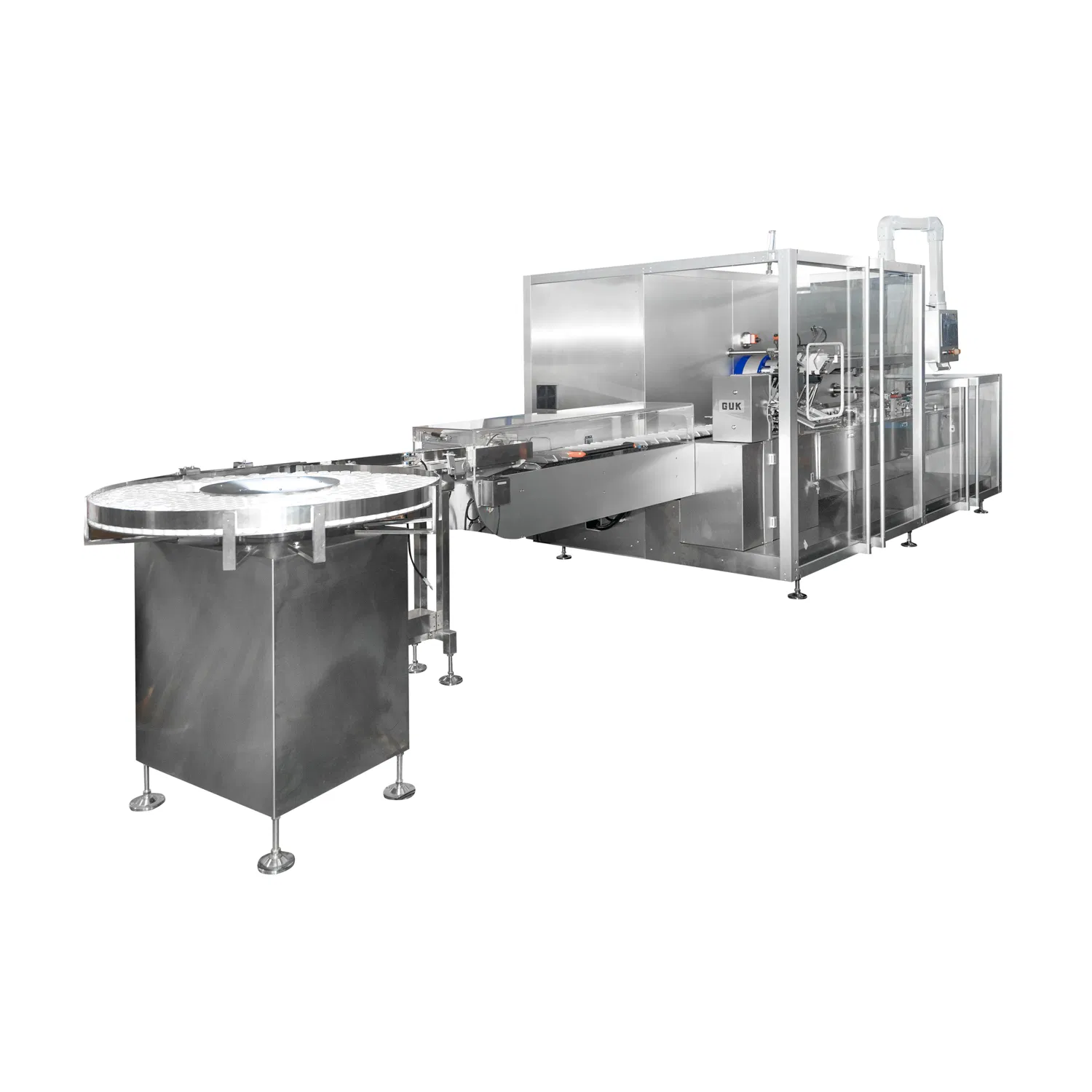

The ZHJ-300 fully automatic continuous-type cartoning machine is a high-tech product integrating mechanics, electronics, pneumatics, and optics. It is designed for automatic feeding and cartoning of blisters, bottles, ointments, and various other products.

The system automatically completes processes including inline product conveying and inspection, carton fetching, forming, product insertion, batch number embossing, sealing (tuck-in or hot melt glue), rejection of incomplete cartons, and final product discharge.

This machine can be seamlessly integrated with ALU/PVC blistering machines, flow packers, bottle fillers, shrink wrappers, and case loaders for mass production.

Key Characteristics
  • ⚙️
    Advanced Design: Incorporates international concepts to ensure process rationality and high stability.
  • 🏗️
    Durable Construction: Base frame welded with carbon steel, aged naturally for up to a year to eliminate internal stress and ensure precision.
  • 🎯
    High Precision: Key components processed via CNC machine tools and machining centers.
  • 💎
    Premium Components: Utilizes world-top brands for electrical parts to ensure high-speed operational stability.
  • 📱
    Intuitive HMI: Siemens touch screen displays parameters and faults for fast, accurate troubleshooting.
  • 🛡️
    Safety First: Includes leakage protection, door cover sensors, and low-voltage controls to protect operators and components.
  • ⚠️
    Overload Protection: Automatic stop systems for the conveyor, leaflet mechanism, and pusher in case of jamming.
  • 📉
    Material Efficiency: "Product-first" principle ensures no leaflet or carton is fed if no product is detected.
  • 🔄
    Smooth Handling: Continuous pusher mechanism ensures products enter cartons safely without damage.
  • 🔧
    Quick Changeover: Adjustments for different product sizes within range are simple and often tool-free.
Technical Mechanisms

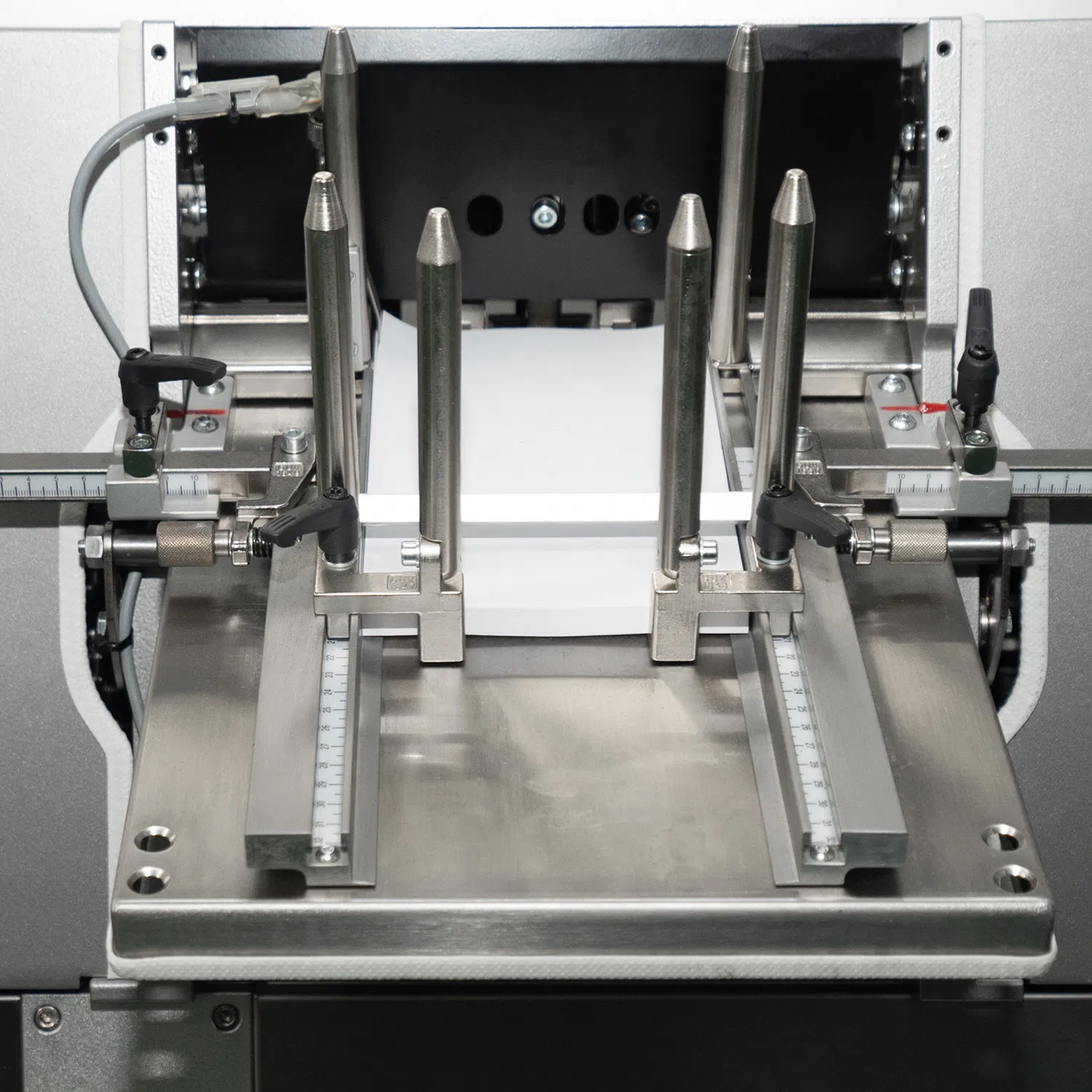

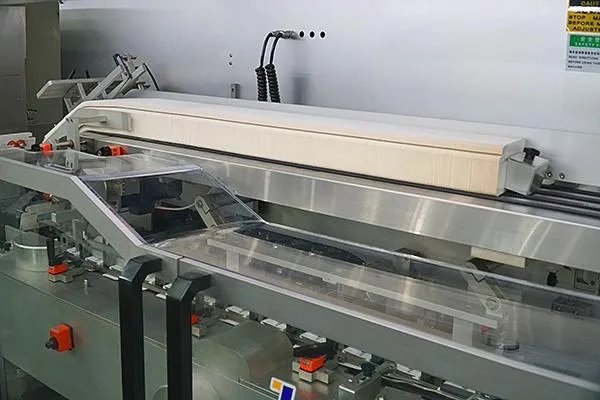

Carton Magazine: Accommodates up to 1,000 cartons with a shortage alarm. Features a lifting mechanism for easy maintenance.
Carton Magazine

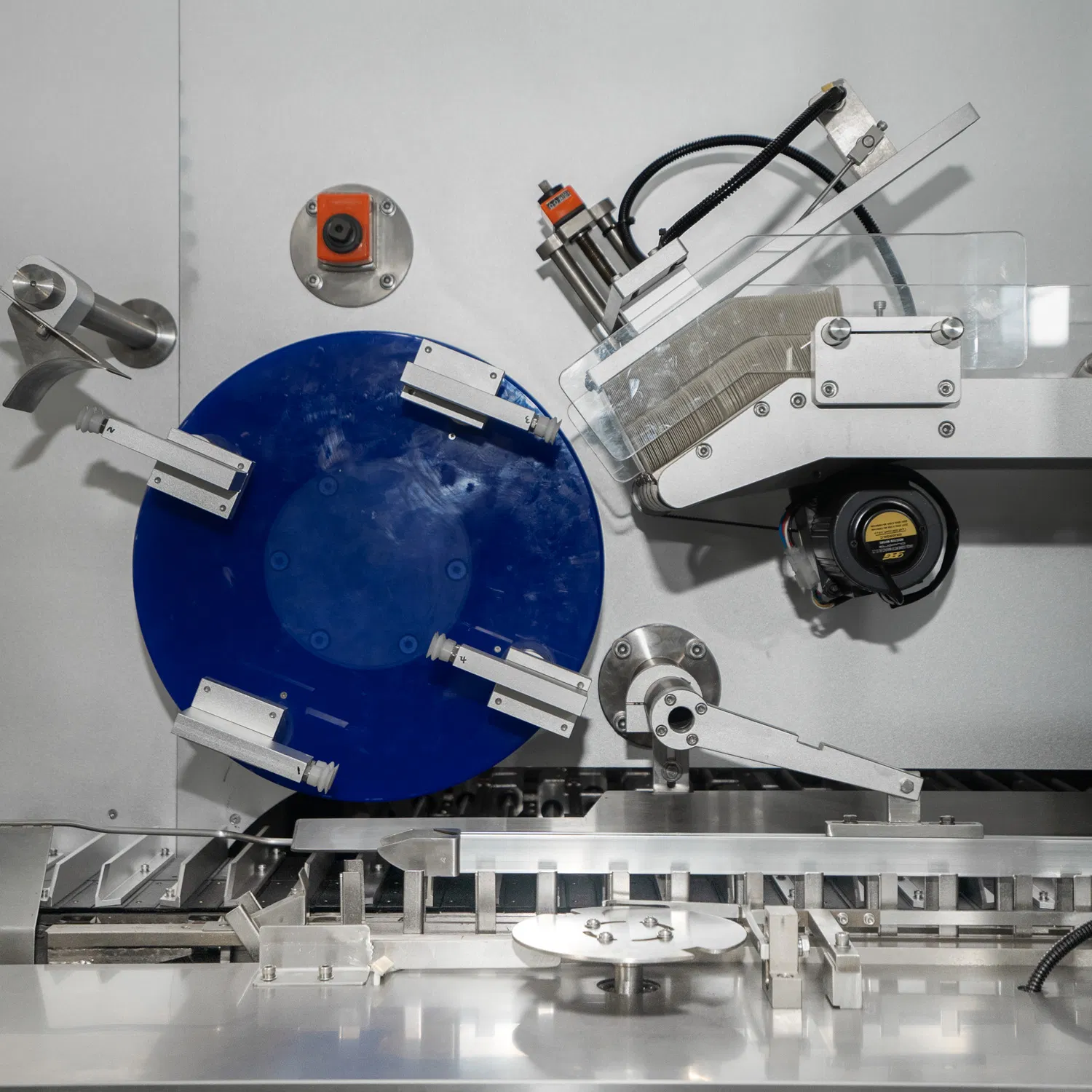

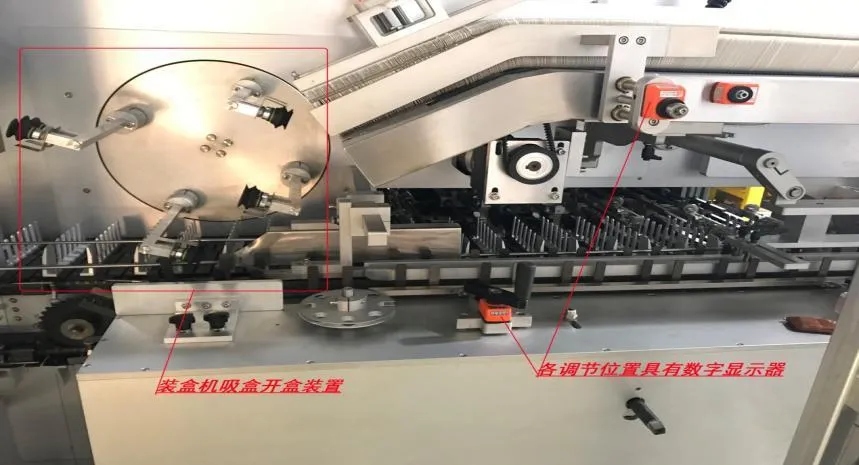

Suction Plate & Pushing Mechanism: Consists of 21 pairs of rods. Each pair independently handles products and leaflets, ensuring the leaflet enters the carton first. Includes an overload protection system.
Suction Plate

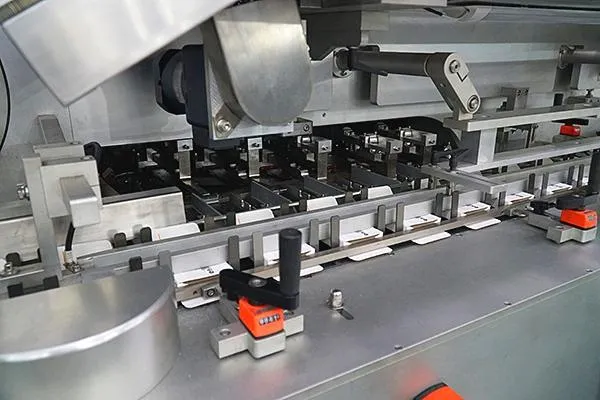

Pushing Mechanism

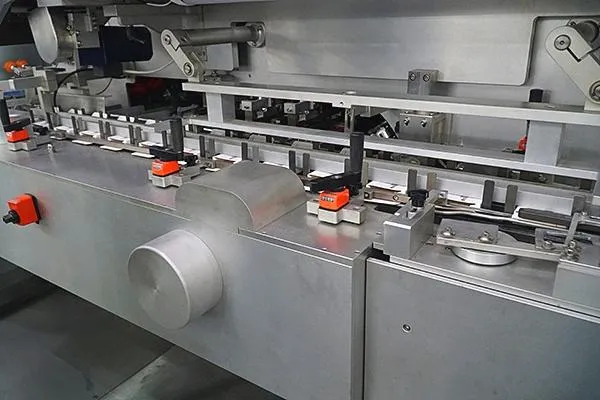

Adjustment Interface: Handwheel and digital display for tool-free format changeover.
Handwheel Adjustment
Technical Parameters
Cartoning Speed150 ~ 300 cartons/minute
Carton Size RangeMax: 210x135x65mm | Min: 70x20x18mm
Leaflet Specs65~75g/m²
Main Motor Power2.2KW
Machine Power4KW
Machine Dimensions4810x1800x1762mm
Machine Weight2500kg
Power Supply380V/50Hz
Working Pressure0.6 ~ 0.8MPa
Air Consumption260L/min
Noise Level≤75dB
Packaging Samples
Packages
Certifications
Certificates
Exhibition & Industry Presence
Exhibition 1
Exhibition 2
Partners
Service & Quality Guarantee

Preventative Maintenance: We provide comprehensive options to address equipment issues before they arise. All machines come with a one-year warranty and life-long maintenance support.

Installation & Training: Technical know-how for smooth transitions, including debugging, operation support, and user training, is available with every purchase.

Customization: Machines can be tailored to specific requirements, utilizing Omron PLC controls and advanced technology for high accuracy and simple operation.

Frequently Asked Questions
Are you a manufacturer?
Yes, we are a professional factory with over 10 years of experience in the food, medical, and cosmetic industries, providing both OEM and branded machine solutions.
What is the lead time for machine delivery?
Standard machines are typically ready for shipment within 3 months after the order is confirmed.
What are the preferred payment terms?
Our standard terms are T/T, requiring a 30% deposit with the balance due before shipment.
Why should we choose your automatic cartoning machines?
We have over a decade of specialization and have established long-term relationships with global multinationals in the pharmaceutical and FMCG sectors.
Do you provide overseas after-sales service?
Yes, we have experienced engineers available for overseas service, installation, and technical support.
Can we visit the factory for inspection and training?
Absolutely. We welcome customers to visit our facility to inspect their machines and receive comprehensive operational training.
