Overview
Basic Info.
Model NO.
DH-T-1-1-2-3-0-0
Application
Waste Paper, Steel Pipe, Steel Coil, Household Chemicals, Medical, Oil, Hair Care Products, Cosmetics, Skin Care Products, Carbonated Drinks, Milk, Yogurt, Pure Water, Alcoholic Beverages, Fruit Drinks
Automatic Grade
Automatic
Strapping Mode
Welding Type
Structure
Pressure Strapping
Product Name
Bottom-Moving Packing Machine
Keywords
Bottom-Moving Packing Machine
Specification/Model
Dh-T-4-1-2-3-0-0
Machine Dimension
3115×3680×3760mm(L*W*H)
Power/Supply
380V/50Hz/4.1kw
Packing Range(L*W*H)
Suitable for Pallets 1200*1200, 1000*1000
Maximum Tensioning Force
50~3500n (Adjustable)
Pet Strap Specification
Conventional 1608/1206/Customizable
Welding Strength
Reach The Base Metal>90%
Paper Core Specification
406mm
Pneumatic Pressure Requirement
0.6~0.8MP
Air Consumption
0.62m³/Min
Pneumatic Components Brand
Airtac
Transport Package
Standard Shipping Packaging or Customized
Specification
Standard Specifications Or Customized
Production Capacity
50000pieces/Year
Packaging & Delivery
Package Size
200.00cm * 100.00cm * 180.00cm
Package Gross Weight
800.000kg
Product Description

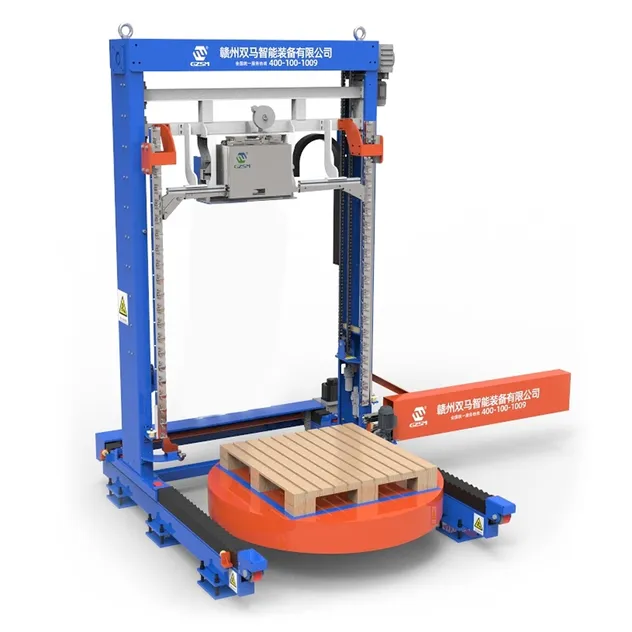

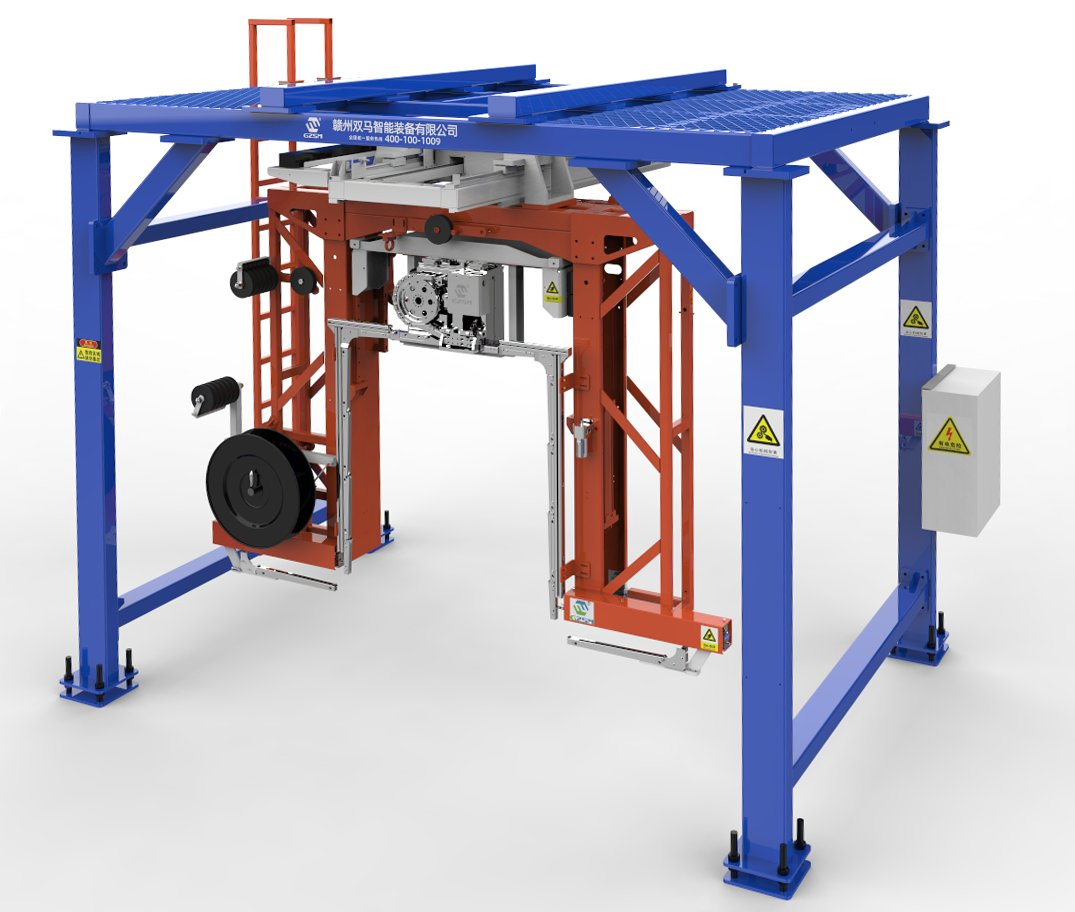

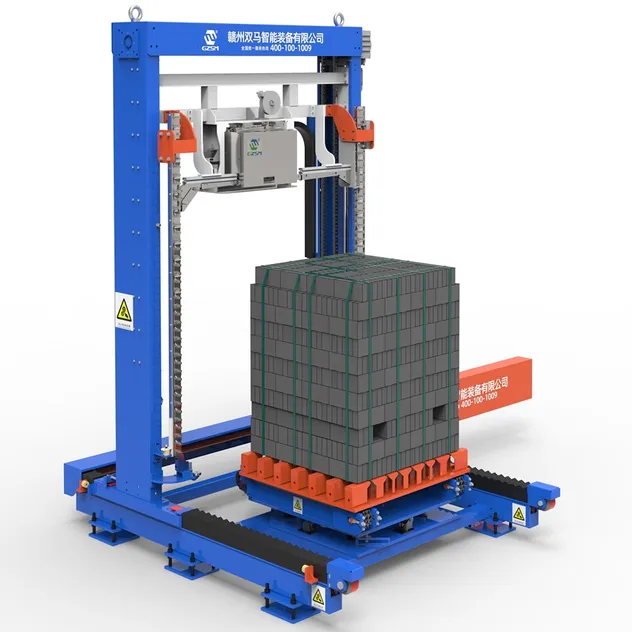

BOTTOM-MOVING PACKING MACHINE
The Bottom-Moving Packing Machine is an advanced automated solution designed for stable, high-capacity product packaging. Its unique bottom-lifting mechanism ensures secure handling of heavy, irregular, or fragile loads—perfect for beverage, construction materials, and industrial goods.
Heavy-Duty Stability
Reinforced base plate lifts from below (not side-push), preventing toppling or misalignment.
Wide Load Compatibility
Adjustable arms handle pallets, crates, and drums (up to 2,000 lbs) with gentle precision.
Space-Optimized Design
Compact footprint fits crowded warehouses without sacrificing speed (60+ cycles/hour).
Low Maintenance
Greaseless rollers & rust-proof materials reduce downtime.
Keywords
bottom shift packing machine, heavy load packaging, pallet packing system, automated bottom lift, industrial packing equipment, stable product handling, drum packaging machine, warehouse automation.

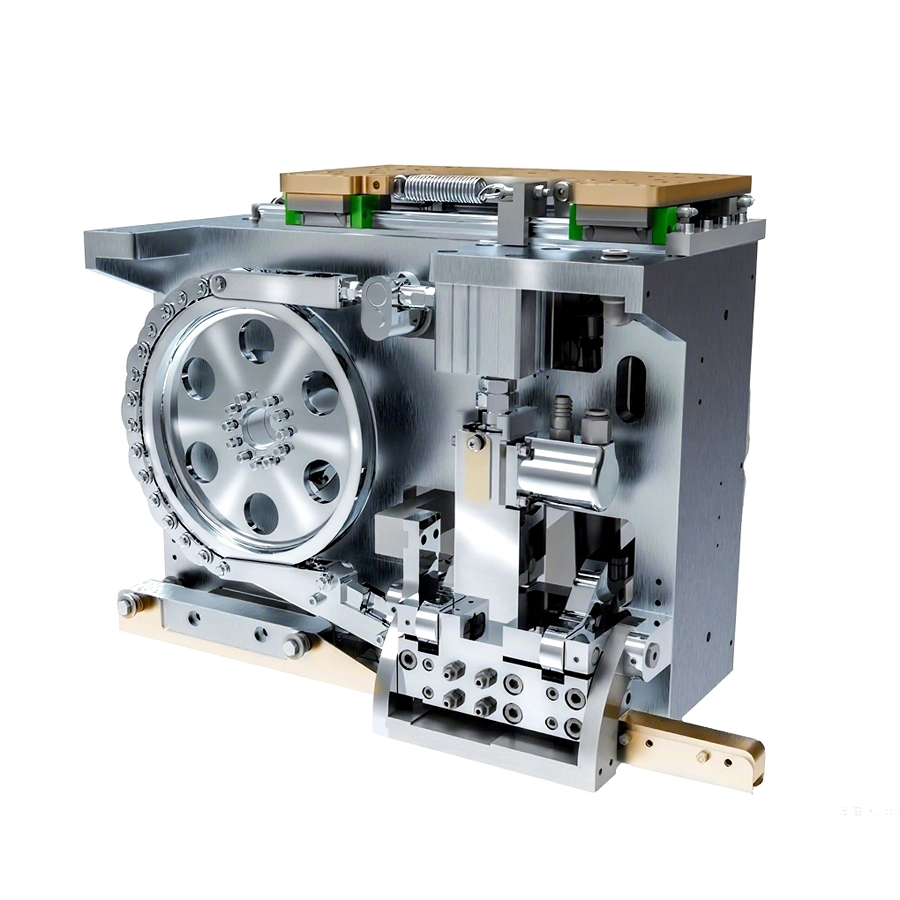

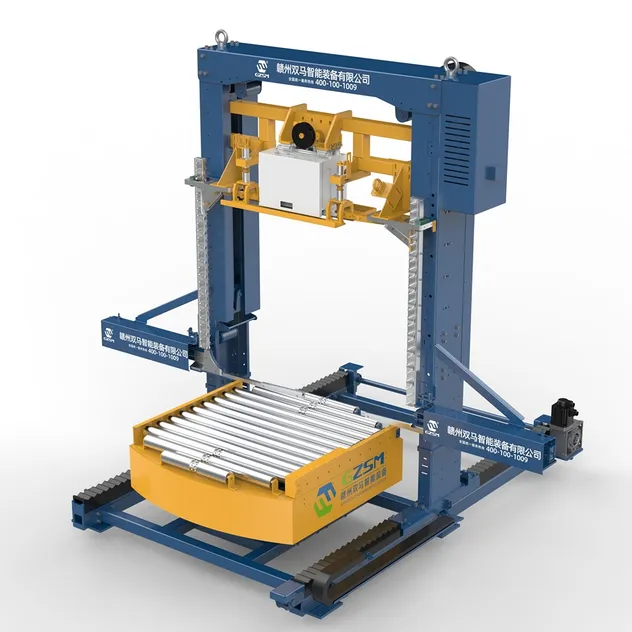

STRAPPING MACHINE HEAD WITH NEW DESIGN CONCEPT
We adopt a brand new design concept for the Strapping head, which has a simple and reasonable structure and convenient and fast maintenance. Compared with other Strapping on the market, we have abandoned complex gear and cam structures and replaced cams directly with servo motor control and cylinders, which can accurately control the tension force and make the operation more convenient without the need for professional technical personnel to operate. Efficiently complete the Strapping and packaging tasks, improve production efficiency, reduce equipment failure rates, and save maintenance costs.
Eliminates Load Instability
Patented bottom-lift technology securely handles heavy/irregular loads (up to 2,000 lbs) without toppling, solving product damage issues in traditional side-push systems.
Saves 30% Floor Space
Compact vertical operation requires no extra conveyor space, ideal for crowded warehouses.
Zero Downtime Design
Greaseless, corrosion-resistant components cut maintenance by 50% vs. conventional packers.
Specification
| BOTTOM-MOVING PACKING MACHINE SPECIFICATIONS |
| Specification/Model |
DH-T-4-1-2-3-0-0 |
| Machine Dimension |
3115×3680×3760mm(L*W*H) |
| Power/Supply |
380V/50HZ/4.1KW |
| Packing Range(L*W*H) |
Suitable For Pallets 1200*1200, 1000*1000
Cargo Height 350~1800, Other Sizes Can Be Customized. |
| Packing Cycle |
12S/PCS |
| Maximum Tensioning Force |
50~3500N (Adjustable) |
| PET Strap Specification |
Conventional 1608, 1206, Customizable |
| Welding Strength |
Reach The Base Metal>90%↑. |
| Welding Method |
Pneumatic High-Frequency Friction (Electric High-Frequency Friction) (Optional) |
| Paper Core Specification |
406mm |
| Pneumatic Pressure Requirement |
0.6-0.8MP |
| Consumption Of Gas |
0.62m³/Min |
| Appearance Spray Color |
Fixed Piece Gem Blue; Moving Piece Rapeseed Yellow |
| Device Net Weight |
2350Kg |
| Main Electrical Brands |
Siemens, Schneider, Genius, Omron, Inovance, Subject To Actual Delivery. |
| Pneumatic Components Brand |
AirTAC |

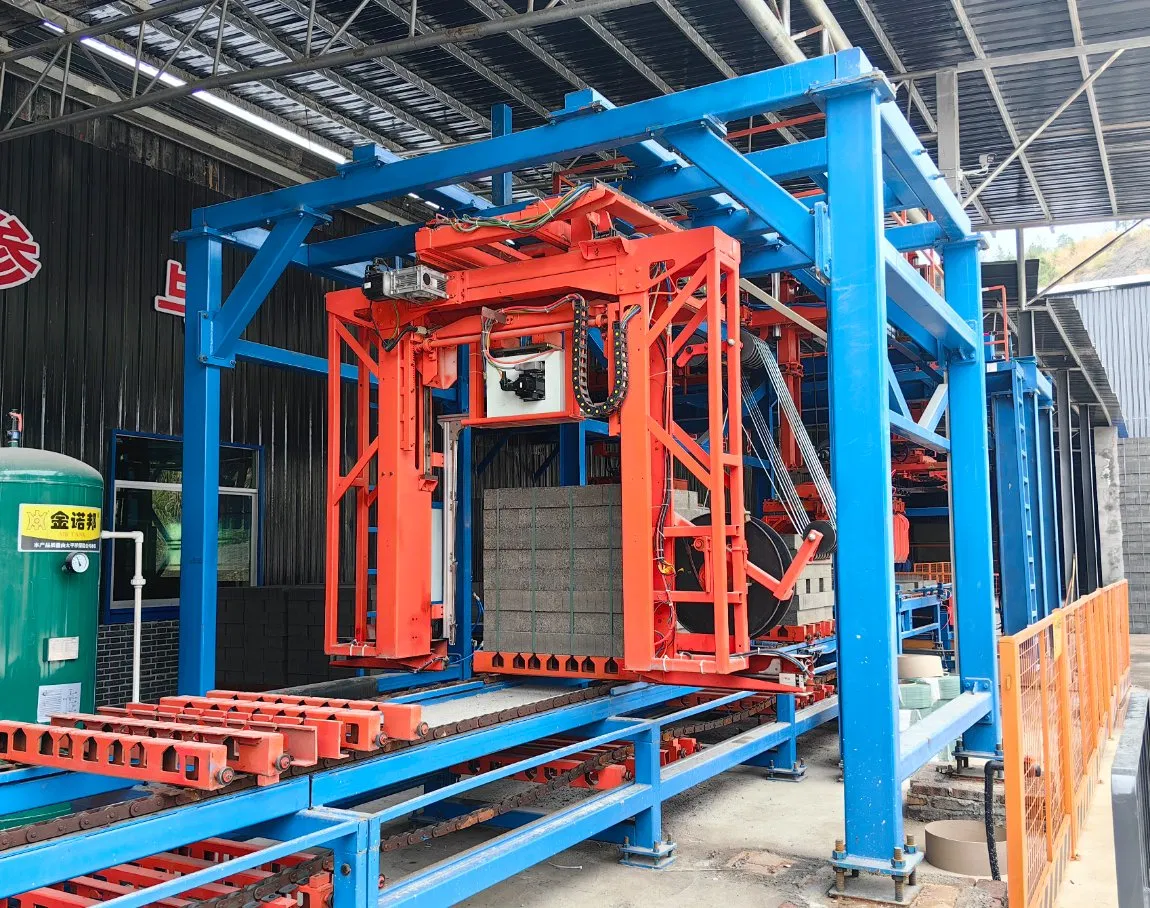

Detailed Photos

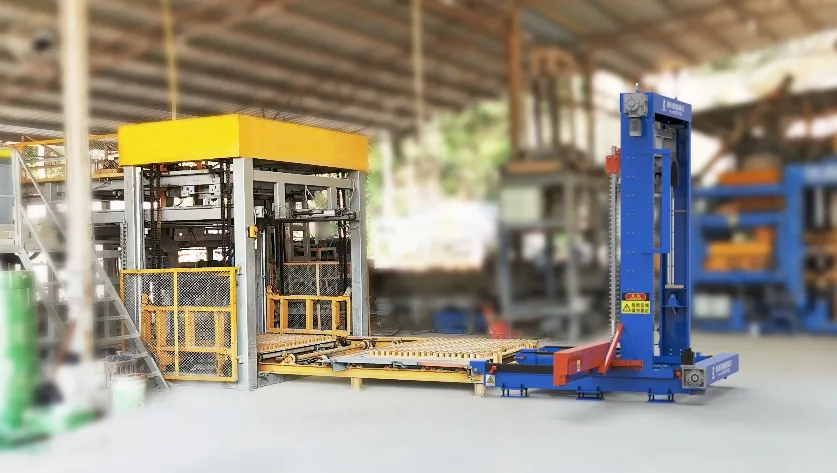

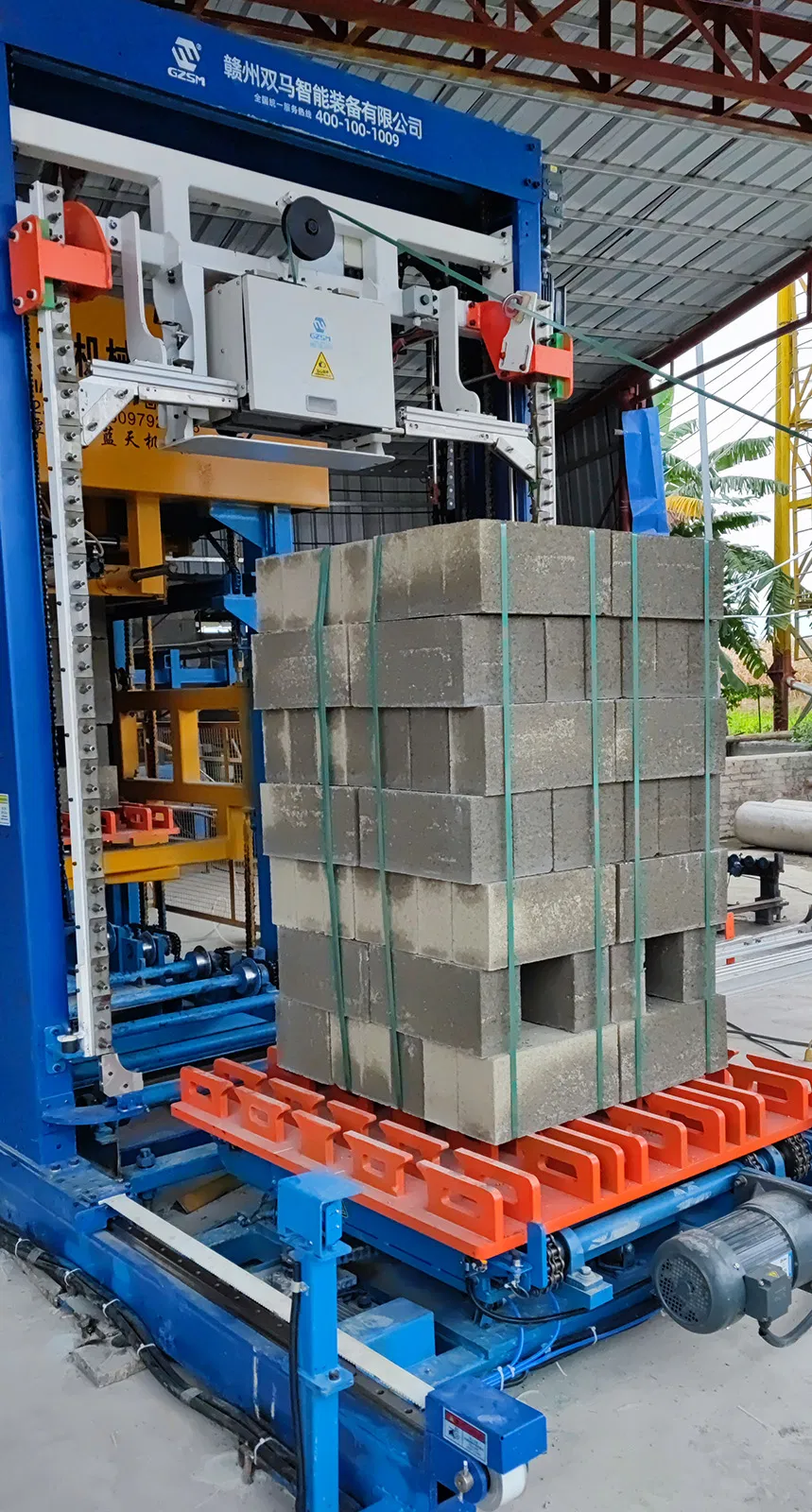

PATENTED BOTTOM-LIFT TECHNOLOGY
Uniquely lifts loads from beneath to prevent toppling, ensuring 100% stability for fragile/heavy items (up to 2,500kg).
70+ CYCLES/HOUR EFFICIENCY
High-speed automation with precision control, doubling output vs manual packing while reducing labor costs.
UNIVERSAL LOAD COMPATIBILITY
Adjustable arms and smart sensors handle pallets, crates, drums, and irregular shapes seamlessly.
SPACE-SMART VERTICAL DESIGN
Compact footprint saves 40% floor space vs traditional side-pushers, ideal for tight warehouses.
SELF-MAINTAINING SYSTEM
Dust-proof & lubrication-free components ensure 24/7 operation with near-zero downtime.

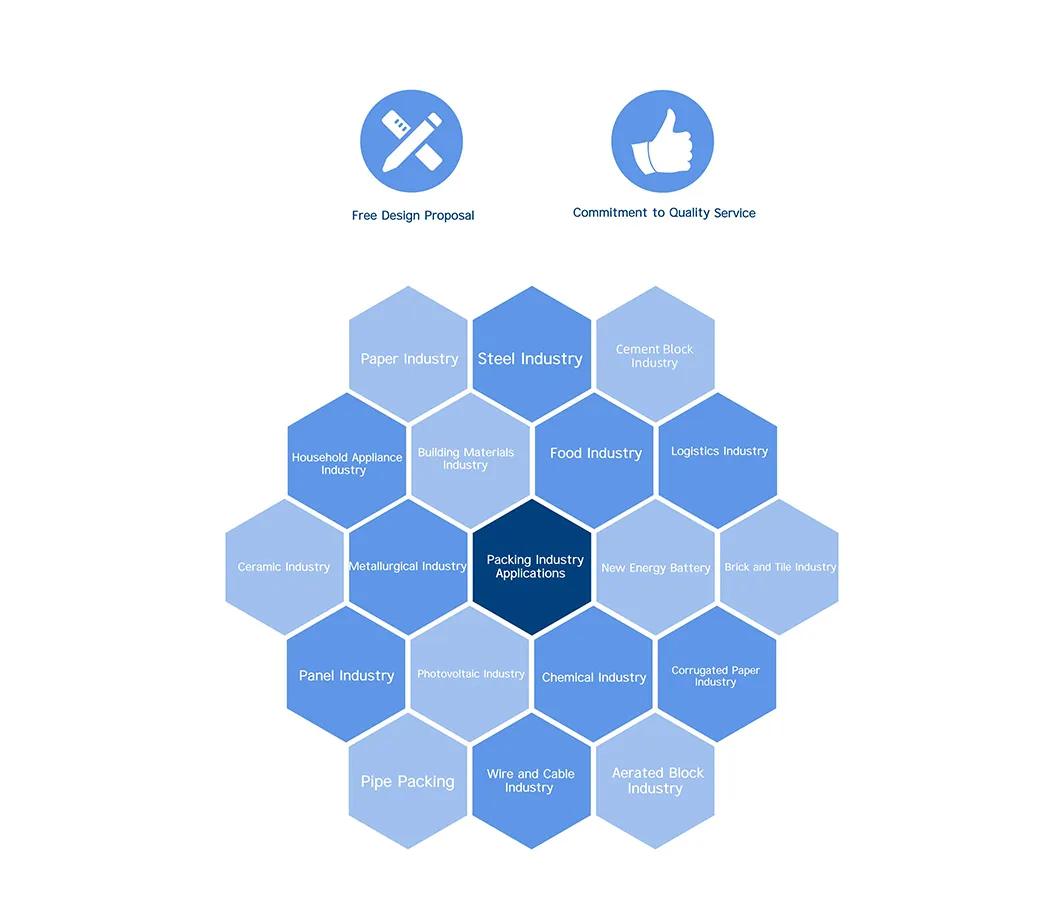

Applicable Industries

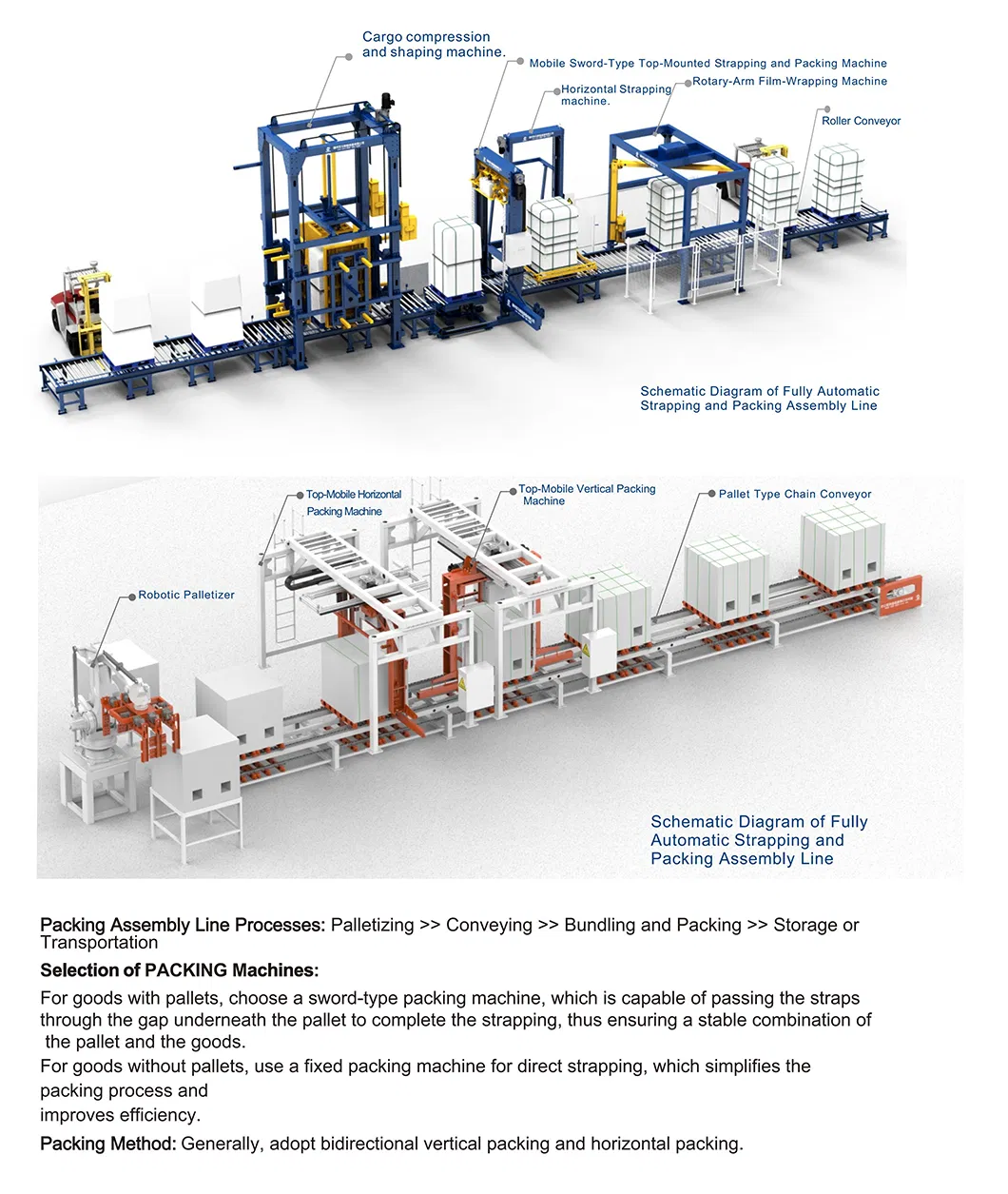

Intelligent Packaging Integrated Solutions
FAQ
Q1: Are you a factory or a trader?
A: We are a manufacturer integrating industry and trade.
Q2: Can I add my LOGO to the product?
A: We support on-demand customization, including LOGO customization, color customization, appearance size customization, etc.
Q3: What payment methods do you support?
A: We support T/T, Western Union, Paypal, cash, etc. The details can be negotiated.
Q4: What are your modes of transportation?
A: We usually choose the appropriate mode of transportation (sea, air, land) according to the conditions of the goods, or we can choose the mode of transportation according to your requirements.
Q5: How can I get an accurate quotation?
A: You can first send your specific demand information and product pictures, and we will customize a solution for you according to your needs and inform you of the specific price.
Q6: What is the lead time for standard machine configurations?
A: Typically, the lead time is 15 to 30 working days after order confirmation and deposit receipt, depending on customization requirements.
