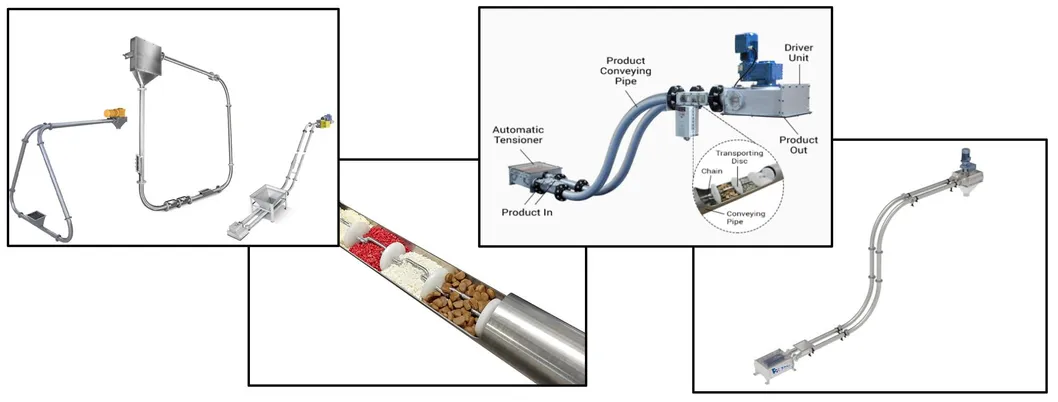

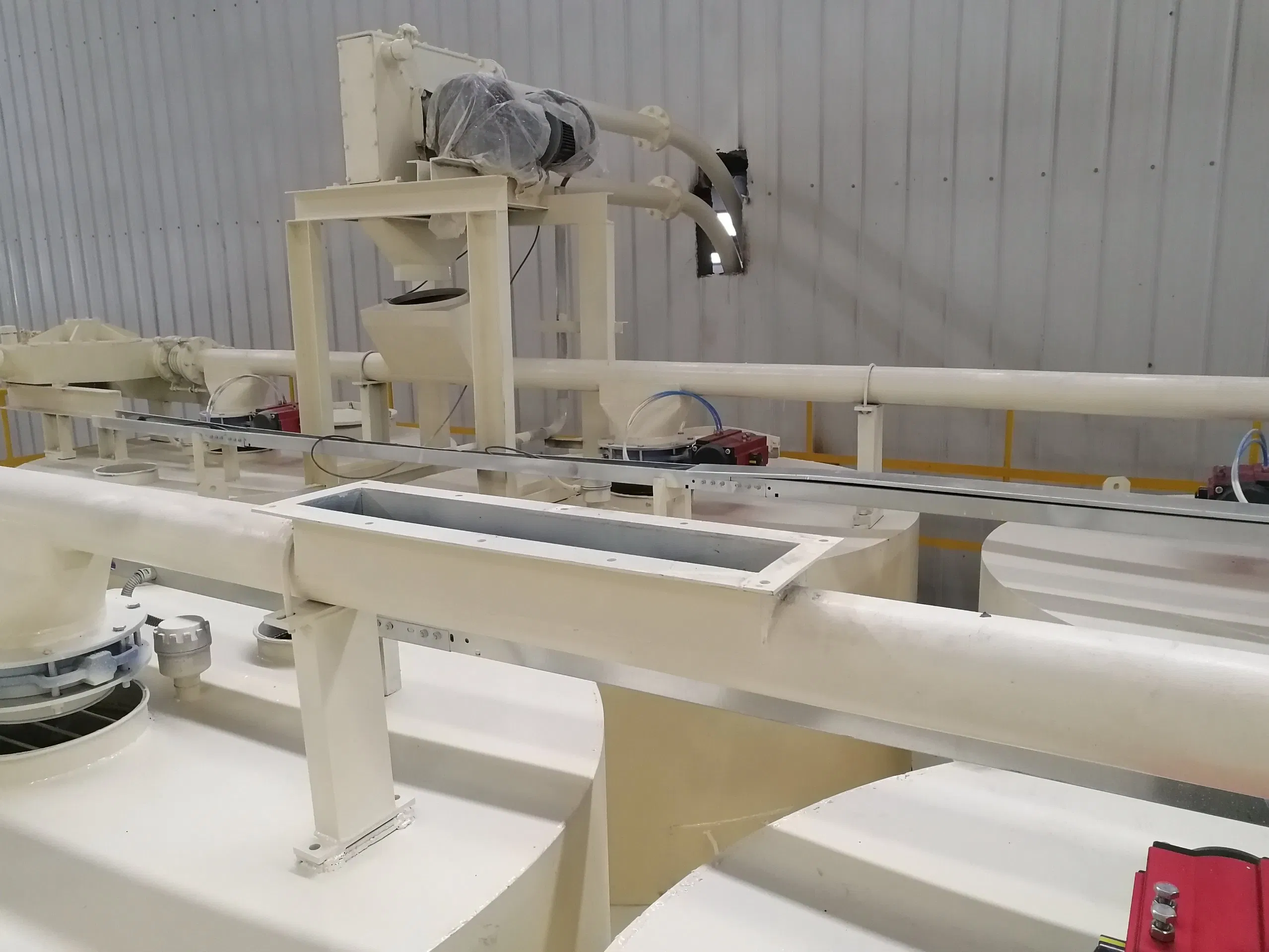

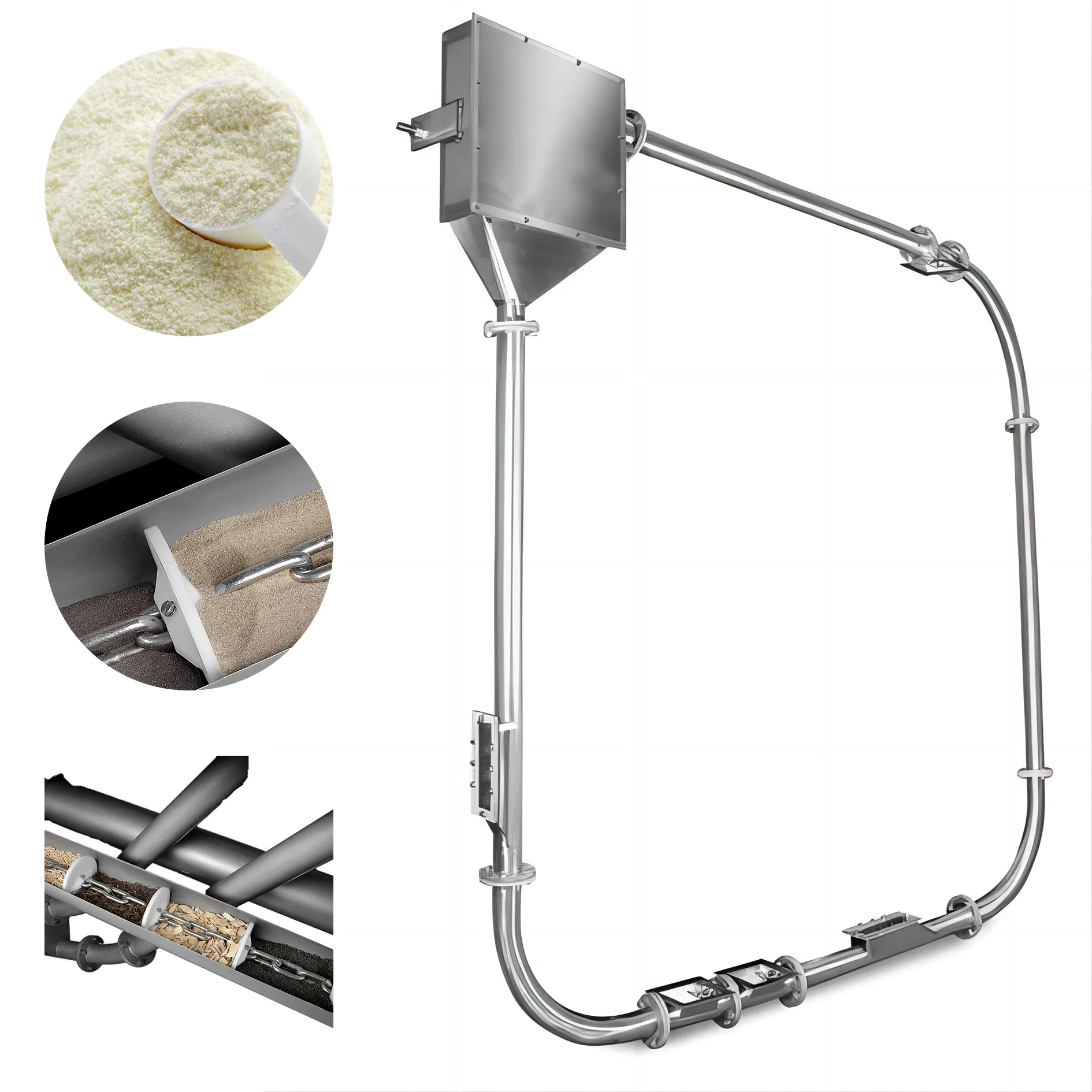

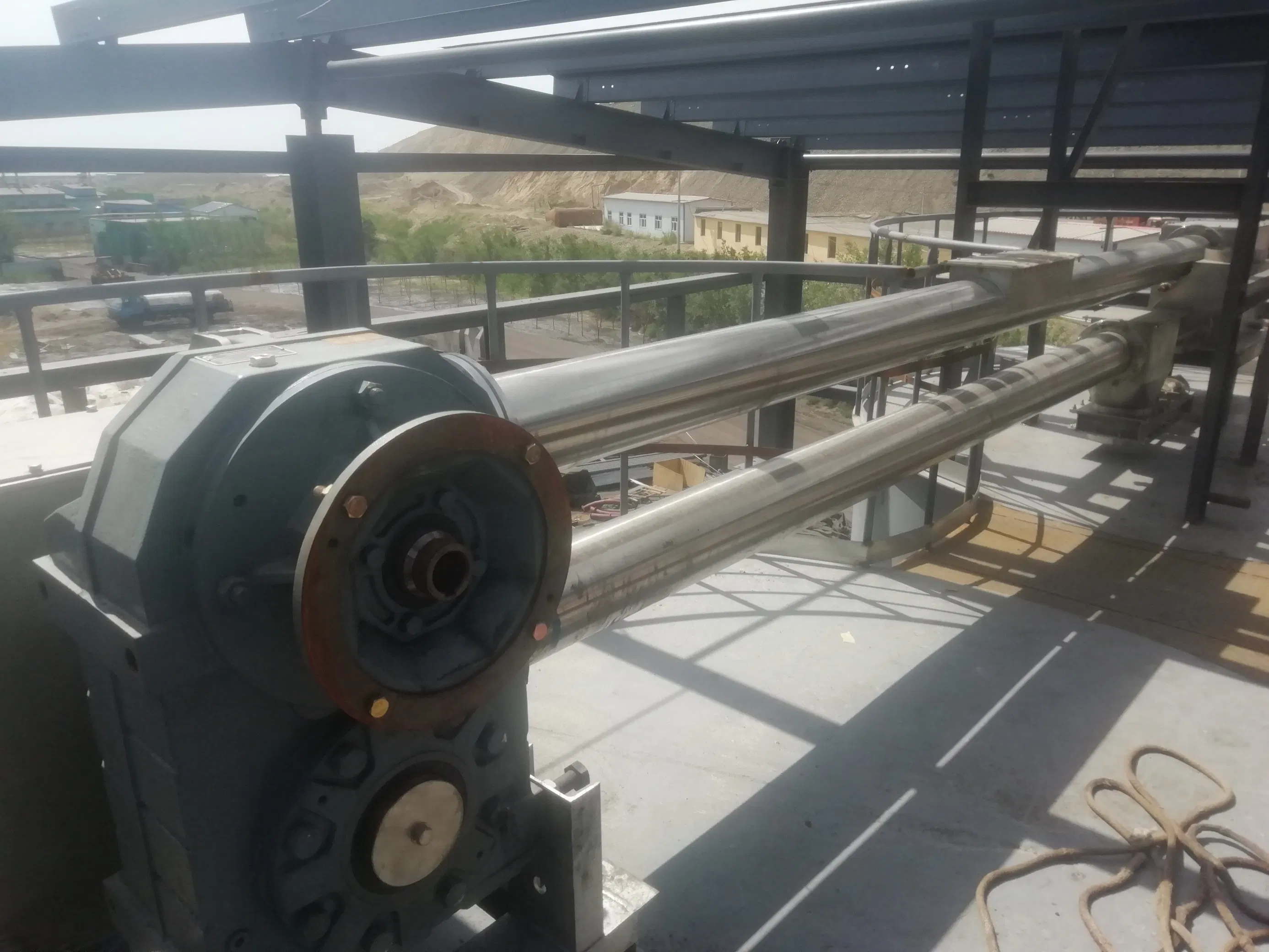

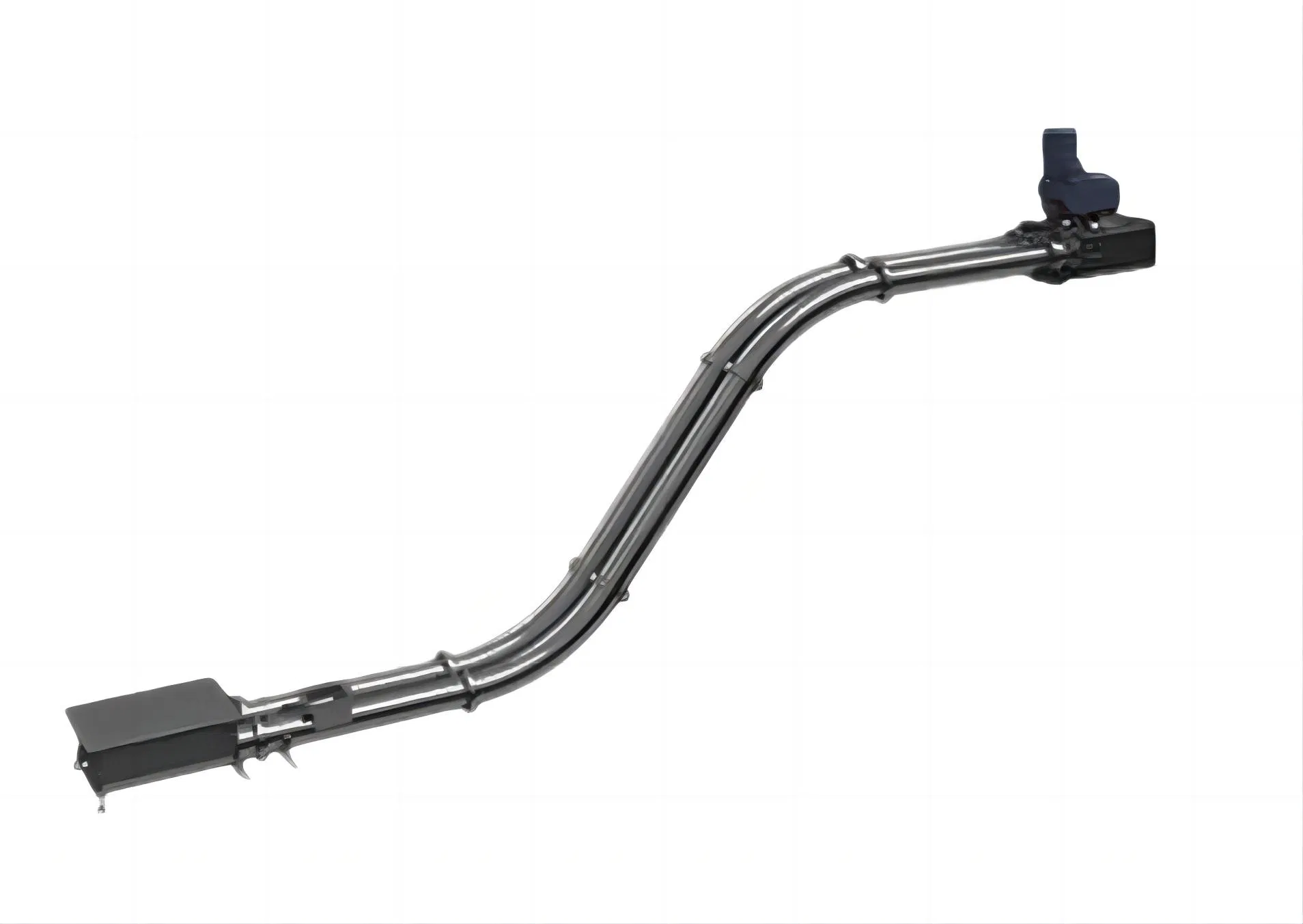

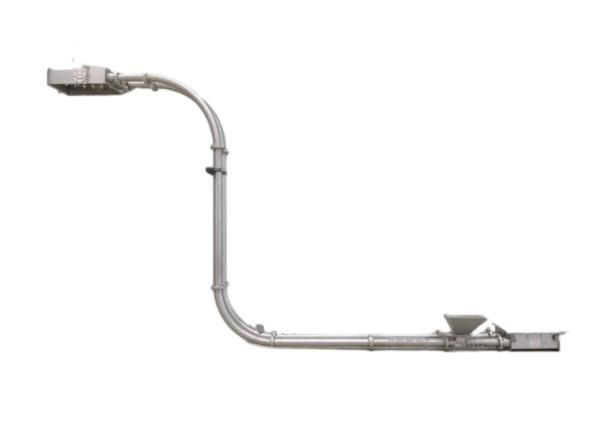

The Chain Conveyor is a revolutionary continuous conveying system, expertly designed to transport granular, small particle, and small block materials with remarkable efficiency. It excels in horizontal, inclined, and vertical transportation, using chains as universal joints to enable seamless directional changes during movement. This ensures unparalleled layout flexibility. Perfect for industries such as fine chemicals, pesticides, ores, construction materials, and the food industry.
Fully enclosed design ensures zero dust or odor leakage, reducing noise pollution for a cleaner environment.
Utilizing inert gas protection for safe transport of flammable and explosive materials.
Supports numerous inlet and outlet points and three-dimensional spatial routing.
Maintains high integrity for both powders and granules regardless of moisture content.
Conveying Distance: Single-way horizontal distances up to 60 meters and vertical heights up to 40 meters.
| Model | Motor Power (kW) | Linear Velocity (m/s) | Speed (r/min) | Capacity (m³/h) | Max Torque (N·m) | Max Tensile (N) | Remark |
|---|---|---|---|---|---|---|---|
| PC-80 | 4.0 | 0.30 | 20.7 | 3.9 | 1810 | 1300 | Tensile force up to 1.5 tons |
| 0.40 | 24.9 | 4.7 | 1504 | 1090 | |||
| PC-100 | 5.5 | 0.30 | 17.5 | 6.0 | 2943 | 1800 | Tensile force up to 2 tons |
| 0.40 | 23.4 | 7.0 | 2200 | 1350 | |||
| PC-150 | 7.5 | 0.30 | 13.4 | 13.7 | 5240 | 2450 | Tensile force up to 3 tons |
| 0.40 | 17.9 | 18.2 | 3923 | 1840 |
As a pioneering leader in material handling automation, we provide cutting-edge dust-free enclosed feeding systems and pneumatic conveying solutions. Our equipment is extensively utilized across metal materials, food processing, chemical, pharmaceutical, and new energy sectors. Our in-house production facility guarantees the highest quality and reliability.
