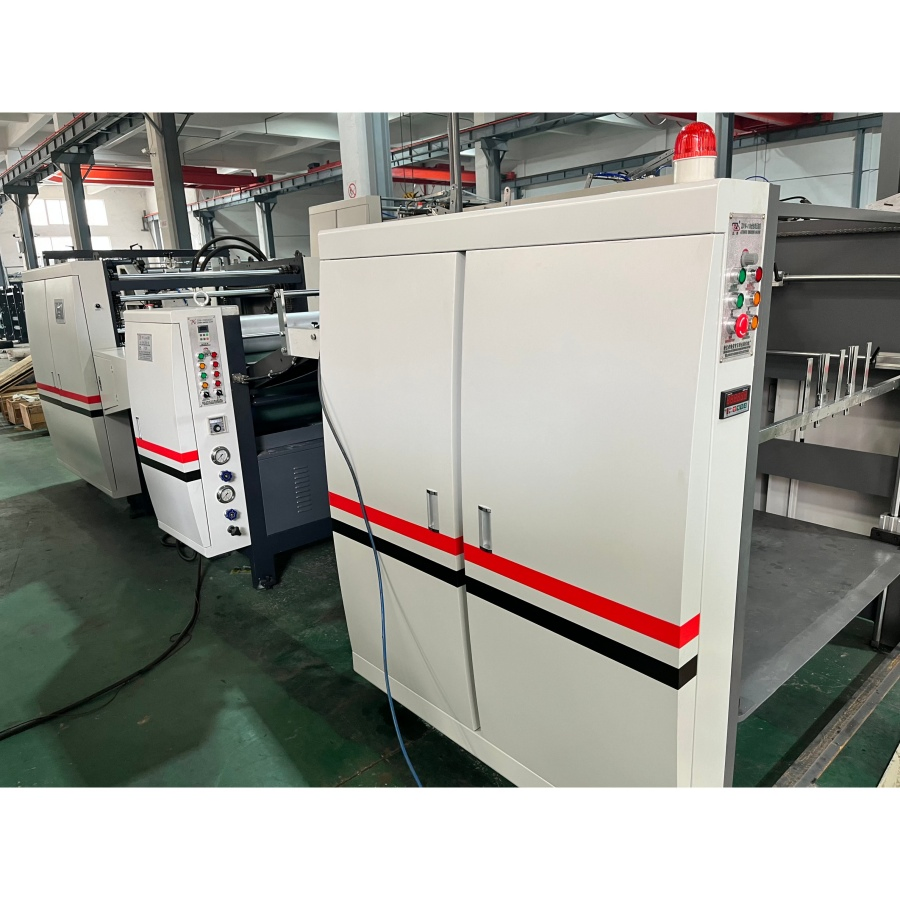

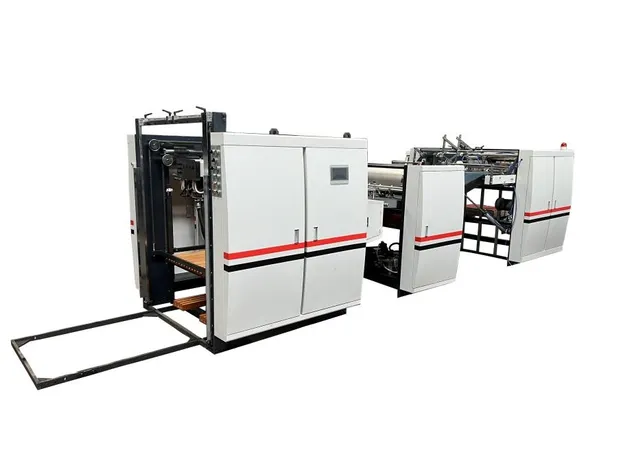

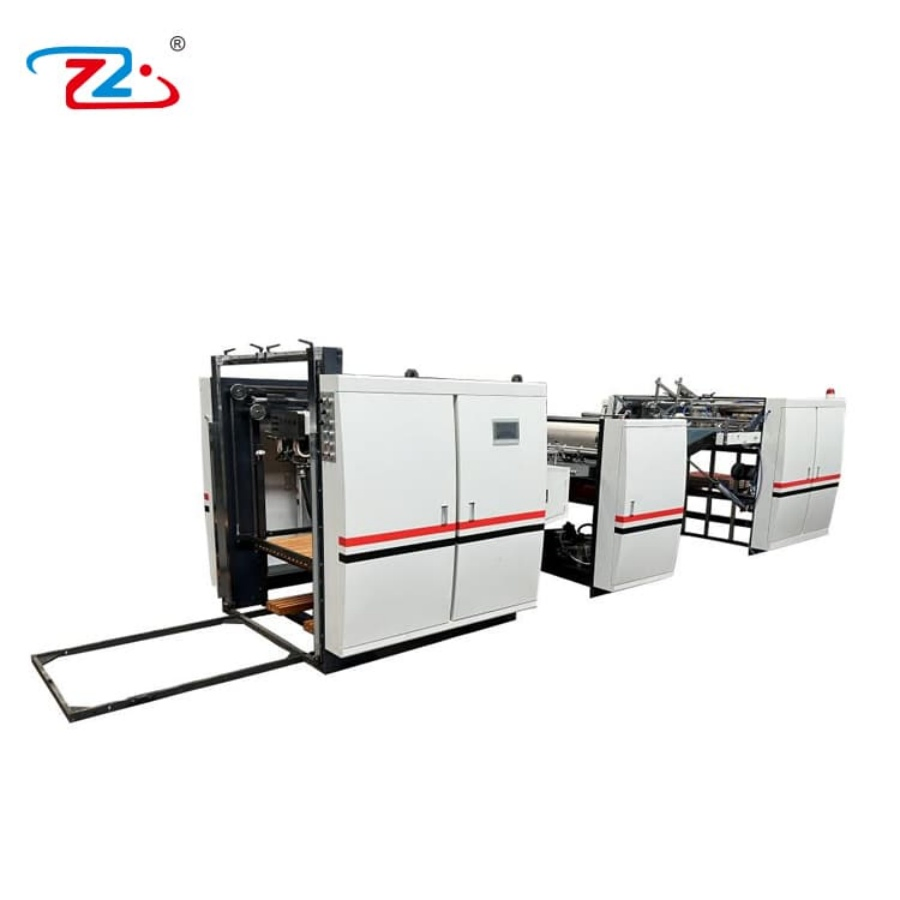

The ZGYW-1100 automatic refraction embossing machine operates at a speed of 4000-5000 sheets/hour. It utilizes a vacuum pump to drive the Feida and paper feeding system, featuring a double sheet control sensor to prevent multi-sheet feeding errors automatically.

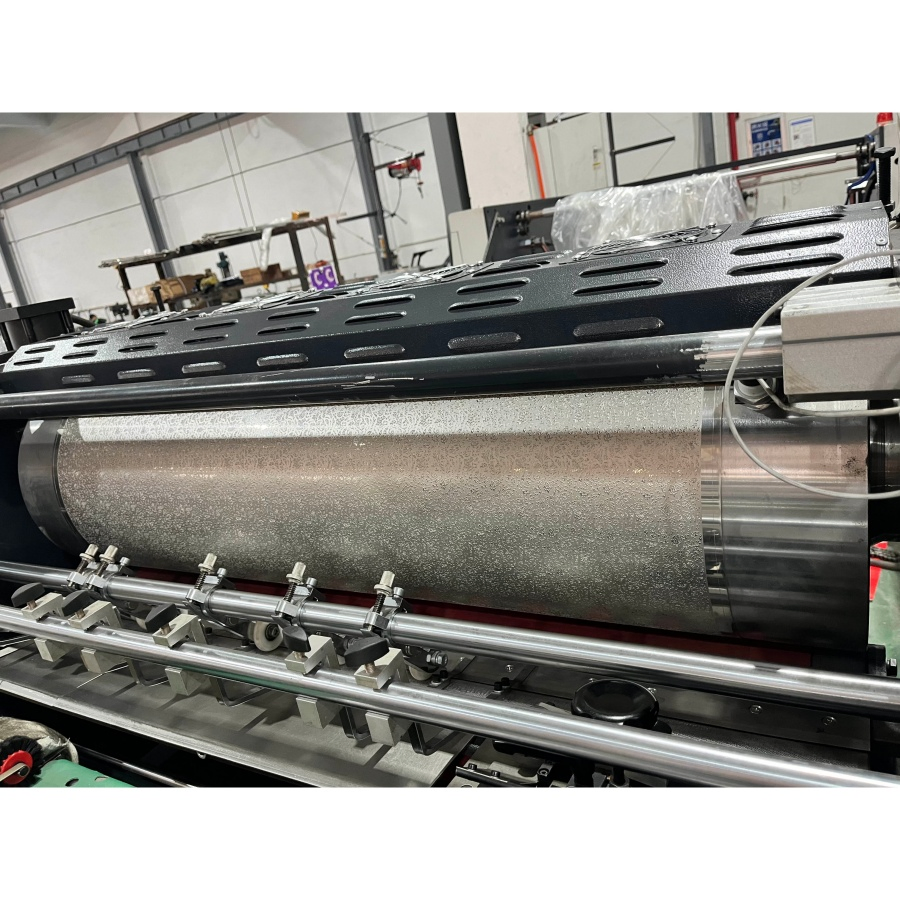

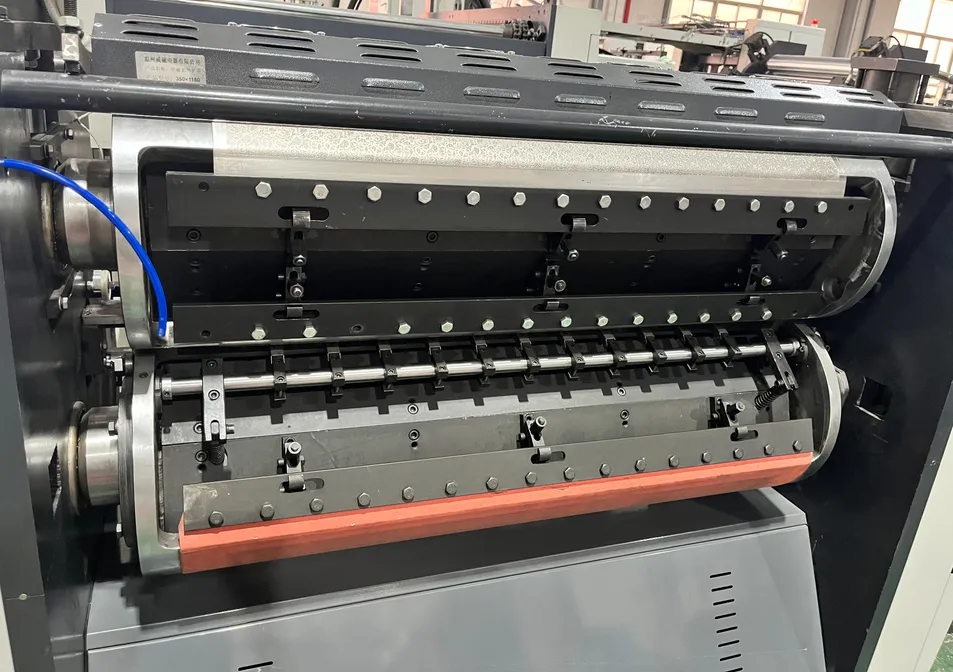

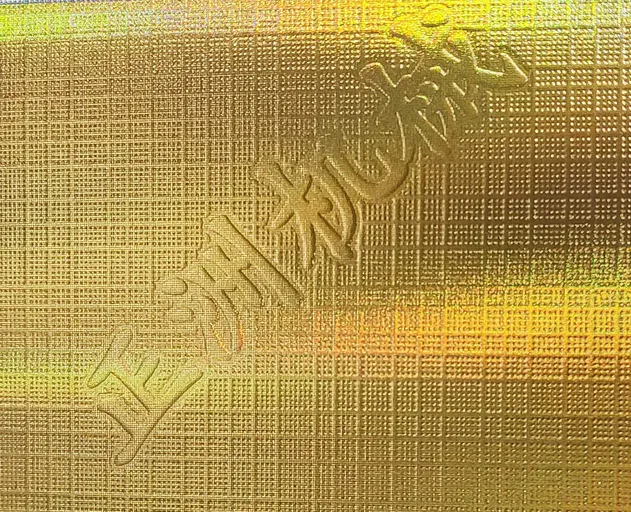

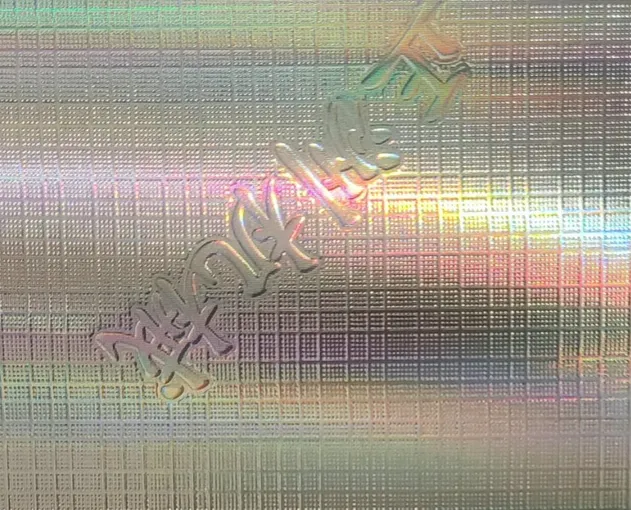

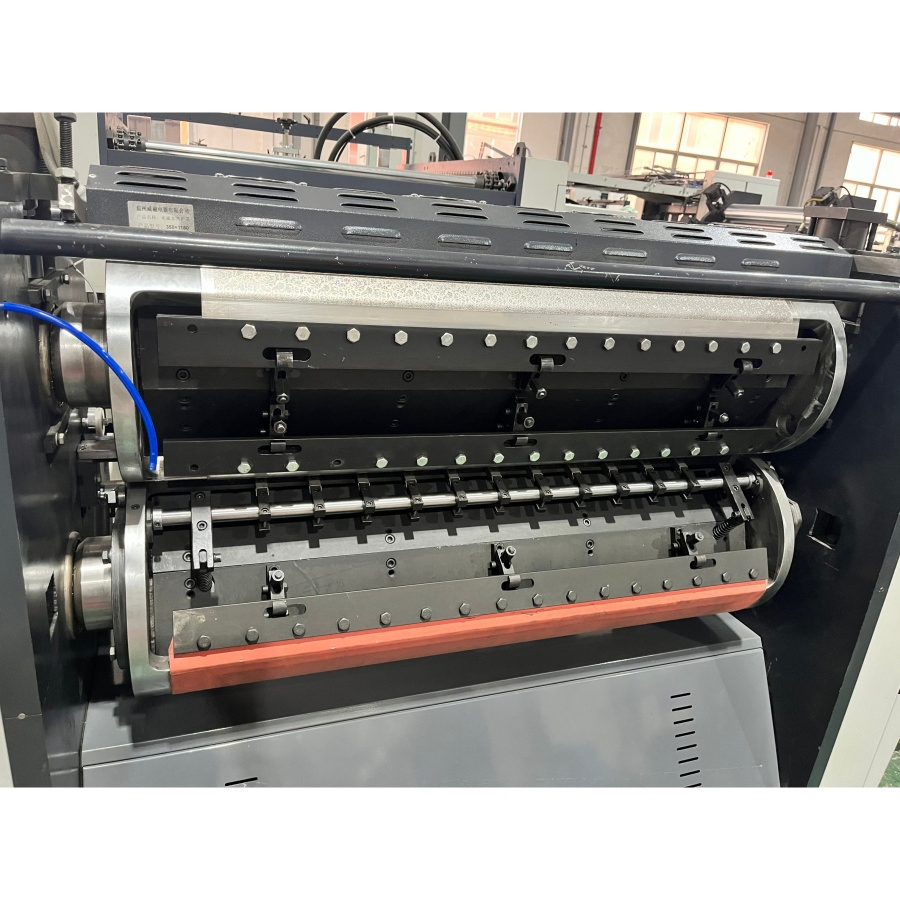

The embossing unit consists of a blanket with a press roller set and a stainless steel plate with a press roller set (diameter 350mm). This configuration allows for fine, smooth lines to be directly pressed onto special materials including gold/silver cards, aluminum foil paper, and coated paper.
The entire system is driven by a frequency converter and controlled via PLC, delivering a consistent pressure of 50 tons between the rollers.
| Model | ZGYW-1100 |
| Max Paper Size | 1080*740 mm |
| Min Paper Size | 280*280 mm |
| Paper Thickness | 150-800 g/m² |
| Max Speed | 4000-5000 s/h |
| Total Power | 9.5kw |
| Machine Weight | 3900 kg |
| Machine Dimensions | 6500*1800*1800 mm |
| Max Working Pressure | 50t |

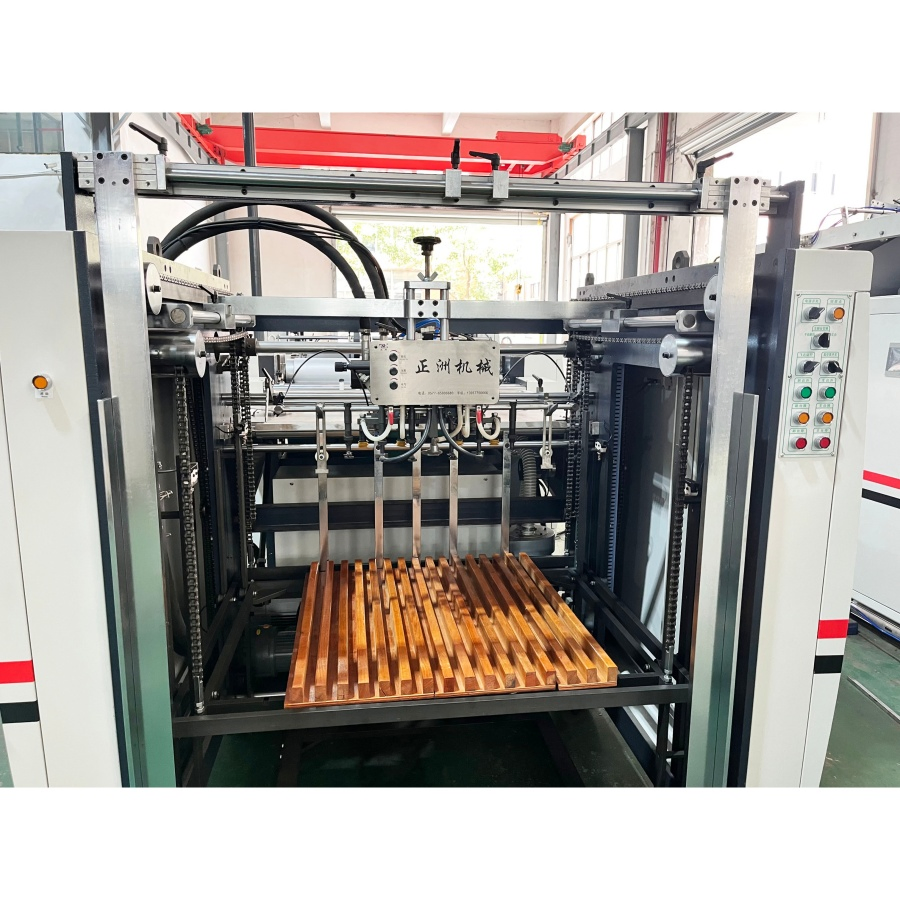

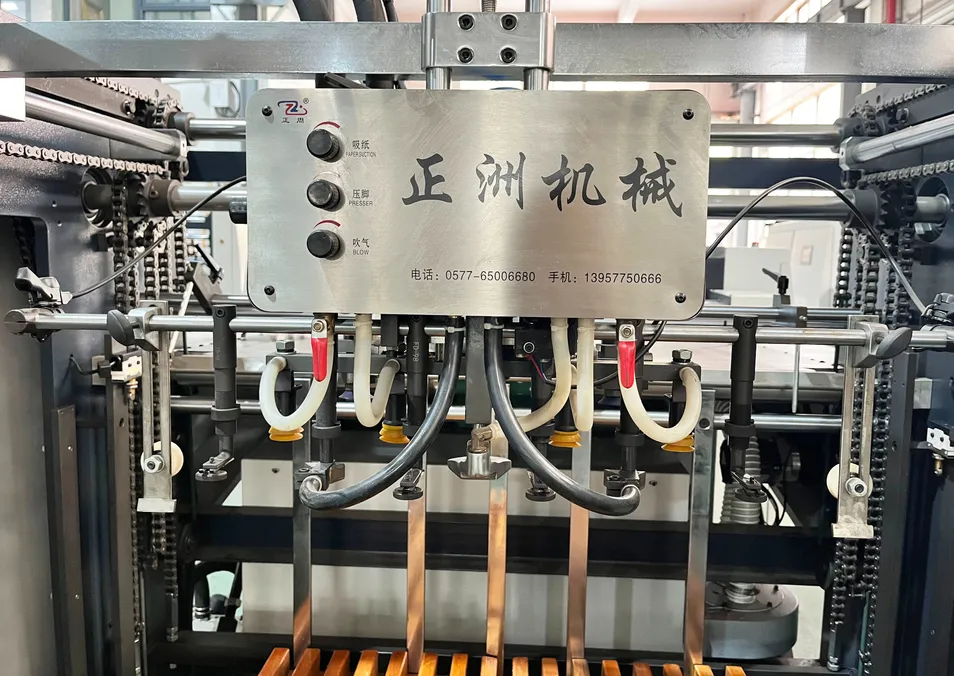

Fully Automatic Feeder: Driven by servo motor with four suction and two feeding structures for smooth cardboard handling.
Patent Embossing Structure: Simple replacement of the embossing plate saves cost and supports partial embossing patterns.

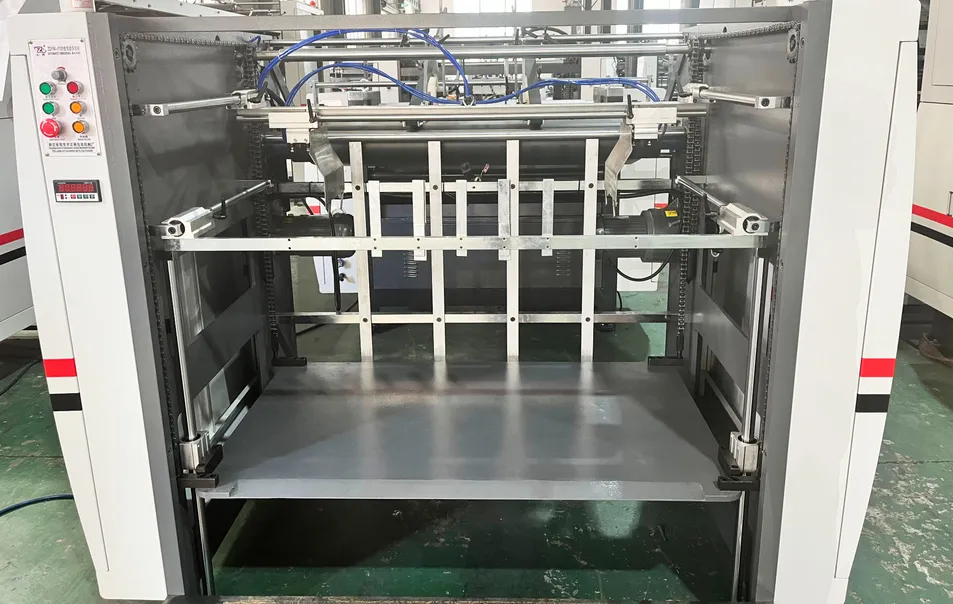

Automatic Paper Collection: Maximum stack height of 920mm with automatic stacking logic.

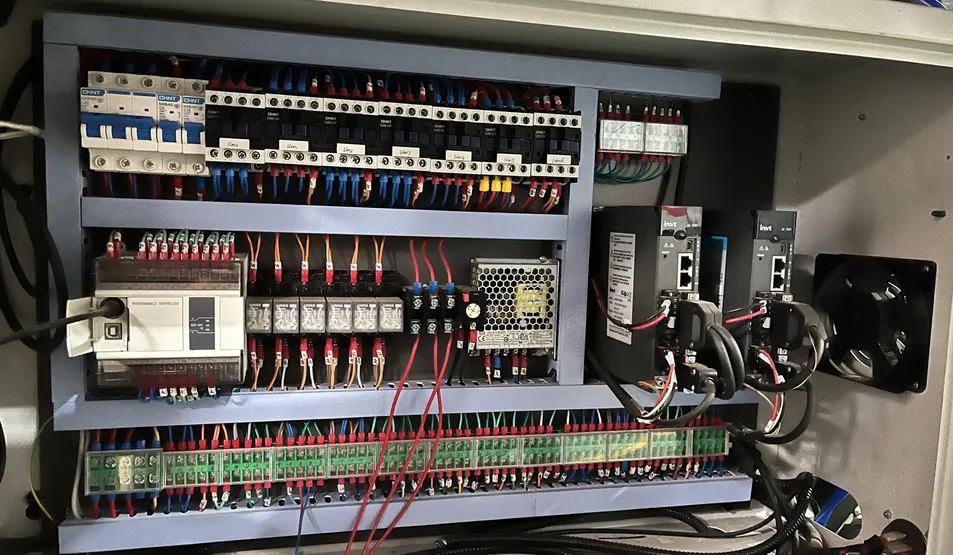

Advanced PLC System: Integrated interface for operation and real-time fault monitoring.
