| Model NO. | ZHD-600/400 | Certification | CE |
| Column number | Four Column | Molding Method | Pressing |
| Automatic Grade | Automatic | Processing Type | Plastic Thermoforming Machine |
| Plastic Type | PP, Pet, PVC, PS, PLA | Maximum Forming Area | 680X450mm |
| Sheet Width | 400-690mm | Max Forming Depth | Upper Mold: 30mm / Lower Mold: 110mm |
| Production Speed | 10-35 Mould/Min | Heating Power | 80kw |
| Sheet Thickness | 0.2-2 mm | Weight | 9 ton |

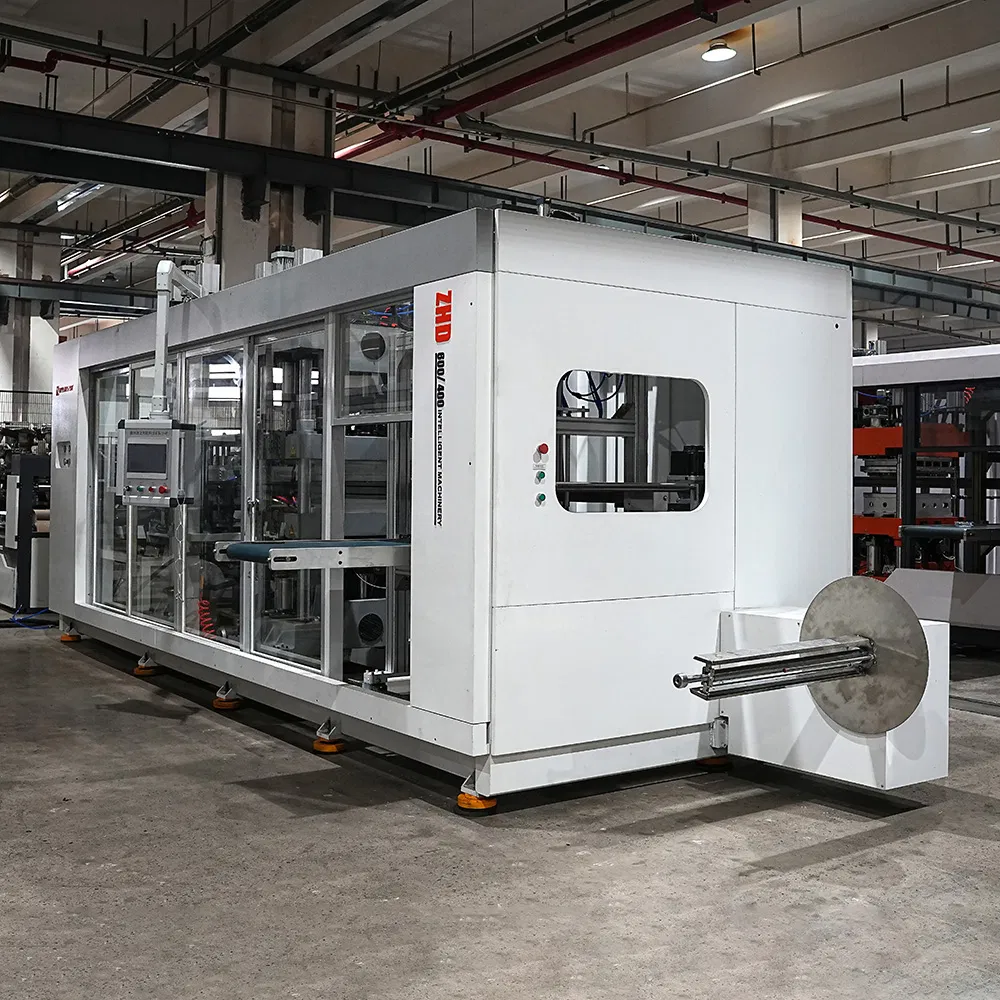

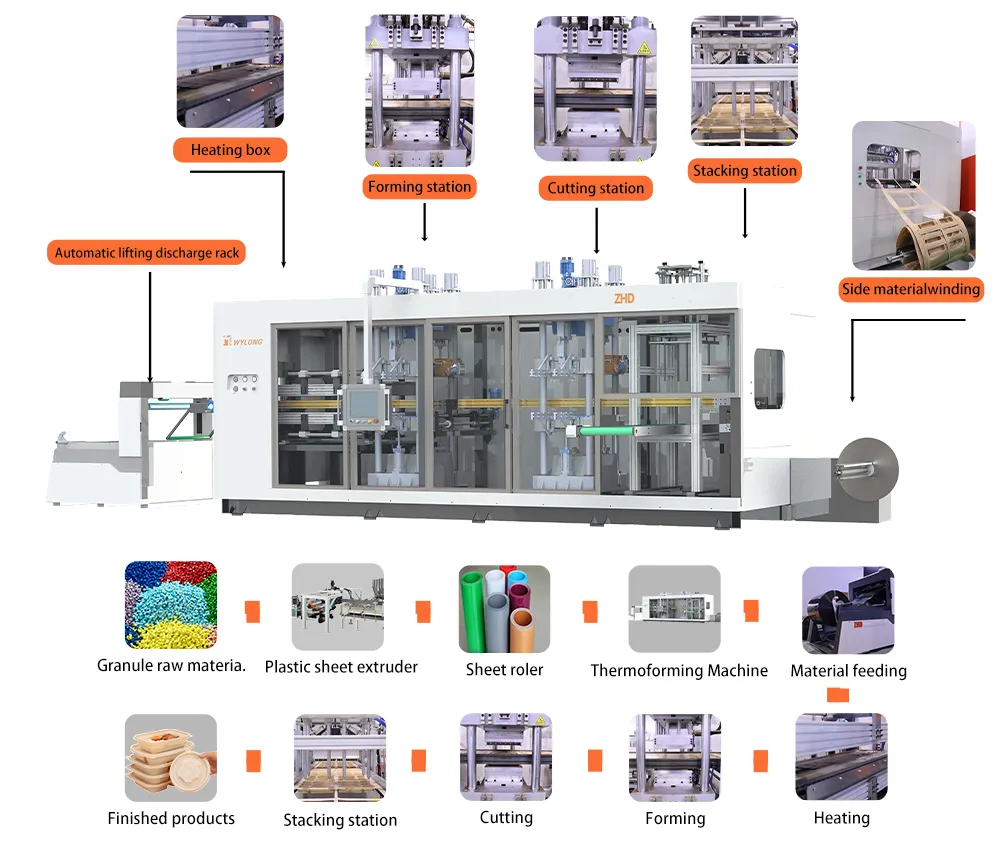

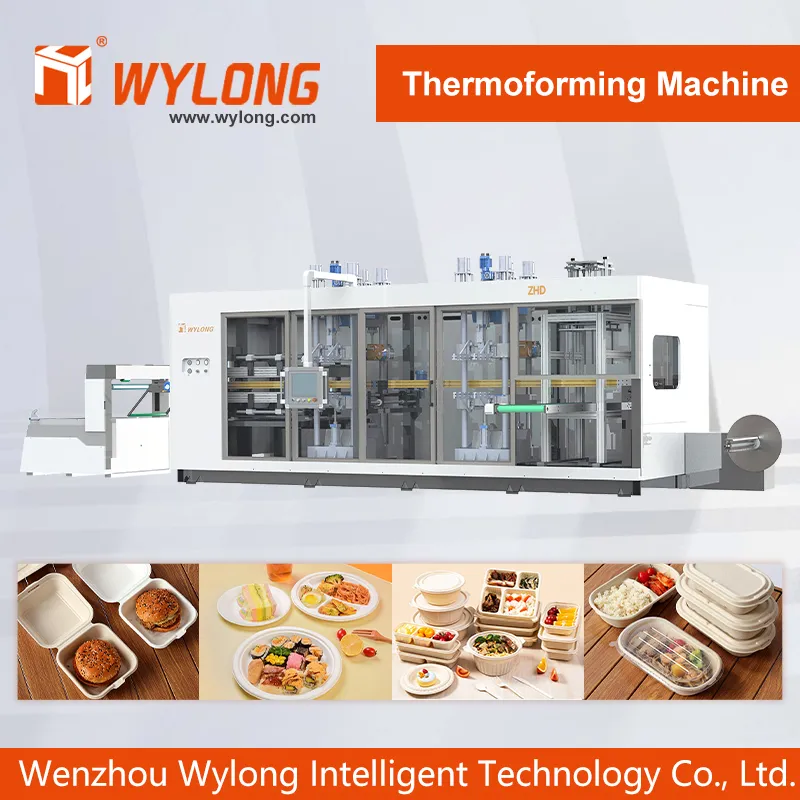

The Multi Station Thermoforming Machine is exceptionally versatile, handling a broad spectrum of materials including A-PET, R-PET, C-PET, BOPS, HIPS, PP, PLA, PVC, and various barrier materials. This advanced equipment efficiently produces a wide range of items such as trays, lids, fruit and vegetable boxes, flower pots, clamshells, nursery trays, and plates. Designed to meet the rigorous demands of multiple industries, it ensures flexibility and high-quality production processes.
| Sheet Materials | PP, PET, PVC, PS, PLA | Total Installed Power | 120kw |
| Sheet Thickness | 0.2 - 1.5 mm | Feeding Servo Power | 4.4 kw |
| Forming Area | 600 * 400 mm | Forming Servo Power | 3kw x 2 |
| Punching Servo | 3kw x 2 (Four Station) | Cutting Motor Power | 4.4kw x 2 |
| Air Consumption | 0.5-0.8 bar | Machine Dimension | 8500 * 2000 * 2300 mm |

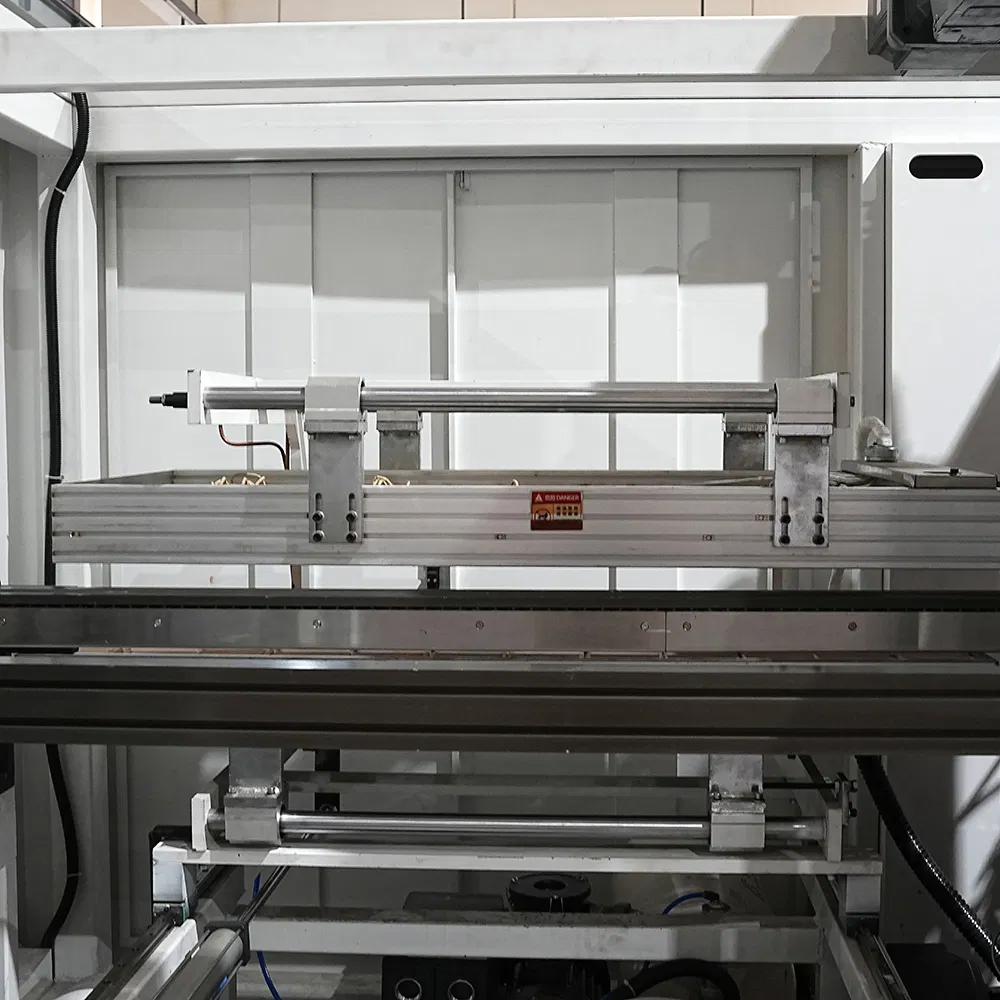

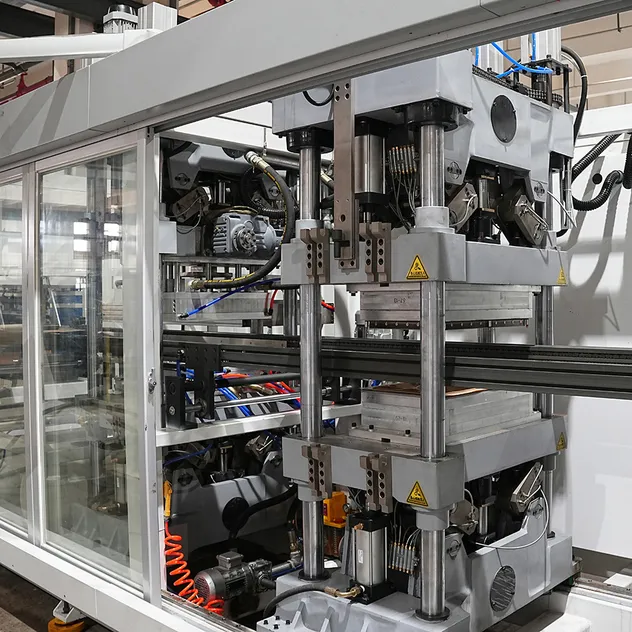

Cutting Station
Heating System

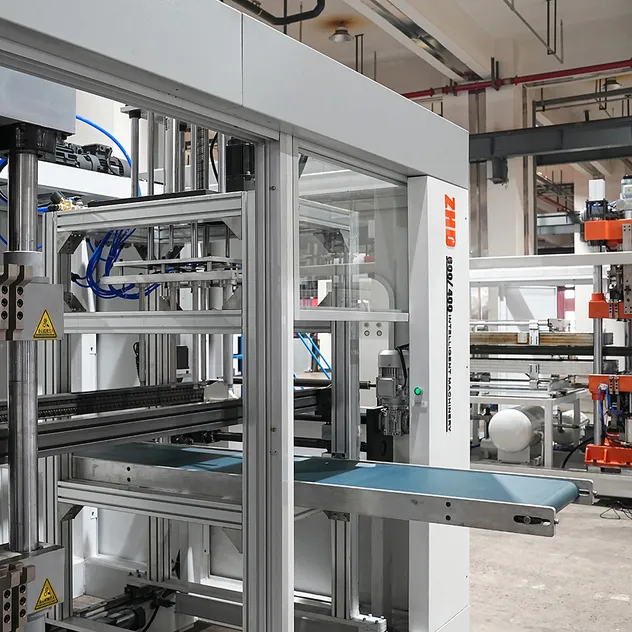

Stacking Station
| Package Size | 8500.00cm * 2000.00cm * 2300.00cm |
| Package Gross Weight | 10000.000kg |
| Transport Package | Stretching Film Covered Wooden Pallets for Easy Loading |
