Product Description

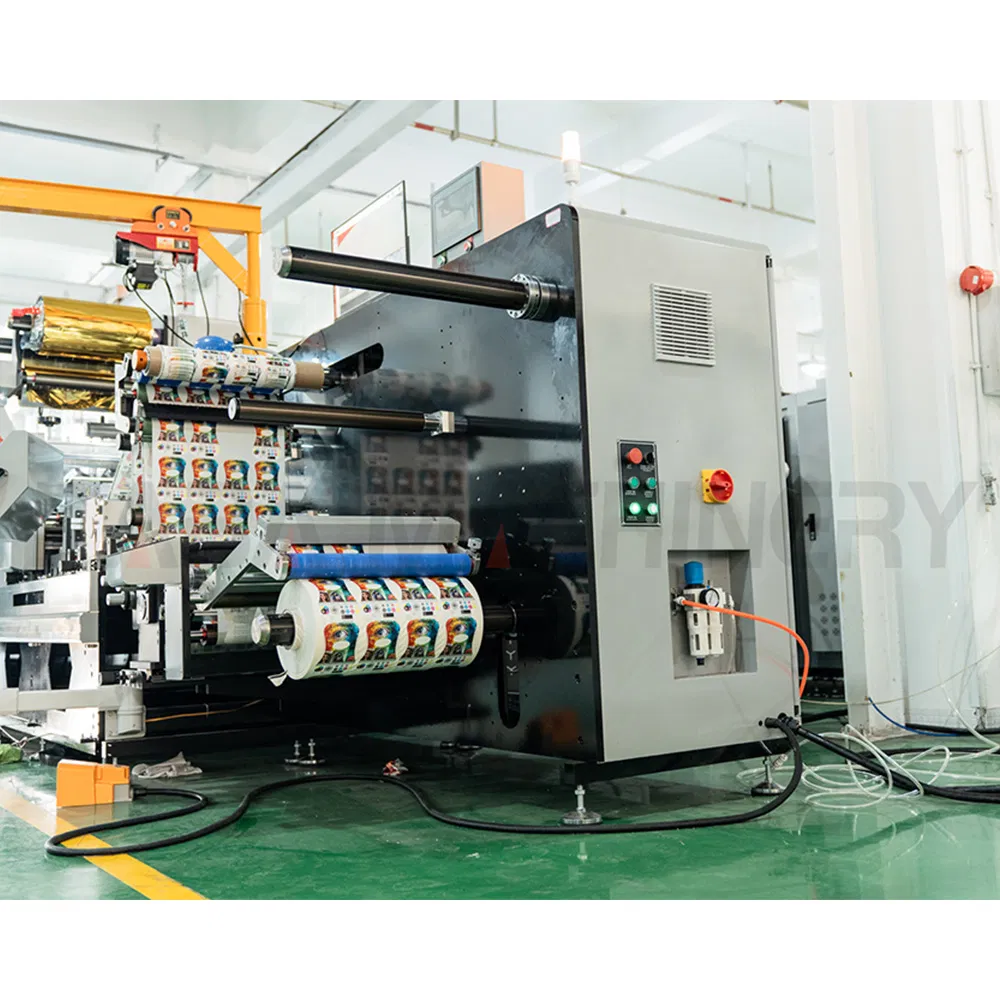

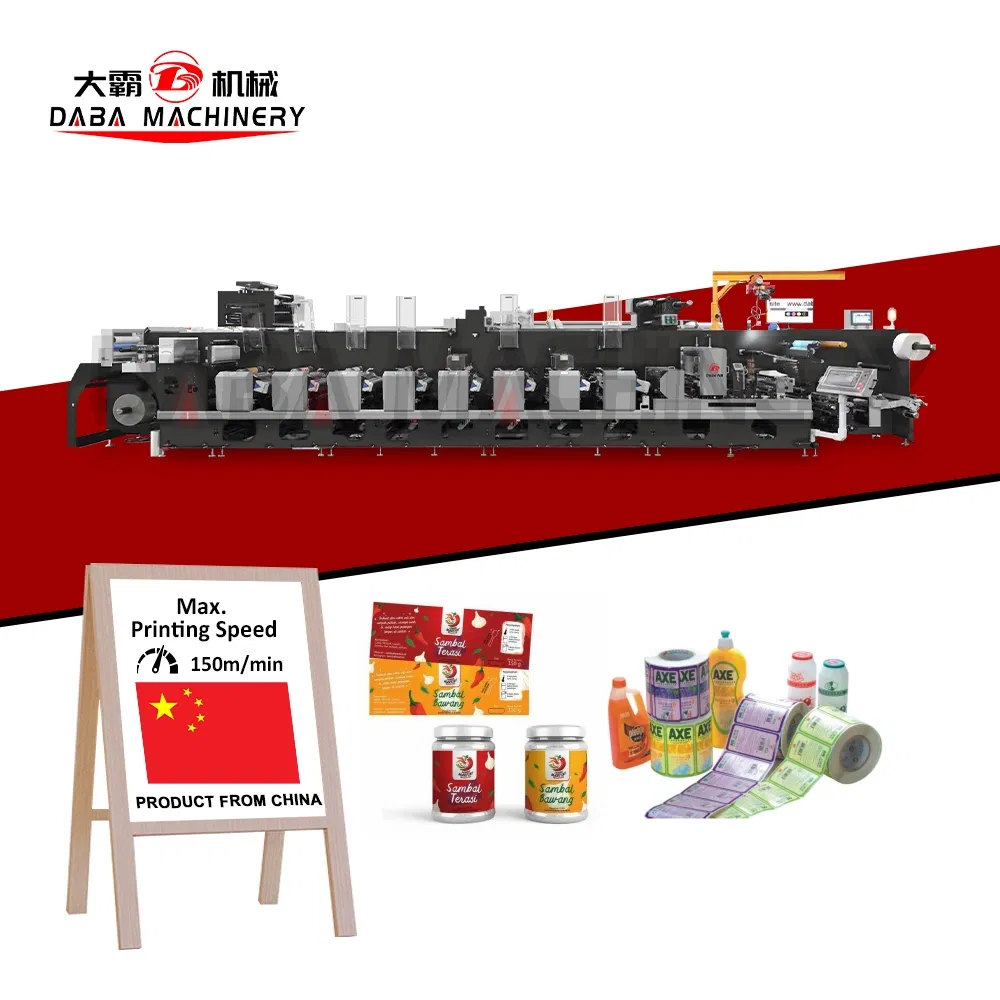

Automatic Flexo Printing Machine Food Beverage Label Packaging Printing
Product Introduction

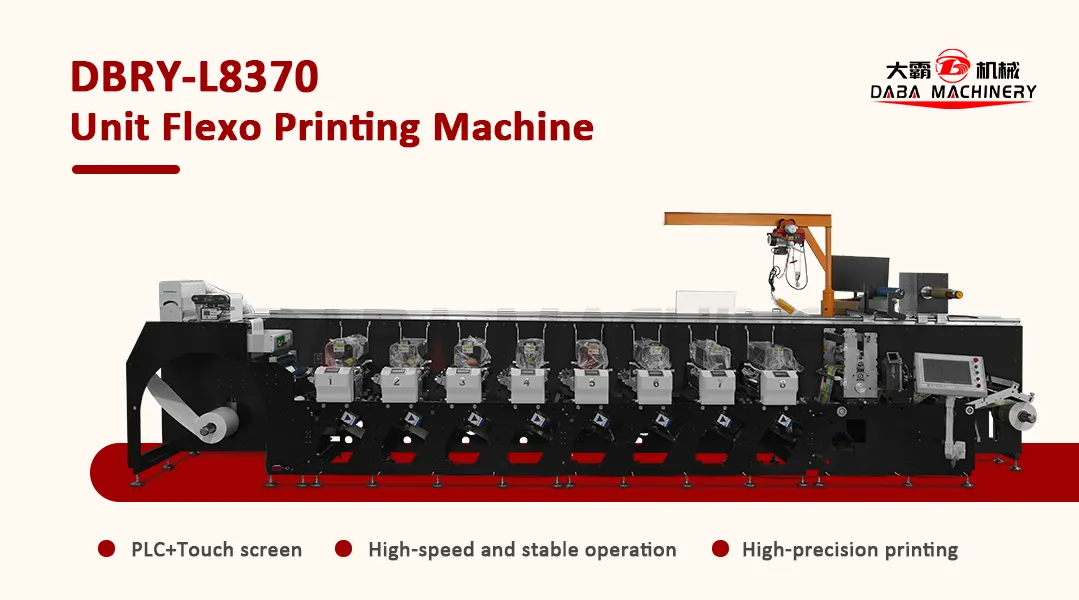

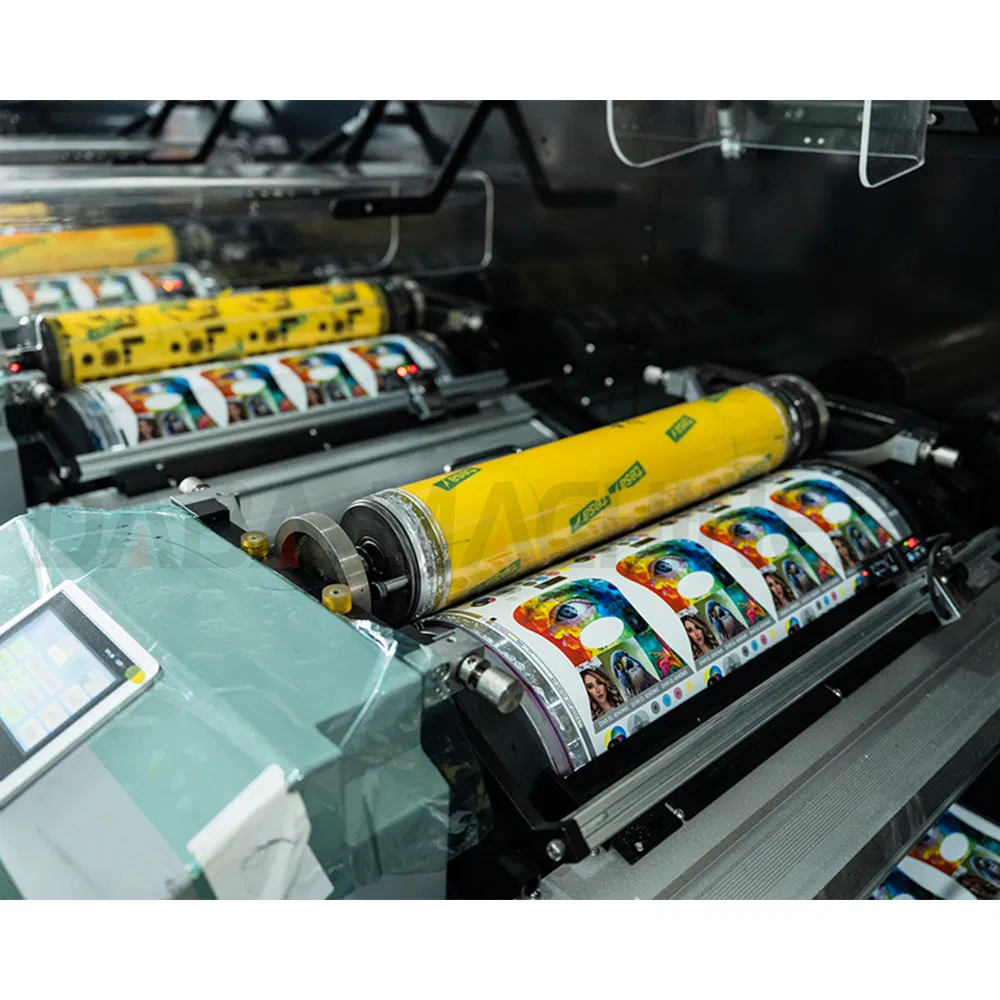

The DBRY-L8370H is a next-generation unit-type flexographic printing machine designed to deliver outstanding print quality, precise color registration, and efficient performance at high speeds. Equipped with a total of 37 independent servo motors and an advanced Inovance control system, this press ensures ultra-accurate operation across all 8 printing units. Whether you're printing on labels, BOPP films, or aluminum foil, the DBRY-L8370H handles a wide range of materials with ease. Its modular structure, fast ink system, and energy-saving LED UV dryers make it an ideal solution for high-demand, short-run, or variable printing jobs in today's competitive packaging market.

Specifications
Parameter Specification
Model DBRY-L8370H
Max. printing speed 150m/min
Max. printing width 370 mm
Max. unwinding diameter 1000 mm
Max. rewinding diameter 900 mm
Max. repeat length 254-600 mm
Horizontal registration control motor drive
Precision of Web Guide ±0.10mm
Horizontal registration Automatic system
Operating Controller Touch Panel With PLC
Fast changing ink system Quick change of ink tank
Turn bar Movable
Machine Power Supply 380V / 220V / 3Phase
Plate Thickness 1.7mm (also can do 1.14mm)
Technical Layout

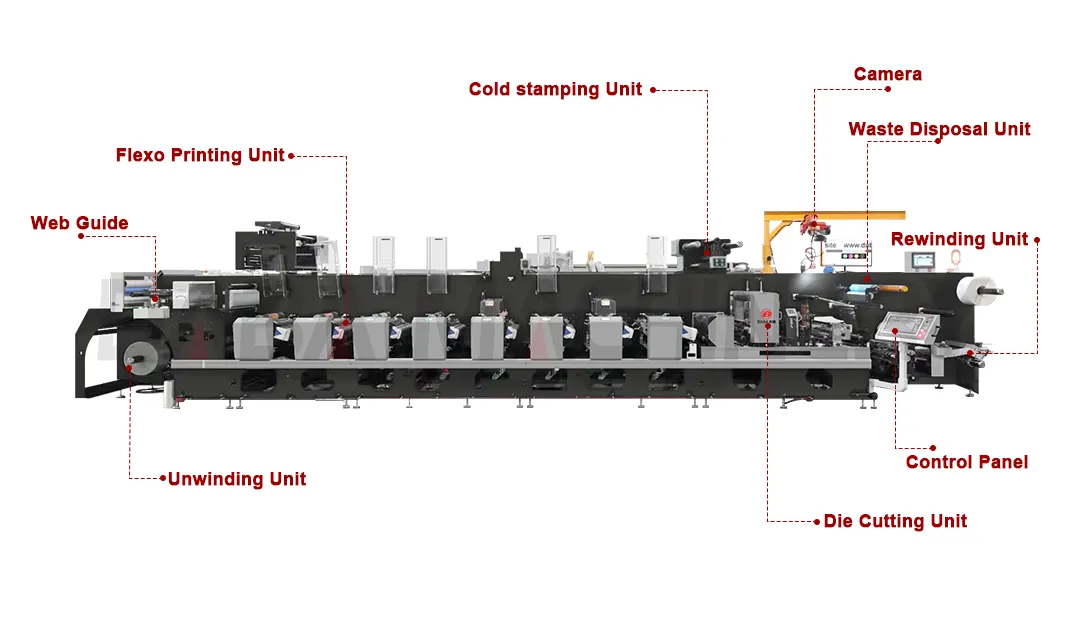

Automatic Flexo Printing Machine Structure

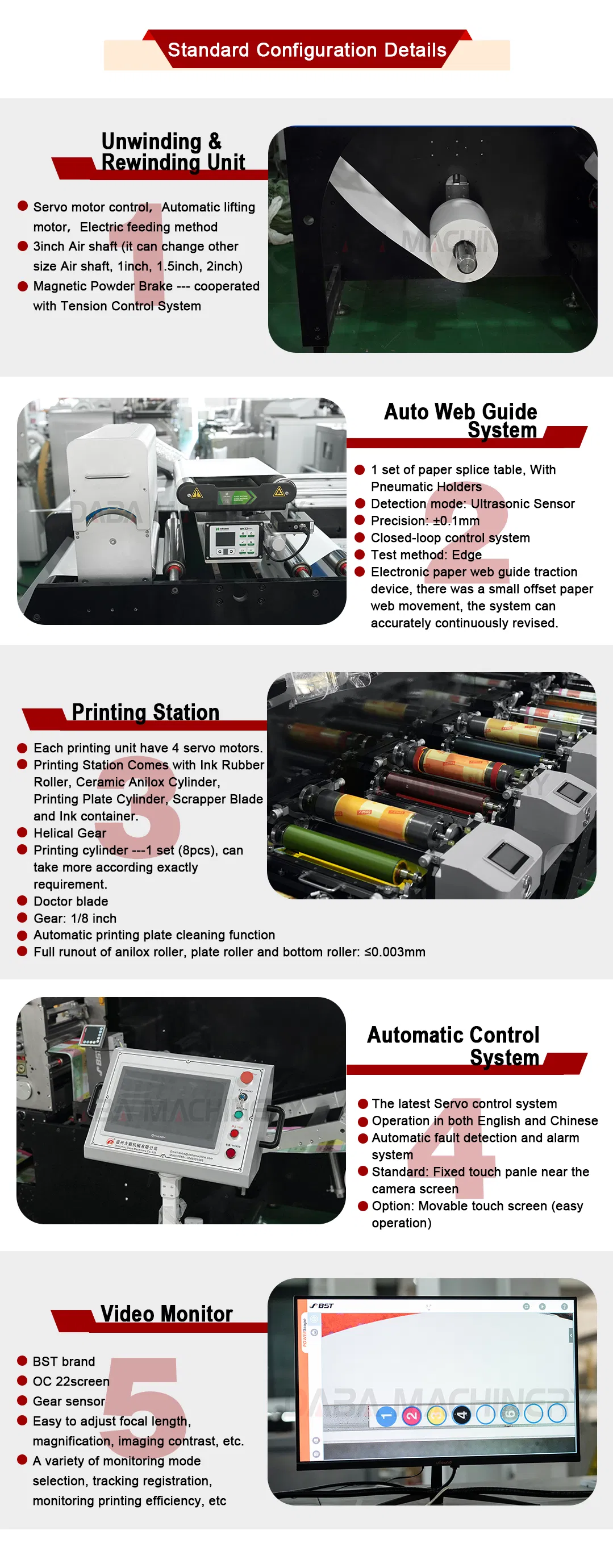

Configuration Details
Detailed Features

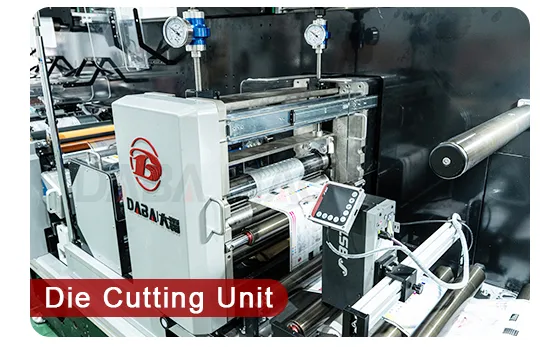

Rotary Die Cutting Unit
Full Rotary Die Cutting Unit: 3-rollers structure: magnetic cylinder, bottom roller, transmission roller.

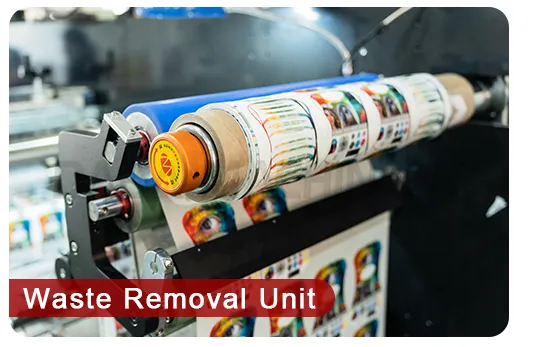

Waste Removal Unit
Full-contact type waste removal unit Max Dia.600mm.

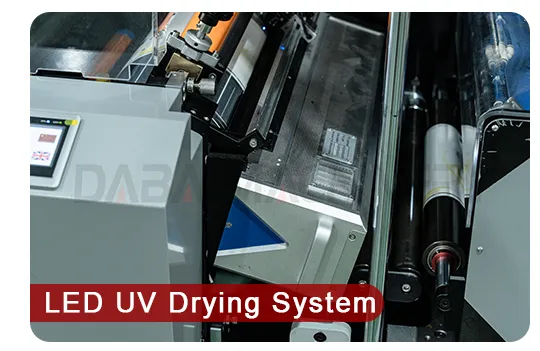

Drying System Options
IR, UV, LED UV drying systems.

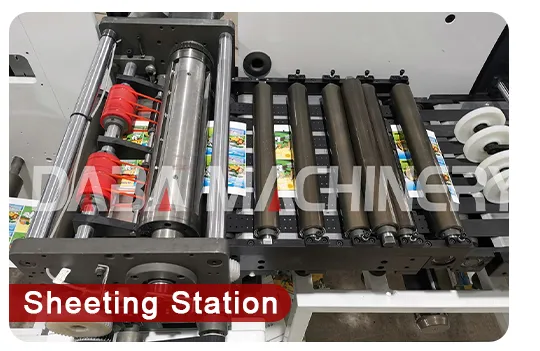

Sheeting Station
Sheeting station with Conveyor, rotary sheeting to satisfy roll to sheets jobs.

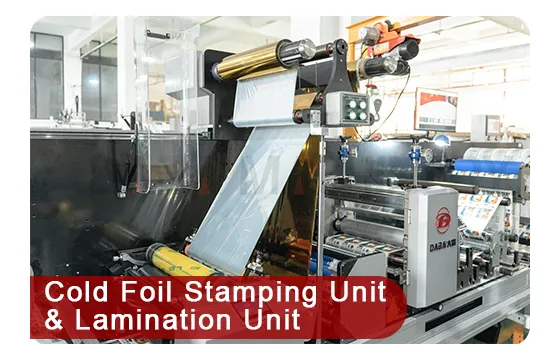

Cold Foil Stamping
Movable shelf, Cold foil stamping and lamination 2 in 1, also can be separated.
Corona Treatment Surface Activation
Uses a low temperature corona discharge plasma to impart changes in the properties of a surface, make the surface of the material have higher adhesion.

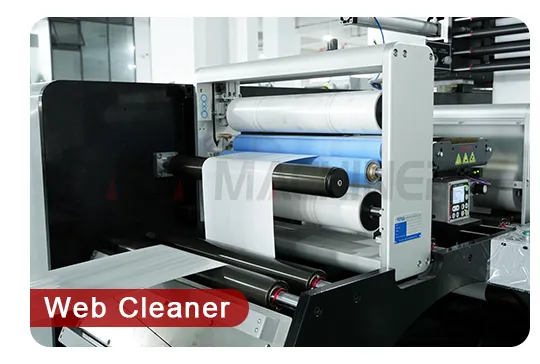

Web Cleaner
Contact type web cleaner. Optional: adsorption type.

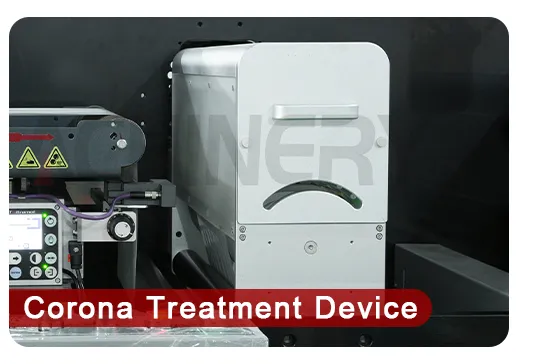

Corona Discharge Treatment
Uses a low temperature corona discharge plasma to impart changes in the properties of a surface, make the surface of the material have higher adhesion.

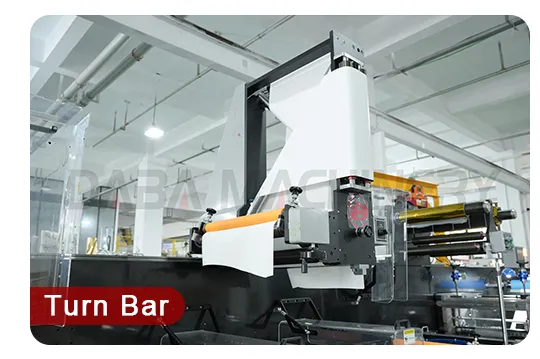

Movable Turn Bar
Movable turn bar.

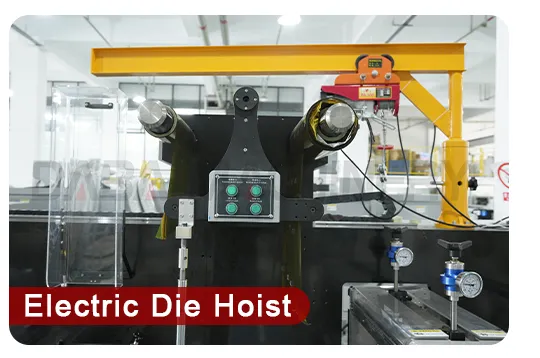

Magnetic Cylinder Lifter
To lift and place the magnetic cylinder more conveniently.
Technical Specifications Overview
Detailed Technical Dimensions
Detailed Component Schematics

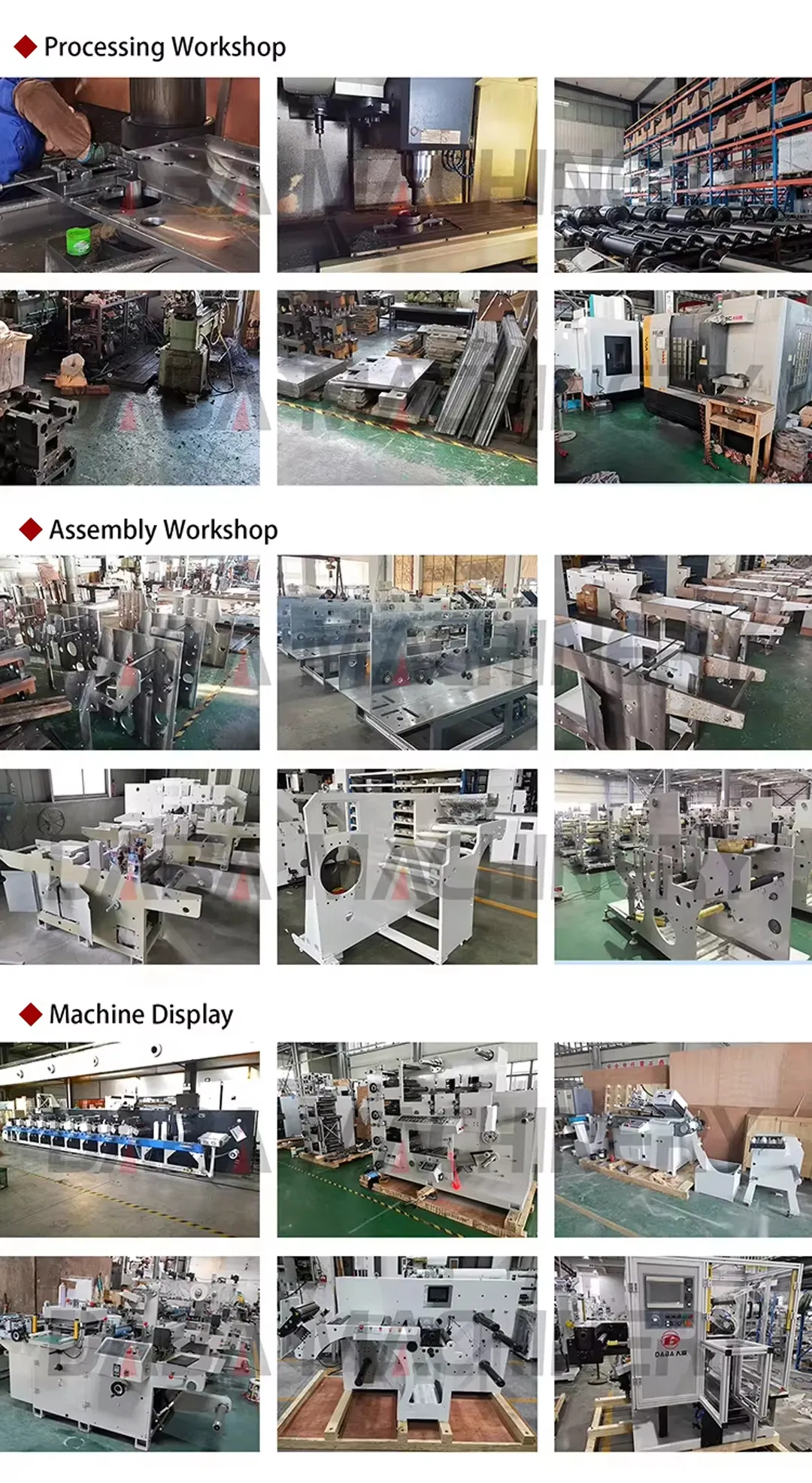

Manufacturing & Quality Standards

Facility Showcase 1
Facility Showcase 2
Facility Showcase 3
Facility Showcase 4
Facility Showcase 5
Quality Standard Banner 1
Quality Standard Banner 2
Quality Standard Banner 3
Quality Standard Banner 4

Frequently Asked Questions

What is the maximum printing speed of the DBRY-L8370H?
The DBRY-L8370H flexographic printing machine is designed to deliver high-speed, efficient performance with a maximum printing speed of up to 150 meters per minute.
What types of materials can this machine print on?
This machine handles a wide range of substrates with ease, including self-adhesive labels, BOPP films, and aluminum foil, making it highly versatile for different packaging demands.
How is the precise color registration controlled on this model?
The press features an advanced automatic registration system driven by a total of 37 independent servo motors and managed via a high-performance Inovance control system to ensure ultra-accurate, reliable operation across all 8 printing units.
What kind of drying options are supported by the machine?
The printing press supports multiple drying solutions to accommodate different ink and material types, including energy-saving LED UV, IR, and standard UV dryers.
Does this machine support both roll-to-roll and roll-to-sheet operations?
Yes, the machine comes equipped with a sheeting station with conveyor, supporting rotary sheeting to easily satisfy both roll-to-roll and roll-to-sheet print jobs.
What range of repeating lengths can the DBRY-L8370H handle?
The system supports a maximum repeating length range from 254 mm up to 600 mm, offering great flexibility for variable-sized packaging and label applications.
