| Model NO. | Track Reclaimer |
|---|---|
| Structure | Roller Conveyor |
| Material | Carbon Steel |
| Material Feature | Oil Resistant, Heat Resistant, Fire Resistant |
| Application | Grain Transport, Grain Storage |
| Condition | New |
| Motor | Internal or External |
| Number of Helices | 1 or 2 |
| Series | Sweep Auger |
| Applicable conditions | Forced discharge of fully loaded grain materials from the silo for materials with poor flowability (soybean meal, wheat bran, etc.) |
|---|---|
| Applicable materials | Meal, hide or shells: soybean meal, wheat bran, cassava, wood dust, coal dust, chemical products |
| Applicable silo | Flat-bottom silo |
| Silo diameter | 16-28m |
| Liquidation capacity | 80-300tph |
| Equipment advantage | Low rotation resistance, low residual grain thickness, high capacity, and high maintainability via off-shaft propulsion. |
Share these details for a tailored solution:

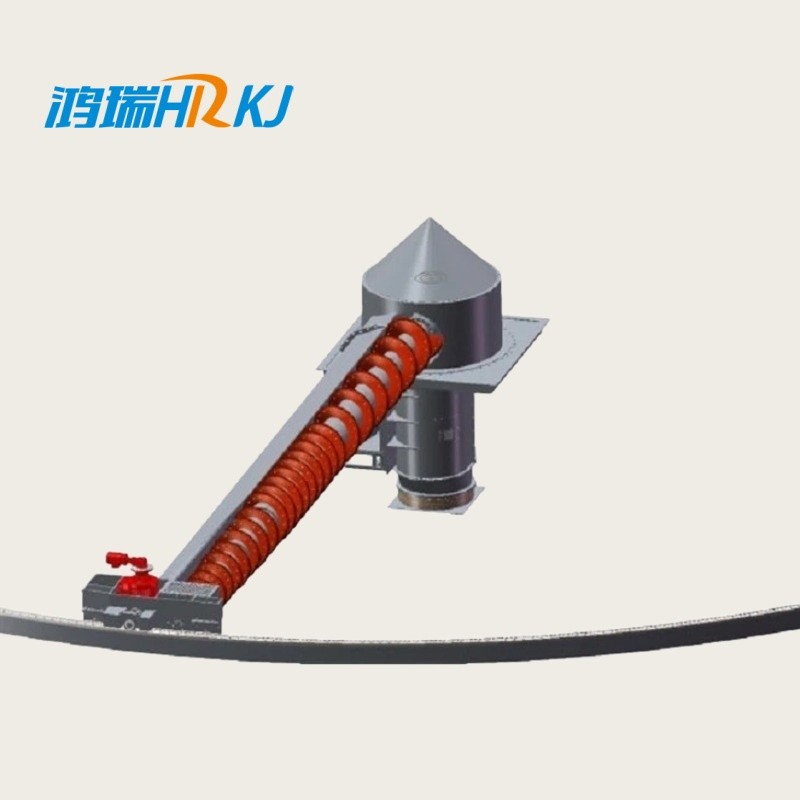

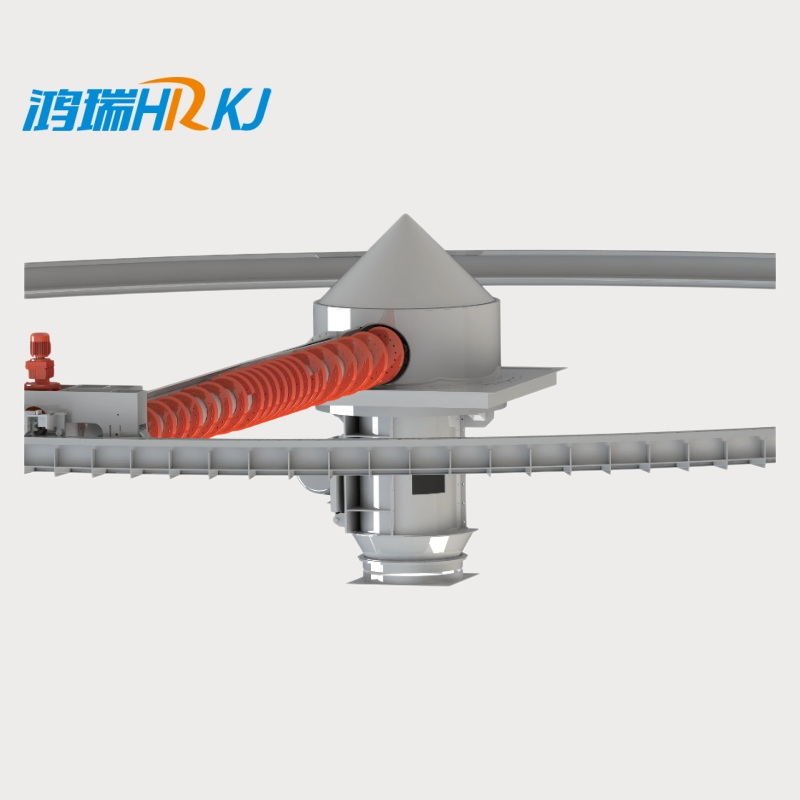

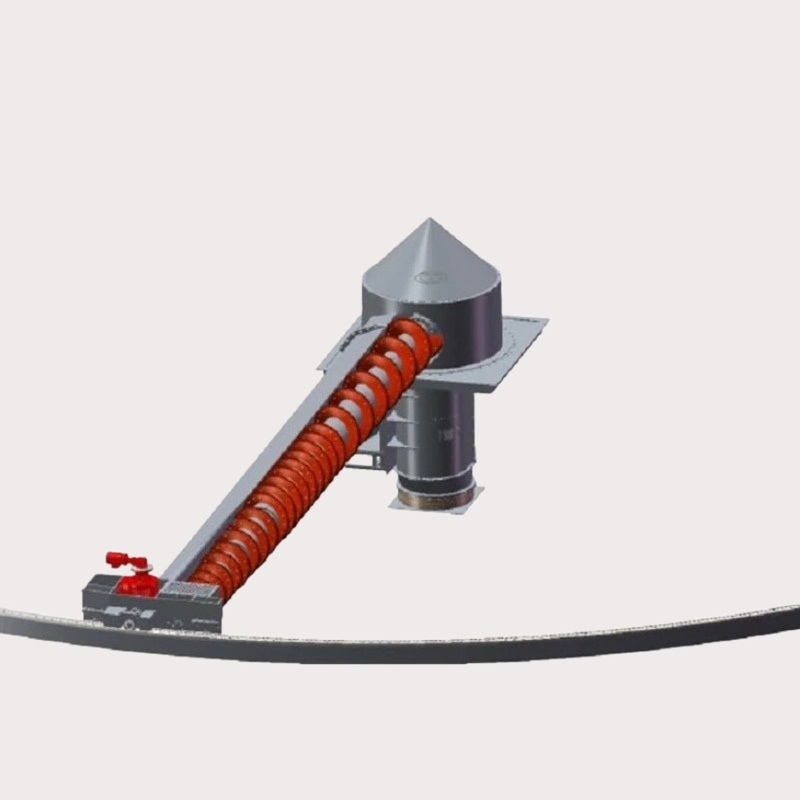

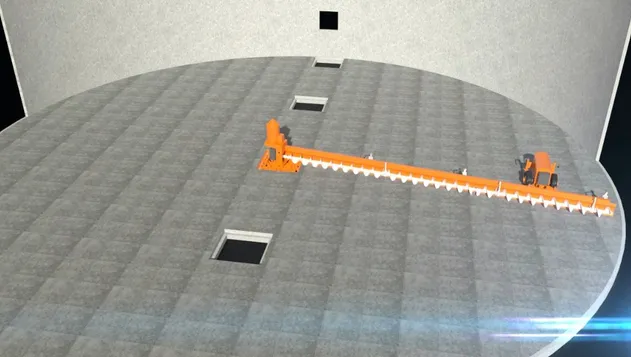

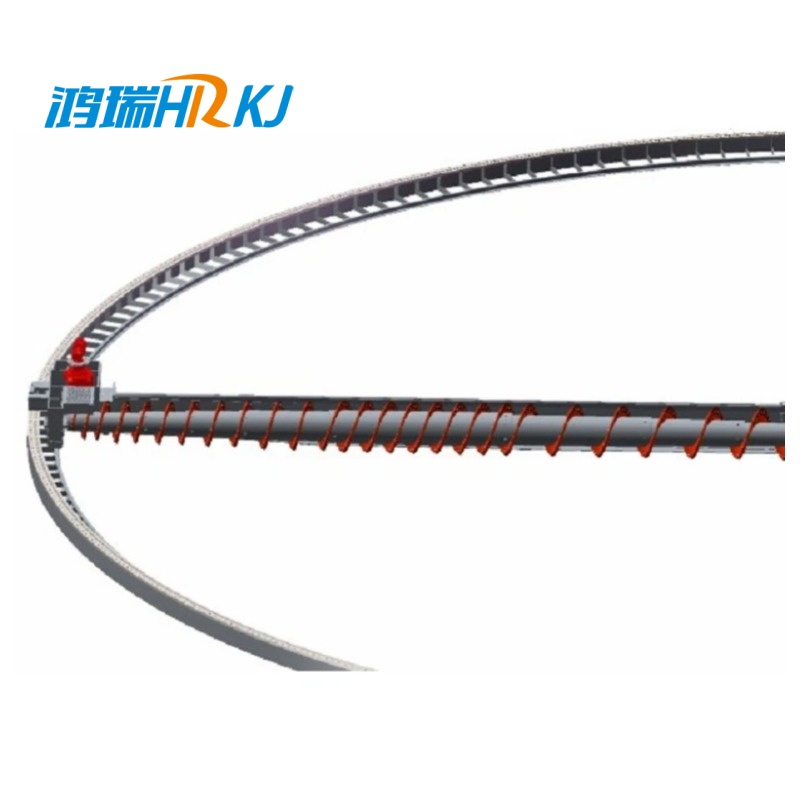

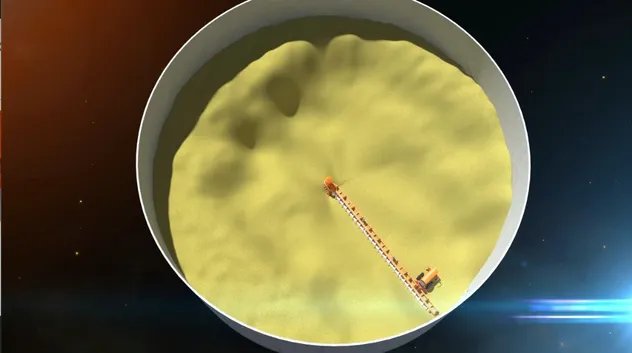

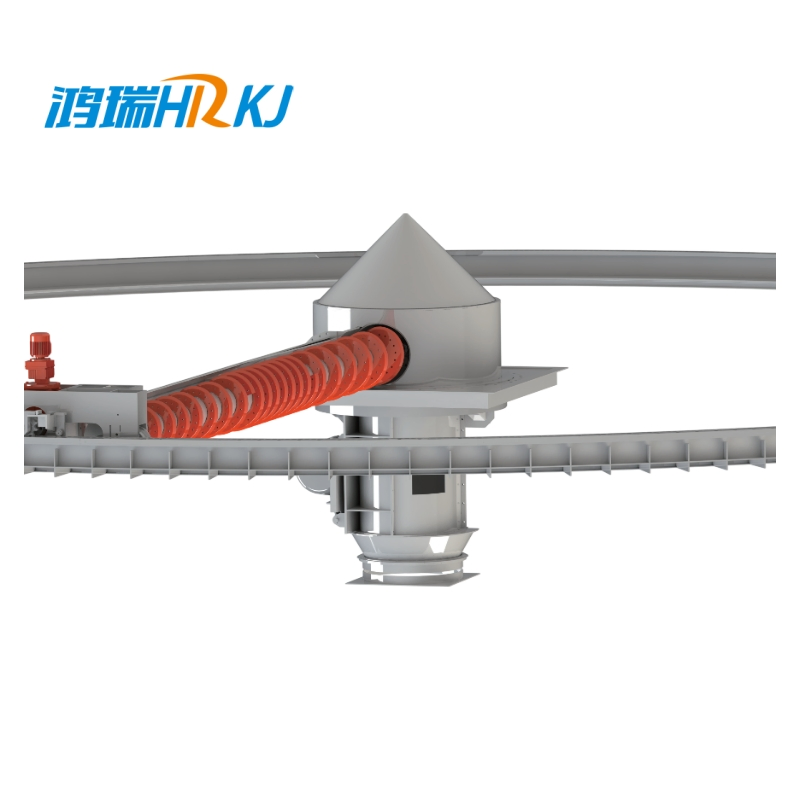

The Track Reclaimer is specialized unloading equipment for flat-bottom silos. It consists of a central rotary assembly, spiral shaft, feed trough, and revolution propulsion device. The main motor drives the spiral shaft to convey materials to the central discharge port, flowing into the unloading conveyor scraper. With the gear revolving on a track, the system achieves uniform material level drop and ensures first-in-first-out inventory management.
