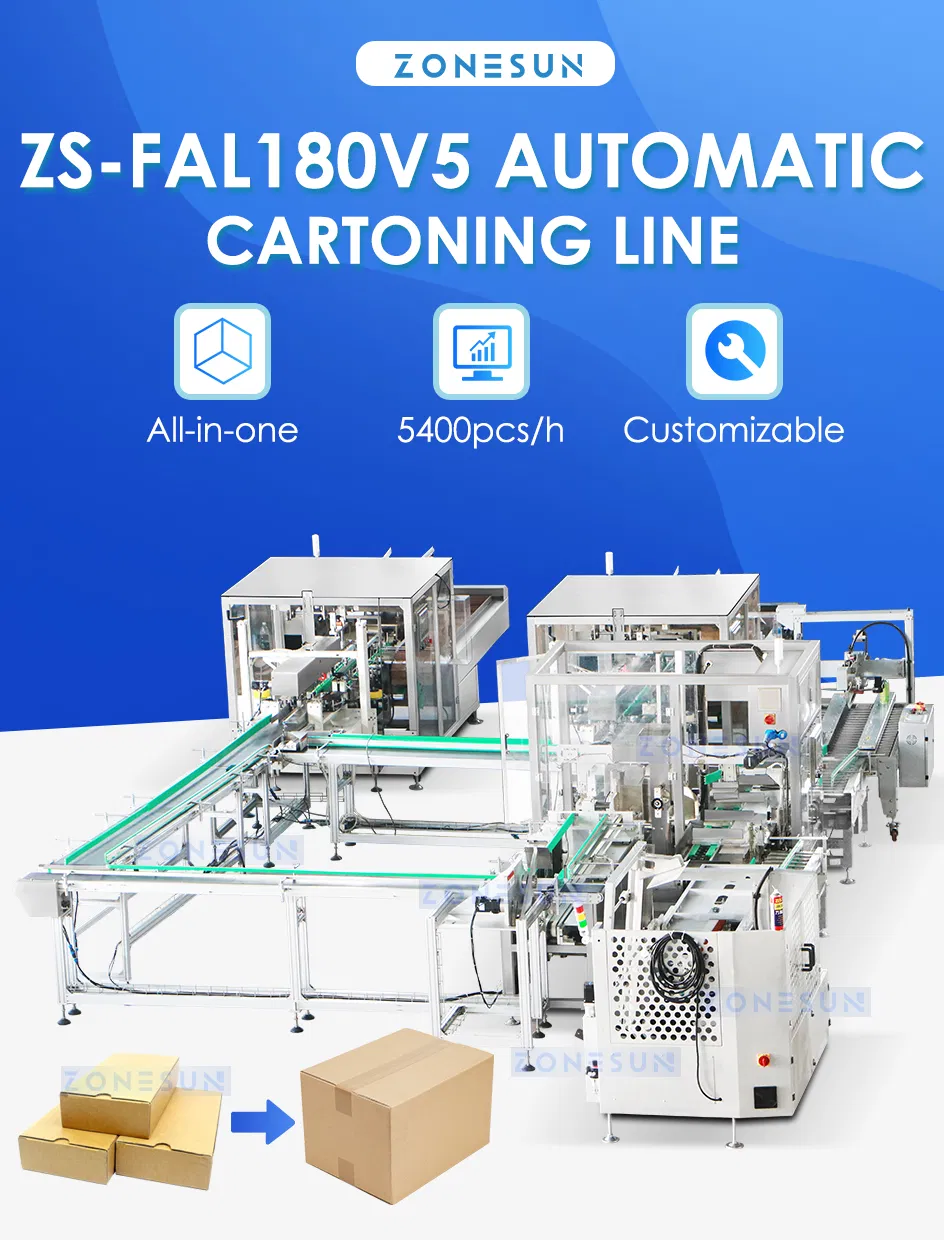

Zonesun Zs-Fal180V5 Automatic High Speed Cartoning Packing Machine Automatic Case Erecting Loading Sealing Production Line

Customization: Available
Warranty: 1 Year
Certification: ISO, CE

Product Description

Overview
Basic Info.
Model NO.
ZS-FAL180V5
Application
Machinery & Hardware, Textile, Alcohol, Chemical, Gifts & Arts
Driven Type
Electric
After-Sales Service
Overseas Service Center Available
Type
Carton Packaging Machinery
Automatic Grade
Automatic
Model
Cartoning Machine
Model1
Case Erector
Model2
Case Packer
Model3
Case Sealer
Transport Package
Wood
Specification
1050 × 820 × 1140 mm
Origin
Guangdong
Production Capacity
22PCS/Month
Packaging & Delivery
Package Size
105.00cm * 85.00cm * 1140.00cm
Package Gross Weight
2000.000kg
Lead Time
35 days (1 - 1 Pieces)
To be negotiated ( > 1 Pieces)
Product Description

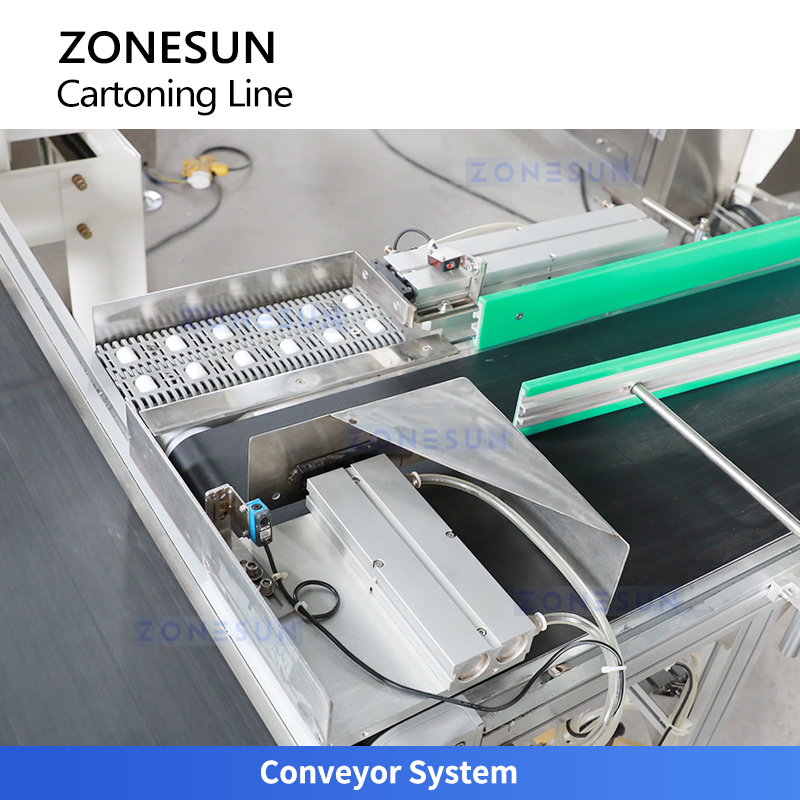

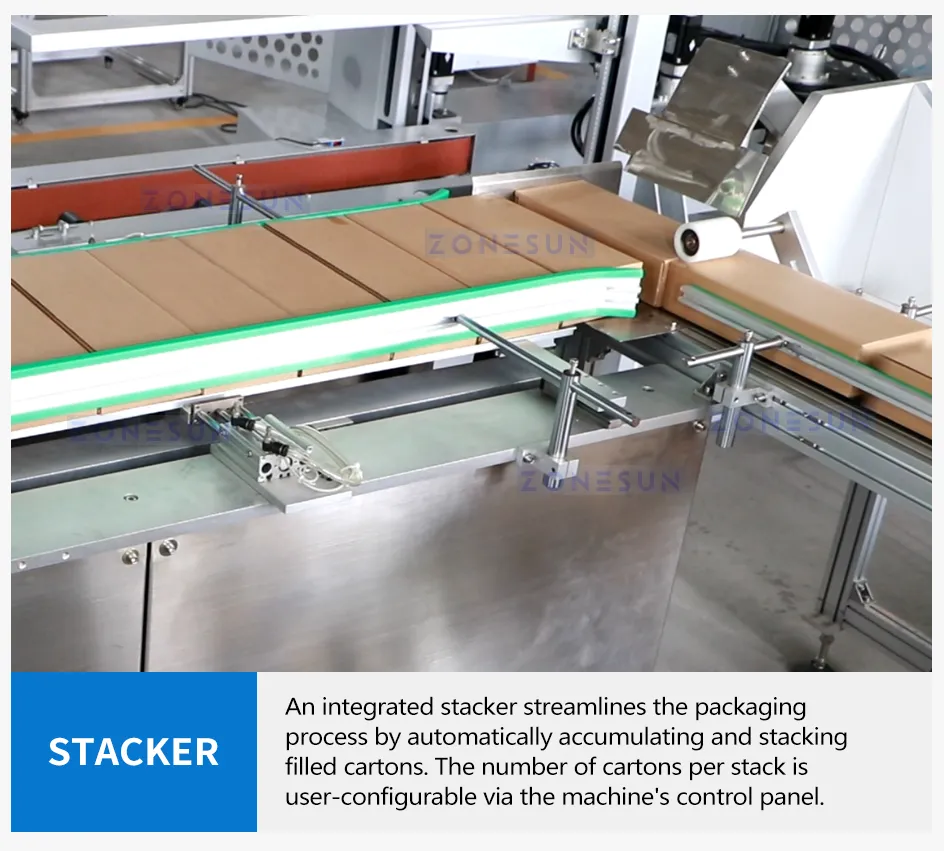

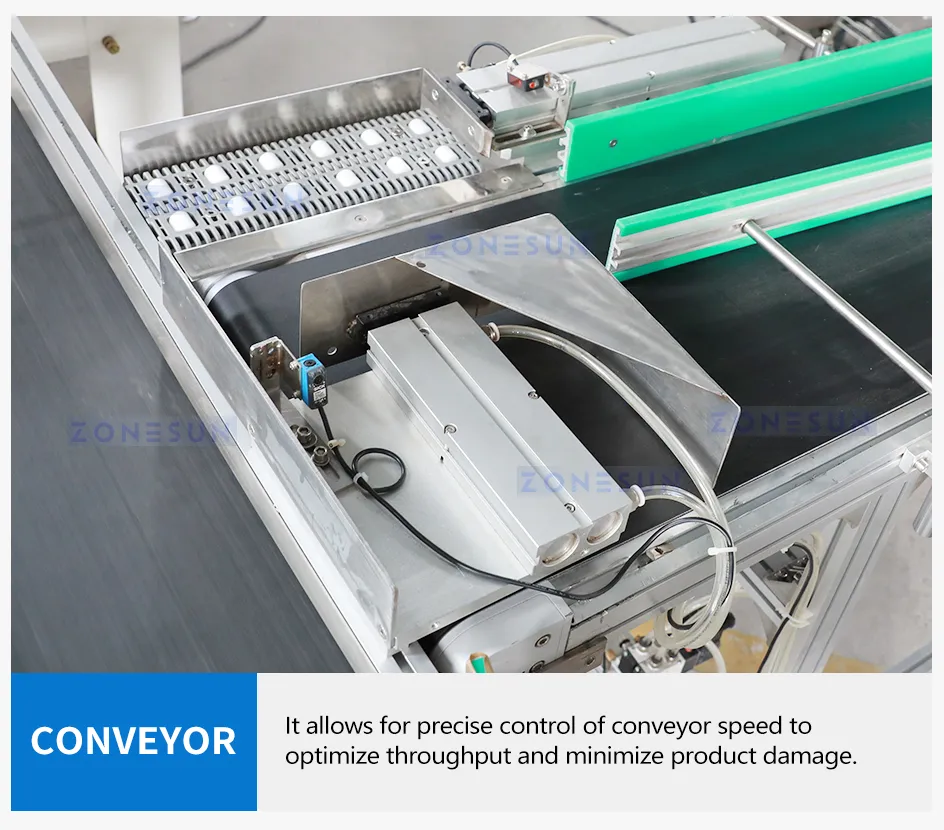

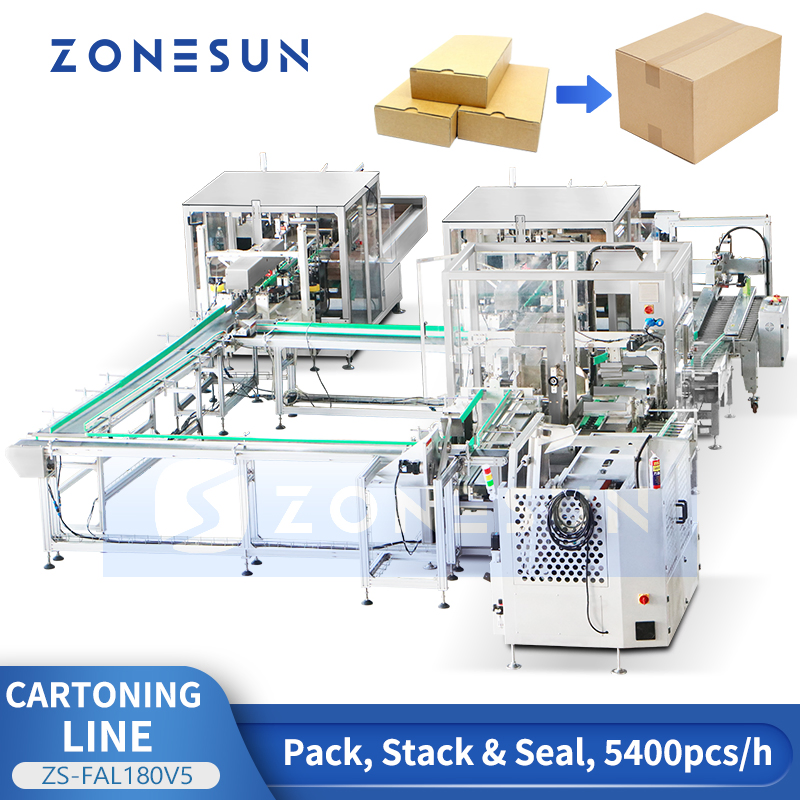

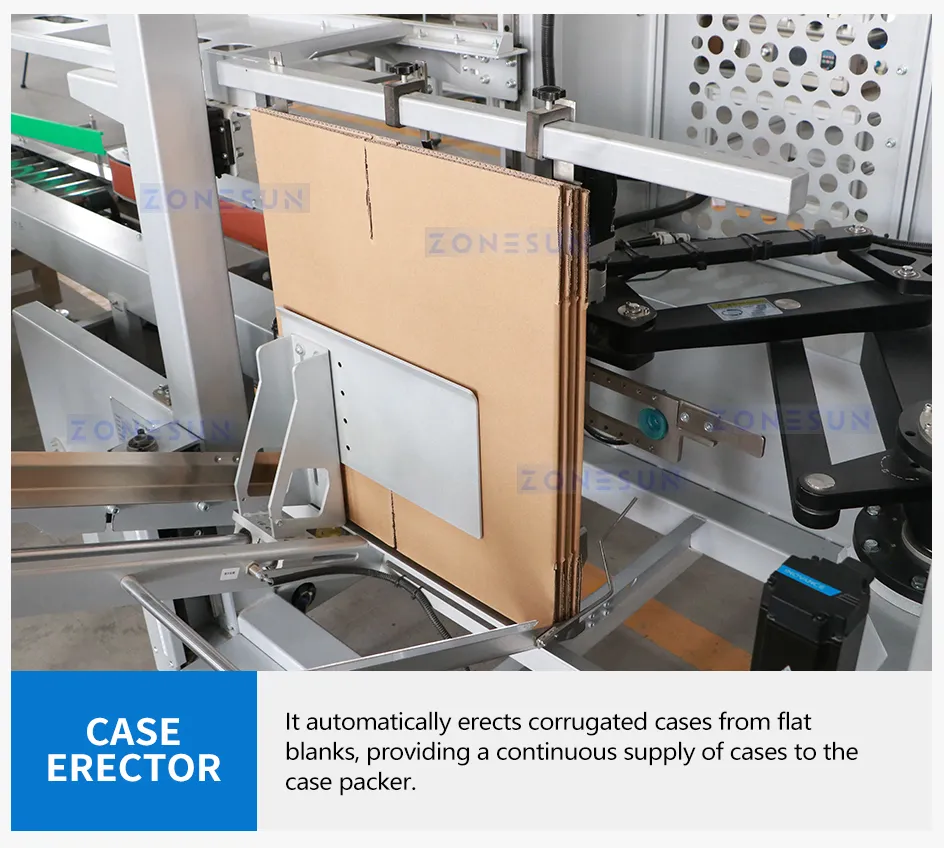

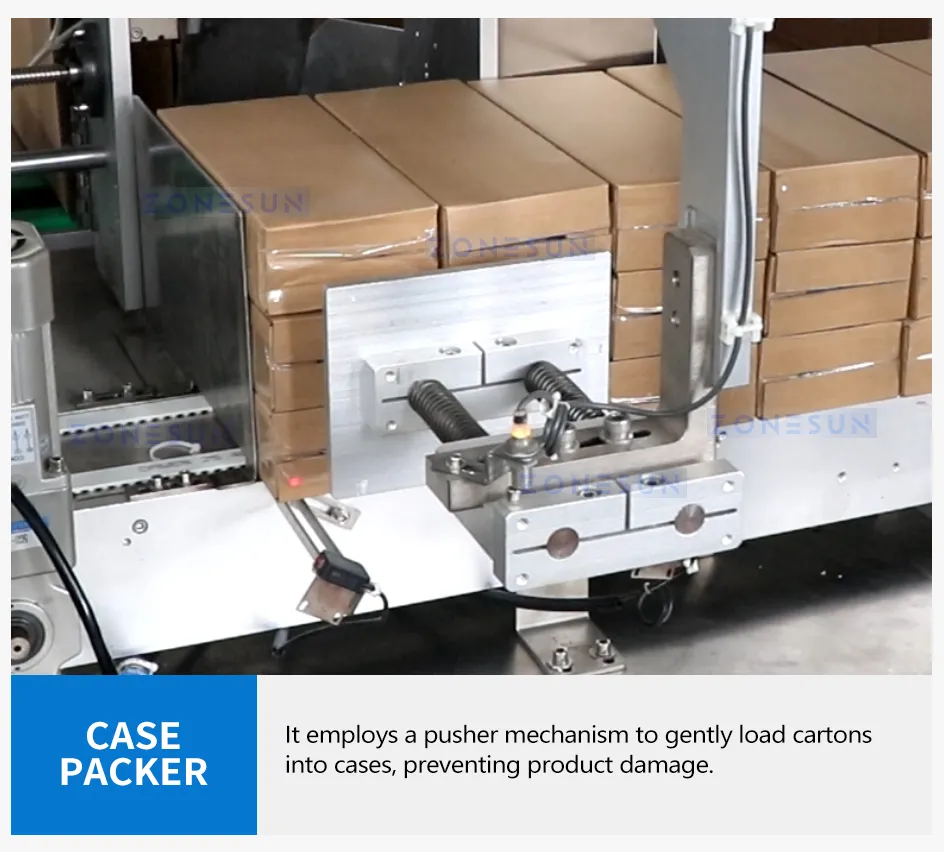

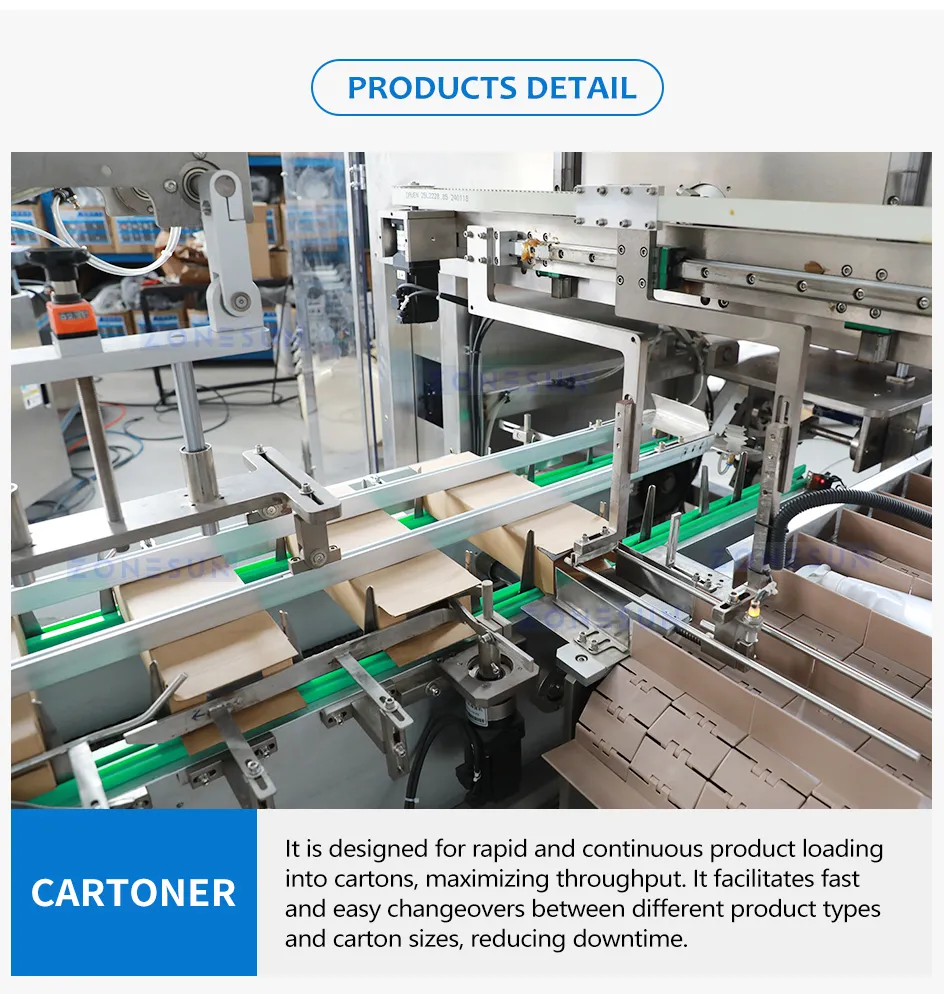

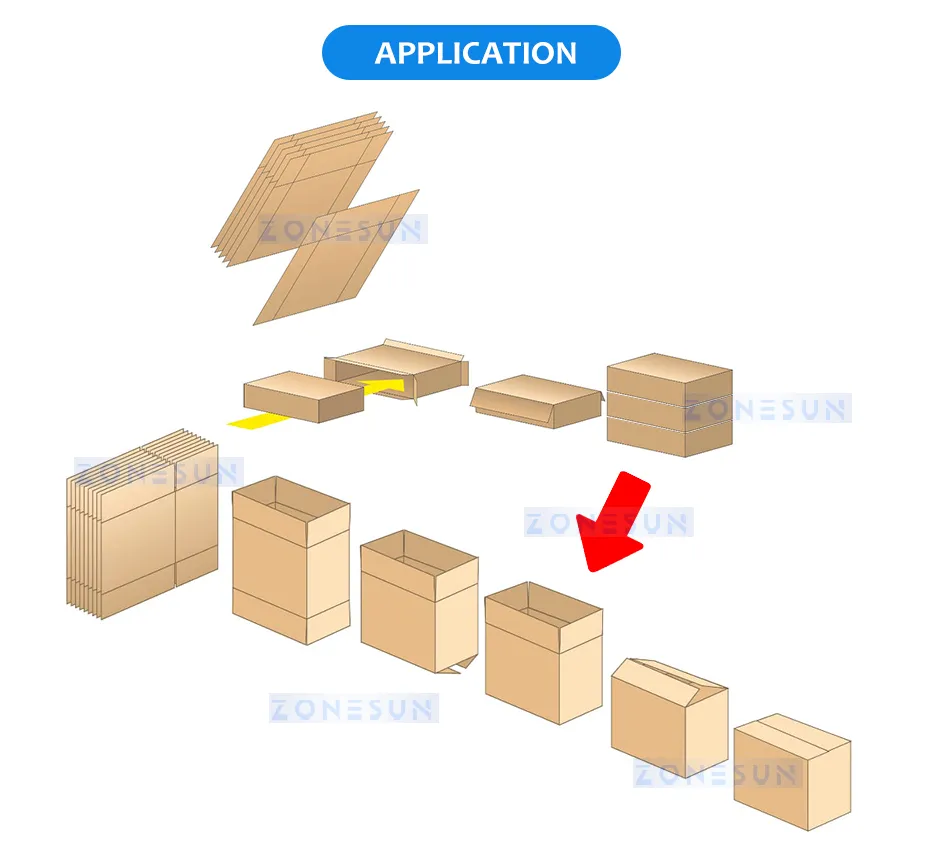

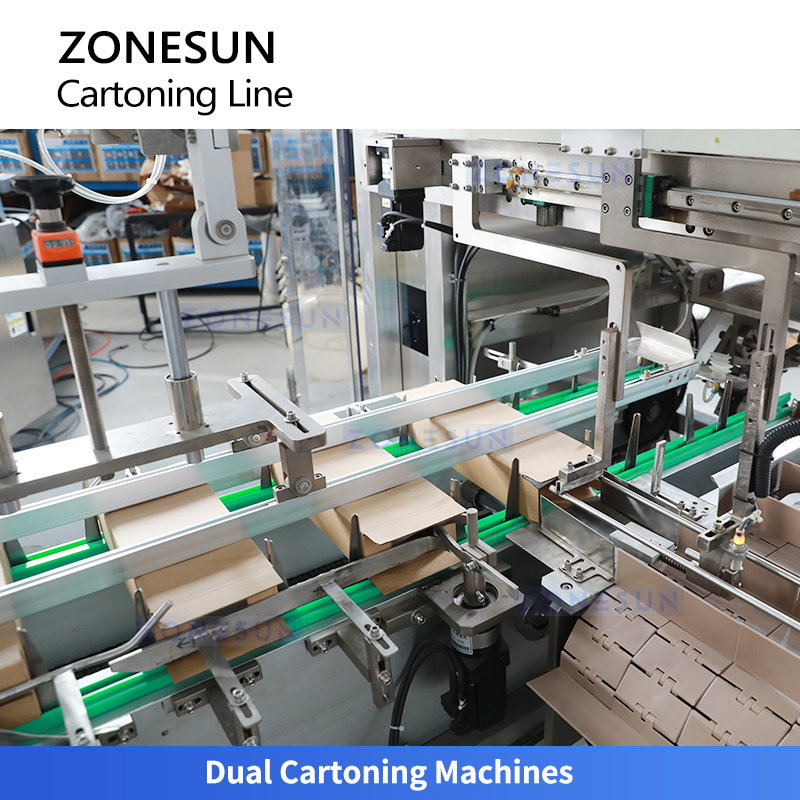

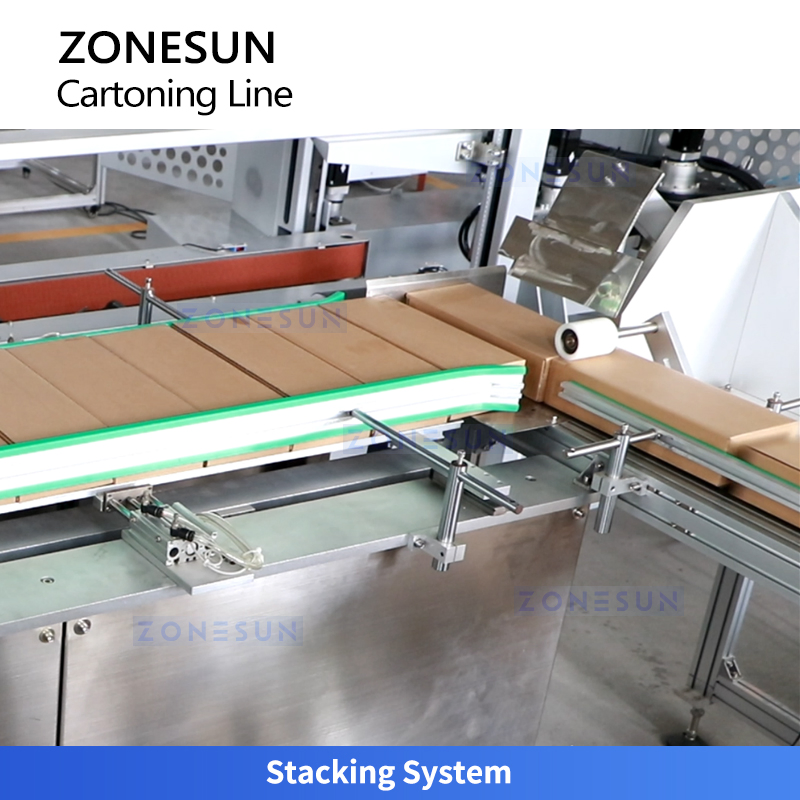

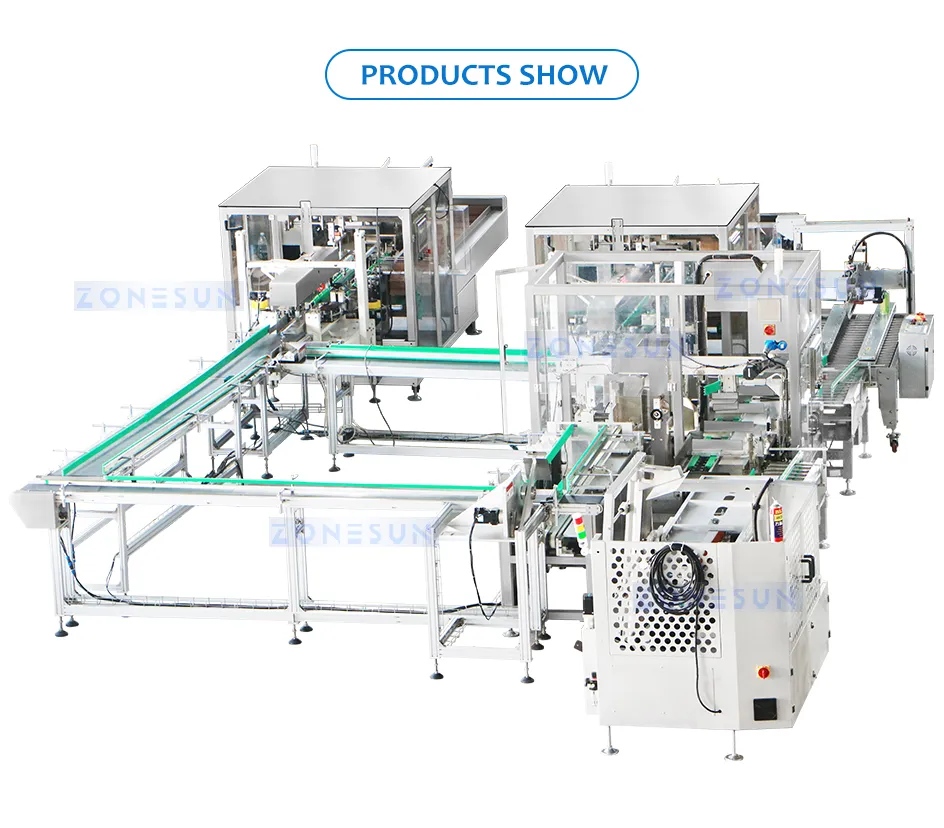

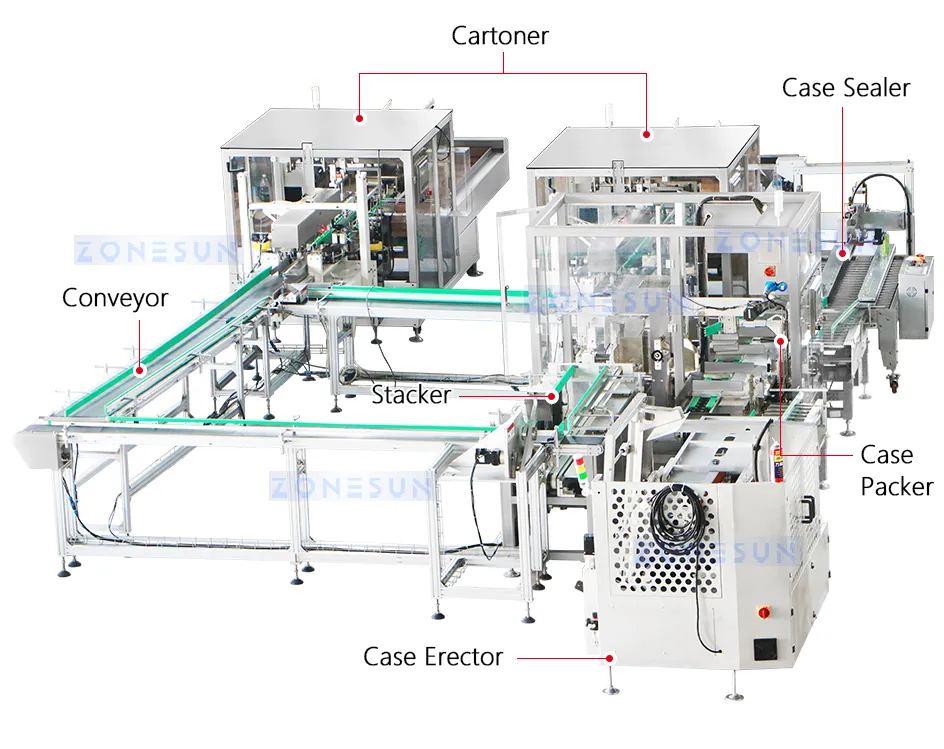

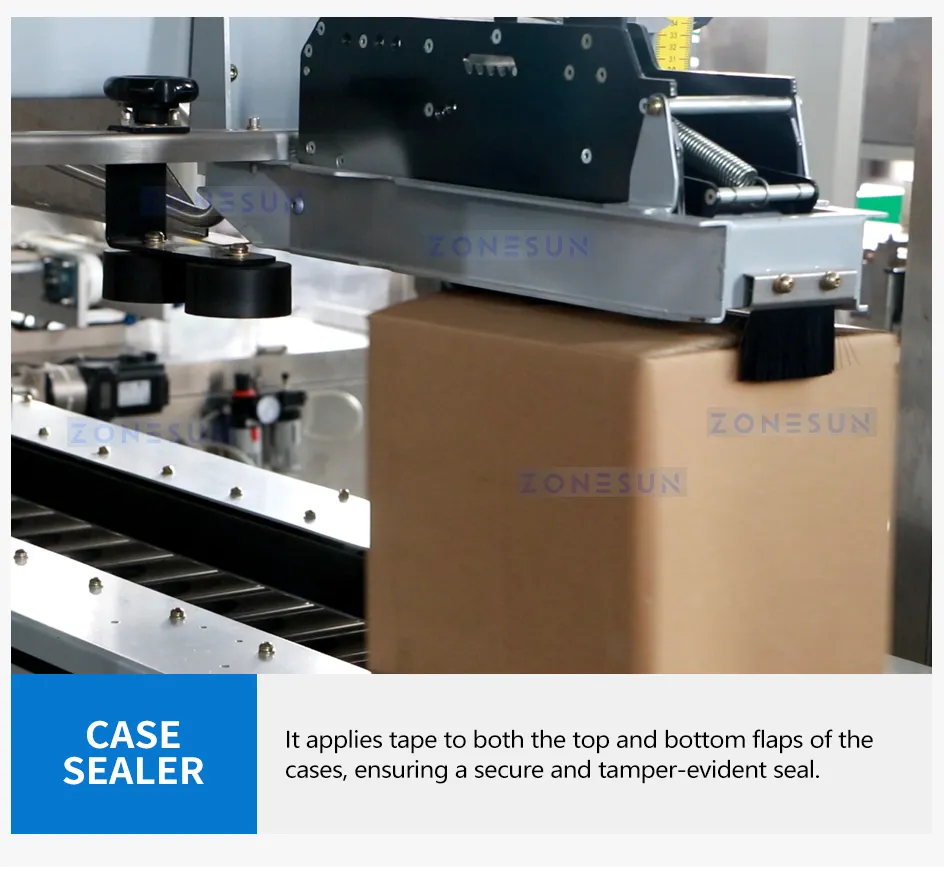

This integrated packaging line automates the entire process from product cartoning to final case sealing and stacking. The system begins with dual cartoning machines that precisely load products into individual cartons. These cartons are then conveyed to a stacking mechanism for efficient palletizing. Simultaneously, a carton erector forms corrugated cases, delivering them to a case packer. The case packer receives the erected cases in a horizontal orientation, ready to accept the incoming cartons. A pusher mechanism gently loads the cartons into the cases. The filled cases are then upended and fed into a case sealer, which applies tape to both the top and bottom flaps, creating a secure and finished package. The completed cases are then discharged, ready for palletizing or further processing. This automated solution minimizes manual labor, increases throughput, and ensures consistent packaging quality.
Parameters
Parameter Specification Details
Model: Cartoning Machine
Carton Size L: 80-320 mm × W: 30-180 mm × H: 15-120 mm
Packing Capacity 10-20 cases/min
Power 5.4 kW
Voltage 220V, 50Hz
Dimensions 3845 × 1476 × 1478 mm (L × W × H)
Weight Approx. 700 kg

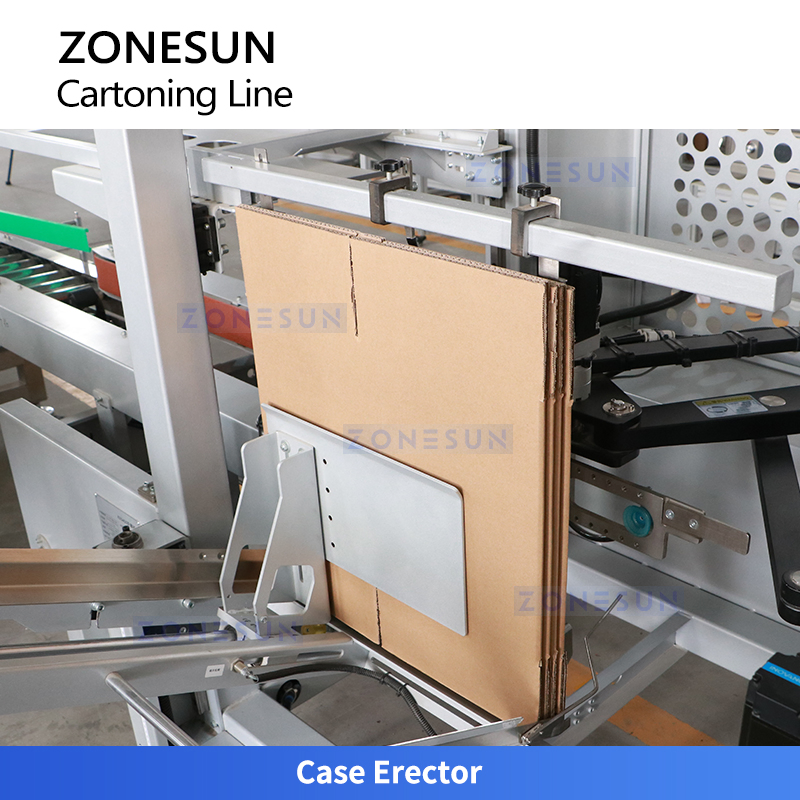

Model: Case Erector
Carton Size L: 280-500 mm × W: 150-400 mm × H: 150-400 mm
Other Carton Requirements Carton crease ≥ 0.4 mm, with pre-folding effect
Erecting Speed 5-15 pcs/min
Applicable Tape Width 48 mm / 60 mm / 75 mm (choose one)
Power 1 kW
Voltage 220V, 50Hz
Dimensions Approx. 2000 × 2110 × 1317 mm (L × W × H)

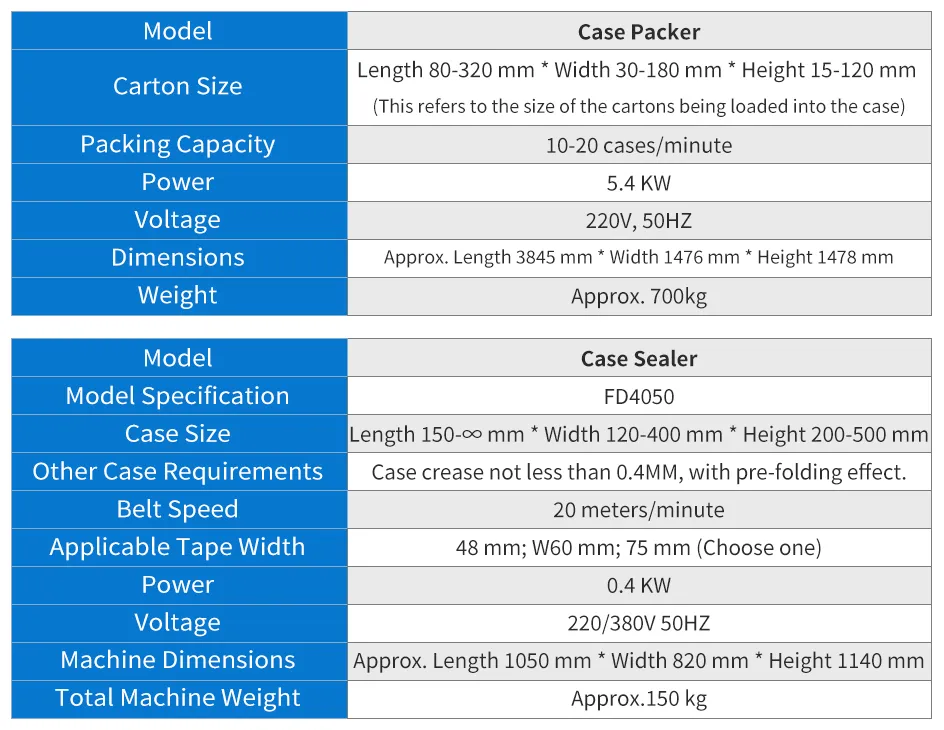

Model: Case Packer
Carton Size L: 80-320 mm × W: 30-180 mm × H: 15-120 mm
Packing Capacity 10-20 cases/min
Power 5.4 kW
Voltage 220V, 50Hz
Dimensions 3845 × 1476 × 1478 mm (L × W × H)
Weight Approx. 700 kg
Model: Case Sealer-FD4050
Case Size L: 150-∞ mm × W: 120-400 mm × H: 200-500 mm
Other Case Requirements Case crease ≥ 0.4 mm, with pre-folding effect
Belt Speed 20 meters/min
Applicable Tape Width 48 mm / 60 mm / 75 mm (choose one)
Power 0.4 kW
Voltage 220/380V, 50Hz
Machine Dimensions 1050 × 820 × 1140 mm (L × W × H)
Total Machine Weight 150kg
Product Gallery
Hot Items

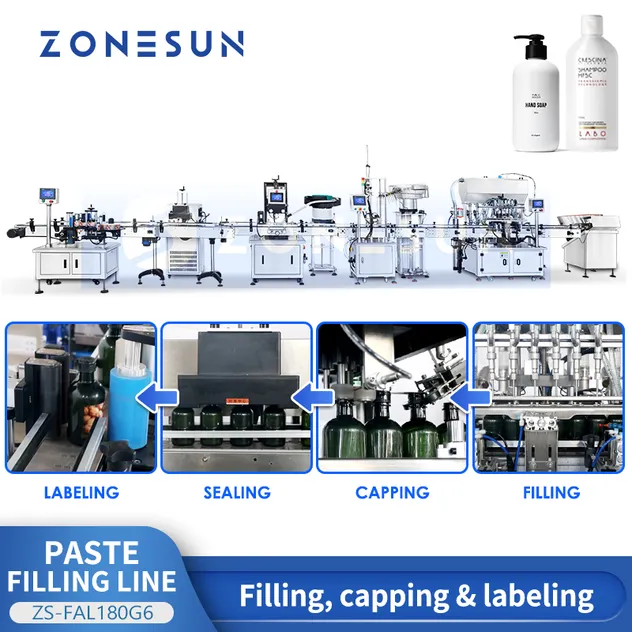

Automatic Paste Filling Capping and Labeling Machine
ZS-FAL180G6
Automatic Paste Filling Capping and Labeling Machine for Cream Lotion Cosmetic and Personal Care Packaging

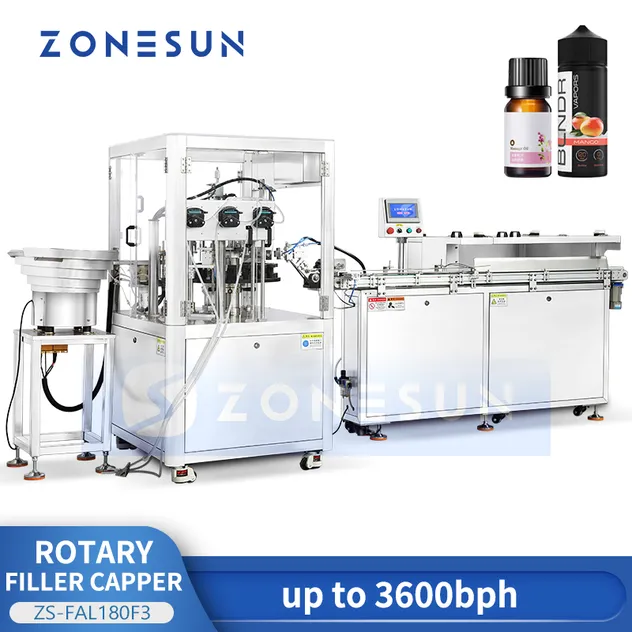

Automatic Small Essence Oil Bottle Filling and Capping Machine
ZS-FAL180F3
Automatic Small Essence Oil Bottle Filling and Capping Machine with Unscrambler High Speed Production Line

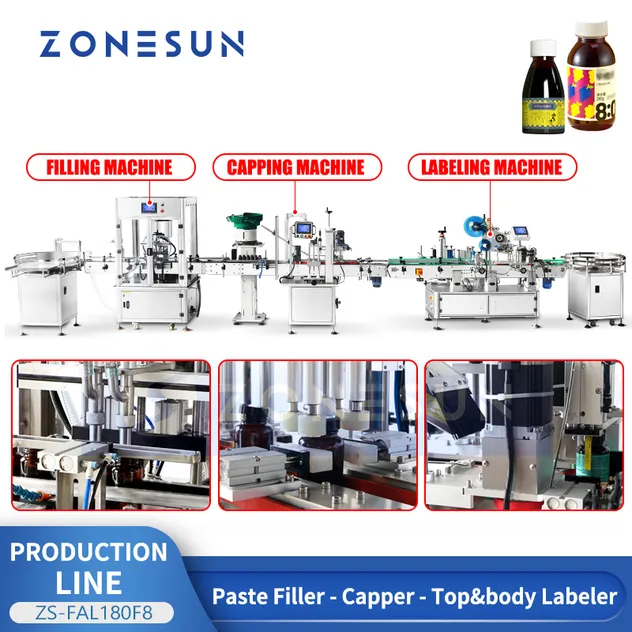

Automatic Servo Gear Pump Syrup Oil Filling Capping and Labeling Machine
ZS-FAL180F8
Automatic Servo Gear Pump Syrup Oil Filling Capping and Labeling Machine

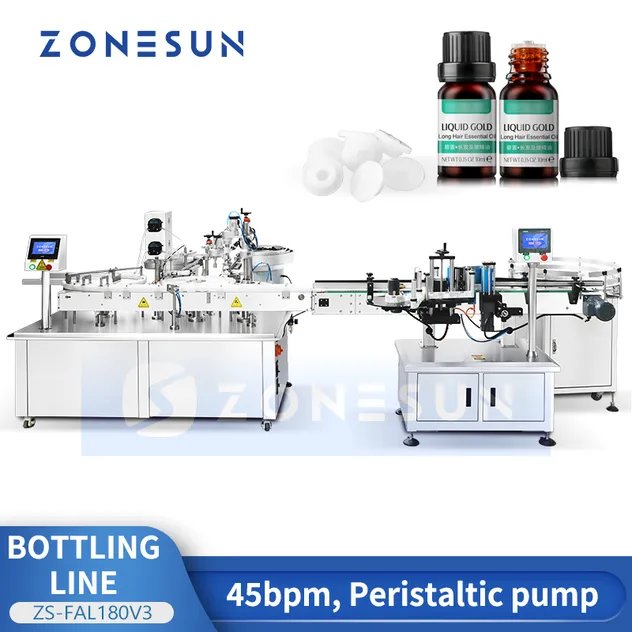

Automatic Car Ceramic Coating Bottling Line Liquid Filling Capping Labeling Machine
ZS-FAL180V3
Automatic Car Ceramic Coating Bottling Line Liquid Filling Capping Labeling Machine for Detailing Products

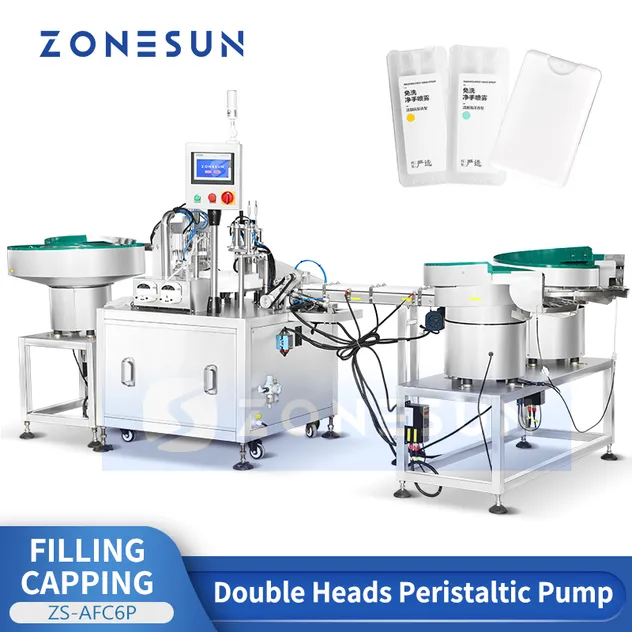

Rotary Automatic Pocket Perfume Essential Oil Filling and Capping Machine
ZS-AFC6P
Rotary Automatic Pocket Perfume Essential Oil Filling and Capping Machine for Small Cosmetic Bottle Production

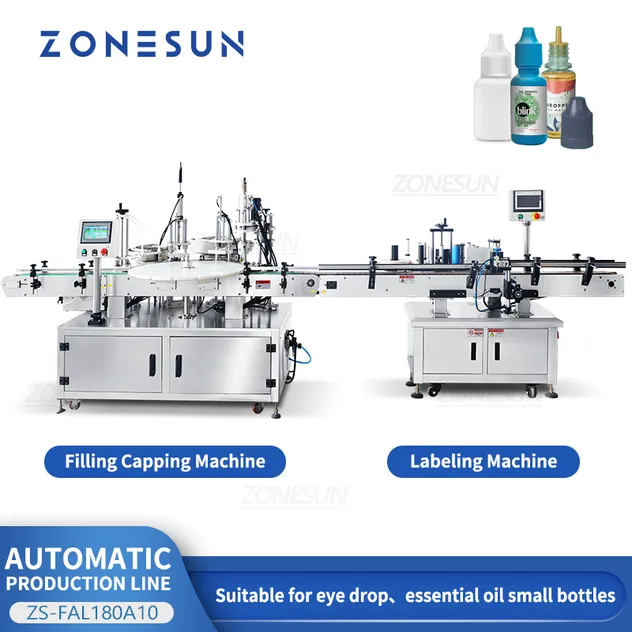

Automatic Eye Drops Liquid Bottle Filling Capping Labeling Machine
ZS-FAL180A10
Automatic Eye Drops Liquid Bottle Filling Capping Labeling Machine - Liquid Filling Equipment

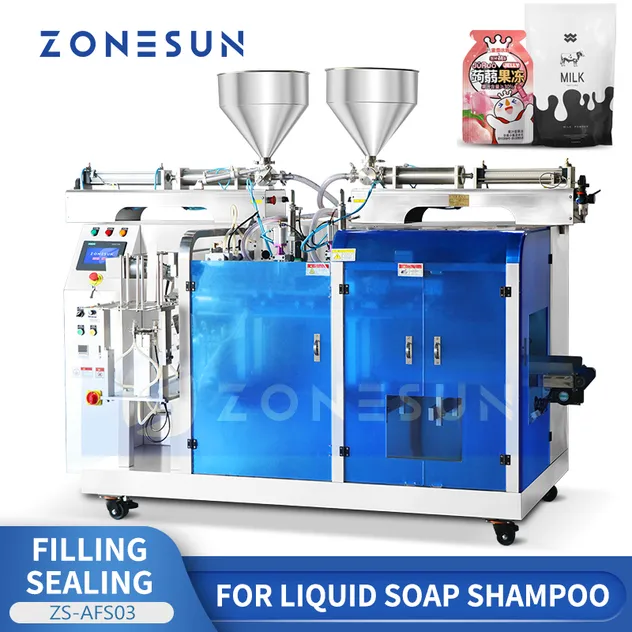

Horizontal Sachet Water Packing Machine
ZS-AFS03
Horizontal Sachet Water Packing Machine for Liquid and Paste Filling Seals Premade Pouches Efficiently

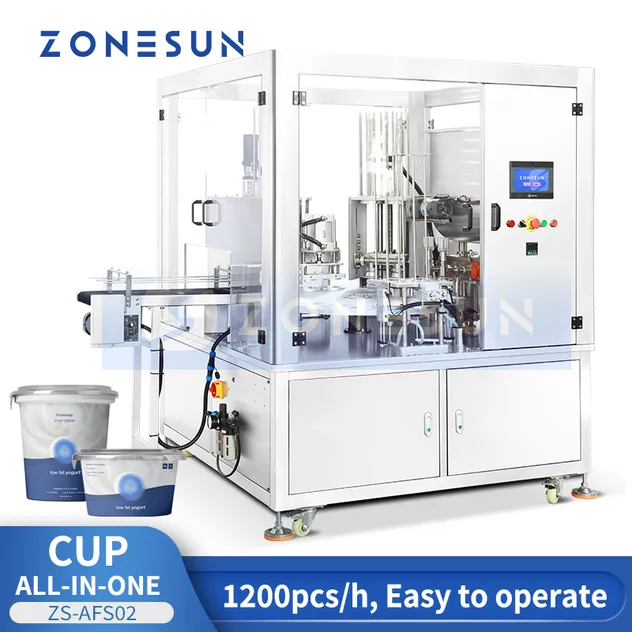

Automatic Yogurt Jelly Sauce Plastic Cup Filling and Sealing Machine
ZS-AFS02
Automatic Yogurt Jelly Sauce Plastic Cup Filling and Sealing Machine

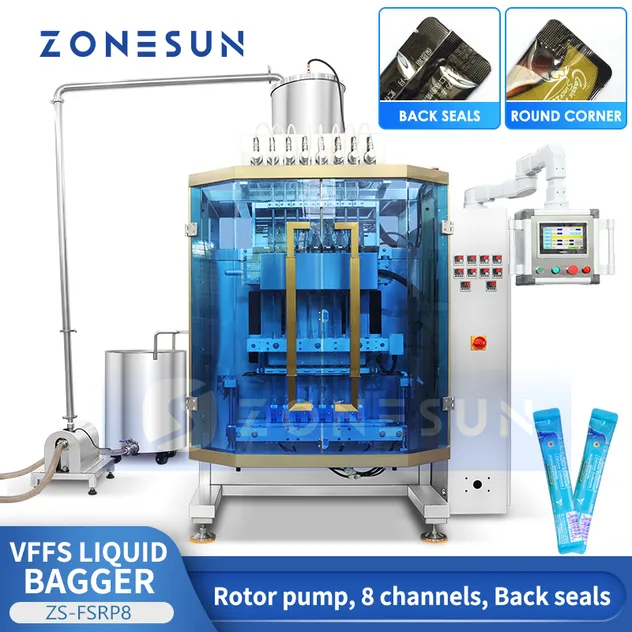

Vffs Liquid Sachet Filling and Sealing Machine
ZS-FSRP8
Vffs Liquid Sachet Filling and Sealing Machine 8 Lane Magnetic Pump Bagger for Sauce Syrup Vinegar Seasoning Packaging

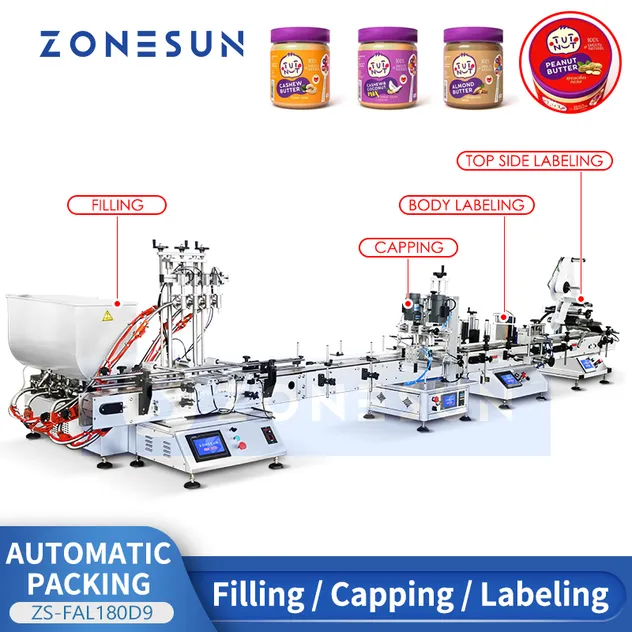

Automatic Small Bottle Filling Capping Labeling Machine
ZS-FAL180D9
Line Fills, Caps, and Labels Thick Lotions and Pastes with Speed and Precision— Ideal for Cosmetics Equipment

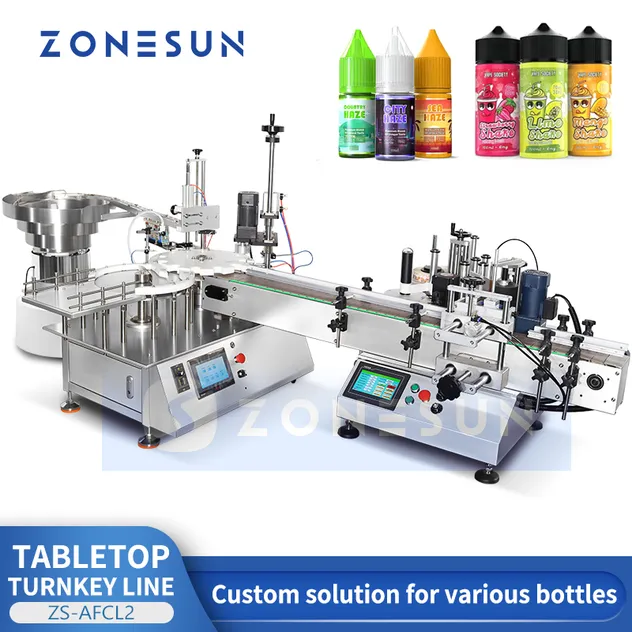

Desktop Automatic Small Bottle Filling Capping Labeling Machine
ZS-AFCL2
Desktop Automatic Small Bottle Filling Capping Labeling Machine for Essential Oil Toner Cosmetic Liquid

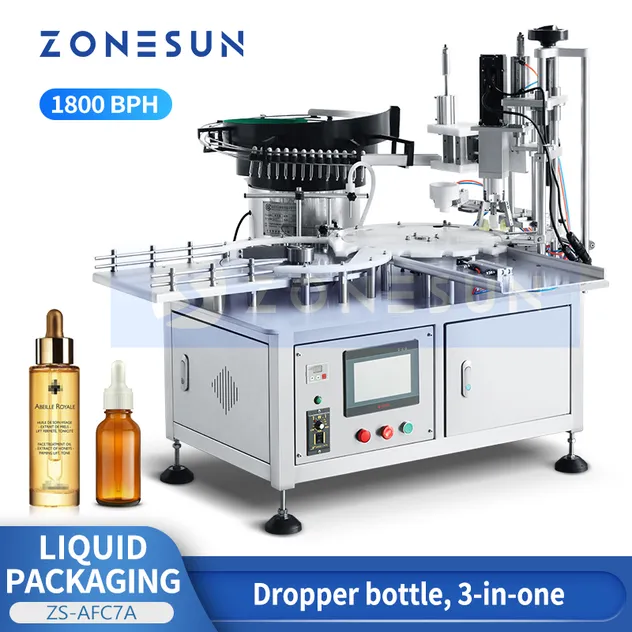

Rotary Automatic Small Essence Dropper Bottle Filling Capping Machine
