High Speed Carton Packer Water Bottle Linear Wrap Cardboard Case Packer Bottle Carton Packing Machine
High Speed Carton Packer Water Bottle Linear Wrap Cardboard Case Packer Bottle Carton Packing Machine
High Speed Carton Packer Water Bottle Linear Wrap Cardboard Case Packer Bottle Carton Packing Machine
High Speed Carton Packer Water Bottle Linear Wrap Cardboard Case Packer Bottle Carton Packing Machine
High Speed Carton Packer Water Bottle Linear Wrap Cardboard Case Packer Bottle Carton Packing Machine
1 / 5
High Speed Carton Packer Water Bottle Linear Wrap Cardboard Case Packer Bottle Carton Packing Machine
High Speed Carton Packer Water Bottle Linear Wrap Cardboard Case Packer Bottle Carton Packing Machine
High Speed Carton Packer Water Bottle Linear Wrap Cardboard Case Packer Bottle Carton Packing Machine
High Speed Carton Packer Water Bottle Linear Wrap Cardboard Case Packer Bottle Carton Packing Machine
High Speed Carton Packer Water Bottle Linear Wrap Cardboard Case Packer Bottle Carton Packing Machine

High Speed Carton Packer Water Bottle Linear Wrap Cardboard Case Packer Bottle Carton Packing Machine

After-sales Service: Field Installation, Commissioning and Training
Warranty: 1 Year
Automatic Grade: Field Installation, Commissioning and Training
Send Inquiry

Product Description

Basic Information
Model NO.
customized
Application
Drinks, 1 Year
Type
Forming Filling Sealing Machine
Forming Species
Pharmaceutical & Medical
Forming Function
Forming, Filling, Seal
Driven Type
Electric
Material Type
Liquid
Packaging
Cartons
Packaging Material
Paper
Characteristics
Reliable Sealing, Convenient Use, Beautiful Packing
Usage
Capsule Blister Sheet Packing
Product Material
PVC Pet PP PS Blister
Machine Application
Food, Commodity, Machinery & Hardware
Core Components
PLC, Gearbox
Packaging Type
Forming-Sealing Machine
Advantages
High Efficiency; High Productivity
Suitable for
Pill Tablet Capsule Vial Syringe Ampoule Packing
Machine Material
Stainless Steel
Function
Blister Forming
Applicable Industries
Manufacturing Plant
Production Speed
10-20cycle/Min
Transport Package
Wooden Case; Standard Package
Specification
3.2 x2.5 x2.5M
Production Capacity
Customized
Product Description

Blister packaging and cartoning machines are essential equipment used in the pharmaceutical, healthcare and food industries for the efficient and automated packaging of products. They play a vital role in ensuring product safety, extending shelf life and improving overall product presentation.

Carton Packing Machine
Applications

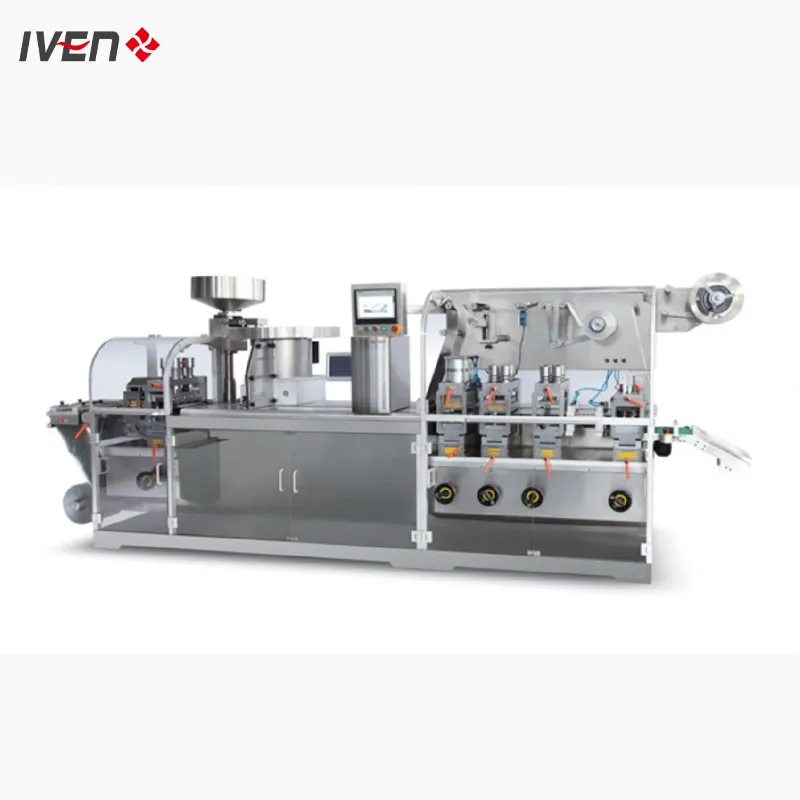

Application Image

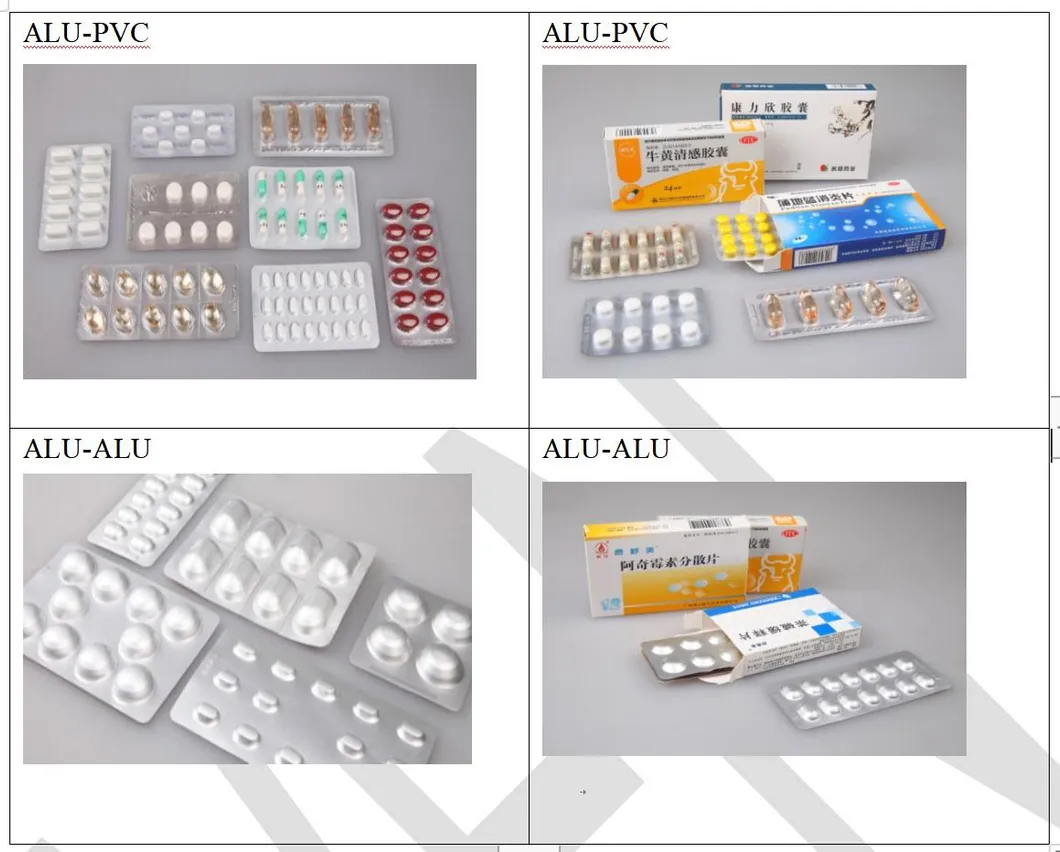

  • Applied to Alu-Pvc and Alu-Alu packing of medicines, such as sealed blister packing of capsules and tablets of various specifications.
  • Applied to sealed blister packing of various syringes, ampoule bottles and medical products.
  • Applied to sealed blister packing of food, electronic parts, hardware products, etc.
Main Features
  • Main drive: Main motor located at the back of machine for easy maintenance. Synchronous belt drive reduces oil stain.
  • Guide rail: Installed in cantilever way, making it convenient for operators to remove dropped products.
  • Mould adjustment: Adopt lathe type guide rail and pinion/rack adjustment with position indicators and scale rulers.
  • Quick Change: All moulds can be orientation-guide pushed into position by hand without needing wrenches.
  • Material Loading: Adopt air shaft for PVC and aluminum foil; PVC connection device allows faster roll changes.
  • PVC Trace: Adopt roller trace to avoid over-stretching during material pulling.

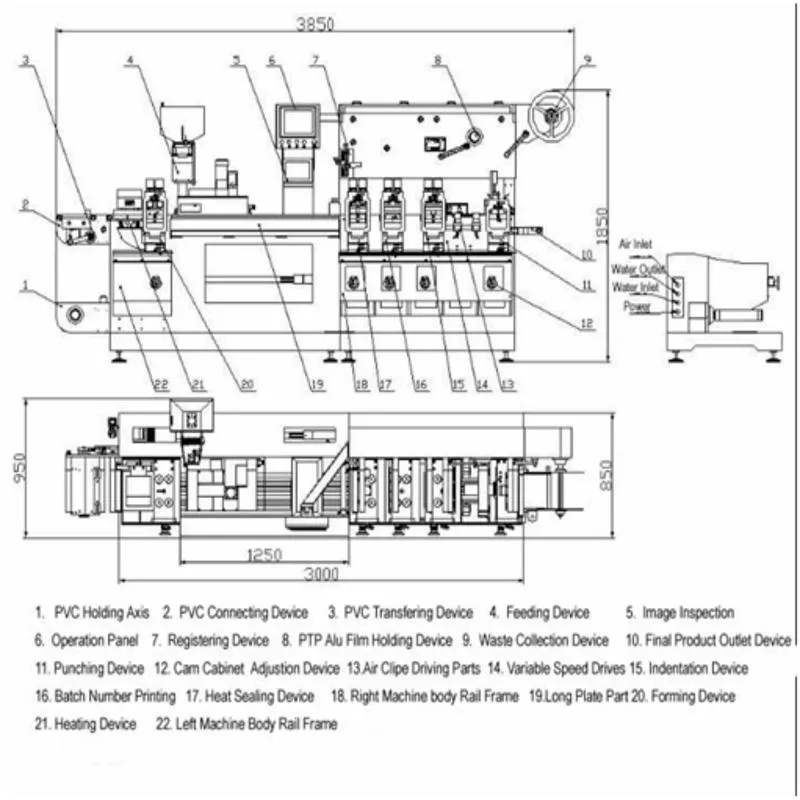

Feature Detail

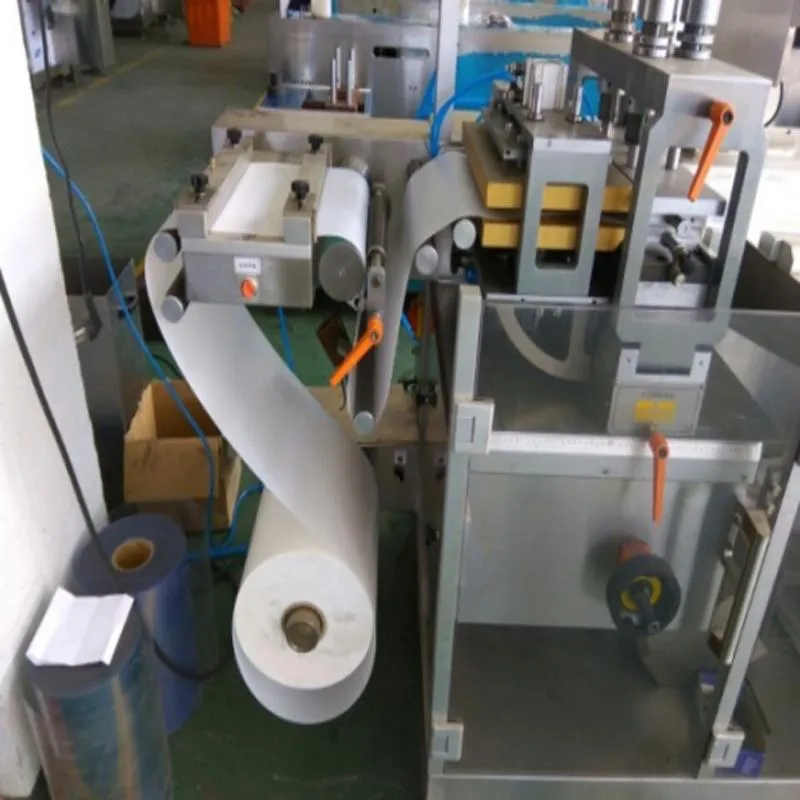

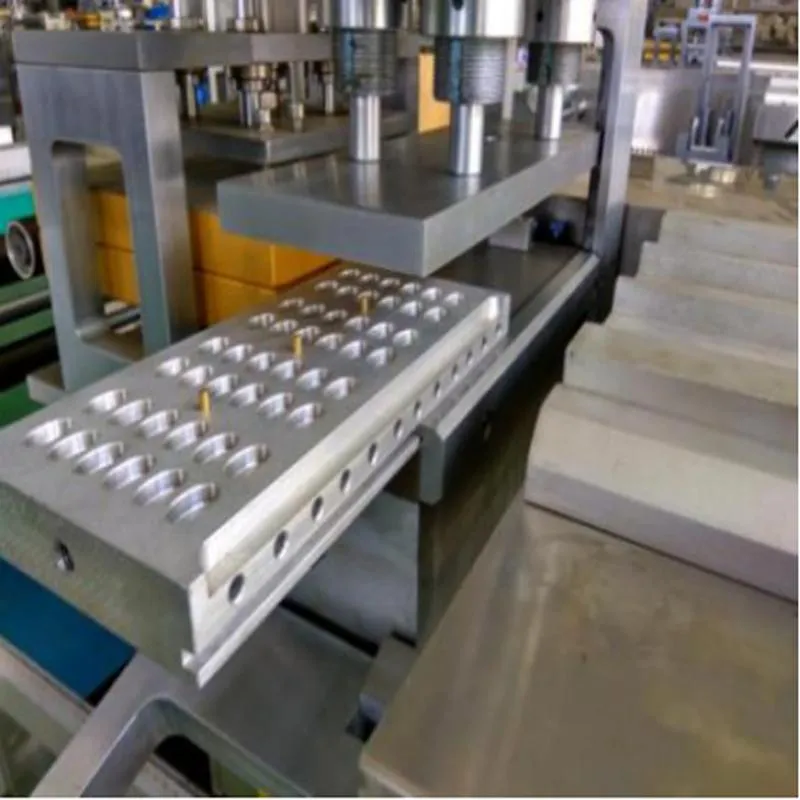

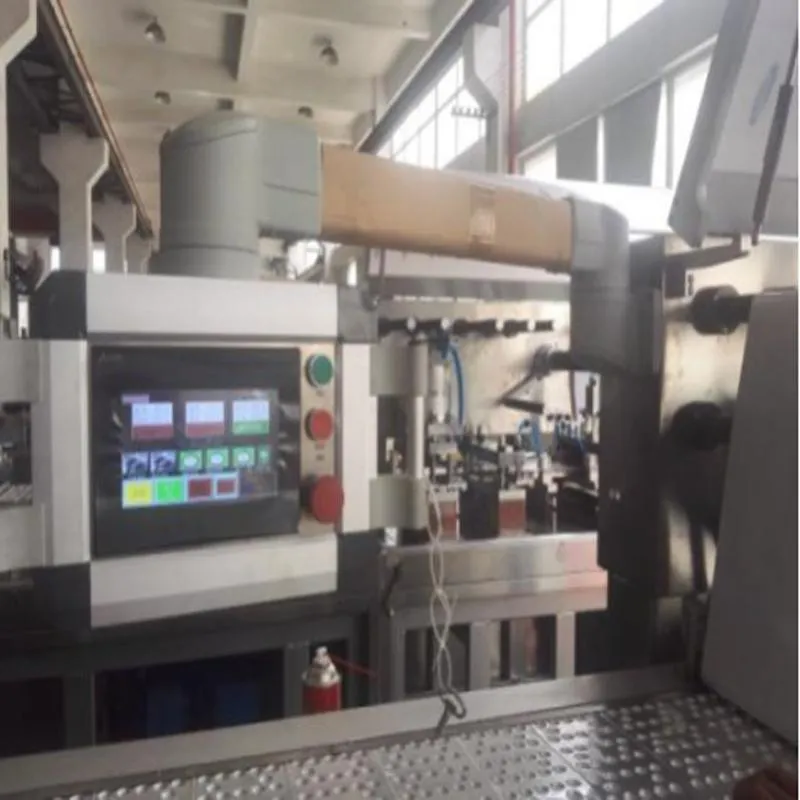

Station Detail 1 Station Detail 2 Station Detail 3

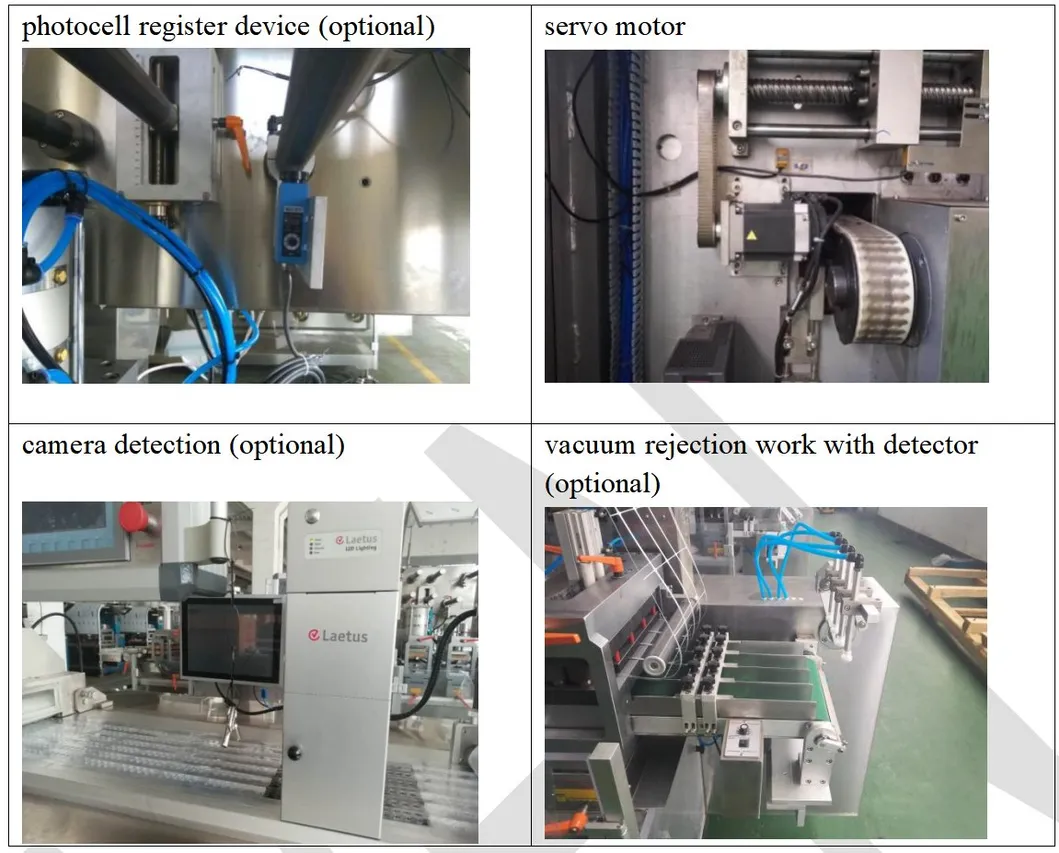

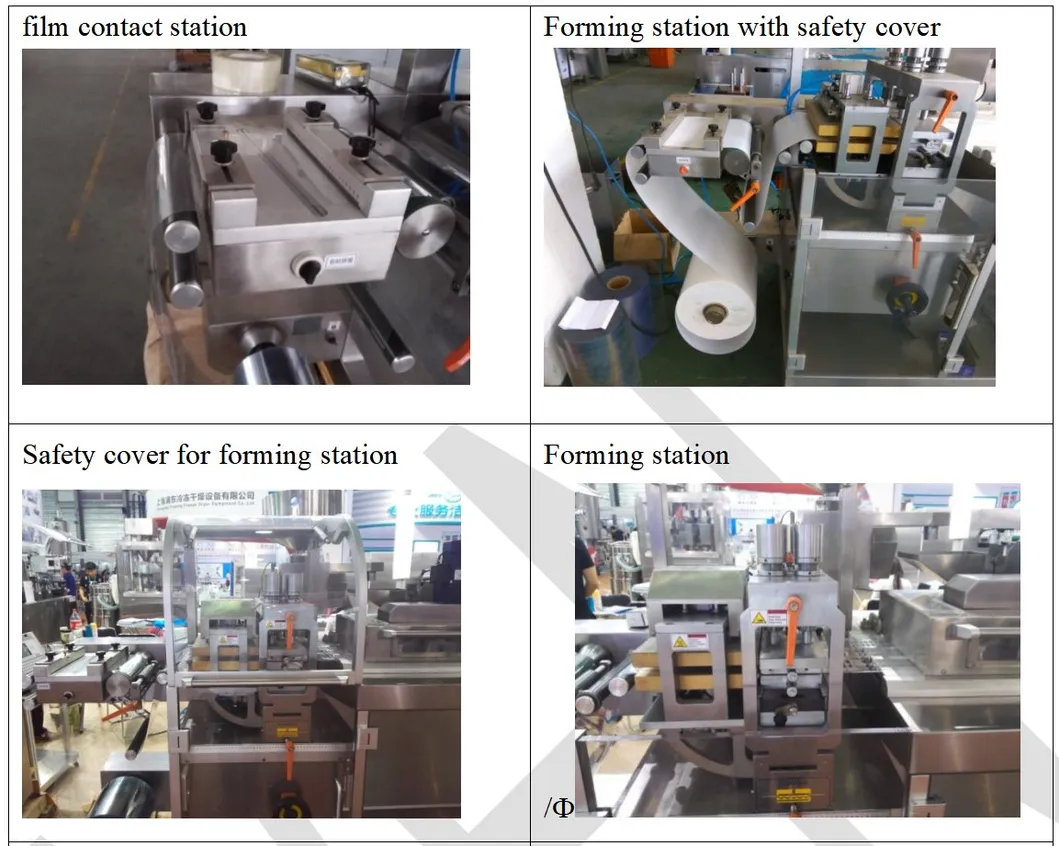

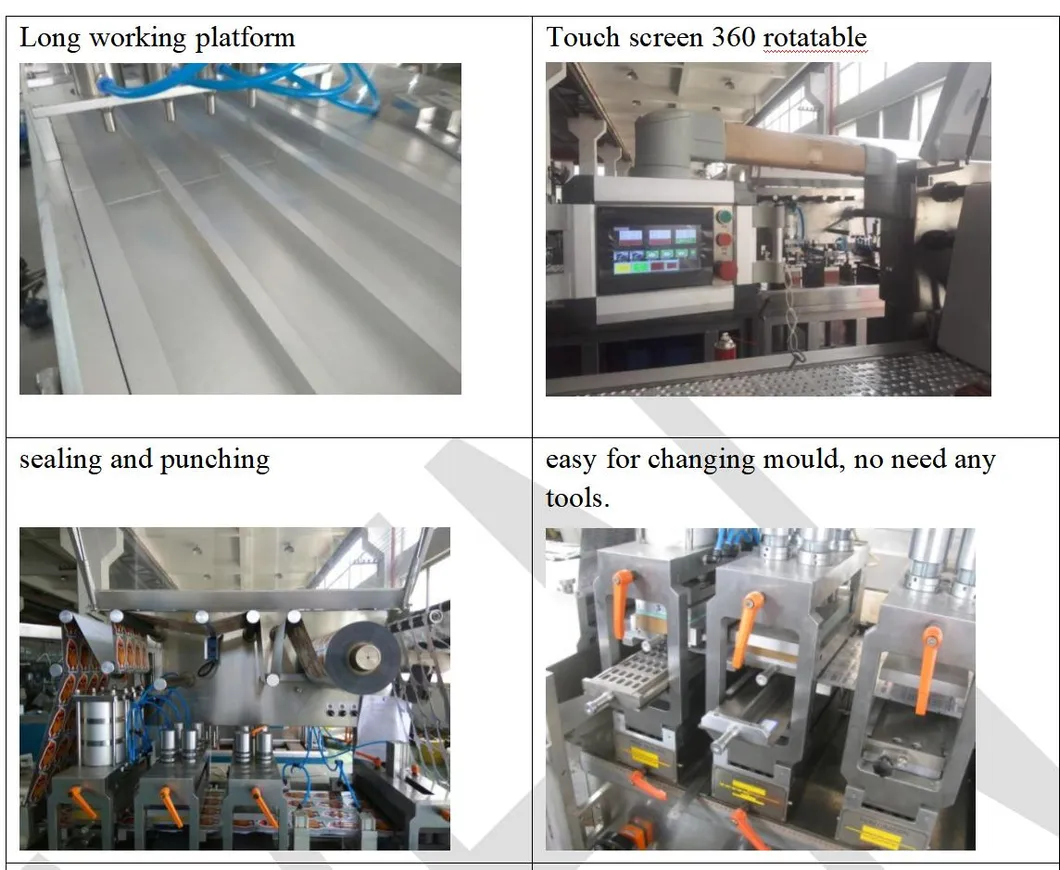

Details of Each Station

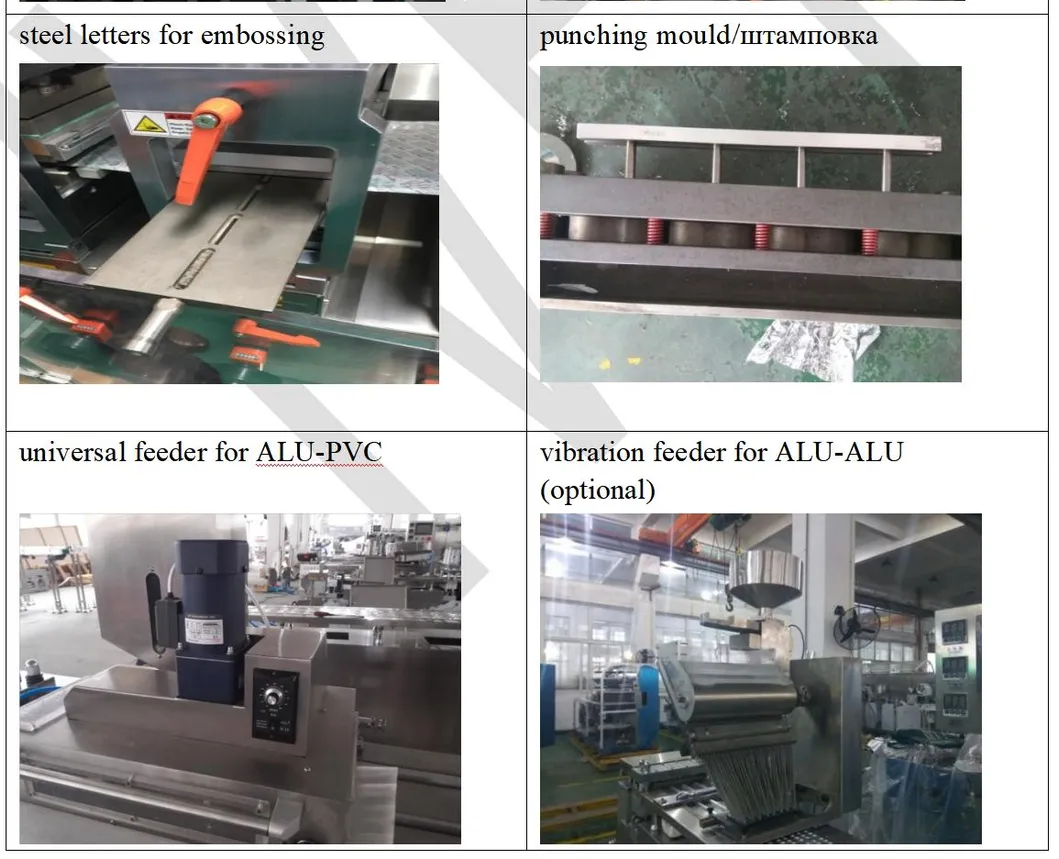

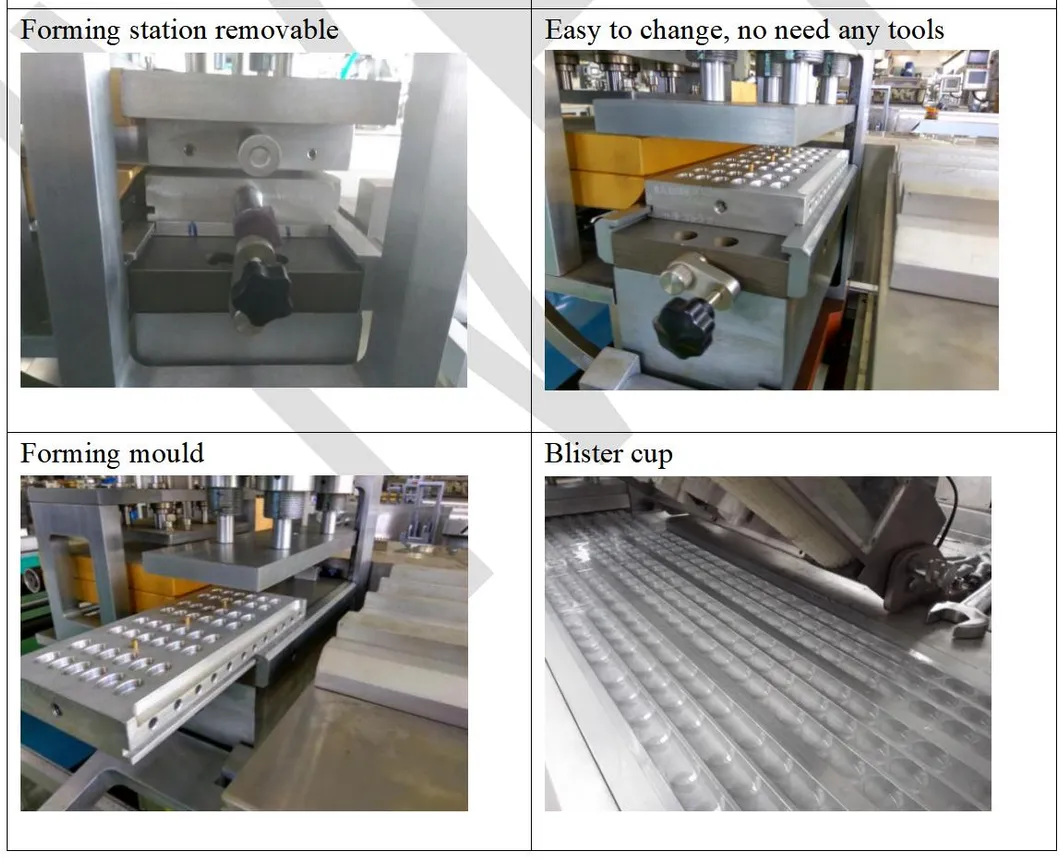

Station Detail 4 Station Detail 5 Station Detail 6 Station Detail 7 Station Detail 8 Station Detail 9
Main Technical Parameters
Parameter NameSpecification
Punch frequency (time/min)40-50
Capacity (blister/h)4200-15000
Max forming area depth (mm)260*120*26
Stroke (mm)20-120
Standard blister (mm)80*57
Air supply0.4-0.8
Total power380/220v 50hz 10kw
Main motor power (kw)2.2
PVC hard pieces (mm)0.15-0.5*270
PTP aluminum foil (mm)0.02-0.35*270
Cold forming aluminum foil (mm)0.14-0.20*270
Dialytic paper (mm)50-100g/m2*270
Mould coolingTap water or recycle water
Overall dimension (mm) (L*W*H)4000*850*1700
Weight (kg)2800
Integrated Solutions

Providing integrated engineering solutions for pharmaceutical and medical factories worldwide, including clean rooms, auto-control and monitoring systems, pharmaceutical water treatment, solution preparing and conveying, filling and packing, automatic logistics, quality control systems, and central laboratories.

Engineering Solution

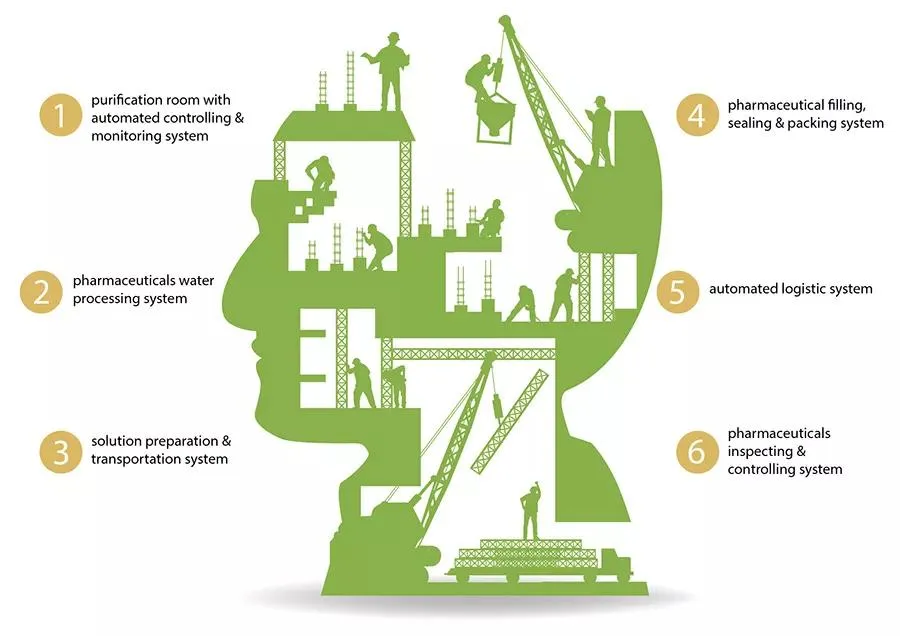

Turnkey Project Services
Turnkey Project
  • Project Design & Pharmaceutical Water Treatment
  • Solution Preparation & Production Lines
  • Sterilization, Inspections & Packing
  • Clean Room & HVAC Systems
  • Stability Chambers & Laboratory Instruments
  • Documentation, Qualification, Installation & Training
Oversea Projects Showcase
Oversea Projects

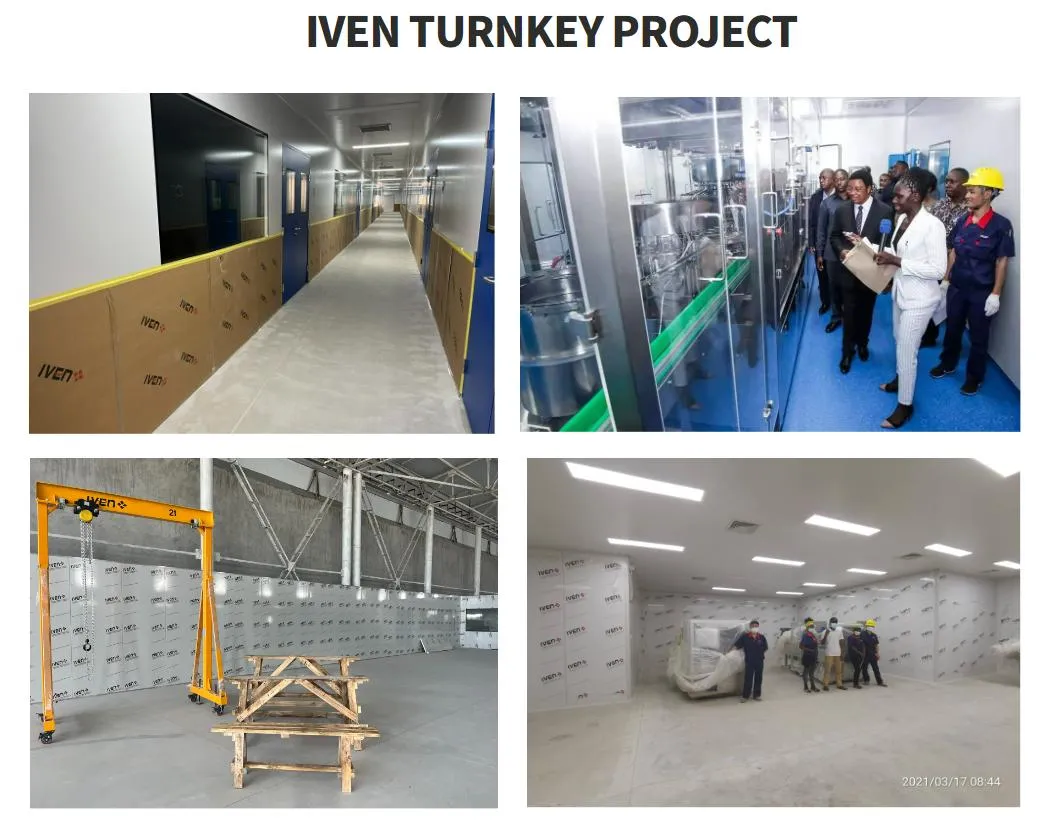

Project 1 Project 2 Project 3
Project 4 Project 5 Project 6

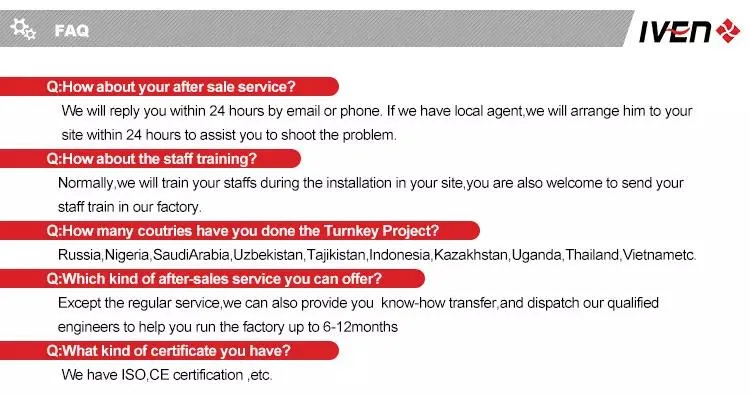

Project 7
Frequently Asked Questions (FAQ)
Q1: What materials can this blister packing machine handle?
A: The machine is designed to work with various materials including Alu-Pvc, Alu-Alu, PVC, PET, PP, PS blister materials, and dialytic paper.
Q2: What is the typical production capacity of this equipment?
A: The capacity ranges from 4,200 to 15,000 blisters per hour, depending on the specific product and configuration, with a punch frequency of 40-50 times per minute.
Q3: Is the machine suitable for clean room environments?
A: Yes, the machine is constructed with stainless steel and utilizes synchronous belt drives instead of chain drives to minimize oil stains, making it ideal for pharmaceutical clean rooms.
Q4: How complex is the mould changing process?
A: The machine features a quick-change system where all moulds (forming, sealing, printing, punching) can be pushed into position by hand and locked without the need for wrenches or specialized tools.
Q5: What industries can benefit from this packaging machine?
A: It is widely used in pharmaceutical (pills, capsules, ampoules), healthcare (syringes), food, and electronics industries for secure and efficient product packaging.
Q6: Do you provide support for complete factory setups?
A: Yes, we offer full Turnkey Project services from A to Z, including project design, water treatment, clean room setup, equipment installation, and staff training.
