| Machine Technical Data | |
|---|---|
| Model NO. | DH-T-4-1-2-3-0-0 |
| Product Name | Bottom-Moving Packing Machine |
| Application | Waste Paper, Steel Pipe, Steel Coil, Household Chemicals, Medical, Oil, Skin Care Products, Carbonated Drinks, Milk, Yogurt, Pure Water, Alcoholic Beverages, Fruit Drinks |
| Automatic Grade | Automatic |
| Driven Type | Electric / Pneumatic |
| Machine Dimension | 3115×3680×3760mm (L*W*H) |
| Power Supply | 380V/50Hz/4.1kw |
| Packing Cycle | 12s/PCS |
| Tensioning Force | 50~3500N (Adjustable) |
| Device Net Weight | 2350kg |

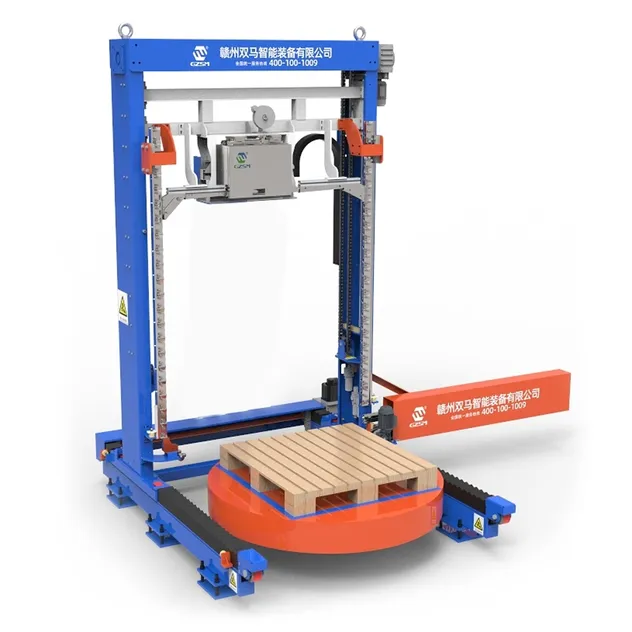

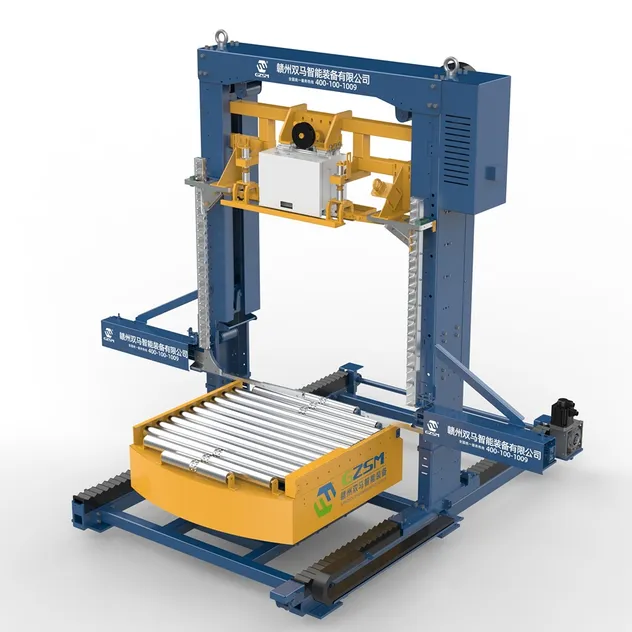

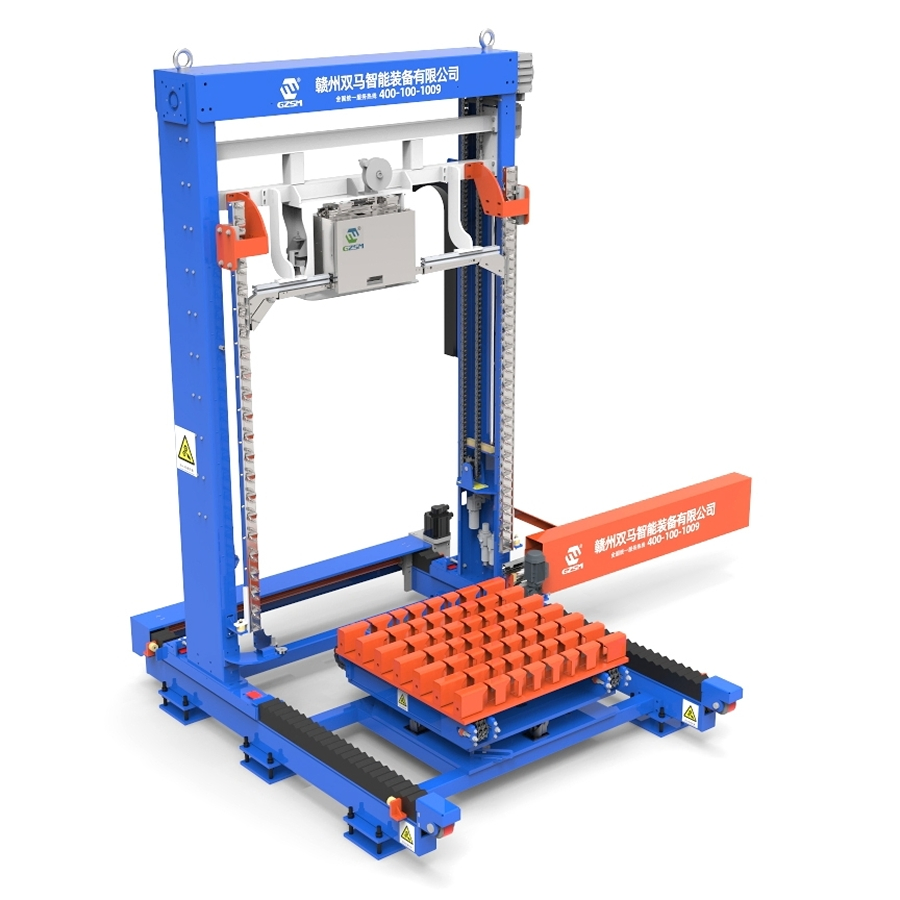

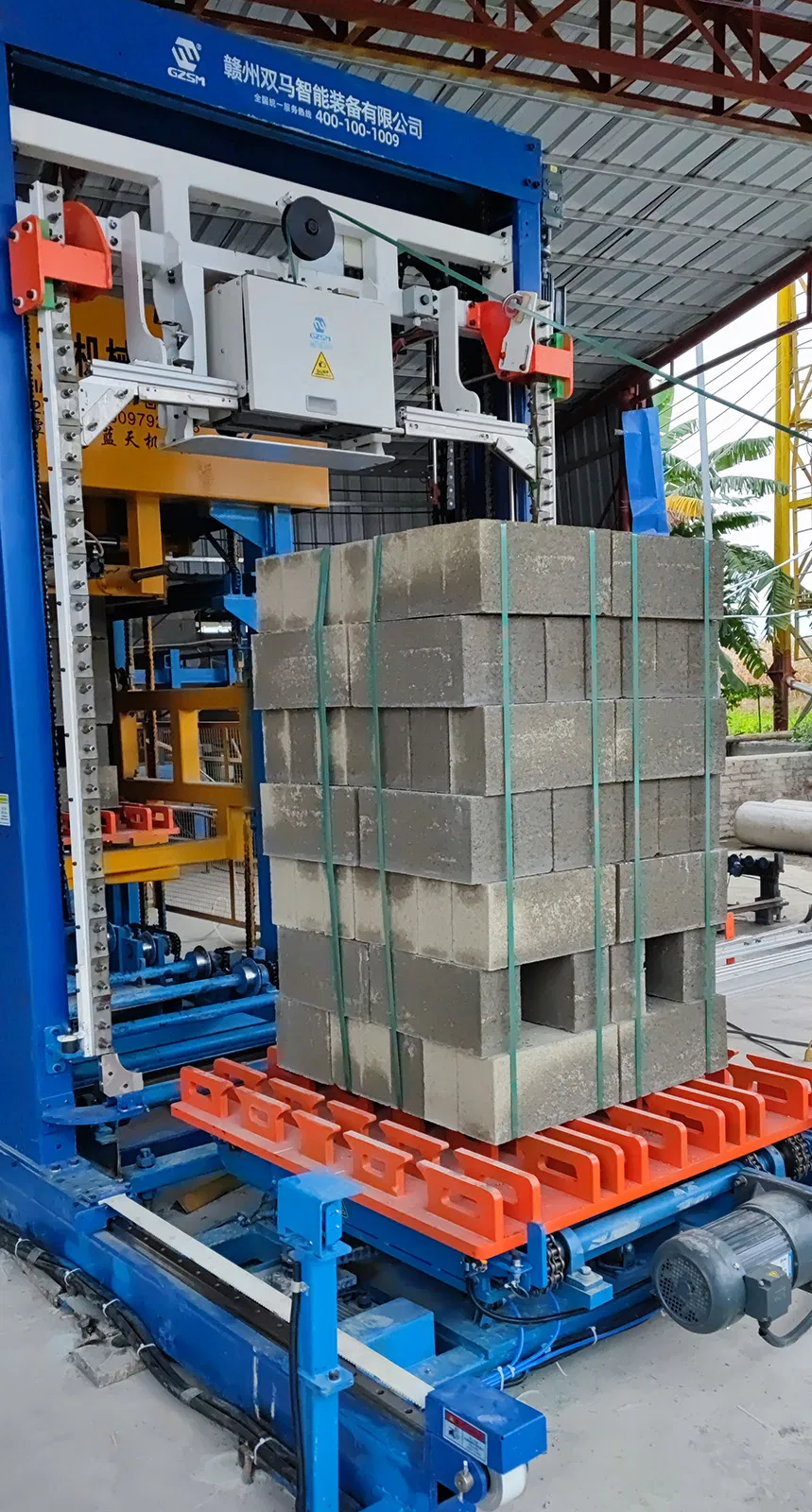

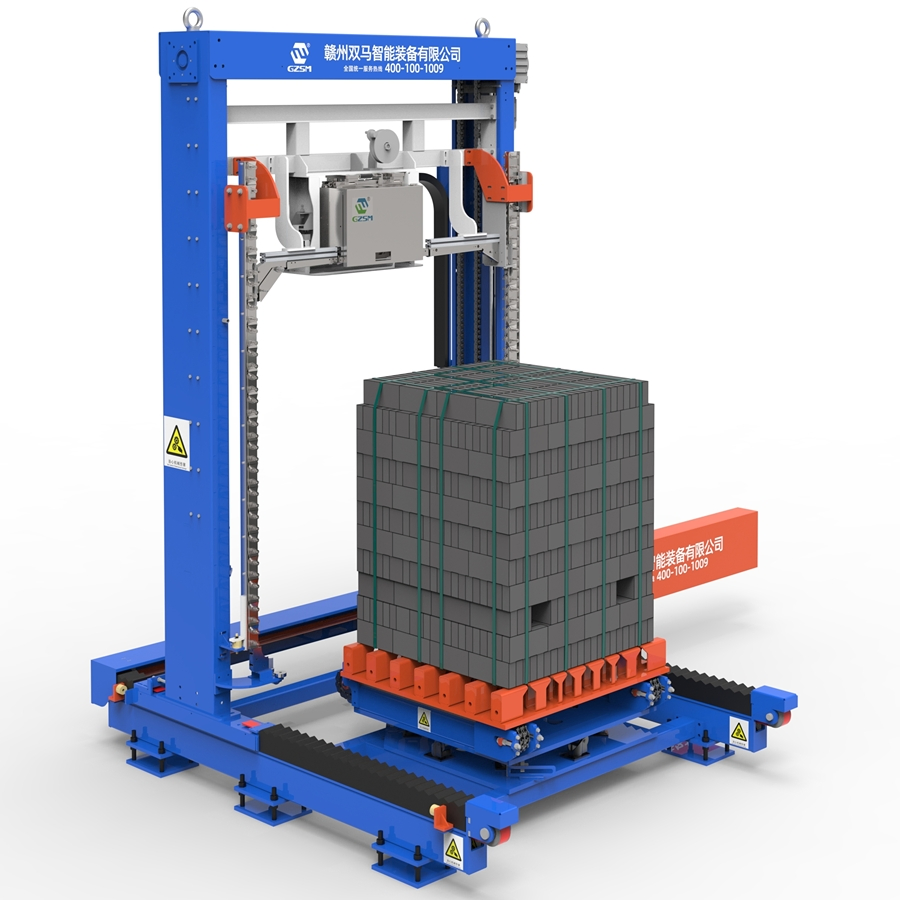

The Bottom-Moving Packing Machine is an advanced automated solution designed for stable, high-capacity product packaging. Its unique bottom-lifting mechanism ensures secure handling of heavy, irregular, or fragile loads—perfect for beverage, construction materials, and industrial goods.
Reinforced base plate lifts from below, preventing toppling or misalignment of unstable loads.
Compact footprint fits crowded warehouses without sacrificing speed (60+ cycles/hour).
Greaseless rollers and rust-proof materials significantly reduce downtime and upkeep costs.
We adopt a brand new design concept for the Strapping head. We have abandoned complex gear and cam structures and replaced cams directly with servo motor control and cylinders. This allows for accurate control of tension force and easier operation without needing professional technical personnel.
| Packing Range | Pallets 1200*1200, 1000*1000; Cargo Height 350~1800mm (Customizable) |
| PET Strap Specs | Conventional 1608, 1206, Customizable |
| Welding Strength | >90% of base metal strength |
| Welding Method | Pneumatic High-Frequency Friction (Electric Optional) |
| Paper Core Spec | 406mm |
| Air Pressure Req. | 0.6-0.8MP |
| Air Consumption | 0.62m³/Min |
| Electrical Brands | Siemens, Schneider, Omron, Inovance |
| Pneumatic Brand | AirTAC |
