Basic Info
Model NO.CGF
Material TypeLiquid
Filling Valve HeadMulti-Head
Feed Cylinder StructureMulti-Room Feeding
Dosing DeviceCapacity Cup
Filling PrinciplePressure
Packaging Container Lifting StructurePneumatic Lifting
StructureRotary
PackagingBottle
Packaging MaterialWooden Package
Product NameFilling Line
Capacity1000-24000bph
Filling TypeNormal Type
Bottle ShapeRound/Square
Bottle MaterialPlastic/Glass
Bottle Size0.2-2L
Machine MaterialStainless Steel 304/316
Warranty Time24 Months
Controlled bySiemens PLC
Transport PackageShipping
Specification200-800m2
HS Code8422301090
Production Capacity30sets/Month
Packaging & Delivery
Package Size10000.00cm * 2000.00cm * 2100.00cm
Package Gross Weight10000.000kg
Product Description

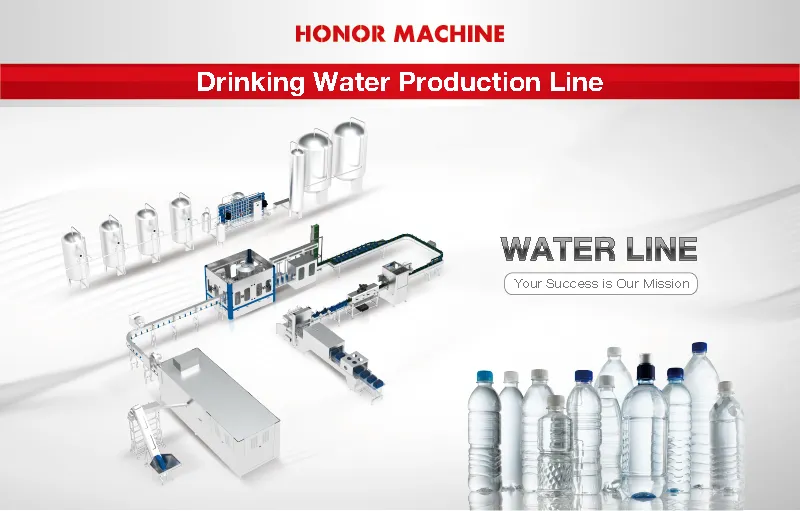

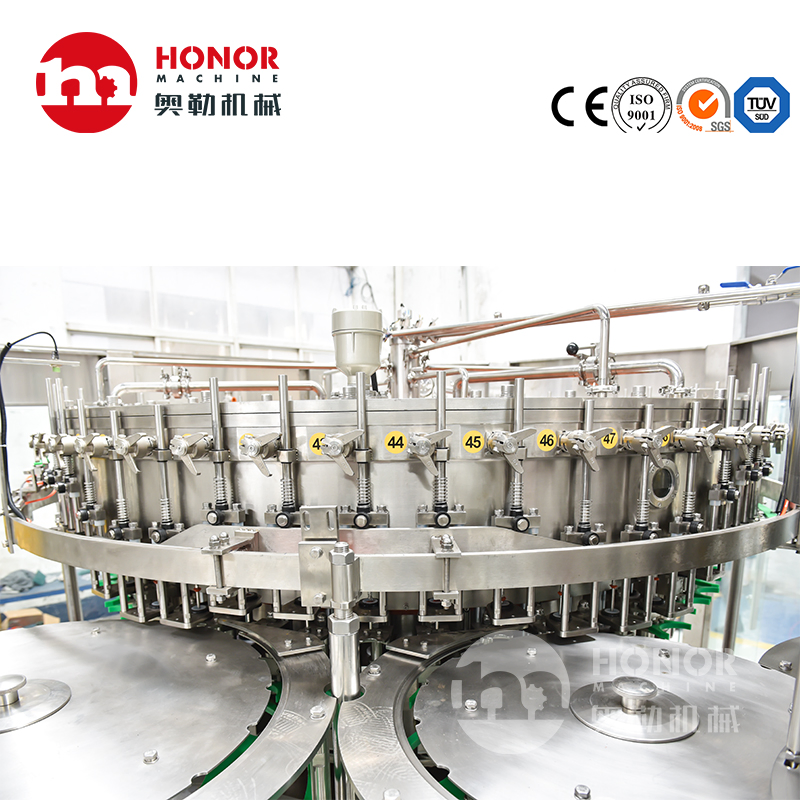

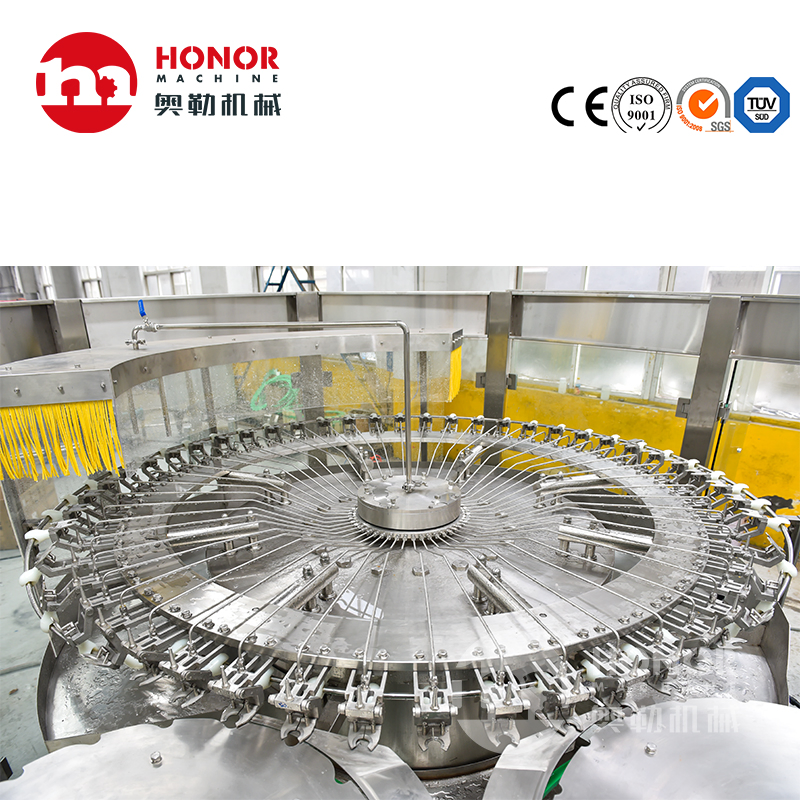

High Performance Automatic 10000-15000bph Liquid Pure Drinking Mineral Water Beverages Plastic Pet Bottling Making Blowing Filling Labeling Packaging Machine
Technical Parameters:
| Model |
CGF8-8-3 |
CGF14-12-5 |
CGF18-18-6 |
CGF24-24-8 |
CGF32-32-10 |
CGF40-40-10 |
| Capacity(500ml/bottle/h) |
1000-2000 |
2000-4000 |
4000-8000 |
8000-12000 |
12000-15000 |
15000-18000 |
| Suitable bottle shape |
Round bottle or square bottle |
| Bottle diameter(mm) |
¢49-¢116 |
| Bottle height(mm) |
160-320 |
| Compressed air pressure(MPa) |
0.2-0.8 |
| Washing medium |
Pure water |
| Washing water pressure(MPa) |
>0.06MPa ≤0.2MPa |
| Total power(kw) |
3.8 |
4.5 |
4.8 |
5.5 |
7 |
8.2 |
| Overall dimensions(mm) |
2200*1600*1800 |
2400*1880*2000 |
2800*2200*2300 |
3050*2400*2300 |
3800*2600*2500 |
4000*3150*2500 |
| Weight(kg) |
2880 |
3050 |
4300 |
6400 |
7450 |
8550 |

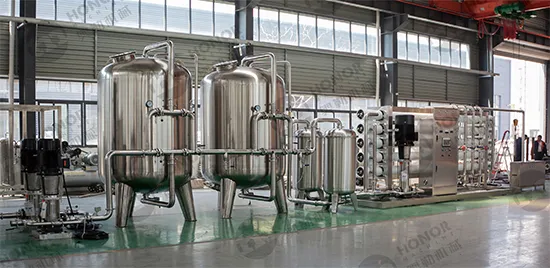

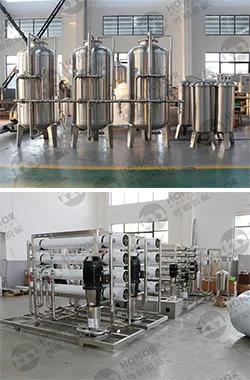

Water Treatment System
Raw water pump: Connects to raw water. High-quality Nanfang pump or customized components are provided.
Silica sand filter: Acts as a filter medium to effectively intercept and remove suspended matter, organic matter, and some heavy metal ions in water under specific pressure, thus reducing water turbidity.
Active carbon filter: Filters chlorine content in water (<0.1PPM). It reduces turbidity, purifies water quality, and removes color.
Sodium ion exchanger (softener): Used to remove calcium and magnesium ions from water, obtaining softened water.
Precision filter: Employs PP filter membranes featuring high filtering precision for particles smaller than 0.1um, offering high pollution interception capacity and long service life.
Reverse osmosis (RO): Composed of an RO membrane, high-pressure pump, and washing system. It intercepts substances larger than 0.0001 microns, allowing only water molecules to pass.
UV: Bacteria in the water are eliminated post-RO system using a UV sterilizing lamp.
Ozone: A strong oxidant that quickly eliminates bacteria in water and air at a specific concentration.
Finished water tank: Used to store filtered pure water, directly connected to the filling machine.
*Different water sources require different equipment configurations. The most suitable system configuration will be customized to meet your requirements.

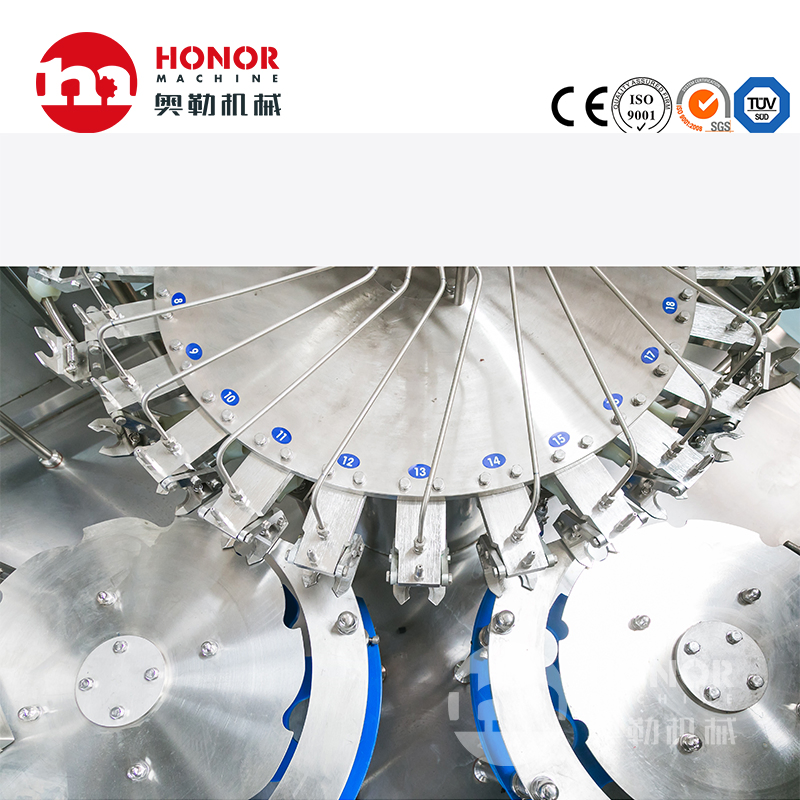

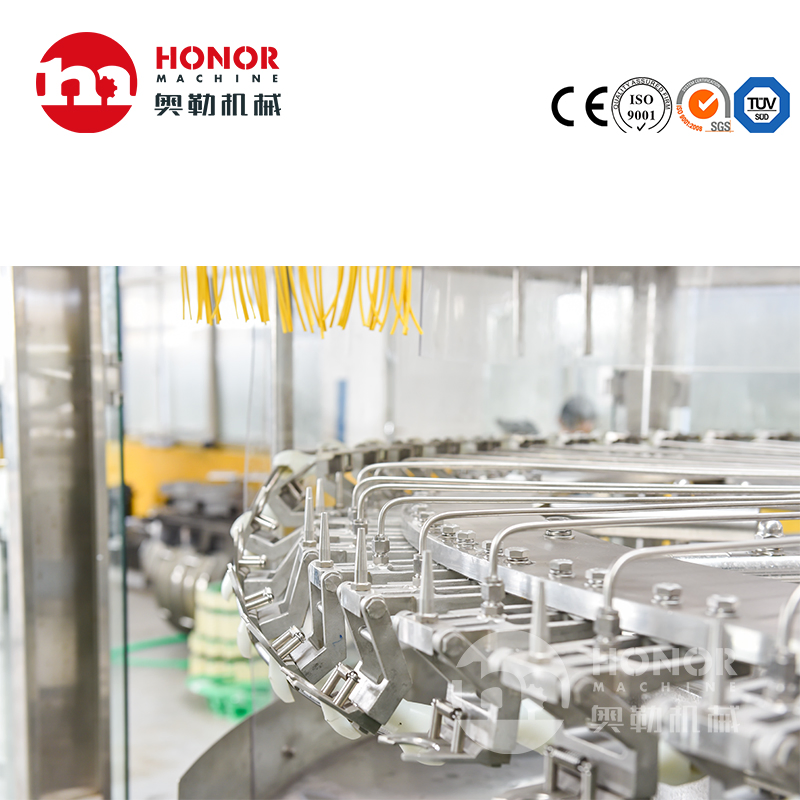

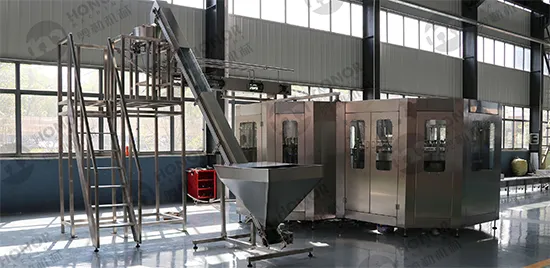

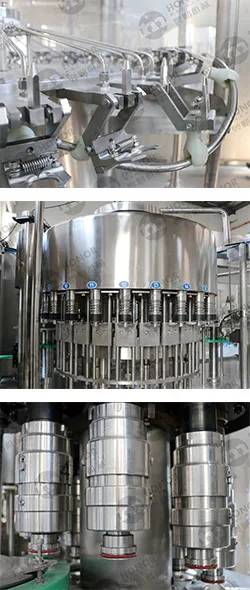

Washing Filling Capping 3-in-1
This integrated machinery is mainly designed for filling pure water, mineral water, and other non-gas, sugar-free beverages in plastic bottles. It features an integrated setup for washing, filling, and sealing.
It adopts a hanging-type air conveyor to make changing bottle models faster, cleaner, and more convenient. The main machine is equipped with advanced PLC control technology, and key electrical elements are sourced from internationally renowned brands or customized based on specific needs.
Technical Features:
- Direct connection between the air conveyor and inlet starwheel is used instead of screws and conveyor chains, making bottle switching easier.
- Neck holding technology eliminates the need to adjust the equipment height for bottle transportation. Only minor spare parts require replacement.
- The high-speed filling line uses clamp transferring technology, accommodating more varied bottle shapes while leaving the machine interior clean and simple.
- 3-in-1 monoblock system enables rinsing, filling, and capping with minimal abrasion, stable transferring, and easy bottle size changes.
- Specially designed stainless steel bottle clamps do not contact the thread parts of the bottle neck, avoiding secondary contamination.
- High-speed and large-flow filling valves assure fast filling speed and precise fluid levels.
- Parts in contact with liquids are made of high-quality stainless steel or food-grade plastic. The electrical system achieves national food sanitary standards.
- The bottle-out starwheel is screw-down shaped. No height adjustments to the transferring chain are needed when changing bottle sizes.
Main Components & Brands:
| No |
Parts Name |
Brand |
Origin |
| 1 | PLC | Siemens | Germany |
| 2 | Inverter | Siemens | Germany |
| 3 | Touch Screen | Siemens | Germany |
| 4 | Switch | Siemens | Germany |
| 5 | Contactor | Siemens | Germany |
| 6 | Relayer | Siemens | Germany |
| 7 | Solenoid Valve | AIRTAC | Taiwan |
| 8 | Drive motor | FEITUO | Swiss |
| 9 | Reducer | CNP | China |
| 10 | Water Pump | SKF | China |
| 11 | Main Bearing | AUTONICS | Sweden |
| 12 | Sensor | AIRTAC | Korea |
| 13 | Air component | ABB | Taiwan |

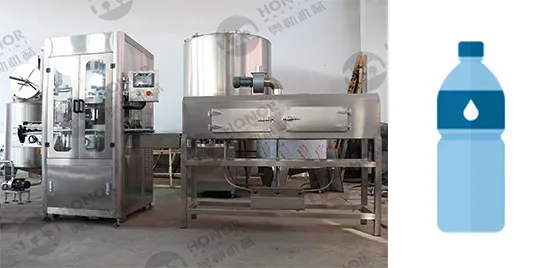

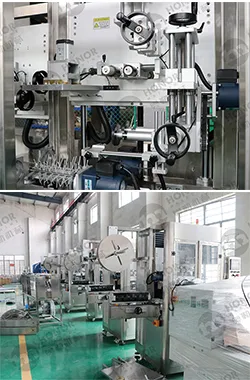

Automatic Sleeve Labeling Machine
- Employs a PLC programmable controller, imported servo motor, servo driver, frequency converter, and transducer.
- Adopts a positioning module to ensure precise, rapid, and stable label casting.
- Maintains precise label casting positions and withstands perfect bottle shapes after shrinkage.
- Suitable for all kinds of drinks, such as fruit juice, tea, dairy, pure water, beer, and sports drinks.
- Features a highly stable mechanical structure with a stainless steel protective frame cover and rigid aluminum alloy frame.
- Accommodates round, square, and elliptical bottle shapes, with options to target either the bottle mouth or body.
- Features a unique synchronous cutter holder that requires no replacement within specification ranges; changes take under 5 minutes.
- Reciprocating cutter design utilizes a rigid body combination to operate smoothly and extend tool lifespan.
Main Parts List:
| No |
Name |
Brand |
Manufacturer |
| 1 | SUS304 stainless steel | - | South Korea |
| 2 | Motor | TWT | Taiwan |
| 3 | Bearing | NSK MNB EZO IJK | Japan |
| 4 | Stepper motor | Tamagawa | Japan |
| 5 | Stepping Driver | Ertl | Taiwan |
| 6 | PLC controller | Omron | Japan |
| 7 | Inverter | Delta | Taiwan |
| 8 | Touch-screen | Weview | Taiwan |
| 9 | Contactor | Customized | French |
| 10 | Sensor | SUNX | Japan |

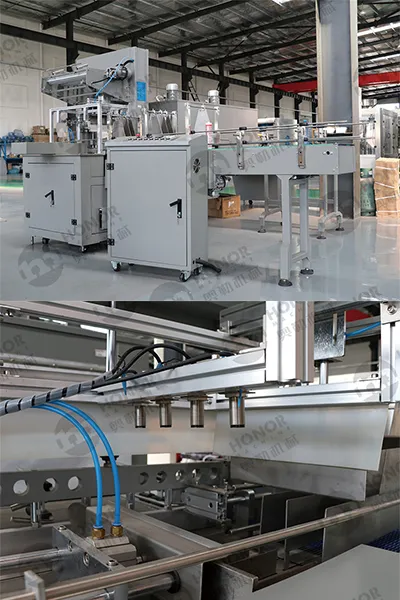

Automatic Shrink Wrapping Packing Machine
Designed specifically for beverages, pure water, fruit juice, wine, and other drinks. Functions include automatic bottle transfer and arrangement, film wrapping, sealing, cutting, shrinkage, and cooling. It adopts advanced film thermostatic sealing technology for a clean, secure seal. A PLC program manages automatic circulation control.
Advantages:
- Frequency control with a secondary bottle transport device.
- Pneumatic structure for bottle push and heat-sealing cutting.
- Inductive switch control for film length.
- Touch screen and PLC control system for advanced reliability.
- Circular wind system ensures well-proportioned shrink furnace temperatures.
- Strong cooling system finalizes the packaging design rapidly.
- Wear-resistant, high-strength heat transport net for steady conveyance.
- Adjustable conveyor belt height (±50mm range) customizable per user needs.

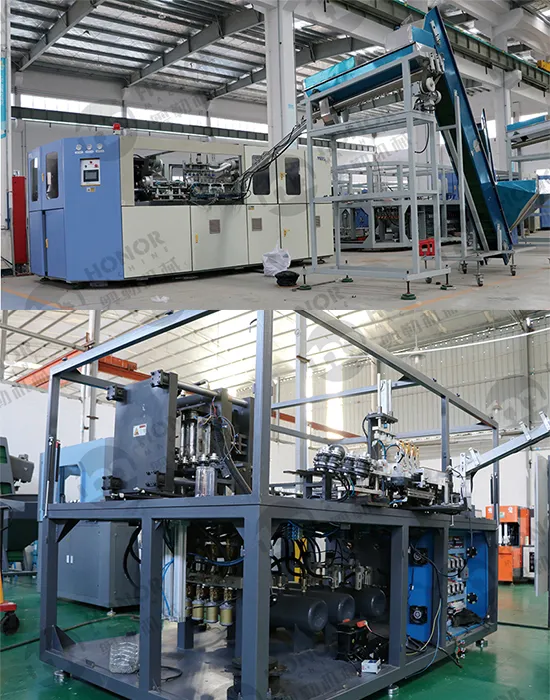

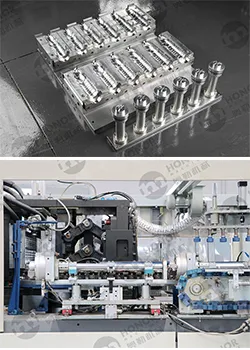

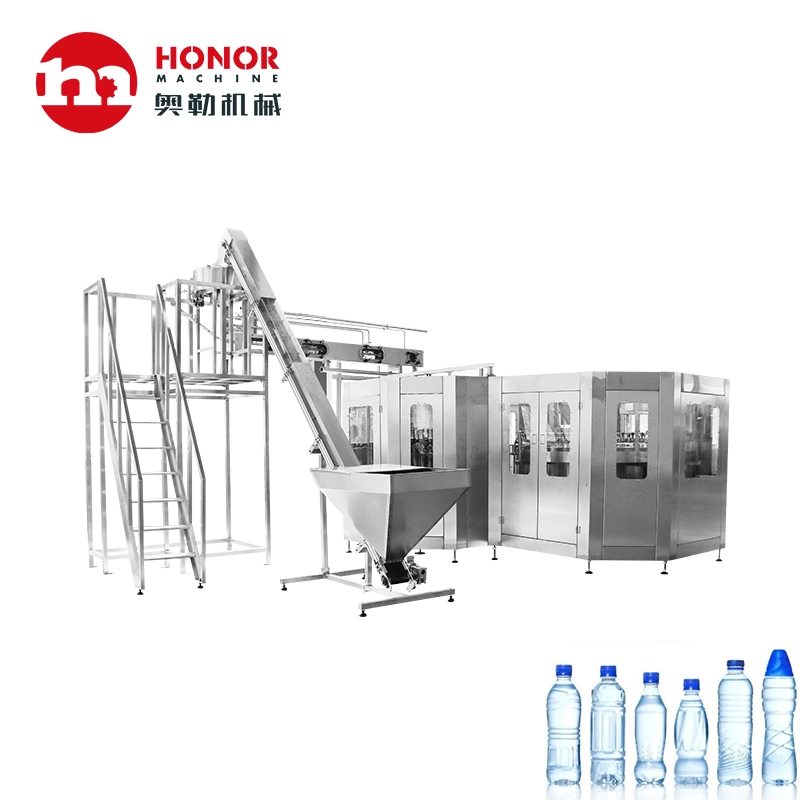

Bottle Blowing Machine
This equipment is designed to mold plastic granules into hollow containers via a blow molding process, primarily serving the beverage and food industries.
Features & Details:
- Stable performance using an advanced PLC.
- Automatic preform conveyor to save labor costs.
- Preform self-rotation and infrared pre-heater revolution ensure even heat distribution, improving bottle shaping rates and production.
- High adjustment performance allows preheating of preforms via voltage controls in the PLC, maintaining constant temperature and humidity.
- High safety levels feature automatic locking devices on each mechanical action.
- Use of air cylinders avoids contamination and minimizes noise.
- Strong clamping force utilizing high pressure and double-crank links to lock the mold.
- Two operation modes: Automatic and manual.
Frequently Asked Questions
Are you a factory or trading company?
We are a factory and a professional manufacturer of water treatment systems and bottled water filling & packing machinery. Our factory serves customers in more than 50 countries globally.
What industries do you serve?
We serve various liquid product industries, including bottled water, carbonated drinks, juices, teas, beers, dairy, and functional beverages.
How does your after-sale service work?
After production is finished, we debug the production line, capture photos and videos, and share them with the customer. Once successfully commissioned, the equipment is packed in standard export packaging for shipment.
How long is the warranty for the equipment and installation?
We provide a 2-year warranty after receipt inspection upon delivery. We also dispatch professional engineers to assist with installation at the factory site and train operators to ensure smooth operation.
How do you guarantee transaction safety and on-time delivery?
We accept TT/LC services, which safeguard transaction security and ensure prompt, on-time delivery along with the high quality of your equipment.
