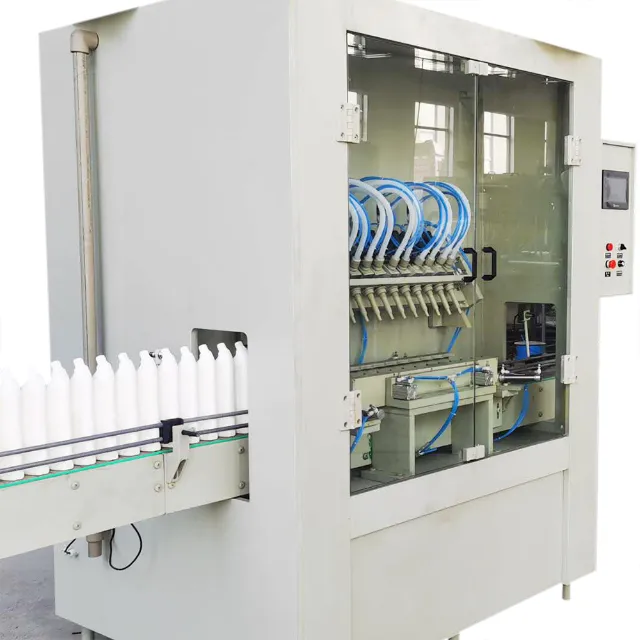

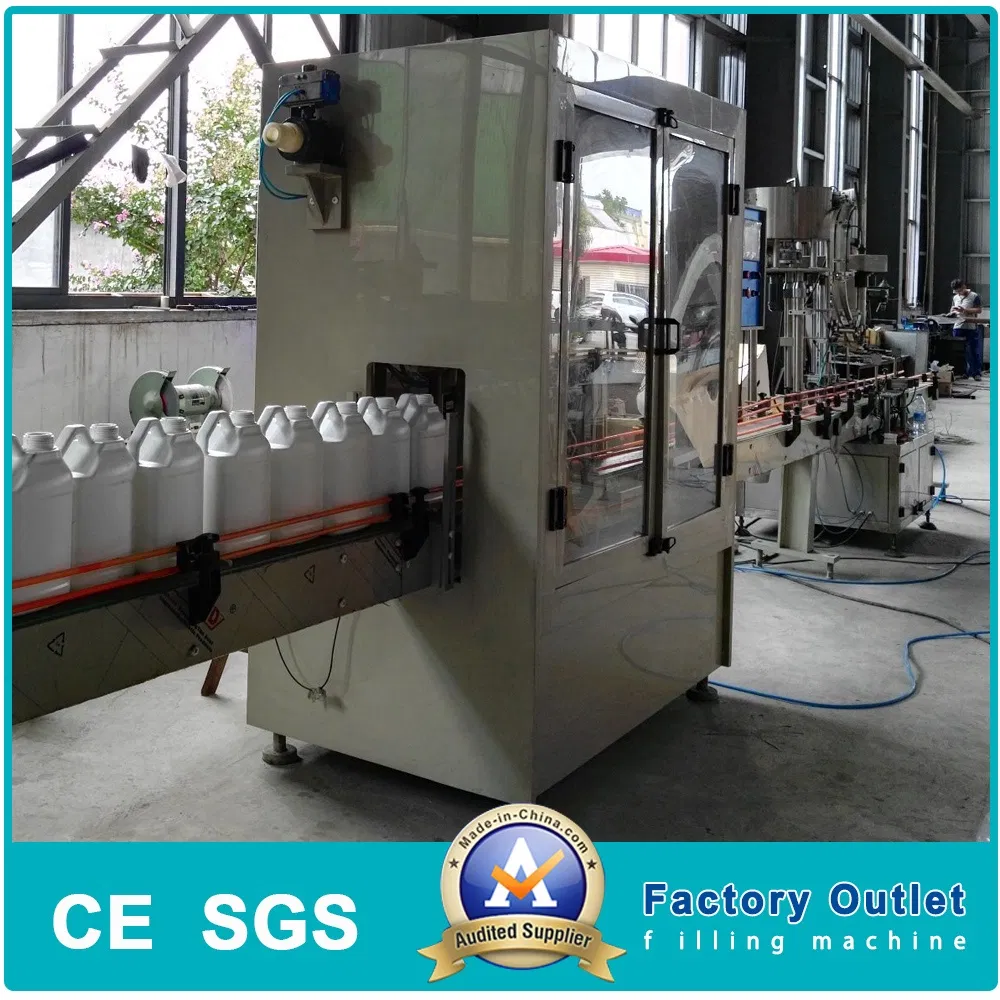

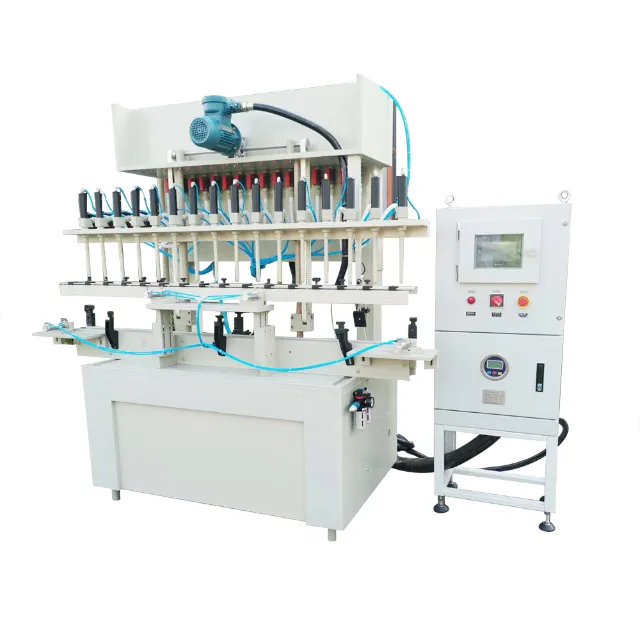

Anti-Corrosive PP Piston bottle Liquid Filling Machine
YPZ16-F2 is used to fill corrosive sticky liquid into bottles.
Technical Characters
Whole machine making material uses PP material, which is much better than stainless steel in anti-corrosive function. PP material is highly effective for anti-corrosive equipment construction.

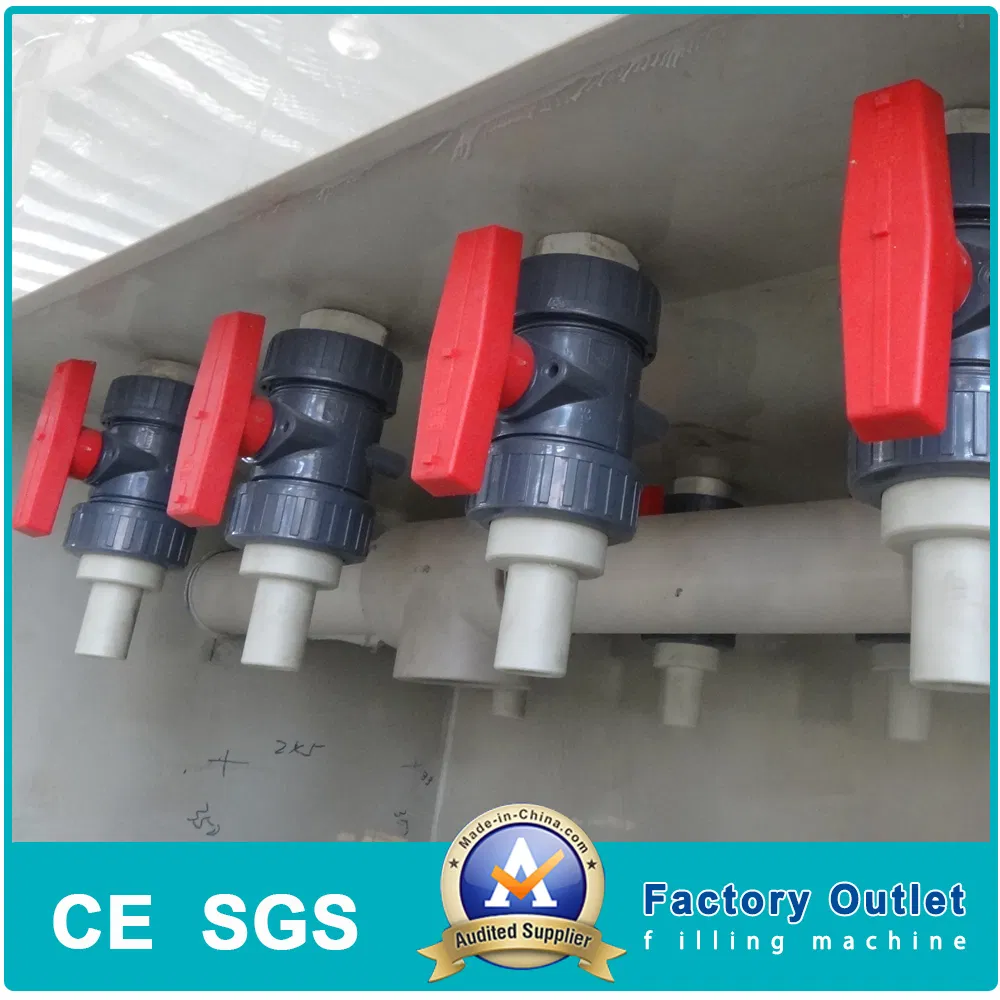

Three-way valves are installed separately from filling and placed in an isolated room in the machine back. Such valves will not touch the corrosive liquid and are protected from corrosive air damage.
Piston cylinders are set under the machine back, specifically designed for anti-corrosion. Pistons feature 2 sealing rings, which guarantee 100% no leaking and dripping. Even if the sealing rings are damaged after several years of use, they prevent leaks. The replacement of sealing rings is easy and simple.
The piston cylinders are made of glass. The inner wall of this glass piston cylinder is extremely smooth, offering minimal resistance to sealing rings, leading to a longer service life and convenient operation.
Specially-designed drawing valves are constructed of F4 material.
Production Capacity of YPZ16-F2:
16 filling heads, can fill 3 circles each minute for 100ml-1000ml.
Angle Neck Bottle Performance:
For angle neck bottles, a newly-designed capping machine is developed which can automatically feed the inner mouth before capping.
Frequently Asked Questions
What applications is the YPZ16-F2 filling machine suitable for?
The YPZ16-F2 is specifically designed to fill corrosive and sticky liquids into bottles safely and accurately.
Why is PP material used for the machine body instead of stainless steel?
PP (polypropylene) material provides significantly better anti-corrosive performance compared to standard stainless steel when processing harsh, corrosive liquids.
How are the valves protected from chemical corrosion?
The three-way valves are isolated in a separate room located at the back of the machine. This design prevents them from directly touching corrosive liquids and protects them from corrosive air.
What features prevent liquid dripping and leakage?
The piston cylinders are equipped with 2 sealing rings that guarantee 100% leak-proof and drip-free operation. They are easy to replace and maintain reliable sealing even after years of use.
What is the production speed and capacity of this machine?
The machine features 16 filling heads and can perform 3 cycles per minute for liquid volumes ranging from 100ml to 1000ml.
Does this machine support angle neck bottle capping?
Yes, there is a newly-designed capping machine option that automatically feeds the inner mouth parts prior to capping specifically for angle neck bottles.
