| Model | CGF8-8-3 | CGF14-12-5 | CGF18-18-6 | CGF24-24-8 | CGF32-32-10 | CGF40-40-10 |
| Capacity (500ml/bottle/h) | 1000-2000 | 2000-4000 | 4000-8000 | 8000-12000 | 12000-15000 | 15000-18000 |
| Suitable bottle shape | Round bottle or square bottle | |||||
| Bottle diameter (mm) | ¢49-¢116 | |||||
| Bottle height (mm) | 160-320 | |||||
| Compressed air pressure (MPa) | 0.2-0.8 | |||||
| Washing medium | Pure water | |||||
| Washing water pressure (MPa) | >0.06MPa - ≤0.2MPa | |||||
| Total power (kw) | 3.8 | 4.5 | 4.8 | 5.5 | 7 | 8.2 |
| Overall dimensions (mm) | 2200*1600*1800 | 2400*1880*2000 | 2800*2200*2300 | 3050*2400*2300 | 3800*2600*2500 | 4000*3150*2500 |
| Weight (kg) | 2880 | 3050 | 4300 | 6400 | 7450 | 8550 |

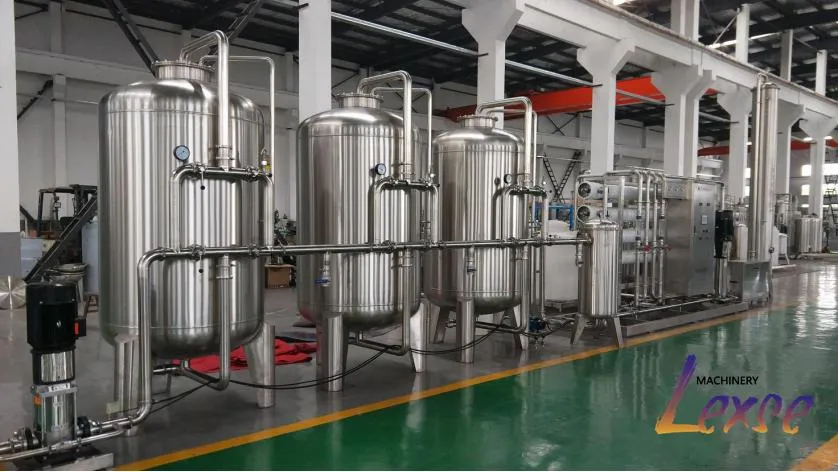

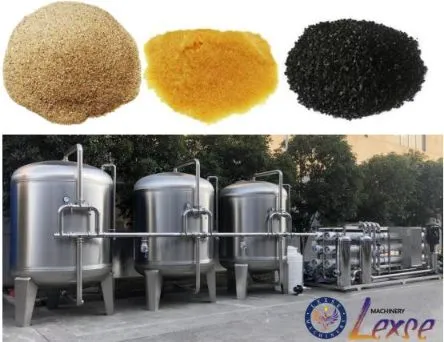

1. Water Source Pump: Connect to raw water, utilizing high-quality Nanfang pump or customized options.
2. Silica Sand Filter: Renewable material that filters out impurities, suspended solids, and adsorbs organic/chemical substances.
3. Active Carbon Filter: Removes dissolved organic matter like pesticides, dyes, and synthetic detergents, reducing TOC and COD.
4. Sodium Ion Exchanger: Removes calcium and magnesium ions to soften water and prevent scale formation.
5. Precision Filter: Adopts PP membranes (<0.1um particles) for high intercepting precision and long service life.
6. RO Reverse Osmosis Device: Composed of RO membrane and high-pressure pump; intercepts substances larger than 0.0001 micron.
7. UV Sterilizer: Effectively removes organic pollutants and bactericidal viruses.
8. Ozone System: Strong oxidant that kills bacteria in water and air quickly.
9. Finished Water Tank: Stores filtered pure water for direct connection to the filling machine.

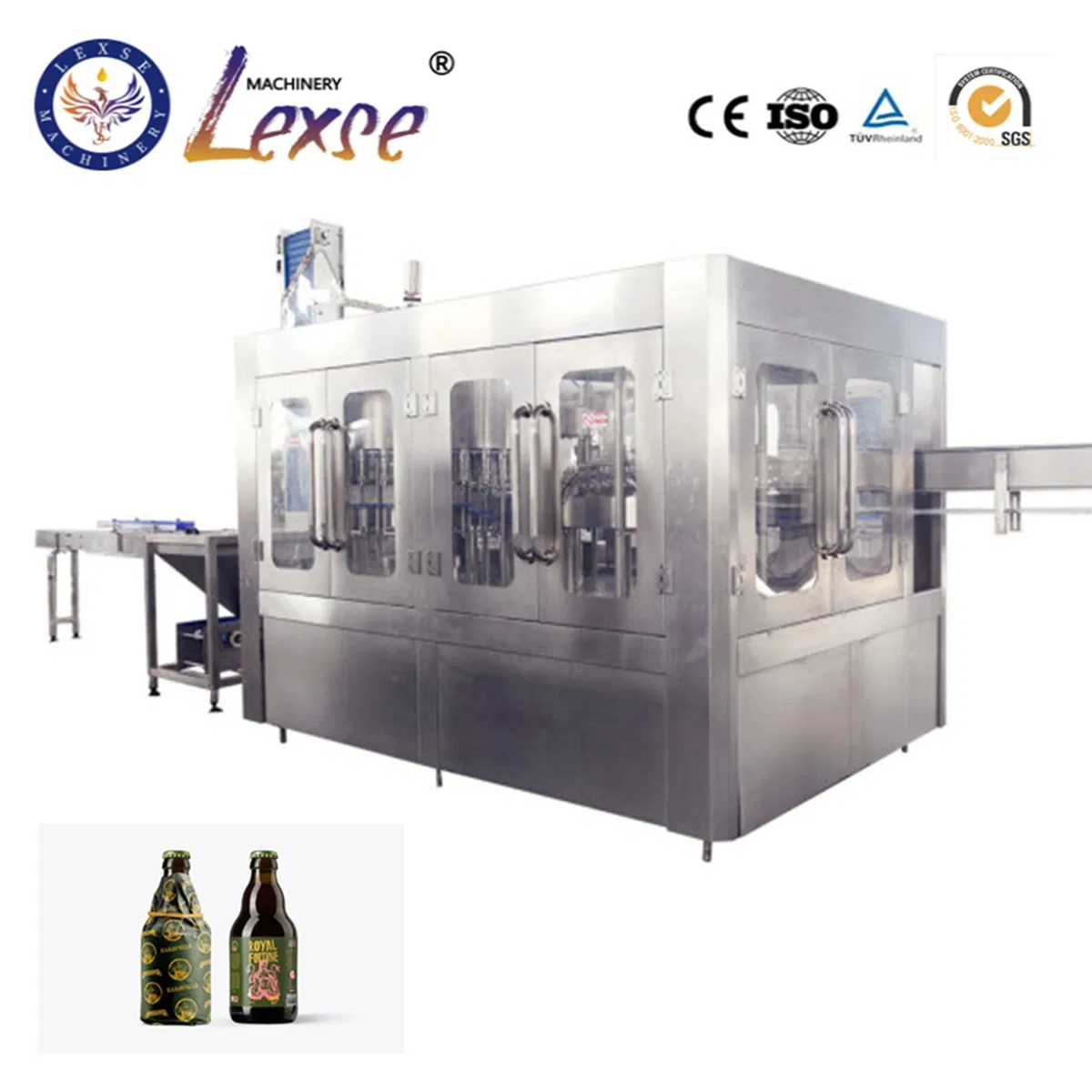

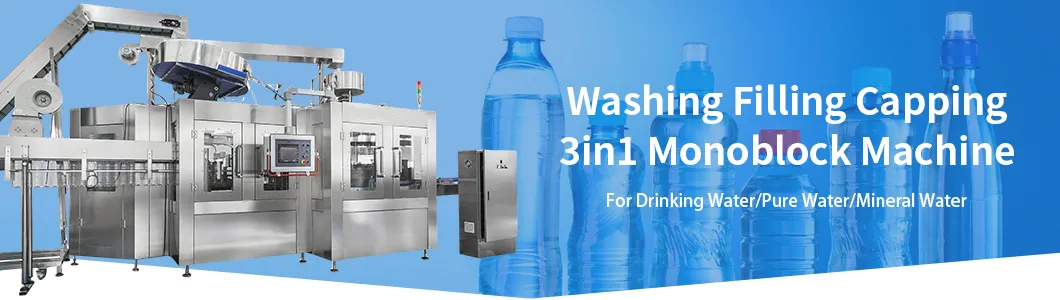

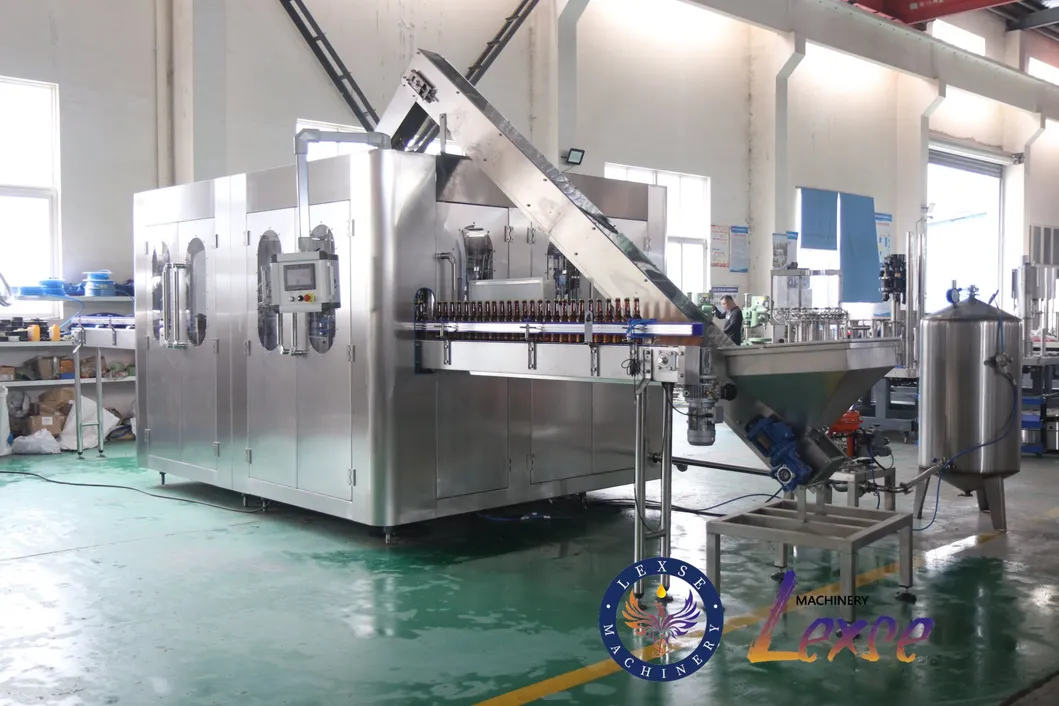

Features a suspension design allowing for different bottle types. Adopts normal pressure filling and can be adapted for PET juice or tea at high temperatures with valve changes.
Rinser: Stainless steel rinsing tubes (no aging risk) and accurate spraying nozzles to save water.

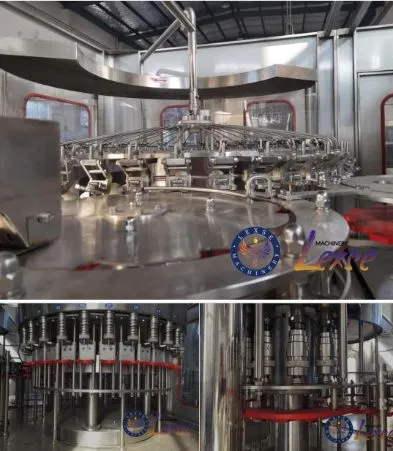

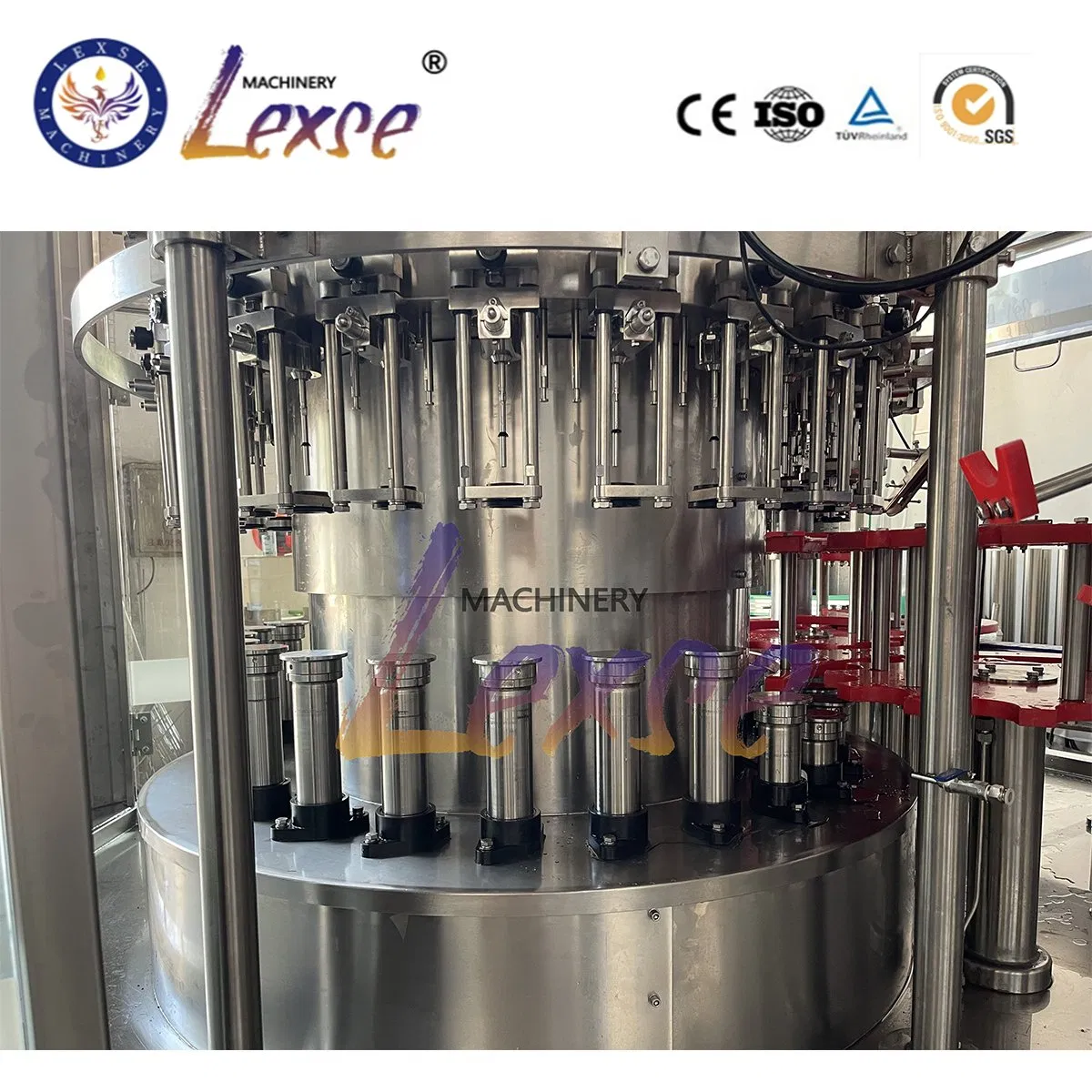

Filler: Highly accurate bottling valves (± 2mm tolerance) ensure no liquid loss. Chiastic gear arrangement reduces noise.
Capper: Quality Zinc and Bronze capping heads with a broken ratio under 0.2%.

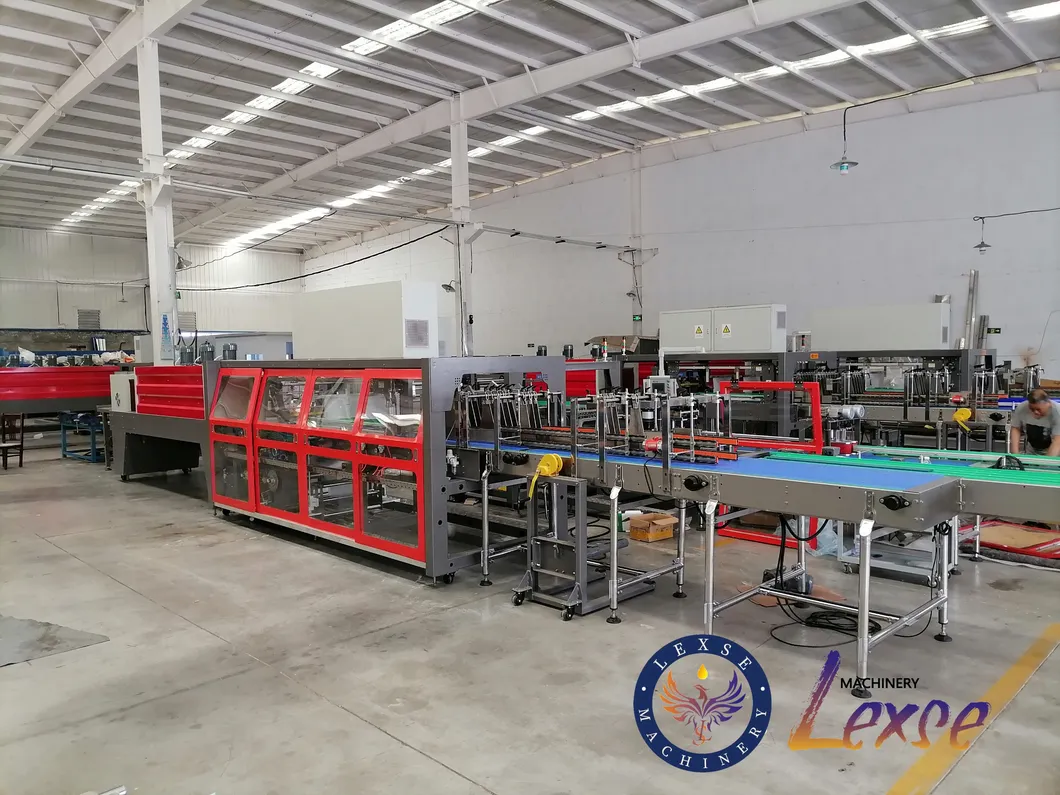

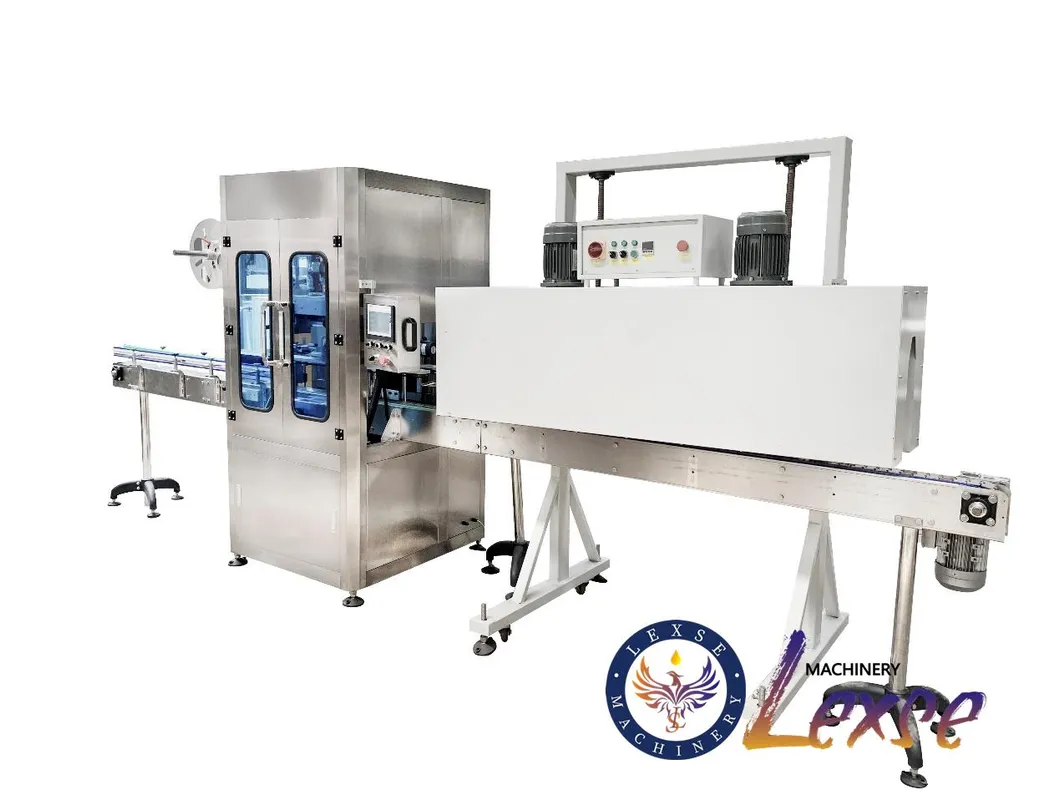

We provide comprehensive solutions for final product packaging including: PVC sleeve labels, BOPP hot glue labels, Adhesive stick labels, and Wet glue labels. Packaging options include film shrink machines and carton box systems.

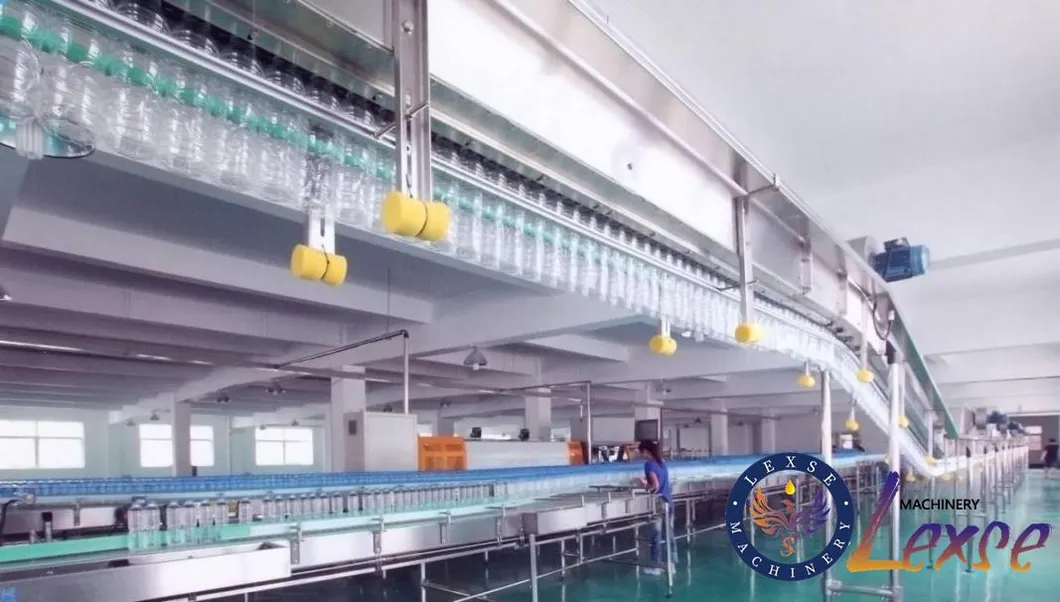

Our conveying system utilizes brand motors, high-speed belts, and integrated PLC systems. We provide full CAD layout designs tailored to specific factory dimensions to ensure optimal production flow.

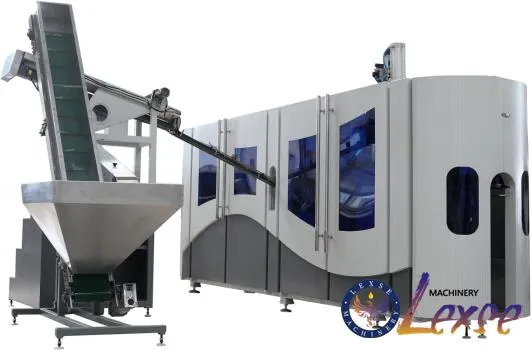

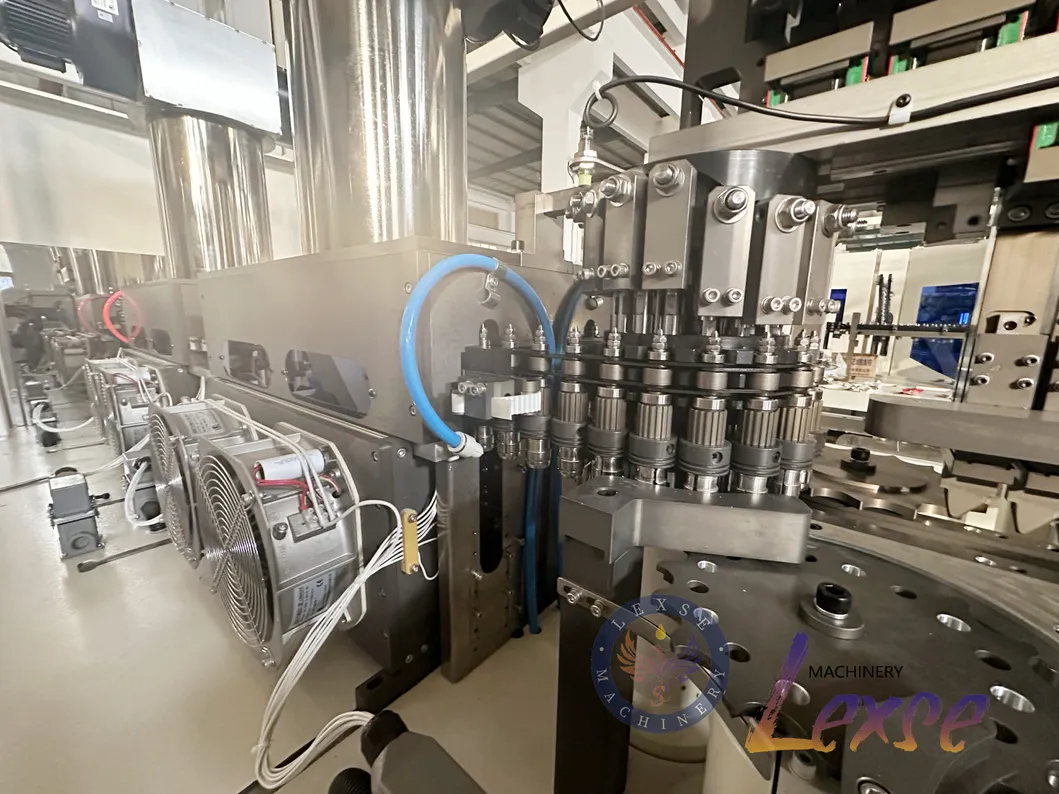

Specifically designed for hollow container production from plastic granules. It features a breakthrough mechanical cam control that integrates 4 movements into 1.

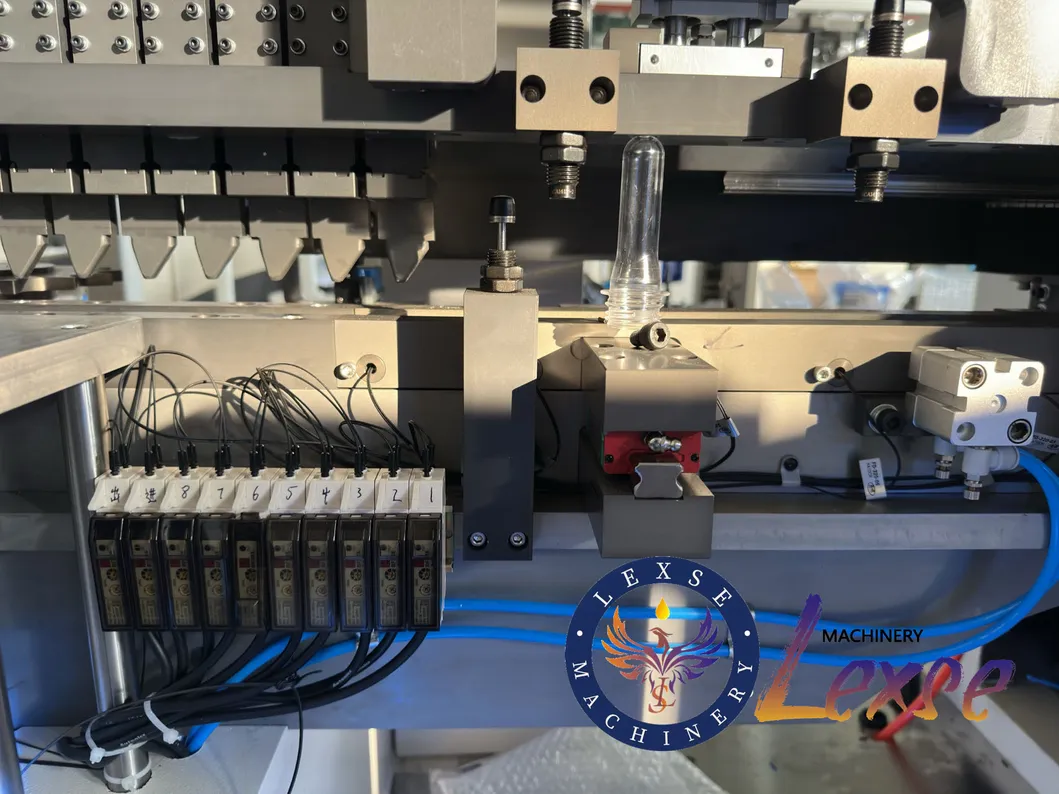

Full Servo Control: No need for low-pressure compressors, reducing failure rates. Positions are fixed with grooves for rapid installation. Bottle mold changes can be completed in just 20 minutes.

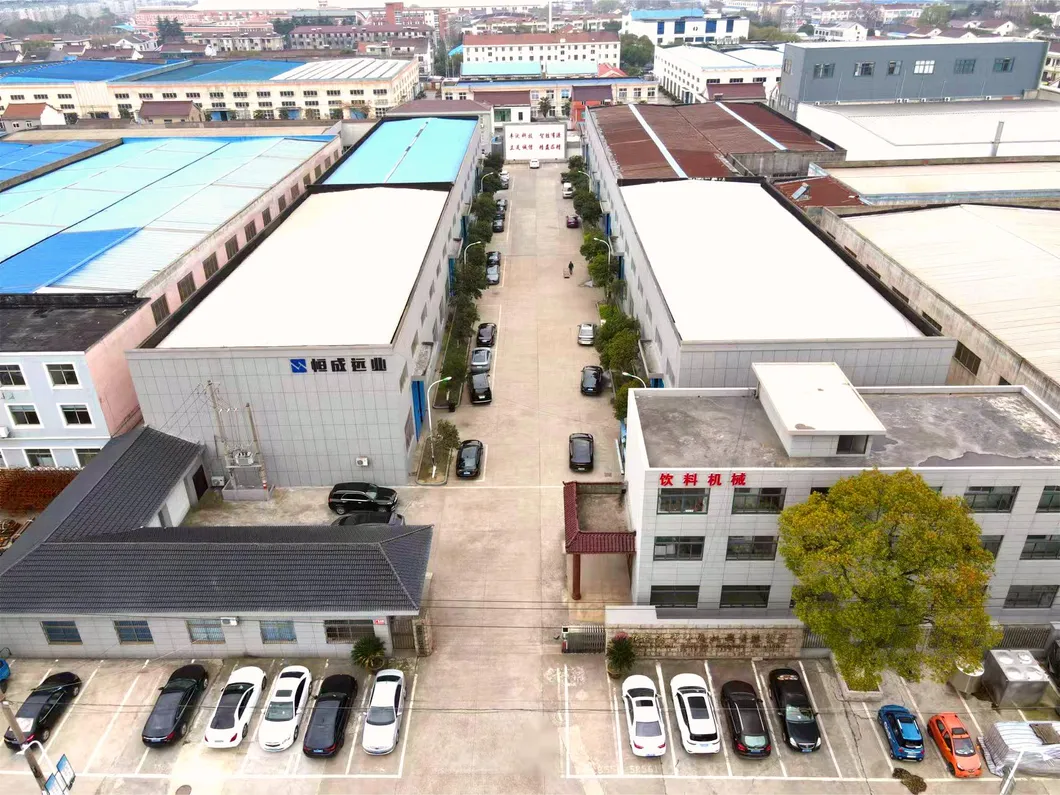

Our facility includes international standard workshops dedicated to scientific research, development, and manufacturing. We specialize in complete production sets for carbonated drinks, mineral water, fruit juice, tea, and water treatment equipment.
