Product Description

Basic Specifications
Model NO.
CGF
Automatic Grade
Fully Automatic
Material Type
Liquid
Filling Valve Head
Multi-Head
Dosing Device
Plunger
Filling Principle
Atmospheric Pressure
Structure
Rotary
Packaging
Bottle
Packaging Material
Plastic
Material
SS304
Certificate
CE, ISO, SGS
Processing Material
Water, Juice, Carbonated Drink, Oil, etc
Electric Components
Siemens, Mitsubishi, etc
Bottle Volume
200ml-2000ml
Capacity
2000bph to 20000bph
Origin
China
Product Overview

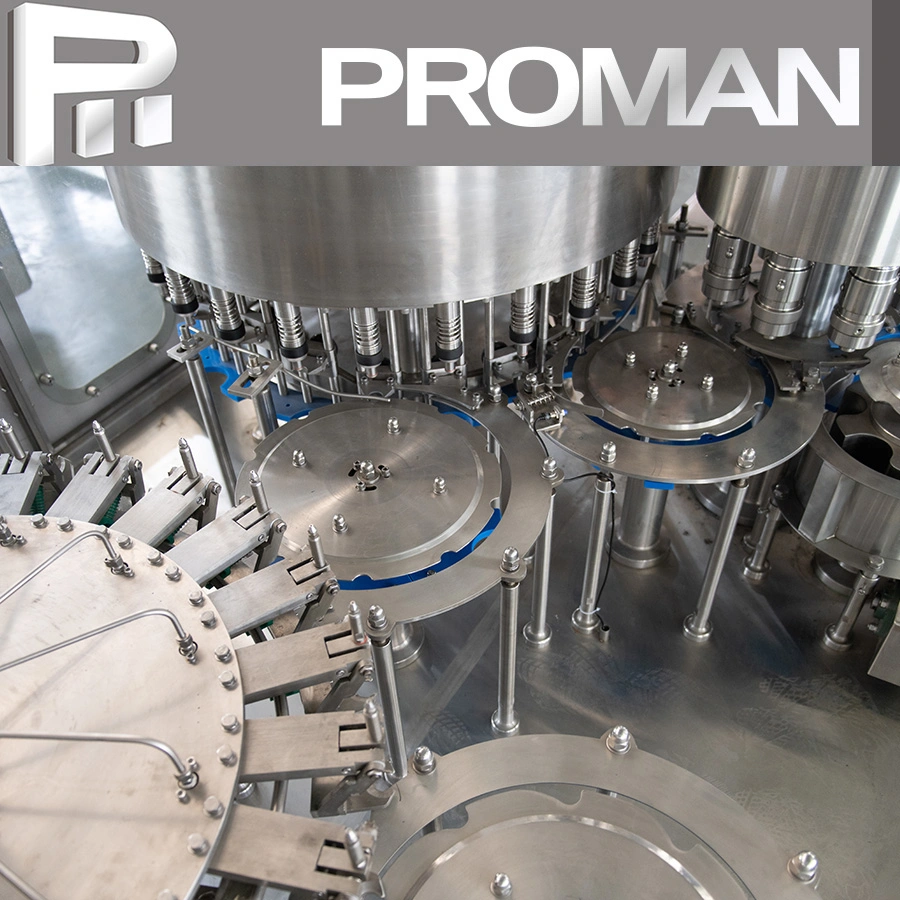

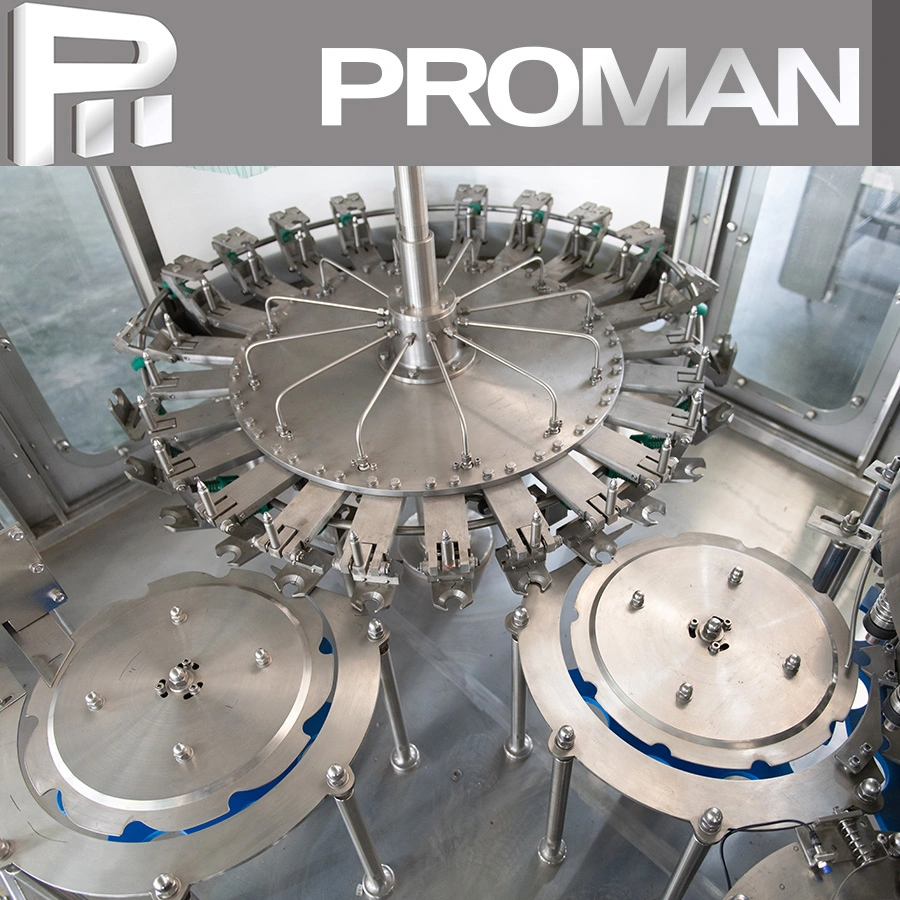

Full Drink Beverage Automatic 3-in-1 Bottling Machine
This CGF Wash-filling-capping 3-in-1 unit is used to produce polyester bottled mineral water, purified water, and other non-gas beverages. It integrates bottle washing, filling, and sealing into one automated process, improving sanitary conditions and production efficiency.

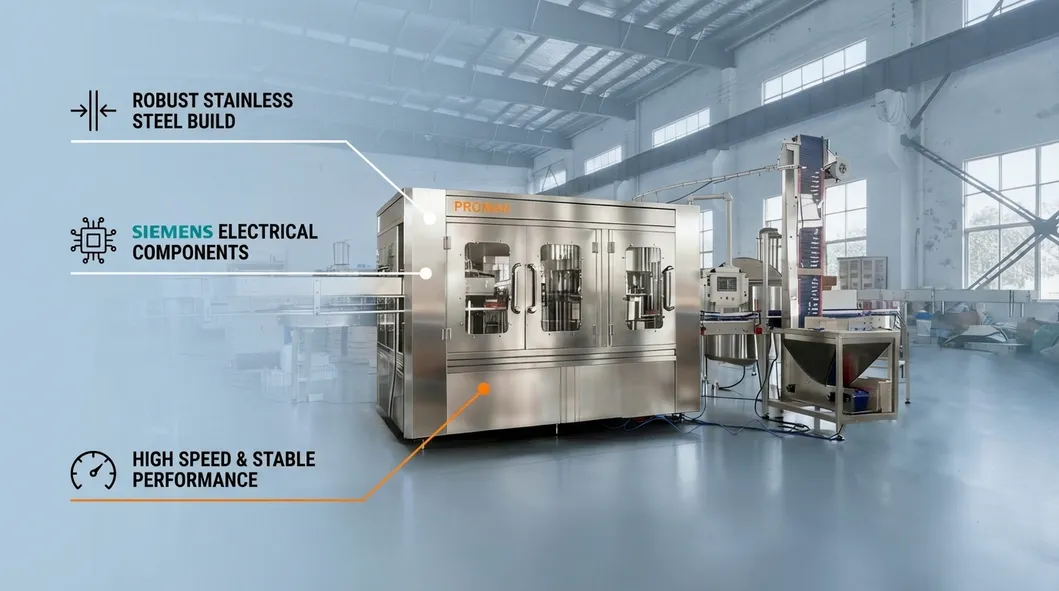

Machine Overview 1

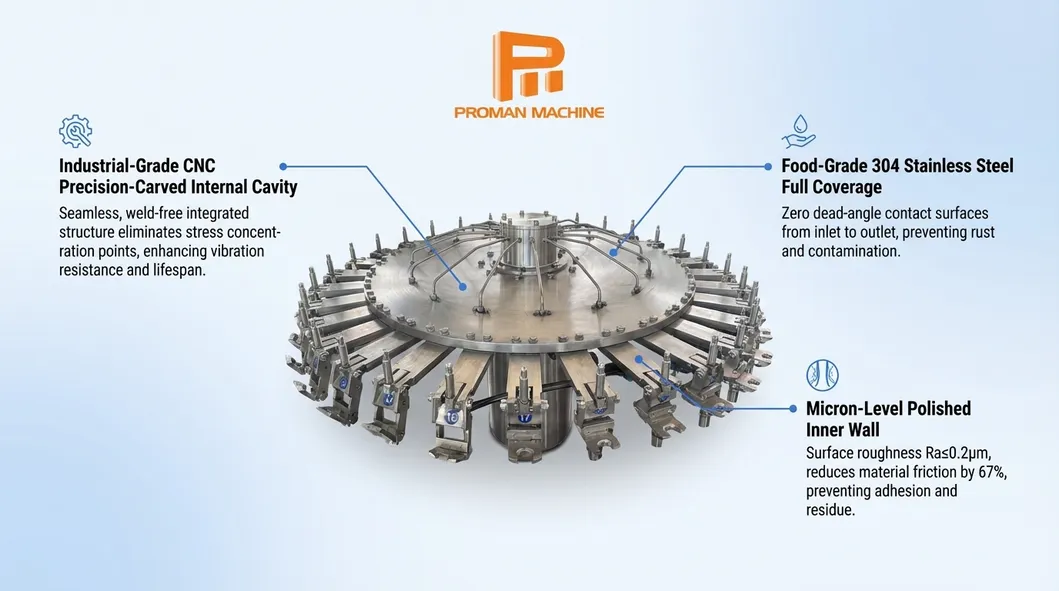

Machine Overview 2

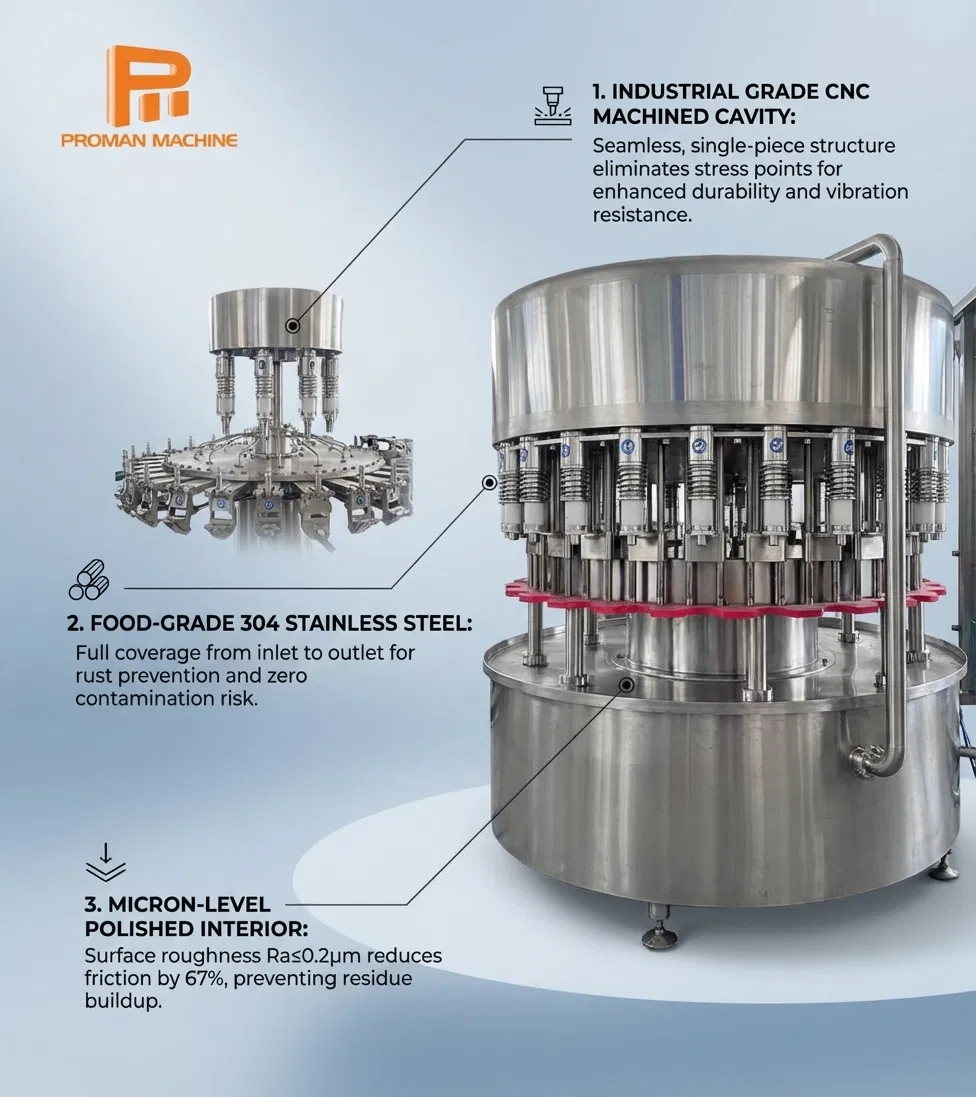

Machine Overview 3
Technical Parameters
Model CGF8-8-3 CGF12-12-6 CGF18-18-6 CGF24-24-8 CGF32-32-10 CGF40-40-12
Rinsing Heads 8 14 18 24 32 40
Filling Heads 8 12 18 24 32 40
Capping Heads 3 4 6 8 10 12
Capacity (500ml) 1000-2000 2000-4000 6000-8000 8000-12000 12000-16000 16000-20000
Power (KW) 3 3.5 4 4.8 7.6 8.3
Flat Conveyor Features

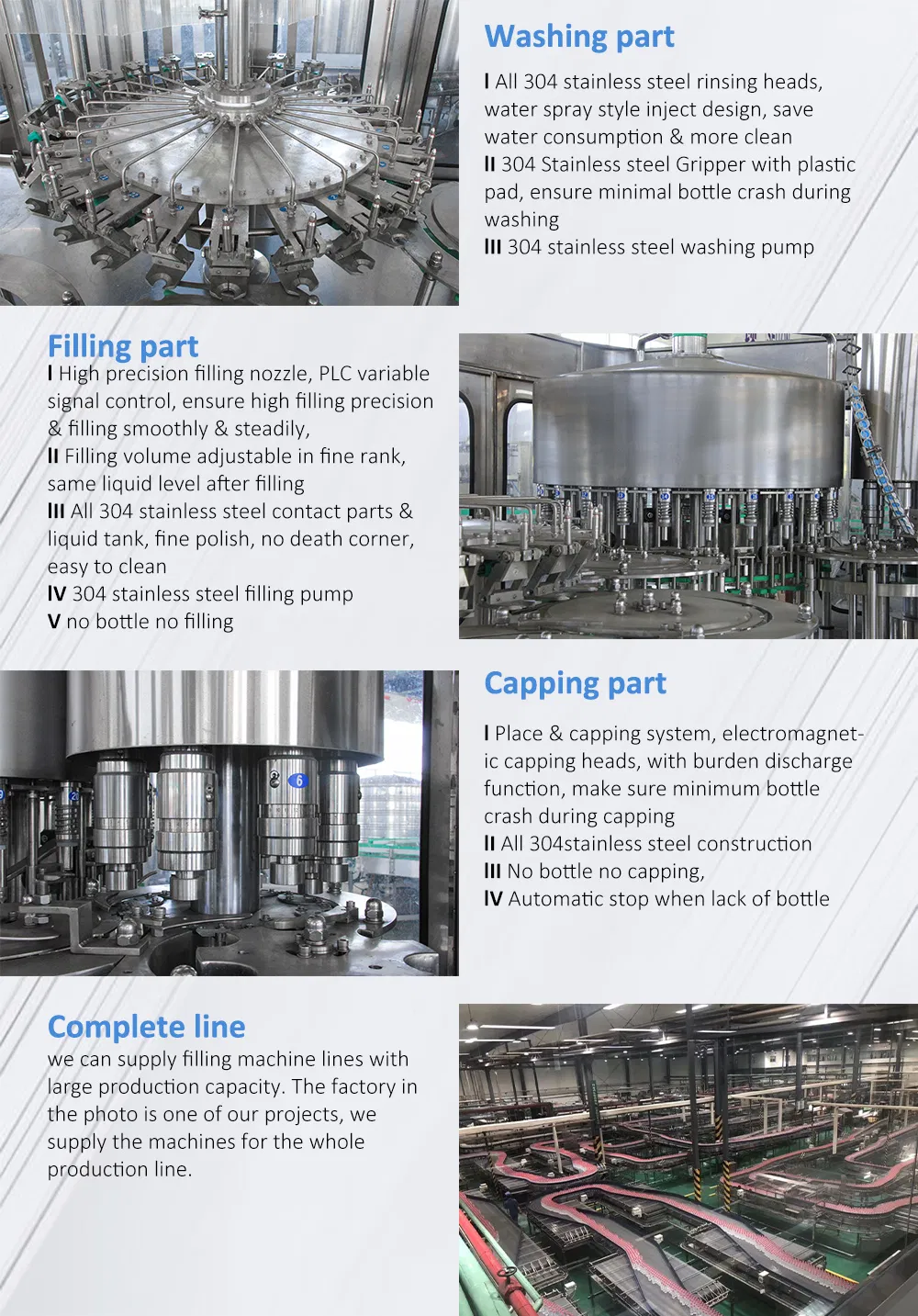

Conveyor Details
  • Stable conveying with synchronous chasing control.
  • Modular design for easy component interchange and maintenance.
  • Advanced electrical control for optimized stability.
  • Integrated belt lubricating system.
  • Main structure constructed using high-grade ANSI304 stainless steel.
Part 1
Part 2
Key Components & Specifications
  • Conveyor Height: 1050mm
  • Side Panel: 304 Stainless Steel (2mm thickness)
  • Power: 0.75KW High-efficiency motor
  • Supporting Legs: 304 Stainless Steel
  • Chain Plate: Polyoxymethylene (POM) high-quality plastic
  • Bearing Housing: 304 Stainless Steel cage
Detail 1
Detail 2
Detail 3
Process 1
Process 2

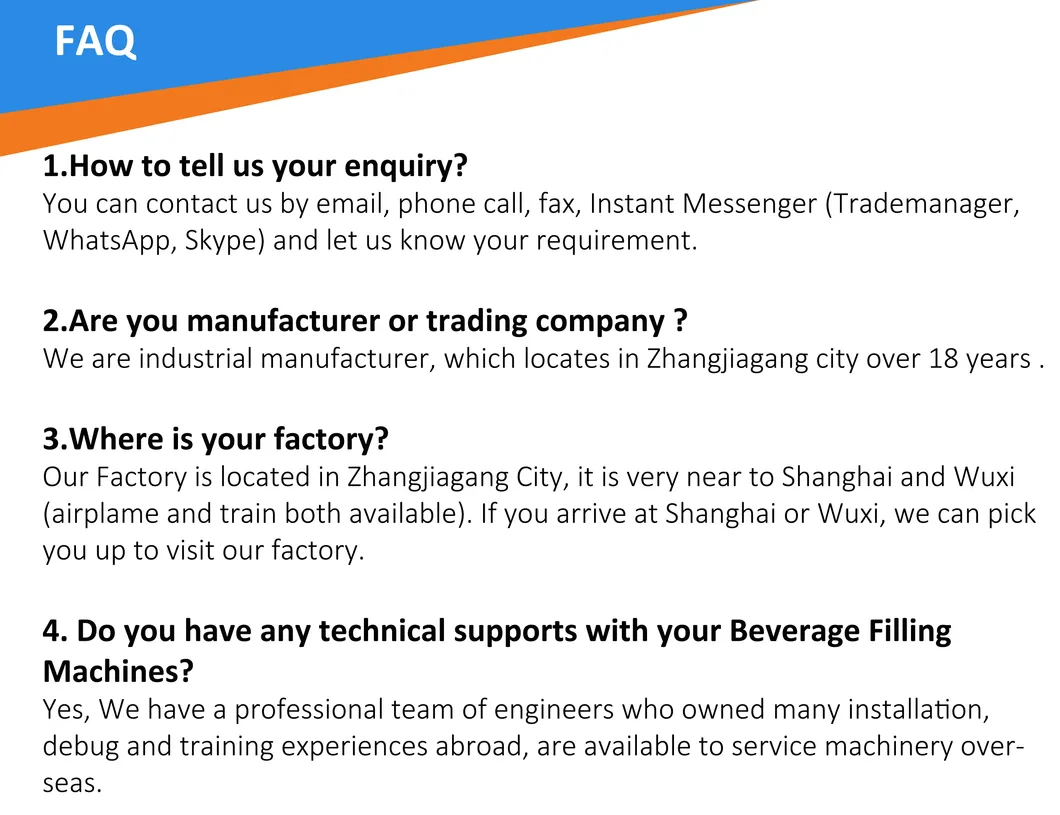

Process 3
Final Product
Frequently Asked Questions
1. What functions does the 3-in-1 machine perform?
The machine integrates three essential processes: bottle rinsing, liquid filling, and cap sealing into one automated unit, ensuring a streamlined production line.
2. What types of liquids can be processed?
The CGF series is suitable for mineral water, purified water, fruit juices, non-carbonated beverages, and specific oils or alcoholic drinks.
3. What are the material standards for the machine?
Most contact parts and structural components are made of high-quality SS304 stainless steel to meet food hygiene and safety standards.
4. Can the machine handle different bottle sizes?
Yes, the machine is designed to be compatible with plastic bottles ranging from 200ml up to 2000ml in volume.
5. What is the maximum production capacity?
The capacity depends on the specific model selected, ranging from 2,000 bottles per hour (BPH) for small setups to 20,000 BPH for industrial-scale operations.

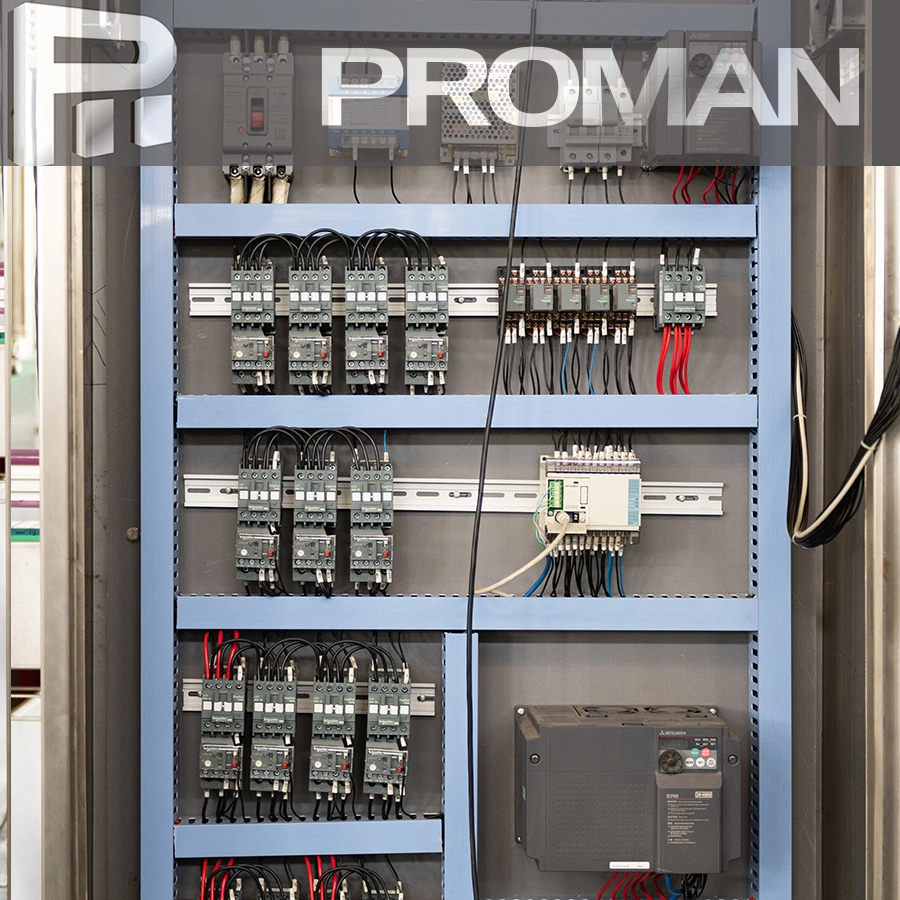

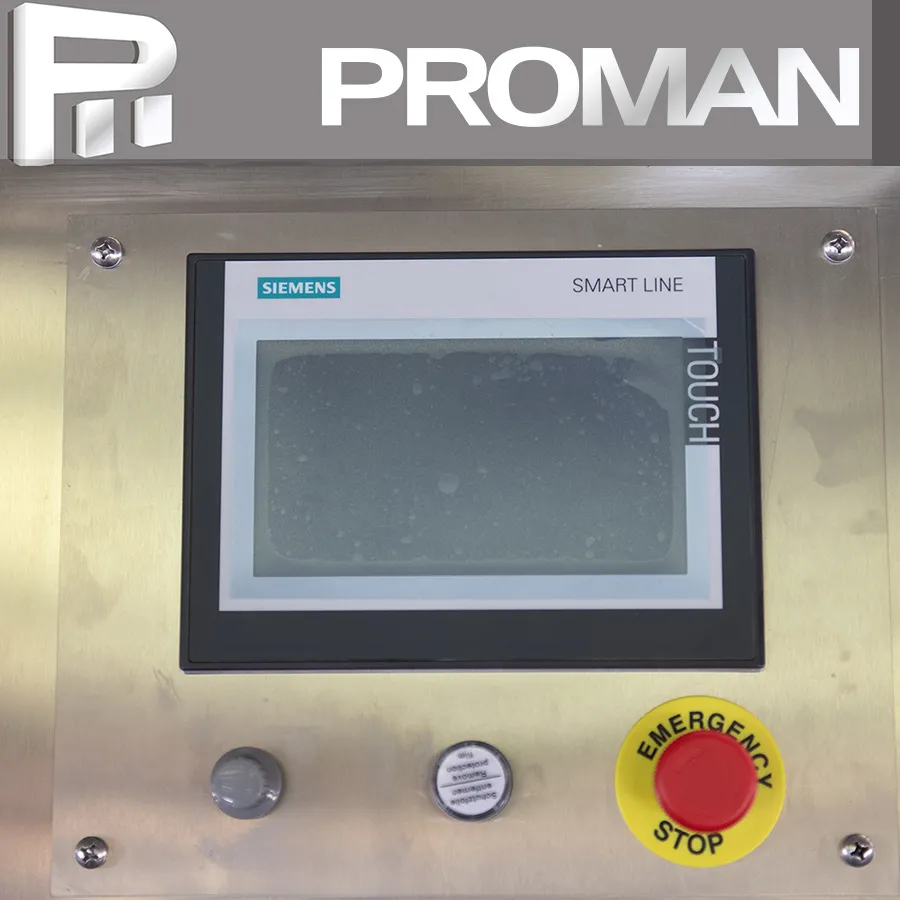

6. Are the electrical components reliable?
The machine utilizes world-class electronic components from brands such as Siemens and Mitsubishi to ensure stable and long-term operation.
