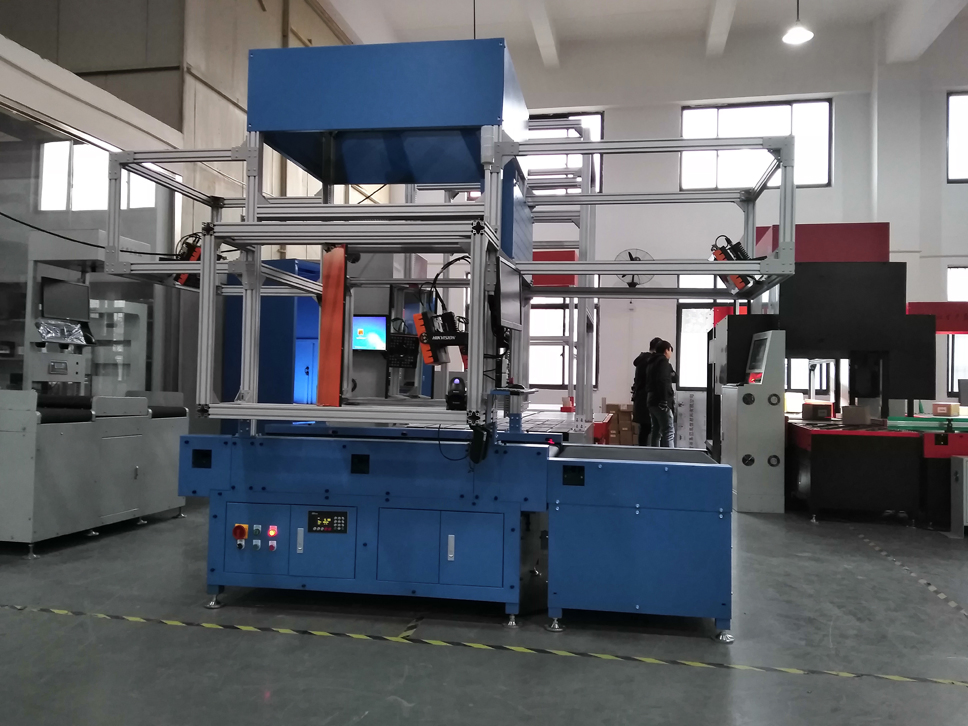

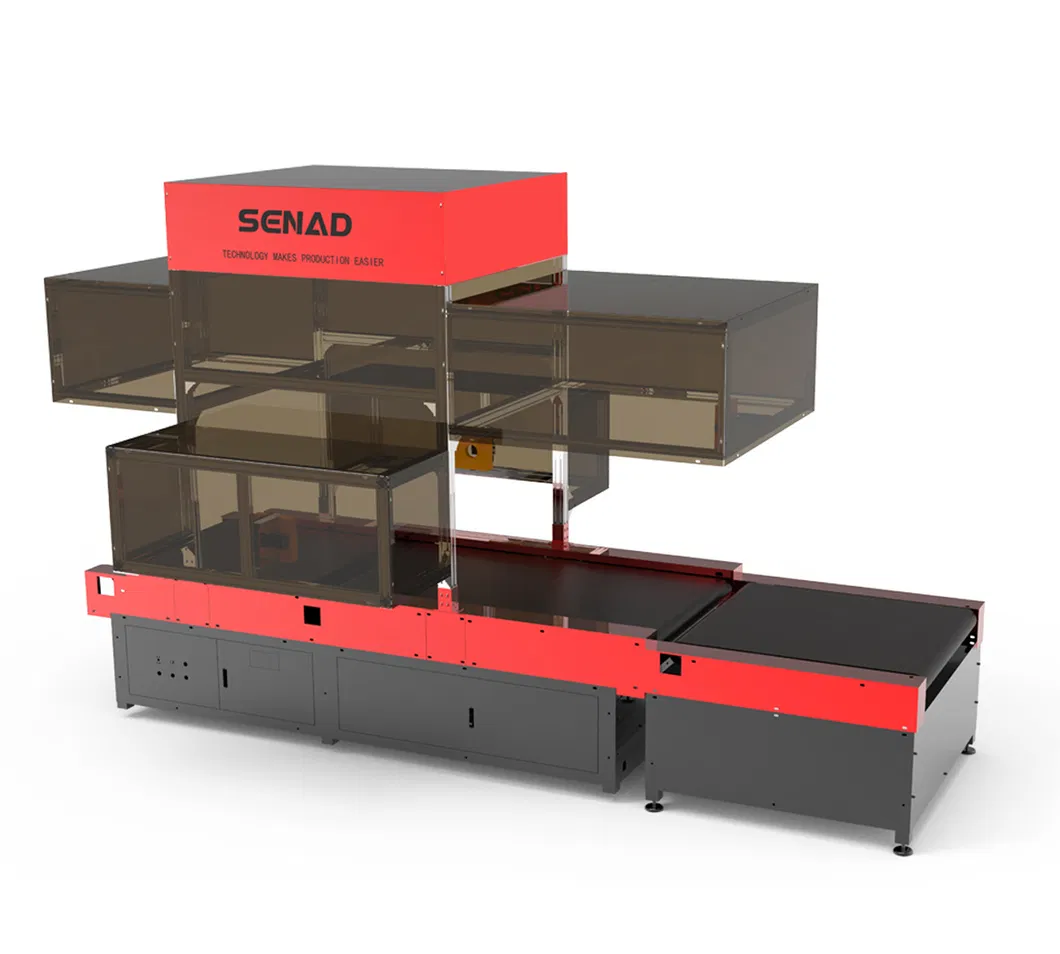

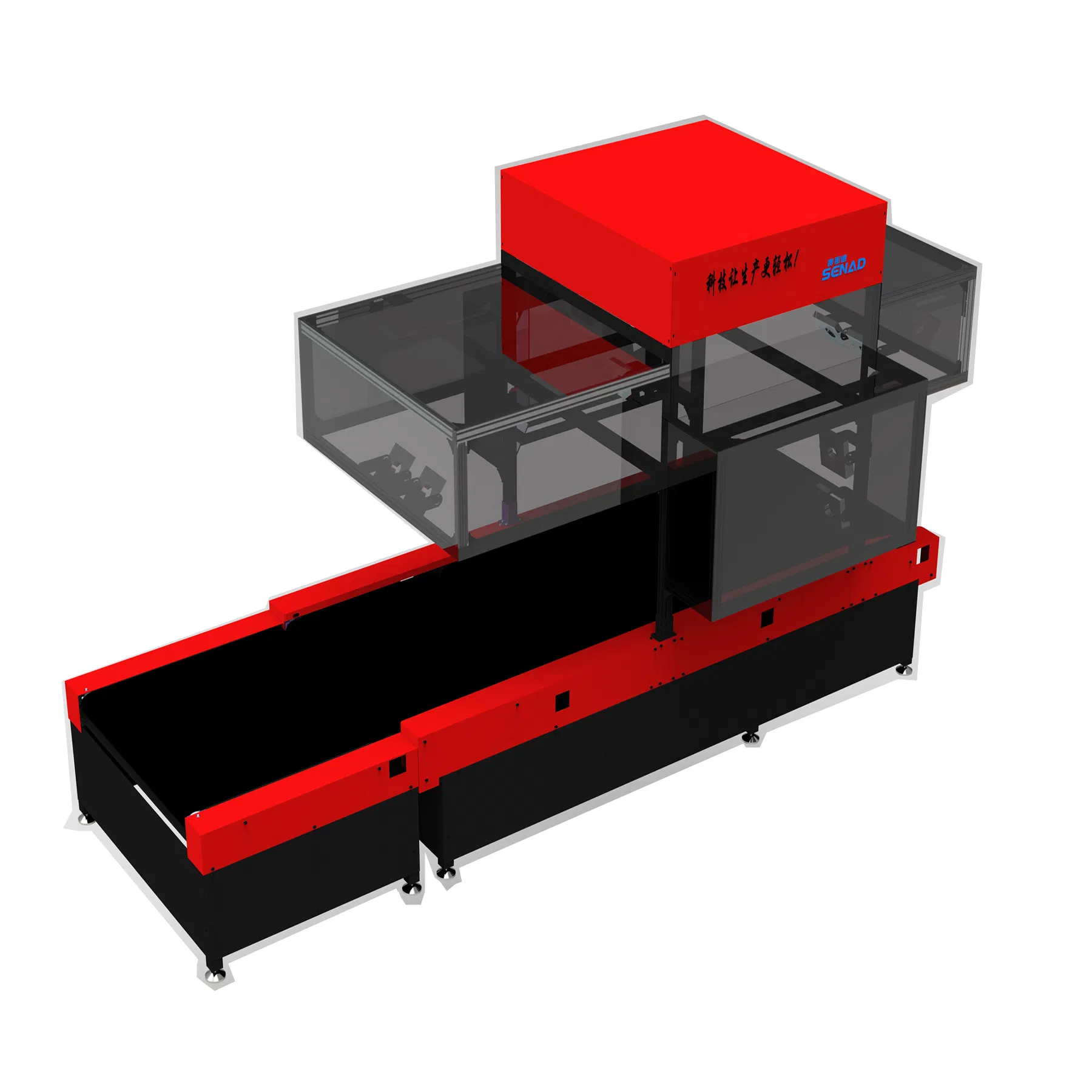

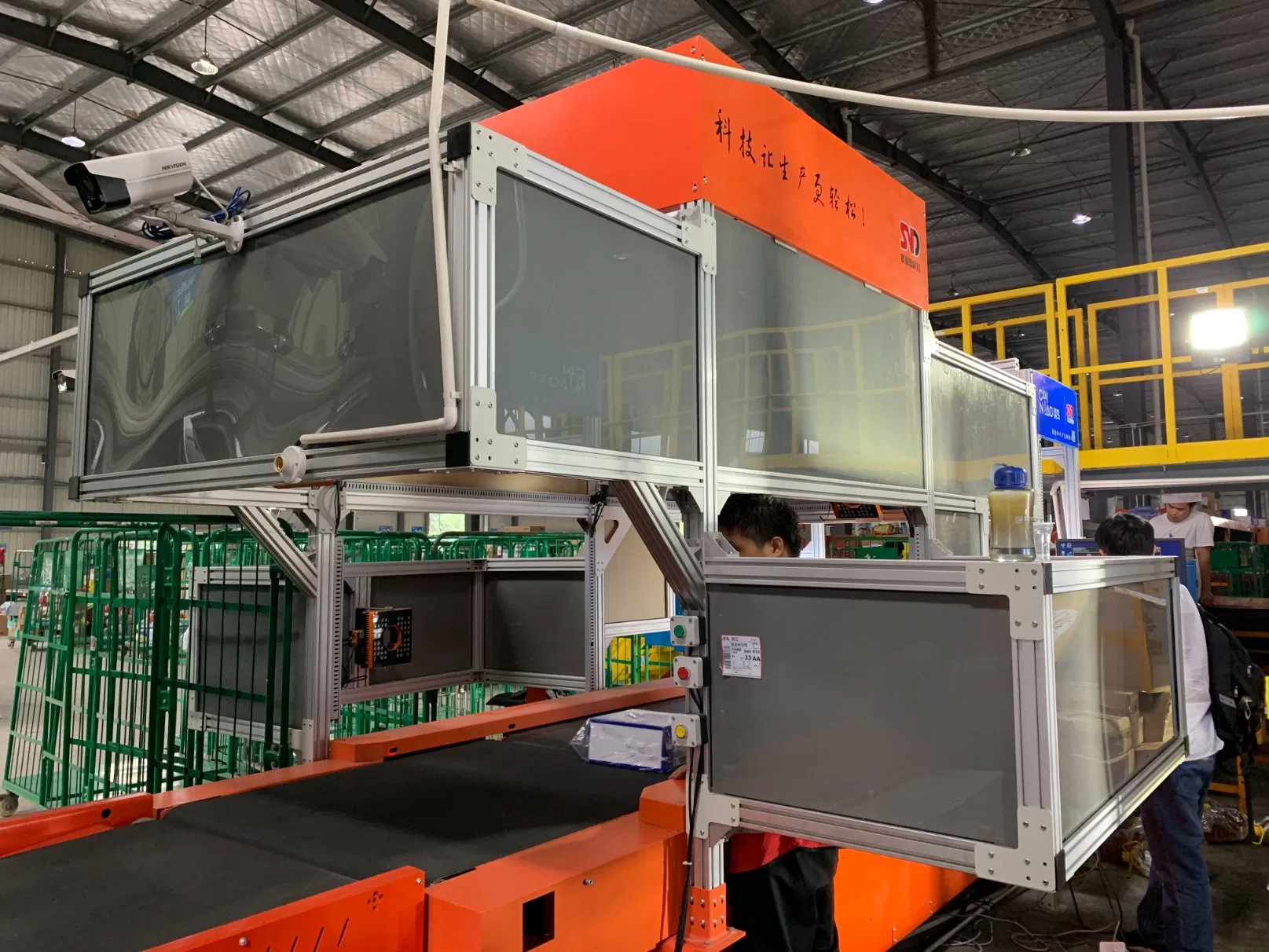

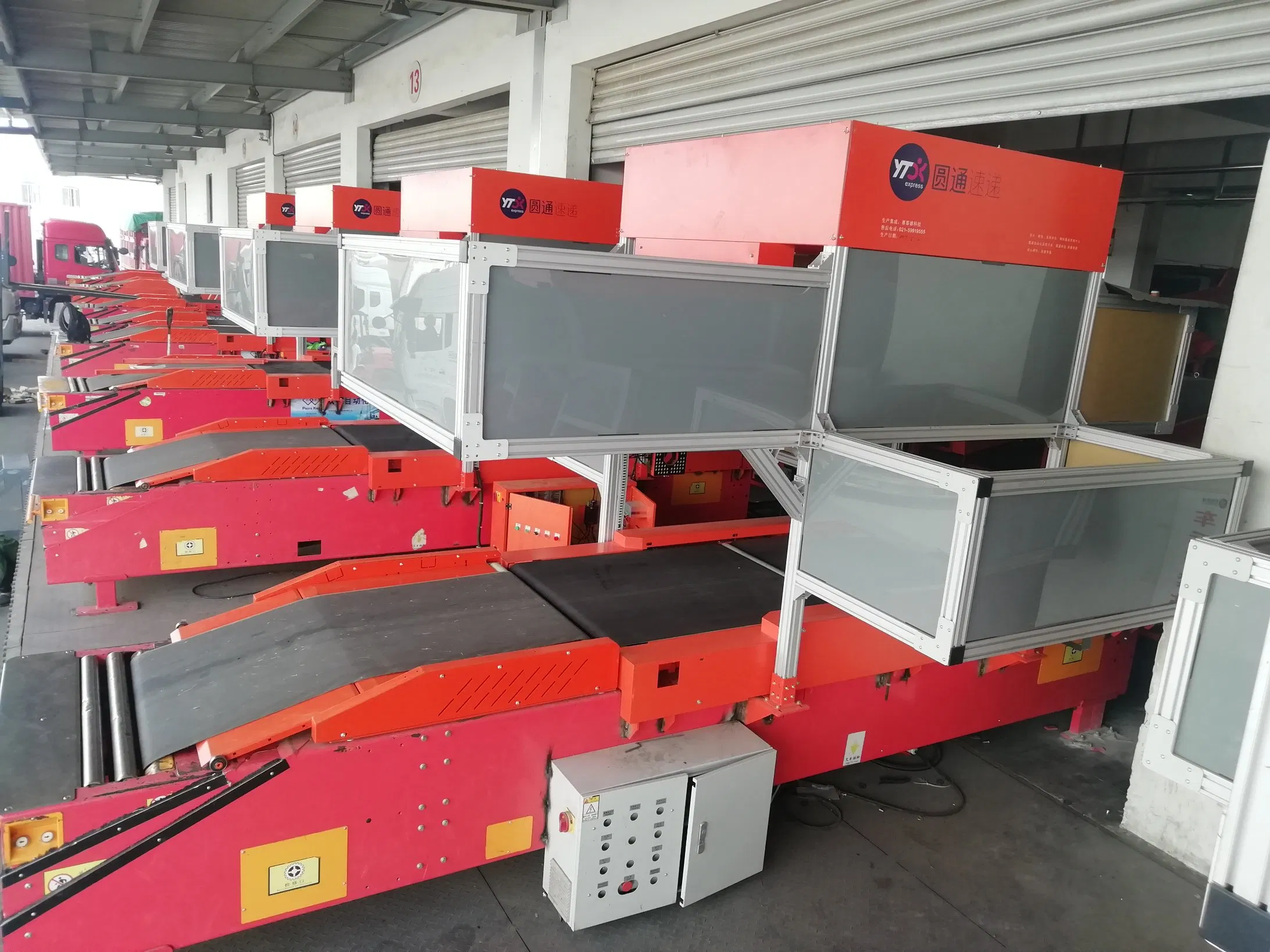

Barcode scanning weighing dimension measuring machine with extendable belt conveyor for high efficiency warehousing. The telescopic machine series is an integration solution to save space. It integrates two major monitor systems: a dynamic DWS system, which allows the system to capture package information in a conveying line, and a flexible conveying system, which controls the belt conveyor stretch its telescopic mechanisms at flexible lengths at the operator's will.
This equipment realizes automatic truck loading & unloading, weighing, high precision dynamic code reading, volume measurement integration, and parcel photoing for tracking references. The collected data is accurate and can be uploaded to management systems or e-commerce platforms as a pricing basis.
| Item | Parameters |
|---|---|
| Main functions | 1D/2D code scanning (Five-side); weighing & volume measurement |

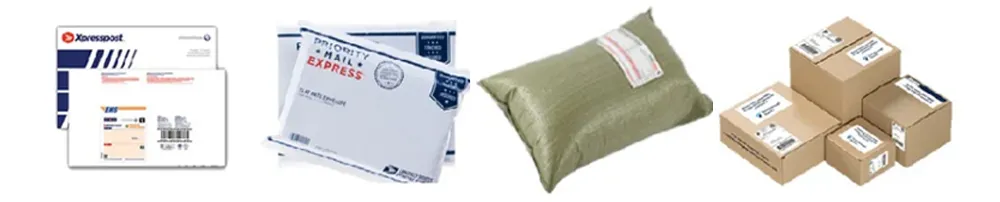

| Package type | Paper box; soft package; nylon bag; plastic bag; hard wooden box, etc. |
| Scanning size | Min. 50*50*20mm ---- Max. 800*800*800mm (L*W*H) |
| Rating power | ≤3.5KW |
| Working voltage | AC220V/380V~50HZ |
| Temperature | -5~45ºC |
| Fix Capability | 2600--3600 Ps/hour |
| Code identify accuracy | 99.9% |
| Weighing range | 0.1~60kg |
| Weighing accuracy | ±20g |
| Equipment size | 1660*1100*2600mm (L*W*H) |
| Application software | Professional DWS software |
| Support system | Windows 7/10 or above; 32/64 bits |
| Software interface | HTTP; TCP; 485 |
| Loading mode | Manual loading / Automatic feeding |
Multiple packages pass through at the same time, and the information of each package is accurately scanned and identified via the advanced camera system.
Integrated components feature modular, standardized construction for quicker assembly. Metric hardware is used for international installations, allowing for simple, flexible placement of diverts.

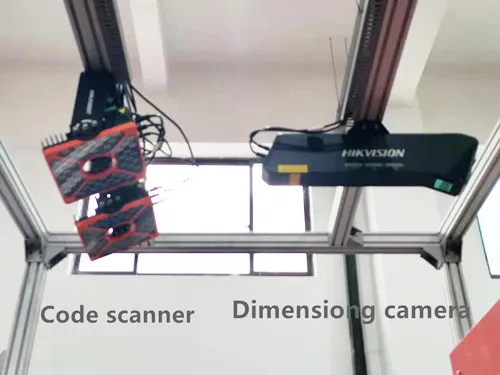

The high-definition camera accurately identifies item information with an accuracy rate reaching up to 99.99%, ensuring reliable data capture.

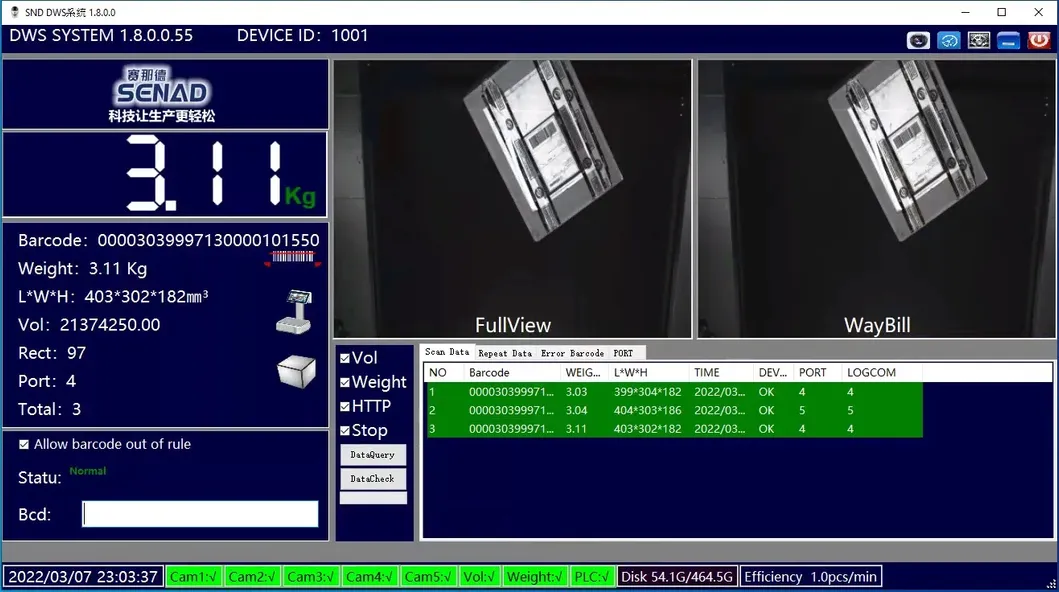

The operation interface displays size, weight, and barcode information. The language can be customized and it supports docking with existing customer systems for automatic report output.
