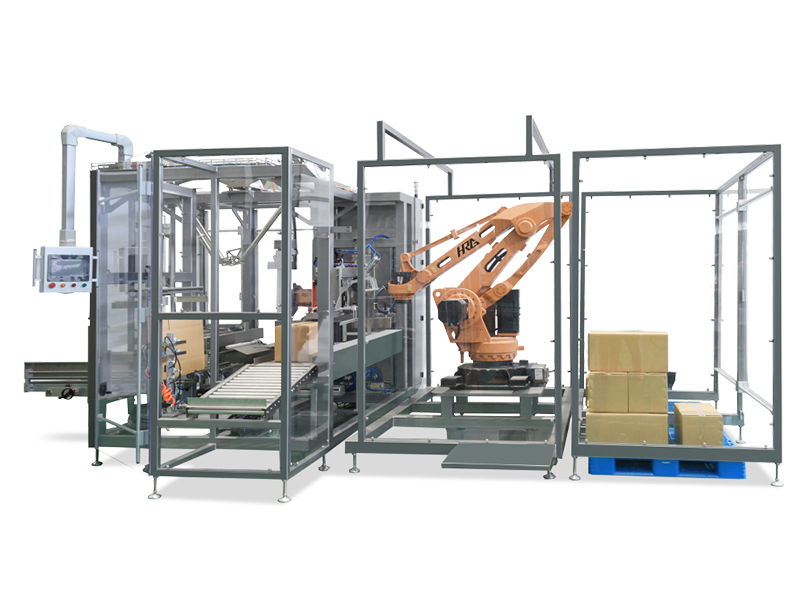

Multi-functional Workstation of Case Packer with Palletizer KZFM-600 is a mechatronic workstation of robotic automatic case packer with palletizing module for end-of-line packaging, which incorporates advanced technologies at home and abroad.
The modular design allows multi-functions of case erecting, packing, sealing, labeling and strapping in one station. Applicable to intelligent end-of-line packaging for a broad variety of products. it can be used solo or integrated with the proceeding packaging machines to form a production line.

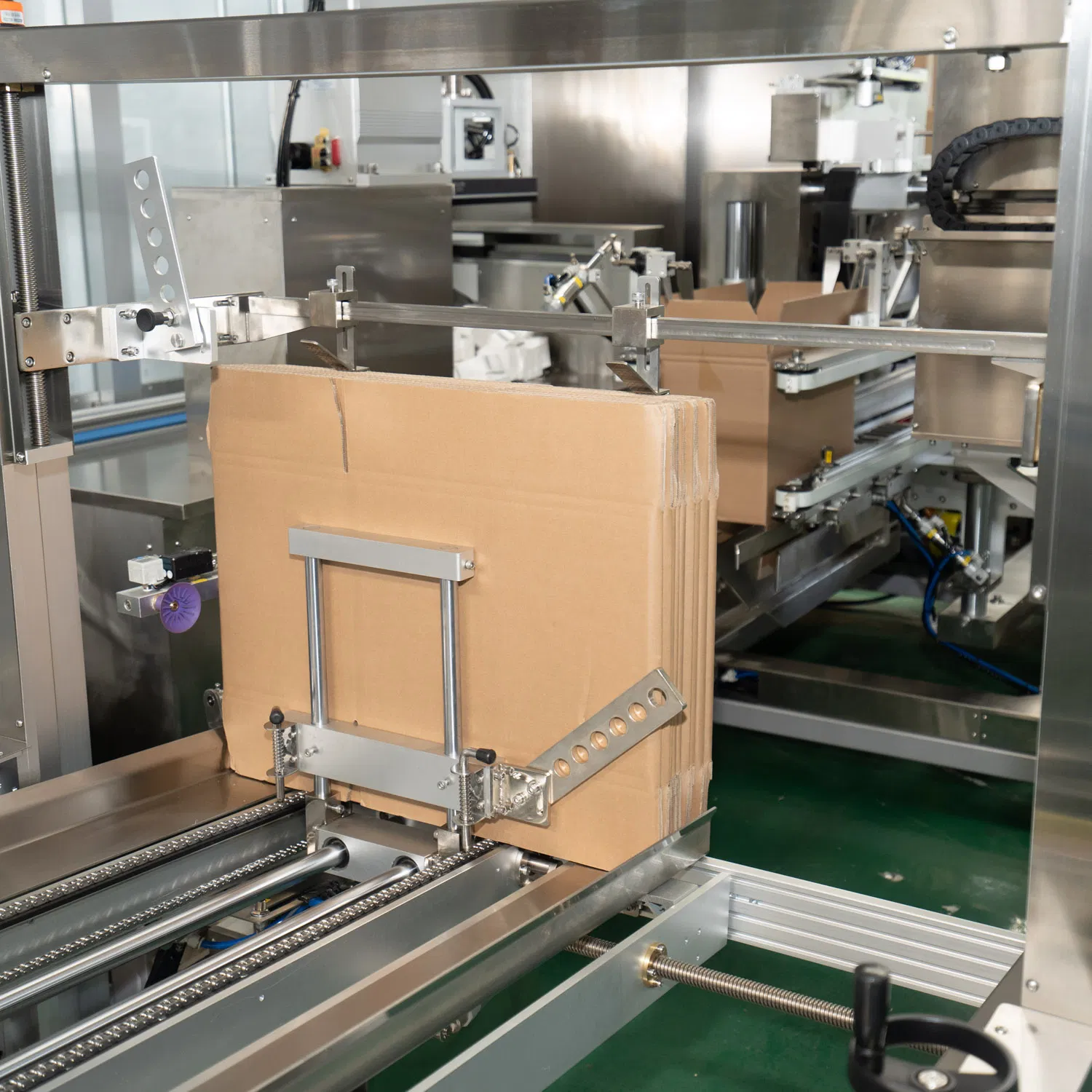

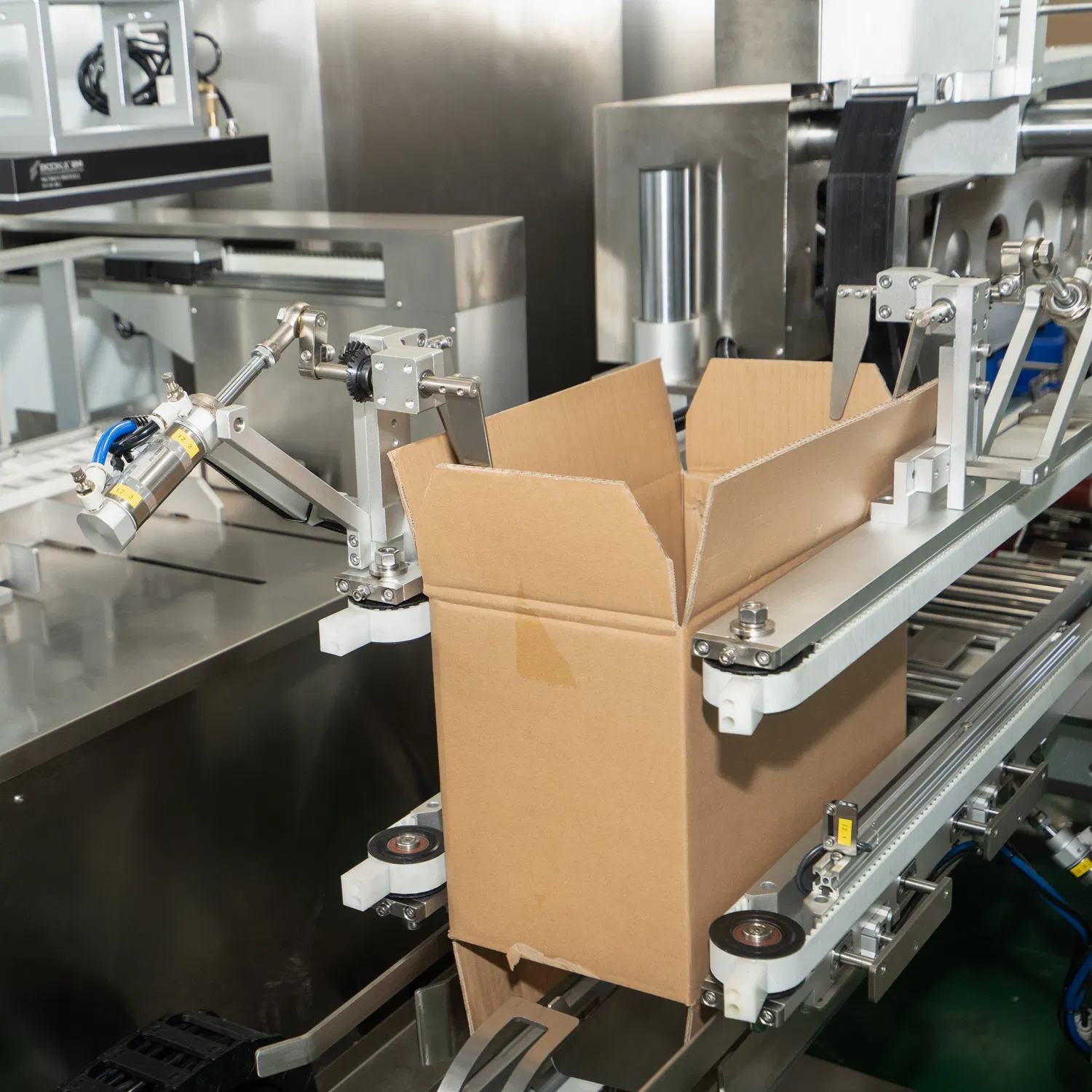

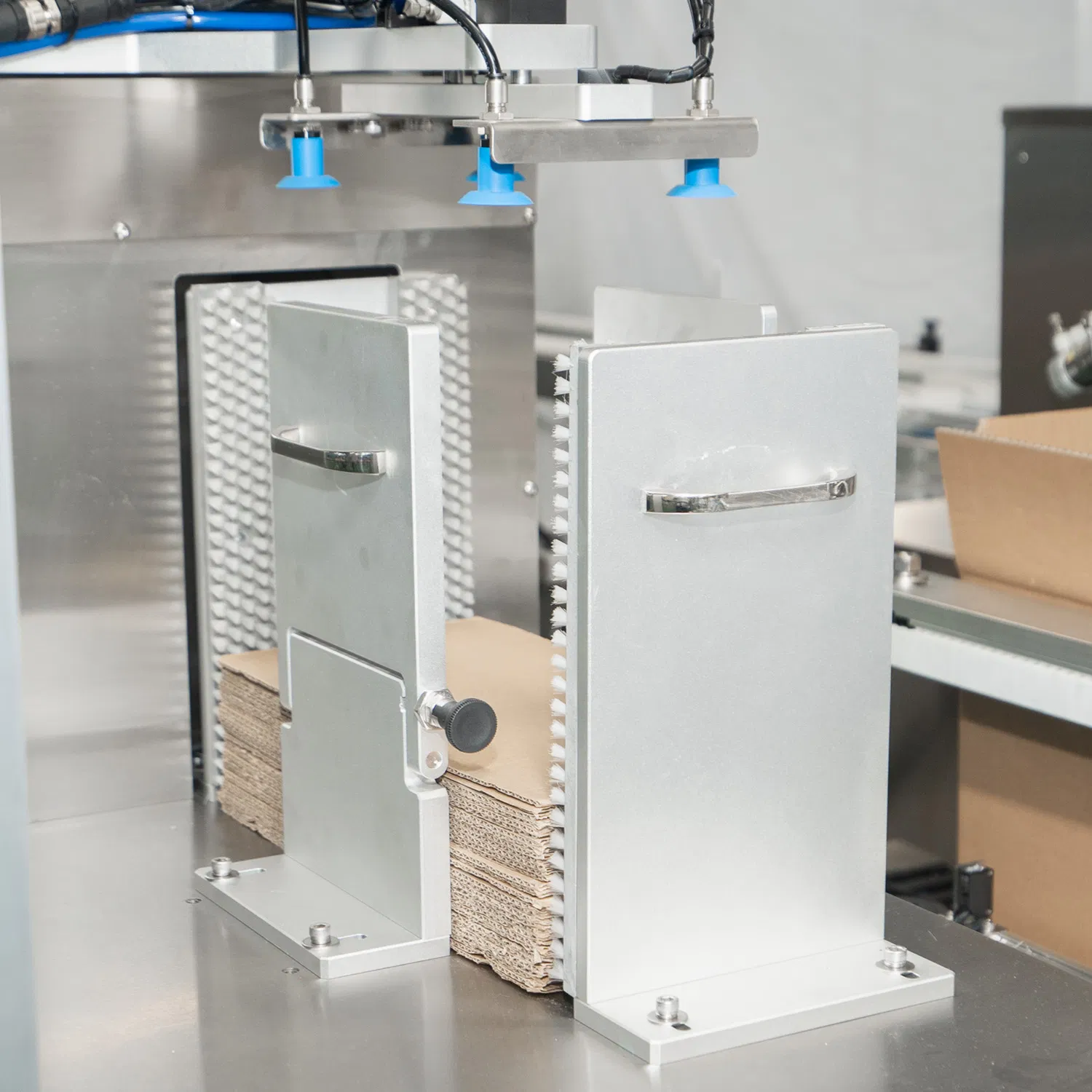

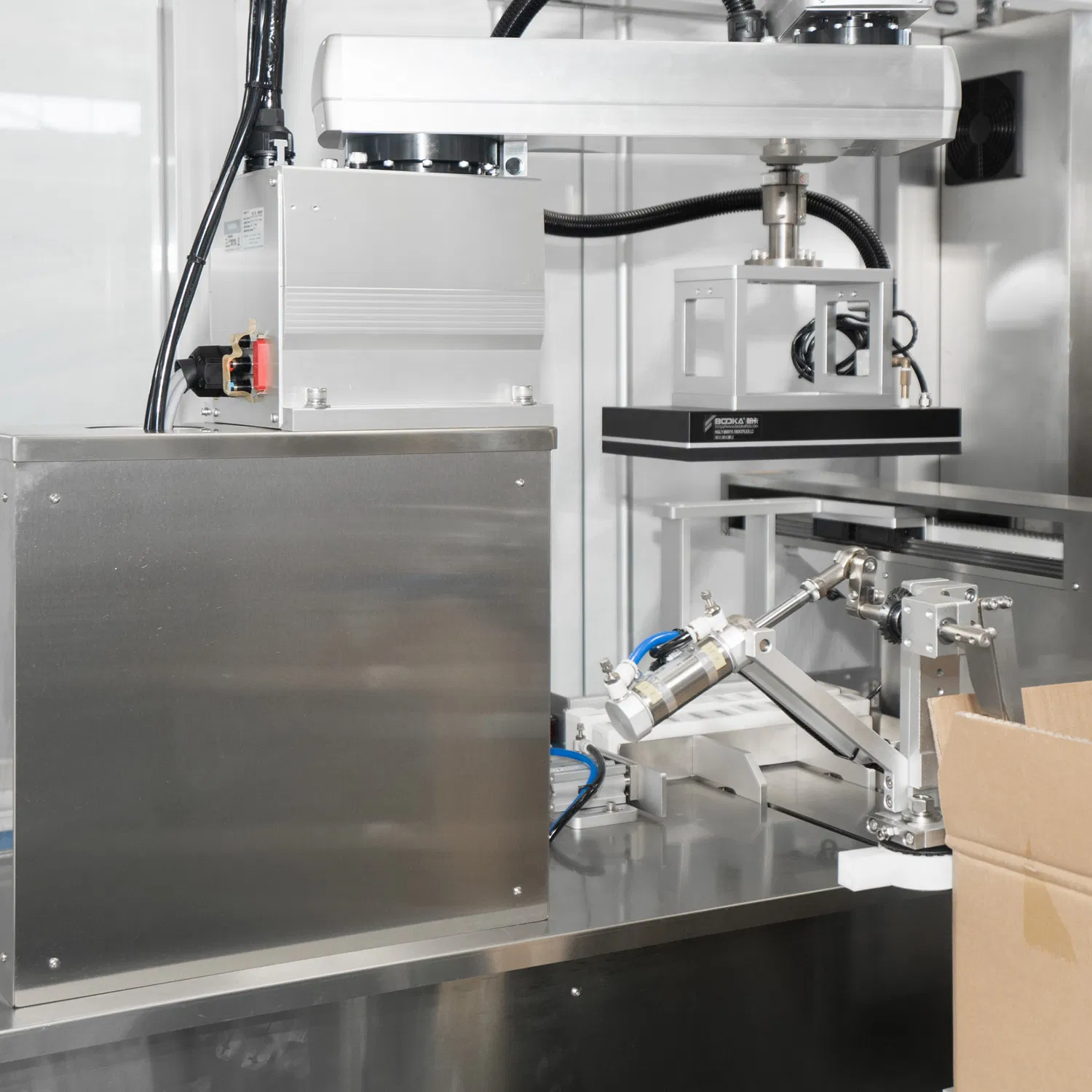

The workstation automatically stacks, erects, loads, seals and palletizes cases of various specifications according to the required numbers of products to be packed. The robot arm (with vacuum suction cups) picks and places the product into the case after stacking. The case will be sealed after loading, and then the robot will lift the case for labeling, scanning and palletizing.
The workstation integrates and streamlines the end-of-line packaging process, featuring high degree of automation, intuitive operation and small footprint, well accepted as a typical product of advanced technology integrating end-of-line functions in China.
| Model | KZFM-600 |
| Case size (LxWxH) | Max: 550x400x350mm Min: 300x220x150mm |
| Loading speed | Robot arm >= 10 times/minute |
| Power supply | 380V/50Hz |
| Power consumption | 13Kw (excluding robot which consumes 4Kw) |
| Compressed air pressure | 0.6Mpa |
| Dimensions (LxWxH) | 6500x2900x2774mm |
| Weight | 3000Kg (excluding robot which weighs 925Kg) |
| Max. KNF size | 1200x1200mm |
| Based on standard configurations, machine can be customized. | |
We offer Preventative Maintenance and After-Sales Service, strongly believing in the importance of supporting our customers and the product solutions we provide. Consequently, we offer comprehensive maintenance options to prevent equipment issues before they become problems. We also offer a one-year warranty!
Installation Services:
Installation Services are available with all new machine purchases. We provide the technical know-how for a smooth transition, offering support for installing, debugging, and operating the machine to guide you in utilizing it effectively.
Customization:
All machines in our factory can be customized based on your requirements. We possess successful experience in designing machinery tailored to custom needs. The machinery integrates advanced global technology, representing a new generation of automatic packaging solutions with Omron PLC control, rational design, compact structure, aesthetic appeal, reliable performance, high filling accuracy, and easy maintenance.
Quality Guarantee:
1. Each machine is manufactured by professional workers.
2. Each machine undergoes strict inspection before leaving storage.
3. High-quality electrical components are utilized in every machine.
4. After-sales commitment: regular follow-ups will be made via phone or email.
5. One-year warranty: within the warranty period, we will offer repair or replacement services free of charge for any breakage or damage occurring under standard instructions. Clients are responsible for freight charges.
