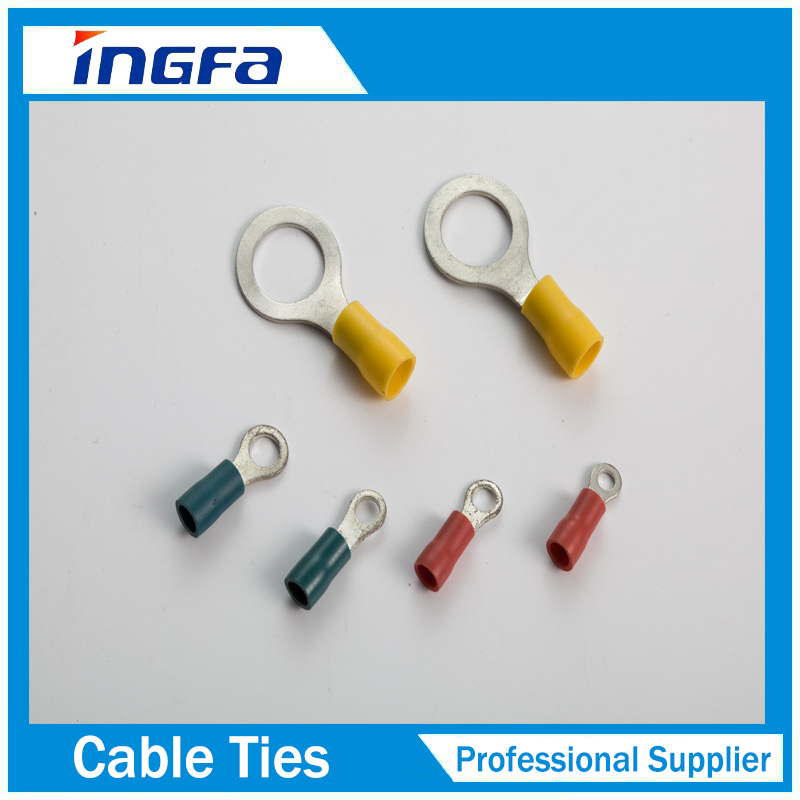

Insulated terminals, also known as cold-press terminals, electronic connectors, and air joints, belong to the cold-press terminal family. They are vital accessories designed to establish secure, precise, and reliable electrical connections.
As industrial automation and control demands become increasingly strict and precise, the requirement for robust terminals continues to grow. Keeping pace with the expansion of the electronics industry, our range of terminal types and sizes is consistently evolving to meet global standards.
| Type | A.W.G | d2 (mm) | Dimension (mm) | Color | Description | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| W | L | F | H | D | d1 | T | ||||||
| SV1.25-3.2 | #4 | 3.2 | 5.7 | 21.2 | 6.5 | 10.0 | 4.3 | 1.7 | 0.8 | Red |
Imax = 19A Cable Size: 0.5-1.5mm² (A.W.G: 22-16) |
|
| SV1.25-3.7S | #6 | 3.7 | ||||||||||
| SV1.25-3.7L | #6 | 3.7 | 6.4 | |||||||||
| SV1.25-4S | #8 | 4.3 | ||||||||||
| SV1.25-4M | #8 | 4.3 | 7.2 | |||||||||
| SV1.25-4L | #8 | 4.3 | 8.1 | |||||||||
| SV1.25-5S | #10 | 5.3 | ||||||||||
| SV1.25-5L | #10 | 5.3 | 9.5 | |||||||||
| SV1.25-6S | 1/4 | 6.5 | ||||||||||
| SV1.25-6L | 1/4 | 6.5 | 12.0 | 27.2 | 11.0 | |||||||
| SV2-3.2 | #4 | 3.2 | 5.7 | 21.2 | 6.5 | 10.0 | 4.9 | 2.3 | 0.8 | Blue |
Imax = 27A Cable Size: 1.5-2.5mm² (A.W.G: 16-14) |
|
| SV2-3.7S | #6 | 3.7 | ||||||||||
| SV2-3.7L | #6 | 3.7 | 6.0 | |||||||||
| SV2-4S | #8 | 4.3 | 6.4 | |||||||||
| SV2-4M | #8 | 4.3 | 7.2 | |||||||||
| SV2-4L | #8 | 4.3 | 8.1 | |||||||||
| SV2-5S | #10 | 5.3 | ||||||||||
| SV2-5L | #10 | 5.3 | 9.5 | |||||||||
| SV2-6S | 1/4 | 6.5 | ||||||||||
| SV2-6L | 1/4 | 6.5 | 12.0 | 27.2 | 11.0 | |||||||
| SV3.5-4 | #8 | 4.3 | 8.0 | 24.8 | 7.7 | 12.5 | 6.2 | 3.0 | 1.0 | Black |
Imax = 37A Cable Size: 2.5-4.0mm² (A.W.G: 14-12) |
|
| SV3.5-5 | #10 | 5.3 | ||||||||||
| SV3.5-6 | 1/4 | 6.5 | 12.0 | 28.0 | 12.1 | |||||||
| SV5.5-7 | #6 | 3.7 | 8.5 | 25.2 | 7.5 | 12.5 | 6.7 | 3.4 | 1.0 | Yellow |
Imax = 48A Cable Size: 4.0-6.0mm² (A.W.G: 12-10) |
|
| SV5.5-4S | #8 | 4.3 | ||||||||||
| SV5.5-4L | #10 | 4.3 | 9.0 | 23.9 | ||||||||
| SV5.5-5 | 1/4 | 5.3 | ||||||||||
| SV5.5-6S | 1/4 | 6.5 | ||||||||||
| SV5.5-6L | 1/4 | 6.5 | 12.0 | 31.2 | 12.0 | |||||||
| SV5.5-8 | 5/16 | 8.4 | 14.0 | 30.0 | 11.5 | |||||||

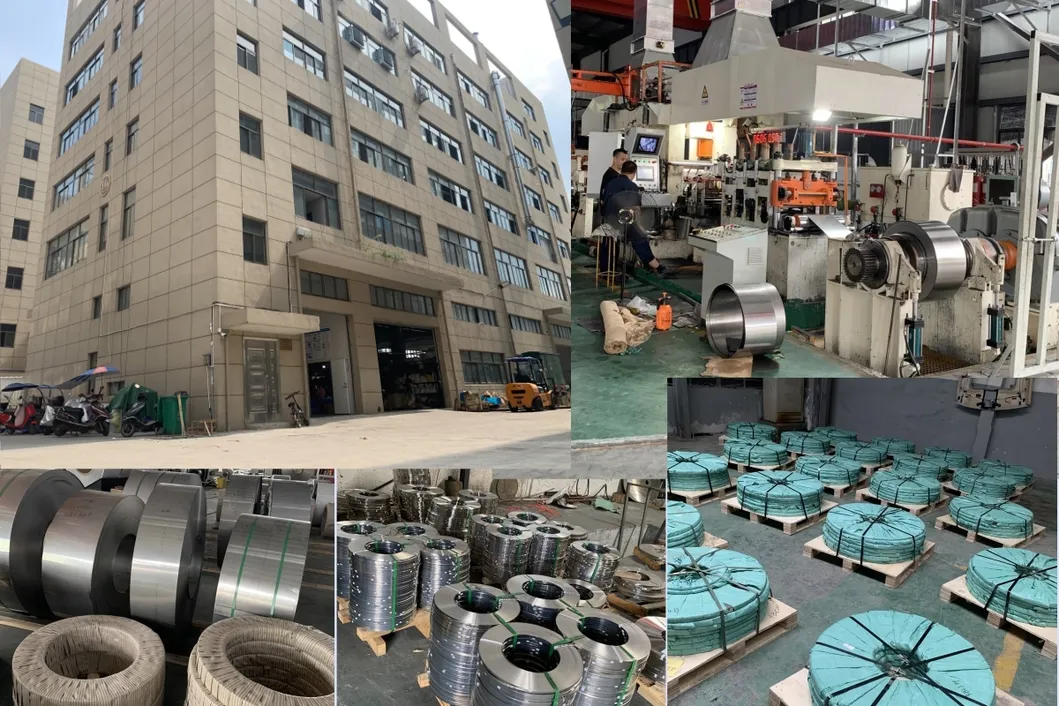

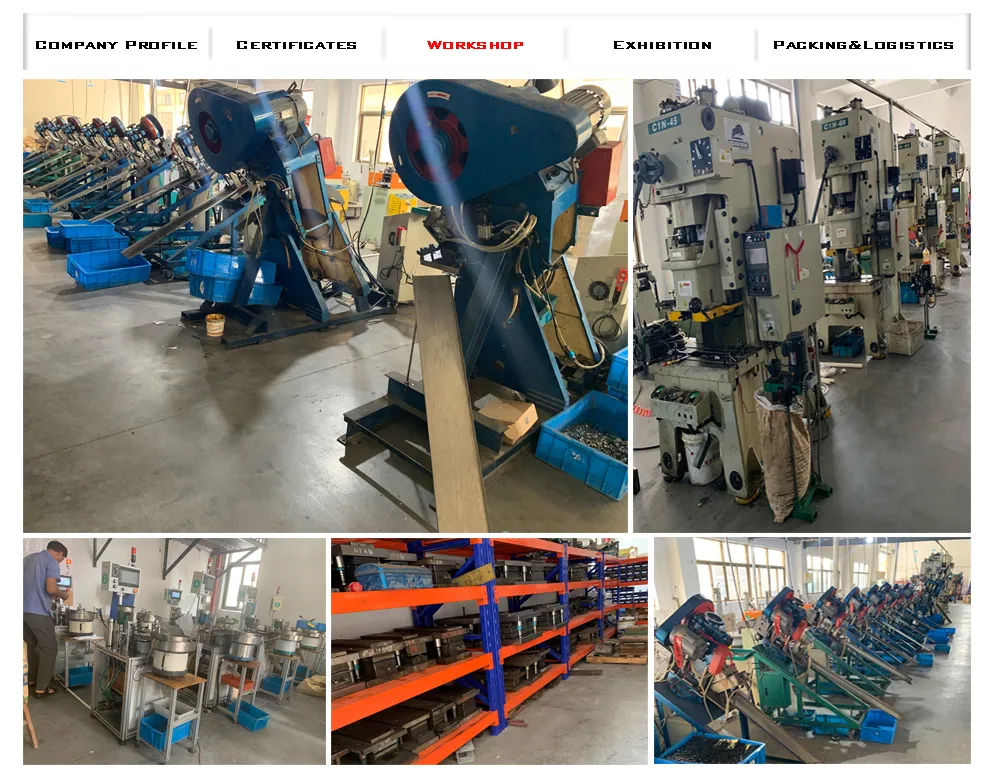

Spanning over 4,700 square meters, our facility operates more than 40 high-performance automatic production lines. Bolstered by an experienced design and engineering team, our manufacturing approach focuses on delivering maximum capacity alongside top-tier stability.
Quality and safety are core to our identity. Our production pipelines and products conform to rigorous international benchmarks, holding active certifications including:
Leveraging over 20 years of technical expertise, our team provides responsive, structured, and professional service solutions across global markets.
L/C, T/T, D/A, D/P, Western Union, Paypal
20ft Container per month
Fully Accepted
Courier (1-2 days)
Air cargo (4-7 days)
Sea Freight (20-25 days)
If you are interested in our products, please feel free to reach out to us. Thank you!

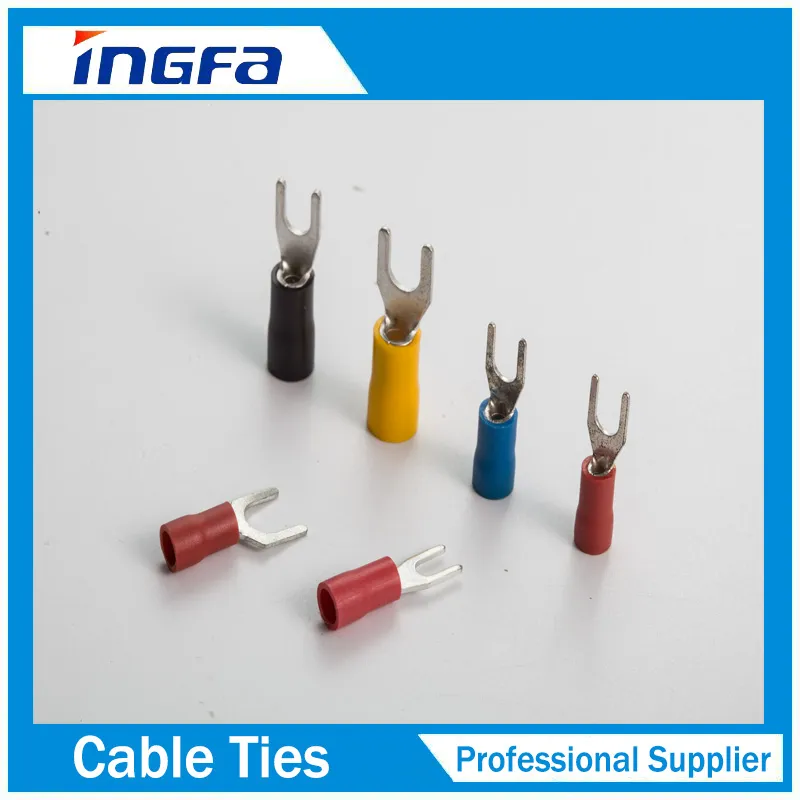

SV terminals (also termed spade or cold-press terminals) are electronic connectors used to make safe, solderless connections in electrical panels, industrial control loops, and automotive wiring harnesses.
Yes, our terminals have undergone strict verification procedures. They are backed by active UL, CE, RoHS, and ISO 9001 certifications, ensuring compliance with global electrical safety standards.
Absolutely. We support full OEM tailoring. If you have custom configurations, sizing, packaging layouts, or special material demands, please share your technical requirements with us.

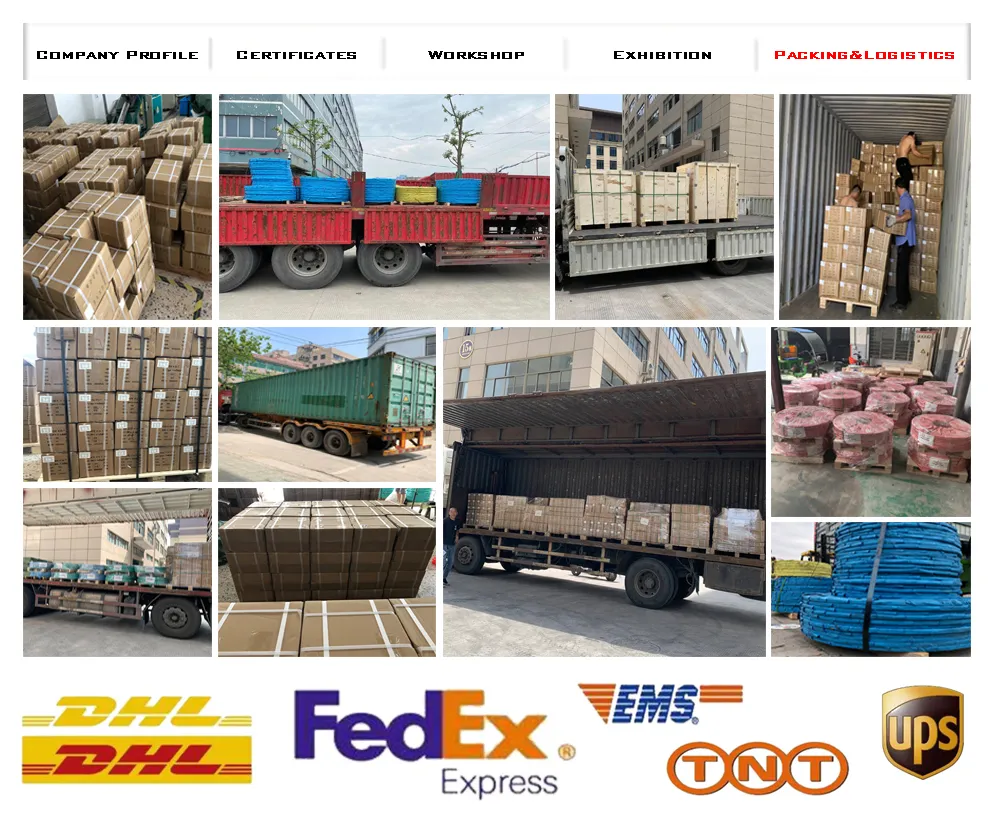

Our standard shipping uses nylon bags packed into durable protective cartons wrapped with outer woven bags. For bulk exports, we use fumigation-free bonded trays and wooden export boxes to secure components during transit.
We support multiple delivery options: Courier Services (1-2 working days), Air Freight (4-7 working days to your designated airport), and Ocean Cargo (20-25 working days to your target seaport).
We support a variety of flexible payment options to streamline global transactions, including L/C, T/T, D/A, D/P, Western Union, and PayPal.
