Customization: Available
Type: Multi Layer Palletizer
Automatic Grade: Automatic
Send Inquiry

Product Description

Overview
Integrated Automation Solution

Automatic Bag Palletizer & Ton Bag Holding Packaging Line is a fully integrated, high-efficiency automation solution designed for the filling, handling, palletizing, and securing of bulk materials in industries such as chemicals, fertilizers, cement, feed, plastics, and food.

This complete line combines ton bag (FIBC) filling, bag holding, automatic palletizing, and stretch wrapping, delivering seamless operation, enhanced safety, and reduced labor costs. For example, in the chemical industry, this system can reduce the risk of human error and exposure to hazardous materials. In food production, it ensures cleanliness and hygiene during packaging, enhancing product quality and safety.

Technical Specifications
Palletizing Speed
10-30 Bags/Minute
Load Capacity
10-50 Kg/Bag
Positioning Accuracy
± 0.5mm ~ ± 1mm
Degrees of Freedom
Axis 4-6
Working Radius
2-4m
Production Capacity
5000 units/Year
Product Parameters
Category Feature Standard Value Options / Adjustments
Performance Palletizing Speed 10-30 bags/minute Complexity Adjustment
Performance Load Capacity 10-50 kg/bag Heavy-duty up to 100kg
Mechanical Positioning Accuracy ± 0.5mm ~ ± 1mm Laser-assisted ± 0.3mm
Mechanical Degrees of Freedom Axis 4-6 Articulated/Truss Optional
Control Programming Mode PLC / Teaching Pendant Support ROS adaptation
Control Communication Modbus TCP/EtherCAT Integrated Control
Adaptation Grasping Method Pneumatic/Vacuum Non-slip design
Adaptation Bag Size 300-1000mm Long Customizable Fixture
Safety Standards ISO 10218/TS 15066 Collision Detection
Energy Rated Power 3-7.5kW Standby <0.5kW
Environment Protection Grade IP54 Optional IP65
Equipment Showcase

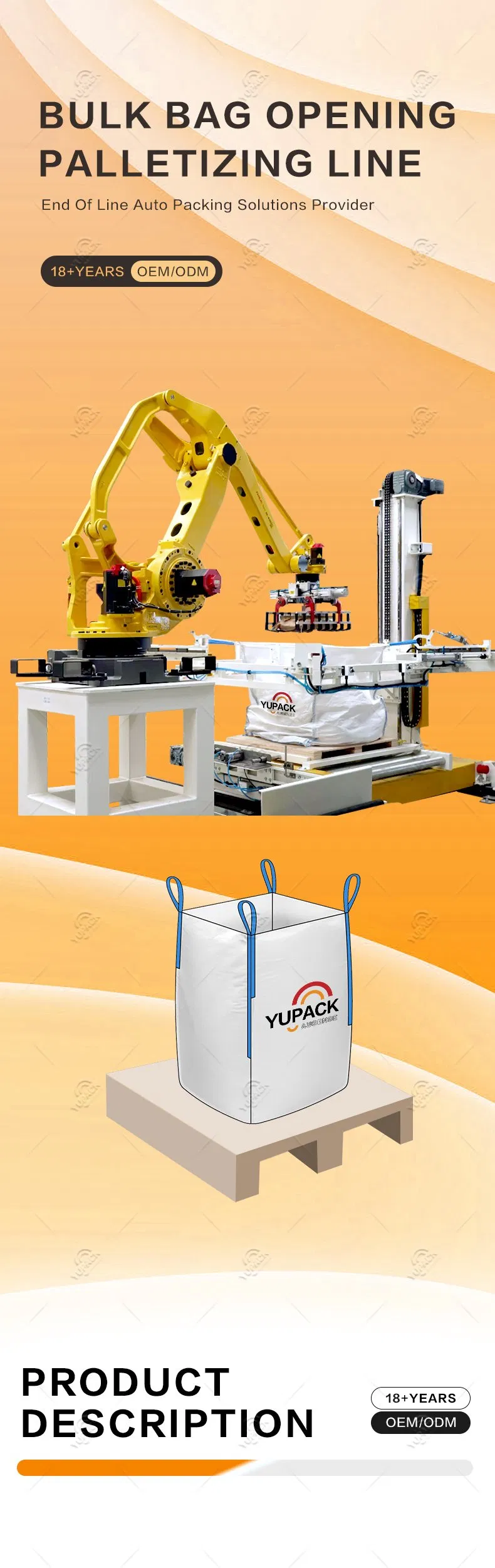

Palletizing Line 1
Palletizing Line 2

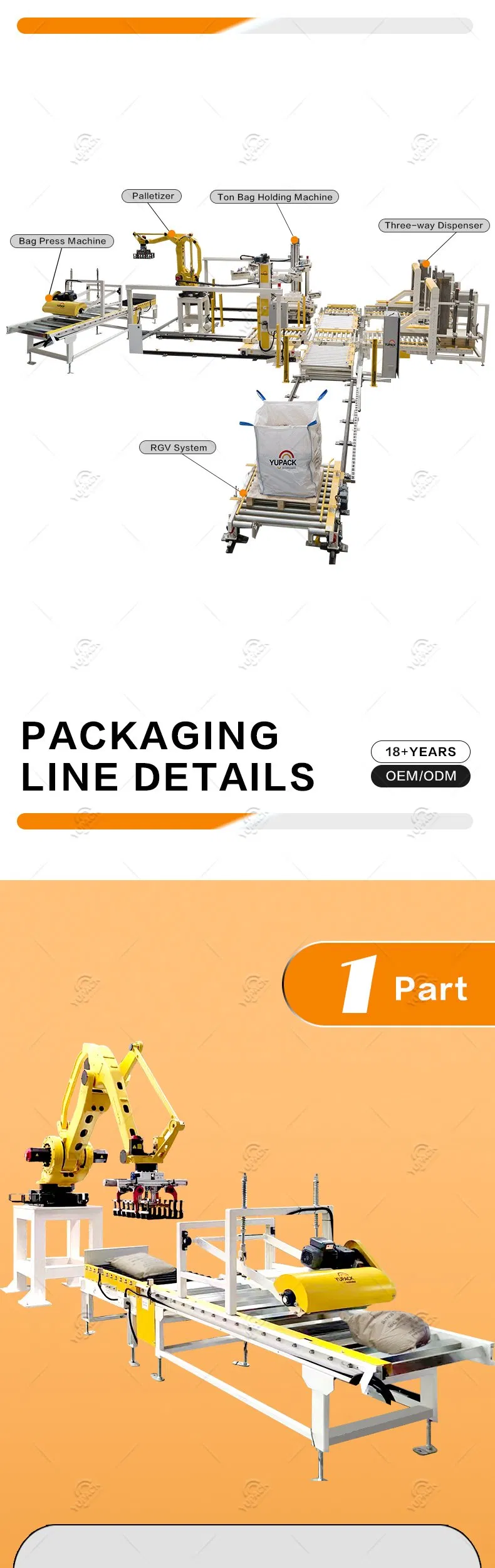

Palletizing Line 3

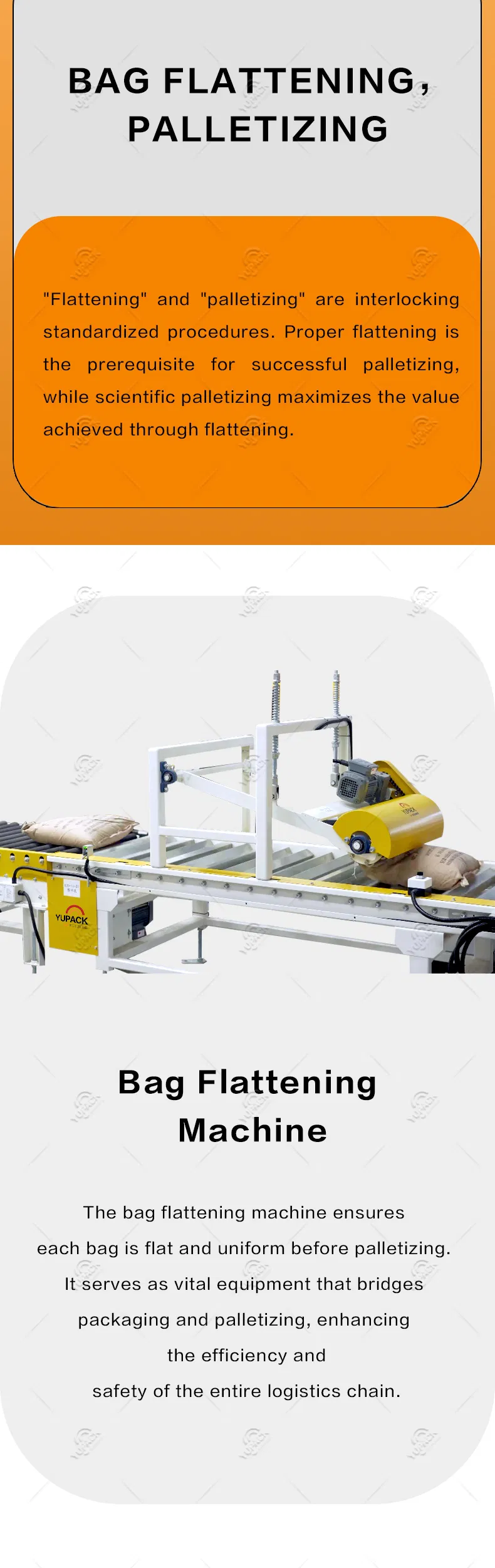

Palletizing Detail 1

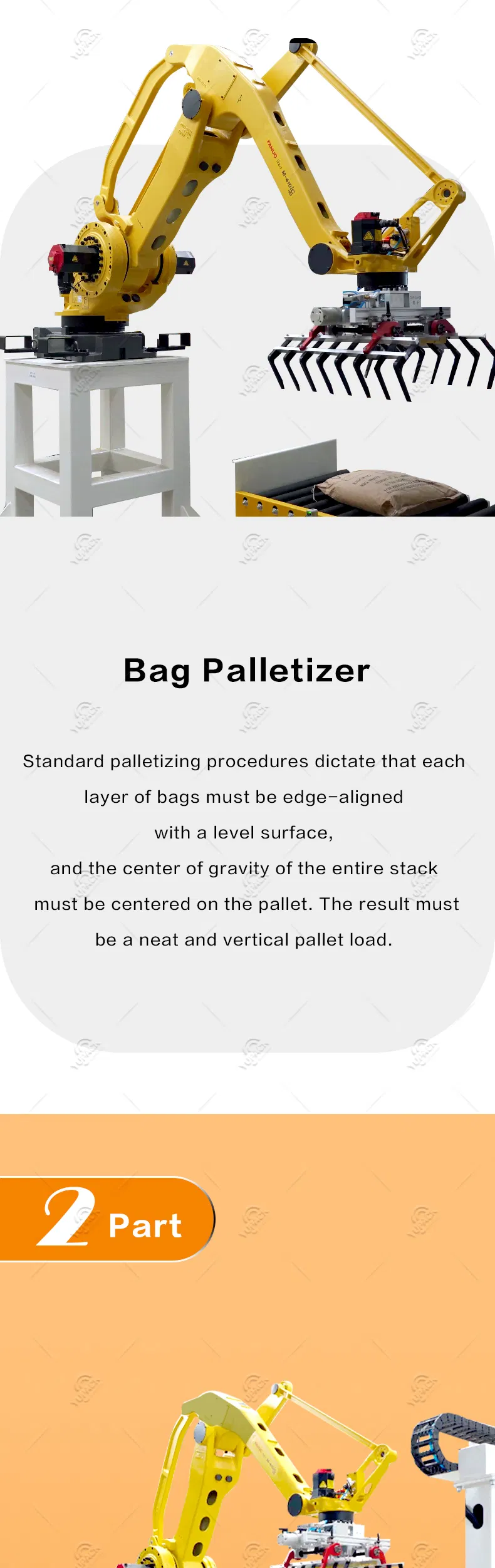

Palletizing Detail 2

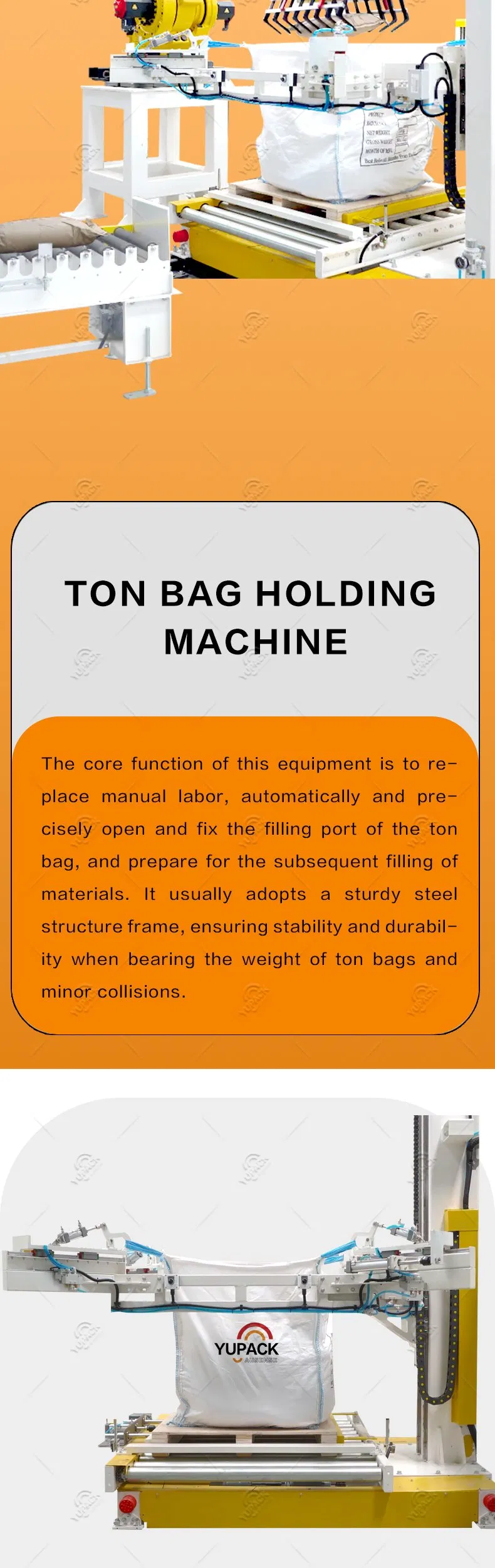

Palletizing Detail 3

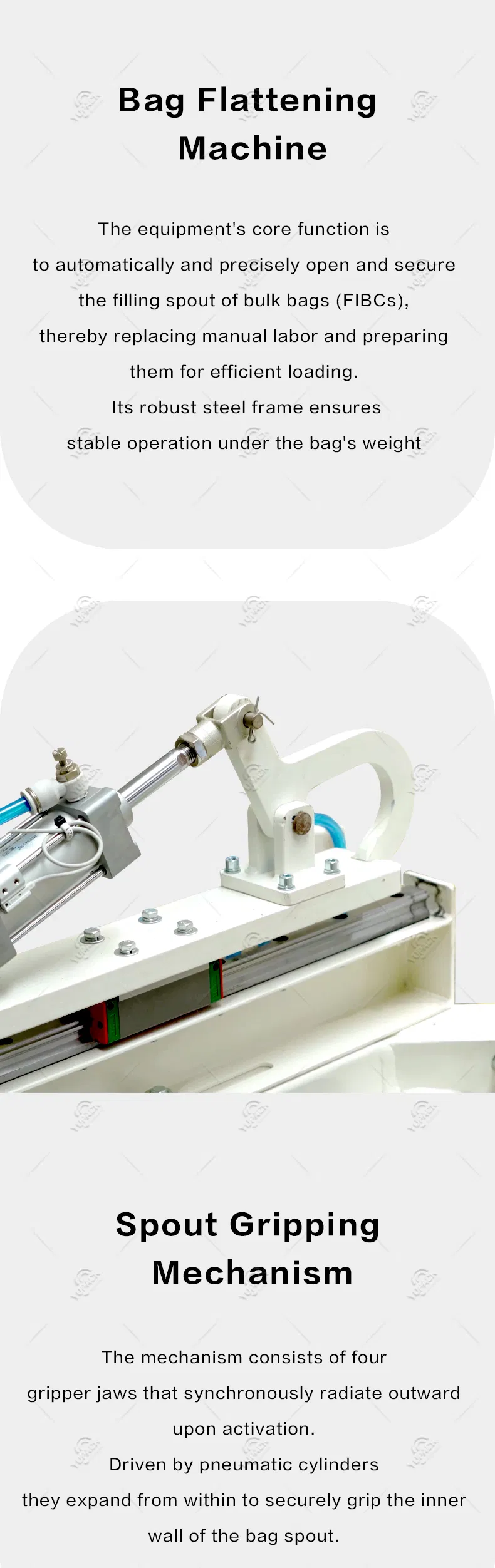

Workflow 1

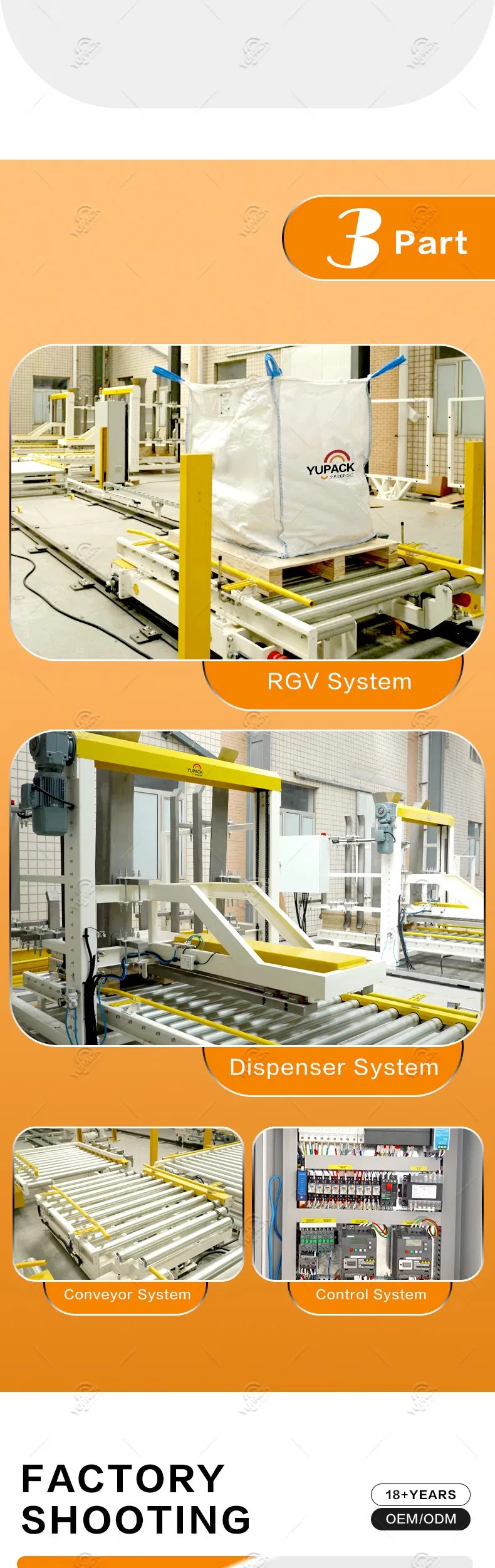

Workflow 2

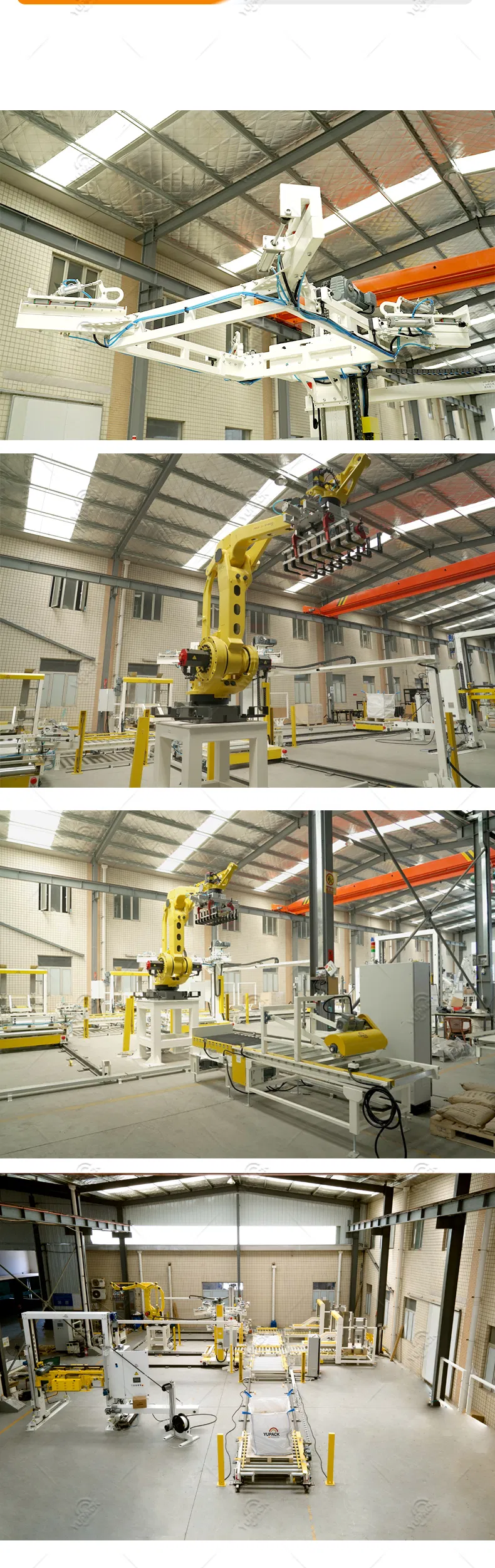

Workflow 3
Process & Configuration
Integrated Line Configuration
Workflow Diagram
System Specs
Safety Components
Final Packaging Details
Frequently Asked Questions
What is the maximum palletizing speed of this system?
The standard speed ranges from 10 to 30 bags per minute, depending on the bag weight and the complexity of the stack type.
What industries can benefit from this automatic packaging line?
It is ideal for high-volume production in chemicals, fertilizers, cement, animal feed, plastics, and food industries where efficiency and hygiene are critical.
Can the equipment handle different bag sizes and weights?
Yes, it supports bags ranging from 300mm to 1000mm in length and weights from 10kg up to 50kg. A heavy-duty version for up to 100kg is also available.
What safety features are integrated into the palletizer?
The system adheres to ISO 10218 and TS 15066 standards, featuring emergency stops, safety gratings, and advanced collision detection to ensure operator safety.
Does the system support remote control or modern communication protocols?
Yes, it utilizes Modbus TCP and EtherCAT protocols, allowing for seamless integration into smart factory environments and supporting ROS adaptation.
How does the system perform in dusty industrial environments?
The equipment comes with a standard IP54 rating for dust and water protection, with an optional upgrade to IP65 for more demanding environments.
