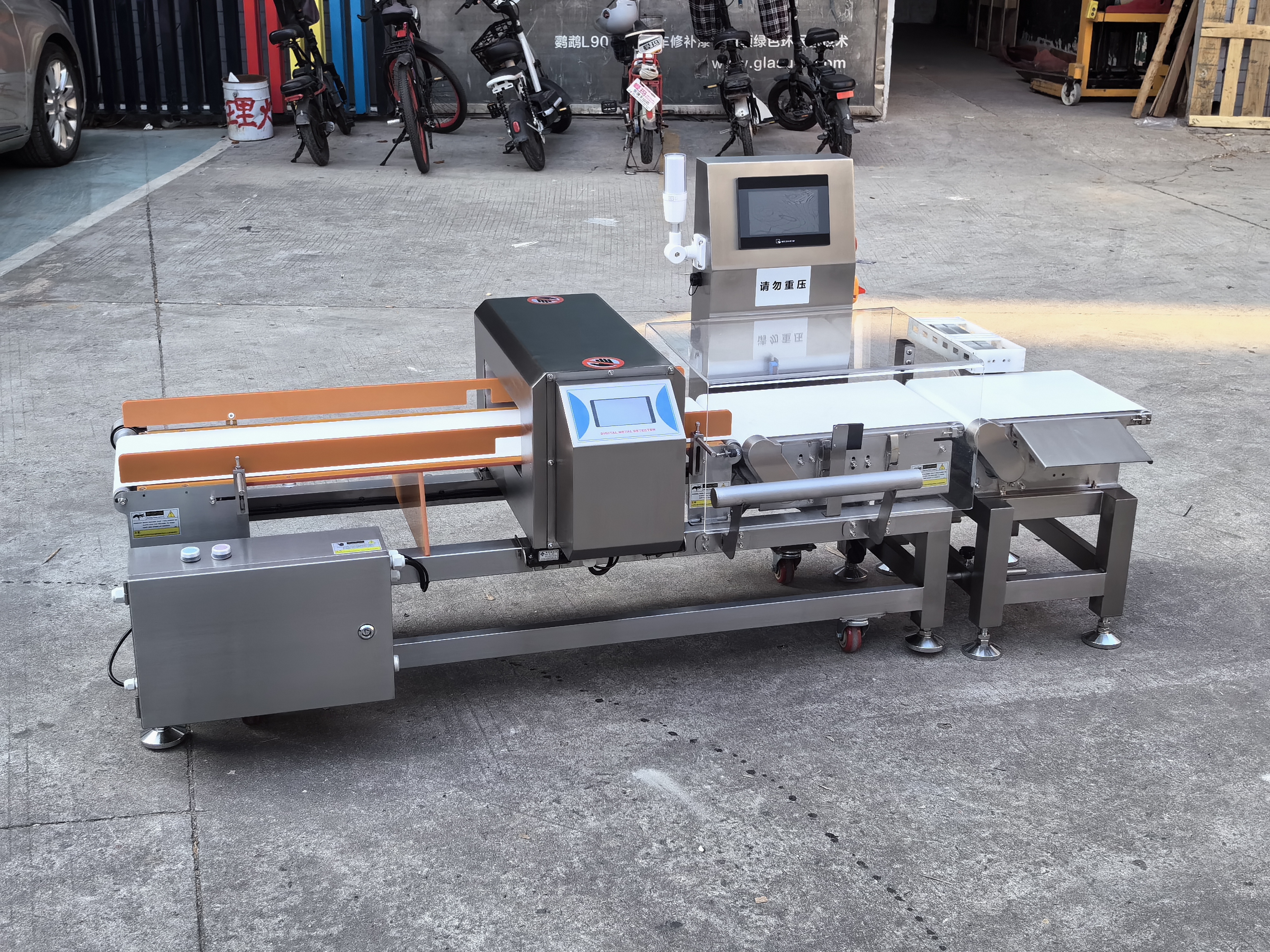

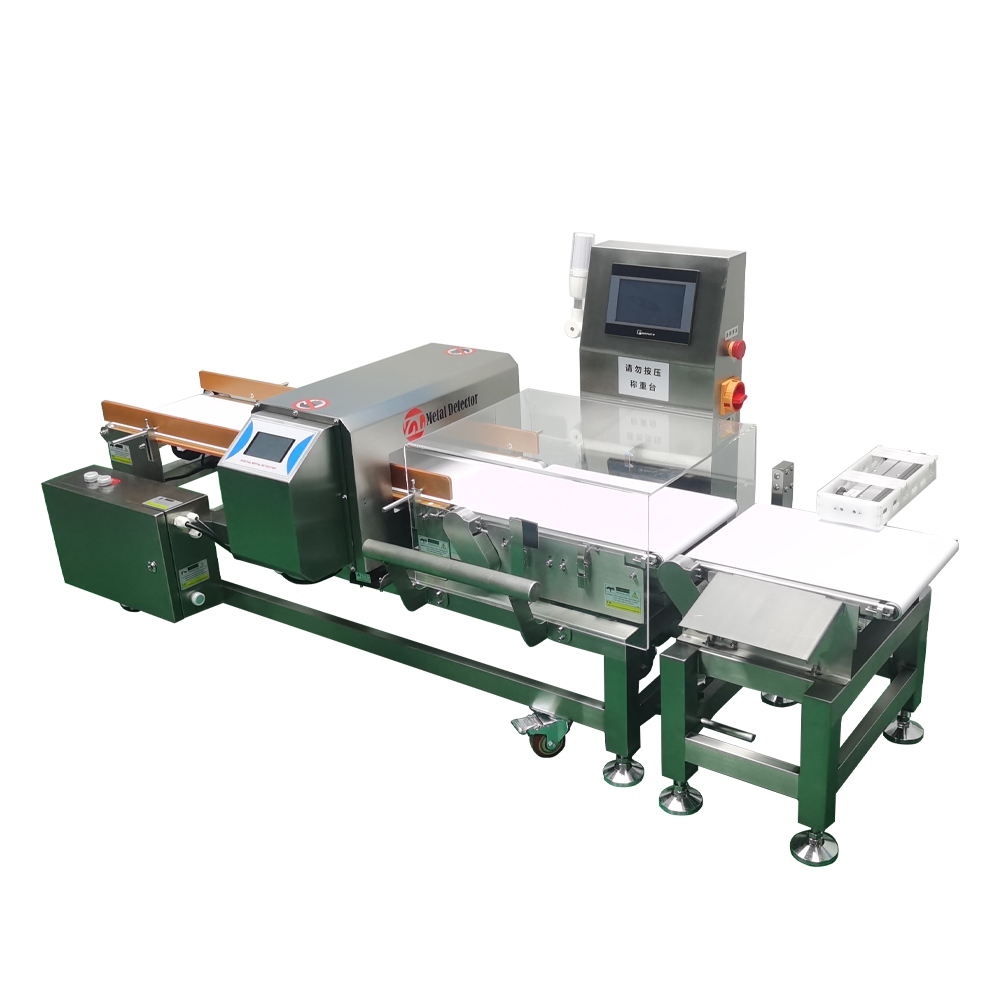

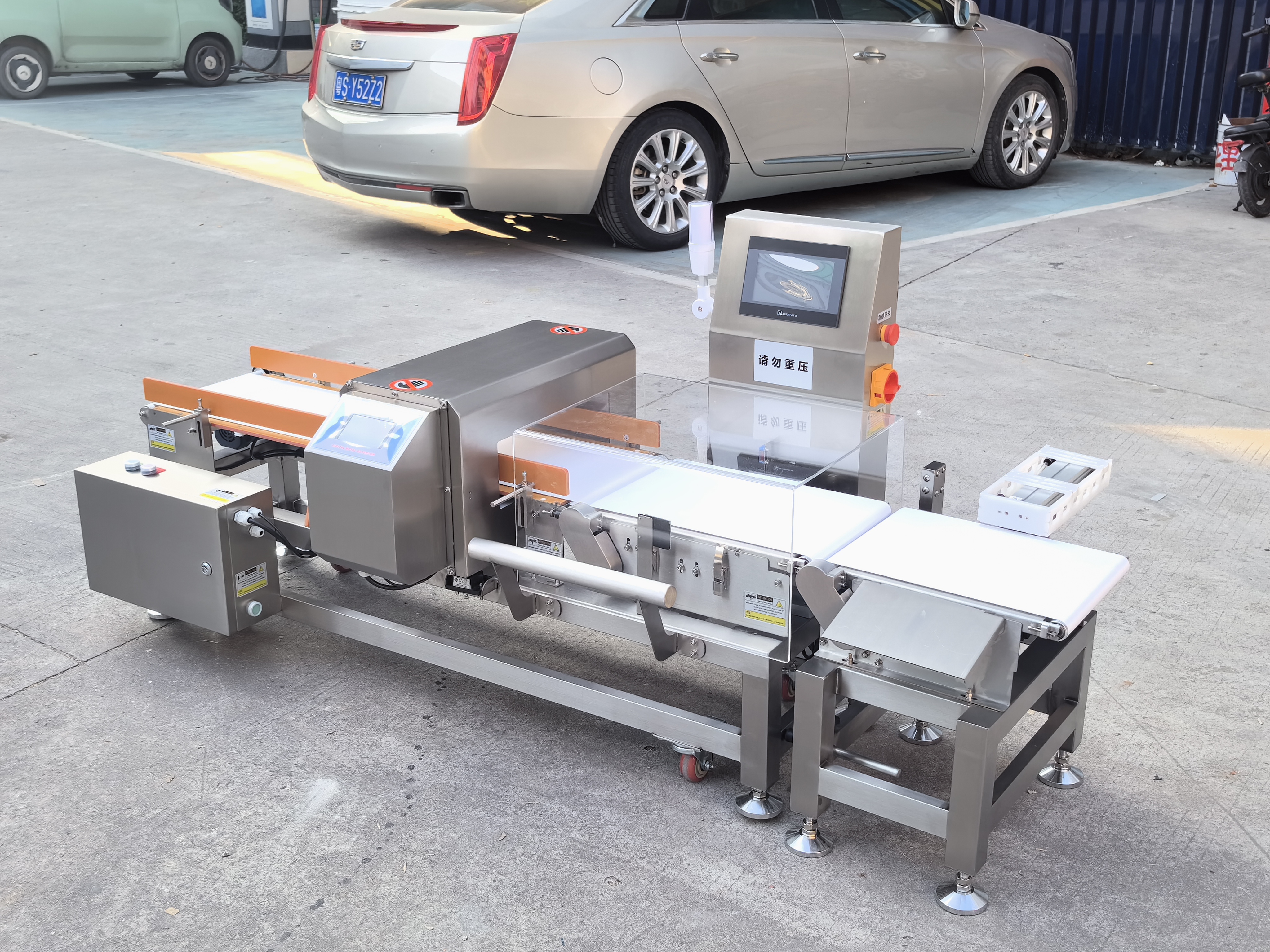

Metal Detector and Check Weigher Combined Conveyor Metal Detector and Checkweigher

Product Description

Metal Detector and Check Weigher Combined Conveyor Metal Detector and Checkweigher
Product Description
Scope of Application:

Widely used in electronics, pharmaceuticals, food, beverages, health products, daily chemicals, light industry, agricultural and sideline products and other industries. Such as food industry prepared foods, pastries, ham sausages, instant noodles, frozen foods, food additives, pigments, modifiers, preservatives, etc.

Functional Features:

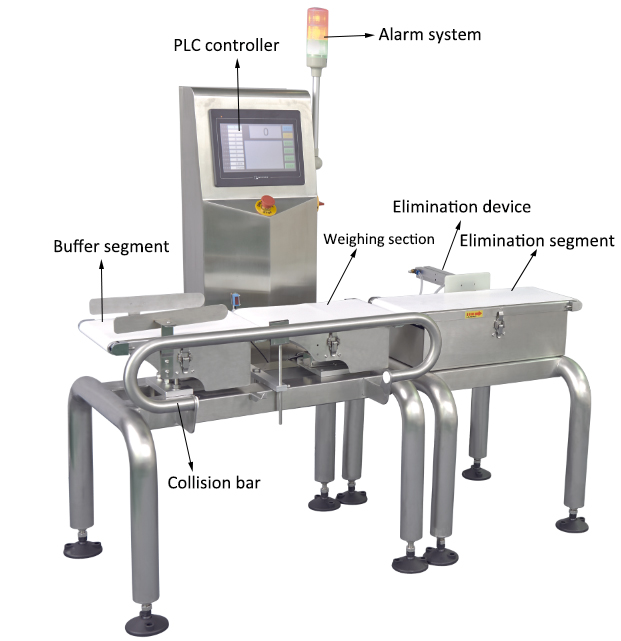

Checkweigher:
  • Strong versatility: The standardized structure of the whole machine and the standardized human-machine interface can complete the weighing of various materials;
  • Easy to replace: It can store a variety of formulas and change product specifications conveniently;
  • Simple operation: Using the Weilun color human-machine interface, fully intelligent and humanized design;
  • Easy maintenance: The conveyor belt is easy to disassemble and install, easy to install and maintain, and easy to clean;
  • Adjustable speed: Using frequency conversion control motor, the speed can be adjusted according to needs;
  • High speed and high precision: Using high-precision digital sensors, fast sampling speed and high precision;
  • Zero point tracking: Manual or automatic zeroing, as well as dynamic zero point tracking.
  • Report function: built-in report statistics, reports can be generated in EXCEL format, can automatically generate a variety of real-time data reports, U disk can store more than 1 year of statistical data (need to be added), so as to keep track of production status at any time;
Metal Detector:
  • The operating system adopts humanized and intelligent design, high-definition 7-inch touch screen, intuitive and convenient. The interface is easy to operate, which is convenient for staff to operate easily and intuitively, and effective information can be obtained without complicated operations;
  • It has a one-button self-learning function. It only needs to pass the detected product through the detection channel once according to the set program, and the product parameters can be automatically and accurately set and memorized. No manual adjustment is required, and the operation is very simple;
  • It has user access log and detection log data storage and display. The total number of products produced and the number of detected products can be statistically stored. The main interface can separately display the total number of products produced, the number of qualified products, and the number of defective products detected; the equipment alarm log can store the latest 700 items.
  • It has more than 200 product parameter memory functions, which can store more than 200 product detection parameters. After setting and storing once, it can be called up next time without adjustment. Able to quickly change products on the production line, minimizing the setup time;
  • With automatic fault detection and prompt function at startup, it can effectively prevent invalid detection;
Technical Parameters
Checkweigher: Metal Detector:
Power Supply AC220V±10% 50HZ(60HZ)
Rated Power 0.15KW
Single Weighing Range ≤1000g (Customizable)
Checkweigher Accuracy Range ±0.3g~±1g Metal Detector Accuracy Fe 1.5mm, Non-Ferrous 2.0mm, Stainless Steel 2.5mm
Minimum Scale 0.1g Opening Size 300*120mm, (Customizable)
Conveying Speed 60~90m/min
Maximum Speed 160 pcs/min Optimum Speed 15-40m/min
Checkweigher Material Size ≤250mm(L)*120mm(W)
(Customizable)
Test Product Size ≤250mm(L)*120mm(W)
(Customizable)
Conveyor Belt Size 400mm(L)*210mm(W)
(Customizable)
Conveying Size 924mm(L)*210mm(W)
(Customizable)
Product Size 2024mm(L)*742mm(W)*1250mm(H)
Rejection Method Push rod, lever, air blowing, etc. can be selected according to product characteristics
Control System High-speed A/D sampling controller Control System Customized
Preset Product Number 99 Storing Data 200 pcs
Conveying Direction Facing the machine, left in and right out
External Air Source 0.6-1Mpa
Air Pressure Interface Φ8mm
Working Environment Temperature: 0℃~40℃
Humidity: 30%~95%
Material SUS304 stainless steel
