Product Description

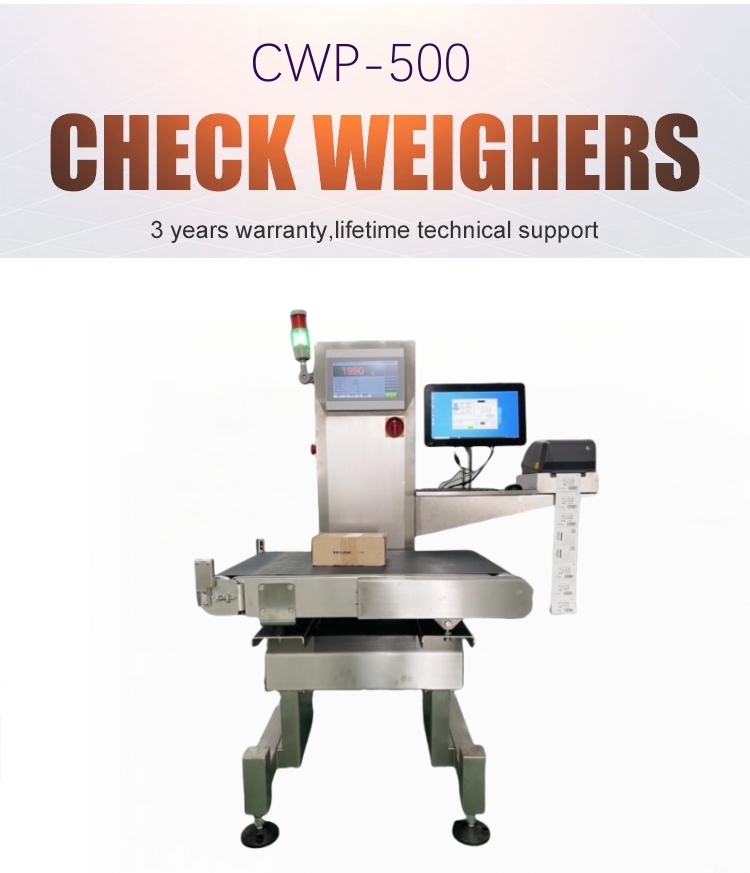

CW Series CWP-500 Solidity Robust Performance

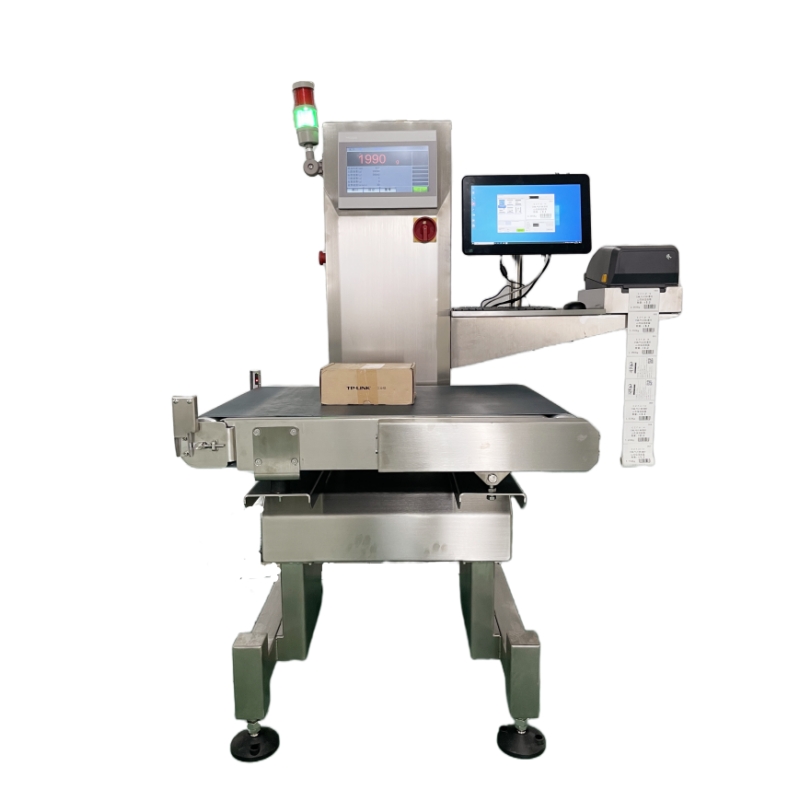

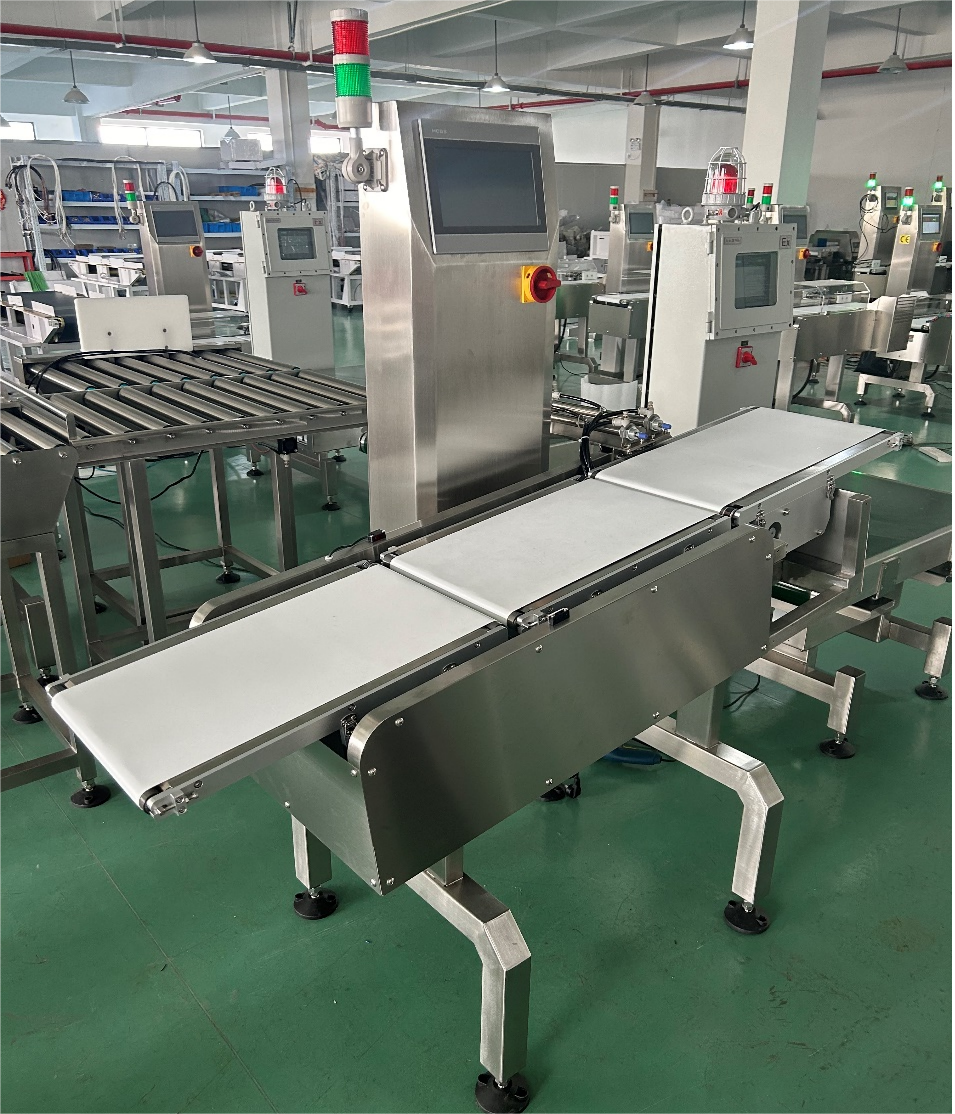

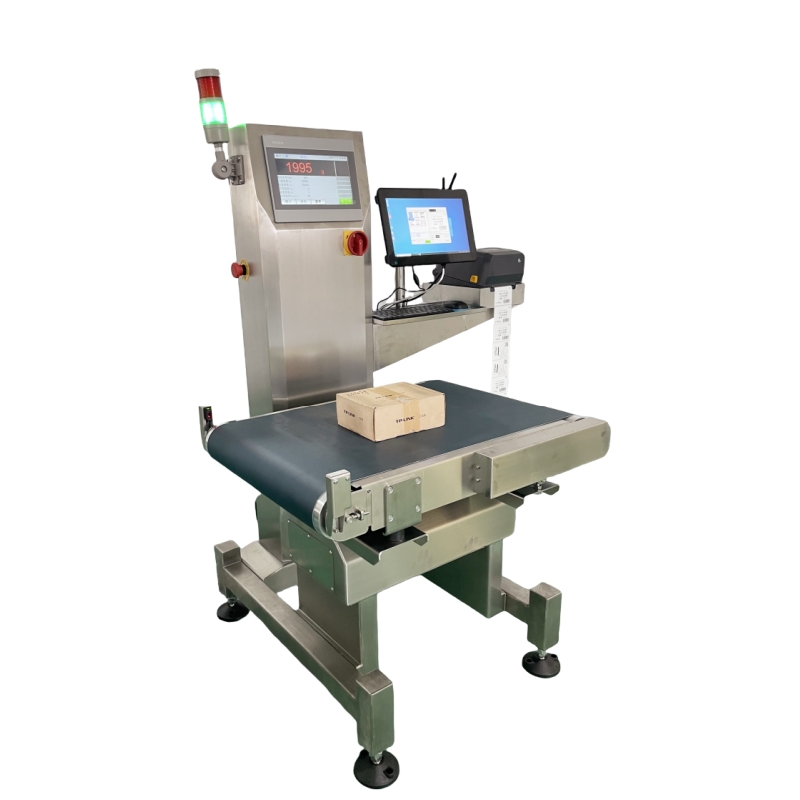

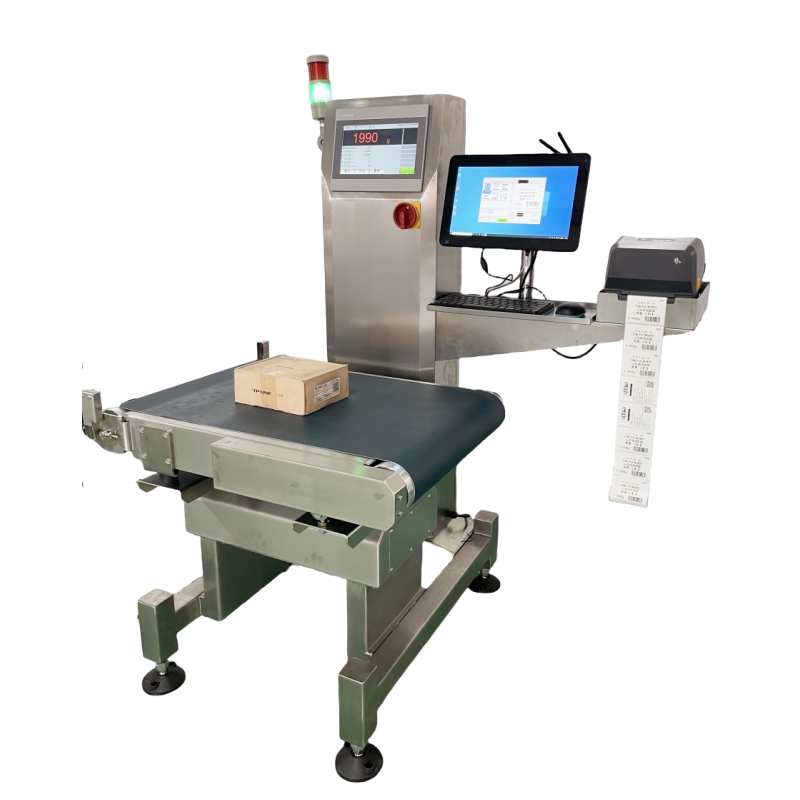

Dynamic checkweigher with label printer: the packaged products flowed from the previous section to the weighing machine. The weight machine quickly detected the weight of the product and sent the real-time weighing data to the printer. The printer was automatically printed. When the product is not qualified, the printer does not go out.

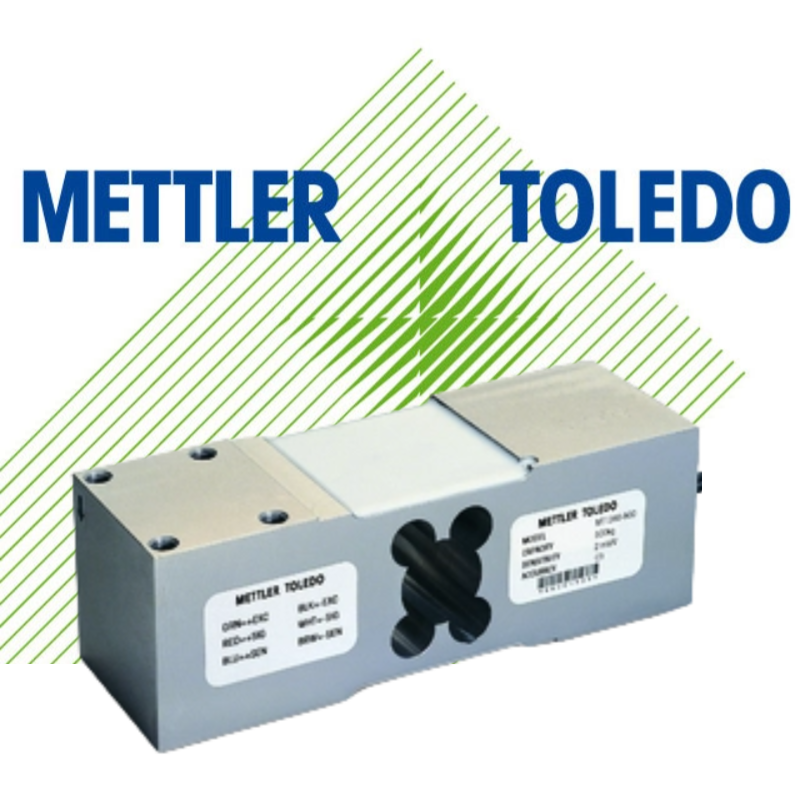

Reliable Weighing Results
The precision-made METTLER TOLEDO load cell with OIML R60 C3 approval ensures proven reliable and accurate weighing.
Robust Construction for Heavy Loads
Rugged construction ensures dependable and accurate weighing of heavy loads. A very economical and efficient weighing solution, suitable for all dry production environments.

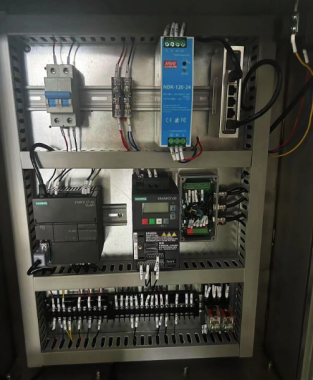

Systematic Safety Design
Hazard notifications are placed according to comprehensive strict risk assignment. A guard covers each rejection device. An emergency stop button is included to cut the power supply and rapidly decrease the pneumatic pressure.

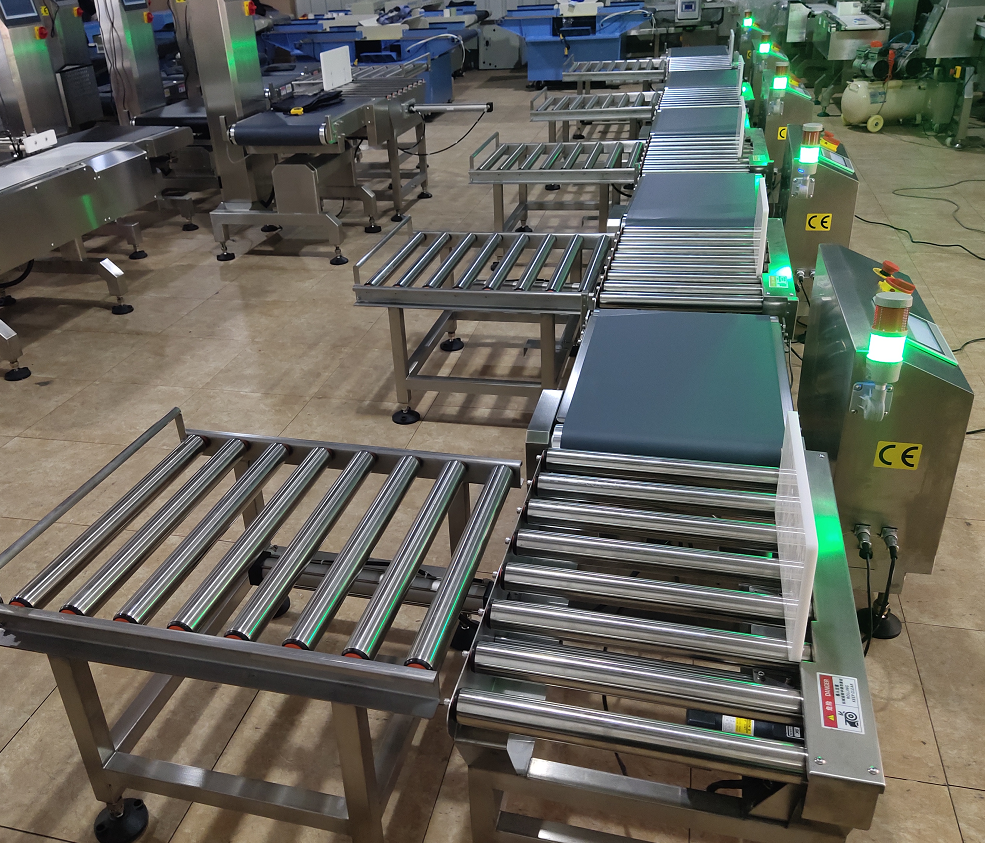

Global Service Support
An extensive global service network fully supports cross-border contracts and ensures timely support, availability, and rapid delivery of spare parts. This reduces downtime and keeps production running smoothly.
Technical Specification
| Parameter |
CW-500 Details |
| Model | CW-500 |
| Weighing range | 200g-30kg |
| Transport speed(m/min) | 5-50m/min |
| Maximum speed(Pack/min) | 50 pcs/min |
| Weighing accuracy | ±10g |
| Transmission bandwidth | 500mm |
| Product default mode | 100 Group |
| Power supply | 220v50HZ, Single |
| Power | About 200w |
| Air interface | 8mm |
| Protection grade | Comply with IP-54 (PB) |
| Weight | 95Kg |
| Ground to conveyor height | 730±50mm (Customizable) |

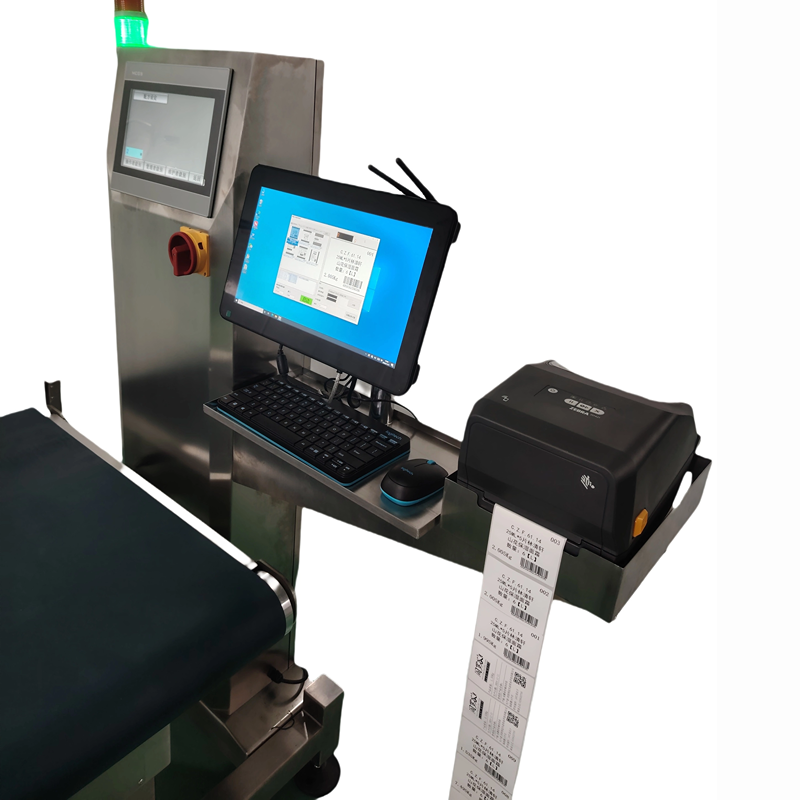

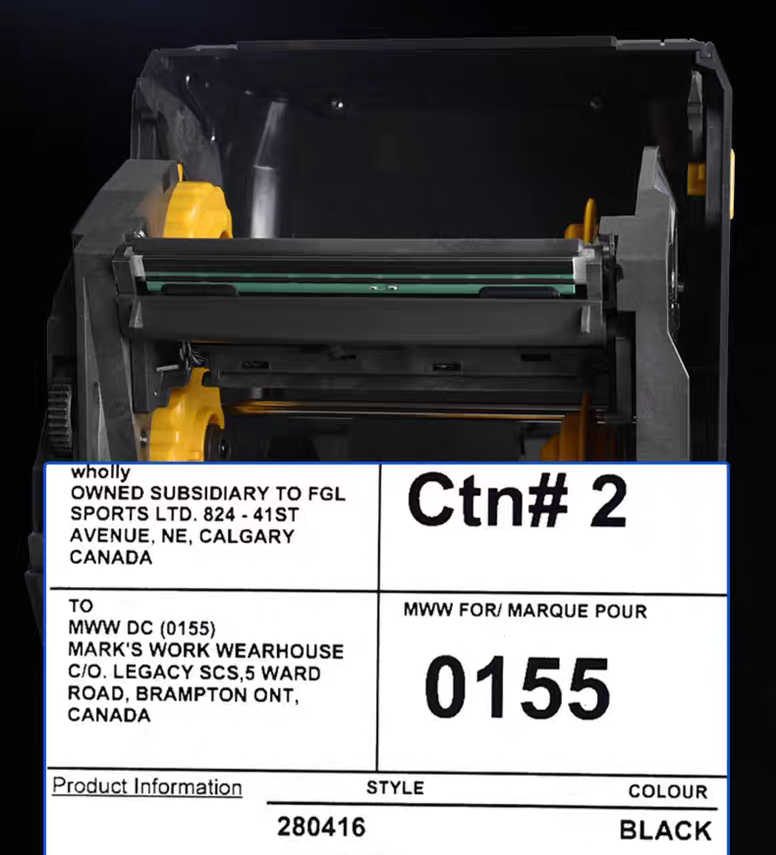

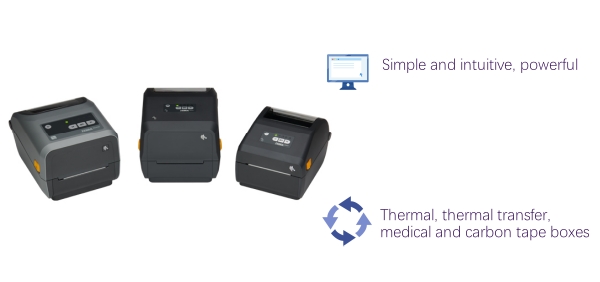

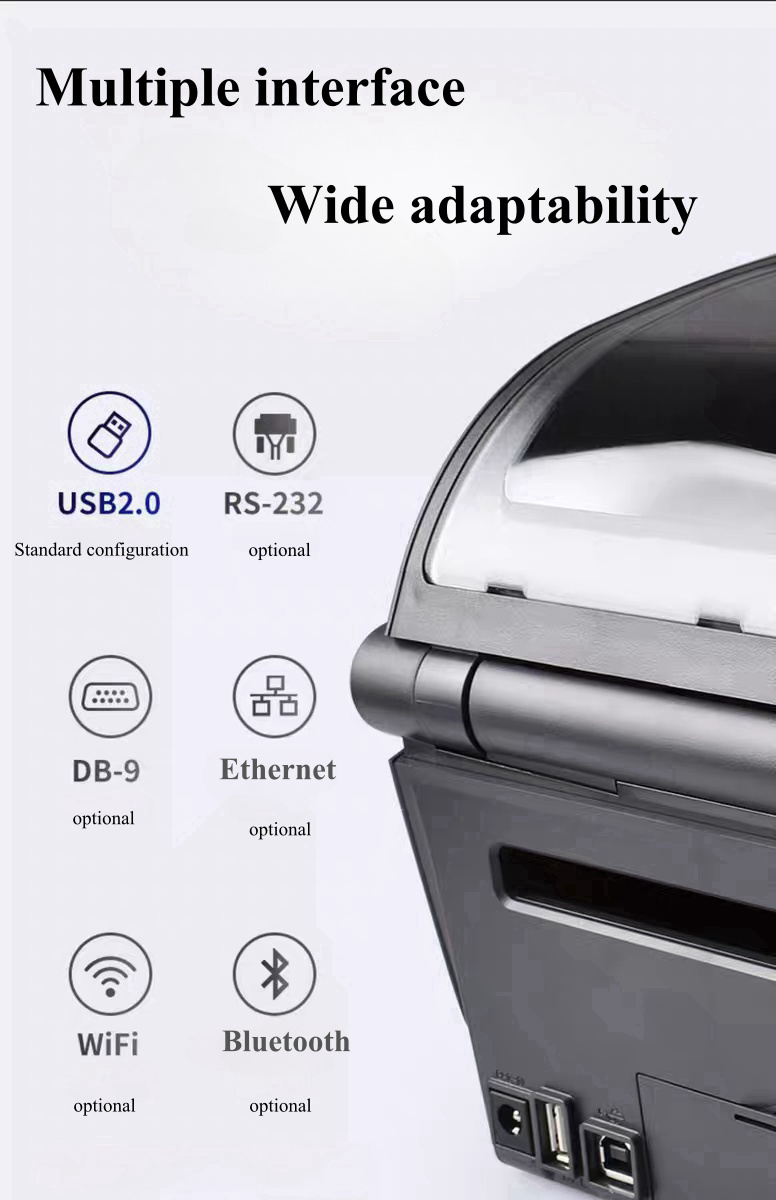

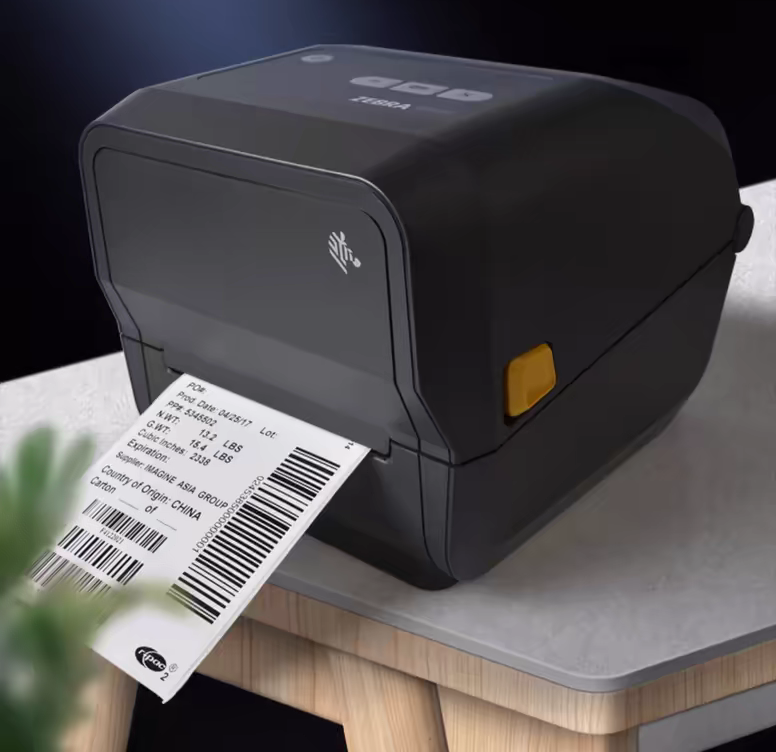

Integrated Zebra Printer
| Model | ZD421 |
| Print way | Thermal Transfer / Direct Thermal |
| Physical parameters | 267*202*189mm / 2.05kg |
| Carbon band length | 70m / 300m |
| Carbon band width | 33.8-110mm |
| Paper width | 15-112mm |
| Print width | Max 108mm |
| Print speed | Max 102mm/s |
| Memory | 512MB |
Full Solution Inspection Provider

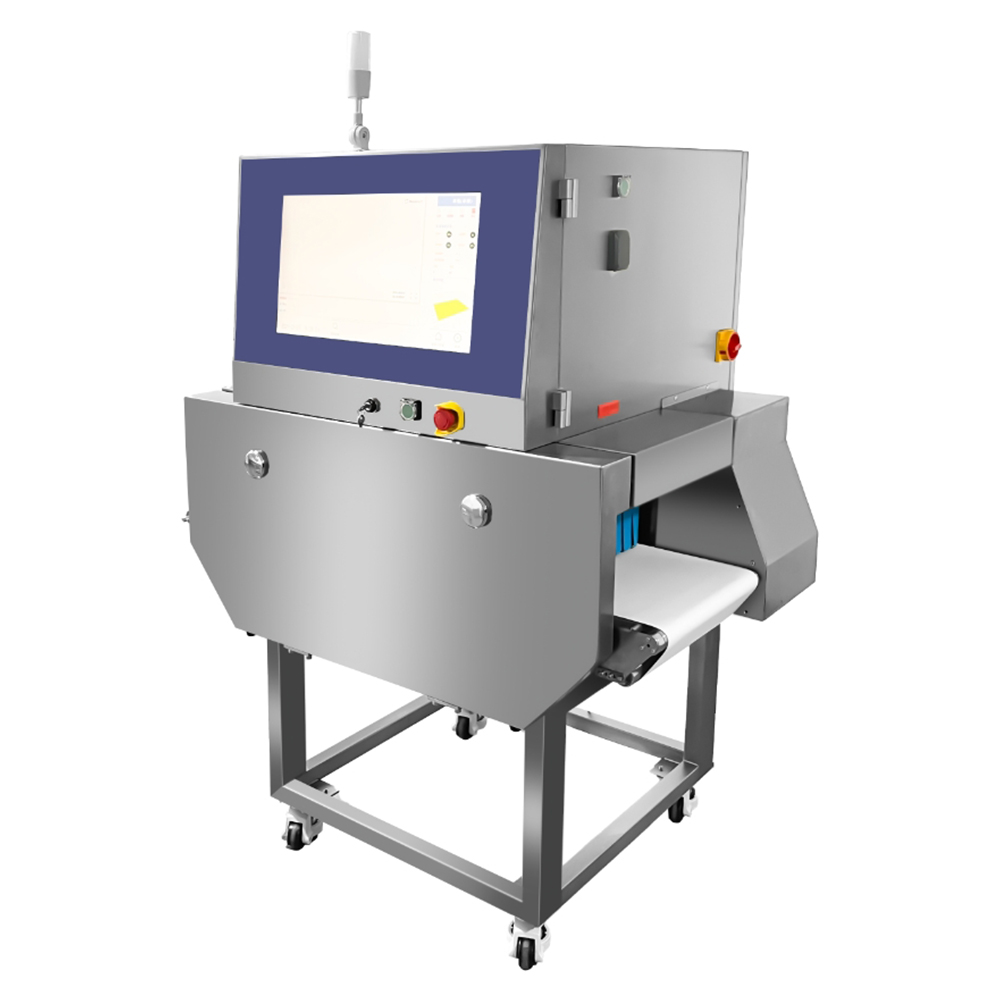

X-ray inspection system

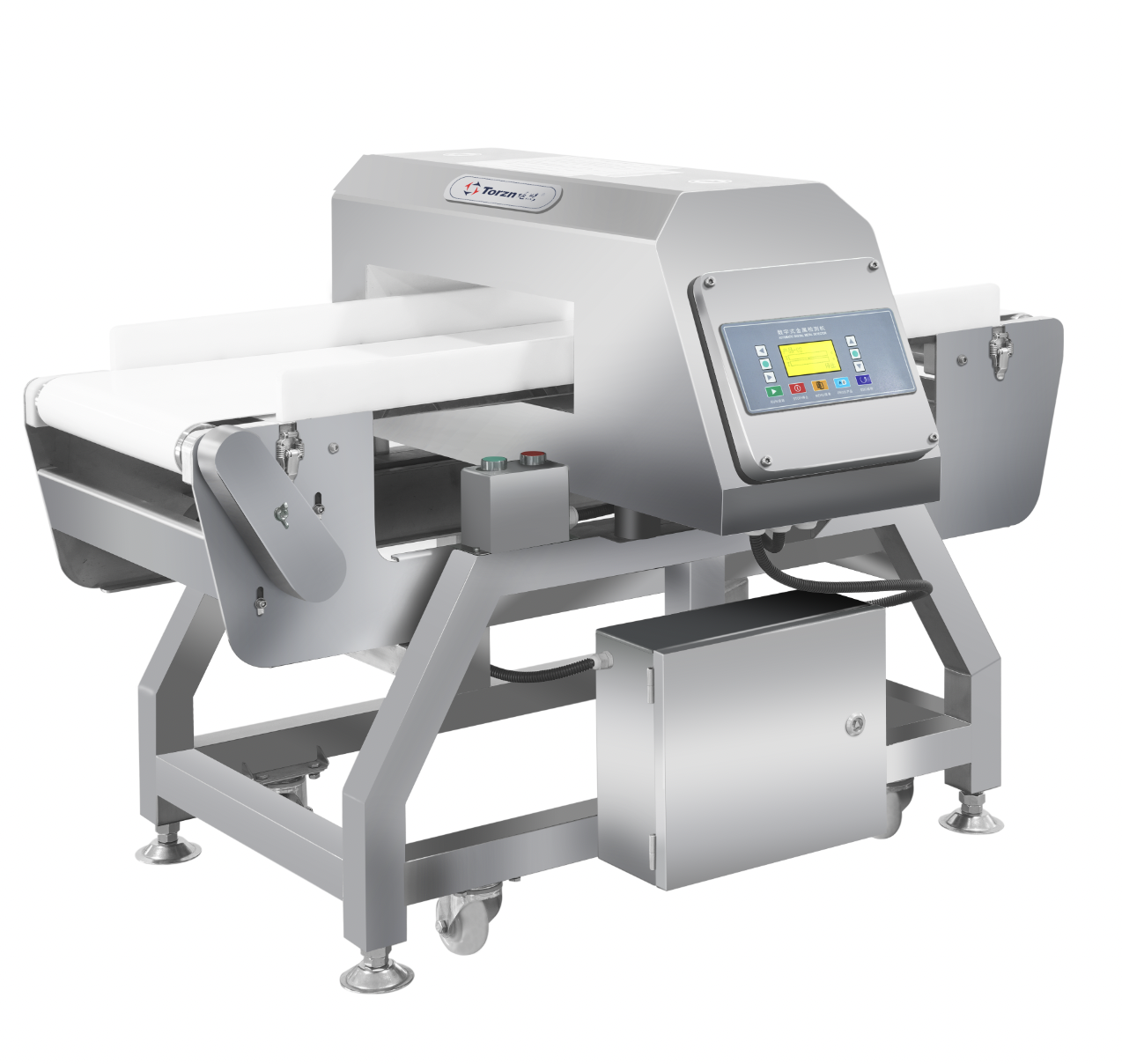

Metal detector

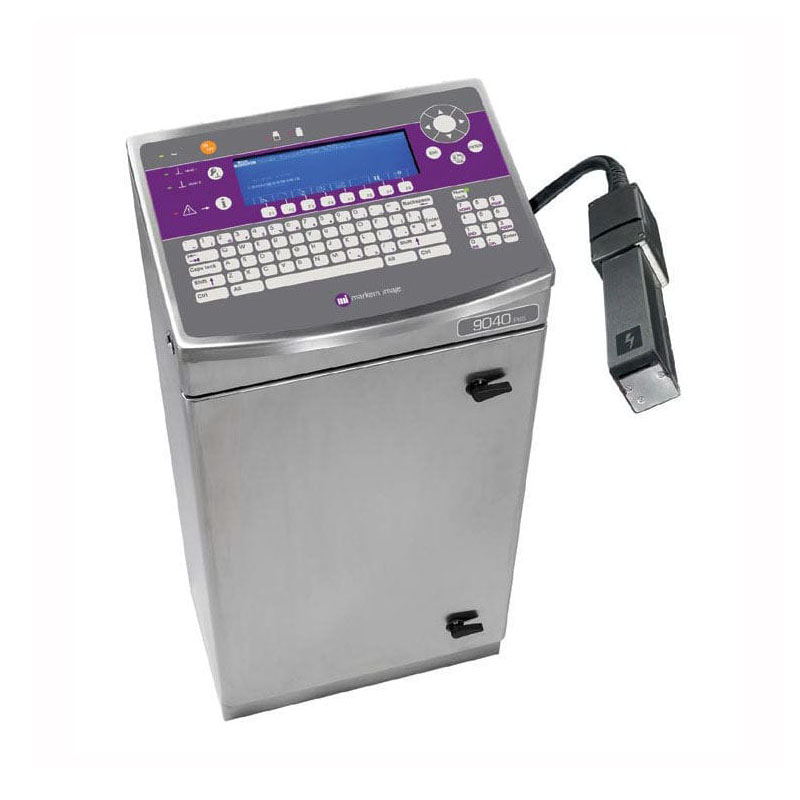

Ink jet

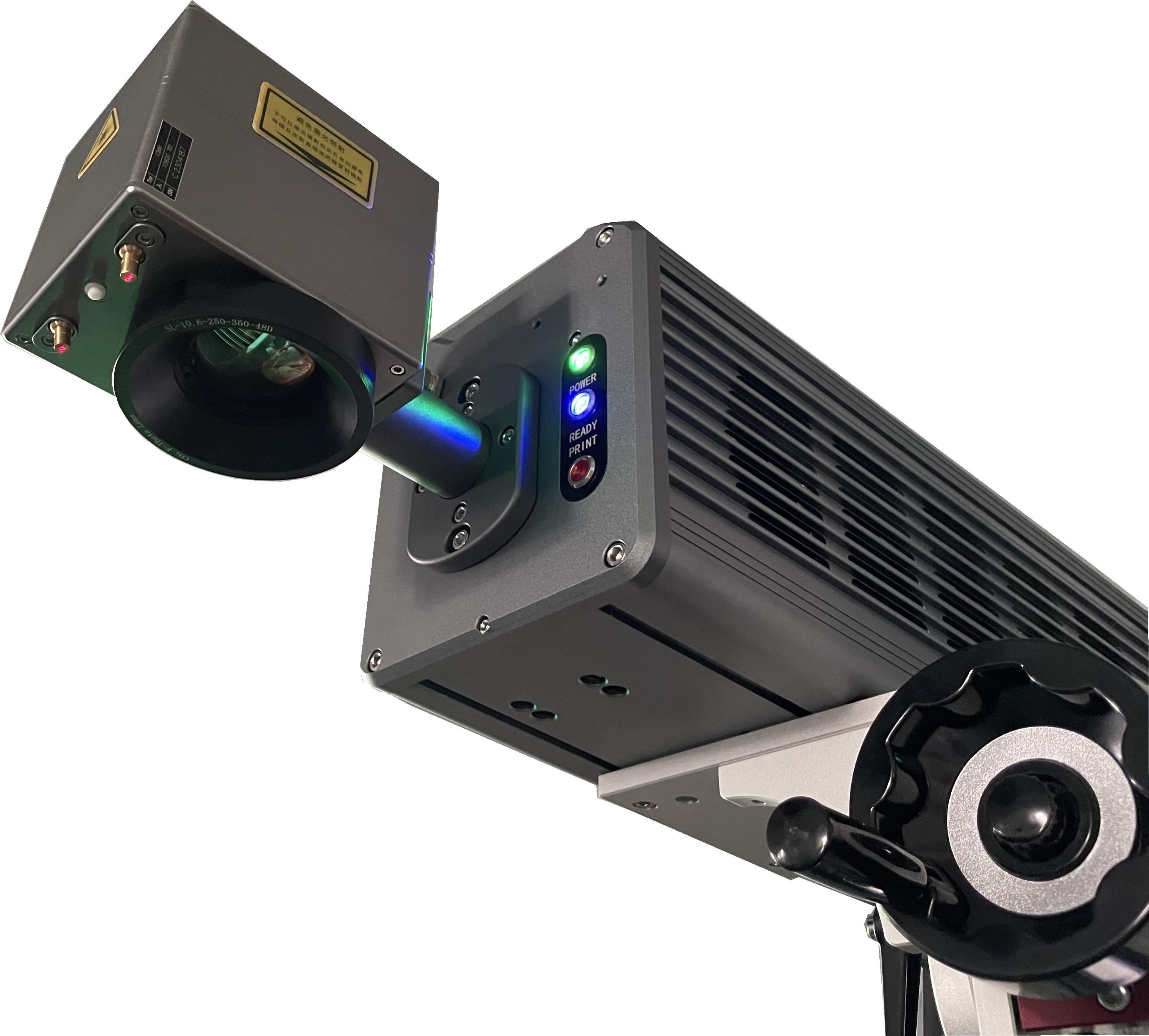

Laser print

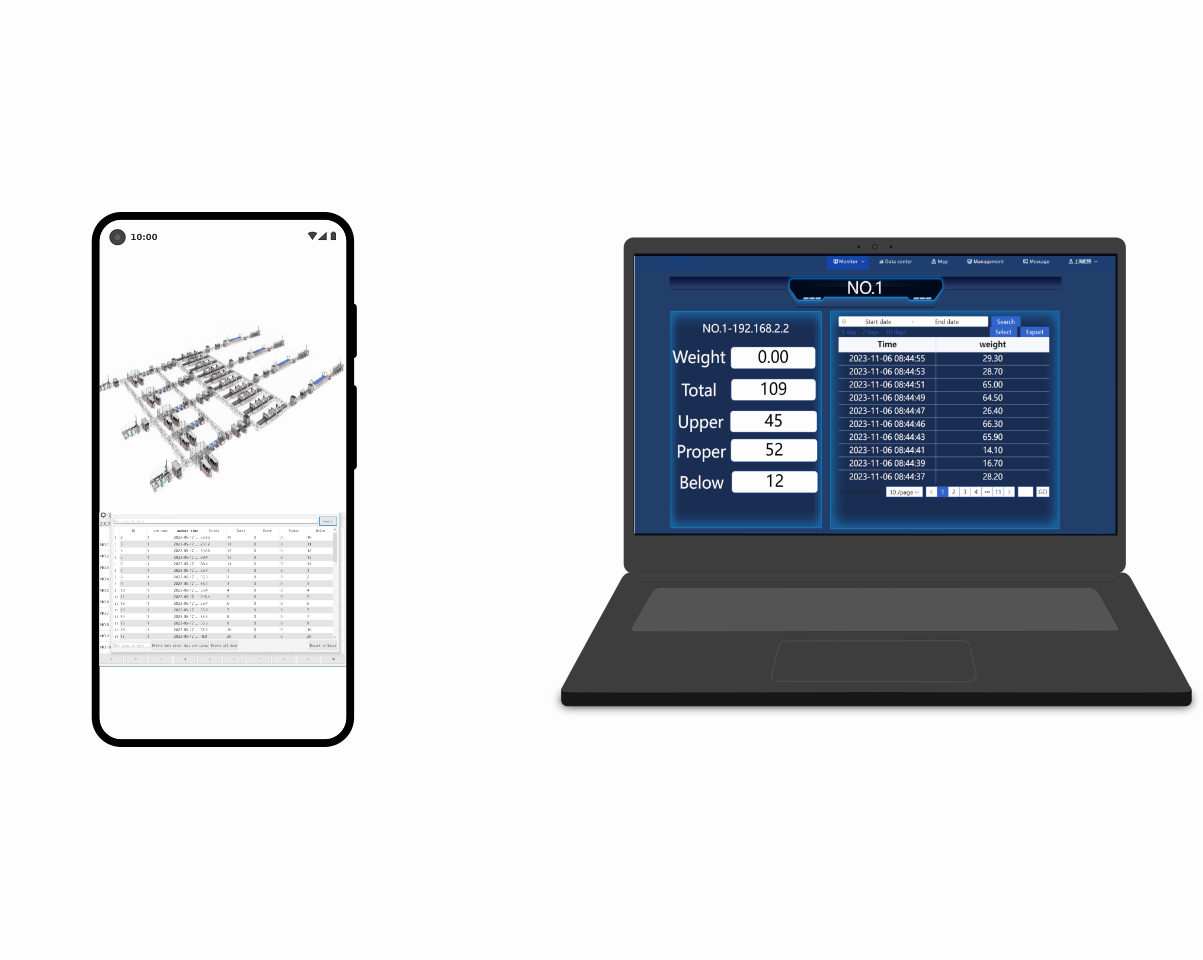

Network Cloud System

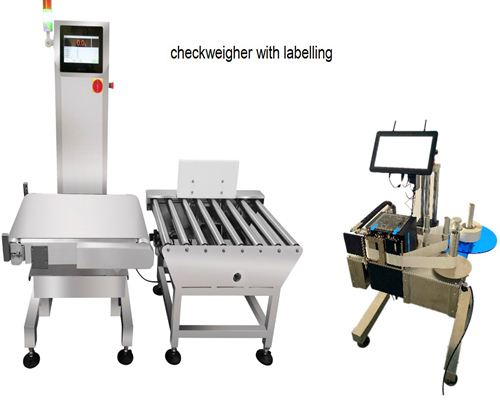

Printer Labelling

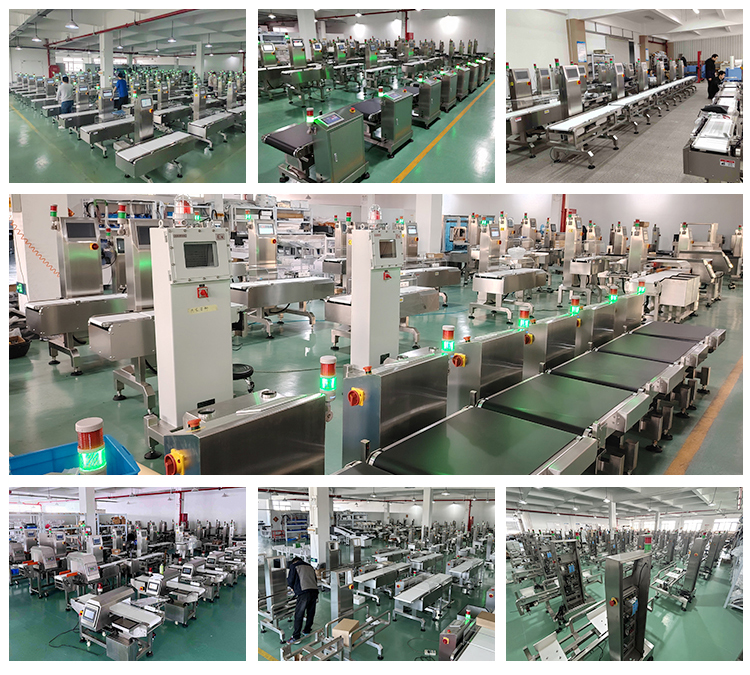

Manufacturer Strength & Versatility
Slope style
Bottle side belt transfer

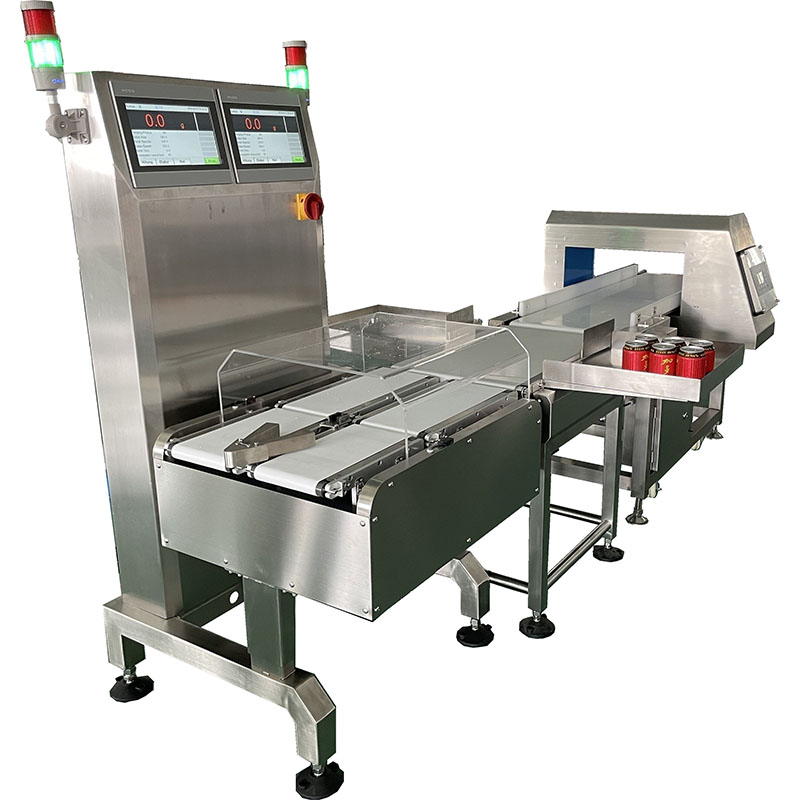

Twin tunnel

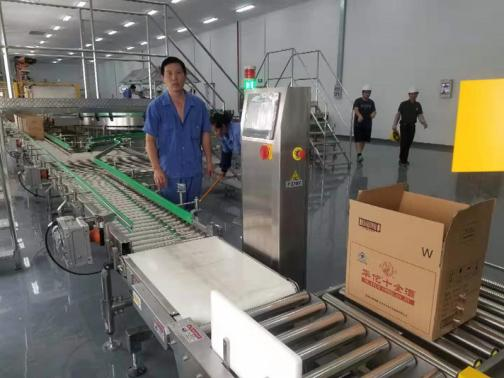

Carton Application

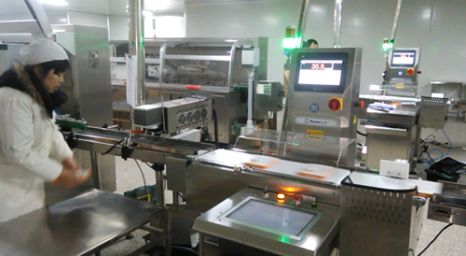

Medical Industry

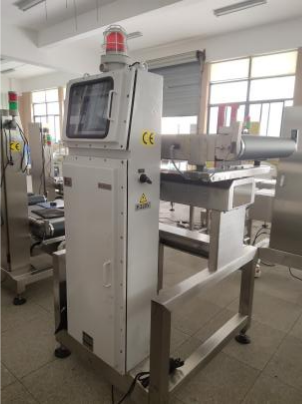

Explosion-proof type
Frequently Asked Questions
Are you a manufacturer or a trading company?
We are a professional manufacturer with a specialized factory producing all kinds of metal detectors, check weighers, needle detectors, and metal separators.
Do you sell accessories for the products?
Yes, we provide spare parts for customers whose machines require maintenance or repairs at the lowest cost.
How is the product packed for safe transportation?
We use heavy-duty wooden cases for packaging, which are strong enough to prevent damage during international transportation.
What is your after-sales service policy?
Customer satisfaction is our priority. All products come with a one-year warranty. We provide video guidance for daily operations and technical support if major issues arise.
Do you accept customized logos and designs?
Yes, we provide full customization services for both machine specifications and company branding/logos.
How do you ensure weighing accuracy?
Our systems utilize high-precision load cells and advanced dynamic filtering algorithms to maintain consistent accuracy even at high speeds.
