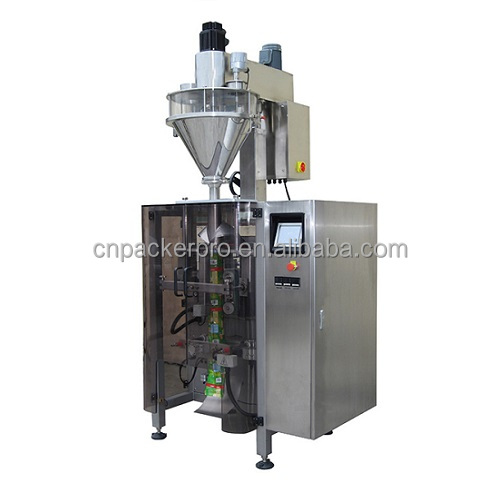

KY New Vertical Automatic Packaging Machine for Industrial Machinery & Equipment Featuring PLC Core Components
1 / 1
KY New Vertical Automatic Packaging Machine for Industrial Machinery & Equipment Featuring PLC Core Components

KY New Vertical Automatic Packaging Machine for Industrial Machinery & Equipment Featuring PLC Core Components

Send Inquiry

Product Description

Product Description
Product Description Image
Specification
1
Servo-drive end seal jaws End seal jaw driven by a servo-motor (intermittent motion), allowing the complete control of the sealing pressure, opening length distance and jaw mechanical position.
2
Servo-drive film pulling Rubber rollers make the first film pulling to beat the inertia and weight of the film roll, therefore the work of the rubber pulling belts is extremely soft, ensuring a longer life and greater stability in the operation.
3
PLC control system Program storage and retrieval function. All operational parameters such as draw-down length, sealing time and speed are programmable.
4
Touch screen interface 7 inch touch-Screen with simple menu-based interface. Visualization of the main machine operations process: sealing temperature, production speed, opening of the traction belts, alarms, bags counting and the selection of main functions.
Model KY-420 KY-520 KY-620
Film width 140~420mm 180~520mm 220~620mm
Bag width 60~200mm 80~250mm 100~300mm
Bag length 50~250mm (Single pull) 100~300mm (Single pull) 100~380mm (Single pull)
Filling range 10-750g 50-1500g 100-3000g
Packing speed 40~60bpm 30~50bpm 20~40bpm
Power supply AC 3phase, 50Hz, 380V AC 3phase, 50Hz, 380V AC 3phase, 50Hz, 380V
Total power 3.5kw 4kw 4.5kw
Air Supply 6kg/m2, 0.2m3/min 6kg/m2, 0.2m3/min 6kg/m2, 0.3m3/min
Overall Dimension 1300×1240×1150mm 1550×1160×1480mm 1600×1260×1680mm
Packing & Delivery
Packing and Delivery Image
Frequently Asked Questions
What are the main advantages of the servo-drive system?
The servo-drive system provides precise control over sealing pressure and jaw positioning, ensuring consistent seal quality and higher operational speeds compared to traditional pneumatic systems.
How many programs can the PLC control system store?
The PLC system features a robust program storage and retrieval function, allowing users to save multiple operational parameters for different products for quick changeovers.
Is the machine compatible with different film widths?
Yes, depending on the model (KY-420, KY-520, or KY-620), the machines can accommodate film widths ranging from 140mm up to 620mm.
What kind of power supply does the machine require?
The equipment requires an AC 3-phase, 50Hz, 380V power supply, which is standard for industrial-grade packing machinery.
Can the bag length be adjusted on the fly?
Yes, all operational parameters, including draw-down length and sealing time, are easily programmable through the user-friendly 7-inch touch screen interface.
What is the production capacity of these machines?
The packing speed varies by model and bag size, ranging from 20 to 60 bags per minute (bpm), ensuring efficient high-volume production.
