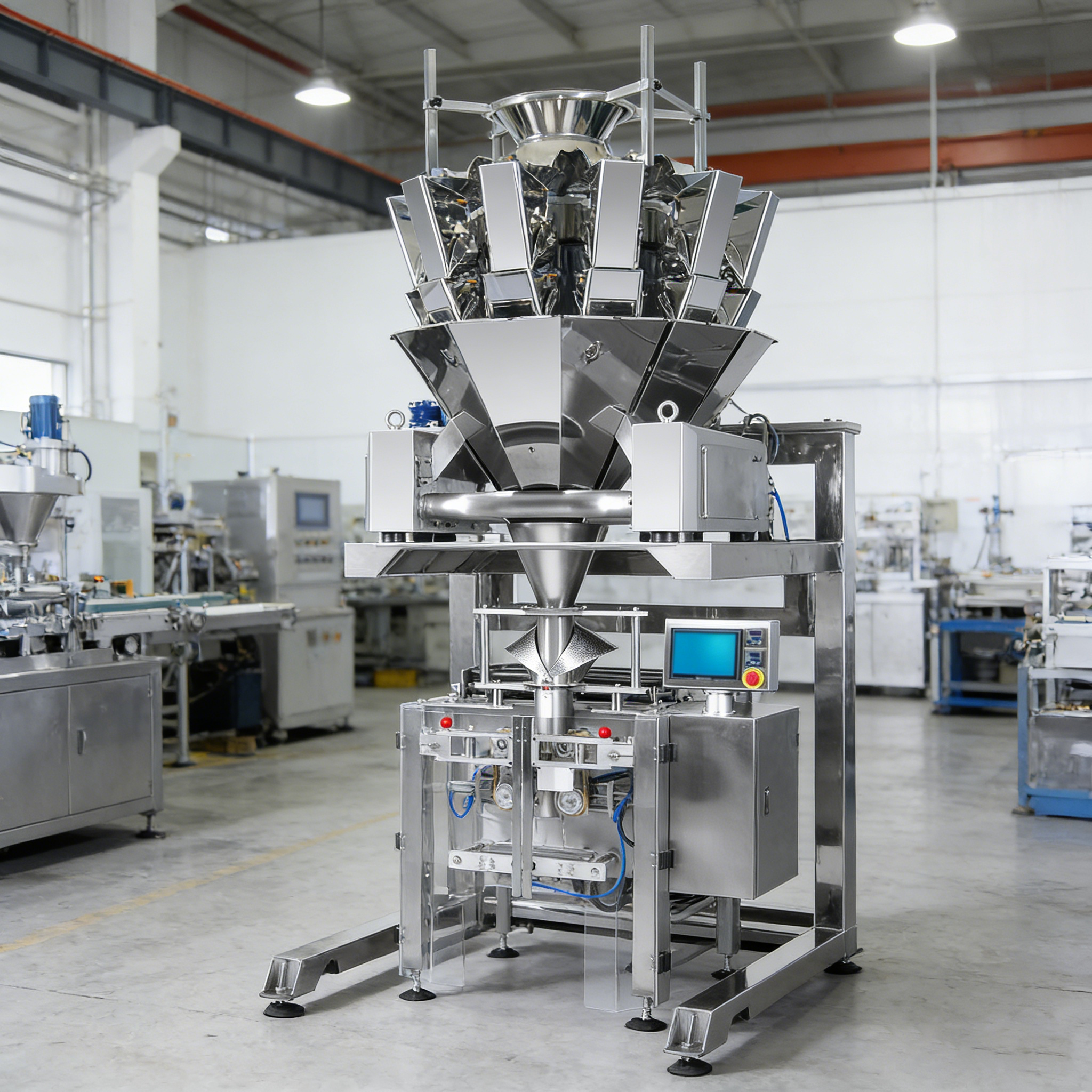

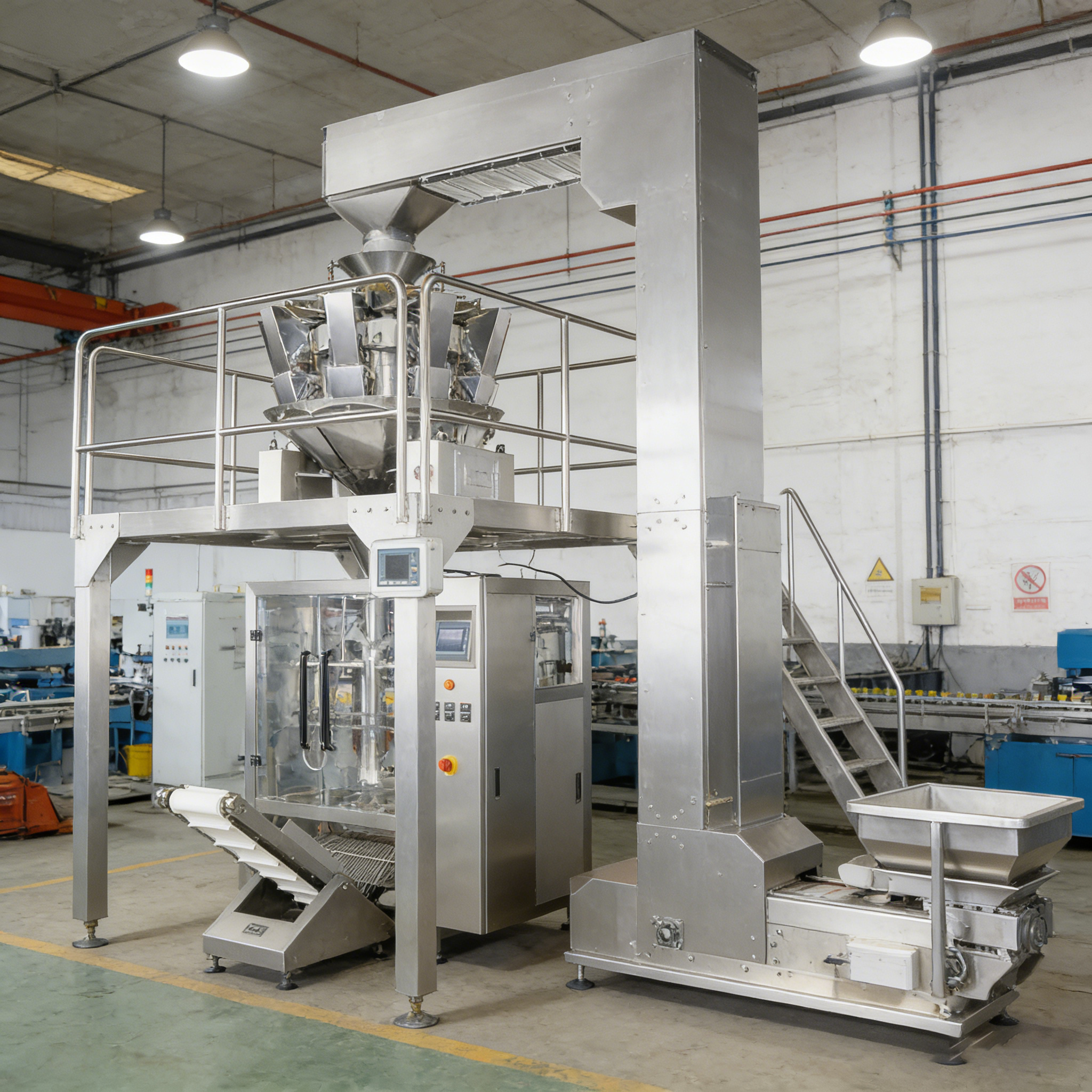

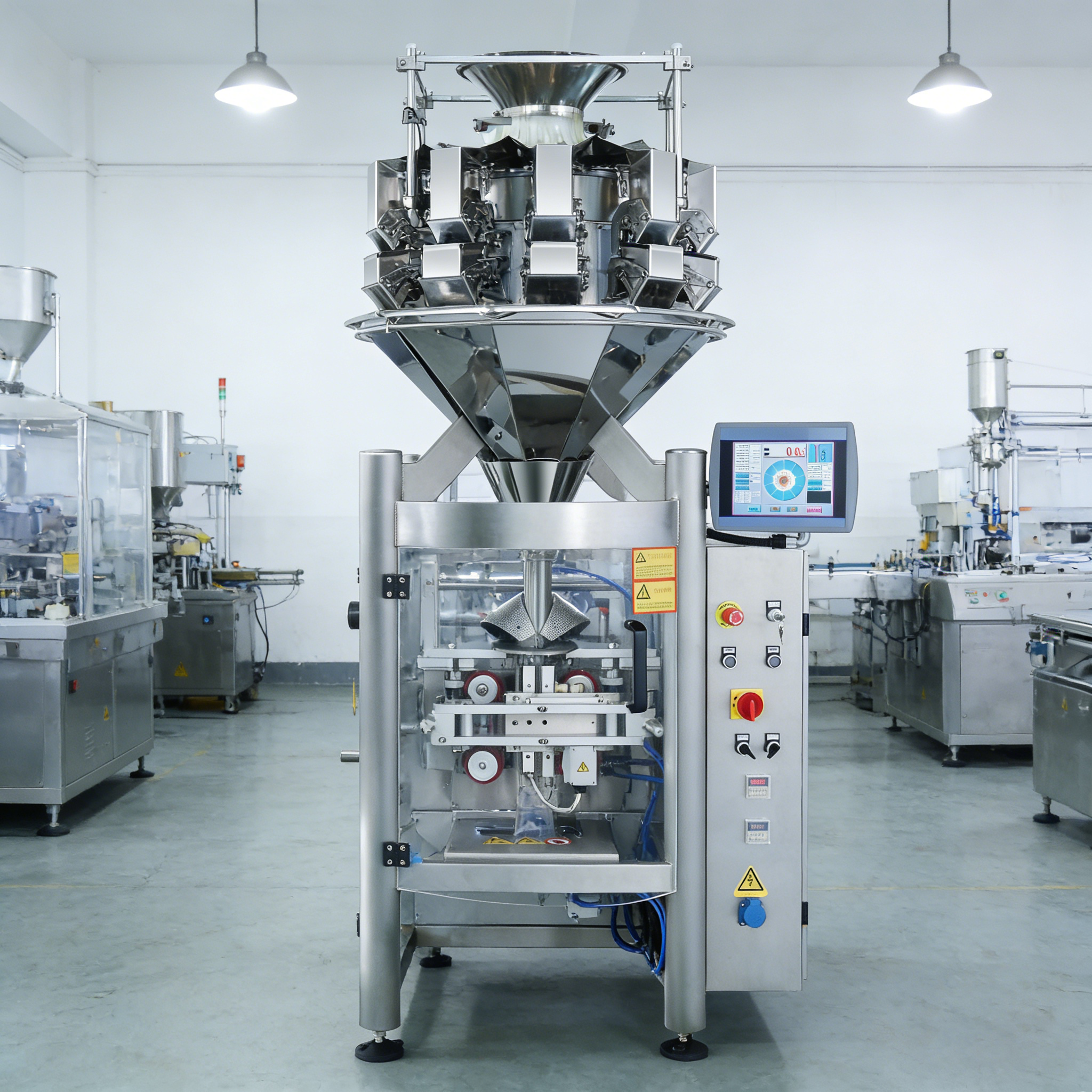

Vertical packaging machine is a vertical industrial packaging equipment that automatically and continuously completes the three functions of bag making, filling, and sealing. Its working principle involves the roll film being guided by a roller and tensioning device, where the trademark pattern position is detected by a photoelectric control device. The film is then molded into a cylinder and wrapped around the filling tube.
| Packing Speed | 100 - 300 bags / min |
| Pouch Size (mm) | L100 - 250, W30 - 160 |
| Max. Film Width (mm) | 800 |
| Pouch Thickness (mm) | 0.04 - 0.09 |
| Filling Range | 10 - 100g |
| Pouch Material | BOPP / CPP, PET / AL / PE etc |
| Compress Air | 0.8MPa, 0.5m3/min |
| Power | 4.5KW |
| Voltage | 220v 50/60Hz, 380V |
| Unit Size (mm) | 1350*1120*1250 |
| Unit Weight (KG) | 580 |
| Pouch Type | 4 side-seal bag (Option: 3 side-seal bag) |
The automatic vertical packaging is time-saving, labor-saving and highly efficient.
This equipment is mainly used for automatic packaging of granular, strip, powder, fluid and semi-fluid materials. It is widely utilized across multiple industries, including:
Every assembly is carried out with meticulous care and precision, ensuring that every detail is exquisite and functional.
The machine forms cylindrical packaging through film stretching, combining hot vertical and horizontal sealing technologies with integrated date printing and counting.
Packaging speeds can reach 100 to 300 bags per minute, handling various films like laminated materials, polyethylene, and biodegradable materials.
Produces various bag types: pillow bags, corner brace bags, block bottom bags, three-edge seals, and back seals with PLC and touch screen control.
Dual synchronous belt film pulling and automatic correction system improve stability. Measuring accuracy can reach up to ± 0.5 grams.
The machine guides roll film through a tensioning device, uses photoelectric detection for patterns, molds the film into a cylinder, and completes bag making, filling, and sealing vertically from top to bottom.
It is designed for granular, strip, powder, fluid, and semi-fluid materials. This makes it suitable for food, medicine, chemical, and pet food industries.
The machine is highly efficient, capable of reaching packaging speeds between 100 to 300 bags per minute, depending on the material and bag size.
It supports multiple bag types including pillow bags, bags with corner braces, block bottom bags, three-edge seals, and back seals.
The machine features a dual synchronous belt pulling system and automatic correction for stability. It can be equipped with multiple measuring devices to achieve an accuracy of up to ± 0.5 grams.
The equipment adopts advanced control systems, including a user-friendly touch screen and a Programmable Logic Controller (PLC) for intelligent detection and temperature adjustment.
