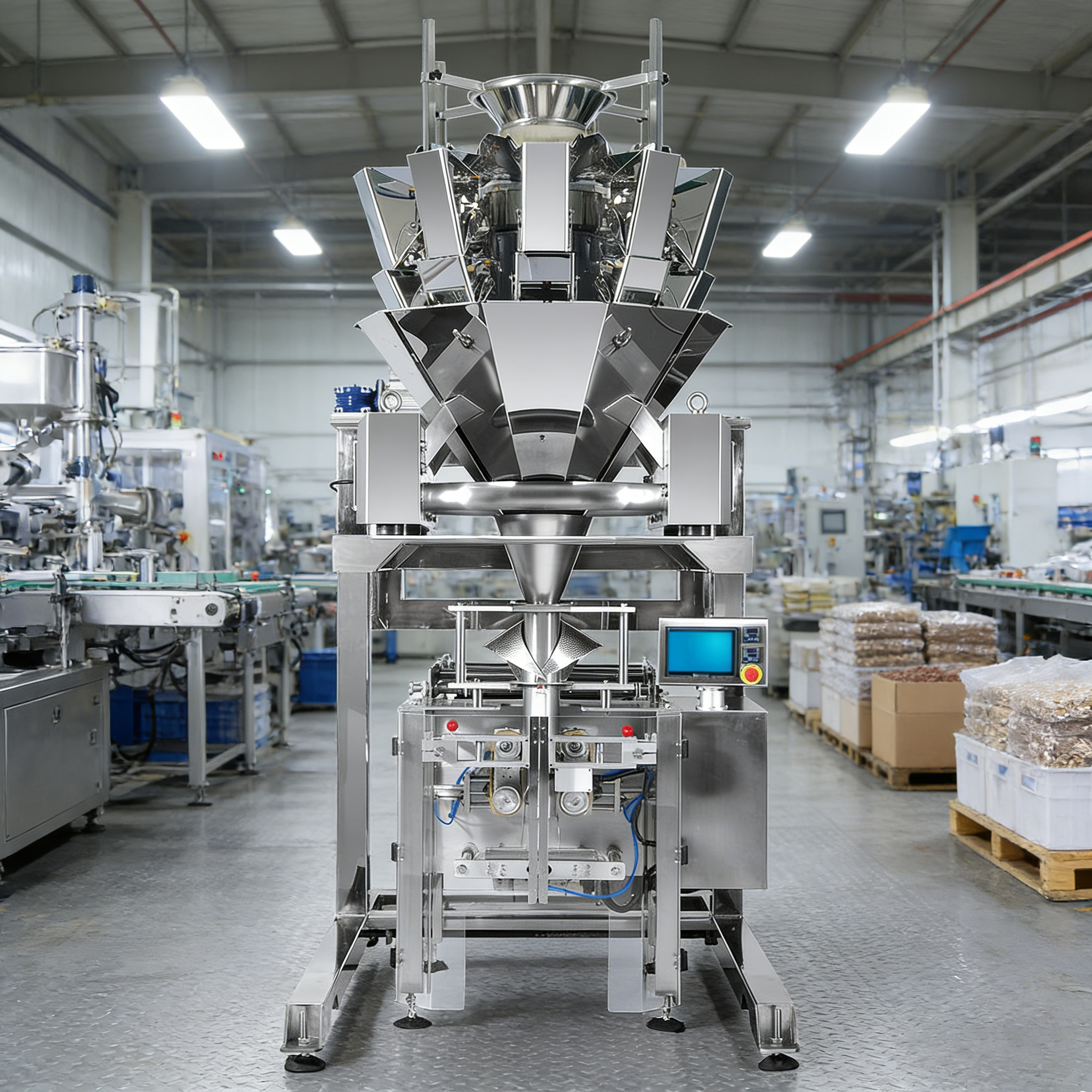

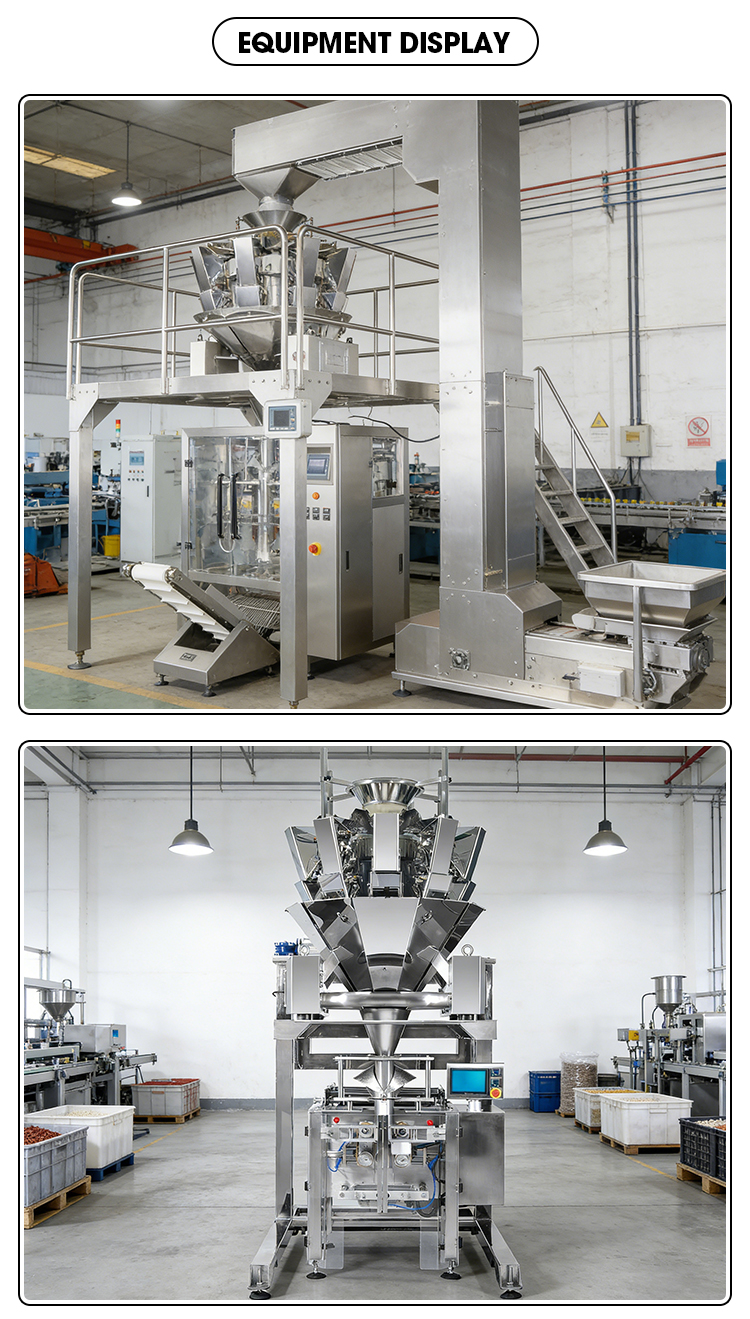

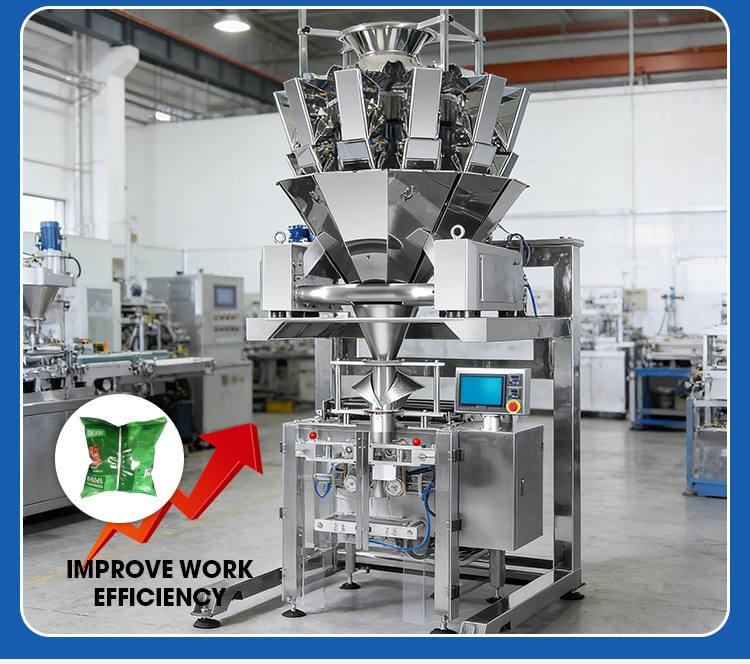

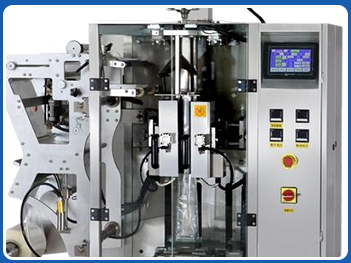

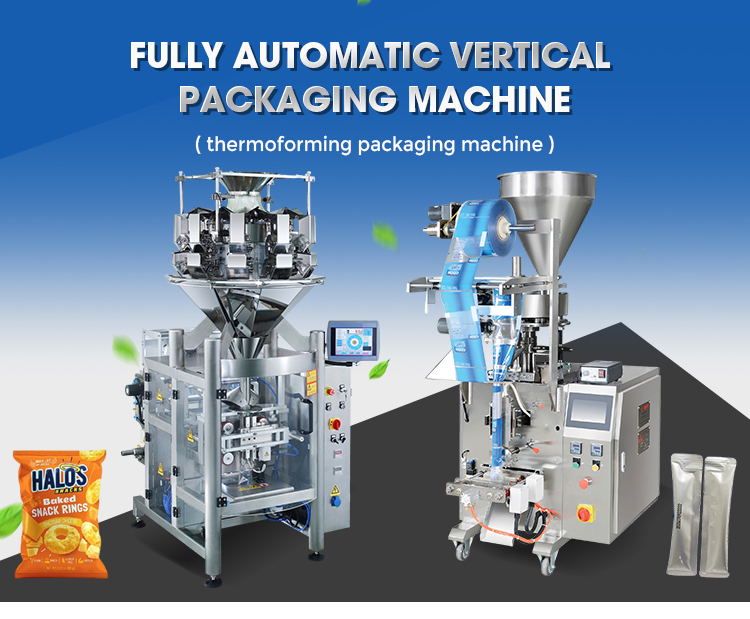

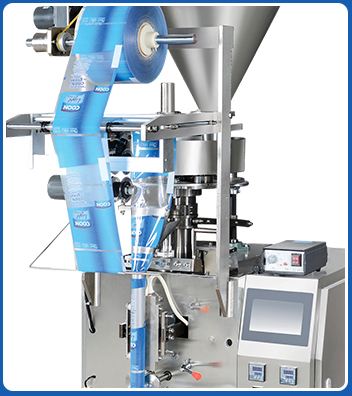

Vertical packaging machine is a vertical industrial packaging equipment that automatically and continuously completes the three functions of bag making, filling, and sealing. Its working principle is: the roll film is guided by a roller and a tensioning device, and the position of the trademark pattern on the packaging material is detected by a photoelectric detection control device. Then, it is rolled into a film cylinder by a molding machine and wrapped around the surface of the filling tube. First, use a longitudinal heat sealer to longitudinally heat seal the thin film at the interface of the rolled cylinder to obtain a sealed tube. Then the cylindrical film is moved to the transverse heat sealer for transverse sealing, forming a packaging bag cylinder. The measuring device fills the measured items into the packaging bag through the upper filling tube, and then seals them with a transverse heat sealer and cuts them in the center to form a packaging bag unit, while forming the bottom seal of the next cylindrical bag. Bag making and filling materials are carried out vertically from top to bottom.
The automatic vertical packaging is time-saving, labor-saving and highly efficient.
WIDE RANGE OF APPLICATIONS
This equipment is mainly used for automatic packaging of granular, strip, powder, fluid and semi-fluid materials, and is widely used in industries such as food, medicine, chemical, pet food, etc.
MAIN PERFORMANCE CHARACTERISTICS

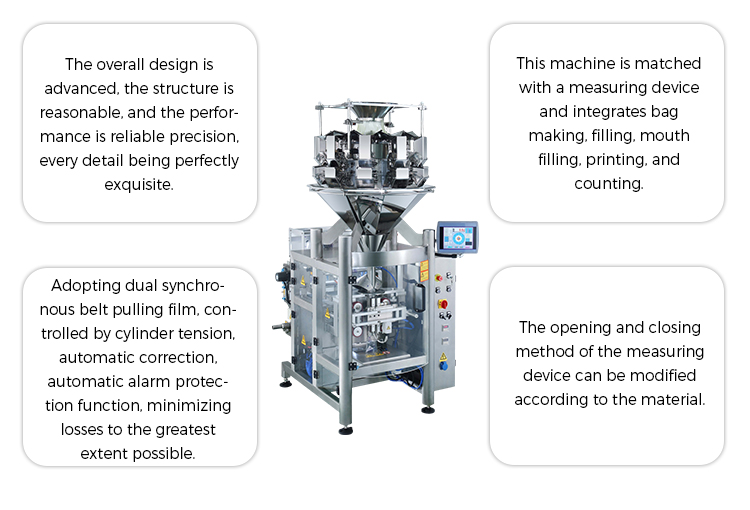

The assembly was carried out with meticulous care and precision, every detail being perfectly exquisite.
FREQUENTLY ASKED QUESTIONS
What materials can be packaged with this machine?
The equipment is versatile and used for automatic packaging of granular, strip, powder, fluid, and semi-fluid materials across food, medicine, and chemical industries.
How fast can the vertical packaging machine operate?
The packaging speed is highly efficient, ranging from 100 to 300 bags per minute depending on the material and bag size.
What bag types are supported?
It supports various bag types including 4-side seal bags, 3-side seal bags, pillow bags, block bottom bags, and bags with corner braces.
What control systems are used in the equipment?

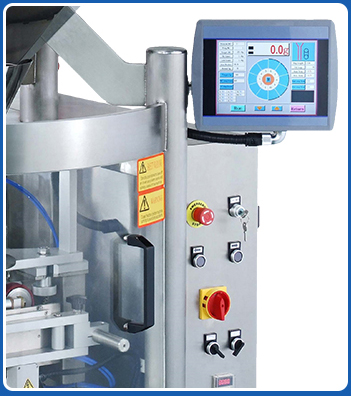

The machine utilizes advanced PLC (Programmable Logic Controller) systems and intuitive touch screen interfaces for independent temperature and operation control.

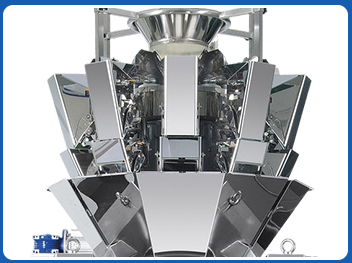

What is the measuring accuracy of the machine?
When equipped with proper measuring devices, the machine achieves a high precision measurement accuracy of up to ± 0.5 grams.
How is quality guaranteed?
We ensure quality through a pre-production sample before mass production and a final inspection process before every shipment.
