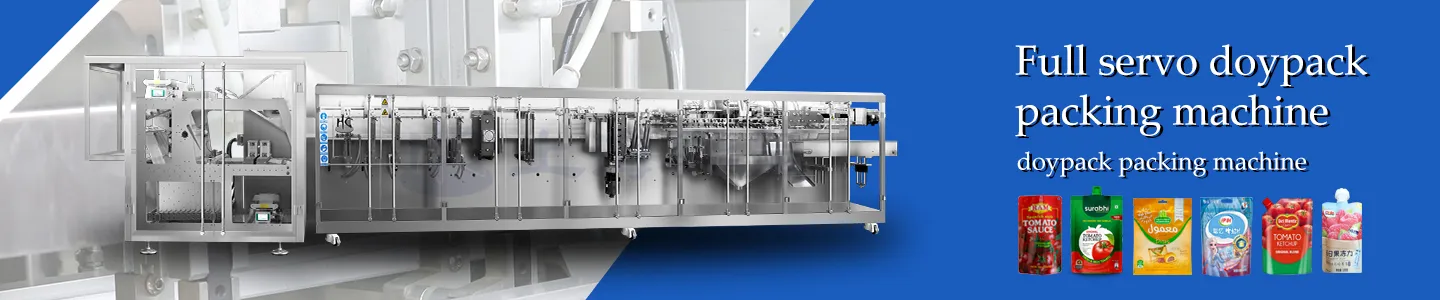

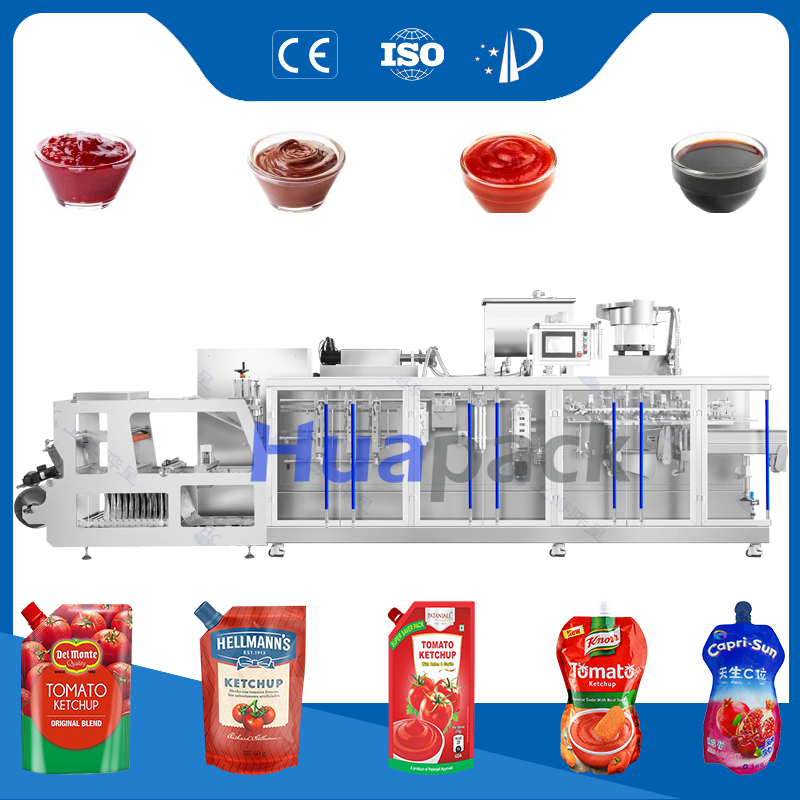

Horizontal Roll Film Forming Spout Doypack Filling and Sealing Machine
The HC-SP series is designed for doypack with spout, featuring functions for creating hanging holes and special shapes. Adopting European technology and optimized with efficient production status, it provides high-quality machinery at competitive prices.

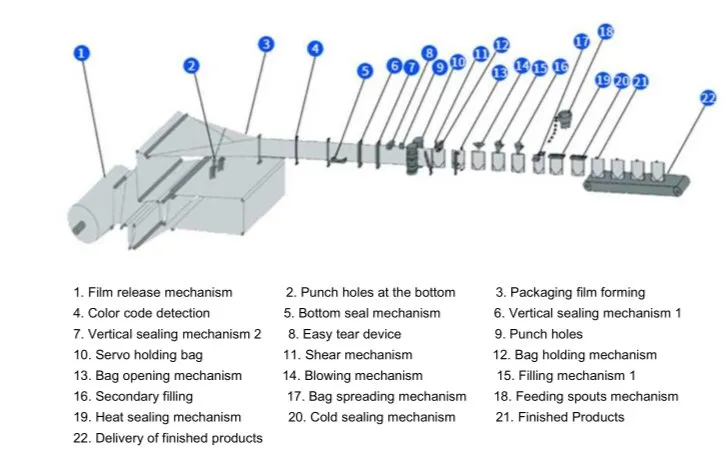

Horizontal Form Fill Seal (HFFS) doypack machines execute forming, filling, and sealing within the same system. Filling occurs through the open-top section of the pouch, ensuring high-speed reliability.
Our packaging machines offer a wide range of HFFS configurations, tailored to meet specific production requirements. The design is based on a modular frame construction, consisting of three independent units: unwinder, pouch forming, and dosing-sealing. Pouches made using HFFS technology are significantly more cost-effective than pre-made options.

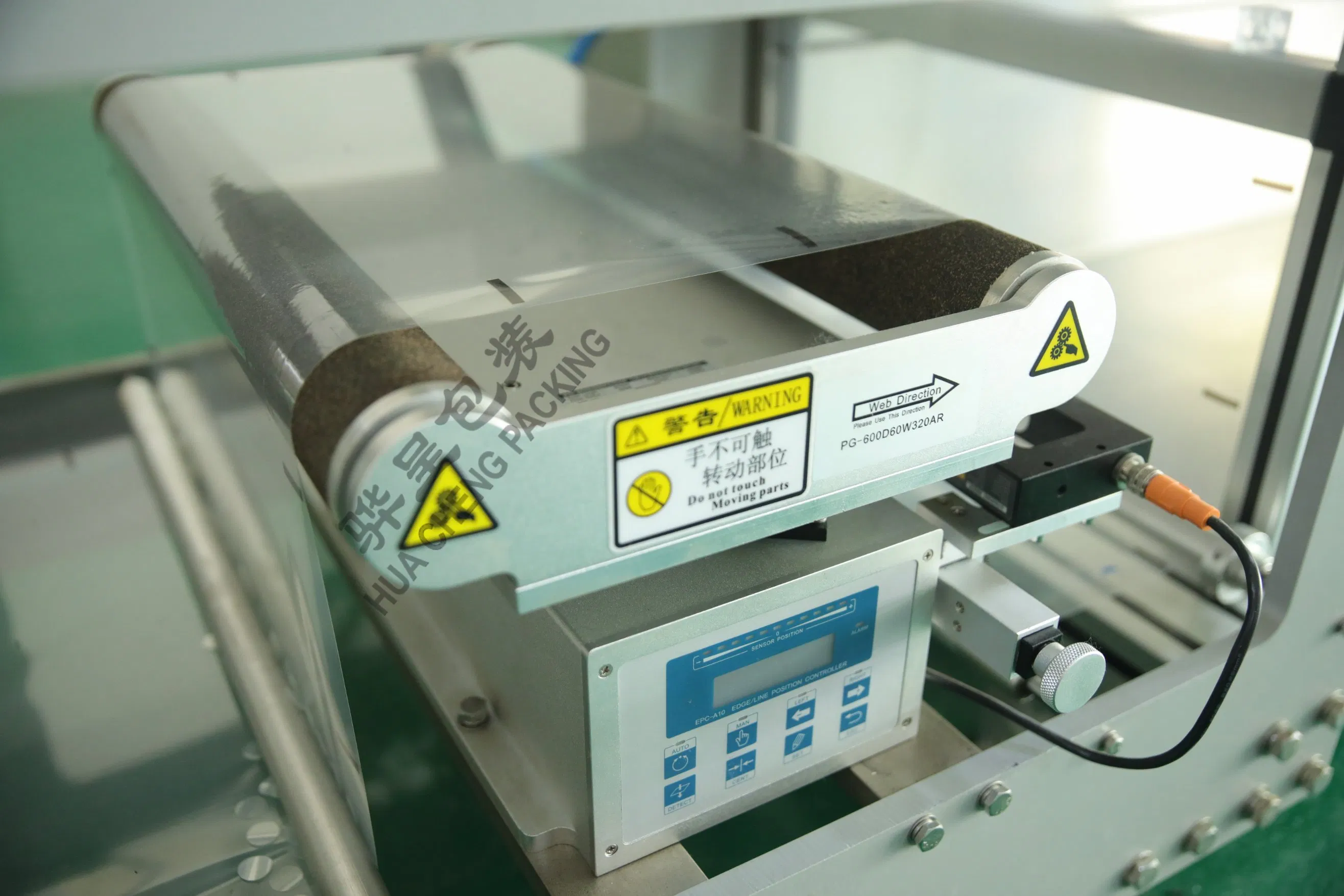

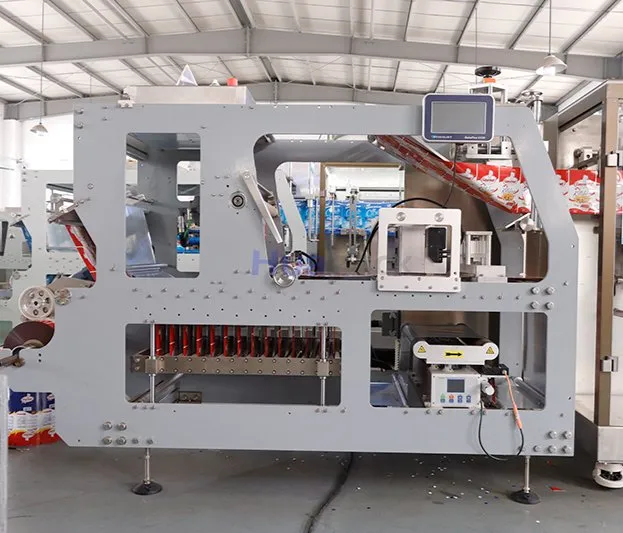

1. Air expansion shaft fixes the roll, making loading/unloading easy.
2. CNC-made powerless roller offers low resistance and high concentricity.
3. Multi-layer floating rollers control tension and prevent film drop.
4. Features an independent film release motor and specialized high/low limit sensors.

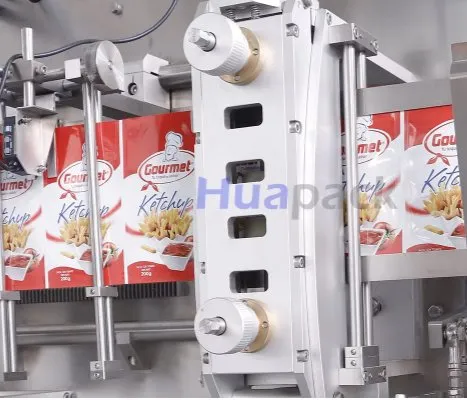

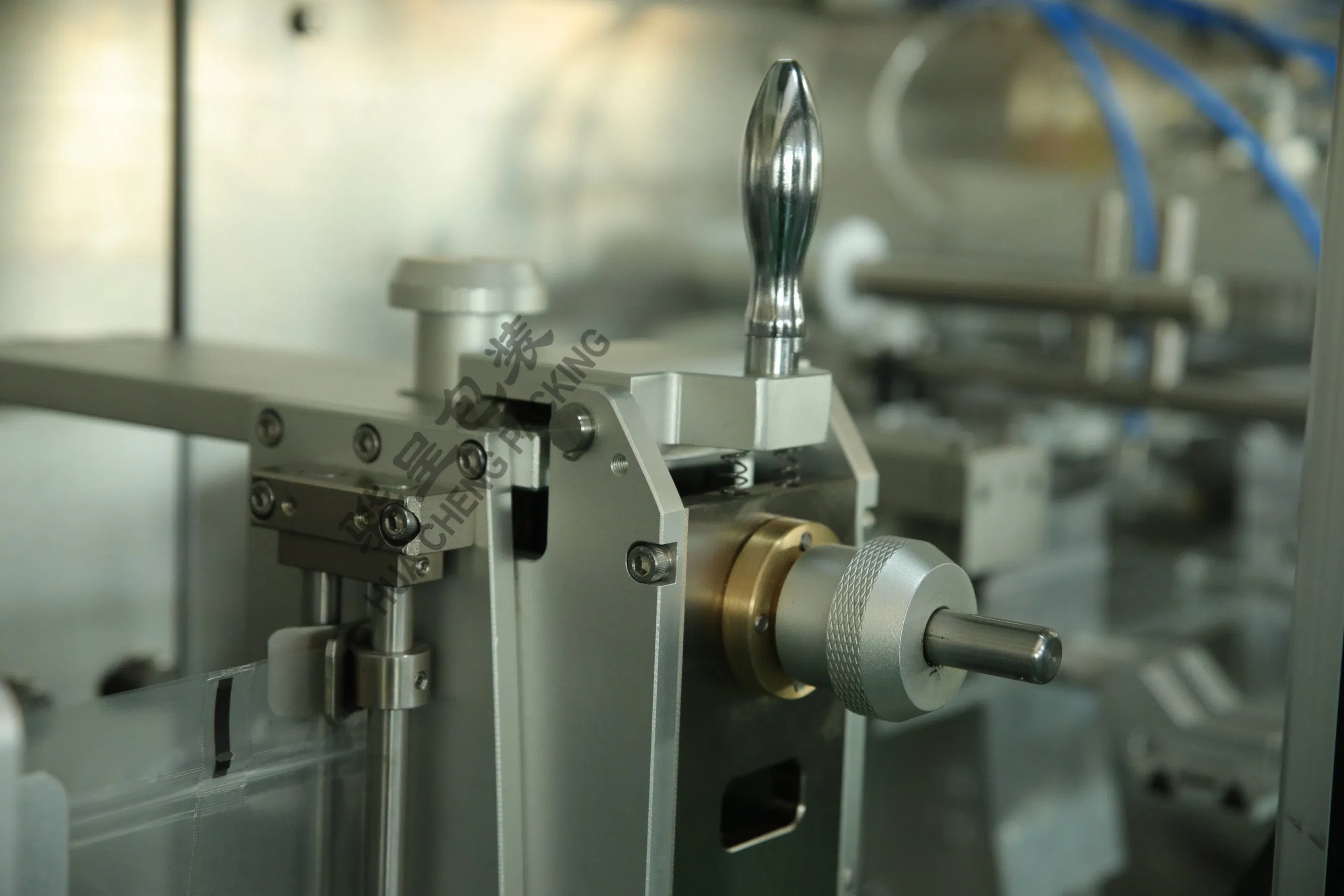

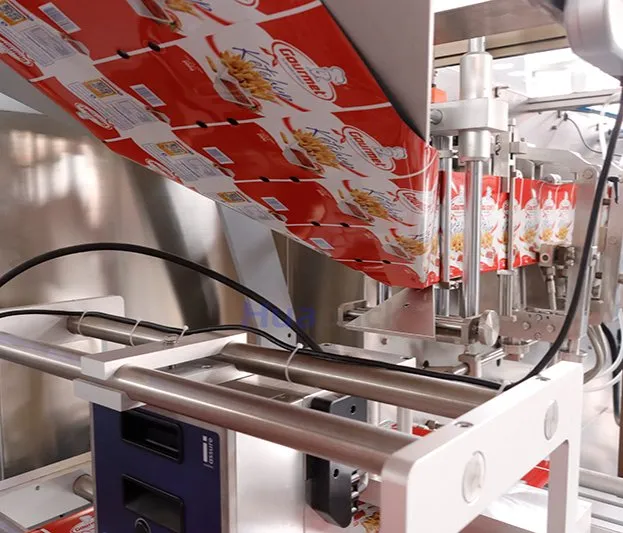

Featuring a highly functional design, it enables simple and convenient switching between multiple specifications. It delivers outstanding forming precision without film misalignment.
1. Digital specification switching is quick and user-friendly.
2. Achieves stable pouch advancement with minimal deviation.
3. High torque moment makes it suitable for large volume requirements.

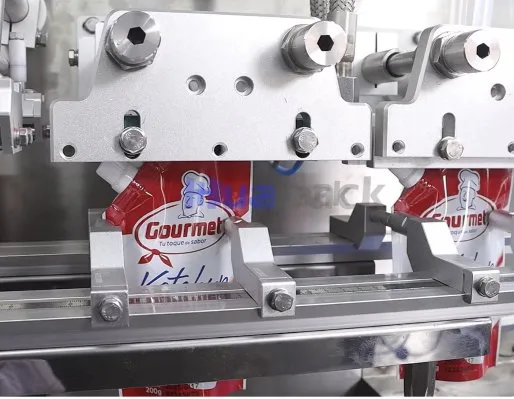

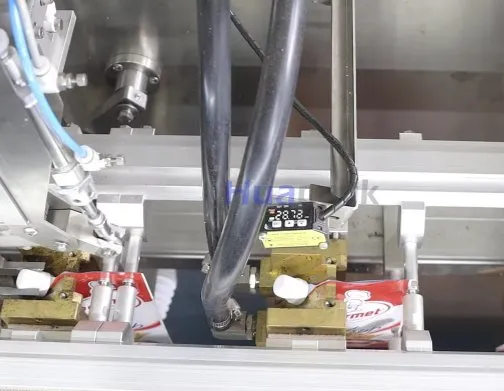

1. Delivers clean, uniform spout seals with a polished appearance.
2. High seal strength prevents leakage.
3. Automatic spout loading with customized working stations.

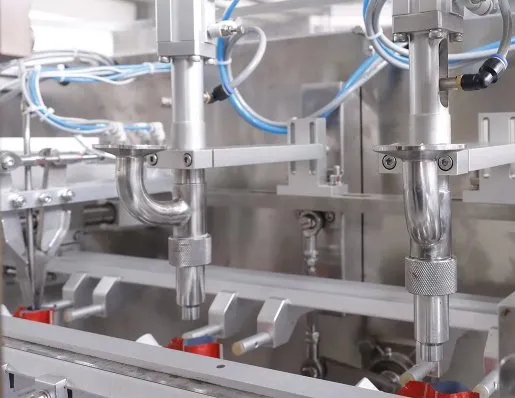

Dosing systems for liquids are available with various nozzles. Features an easy-to-dismantle, hygienic clamp design. Compatible with volumetric dosing units, multi-head weighers, and piston pump fillers.
1. Superior seal strength limits leakage risk.
2. Enhances pouch appearance and seal stability. Quick shaping prevents the bag opening from expanding, avoiding creases from high temperatures.
| Model | 180SP | 180SDP | 240SP | 240SDP | 280SP | 280SDP | 330SDP | |
| Pouch Size (mm) | Min | 80*130 | 70*110 | 90*130 | 90*125 | 90*140 | 90*125 | 90*125 |
| Max | 182*250 | 90*225 | 240*300 | 120*250 | 280*300 | 140*250 | 165*250 | |
| Filling Volume | ml | 1000 | 300 | 2000 | 500 | 3000 | 500 | 700 |
| Packaging Speed | ppm | ≤60 | 60-120 | ≤60 | 60-120 | ≤50 | 60-100 | 60-90 |
| Machine Size | mm | 6500*970*1450 | 6900*970*1450 | 7200*970*1460 | 7200*970*1460 | 8000*1200*1800 | 8500*1100*1460 | 9500*1100*1460 |
| Machine Weight | kg | 2000 | 2100 | 2300 | 2500 | 3400 | 2500 | 2500 |
| Power | kw | 8 | 8.8 | 9 | 9.8 | 9.5 | 9.8 | 15.8 |
| Air Consumption | l/min | 300 | 400 | 400 | 400 | 650 | 650 | 650 |
