| Touch Screen | 10.1 inch color TFT touch display |
| Weighing range | 1~200g |
| Minimum scale | 0.07g |
| Sorting accuracy | ± 0.2g~±1g |
| Detection object size | L (mm):1~300 , W(mm):1~150 , H (mm):1~100 |
| Weighing section size | L 300mm * W 150mm |
| Belt height from ground | 680mm~750mm(Customized Height) |
| Conveyor belt speed | 20m / min fixed speed or 15-30m / min adjustable speed (customized) |
| Sorting Method | 2 outputs Sorting |
| Material. Surface | 304 stainless steel surface polishing |
| Language | Chinese / English (more languages can be customized) |
| Input voltage / power | Single Phase AC220V 50Hz/300W |
| Machine Weight | 150Kg |
| Machine Size | L2200mm*W 685mm *H 1335mm |

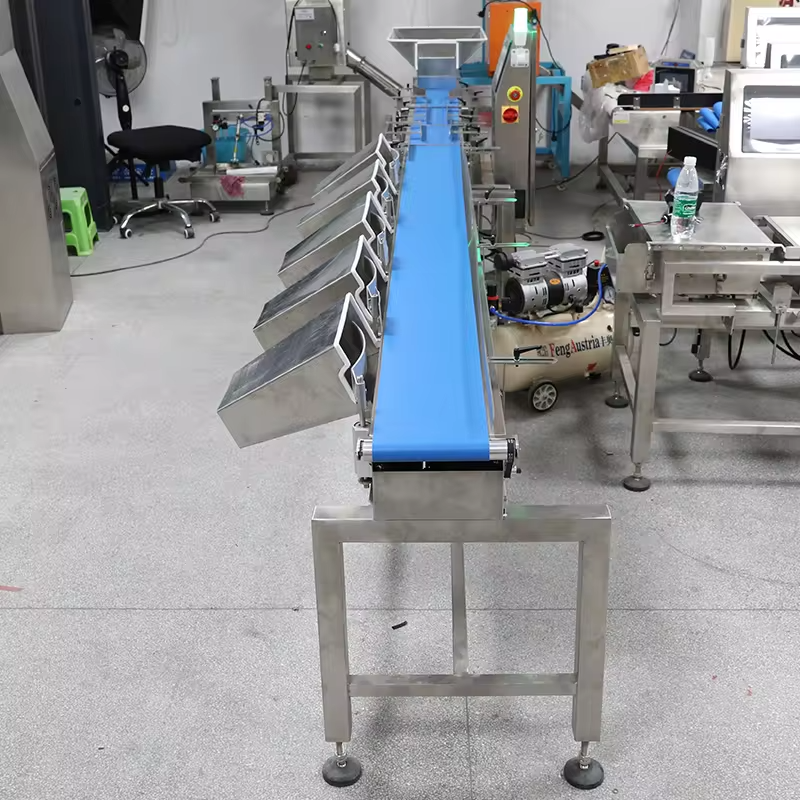

The machine features a weighing range of 1g to 200g with a high sorting accuracy of ±0.2g to ±1g, depending on product properties and conveyor speed.
It is designed to accommodate products with maximum dimensions up to 300mm in length, 150mm in width, and 100mm in height.

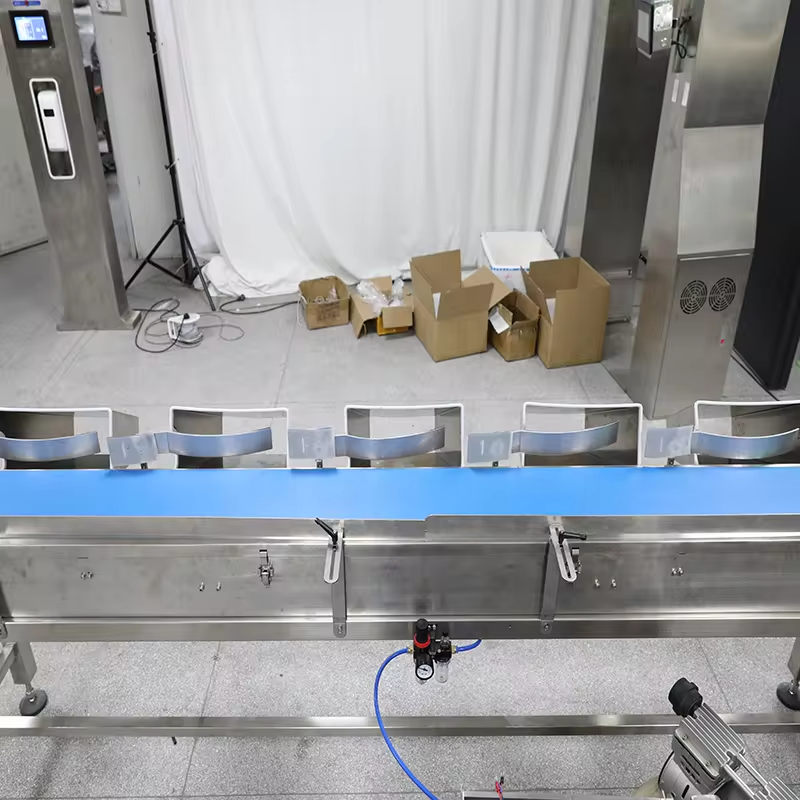

Yes, the standard conveyor height is adjustable between 680mm and 750mm. The conveyor belt speed offers a fixed speed of 20m/min or an adjustable range of 15-30m/min to match your production line requirements.
The machine's surface is constructed using high-quality 304 stainless steel with a polished finish, ensuring durability, hygiene, and easy maintenance in diverse industrial settings.
The 10.1-inch color TFT touch display supports English and Chinese by default, and additional languages can be fully customized upon request to meet global operational needs.
This weight sorting system utilizes a 2-output sorting method to efficiently separate products that do not comply with the targeted weight parameters from conforming items.
