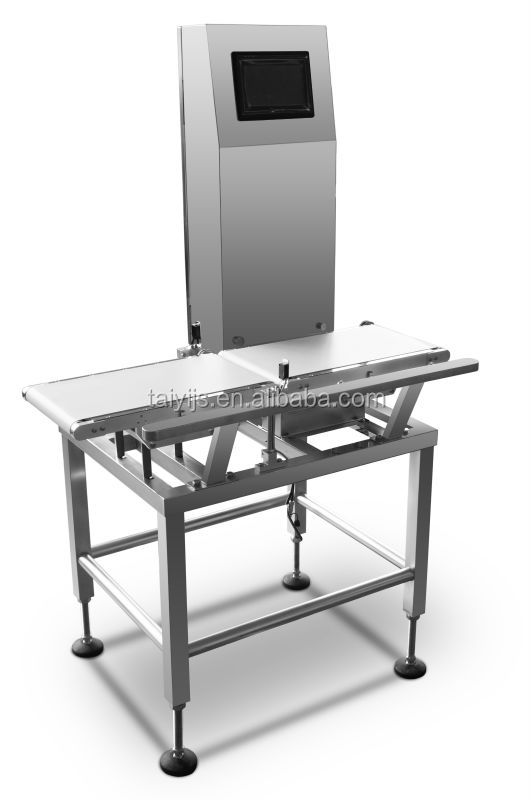

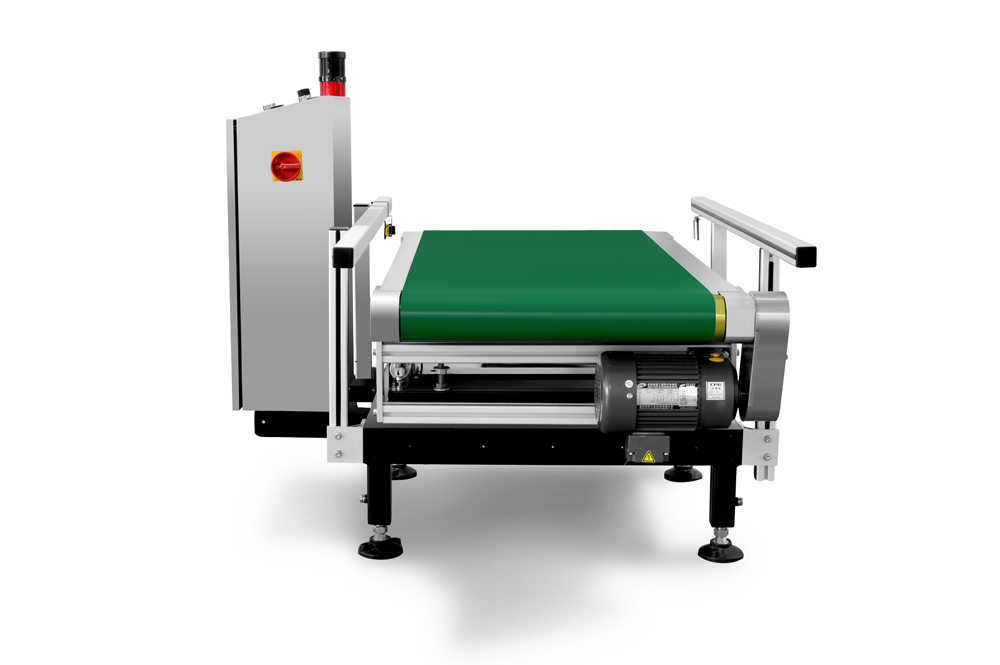

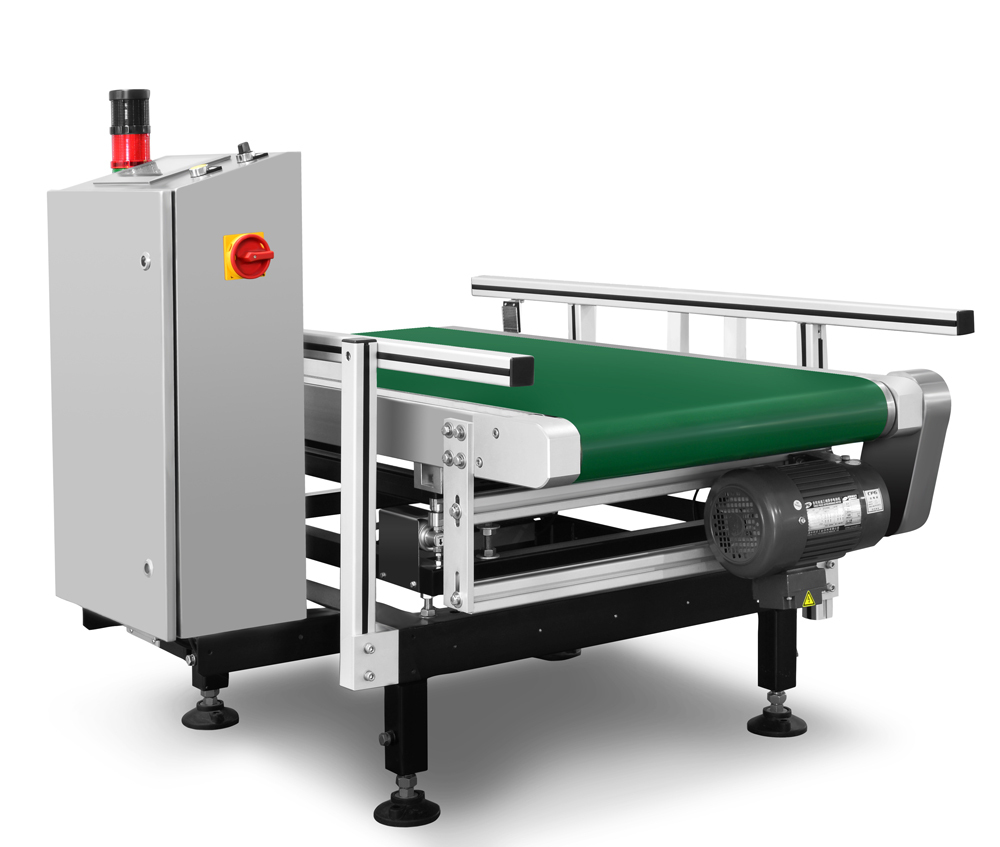

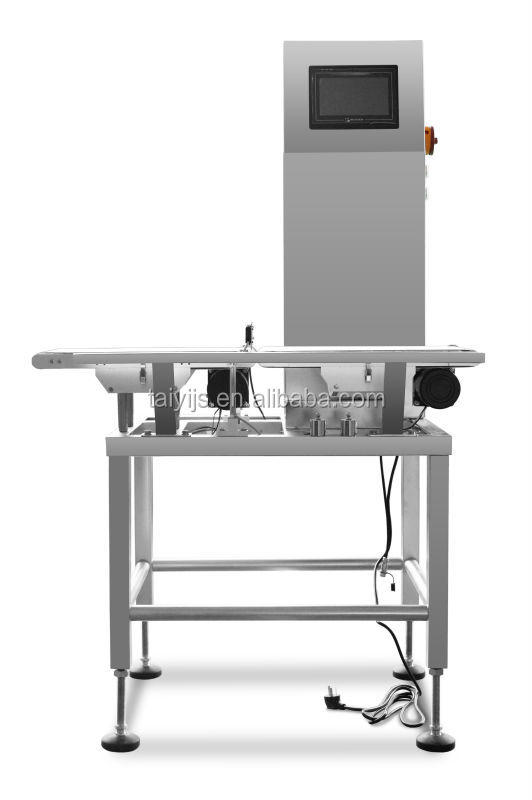

Dynamic Checkweigher With Accurate And Efficient Rejector System
Online High-speed, High-Sensitivity and High-Stability Dynamic Checkweigher
Application
The online weight check is widely used in food, medicine, consumables and other industries for packing products to ensure quality standards.

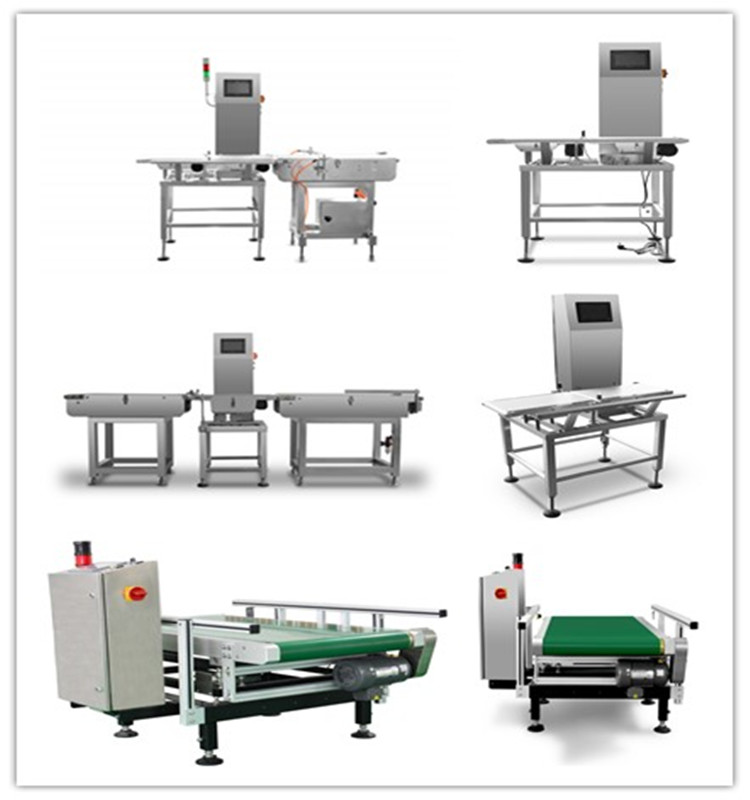

Food Checkweigher Features
Suitable for weight checking of packing products, to ensure quality standards.
Performance & Stability
- ✓ High speed, high sensitivity, and high stability dynamic weight checking.
- ✓ Adopt imported high sensitivity sensors for precision.
- ✓ Sensitivity remains stable without the need for daily calibration.
- ✓ Auto dynamic zero tracking technology ensures sensitivity even as the platform conditions change.
System & Interface
- ✓ Accurate and efficient rejector system: Various quick rejectors for different production speeds.

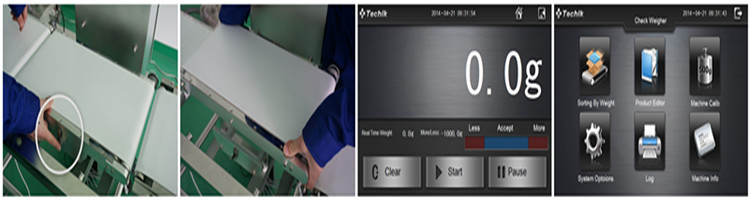

- ✓ Professional HMI design: Full color touch screen system, intuitive and easy to operate.
- ✓ User-friendly: Product database saves up to 100 kinds of products with statistics functions.
- ✓ Data export: Equipped with USB and Ethernet ports, highly compatible and extensible.
Craftsmanship
- ✓ Top-level craft: Stainless steel cover with sand blasting process.
- ✓ Professional mechanical design: Built-in hinge for easy cleaning.
- ✓ Environmental adaptability: Water-proof and dustproof (IP30/IP66 optional).
Technical Parameters
| Model |
IXL-160 |
IXL-230S |
IXL-230L |
IXL-300 |
IXL-400 |
IXL-500 |
| Detecting Range |
10~600g |
20~2000g |
20~2000g |
20~5000g |
0.2~10kg |
0.5~20kg |
| Scale Interval |
0.05g |
0.1g |
0.1g |
0.2g |
1g |
1g |
| Accuracy (g) |
±0.1 |
±0.2 |
±0.2 |
±0.5 |
±1 |
±2 |
| Max Speed (pcs/min) |
250 |
200 |
155 |
140 |
105 |
75 |
| Belt Speed (m/min) |
70 |
70 |
70 |
70 |
70 |
60 |
| Max Product Width (mm) |
150 |
220 |
220 |
290 |
390 |
490 |
| Max Product Length (mm) |
200 |
250 |
350 |
400 |
500 |
700 |
Note: Accuracy and speed depend on the actual test sample on the belt, product weight, and dimensions.
Why Choose Our Solutions
-
❶
World-top Quality: Outstanding stability and high sensitivity reaching world-leading levels.
-
❷
High Cost-Performance: Utilizing top-quality global components while maintaining competitive pricing.
-
❸

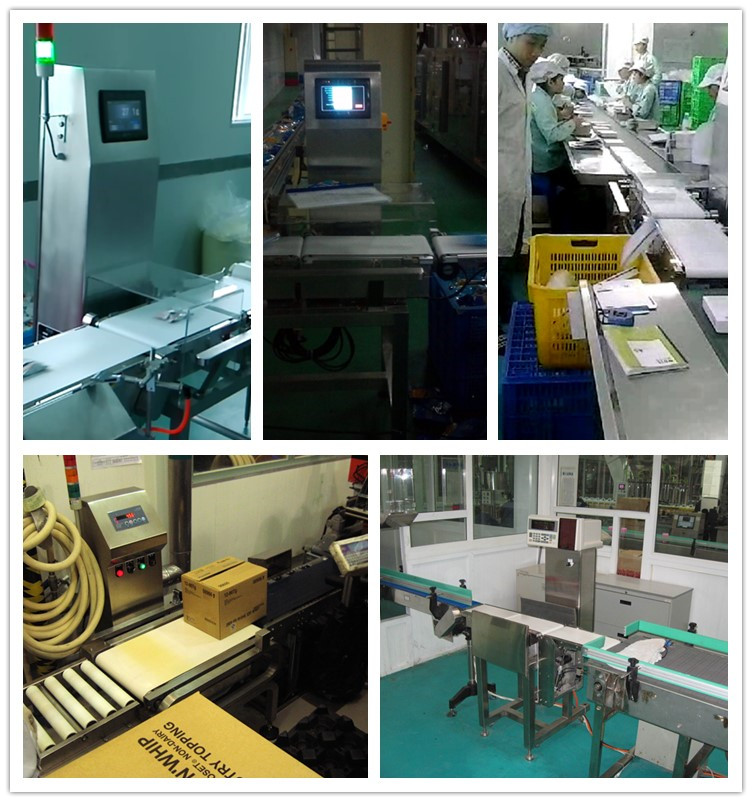

Extensive Experience: Proven case references across meat processing, nut industries, and more worldwide.
-
❹

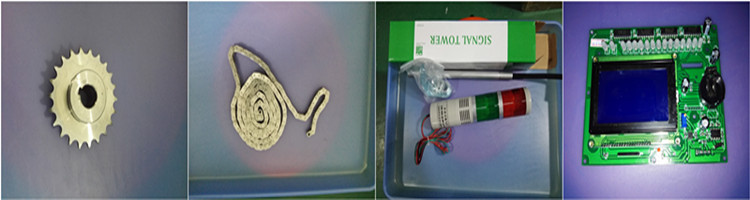

Comprehensive Service: Timely after-sales support, professional training, and remote technical assistance.

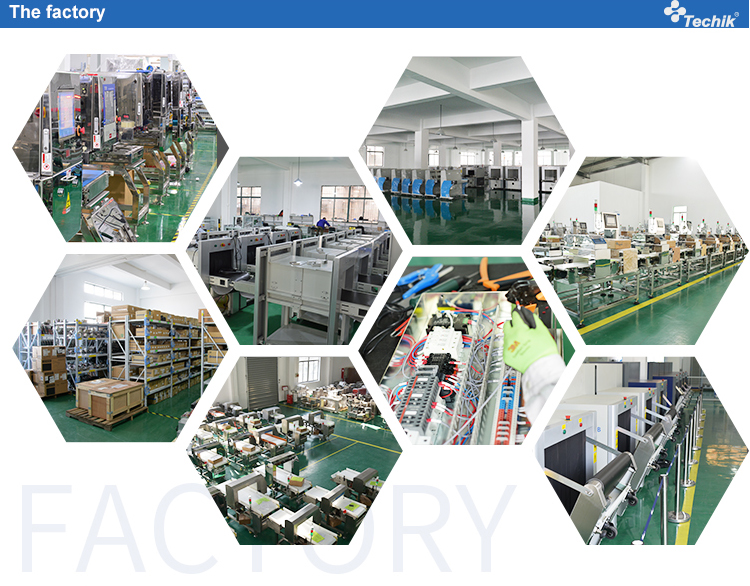

Manufacturing Excellence
Exhibitions & Certifications
Frequently Asked Questions
Q: What industries are these checkweighers suitable for?
A: Our dynamic checkweighers are widely used in food, pharmaceutical, and consumable industries to ensure that every packed product meets strict weight quality standards.
Q: How does the system handle unqualified products?
A: The machine is equipped with an accurate and efficient rejector system. Various types of rejectors are available to automatically remove products that do not meet the weight criteria based on production speed.
Q: Is the equipment easy to clean for food-grade environments?
A: Yes. The machine features a professional mechanical design with a stainless steel (SUS304) cover and built-in hinges, making it easy to clean. Optional IP66 protection is available for waterproof needs.
Q: Can I store multiple product settings in the machine?
A: Absolutely. The user-friendly interface allows for a product database that can save up to 100 different types of product parameters for quick switching.
Q: What kind of accuracy can I expect?
A: Depending on the model and product weight, our checkweighers offer high precision with scale intervals as low as 0.05g and accuracy ranges from ±0.1g to ±2g.
Q: What after-sales support is provided for international customers?
A: We offer a one-year warranty and life-time service. This includes online technical support, professional video guidance, and complete training courses.
