10-50kg Dry Mortar Bagging Machine with Valve Bag
10-50kg Dry Mortar Bagging Machine with Valve Bag
10-50kg Dry Mortar Bagging Machine with Valve Bag
10-50kg Dry Mortar Bagging Machine with Valve Bag
10-50kg Dry Mortar Bagging Machine with Valve Bag
1 / 5
10-50kg Dry Mortar Bagging Machine with Valve Bag
10-50kg Dry Mortar Bagging Machine with Valve Bag
10-50kg Dry Mortar Bagging Machine with Valve Bag
10-50kg Dry Mortar Bagging Machine with Valve Bag
10-50kg Dry Mortar Bagging Machine with Valve Bag

10-50kg Dry Mortar Bagging Machine with Valve Bag

Customization: Available
Automatic Grade: Automatic
Application: Cleaning, Detergent, Cosmetics, Dairy Products, Rice, Flour
Send Inquiry

Product Description

Basic Specifications

Model NO.
BCS-50
Type
Filling and Sealing Machine
Forming Function
Filling
Driven Type
Electric
Material Type
Powder
Automation
Automatic
Processing
Dose, Filling
Product
Flour, Chemical Powder
Capacity
300-360 bags/Hour
Packing Range
5-50kg
Feeding Type
Low Pressure Air
HS Code
8422303090

Product Overview

Valve Bag Packer BCS-50M

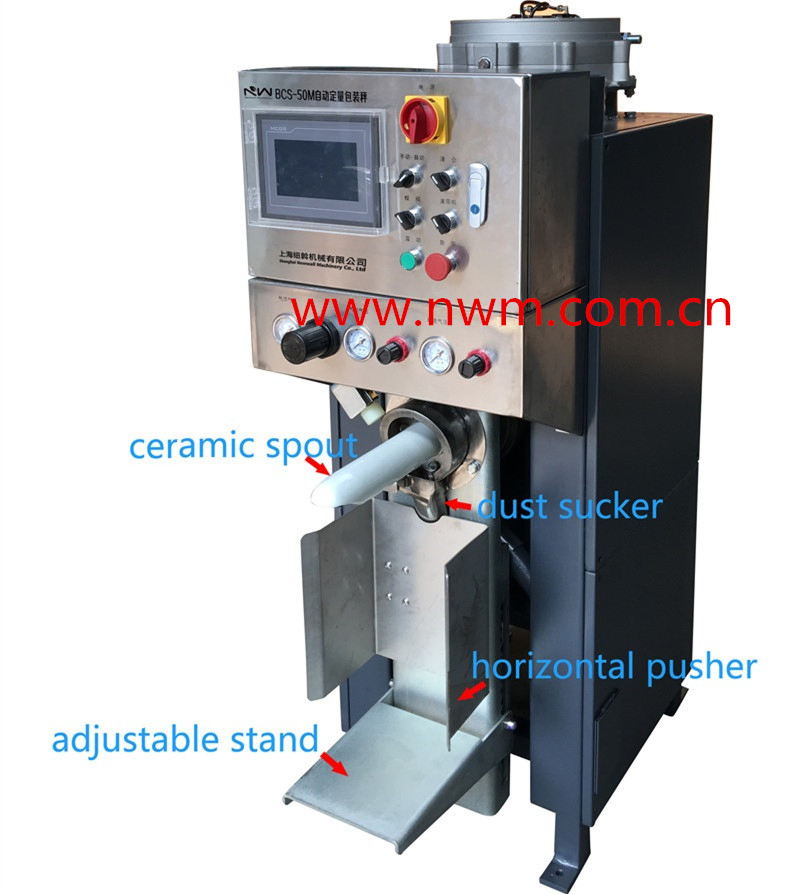

The BCS-50M automatic dosing valve bag packer represents a new generation of packing technology. This innovative machine incorporates four distinct patents: low air pressure pulse conveying, super wearable air-floating device, automatic adjust double stroke gate valve, and a ceramic spout.

● Wide Application:
This packer is ideal for various raw materials including industrial micro-powder, powdery pigments, powdery chemicals, flour, food additives, and all types of dry mortar.
Dry Mortar Bagging Machine

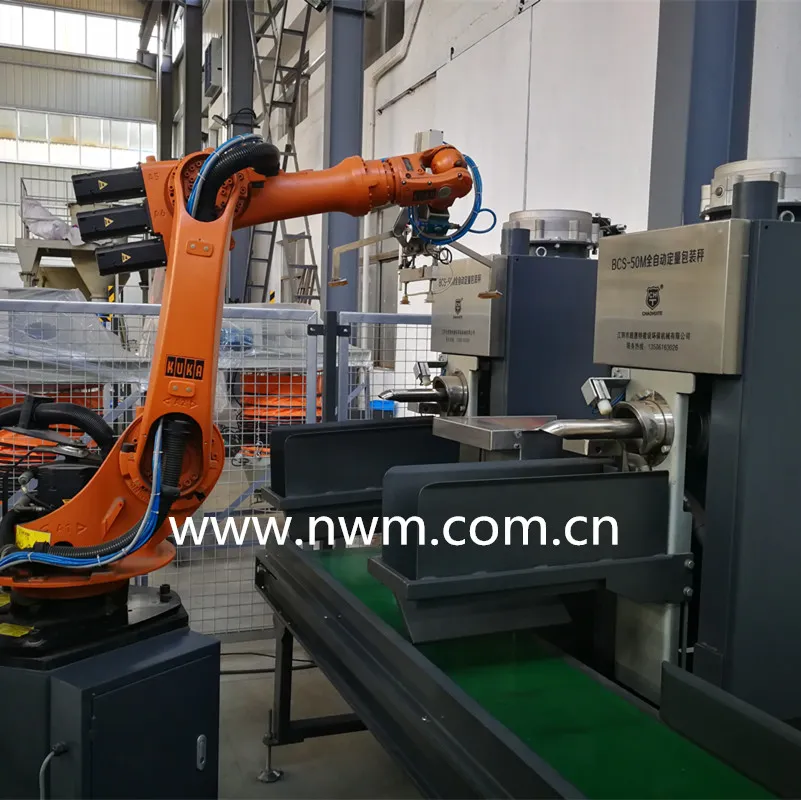

Valve Bag Packing Equipment

Technical Parameters

Capacity5-7 bags/min (varies by material)
Precision Level±1%
Packing Range5-60kg
Material Inlet SizeΦ300mm
Ceramic Spout SizeΦ63mm
Valve Bag Mouth Size≥Φ70mm
Max. Aggregate Granular Size5mm
Working Environment0-40ºC, Humidity ≤90%RH
Working PowerAC220V/50HZ
Working Air SourcePressure ≥0.5Mpa, 0.2m³/min
Dust Collection Volume≥2000m³/h
Dimensions (LXWXH)1000mm x 550mm x 1500mm

Premium Components

Air CylinderAirtac
Magnetic ValveAirtac
Electric ComponentSchneider
Control UnitToledo
Touch PanelKunlun Tongtai
Pneumatic ButterflyWAM, Italy
Control BoxSUS304

Surface Treatment: The whole machine features electrostatic spray; all mobile parts are galvanized for enhanced durability.

Frequently Asked Questions (FAQ)

What materials can the BCS-50M handle?
It is designed for various powders including dry mortar, industrial micro-powder, chemical powders, flour, and food additives.
What is the weight range for packaging?
The machine offers a flexible packing range from 5kg to 60kg.
How accurate is the dosing system?
The system maintains a high precision level with a tolerance of ±1%.
What kind of air supply is required?
It requires a working air source with a pressure of ≥0.5Mpa and a consumption rate of 0.2m³/min.
What are the key patented technologies in this packer?
The machine features four patents: low air pressure pulse conveying, wearable air-floating device, double stroke gate valve, and a ceramic spout.
What brands of electrical components are used?
We use high-quality brands such as Schneider for electric components, Toledo for control units, and Airtac for pneumatic parts.
