Packing Material Specifications: PE continuous roll bag 0.03~0.10mm thick; 130~400mm wide; 230~600mm long
Sheet Specification: Universal folding sheet, width 70~180mm are suitable
Sealing Length: The longest 400mm
Packet Speed: The fastest 1200 packets/hour
Package Options & Models
DFD-40
Functions: Bagging and sealing. Suitable for standard operation requirements where simple wrapping and sealing are needed.

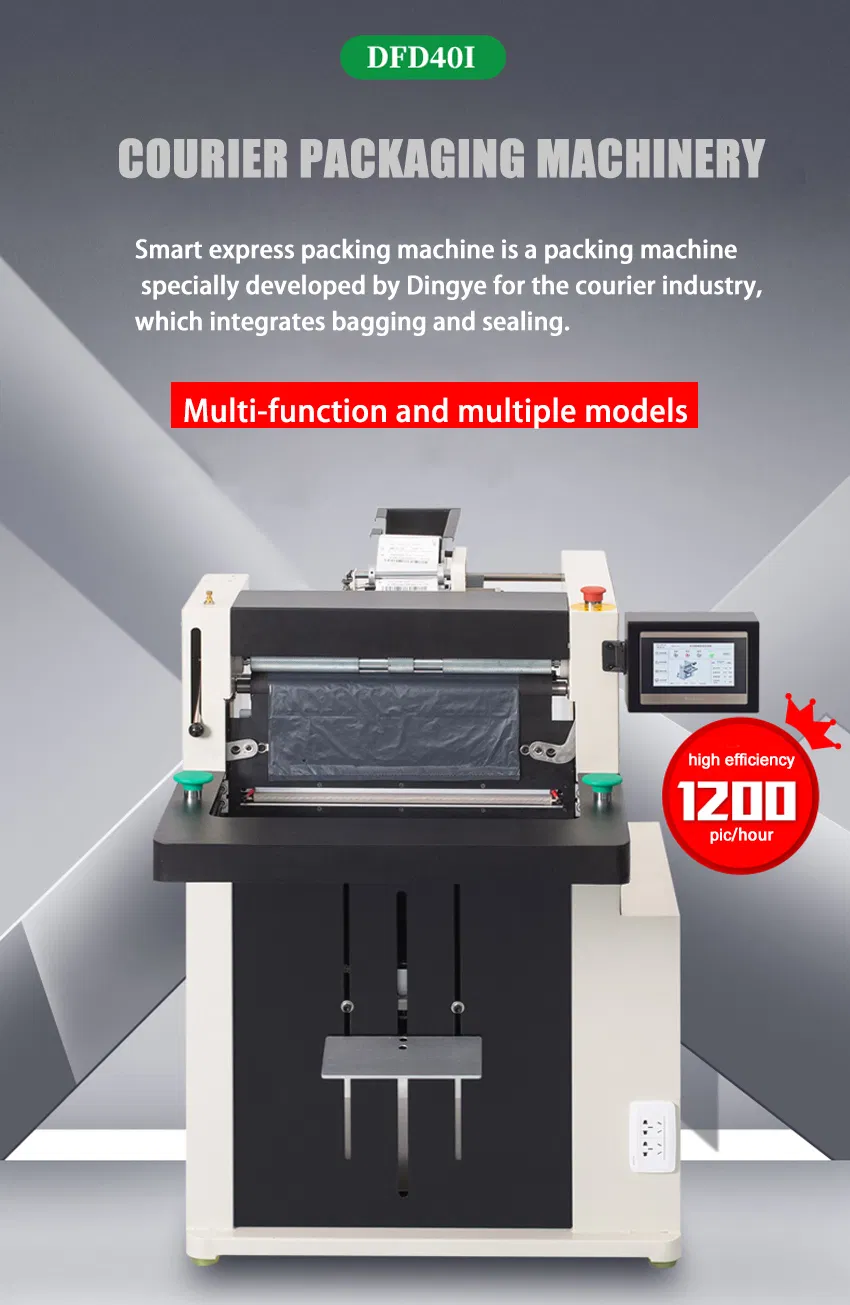

DFD-40I
Functions: Bagging, sealing, and pasting. Upgraded options including hot style stickers for branding or identification.

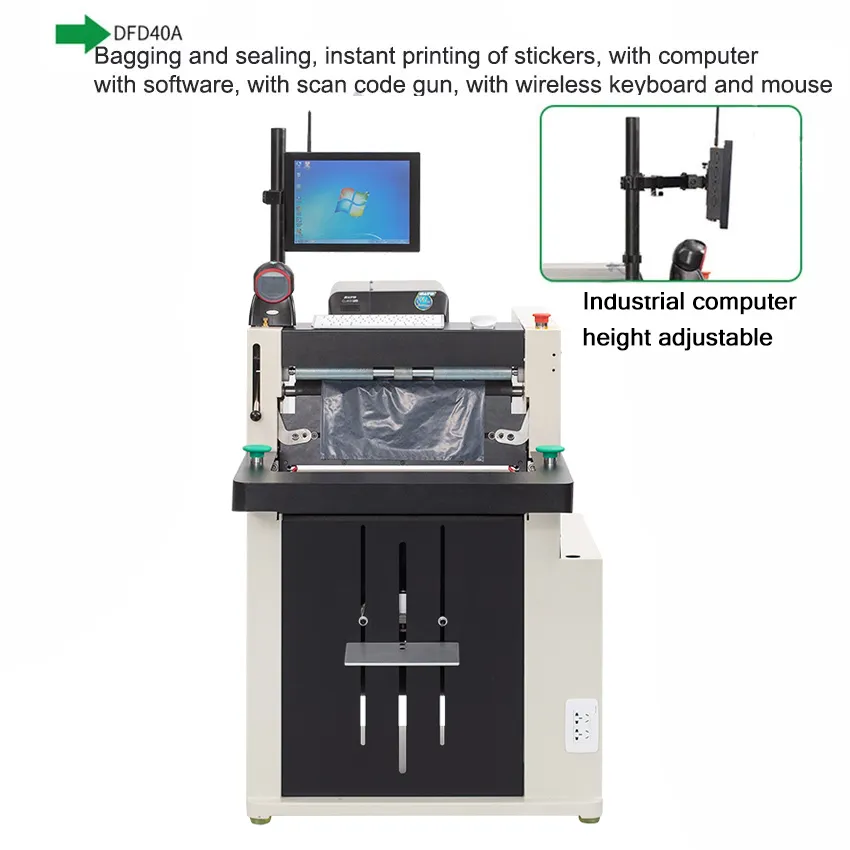

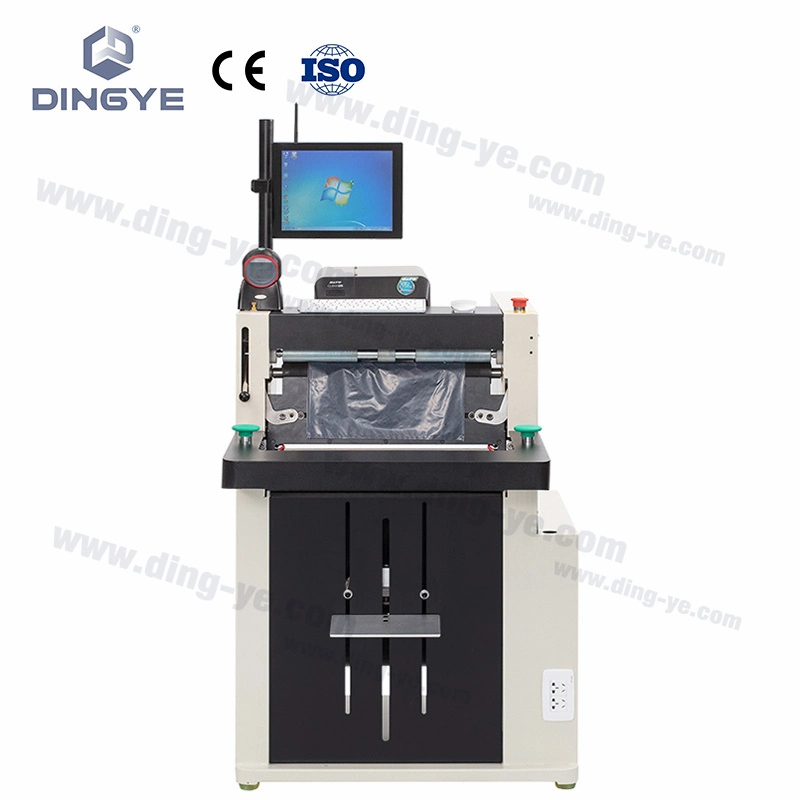

DFD-40A
Functions: Bagging and sealing + instant printing and stickers. Includes a computer with control software, a barcode scanner gun, and a wireless keyboard and mouse.

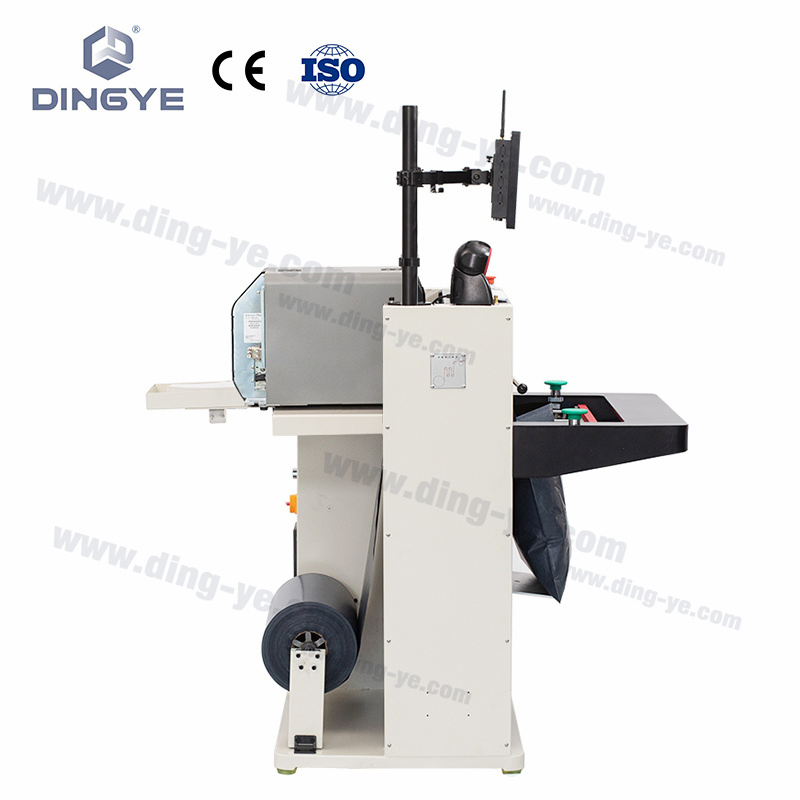

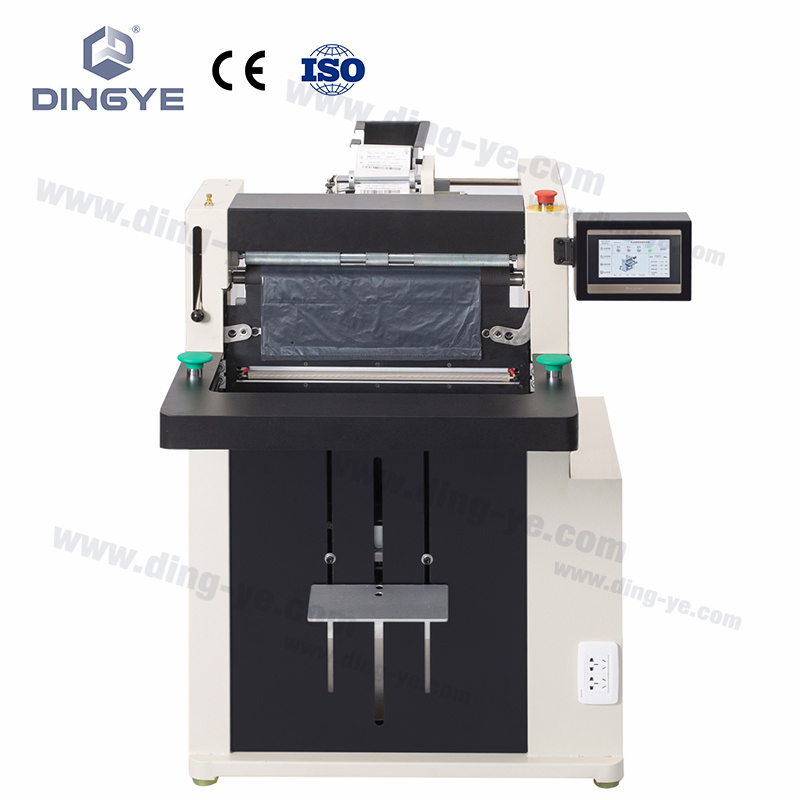

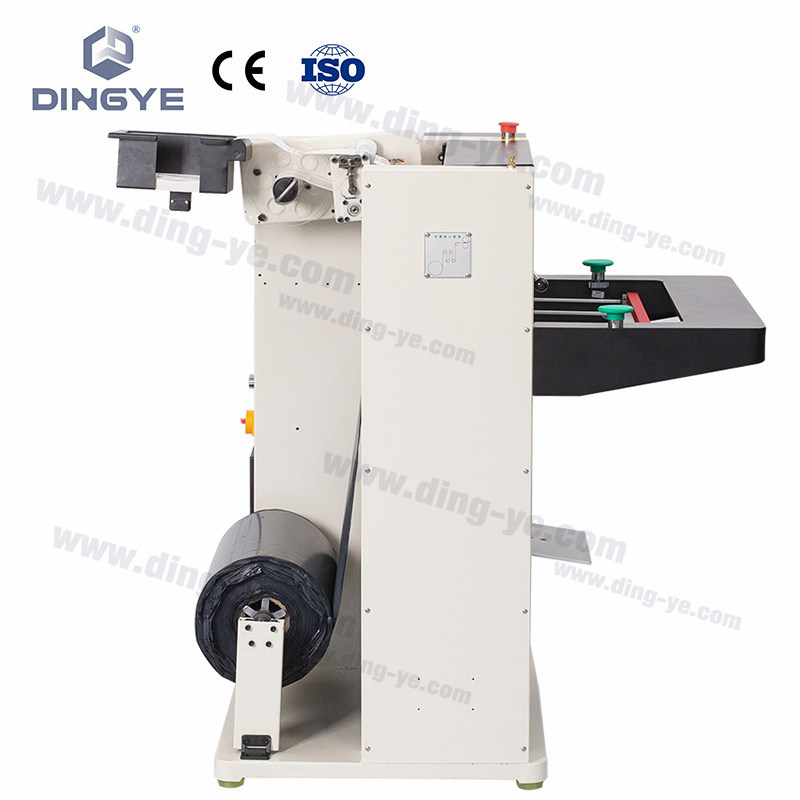

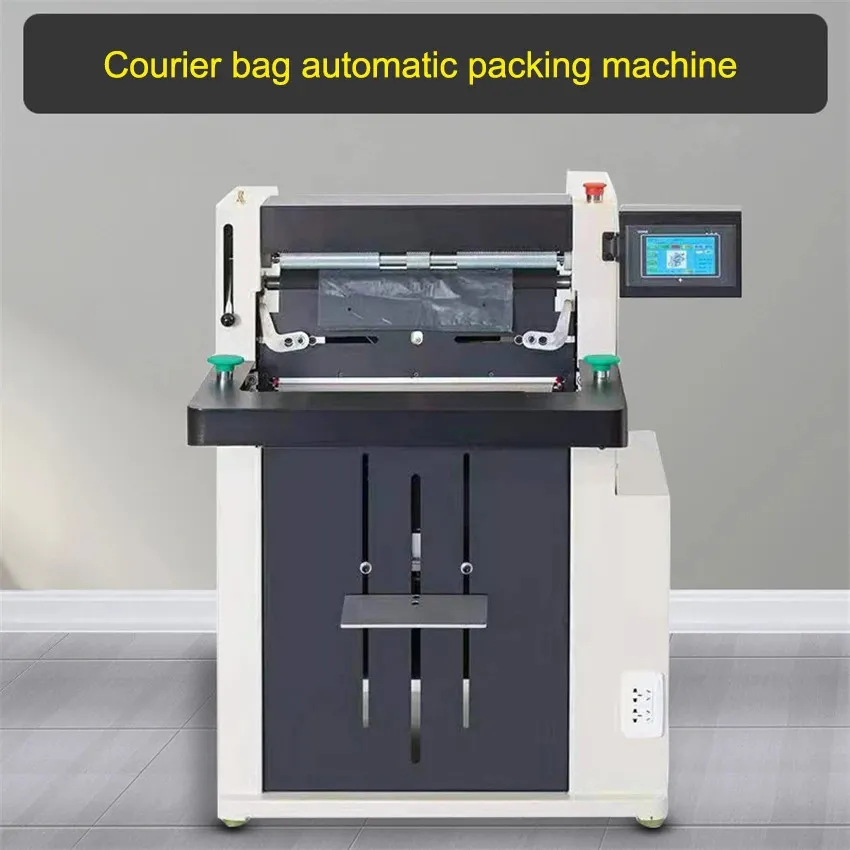

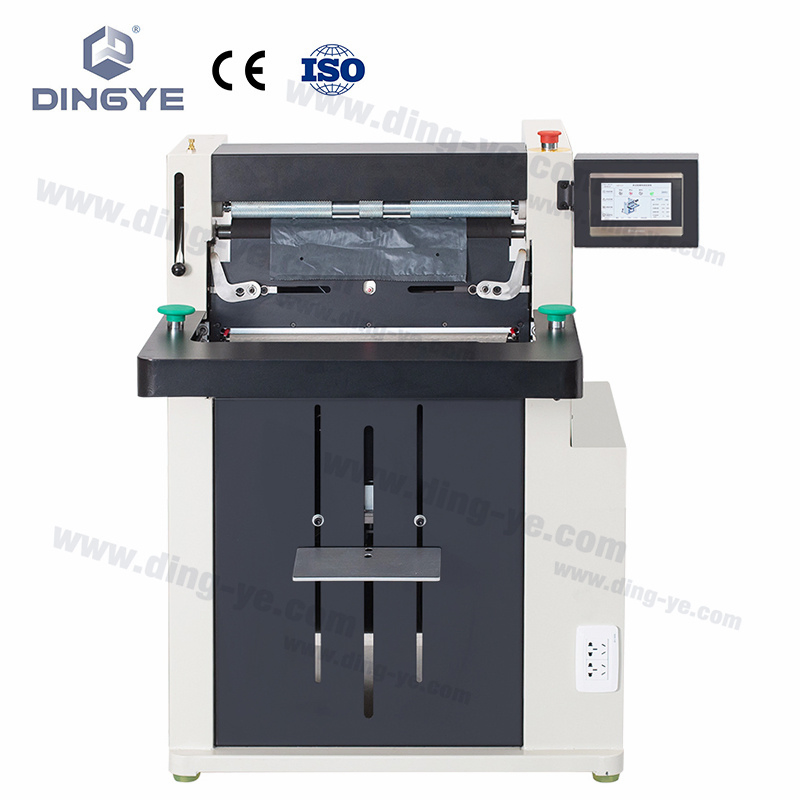

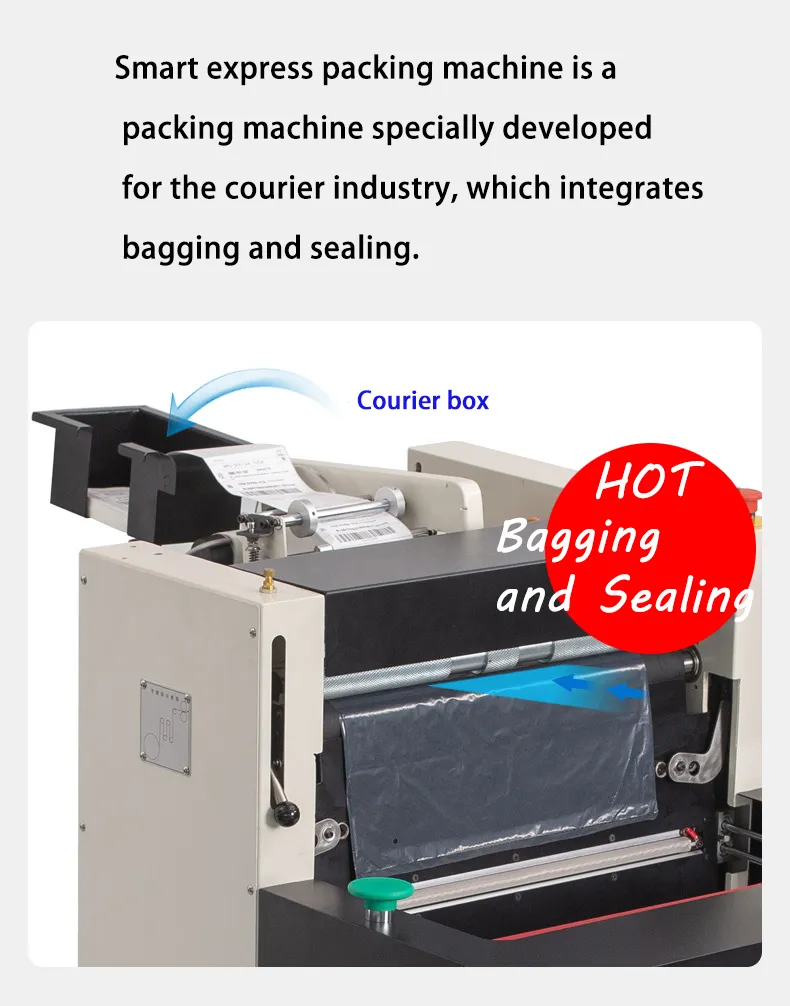

Product Image Showcase
Frequently Asked Questions (FAQ)
What are the main differences between the DFD40, DFD40I, and DFD40A models?
The DFD40 handles basic bagging and sealing. The DFD40I includes bagging, sealing, and hot style stickers. The premium DFD40A model is a complete workstation featuring a DELL high-performance host, a 19-inch display, industrial barcode printer, scan code gun, wireless keyboard, and mouse for instant printing and stickers.
What packing material sizes and thicknesses can this machine support?
This packaging machine is compatible with PE continuous roll bags with a thickness ranging from 0.03mm to 0.10mm. The compatible roll width size is 130mm to 400mm, and the length is 230mm to 600mm.
What is the maximum packaging speed of the DFD-40 series?
The DFD-40 express bagging machine operates at a high speed, achieving a maximum output of up to 1200 packets per hour depending on configuration.
What are the power requirements and gas consumption standards?
The machine operates with an AC 220V / 50-60HZ power input, drawing 900W peak power and 500W average power. The gas requirements are 0.5 to 0.6MPA with a consumption rate of 30L/min.
Does the machine support wireless communication?
Yes, the bagging packaging machine supports communication via both Ethernet and Wi-Fi networks for seamless data integration.
What width of sheets is suitable for the packaging machine?
The system supports universal folding sheet specifications, and widths ranging from 70mm to 180mm are suitable.
