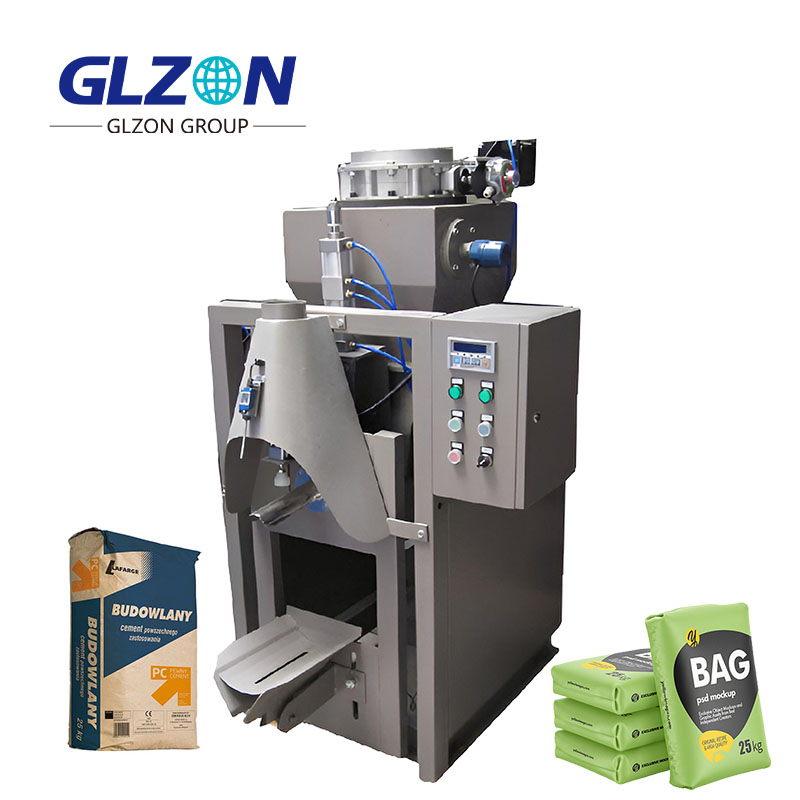

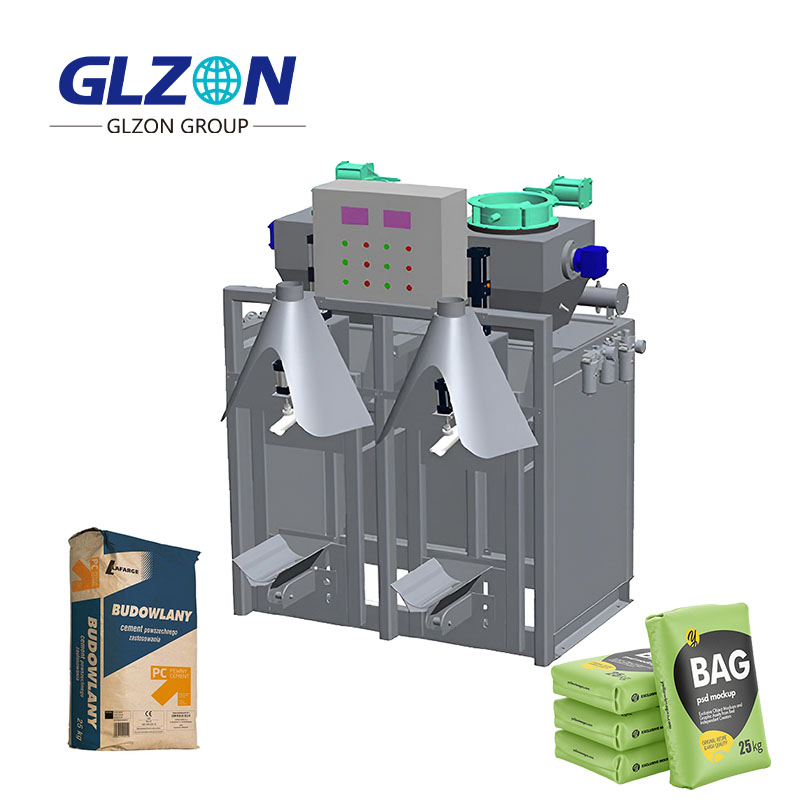

Fully Automatic Valve Bag Packaging Machine Pneumatic Bagging System with Ultrasonic Heat Sealing for Sand Powder Filling and Industrial Bag Packaging Processin

1 / 5

Fully Automatic Valve Bag Packaging Machine Pneumatic Bagging System with Ultrasonic Heat Sealing for Sand Powder Filling and Industrial Bag Packaging Processin

Send Inquiry

Product Description

Product Technical Specifications

Model	GZM-50VGAUTO
Suitable Material	Fluid powder or small grain (≤5mm), such as cement, sand, dry powder
Weighing Form	Single nozzle, gross weight
Weighing Range	10-50KG
Accuracy Class	1%
Packing Speed	250~400 bags/hour
Bag Form	Valve bag
Gas Power	0.4-0.8MPa
Work Environment	Temperature: -20ºC ~ 45ºC; Relative humidity: 95% (none dew)
Voltage	AC220V 50Hz
Max Power	0.1KW
Wastage	0.7m³/min
Measure	650x1270x2000 mm
Device Weight	About 600Kg

Scope of Application

Industrial Powders: Mortar, tile adhesive, gypsum mortar, putty, gypsum powder, flour, starch, PE powder, PE sheet, plastic sheet, aluminum hydroxide, bentonite, kaolin, lime, cement, talc, polyacrylamide, calcium hydroxide, Titanium dioxide, calcium carbonate, organic fertilizer, etc.

Granular Materials: Grain, corn, seeds, sesame, beans, fertilizer particles, rubber particles, plastic particles, PP particles, PE particles, inorganic salt, industrial salt, steel, coal, white sugar, mining, building materials, construction, metal particles, feed, oil, and rice.

Advanced Packaging Solutions

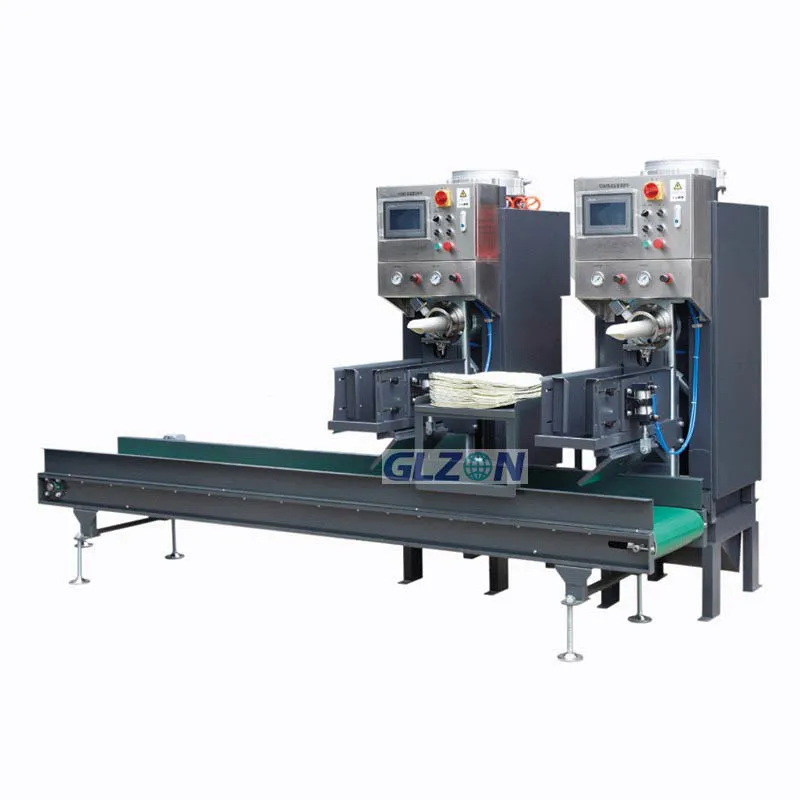

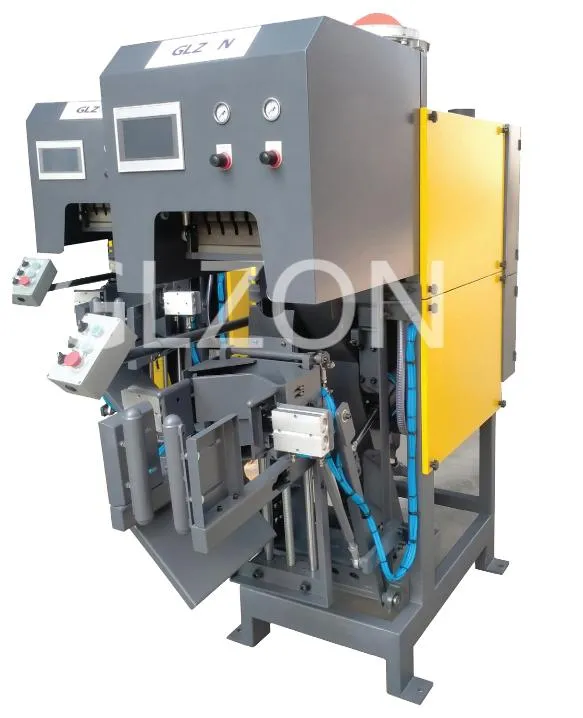

Automatic Ultrasonic Sealing Machine

Model: GZM-50FV-AU

Capacity: 6-7 bags/min (3-4 with ultrasonic sealing)
Accuracy level: 0.2-0.5 level
Weighing range: 10-50KG
Aggregate particles: ≤φ5mm
Multiple feeding systems: Air flotation, Impeller, or Spiral extrusion

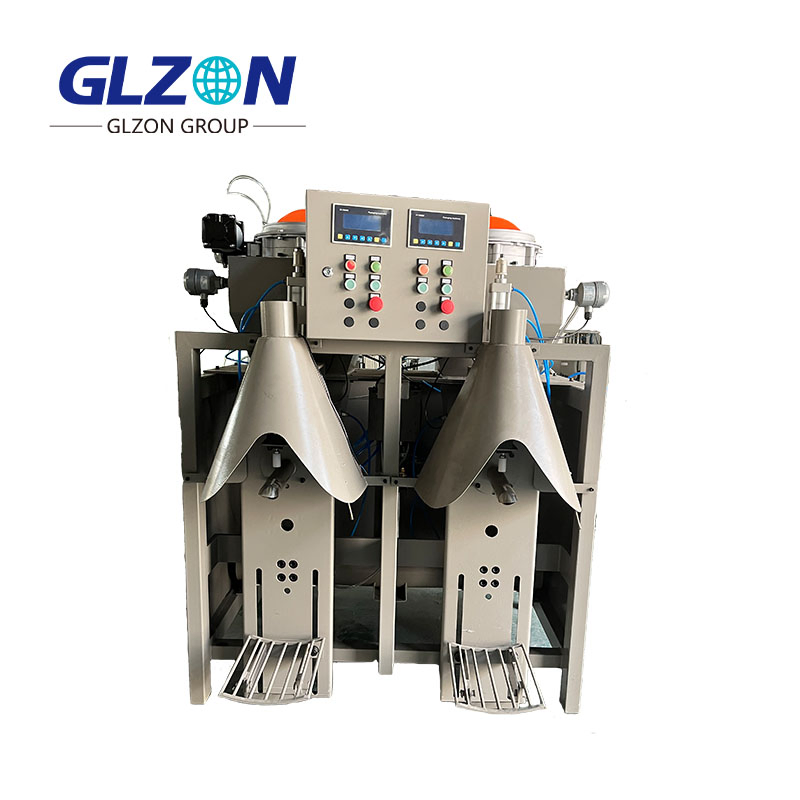

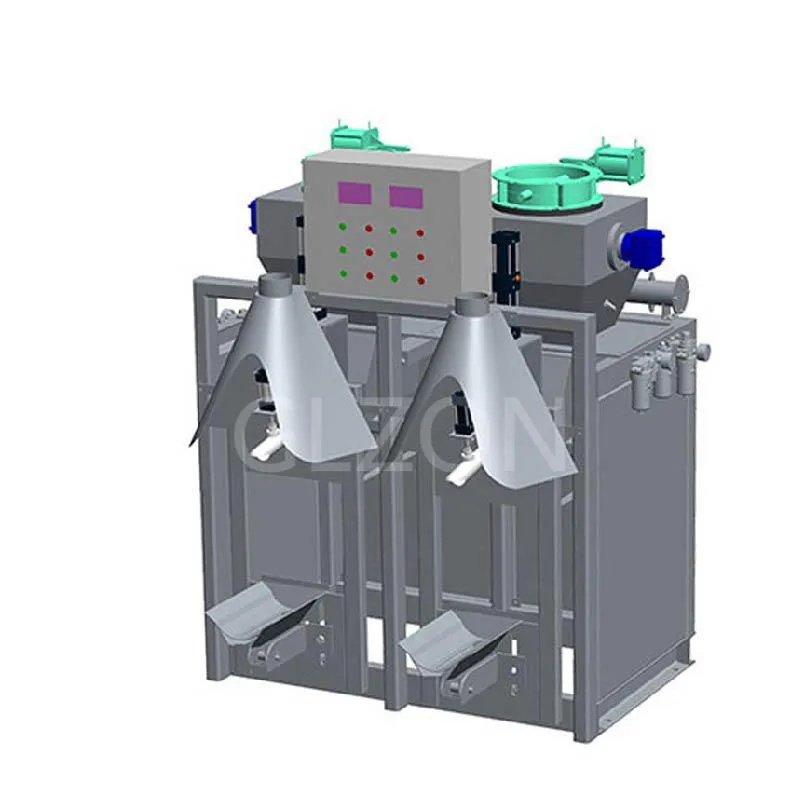

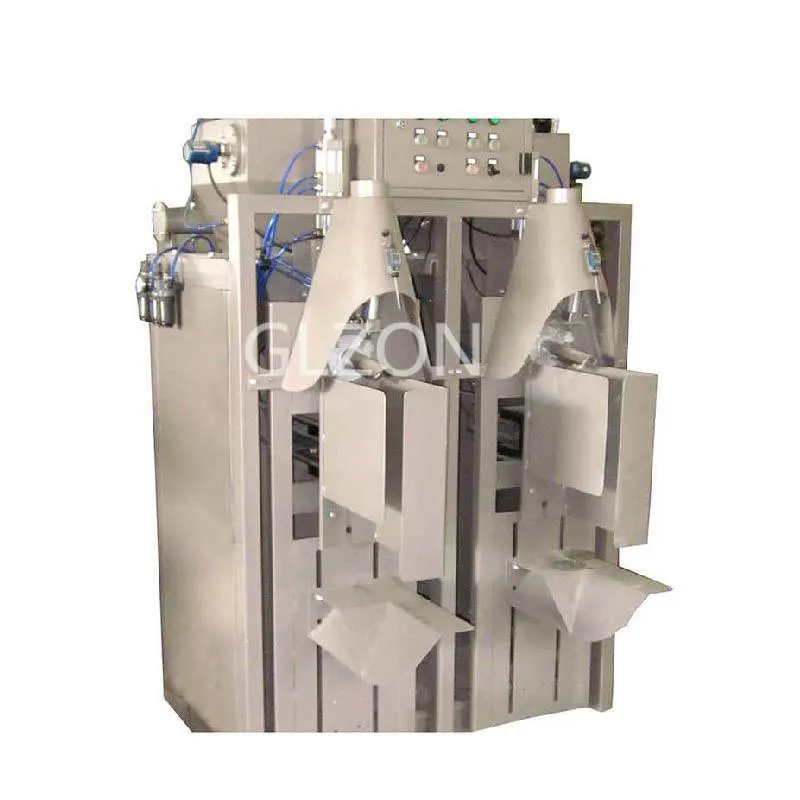

Pneumatic Valve Bag Packaging Machine

Model: GZM-50AII

Weighing range: 10-50kg
Measurement accuracy: ±0.2-0.6%
Packaging capacity: 6-16 bags/minute
Optional: Conveyor belt, Automatic bagging, Bag dropping device

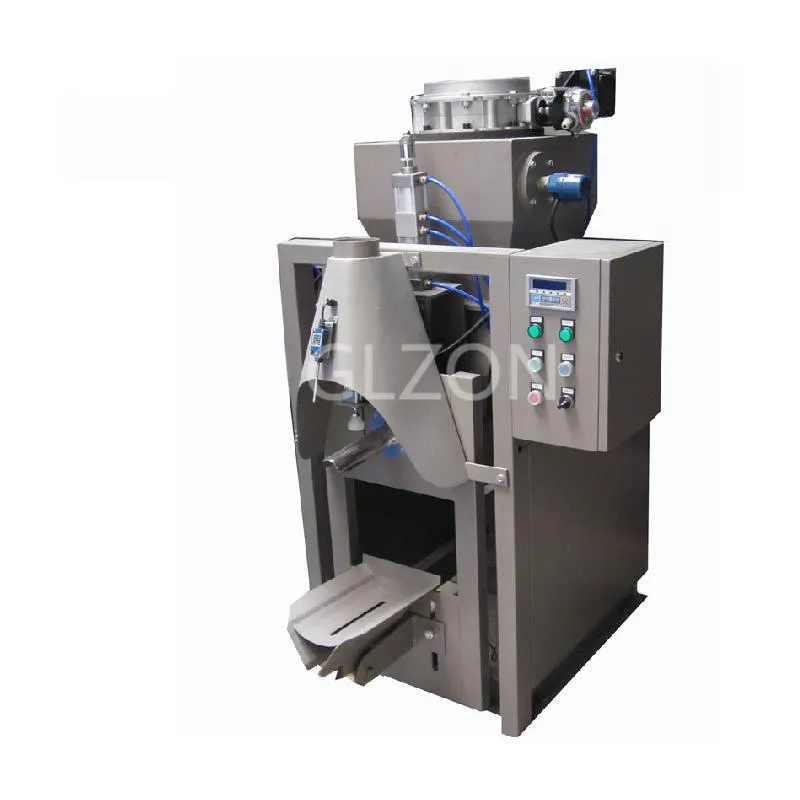

Spiral Valve Bag Packaging Machine

Model: GZM-50SV

Weighing range: 1-50kg
Measurement accuracy: ±0.2~0.5%
Packaging capacity: 1-3 bags/minute (25kg)
Ideal for: Titanium powder, Mica powder, Quartz powder, Starch

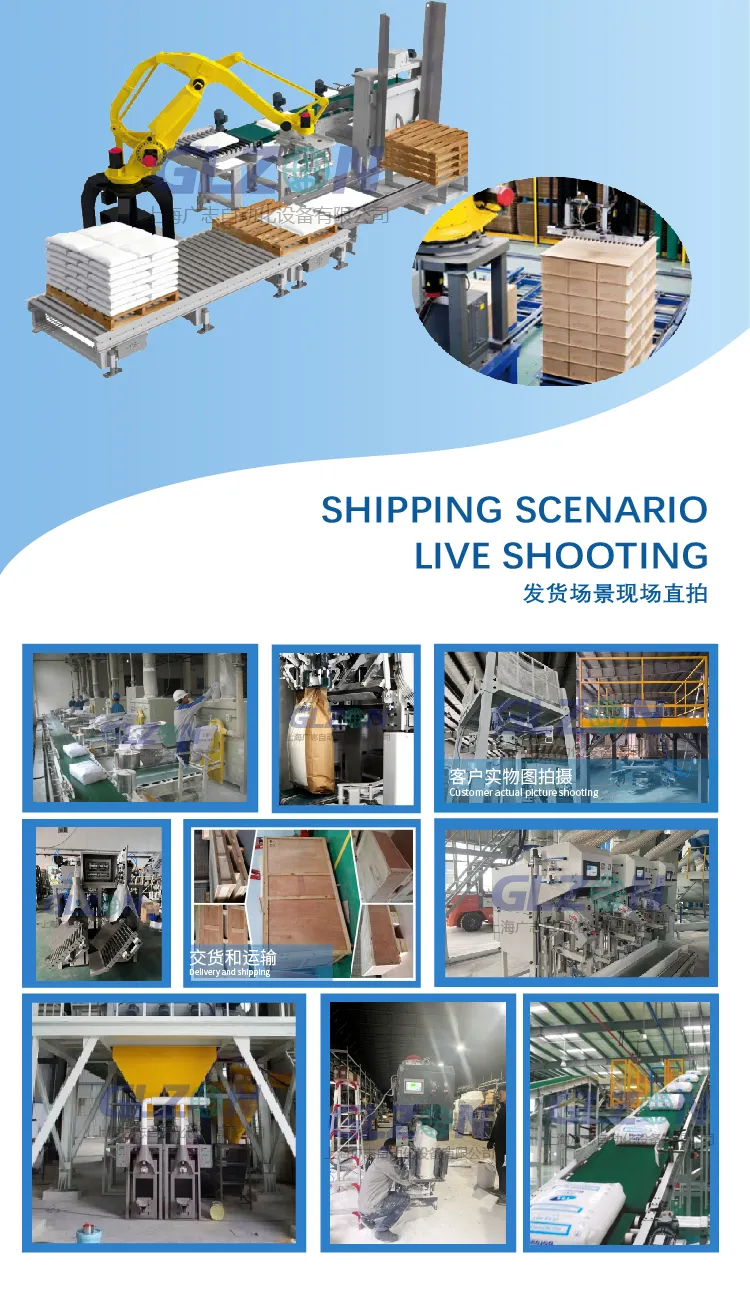

Robot Palletizer System

Our low-position cartoning system takes up less space while maintaining large production capacity. Controlled by a high-end PLC, the machine operates fully automatically and is adaptable to various stacking types. Features include:

Multiple safety protections with touch screen control
High-quality conveyor chain segmented transmission
Main structure made of 304 stainless steel for durability and hygiene
Ideal for coding products packaged with heat shrinkable film

Key Product Features

Full Automation: Integrates bagging, weighing, sealing, weight checking, and palletizing.
Safety Detection: Bag detection on filling spout prevents product spillage.
Quality Build: Contact parts made of stainless steel 304.
Smart Interface: Multi-language touch screen for quick size switching.
Energy Saving: Infrared sensing and servo blanking technology.
Real-time Monitoring: High-brightness LED display for weight, output, and package count.

Professional Service Support

1 Packaging Solutions

We provide professional packaging and logistic services tailored to your needs, ensuring machinery arrives in optimal condition.

2 Pre-sale Expert Consulting

Our sales and electrical engineers offer complete packaging solutions, professional rationalization proposals, and pre-sale tests.

3 Dedicated After-sale Service

We provide free parts delivery for manufacturing defects under a one-year warranty and low-cost maintenance thereafter.

Frequently Asked Questions

Q1: What materials can the valve bag packaging machine handle?

It is designed for fluid powders and small grains (≤5mm), including cement, mortar, flour, starch, tile adhesive, and various industrial chemical powders.

Q2: What is the weighing accuracy of the system?

Depending on the specific model, the measurement accuracy ranges from ±0.2% to 1%, ensuring highly precise filling for industrial requirements.

Q3: Does the machine support automatic sealing?

Yes, models like the GZM-50FV-AU feature automatic ultrasonic heat sealing for secure and clean bag closures.

Q4: What is the production capacity of these machines?

The speed varies by material and model, generally ranging from 250 to 400 bags per hour for standard models, with high-speed pneumatic versions reaching up to 16 bags per minute.

Q5: Are the contact parts made of corrosion-resistant material?

Yes, all parts that come into contact with the material are made of high-quality stainless steel 304 to ensure durability and prevent contamination.

Q6: Is the machine easy to operate for different bag sizes?

Absolutely. The machine features a multi-language touch screen interface that allows operators to quickly switch settings for different bag sizes and filling volumes with a one-click operation.
