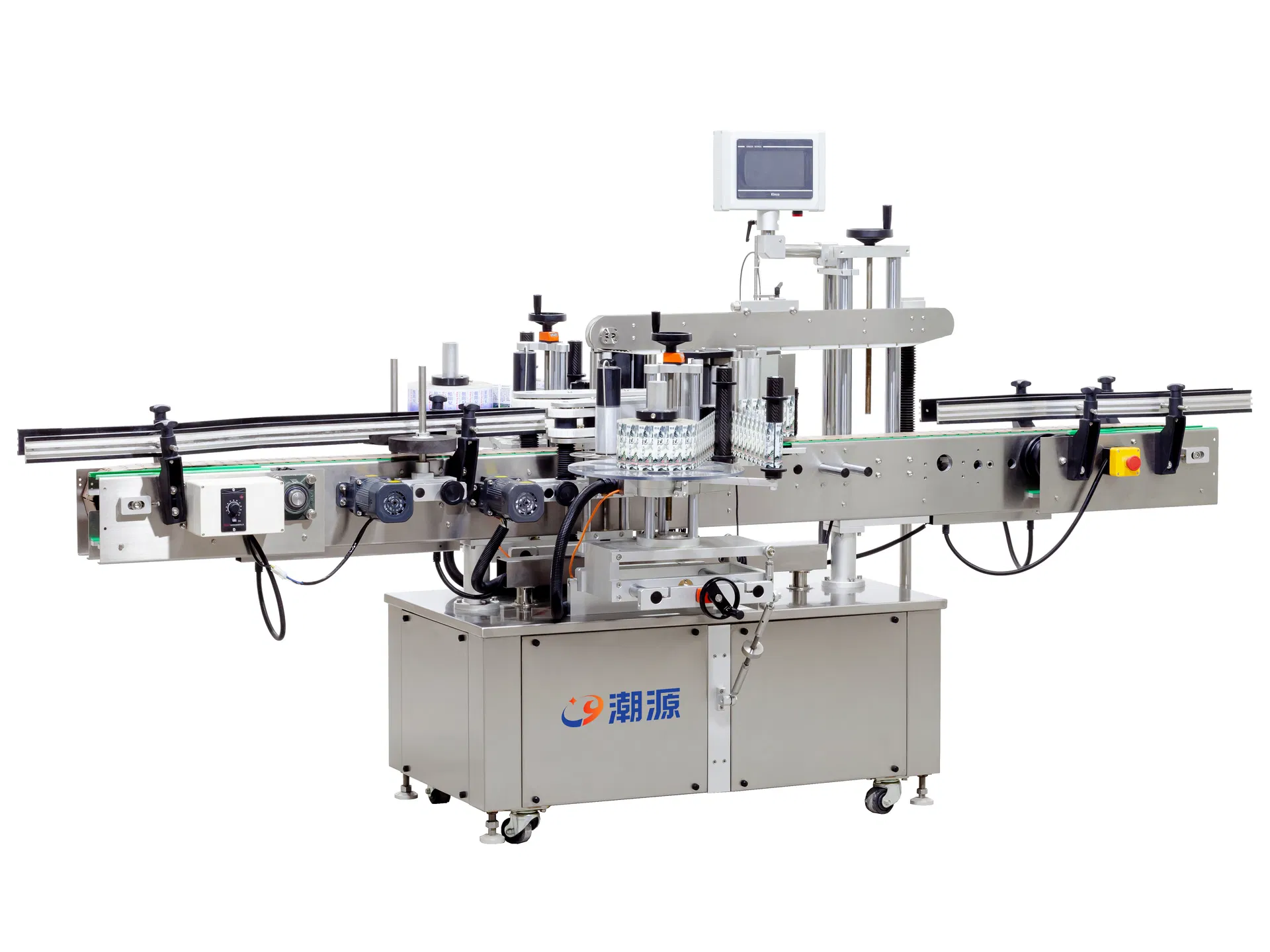

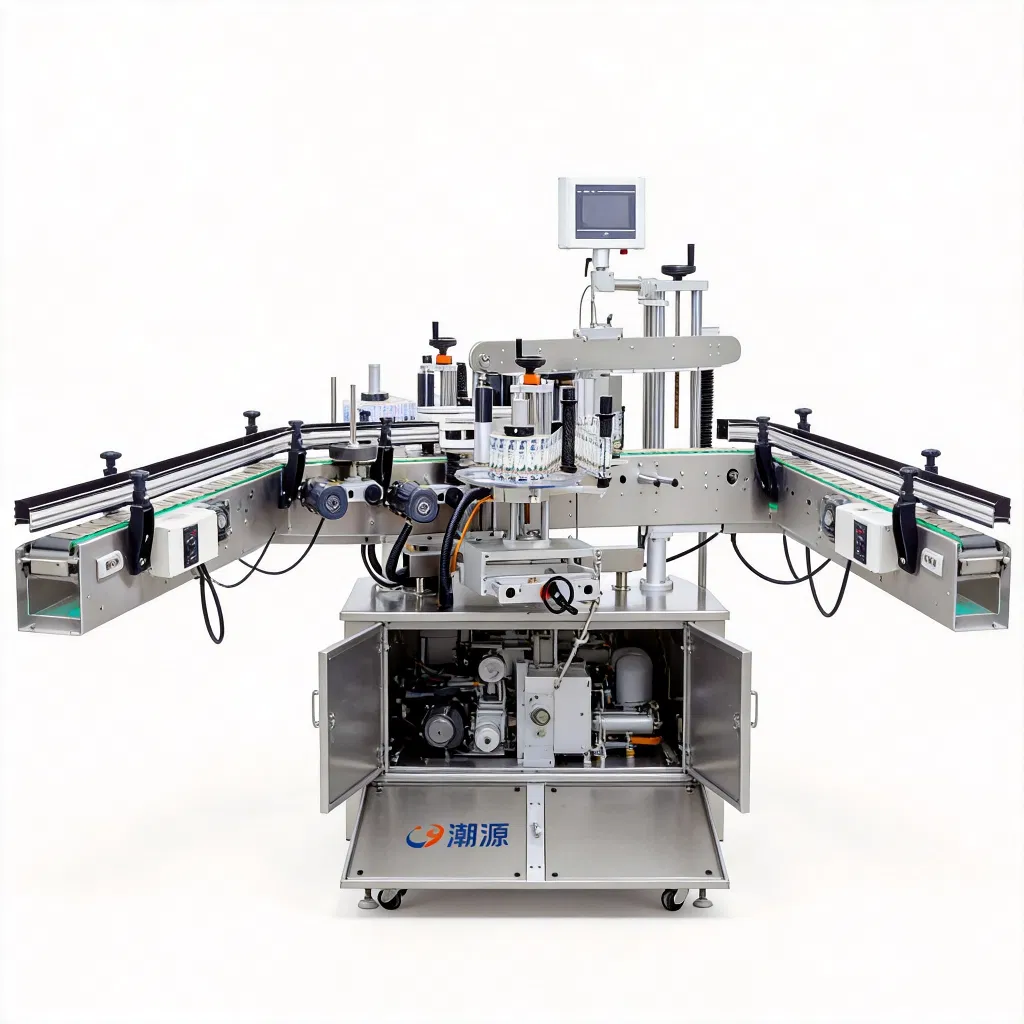

Product Features

• Single-sided labeling: Applicable for round, square, or flat objects. The six-dimensional label head system features powerful and flexible adjustment capabilities, enabling precise labeling of any product within minutes.
• Adjustable pressure: The pressure between the main shaft and the pressing roller is adjustable, allowing the direction of the label paper to be freely adjusted, avoiding conventional elastic pressing issues.
• Double-roller structure: The bid header adopts a double-roller structure to ensure the label paper is tightly stretched while preventing label breakage caused by backing paper damage.
• Servo motor drive: The host employs servo motors from renowned manufacturers to achieve true closed-loop control, ensuring high-speed and high-precision positioning.
• Synchronized conveyor system: The belt is connected to the main gear, ensuring absolute synchronization of the two conveyor belts without manual adjustment.
• Multi-functional operation: The labeling system can be equipped with additional mechanisms to meet the needs of flat bottle labeling, round bottle circumferential labeling, round bottle positioning labeling, and multi-sided square bottle labeling.
• Advanced control: The man-machine interface operating system can store operating parameters, fault prompts, and help information for easy training and operation.

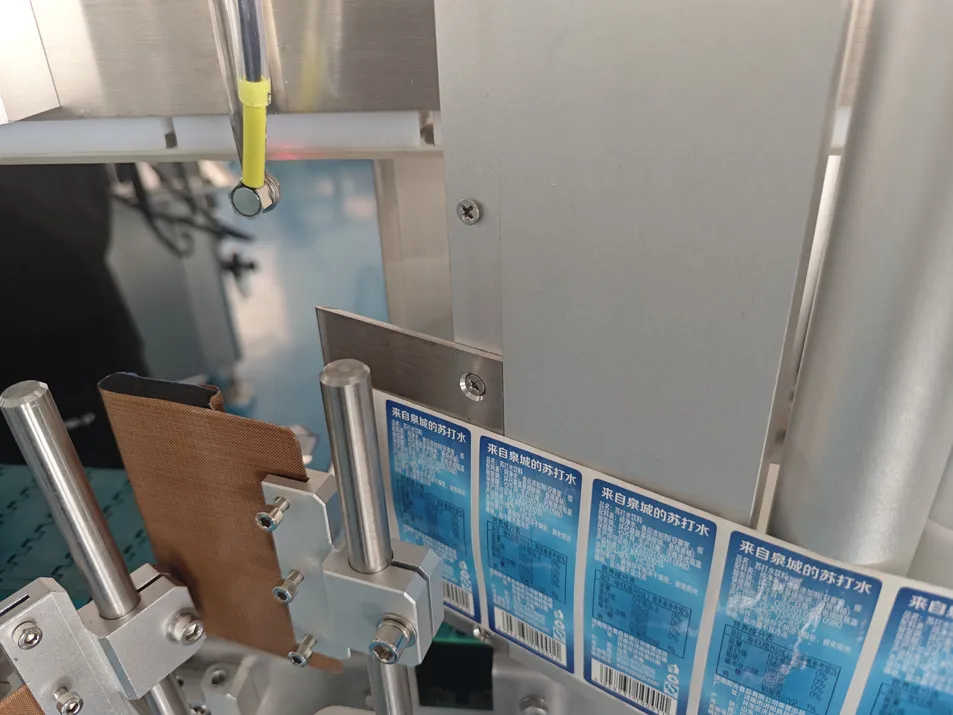

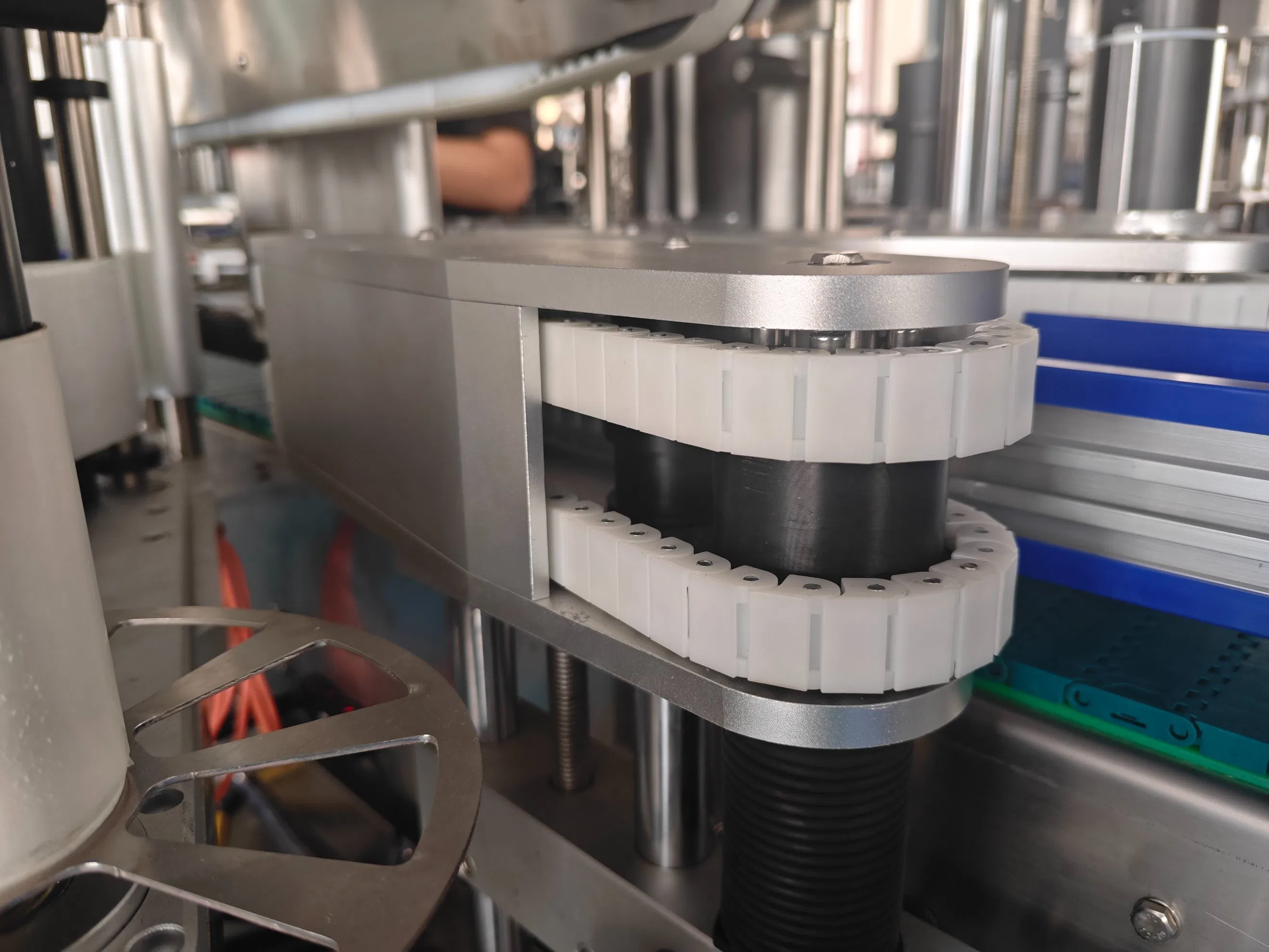

Belt Tensioning Mechanism

The spiral bevel gear transmission synchronizes with the conveyor line mechanism to ensure label application accuracy.

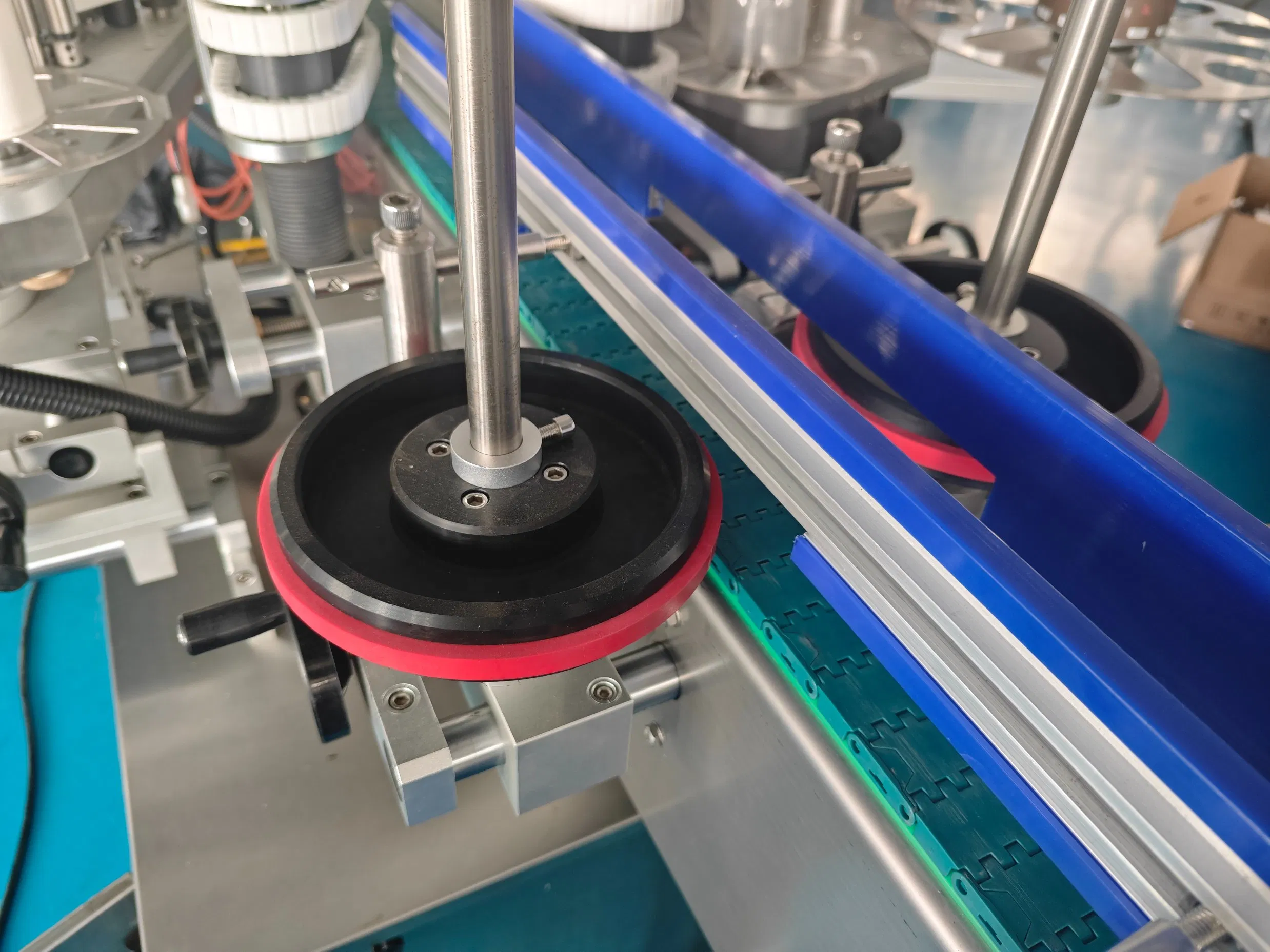

Guide Tube Mechanism

The dual-coordinate adjustable wide guide rail allows vertical and horizontal adjustments, enabling rapid adaptation to various bottle shapes.

• Linear synchronization: The labeling station operates in linear synchronization with the main machine, auto-adjusting according to the bottle feeding rate of the preceding production line.
• Open bottle cap design: Allows manual bottle discharge from any workstation easily.
• Bottle safety clutch: Integrated clutch mechanism to prevent bottle jamming on the line.
• Waterproof structure: Fully waterproof bottle tray structure adapts to square bottles, irregular bottles, and various labeling processes without replacing main components.
• 8-axis adjustment: The head supports 8-axis spatial adjustment, tilt adjustment, and position display. All adjustments are tool-free and quick.
• Stable tension: The new label clutch makes the tension more stable, and the three-point label head adjustment device ensures smooth adjustment.
• CNC machining: All parts feature high precision fit from CNC machining to guarantee low noise, smooth operation, and high durability.
• Fully enclosed & Corrosion resistant: Dust-proof enclosure and corrosion-resistant materials optimized for industrial production.
• Bearings protection: Professional waterproof design to ensure all bearings operate in a dry environment.
• Safety features: Material flow monitoring device automatically adjusts speed; safety cover automatically stops the machine when the safety door is opened.
