PD-FY600 Technical Parameters
| NO. |
Technical Specification |
Technical Parameters |
| 1 |
Maximum molding area |
900mm×710mm |
| 2 |
Minimum molding area |
450mm×350mm |
| 3 |
Widest sheet |
940mm |
| 4 |
Narrowest sheet |
410mm |
| 5 |
Molding thickness |
0.2-2.0mm |
| 6 |
Molding height |
120mm |
| 7 |
Length of upper furnace |
1000mm |
| 8 |
Length of lower furnace |
1000mm |
| 9 |
Stacking Height |
500mm |
| 10 |
Height of cutting upper die table |
100mm |
| 11 |
Height of cutting lower die table |
120mm |
| 12 |
Maximum cutting force |
80T |
| 13 |
Cutting method |
Laser wood knife mold/ Hardware Stamping Knife |
| 14 |
Total power of the upper furnace |
28.8KW |
| 15 |
Total power of the lower furnace |
28.8KW |
| 16 |
Pull motor |
5.5KW |
| 17 |
Total power of equipment |
80KW (40%-70% for normal use) |
| 18 |
vacuum volume |
160m3/h |
| 19 |
Molding cooling method |
Water-cooled and air-cooled |
| 20 |
Total gas supply (external) |
0.8Mpa |
| 21 |
power supply |
380V/50HZ (three-phase four-wire 70 m2) |
| 22 |
Total weight of equipment (reference) |
Approx. 10T |
| 23 |
Machine Size |
Approx. 12000 x 2500 x 3200mm (for reference, subject to actual design) |
Main Configurations of PD-FY600
| No. |
Component Name |
Brand & Description |
| 1 |
punching pressure |
servo system |
| 2 |
track |
iron girder |
| 3 |
Tab Chain |
TAIWAN KMC (08B-2R-SA1 cusp) |
| 4 |
Controller (PLC) |
Delta (Taiwan) |
| 5 |
module |
Delta (Taiwan) |
| 6 |
touchscreen |
Kunlun Tongtai 15 inch color touch screen |
| 7 |
Servo motor for sheet pulling |
Delta (Taiwan) 5.5KW |
| 8 |
Servo motor for punching and cutting upper platform |
Delta (Taiwan) 7.5KW |
| 9 |
Servo motor for punching and cutting lower platform |
Delta (Taiwan) 5.5KW |
| 10 |
Stacked servo motors |
Delta (Taiwan) 1KW |
| 11 |
Beam adjustment motor |
Siemens |
| 12 |
temperature control system |
AOYI |
| 13 |
Low-voltage electrics |
Schneider (France) |
| 14 |
relay (electronics) |
OMRON(Japan) |
| 15 |
AC contactor |
Schneider (France) |
| 16 |
Thermal Overload Relay |
Schneider (France) |
| 17 |
Optical sensors |
Schneider (France) |
| 18 |
Limit travel switches |
Schneider (France) |
| 19 |
solenoids |
AT&T(Taiwan) |
| 20 |
air component |
AT&T(Taiwan) |
| 21 |
Precision Regulators |
AT&T(Taiwan) |
| 22 |
Speed control valves |
AT&T(Taiwan) |
| 23 |
Linear guides |
ABBA(Taiwan) |
| 24 |
ball screw |
ABBA(Taiwan) |
| 25 |
bearing |
C&U(China) |
| 26 |
Chain Gear |
zhengmeng(Taiwan) |
| 27 |
cylinder |
AT&T(Taiwan) |
| 28 |
vacuum pumps |
cosmic star VC160m3/h |
| 29 |
chiller |
Industrial chiller |
| 30 |
heaters |
600W Infrared Ceramic Heating Tile |

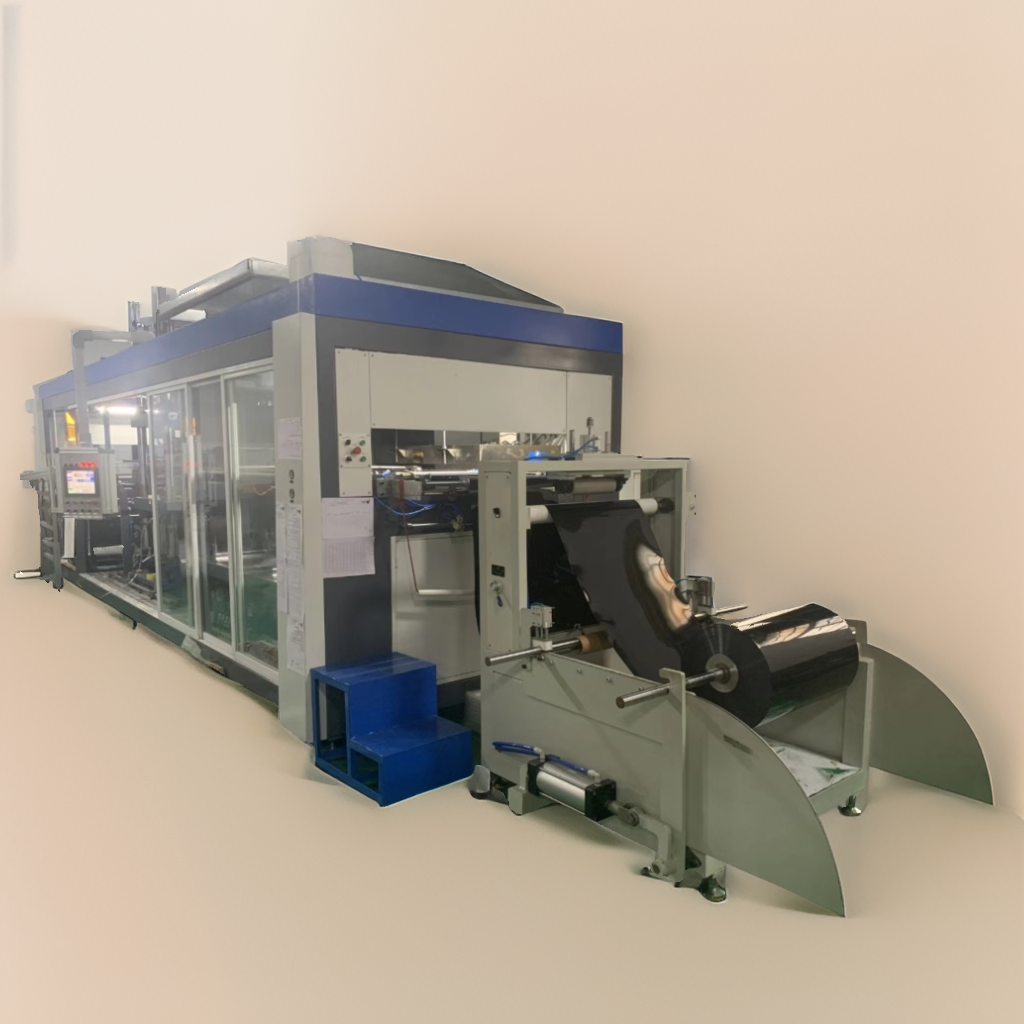

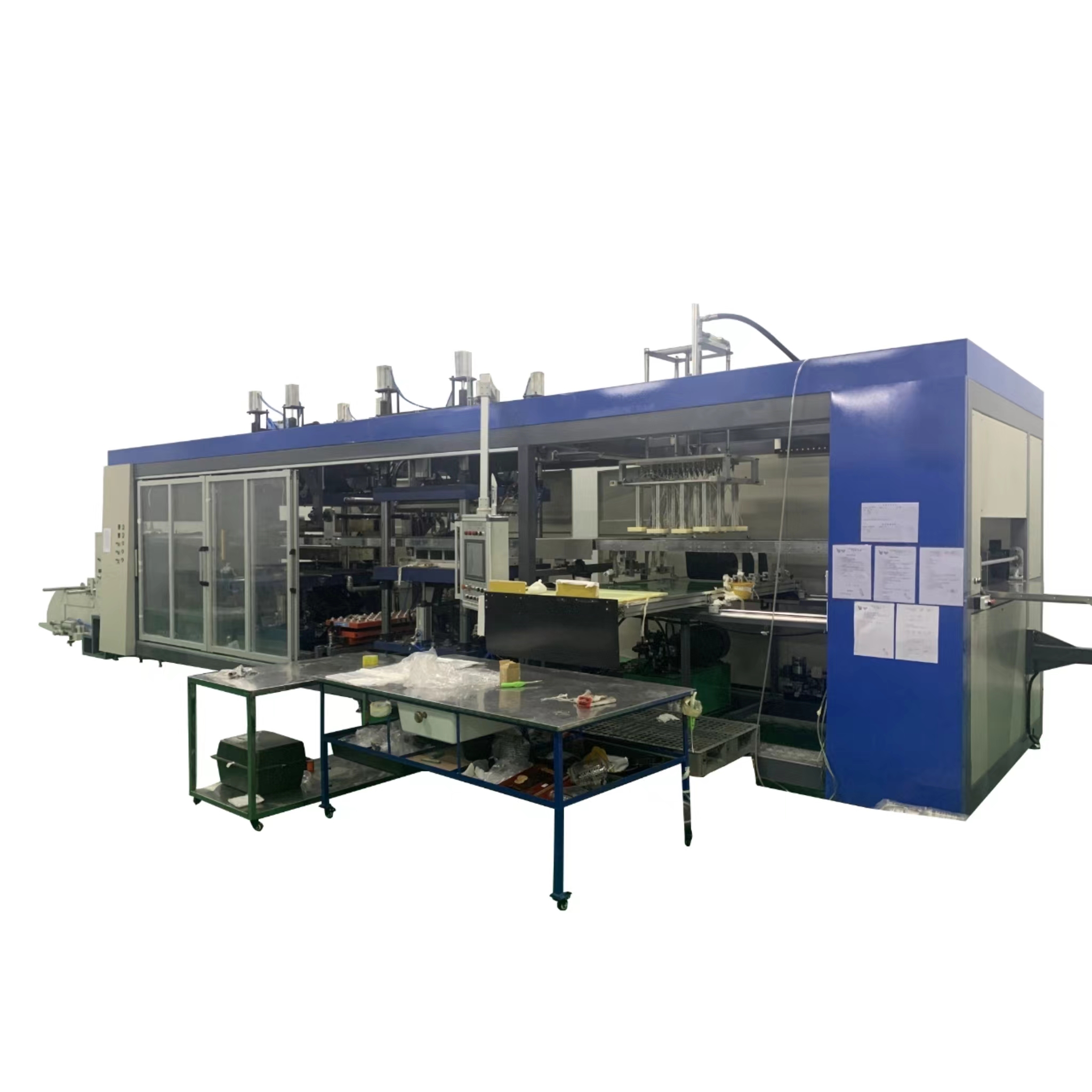

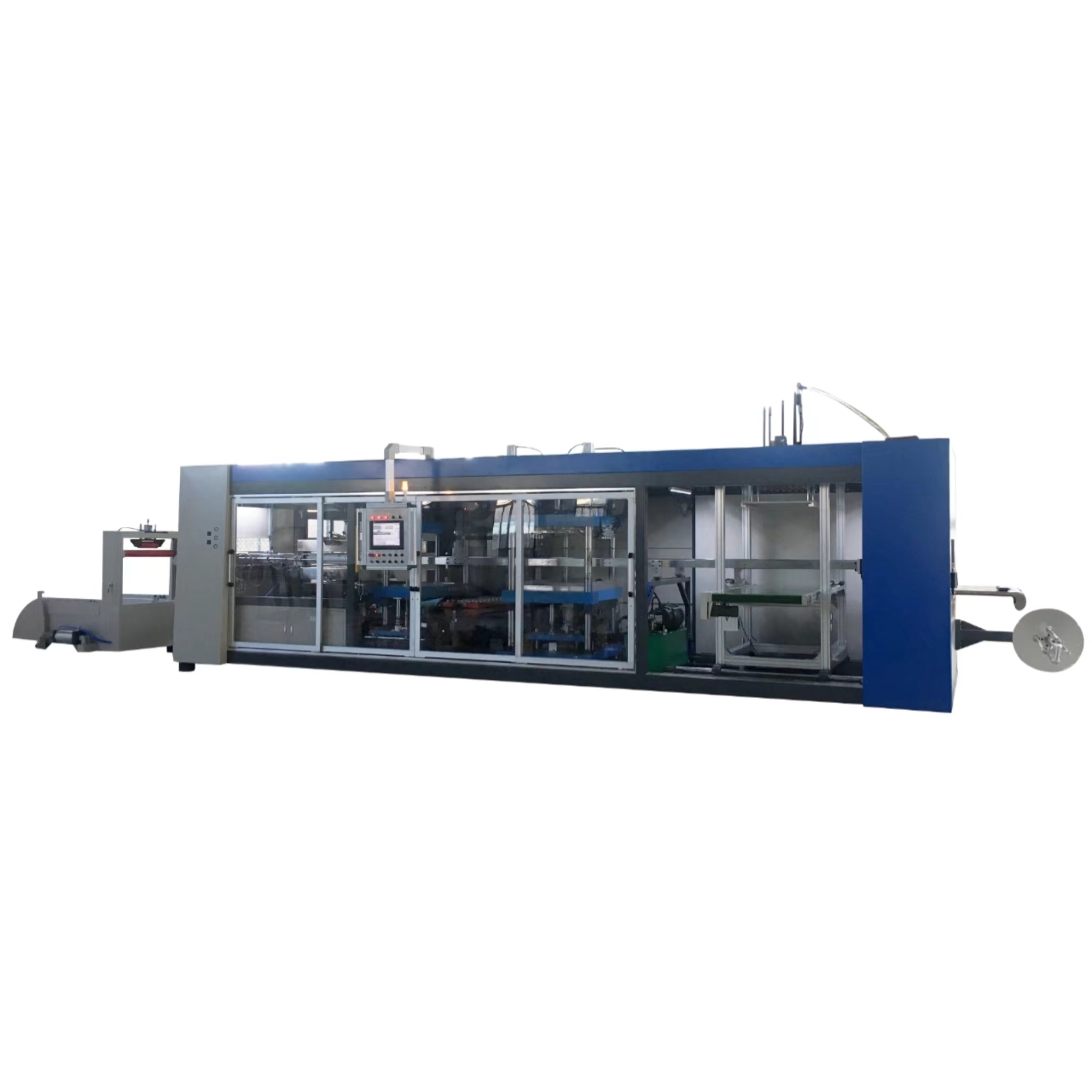

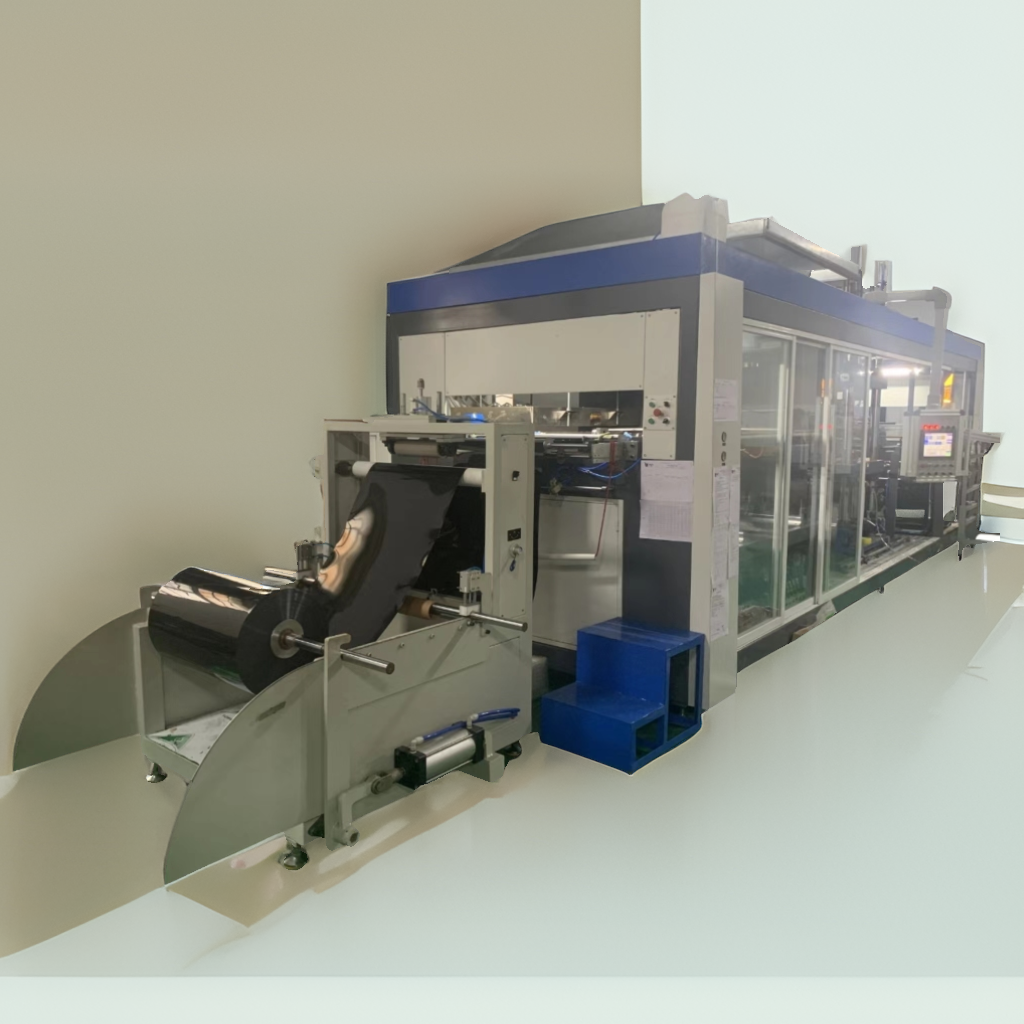

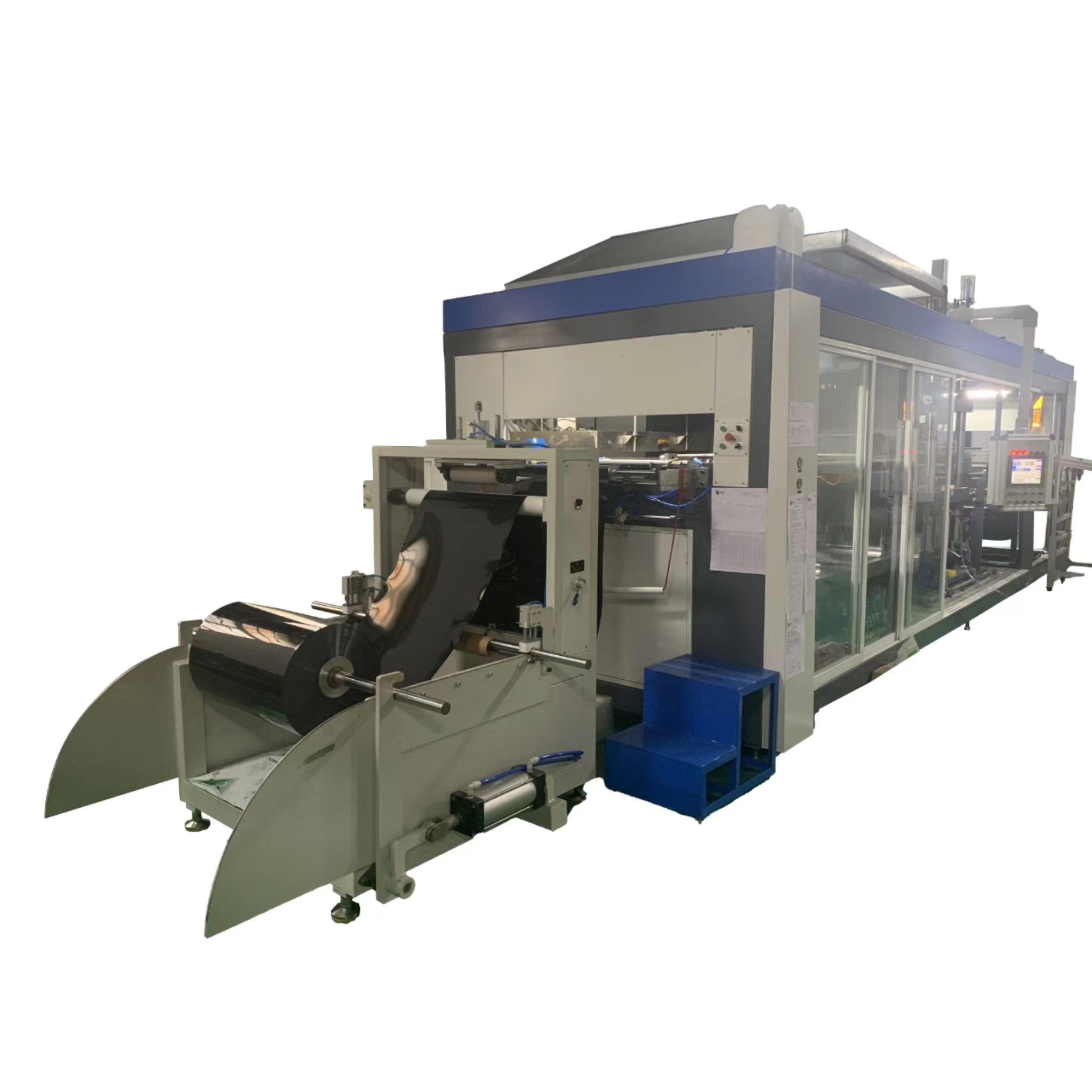

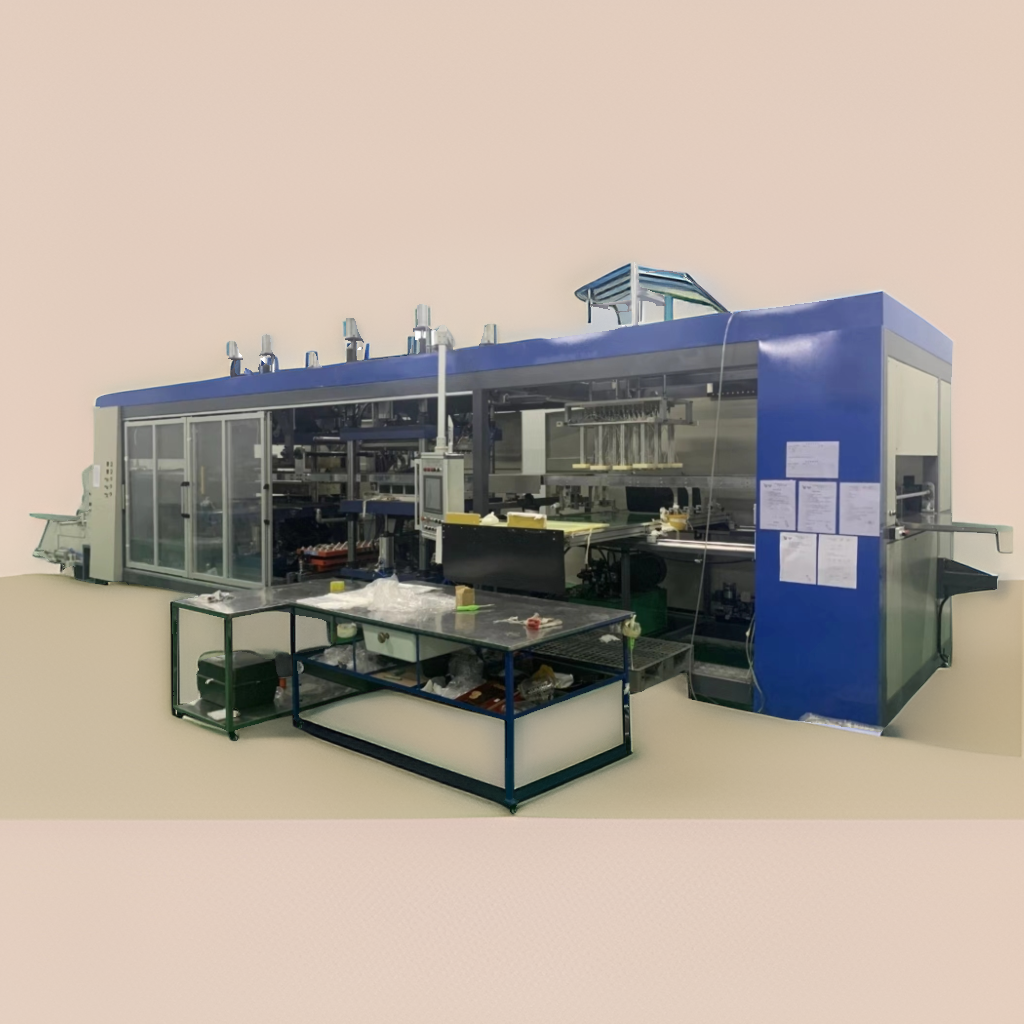

PD-FY600 Vacuum Forming Machine

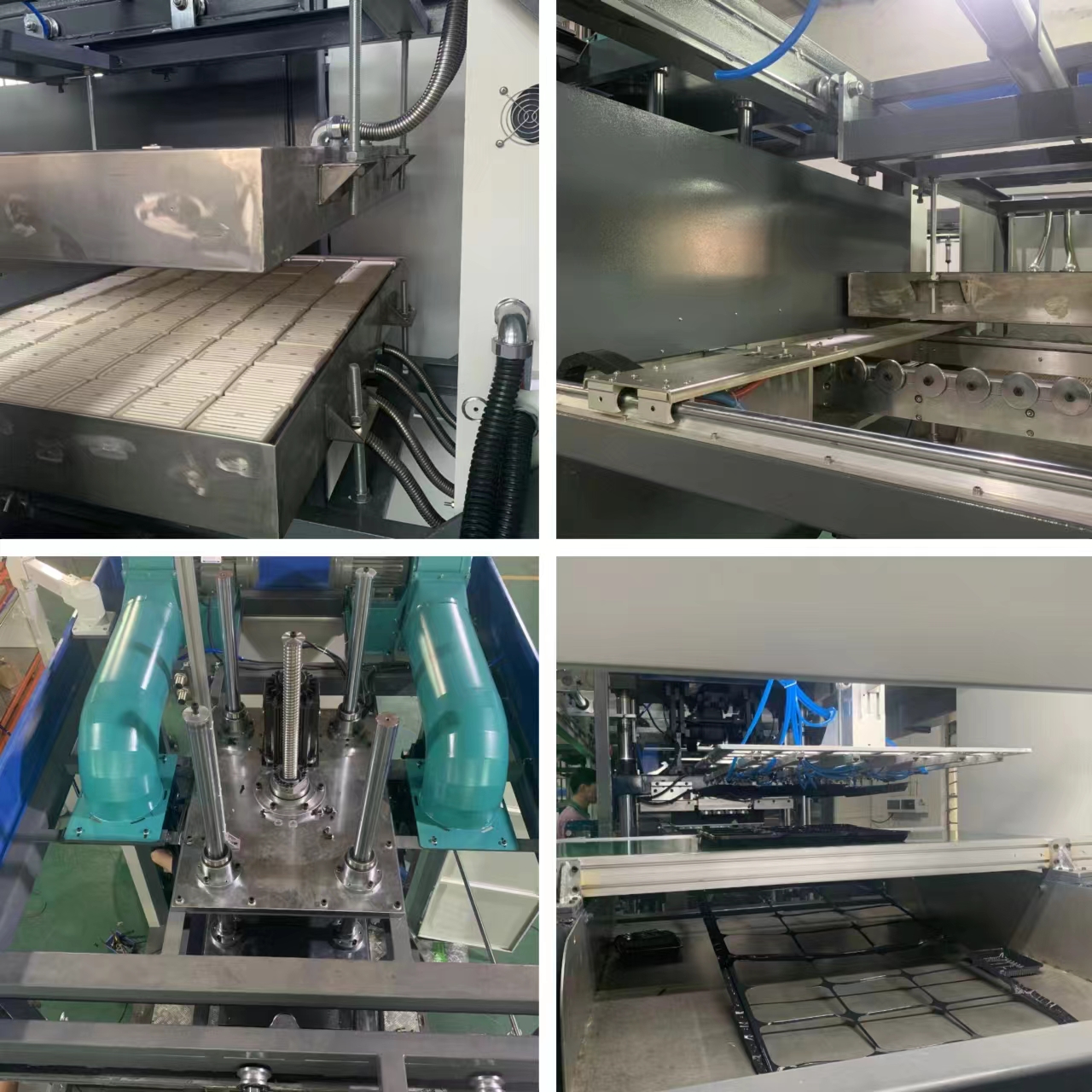

Detailed drawing of the machine

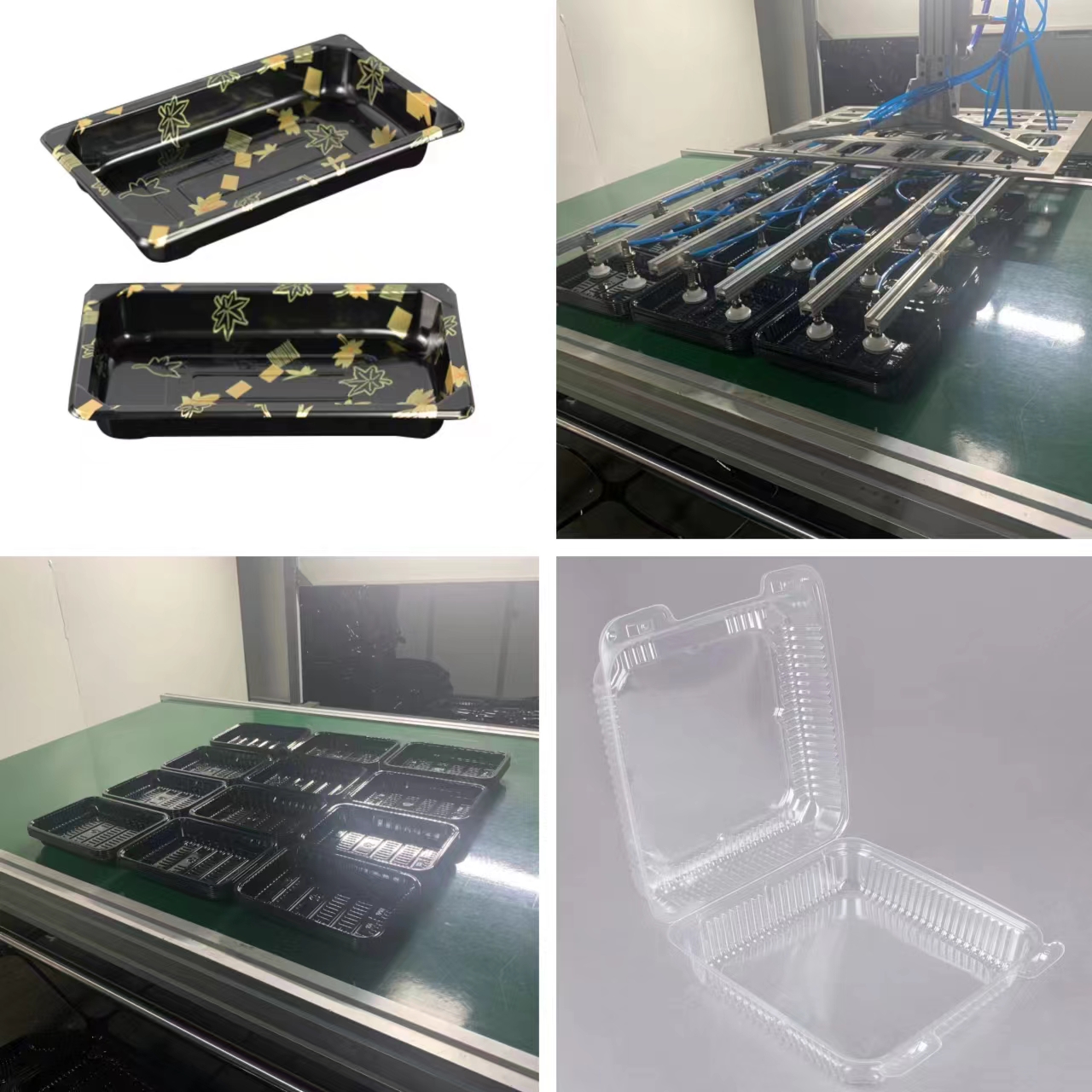

Use for below products
OUR EXPERTISE, YOUR ADVANTAGE
-
Professional Technical Team: 20 years of R&D and production experience, with rich experience in vacuum moulding technology.
-
Non-standard customised service: Provide one-stop service to provide customers with excellent complete vacuum forming solutions.
-
Quality assurance and reliability: All mechanical parts are produced independently by CNC machining centre.
-
Worry free after-sales service: Integration of installation, commissioning and training services.
Service Standards
Pre-sales Service
- According to the customer's products to provide customers with a reasonable program, plastic absorbing machine and peripheral equipment investment ratio.
- Provide the amount of water, electricity and gas needed for the production workshop.
- Provide reasonable workshop planning program.
- Provide the mold manufacturers and material manufacturers for plastic injection molding.
In-sales Service
- In order to improve the subsequent production efficiency of the customer, the customer's existing molds or re-development of the mold planning proposals.
- After the completion of the production of equipment, responsible for the installation, commissioning, training. And assist the operator to produce the ideal products.
- Provide good production suggestions to customers who have just entered the plastic absorbing industry, and reduce customers' production costs.
After-sales Service
- One year warranty for the whole equipment, and the parts can be exchanged for new ones within one year (except for man-made damages and wearing parts).
- Lifetime maintenance of the equipment, after the warranty period only charge the cost of materials, such as the need for door-to-door service only charge a reasonable travel expenses.
- For all the customers who have purchased our equipment, we will make after-sale visits from time to time.
We can customise any model according to your production requirements.
Frequently Asked Questions
What are the molding area capabilities of the PD-FY600?
The PD-FY600 vacuum forming machine has a maximum molding area of 900mm × 710mm and a minimum molding area of 450mm × 350mm, allowing for a wide range of product sizes.
What types of sheets and thicknesses can be processed?
The machine handles sheet widths ranging from 410mm to 940mm, and supports a molding thickness capability between 0.2mm and 2.0mm.
What cutting methods does the machine use?
The machine supports both Laser wood knife mold and Hardware Stamping Knife cutting systems, offering a maximum cutting force of 80T for clean and precise edges.
Which electrical and control brands are configured in this machine?
The system features reliable brand-name components, including a Delta (Taiwan) PLC, modules, and touchscreen, Schneider (France) low-voltage electronics, and OMRON (Japan) relays.
Do you support machine customization?
Yes, we provide non-standard customization services. We can develop a complete set of solutions and customize any machine model based on our clients' specific product and workshop designs.
What is your warranty and maintenance policy?
We offer a one-year warranty on the entire equipment with free parts replacement (excluding wearable parts and man-made damage), along with lifetime maintenance and training support.
