Products Description

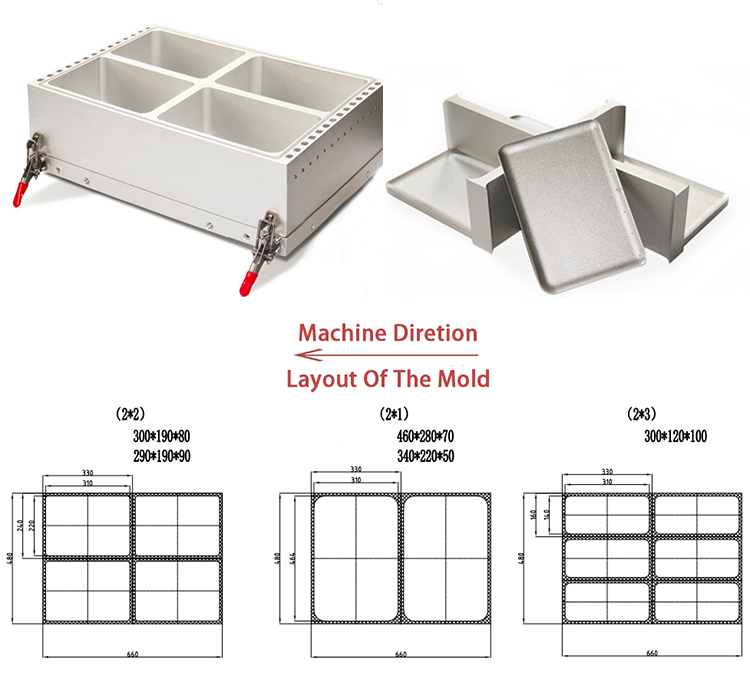

Custom & Flexible Mold Replacement:
One machine for vacuum packaging all specification products only need to change the mold, and we can custom the mold for you.
Working Principle:

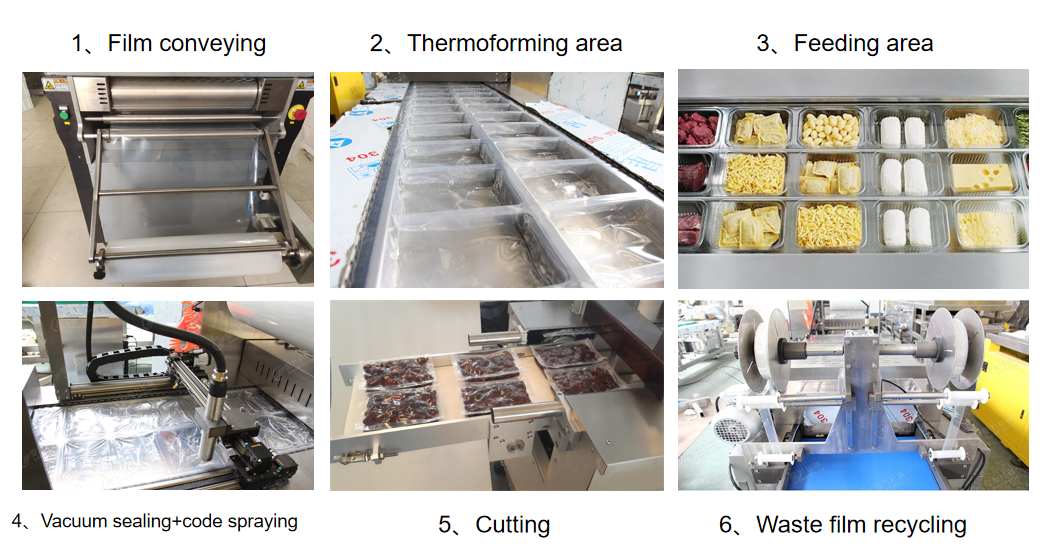

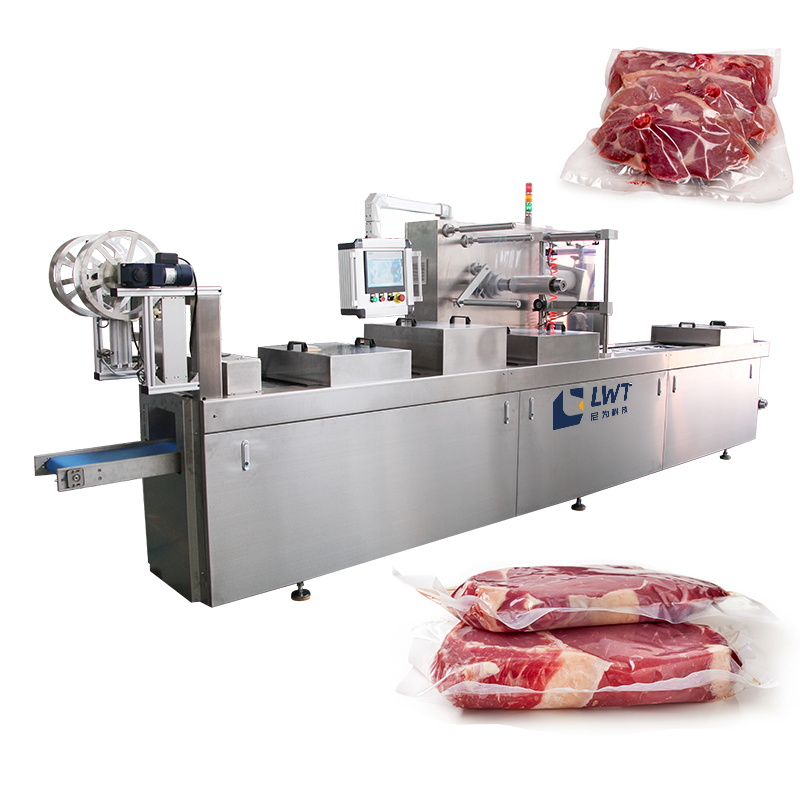

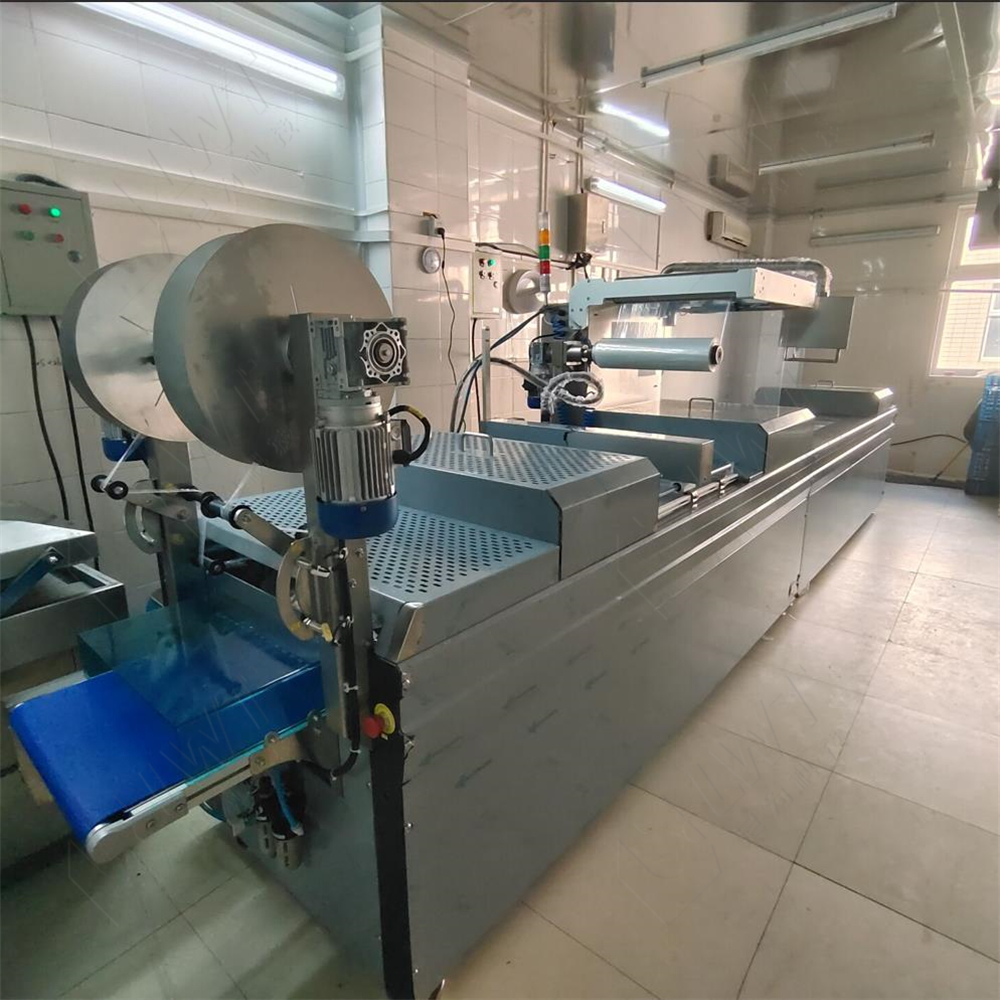

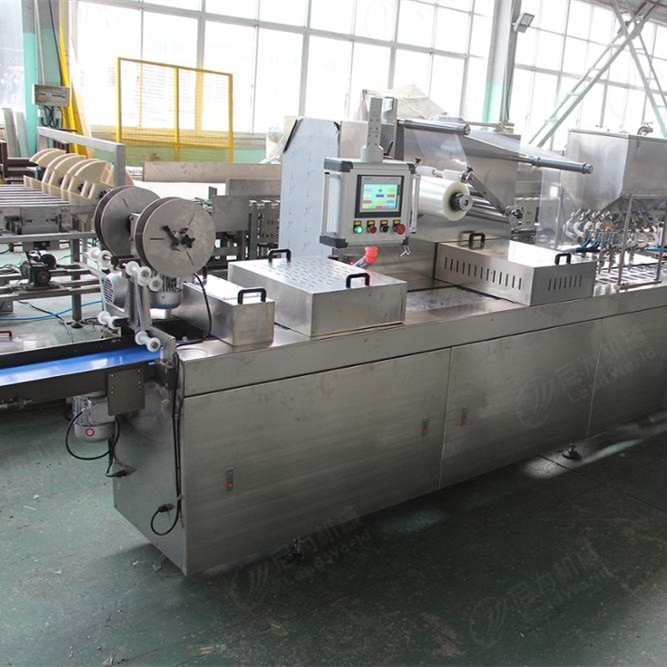

The automatic thermoforming & vacuum packing machine adopts stretchable and thermoplastic soft film or rigid sheet to form container, and vacuuming or MAP sealing and cutting after filling. It does not need to customize the packaging box in advance, and integrates the functions of film stretching, filling materials, vacuuming and air conditioning, heat sealing, and slitting. It has the characteristics of convenience, low energy consumption, short cycle, and high efficiency. Non-standard customized service is provided.
Technical Highlights & Components

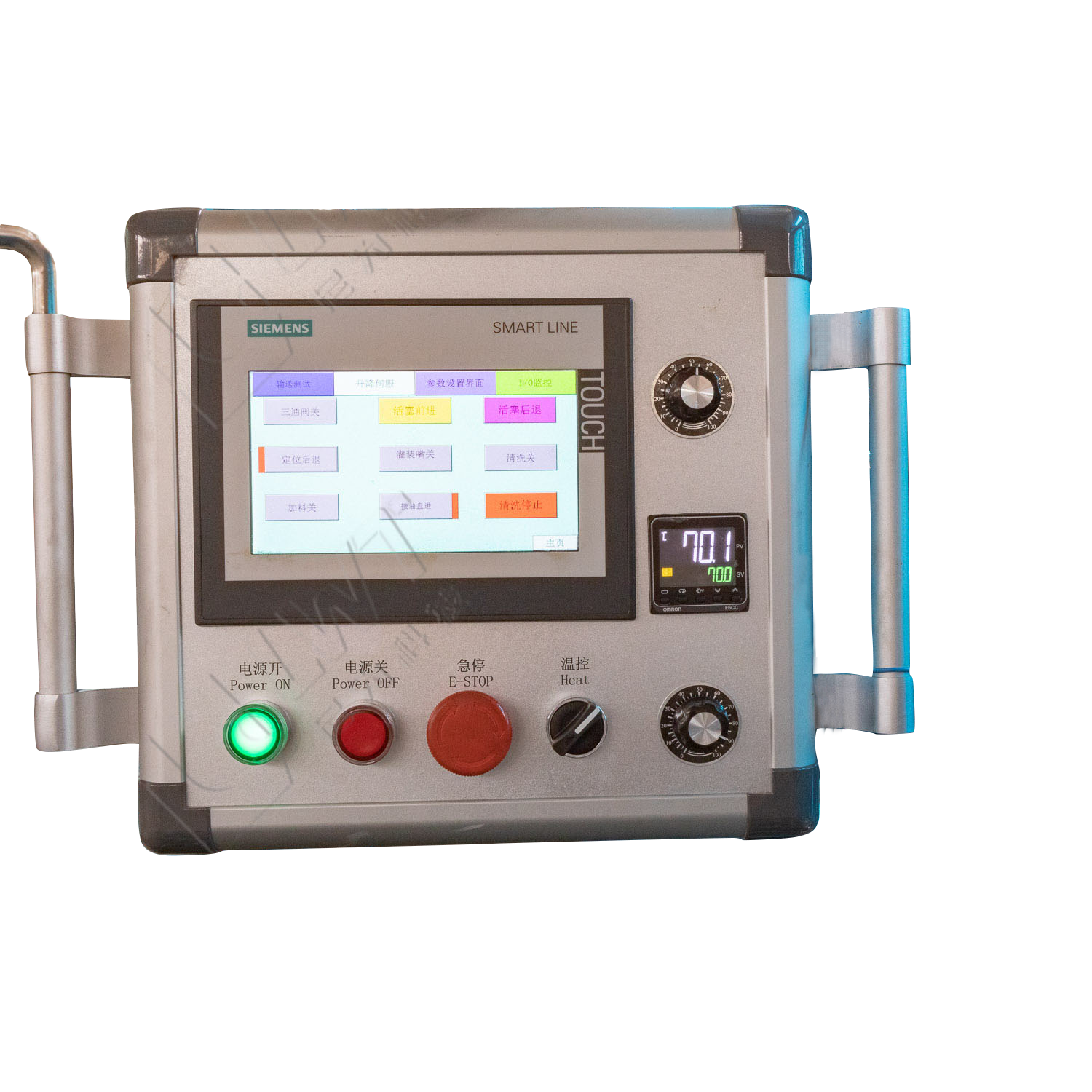

Siemens PLC
German Siemens programmable controller (PLC) and touch screen, simple to use, easy to operate.

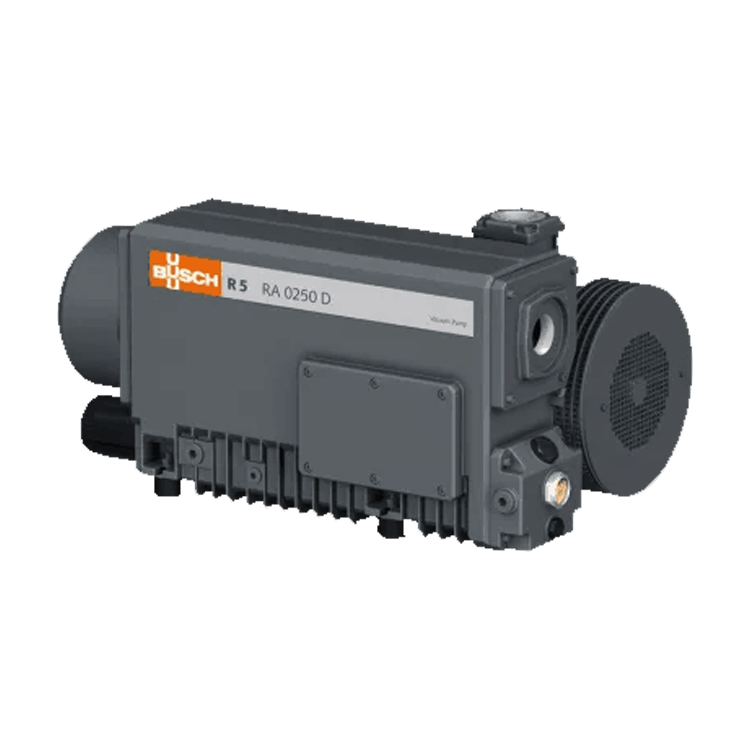

Germany BUSCH Vacuum Pump
The vacuum machine is equipped with the original BUSCH vacuum pump imported from Germany. Guarantees machine performance stability. High vacuum, stable quality, durable and reliable.

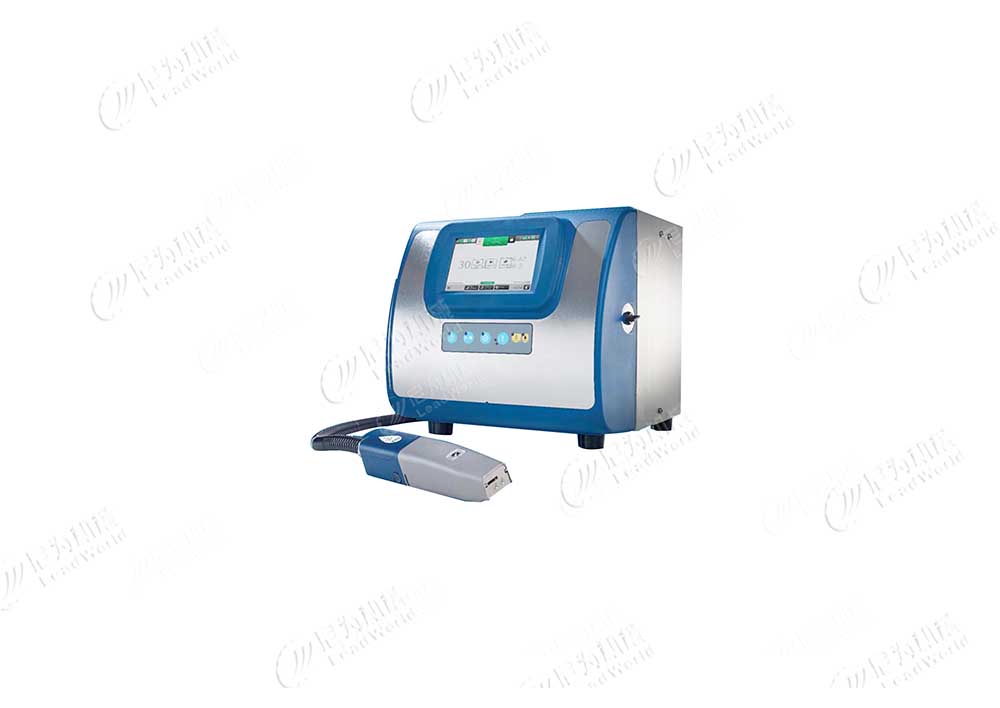

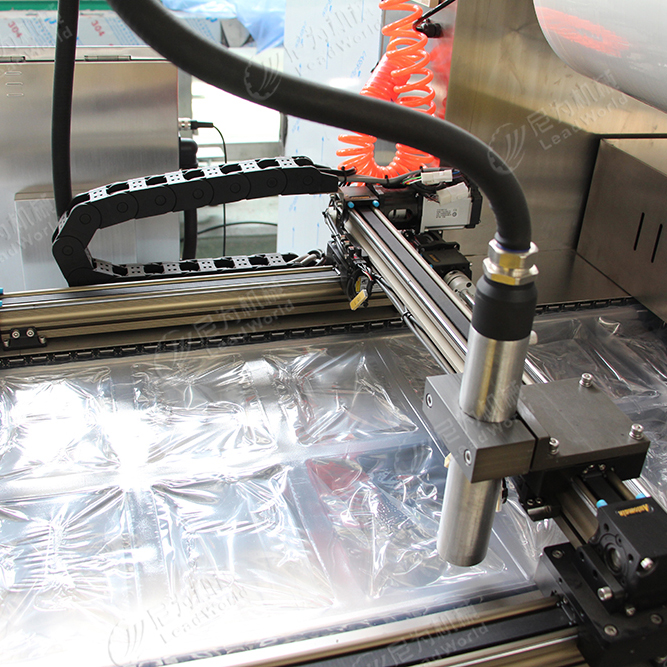

Ink-jet Printer
Customized according to customer needs.

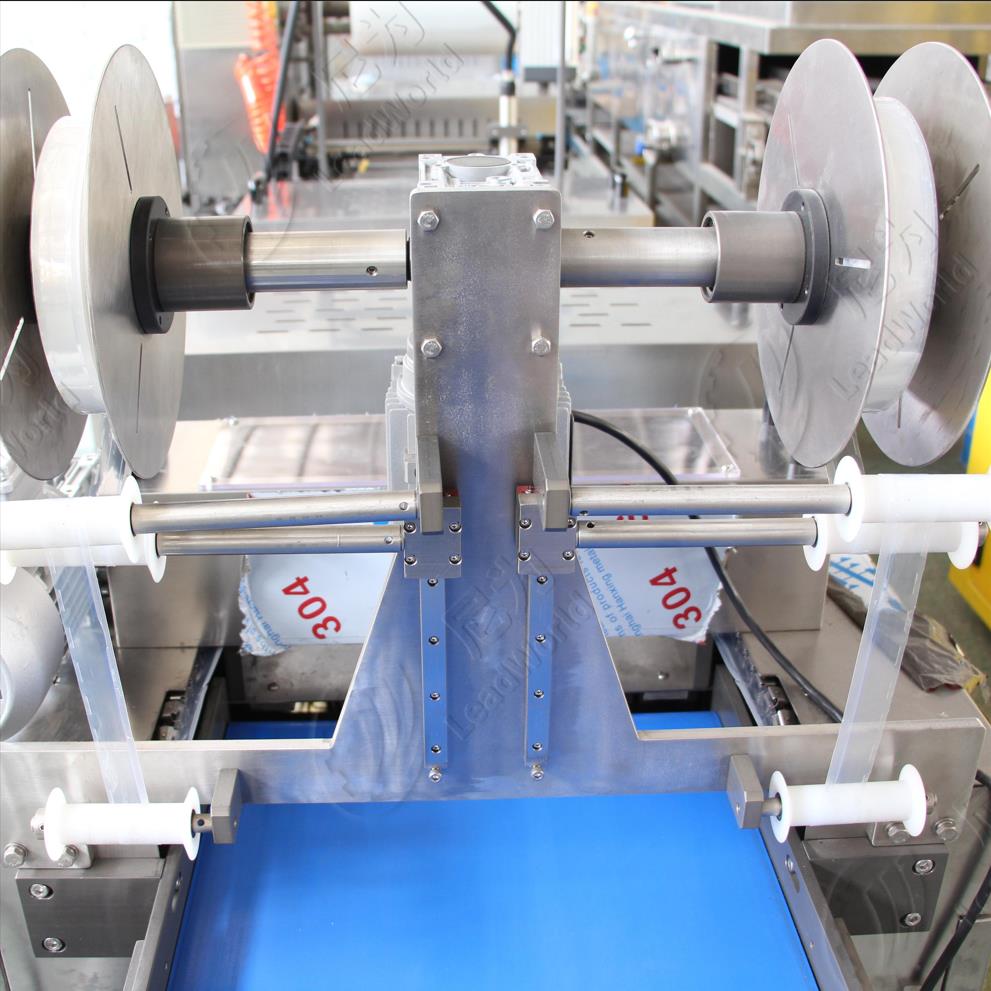

Green & Healthy Production
Corner waste recycling system for environmental sanitation.

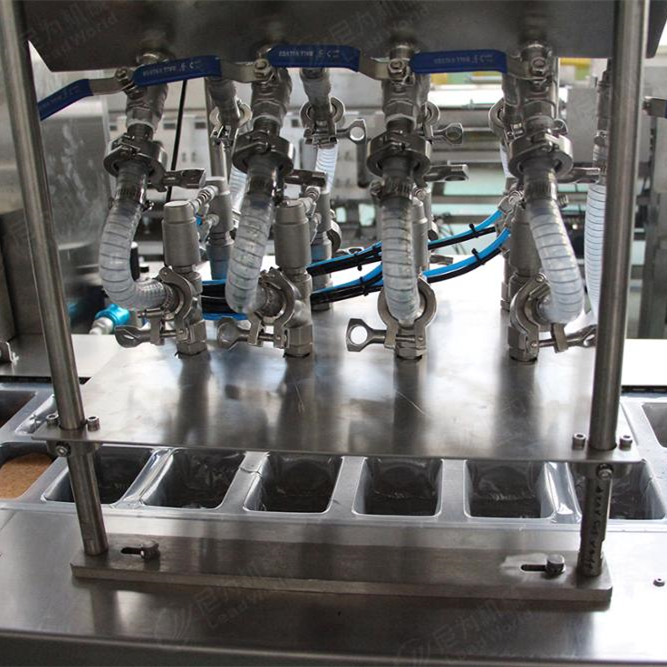

Liquid & Paste Automatic Feeding System
Integrated liquid and paste feeding support.

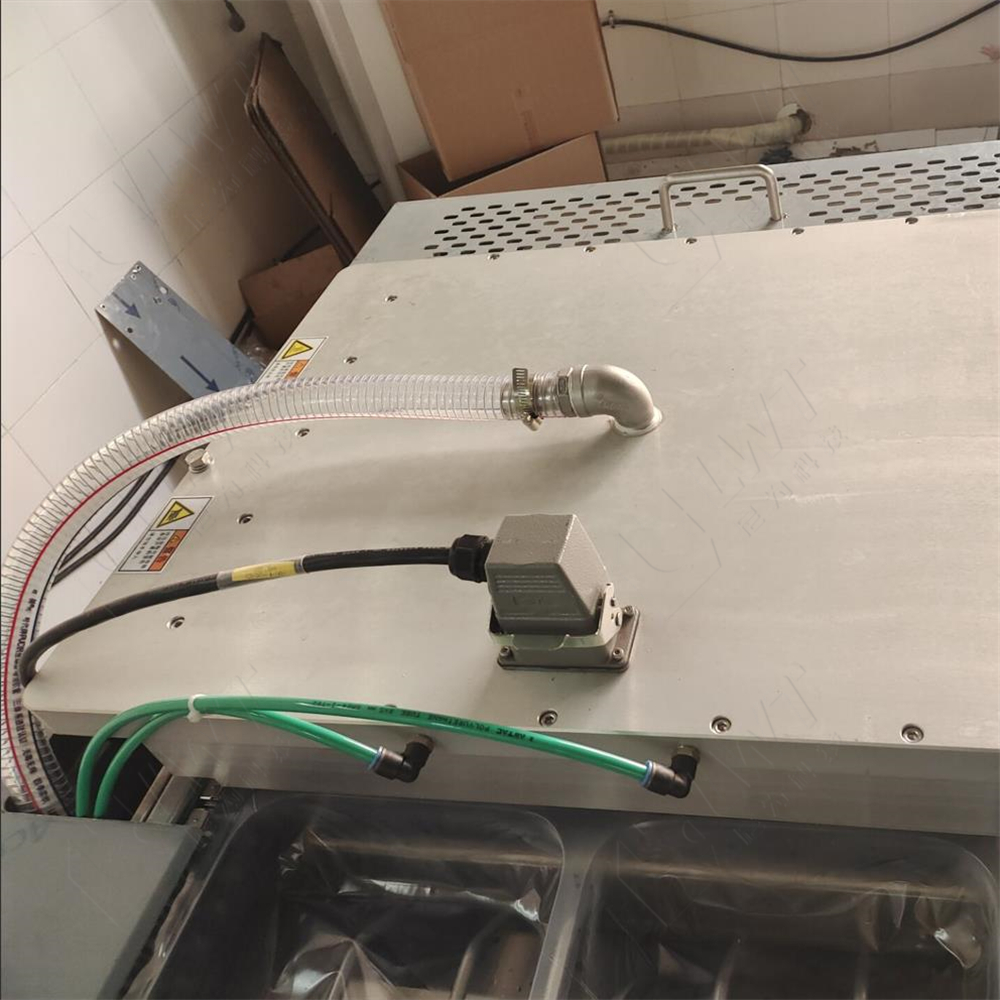

Gas Flushing System
Other mixed gases can be input while vacuuming to prolong the product preservation time.

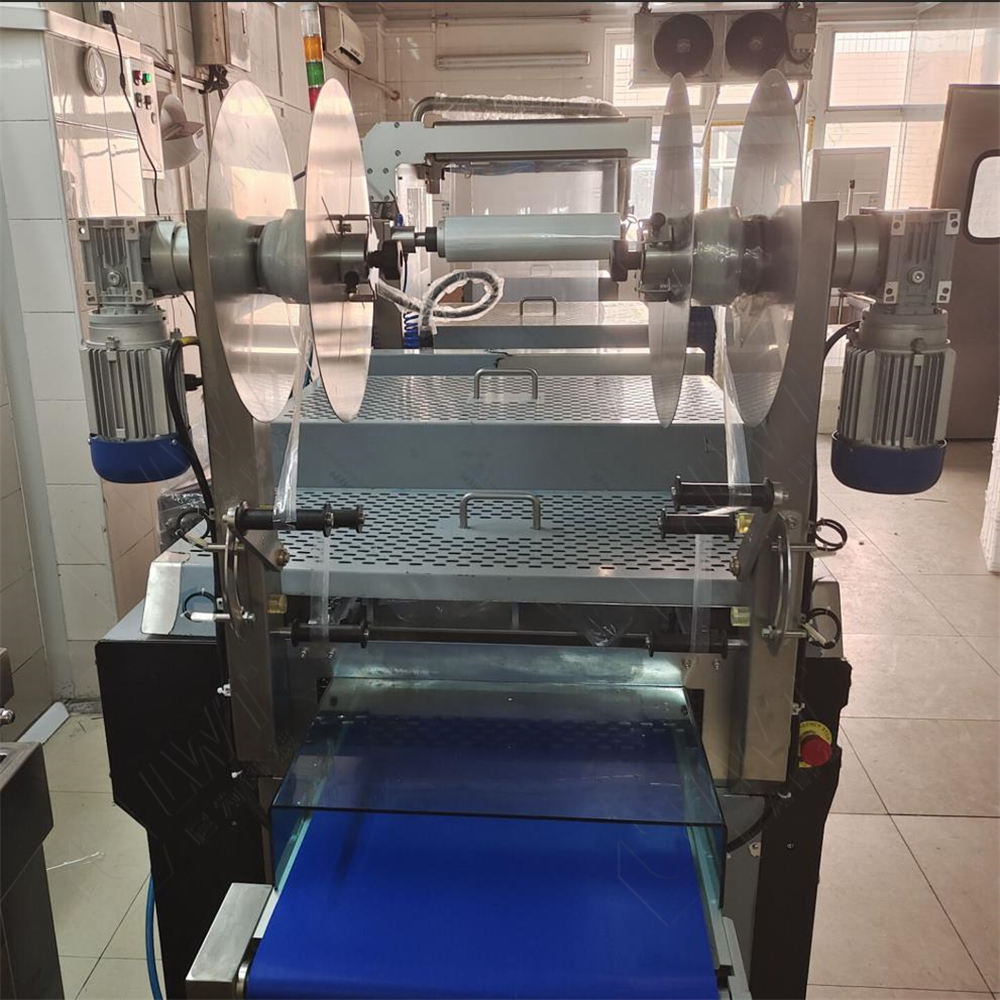

Conveyor Belt Discharge
Stable automatic discharge system.

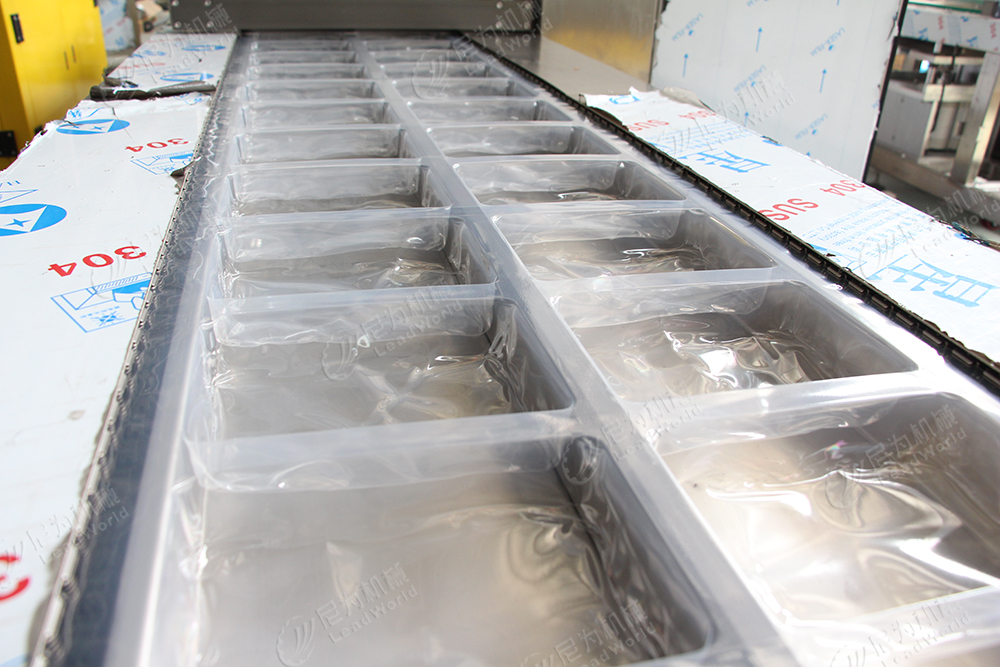

Neat Bottom Film
Neat and even bottom film formed by specially crafted molds.
Quality Assurance

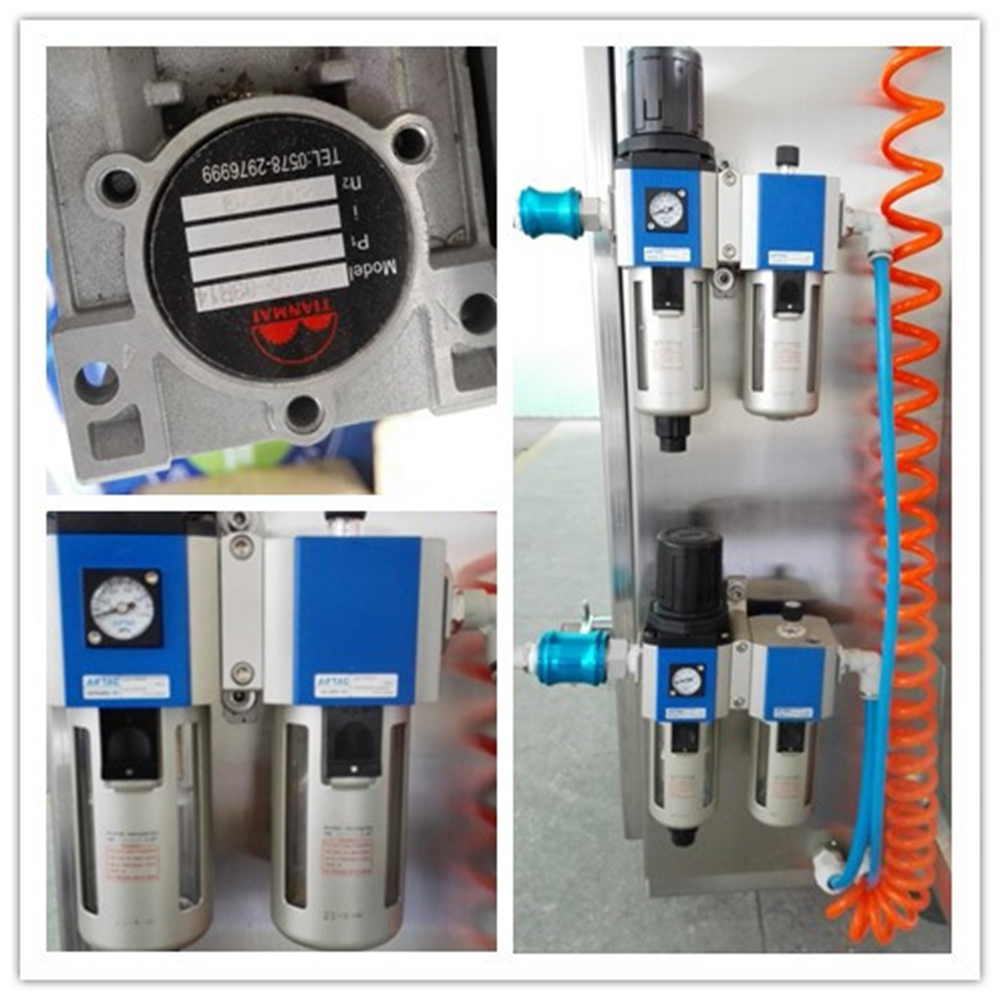

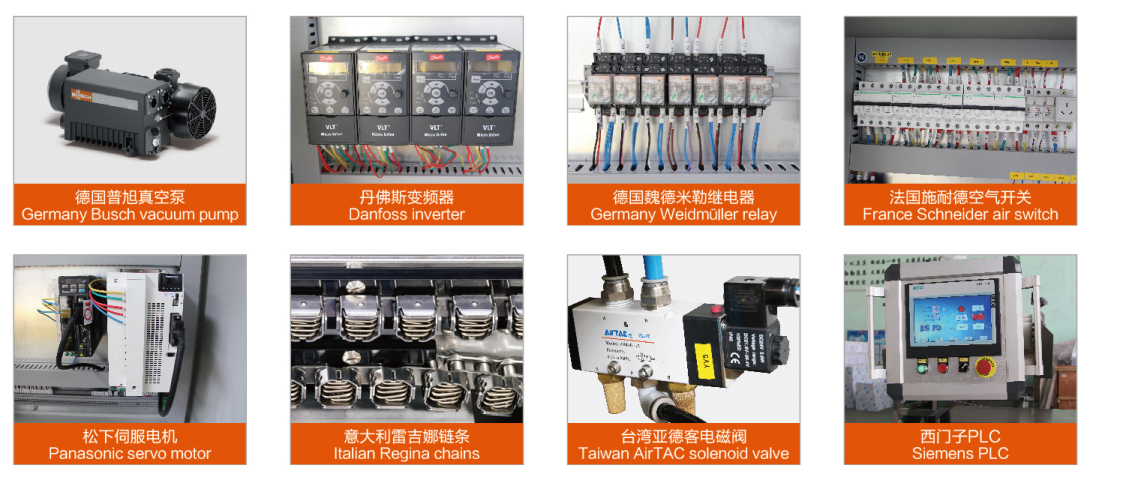

We adopt world-famous brand accessories, such as Germany Busch vacuum pump, Danfoss inverter, Germany Weidmuler relay, France Schneider air switch, Japanese Panasonic servo motor, Italian Regina chains, Taiwan AirTAC solenoid valve, Siemens PLC, and so on.
Product Parameters
| Model Parameter |
S/D320 |
S/D420 |
S/D520 |
| Packing Speed |
4-8 Cycles/Min |
| Bottom film Thickness |
≤0.8mm |
| Bottom film Width |
322mm |
422mm |
522mm |
| Top Film Width |
285mm |
385mm |
485mm |
| Max. Forming Size |
300X400mm |
400X400mm |
500X400mm |
| Max. Forming Depth |
80mm |
| Power Supply |
AC 380V 50Hz (3Phase) |
| Air Consumption |
500L/Min |
550L/Min |
650L/Min |
| Air Supply |
≥0.6Mpa |
| Loading Area Length |
≥1.5m |
| Power |
10kw |
12kw |
15kw |
| Dimension |
4500X1000X1700mm |
5200X1100X1760mm |
6000X1200X1760mm |
| Weight |
1300kg |
1600kg |
2200kg |
Custom Optional Function

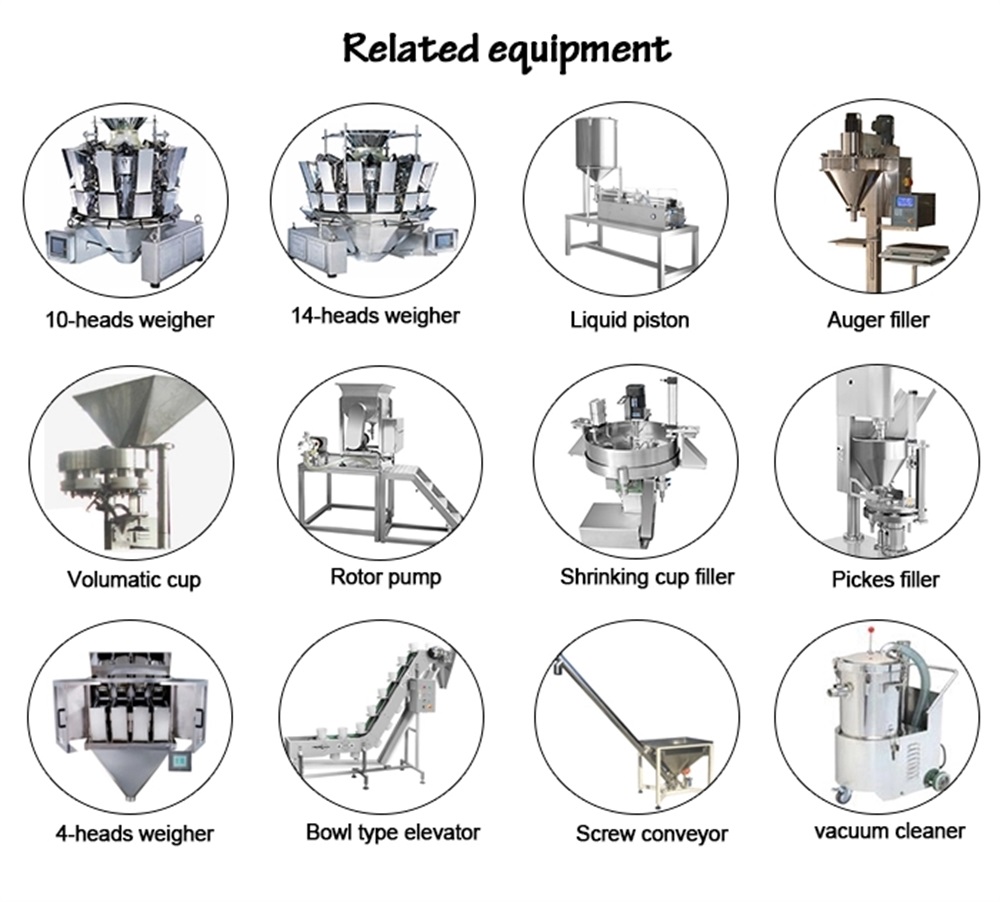

According to the user’s packaging requirements, it can be equipped with automatic code spraying, code printing, laser code spraying labeling machine, Z model elevator, automatic feeding, and other systems.
Success Cases
Our Thermoforming Vacuum Packaging Machines have been successfully applied across various food packaging industries:
Corn Kernels Packing
Date Palm Packing
Cod Sausage Packing
Fish Packing
Frozen Eggplant Packing
Beef Steak Packing
Service and Support Process
Pre-sales Support:
According to client-specific machinery or automatic product line requirements, we supply reasonable machine sketch maps, quotations, and reference videos.
During Sales:
1) Customization based on standard machines depending on client needs.
2) 20 hours of continuous testing for equipment operation stability.
3) Strict execution of GMP certification for equipment and materials used in the production process.
After-Sales Service:
1. We support senior engineers to provide one-on-one video guidance. In other instances, we assign professional engineers to customer sites for installation or maintenance services according to client requirements.
2. Systematic operation training for operators.
3. All equipment (except human factors) is guaranteed for one year with lifetime maintenance services.
4. Detailed refurbishment programs, hardware/software upgrades can be provided to extend machine service life for an additional 3-4 years.
5. Prompt technical support and timely wear part supply are guaranteed if quality problems arise.
Frequently Asked Questions
Q1
Are you a manufacturer or a trading company?
We are a manufacturer and we have our own professional R&D and production team.
Q2
What are your main products?
We specialize in packaging machinery and full-line end-of-line production packaging configurations.
Q3
How do you guarantee the quality of your equipment?
We use strict procedures, run thorough test cycles before shipping, use world-renowned electrical and pneumatic components (such as Siemens, Panasonic), and all our machines are CE certified.
Q4
Can you custom design the machine according to specific requirements?
Yes, we can customize machines according to customer technical drawings, requirements, and product configurations.
Q5
Do you offer overseas technical support?
Yes, we provide online video support and can also dispatch engineers for installation and on-site staff training.
Q6
How does the mold replacement system work for vacuum packaging?
Our system is designed for flexibility. To pack products with different specifications on a single machine, you only need to swap the custom mold, which optimizes production setup times.
