📋 Product Description

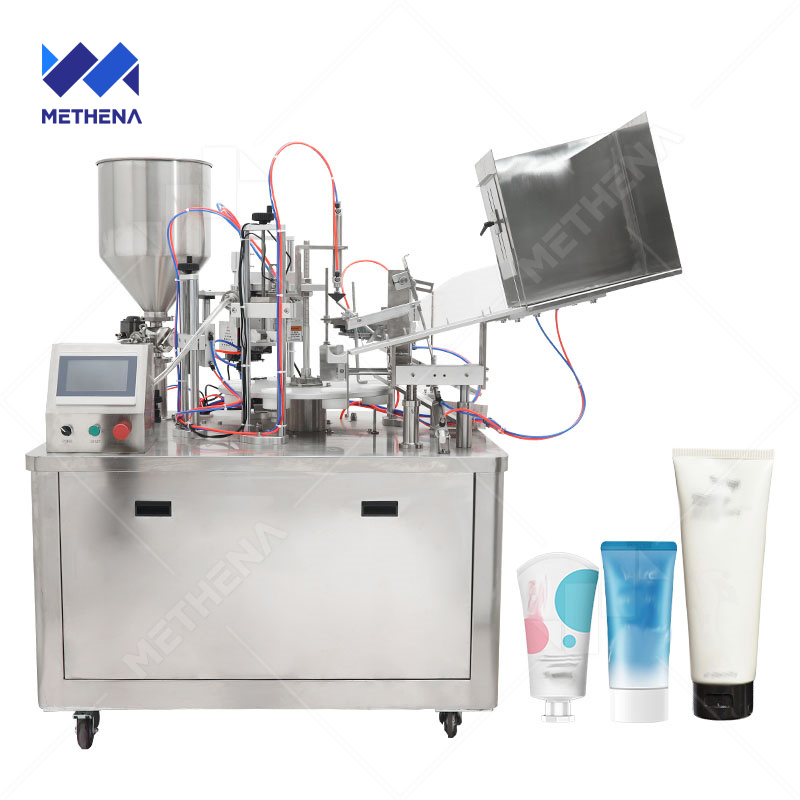

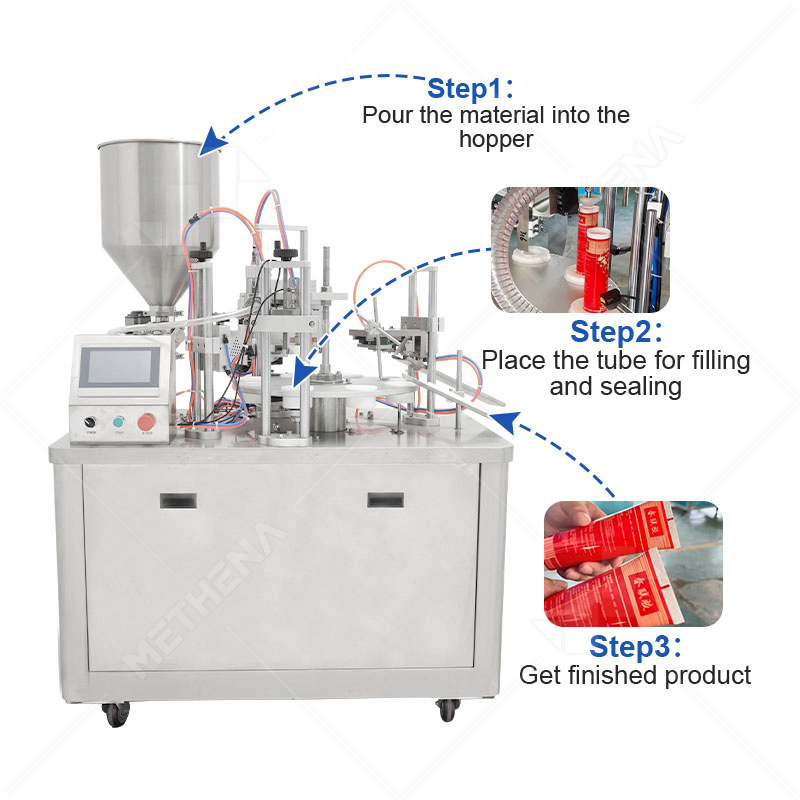

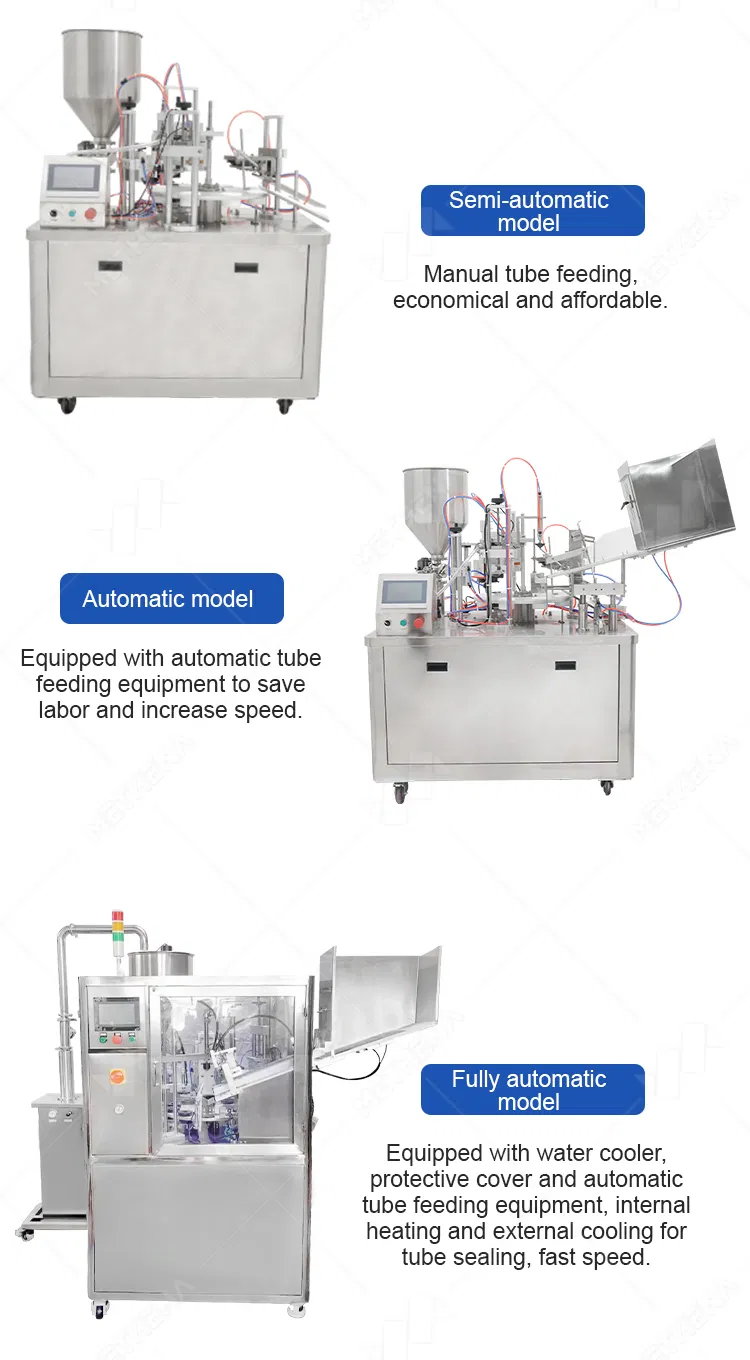

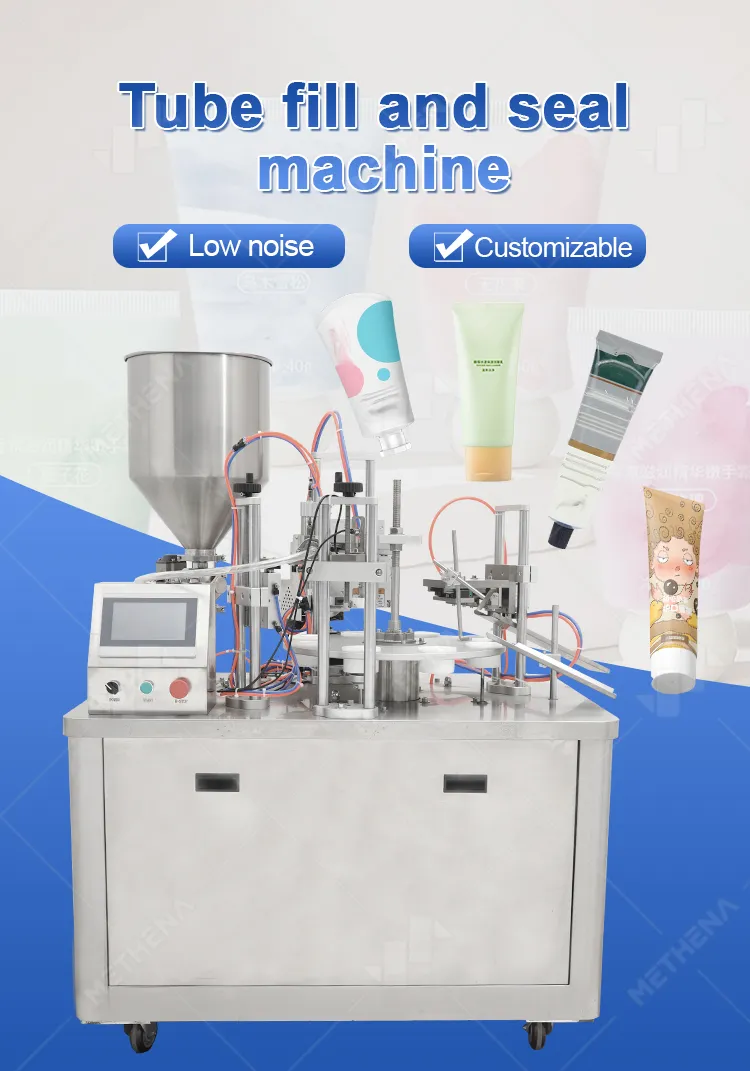

The ultrasonic tube filling sealing machine is a high-quality, high-performance filling and sealing packaging machine for liquid and paste containers. The machine adopts manual tube placing (semi-automatic model) or is equipped with automatic tube placing equipment to automatically place tubes (automatic model, fully automatic model), automatic color mark detection, automatic filling, automatic tail sealing, automatic cutter, and automatic output of finished products. The overall operation of the machine is simple and perfect, helping enterprises to improve production efficiency and reduce labor intensity. It is the first choice equipment to improve packaging quality.
Application Industries:
✔ Daily Chemical Industry
✔ Food Industry
✔ Cosmetics Industry
✔ Pharmaceutical Industry
🚀 Product Advantages

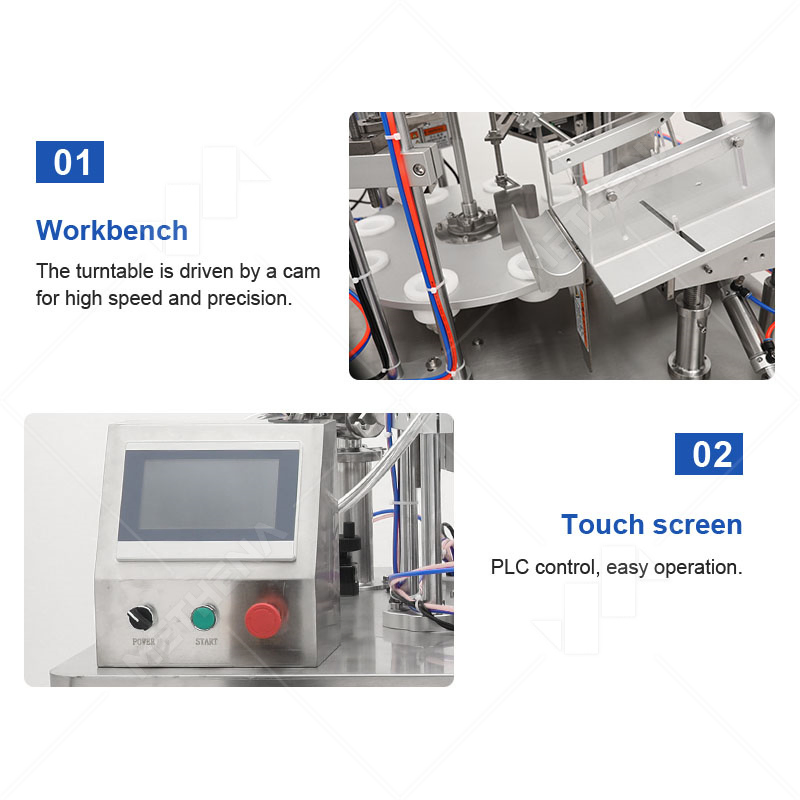

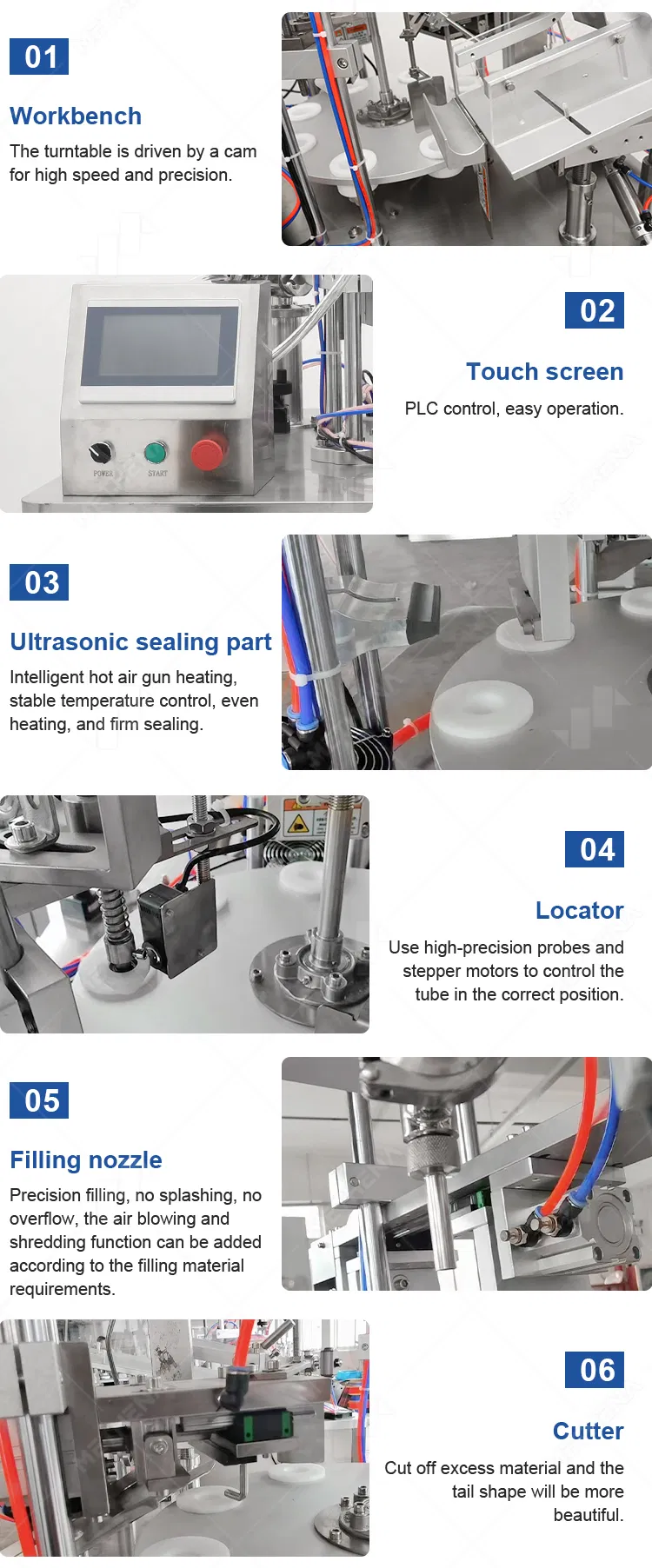

01. PLC control, intuitive and easy to operate, precisely filling and sealing.
02. Frequency control, production speed arbitrary regulation, automatic counting.
03. Automatic stop function: if no bottle is detected, the machine will not fill.
04. Disc positioning filling, stable and reliable performance.

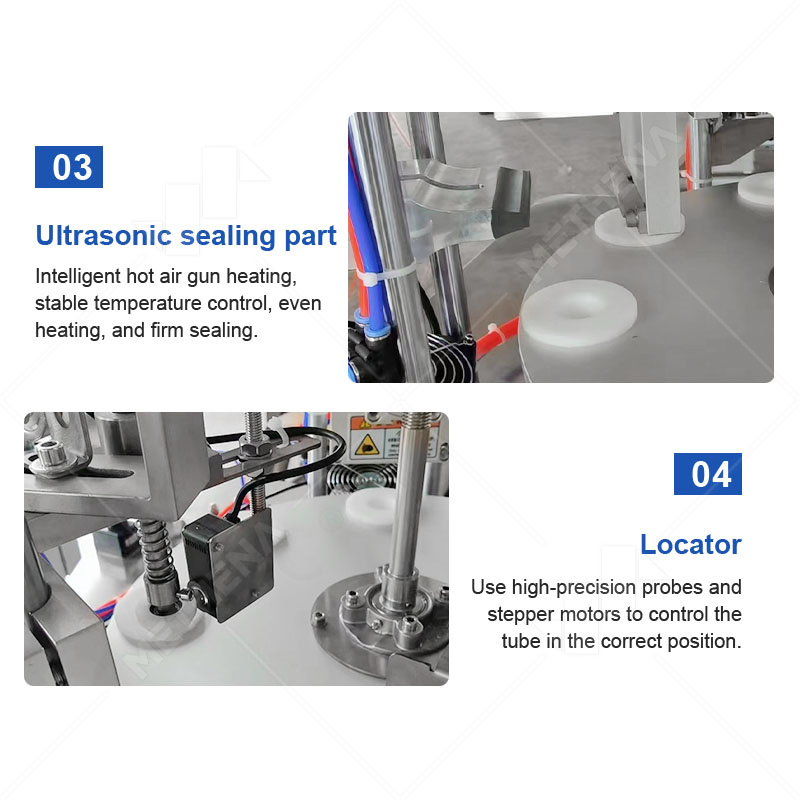

05. High precision cam indexing control for precise positioning.

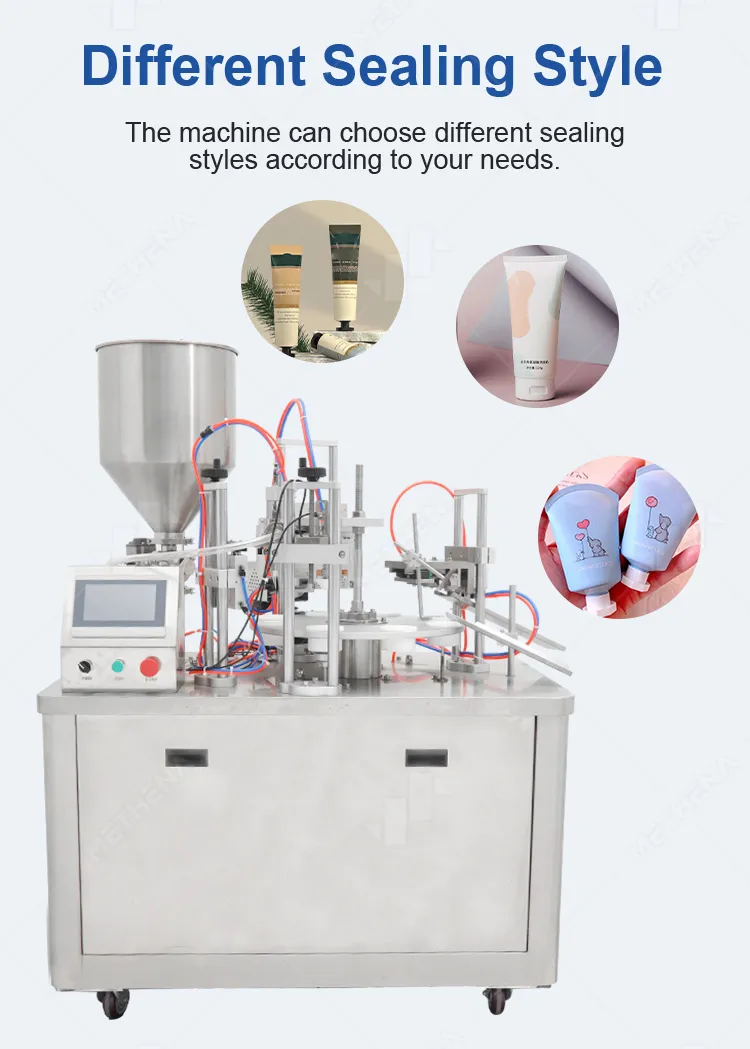

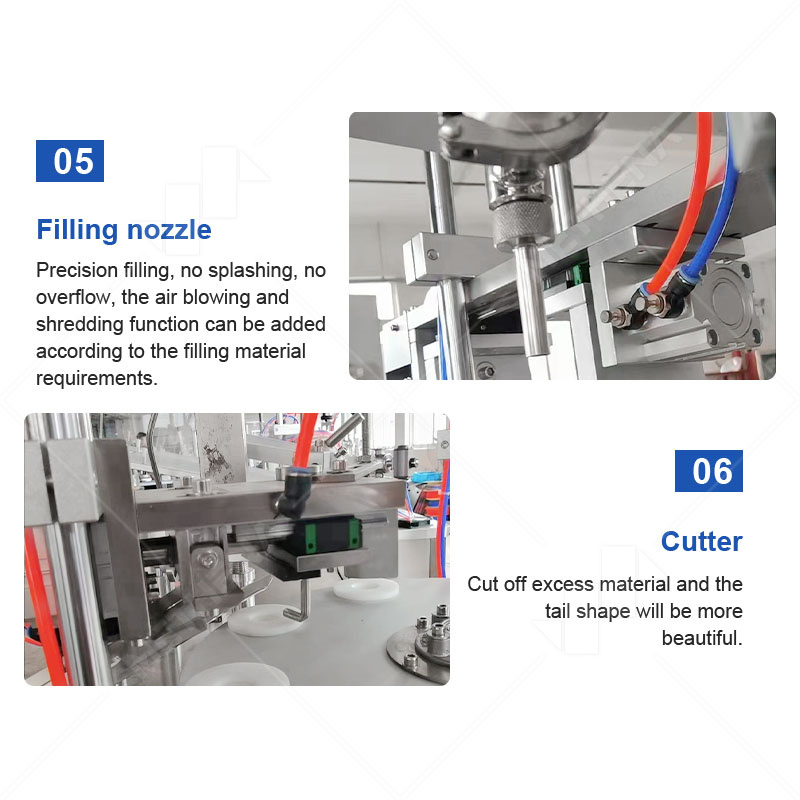

06. Tail end shear options: flat shear and curved shear designs available.
07. Burr-free and flat cutting area, meeting high aesthetic packaging requirements.
⚙️ Product Parameters
| Tube Material | Plastic Tube / Composite Tube |
| Voltage | 110V/220V, 50/60Hz |
| Motor Power | 0.75KW |
| Total Power | 1500W |
| Air Compressor Required | 0.55-0.65MPA / ≥3kw 100L |
| Filling Accuracy | ≤±1% |
| Filling Speed | 600-2000 BPH |
| Filling Range | 5-50ml / 50-250ml |
| Bottle Diameter | φ15-φ50mm |
| Bottle Height | 60-220mm |
| Printing Size | 2*3mm |
| Machine Weight | 390KG |
| Machine Dimensions | 1180*1020*1620mm |

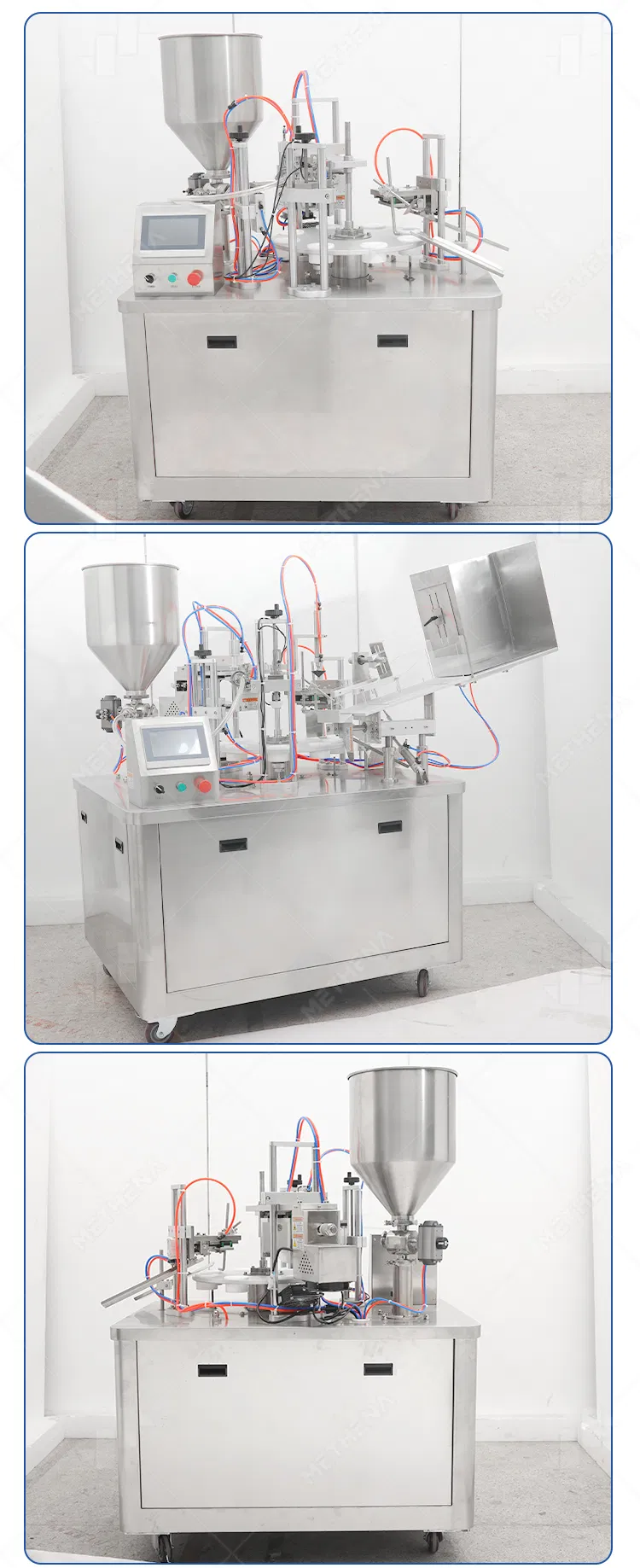

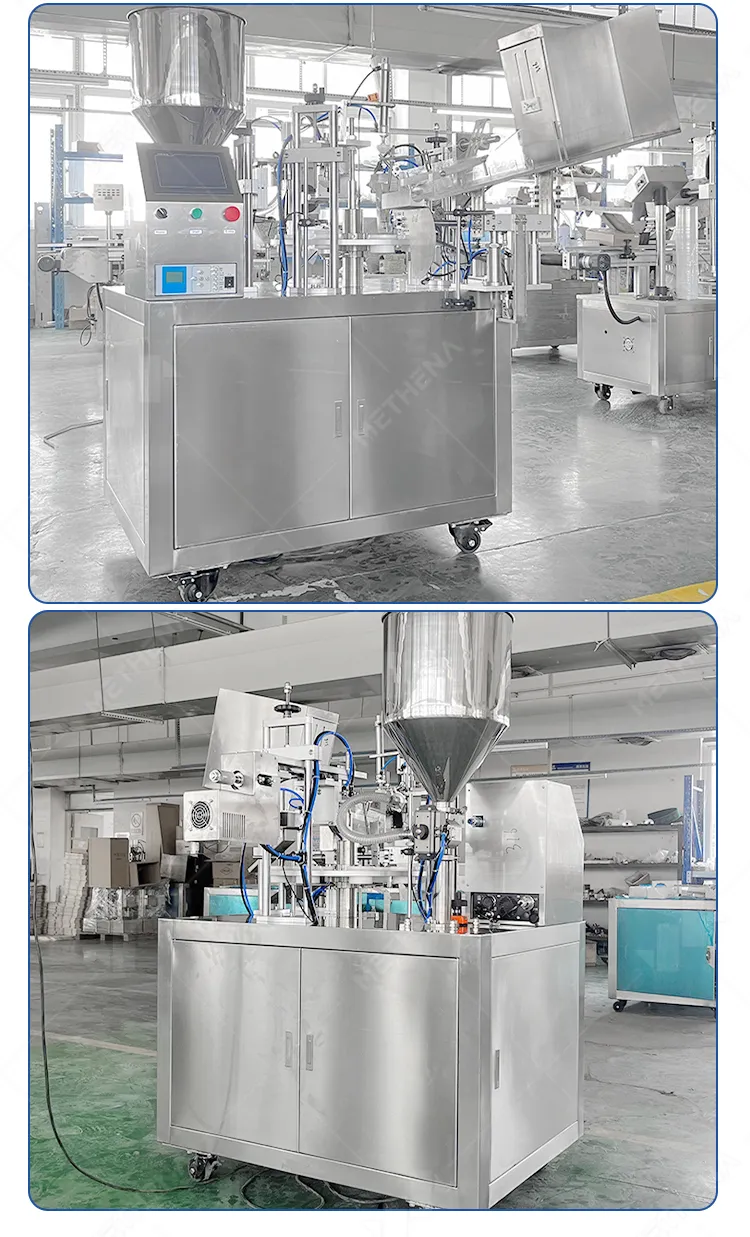

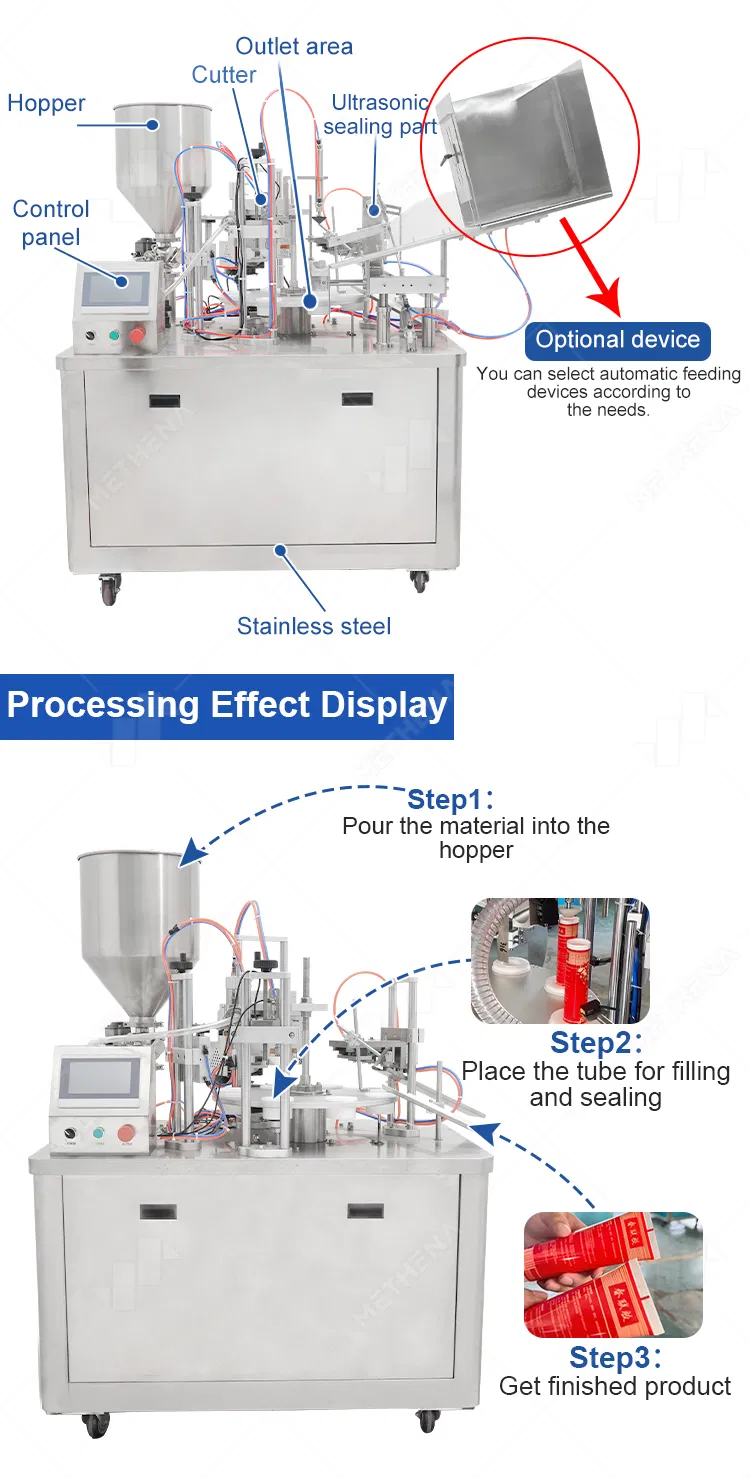

🖼️ Visual Display

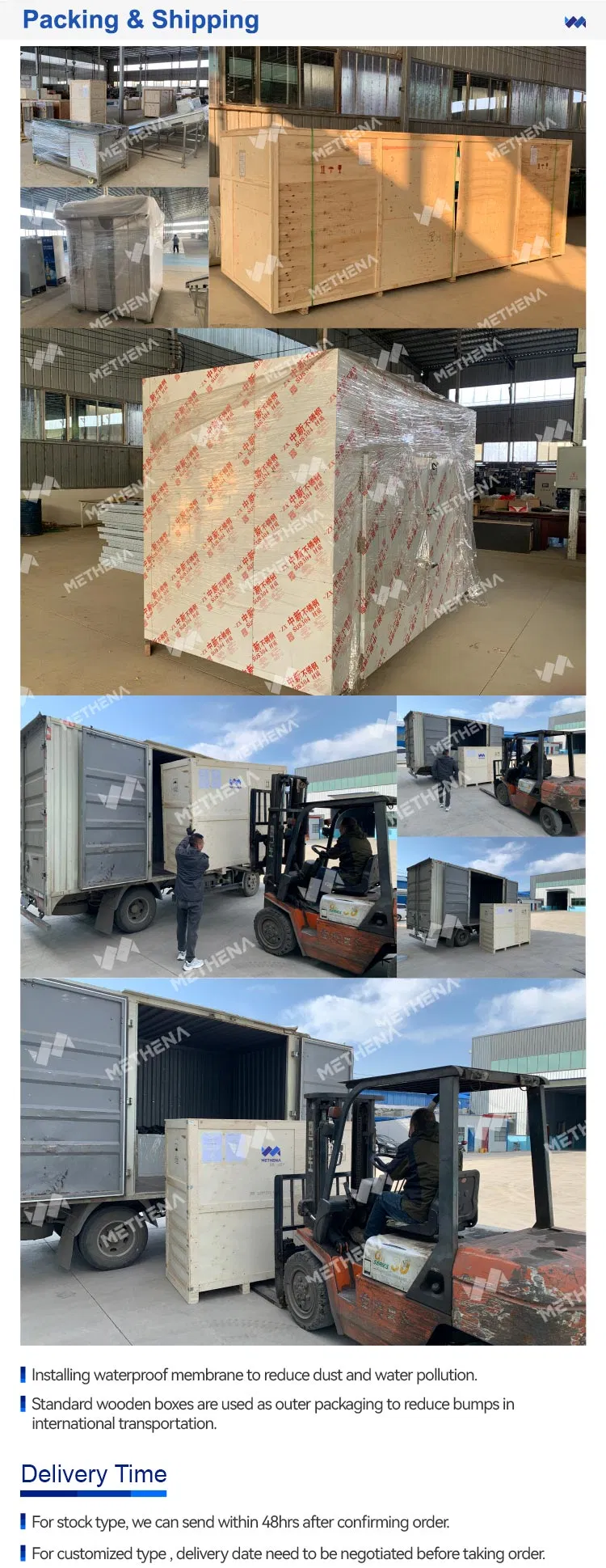

🏢 Production Workshop
❓ Frequently Asked Questions
Q1: What types of tubes are compatible with this machine?
It works with plastic tubes and composite tubes widely used in cosmetics, pharmaceuticals, food, and chemical industries. Compatible specifications include tube diameters of 15-50mm and heights of 60-220mm.
Q2: What is the production efficiency and filling accuracy?
The machine offers a filling speed of 600-2000 tubes per hour (adjustable) and maintains a high filling accuracy of ≤±1%, ensuring consistent dosage and reduced waste.
Q3: Is the machine easy to operate and maintain?
Yes, it features an intuitive PLC control panel with simple parameter settings. Maintenance is straightforward, primarily involving the cleaning of key parts like filling nozzles and folding mechanisms.
Q4: Does the machine have a safety feature to prevent waste?
Yes, the machine includes an automatic stop function that ensures no filling occurs if a tube is not correctly positioned or missing.
Q5: Can the tail sealing shape be customized?
The machine can be configured with two types of tail end shear designs: flat shear and curved shear, depending on the aesthetic requirements of your packaging.
Q6: What is required for the machine to operate?
The machine requires a standard voltage of 110V/220V and an air compressor with a pressure of 0.55-0.65MPA and a power of ≥3kw (100L).
