Advanced Technology Automatic Glass Water Bottle Filling Sealing Packing Equipment for Pharmaceutical & Medical applications.

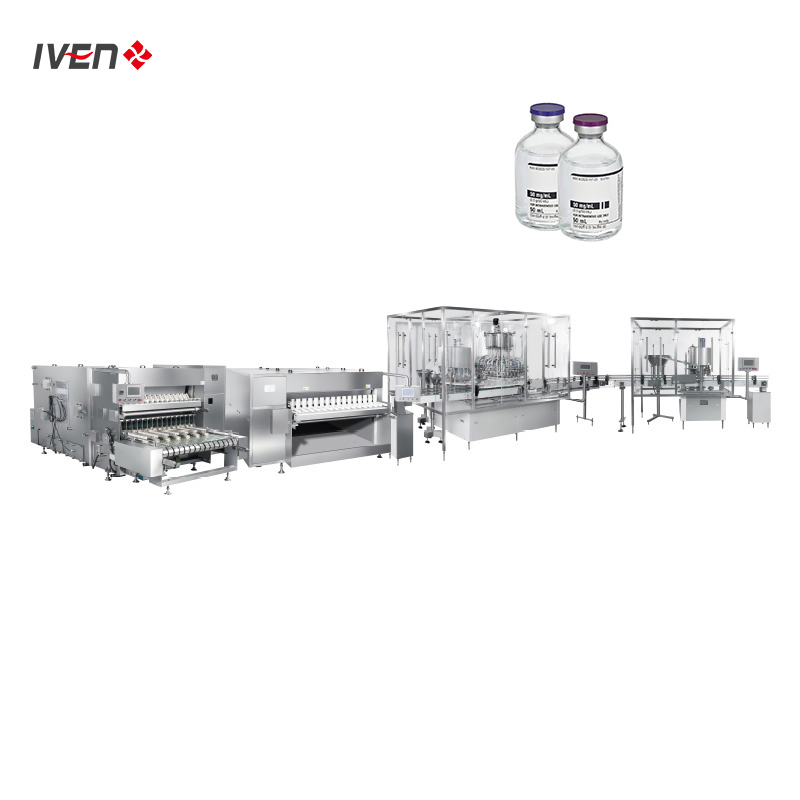

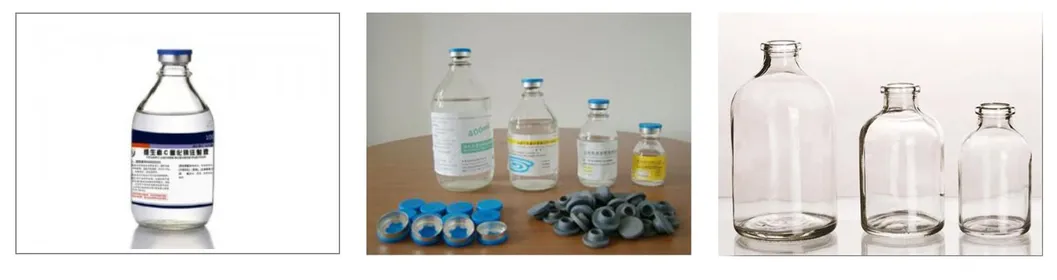

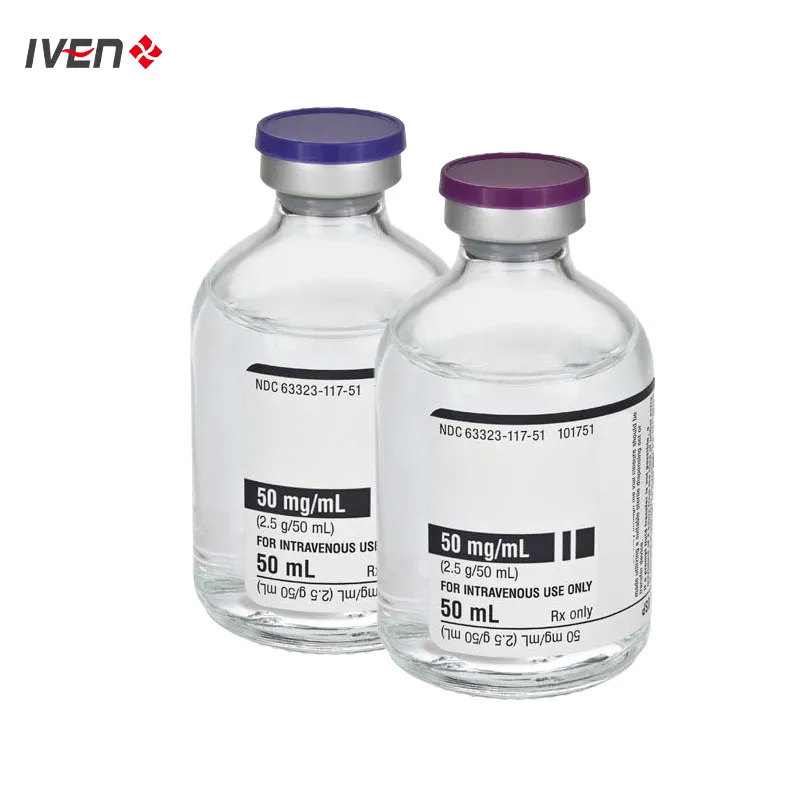

Glass bottle IV solution production line is mainly used for washing, depyrogenation, filling, stoppering, and capping of 50-500ml IV solution glass bottles. It is ideal for the production of glucose, antibiotics, amino acids, fat emulsions, nutrient solutions, and biological agents.

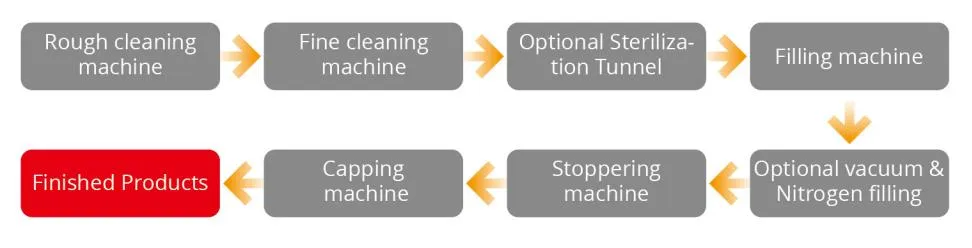

Workflow: Rough cleaning machine → Fine cleaning machine → Optional Sterilization Tunnel → Filling machine → Optional vacuum & Nitrogen filling → Stoppering machine → Capping machine → Finished Products

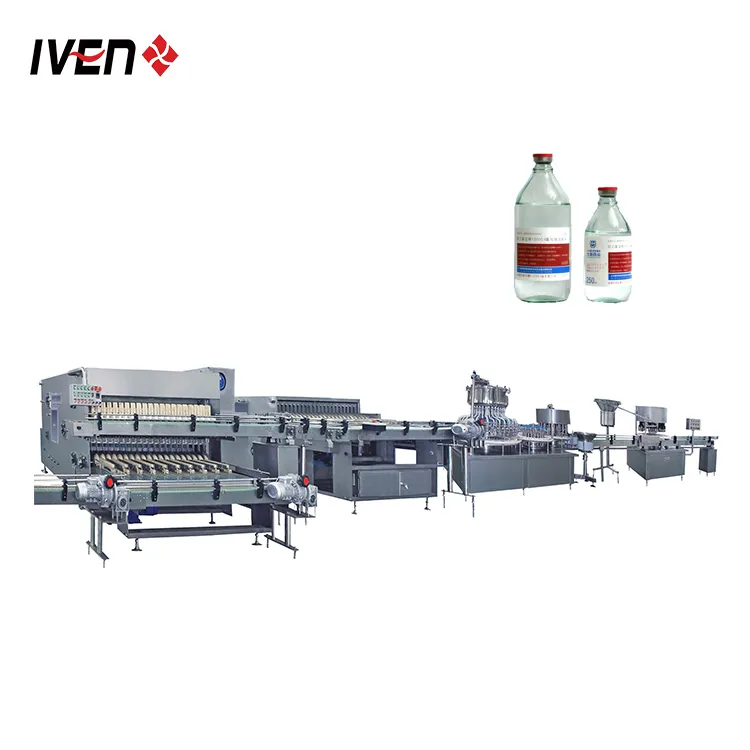

Used for fine washing of infusion glass bottles. It utilizes normal water, purified water, injection water, and clean compressed air in a specific sequence to ensure thorough cleaning.

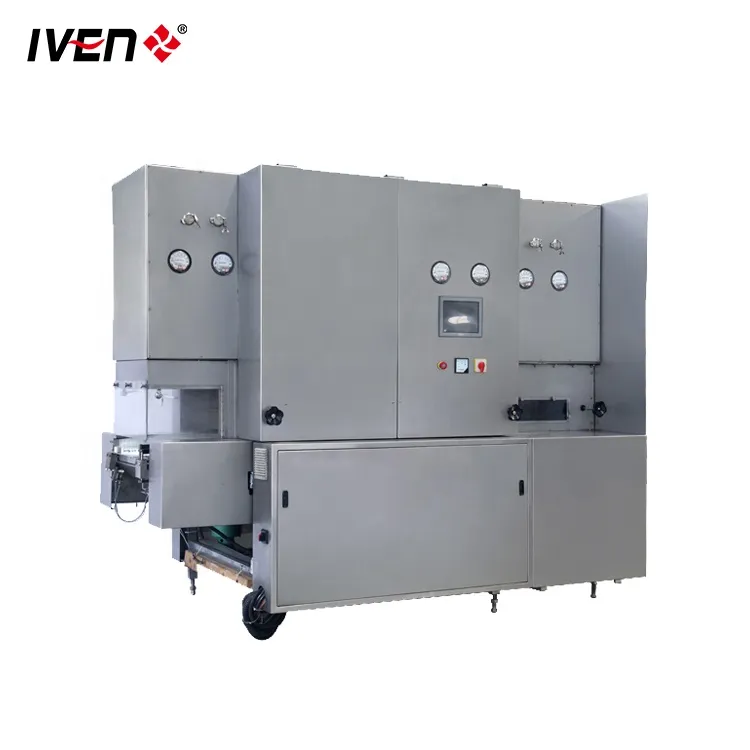

Laminar flow sterilization tunnel for dry sterilization and heat removal. Reaches temperatures of 300~350ºC with an efficient sterilization time of 5-10 minutes across three zones: preheat, heating, and cooling.

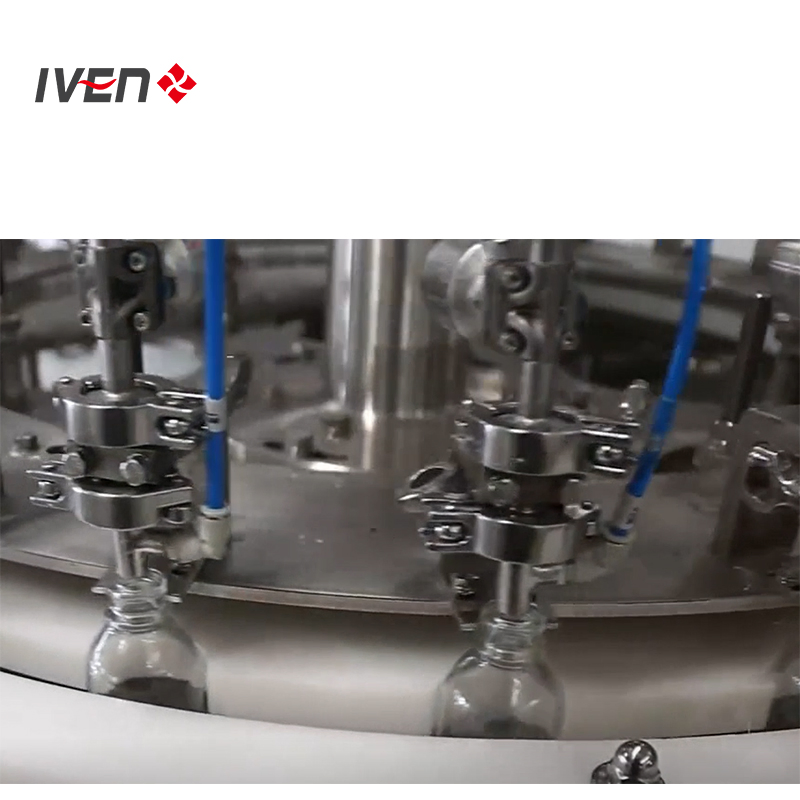

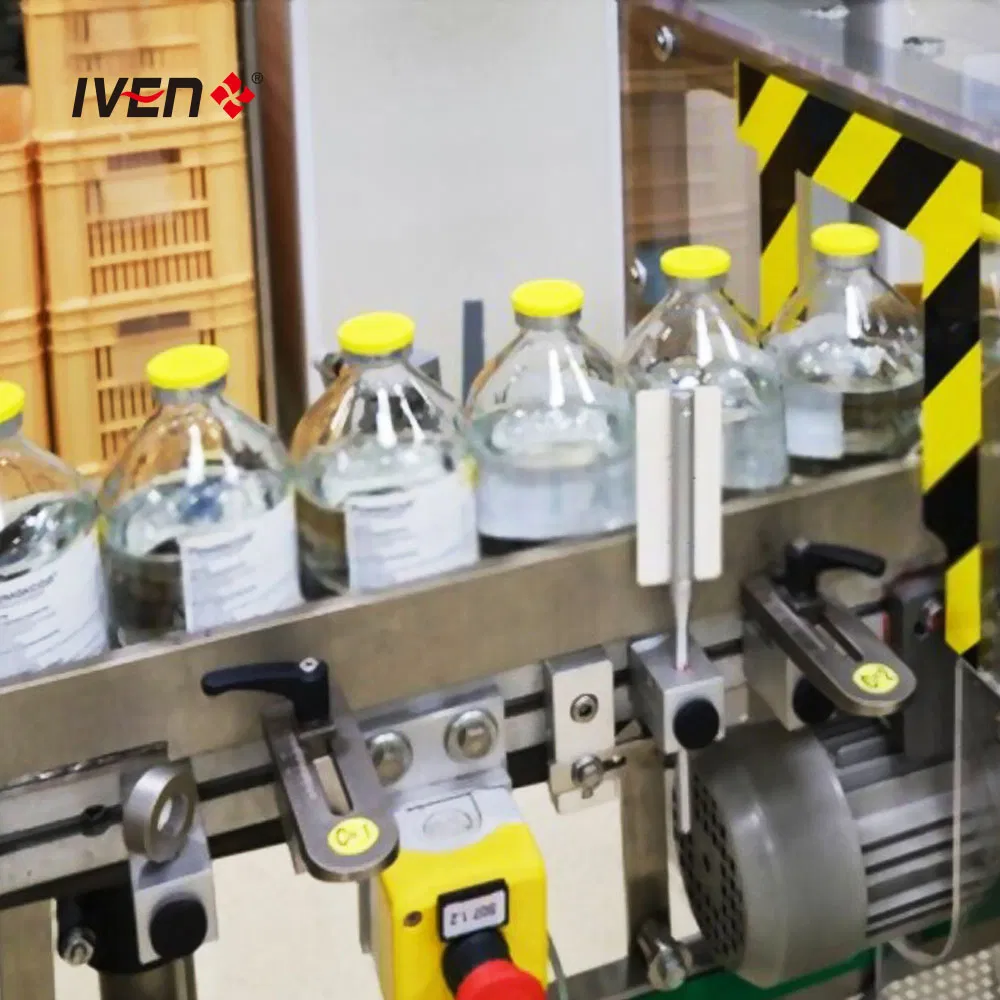

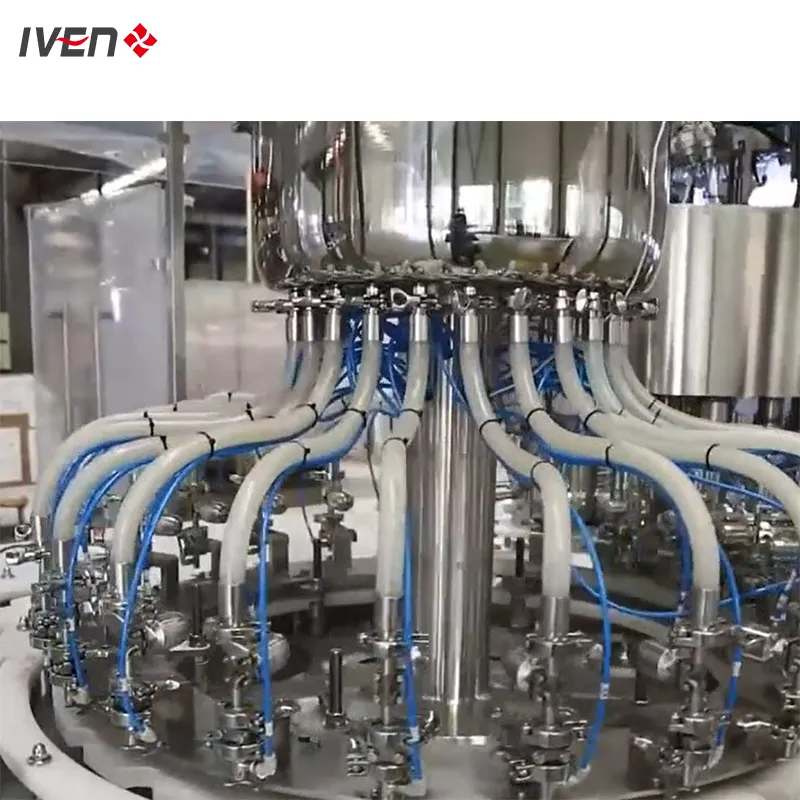

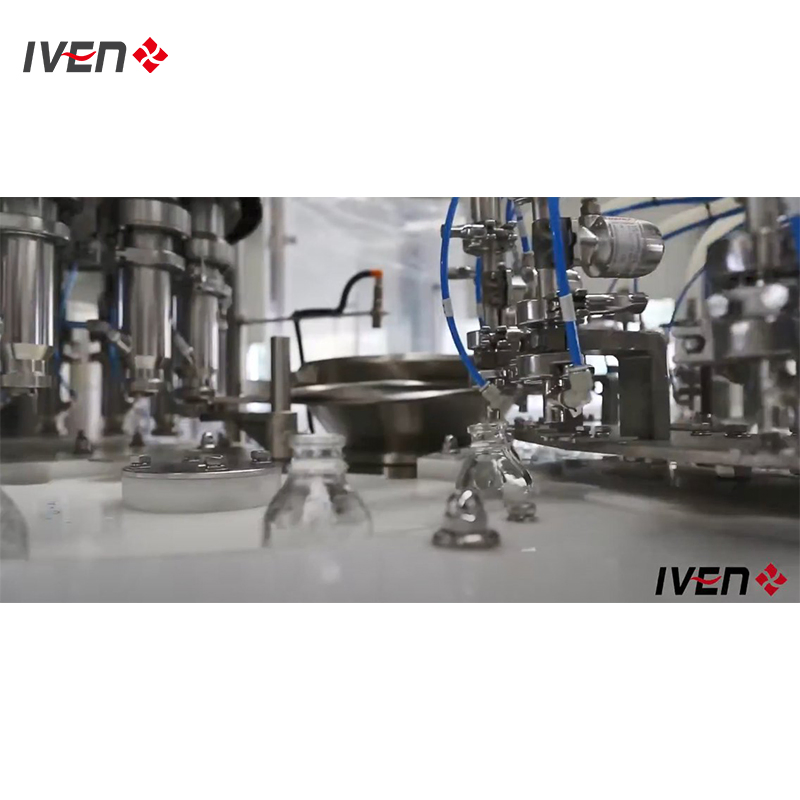

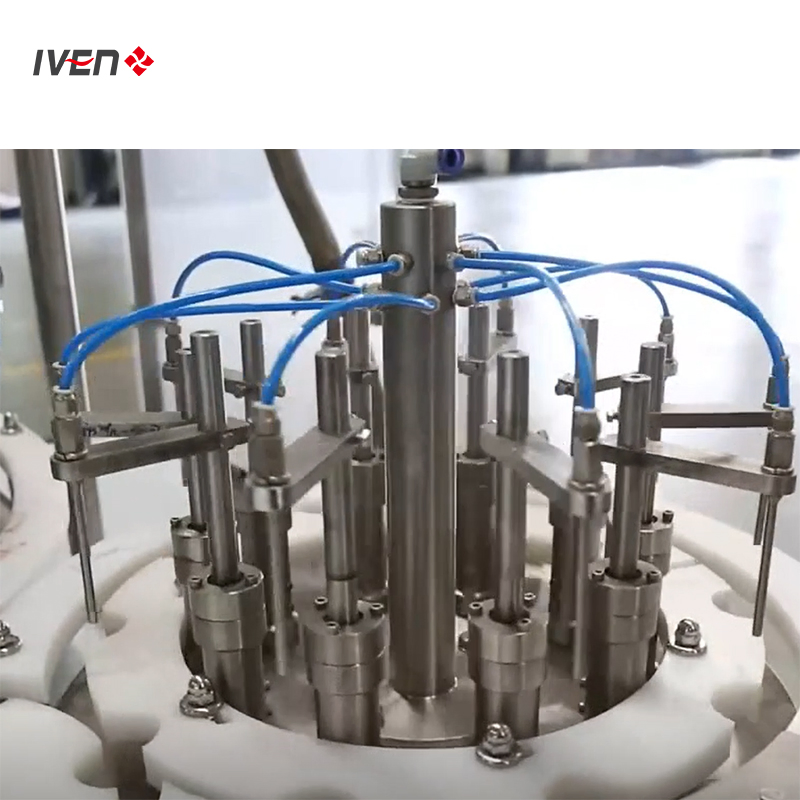

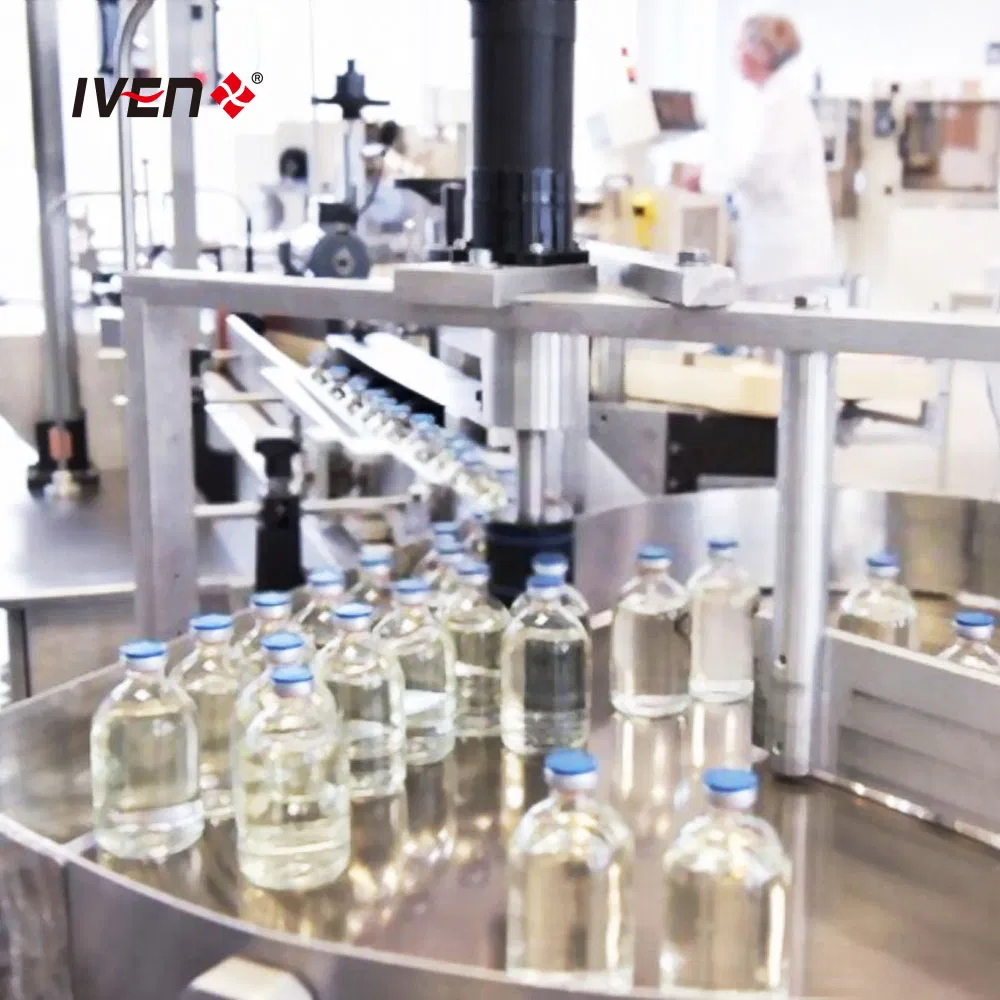

Features high-precision valve filling. Includes immediate nitrogen charging and protection during the stoppering process. Smart sensors ensure "no bottle, no filling" and "no bottle, no vacuuming" to maintain efficiency.

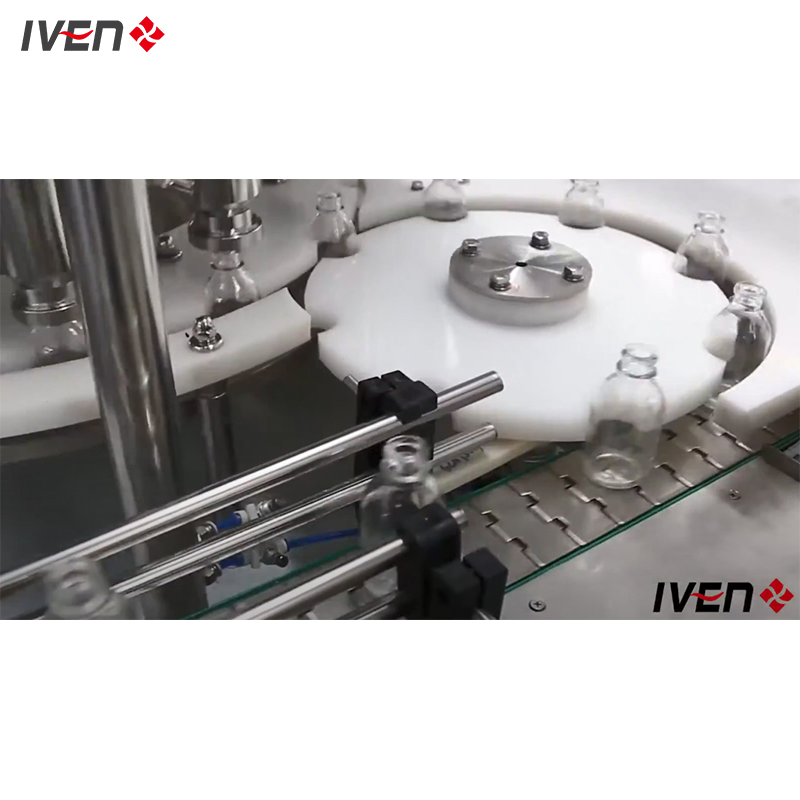

Aseptic liquid filling with stable operation. Volume is adjustable via HMI. Equipped with ORABS and stainless steel laminar air flow hoods for high sterility standards.

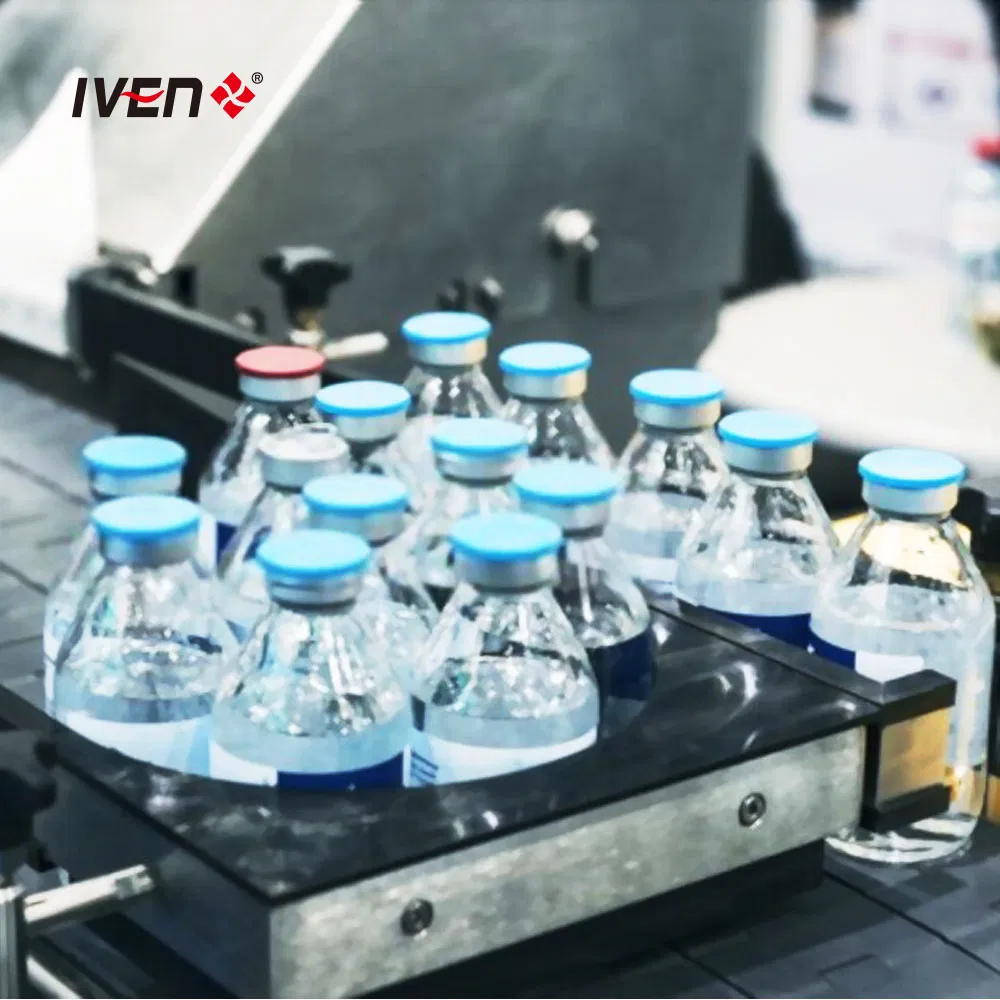

High-speed continuous operation for glass bottle capping. Features picking, crimping, and rolling for a smooth finish and excellent appearance with a low damage rate.
| Model | Bp50-120 | Bp50-200 | Bp50-300 | Bp50-600 |
|---|---|---|---|---|
| Capacity (500ml) | 80-120 bpm | 120-200 bpm | 200-300 bpm | 300-600 bpm |
| Applicable Size | 50ml, 100ml, 250ml, 500ml, 1000ml | |||
| Electric (kw) | 35 | 37 | 45 | 55 |
| Compressed Air | 4 m³/h | 5 m³/h | 6 m³/h | 7 m³/h |
| Water Usage | Tap: 200ml/b, Purified: 80ml/b, Injection: 120ml/b | |||
| Size (m) | 17.8*6*2.3 | 19*6*2.3 | 24*7*2.3 | 24*7*2.3 |
