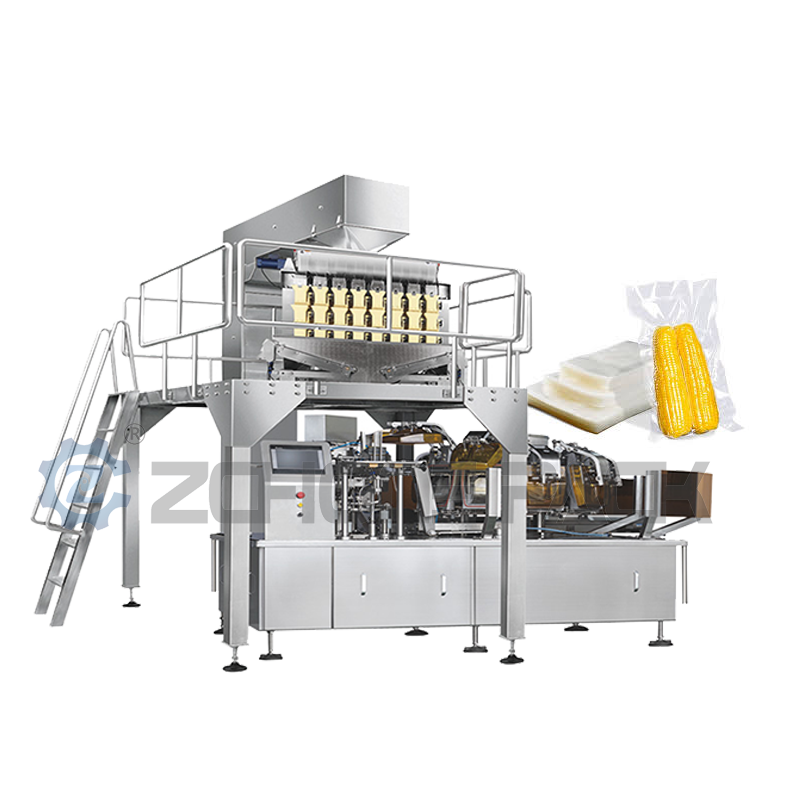

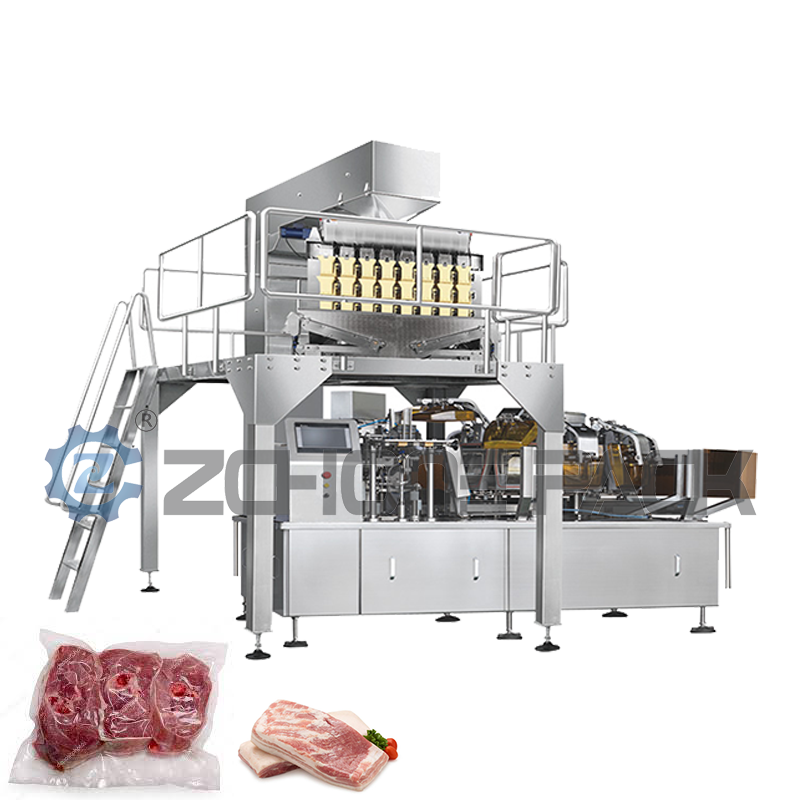

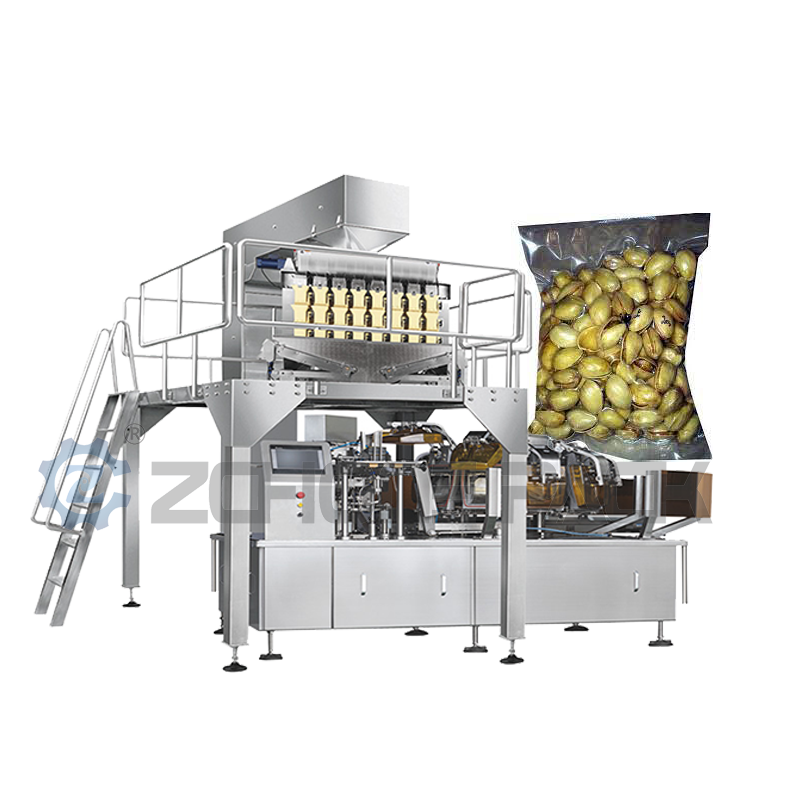

Multifunctional Large Professional Pre-made Bag Vacuum Product Packaging Machine Meat Nuts Vegetables

Features

1

Adopt new type of integration to simplified single-axis matching inner wheel groove cam structure of main part. Adopting electronic numerical control to control the vacuum heating seal.
2

When the bag is opened, it will not be filled without heat sealing; when the bag is filled without material, the heating sealing station will not work, avoiding wasting the bag.
3

Used the cylinder to control the sealing knife to run.
4

Full automatic metering filling and sealing.
5

The bag compartment has no bag automatic alarm.
6

The whole machine adopting mechanical control.
7

More reasonable overall size.
8

Wear resistant gears.
9

Most of the whole machine adopt improved parts from Germany.

Specification

Item	ZK120	ZK160	ZK200
Packing Speed	Max 60 bags / min
Bag size	L80-180mm	L80-240mm	L150-300mm
Bag size	W50-120mm	W80-160mm	W120-200mm
Bag Type	Aluminum foil bag, Four-side sealed bag, Paper bag, Laminated bag, etc.
Weighing Range	10g~200g	15~500g	20g~1kg
Measurement Accuracy	≤±0.5 ~ 1.0%, depend on the measurement equipment and materials
Maximum bag width	120mm	160mm	200mm
Gas consumption	0.8Mpa 0.3m³/min
Total power/ voltage	10kw 380v 50/60hz	10kw 380v 50/60hz	10kw 380v 50/60hz
Air compressor	Not less than 1 CBM
Dimension	L2100W1400H1700mm	L2500W1550H1700mm	L2600W1900H1700mm
Machine Weight	2000kg	2200kg	3000kg

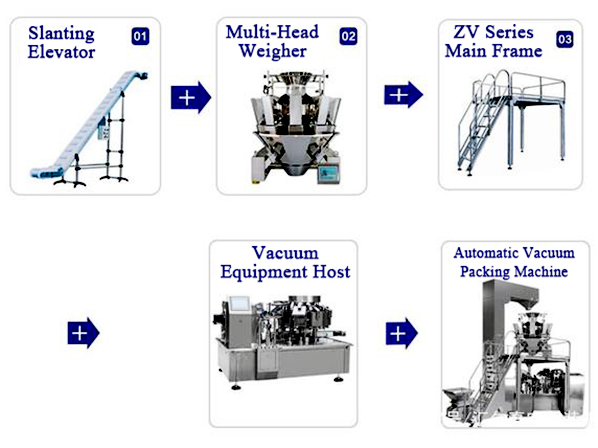

Complete system

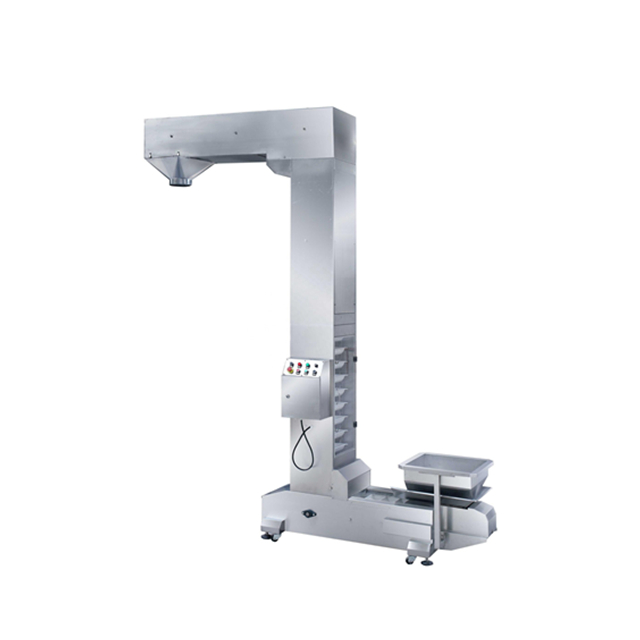

Z type bucket conveyor

The hoister is applicable for vertical lifting of granule material such as corn, food, fodder, plastic and chemical industry, etc.

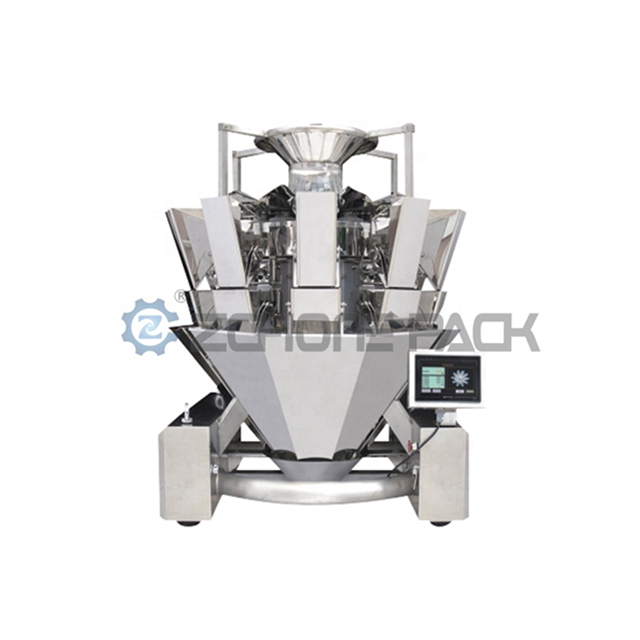

Multi-heads weigher(10-32 heads)

It is suitable for weighing various granular, flaky, round and irregular materials, hardware, etc.

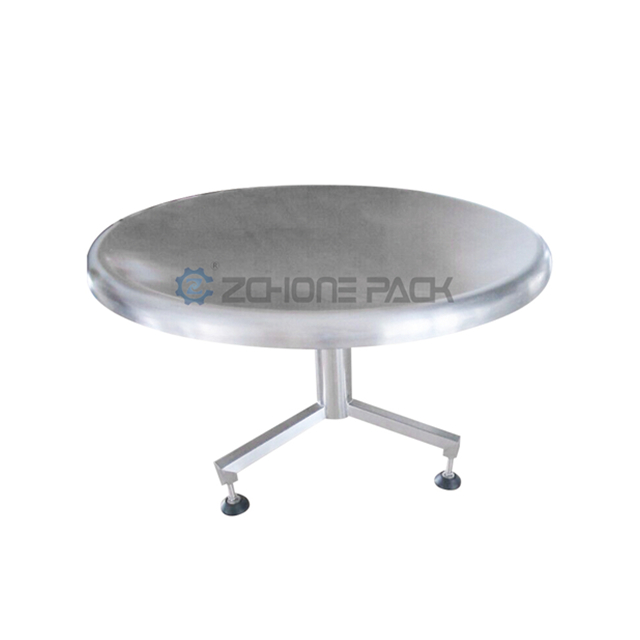

Rotary table

The conveyor is applicable for transferring bag from take off conveyor. 304SS materials, diameter 1200mm, we can make this machine according to your requirement.

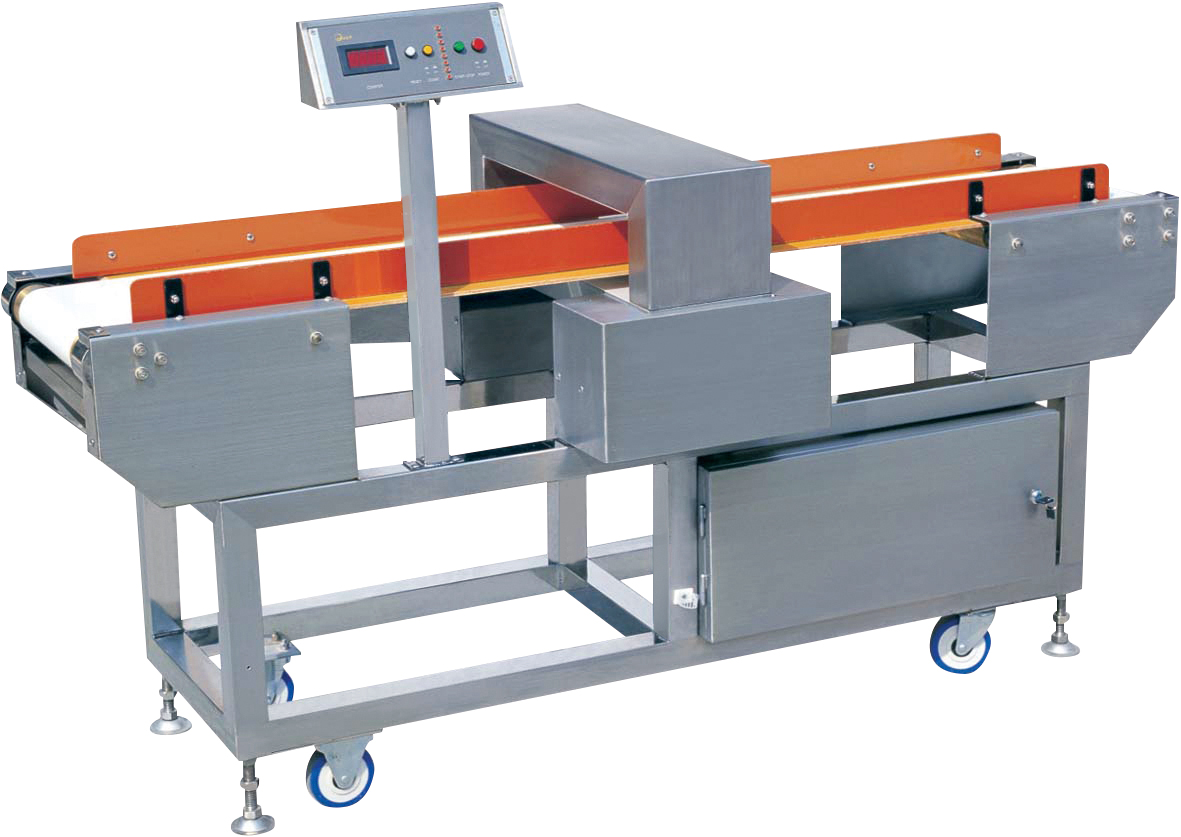

Metal Detector

Double circuit design, all-metal detection, can detect iron and non-iron and other metal, the sensitivity can be adjusted, with memory function can store 10 kinds of detection substances.

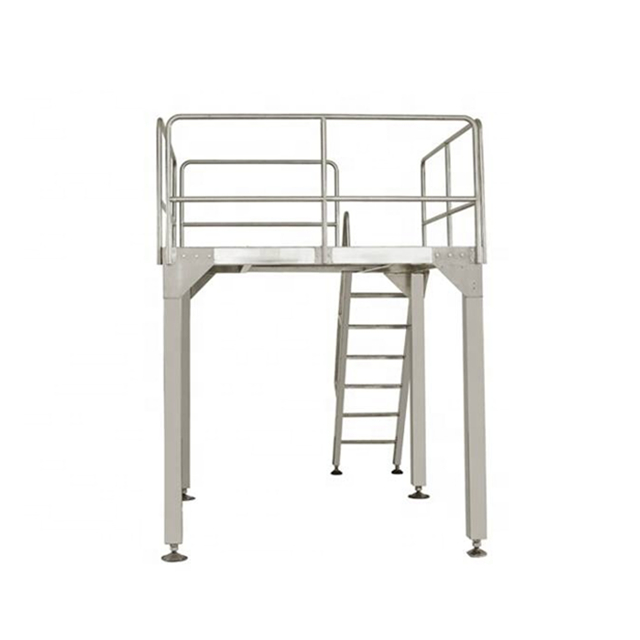

Supporting platform

The platform is mainly used to support the weighers, and it is also the general accessorial equipment in the packaging system.

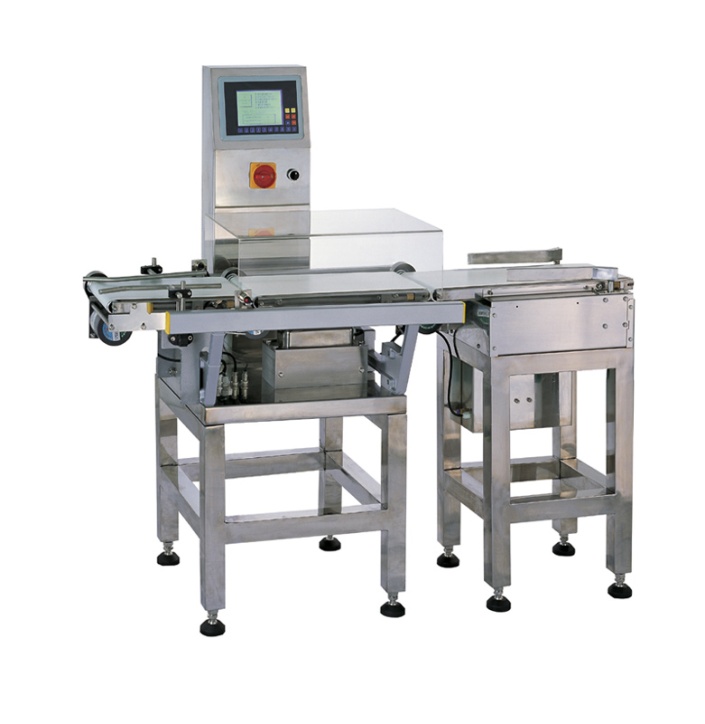

Check weigher

Check weigher is designed for fully automated packaging lines, when find the overweight and ultra-light products the conveyor belt will stop and alarm, the screen will display the weight.

Packing Solution

The Filling System is Just for Your Reference. We Will Offer You the Best Solution According to Your Product Mobility, Viscosity, Density, Volume, Dimensions, Etc.

Powder Packing Solution

Servo Screw Auger Filler is specialized for powder filling such as nutrients powder, seasoning powder, flour, etc.

Liquid Packing Solution

Piston Pump Filler is specialized for liquid filling such as water, juice, laundry detergent, ketchup, etc.

Solid Packing Solution

Combination Multi-head Weigher is specialized for solid filling such as candy, nuts, pasta, dried fruit, vegetable, etc.

Granule Pack Solution

Volumetric Cup Filler is specialized for granule filling such as chemical, beans, salt, seasoning, etc.

Frequently Asked Questions

Q What bag types are compatible with the ZK series packaging machines?

The ZK series supports a wide range of bag types, including aluminum foil bags, four-side sealed bags, paper bags, and laminated bags.

Q What is the maximum packing speed of these machines?

The packaging machines can reach a maximum speed of up to 60 bags per minute, depending on the specific model and material parameters.

Q How does the machine prevent bag wasting during operations?

The machine features an automated control mechanism: if a bag is opened but not filled, the heat sealing station will not run, thereby preventing bag waste.

Q What are the key materials and options for the rotary table?

The rotary table is made of premium 304 Stainless Steel (304SS) with a standard diameter of 1200mm, and we can customize it according to your requirements.

Q What packaging solution is recommended for high viscosity liquids or sticky items?

We specialize in matching systems to your products' mobility, viscosity, density, and volume. For instance, Piston Pump Fillers are optimized for liquid projects, while multi-head weighers are used for solid items.

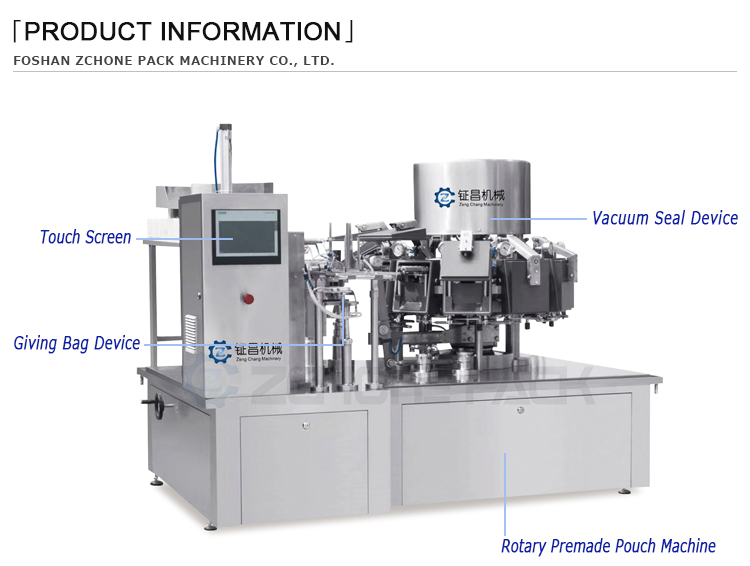

Product Detail
