We can customize the suitable one for you according to your requirements: Bottle Filling Capping Labeling Machine, Automatic Liquid Filling Machine, Oil Filling Machine, Perfume Filling Machine, Paste Filling Machine, Sauce Filling Machine, Cream Filling Machine, Cosmetic Filling Machine, Honey Filling Machine. Bottling Machine.

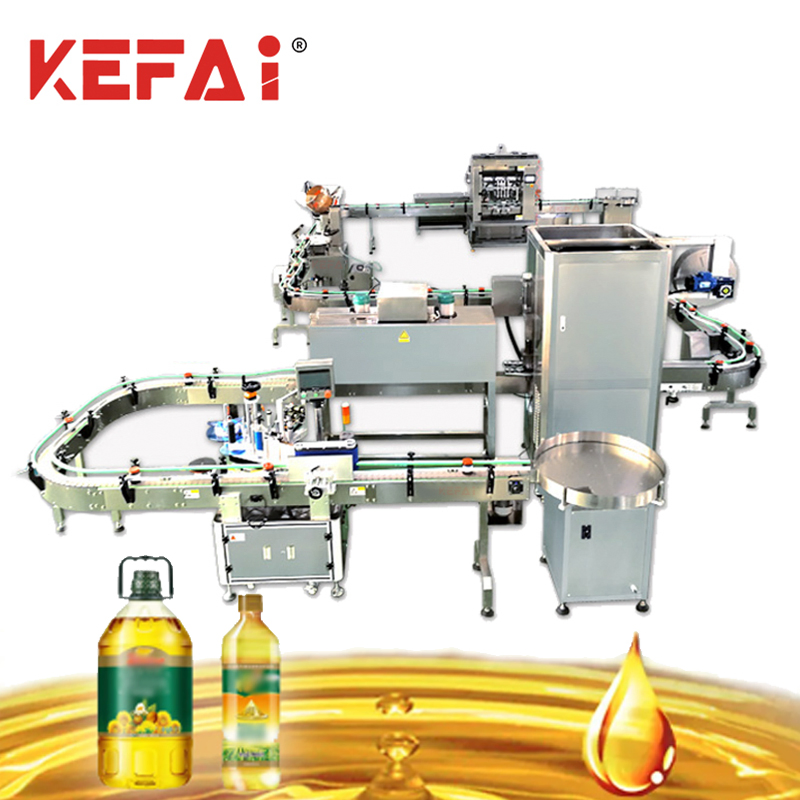

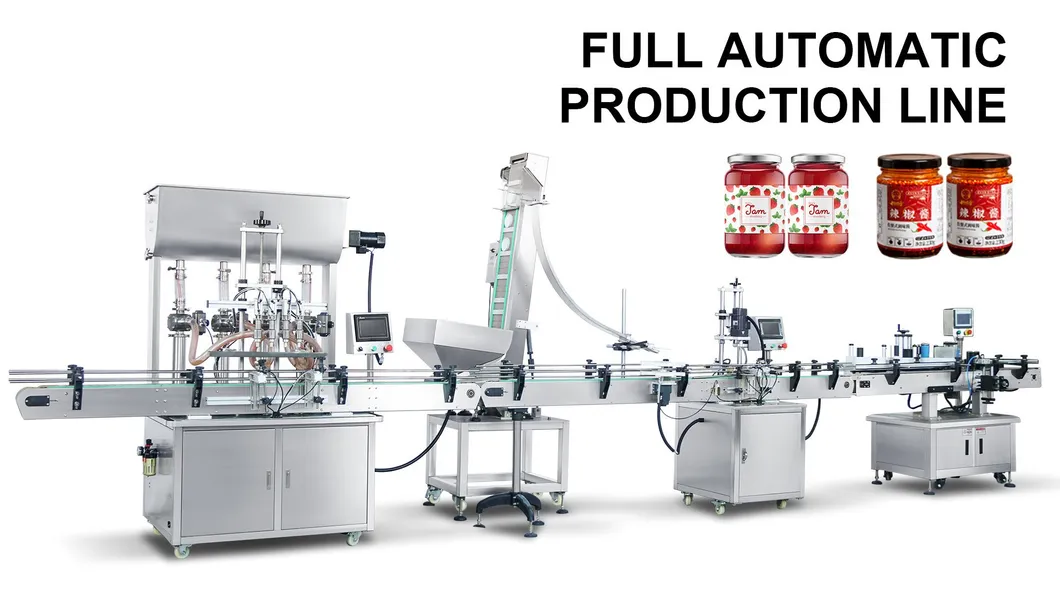

Filling labeling packaging machine production line
Introduction

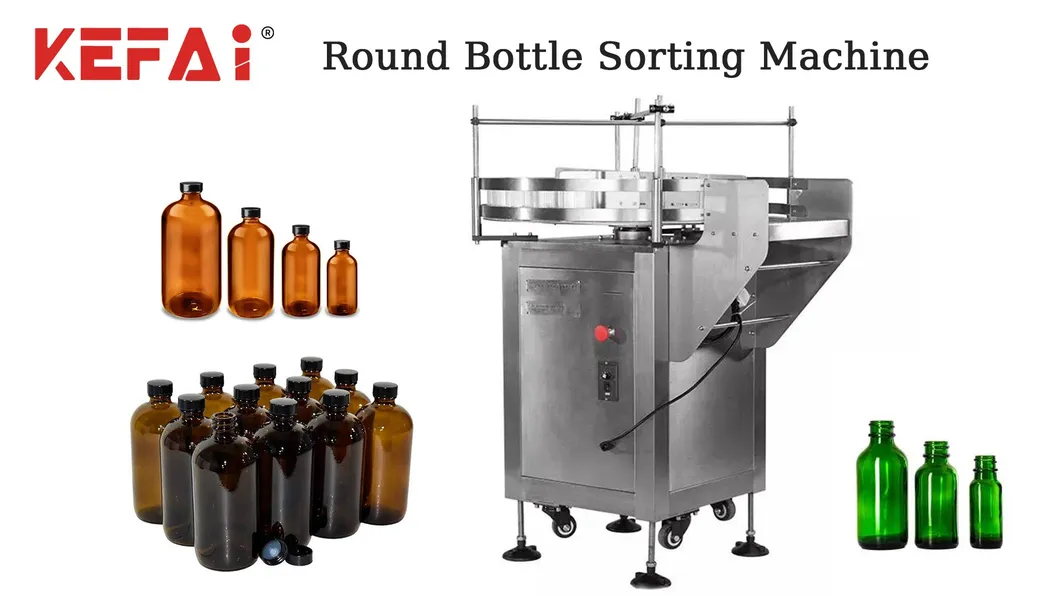

This machine adopts variable frequency speed regulation for rotary motion, which makes bottles enter the conveyor belt in sequence under the action of rotating tangential force and is matched with the packaging production line to achieve the purpose of saving labor and improving work efficiency. The scope of the applicable containers is 50-1000ml glass bottles and plastics. Bottles, polyester bottles, etc. The main parts of this machine are made of high-quality stainless steel and meet the GMP requirements.
Filling labeling packaging machine production line
| item | value |
|---|---|
| Turntable diameter | 800mm |
| Applicable specifications | 10-2000 ml |
| Bottle diameter | φ 10-φ150 mm |
| The bottle height | 25-300 mm |
| Production capacity | 0-100 BPM (speed adjustable) |
| Voltage | 220 v50hz |
| Power | 0.4 kW |
| Weight | 100kg |
| Machine size | 1500*1500*1350mm |
| Stainless steel | SUS304 material |

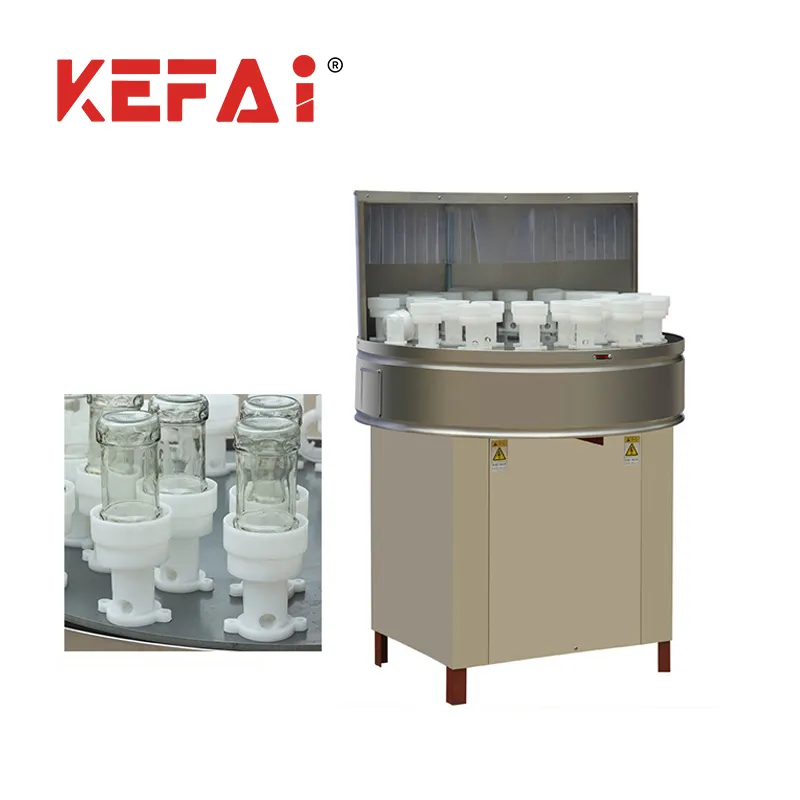

A semi-automatic bottle flushing machine is a device used to clean or rinse bottles before filling them with liquids or other materials. It is used to remove any impurities, residues, or contaminants from the bottles to ensure proper hygiene and product quality.
| Name | Semi-automatic bottle flushing machine |
|---|---|
| Weight | about 200 KG |
| Transmission power | 0.55KW |
| Bottle diameter | 40-110mm |
| Applicable bottle height | 50-150mm |
| Flushing pressure | 0.1-0.25MPa |
| Production capacity | 1000-1500 bottles/hour |
| Size | 860*900*1350 mm |
Introduction

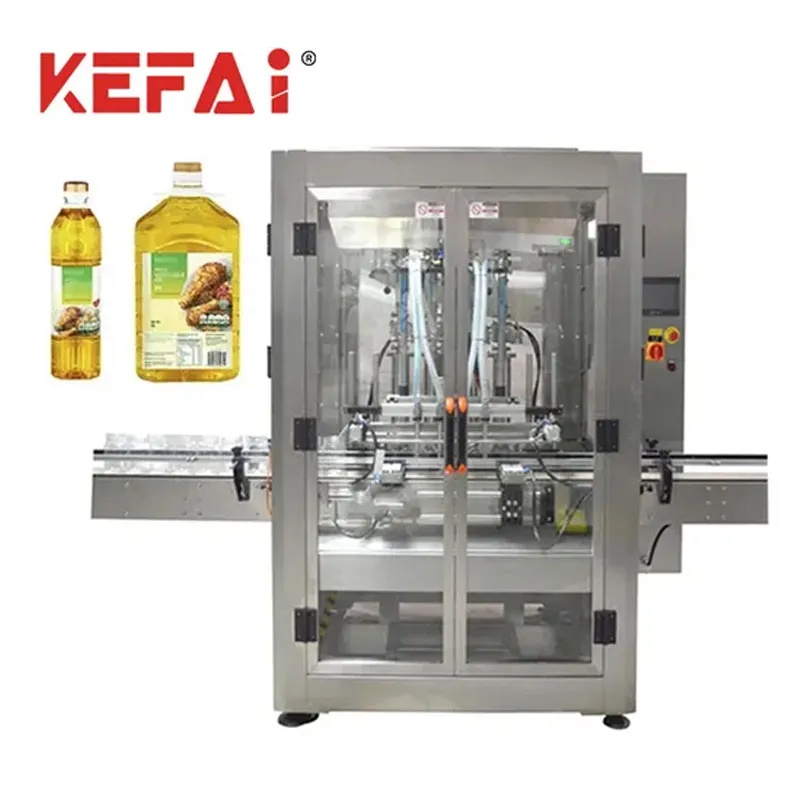

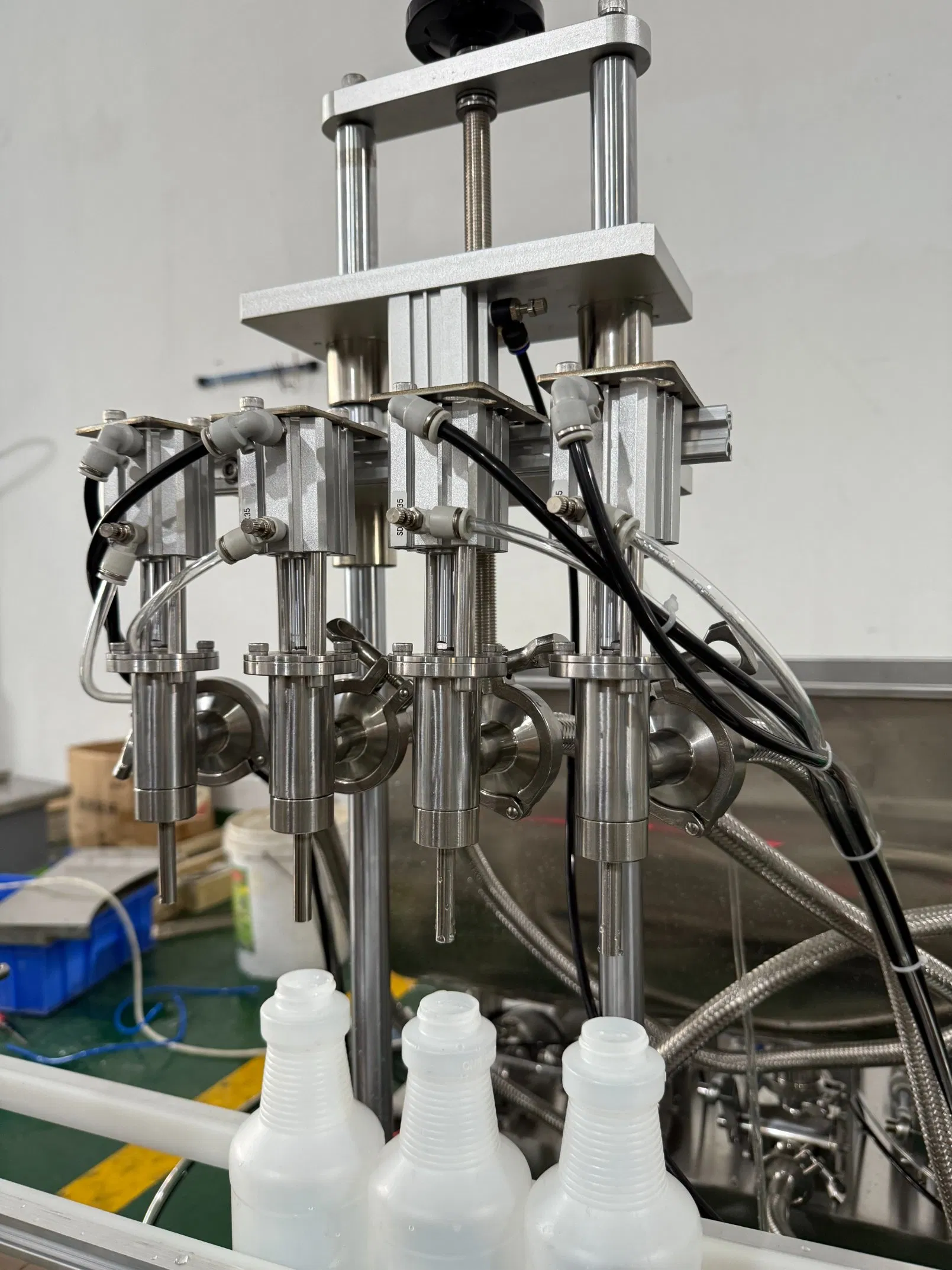

The fully automatic liquid filling machine is designed to fill bottles and jars with products of various liquids, ranging from water-thin liquids to thick creams. Widely used in cosmetics, food, oil, and other industries. These inline piston filling machines can be options with different fill heads to meet different production capacities, variable speed drive conveyors, adjustable stainless steel frames, and easy-to-operate PLC control panels.
| Heads | 2 | 4 | 6 | 8 | 10 | 12 | 16 |
|---|---|---|---|---|---|---|---|
| Range(ml) | 100-500, 100-1000, 1000-5000 | ||||||
| Capacity(bpm) base on 500ml | 12-14 | 24-28 | 36-42 | 48-56 | 60-70 | 70-80 | 80-100 |
| Air Pressure(mpa) | 0.6 | ||||||
| Accuracy(%) | ±0.1-0.3 | ||||||
| Power | 220VAC SINGLE PHASE 1500W | 220VAC SINGLE PHASE 3000W | |||||
Features

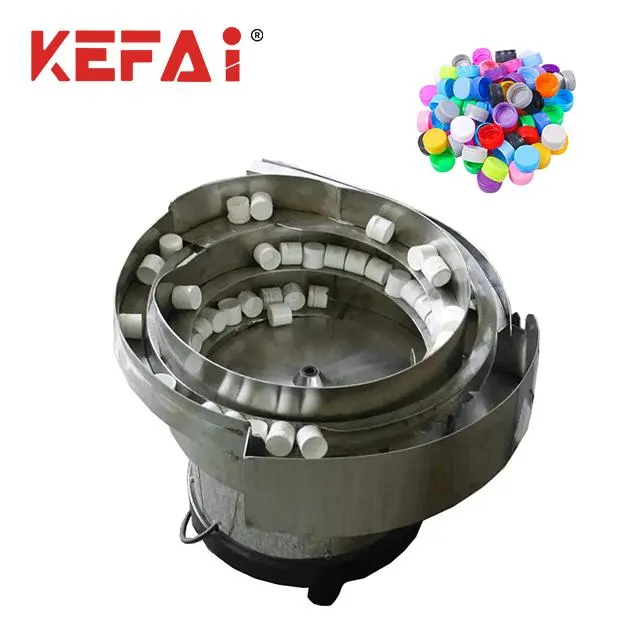

| Parameter | Specification |
|---|---|

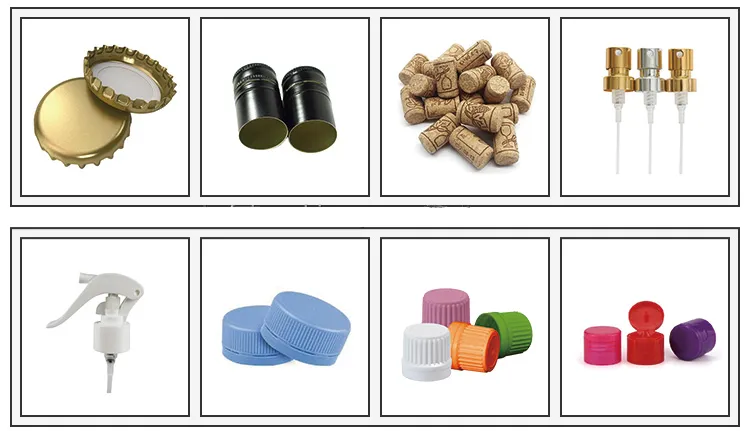

| Diameter of Caps | φ5~φ60mm (can be customized made) |
| Voltage | Single Phase AC220V 50Hz |
| Speed | 50-150 pcs/min (can be customized made) |
| Height of caps | can be customized |
| Power | 0.5KW |
| Material | 304 stainless steel |

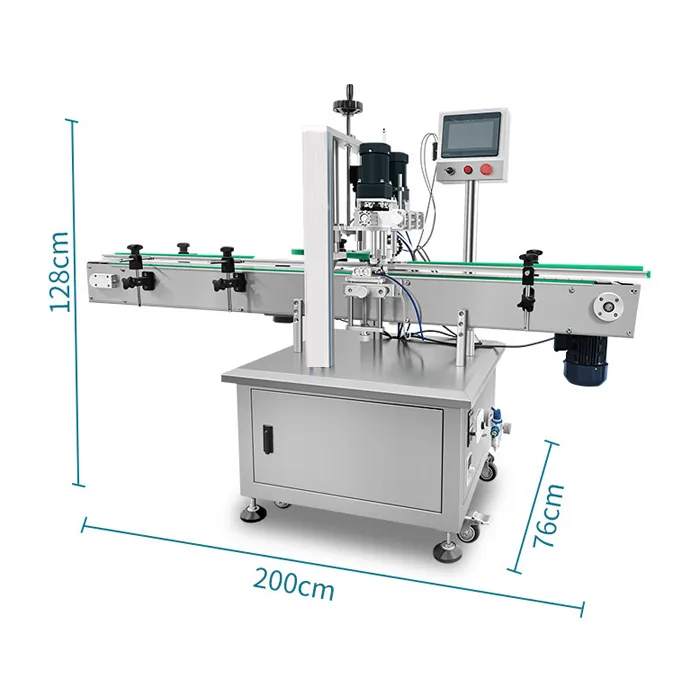

Features
| Parameter | Specification |
|---|---|
| Power | AV 220/110V 50/60HZ |
| Max workable bottle diameter | ≤250, could be customized according to the actual situation |
| Workable caps diameters | 20-60mm, could be customized according to the actual situation |
| Max workable bottle height | 190mm, could be customized according to the actual situation |
| Min workable bottle height | 50mm, could be customized according to the actual situation |
| Capping speed | 20-60BPM |
| Machine size | 2000*1400*2000mm |
| Weight | 280kg |
| Air pressure | 0.6-0.8MPA |

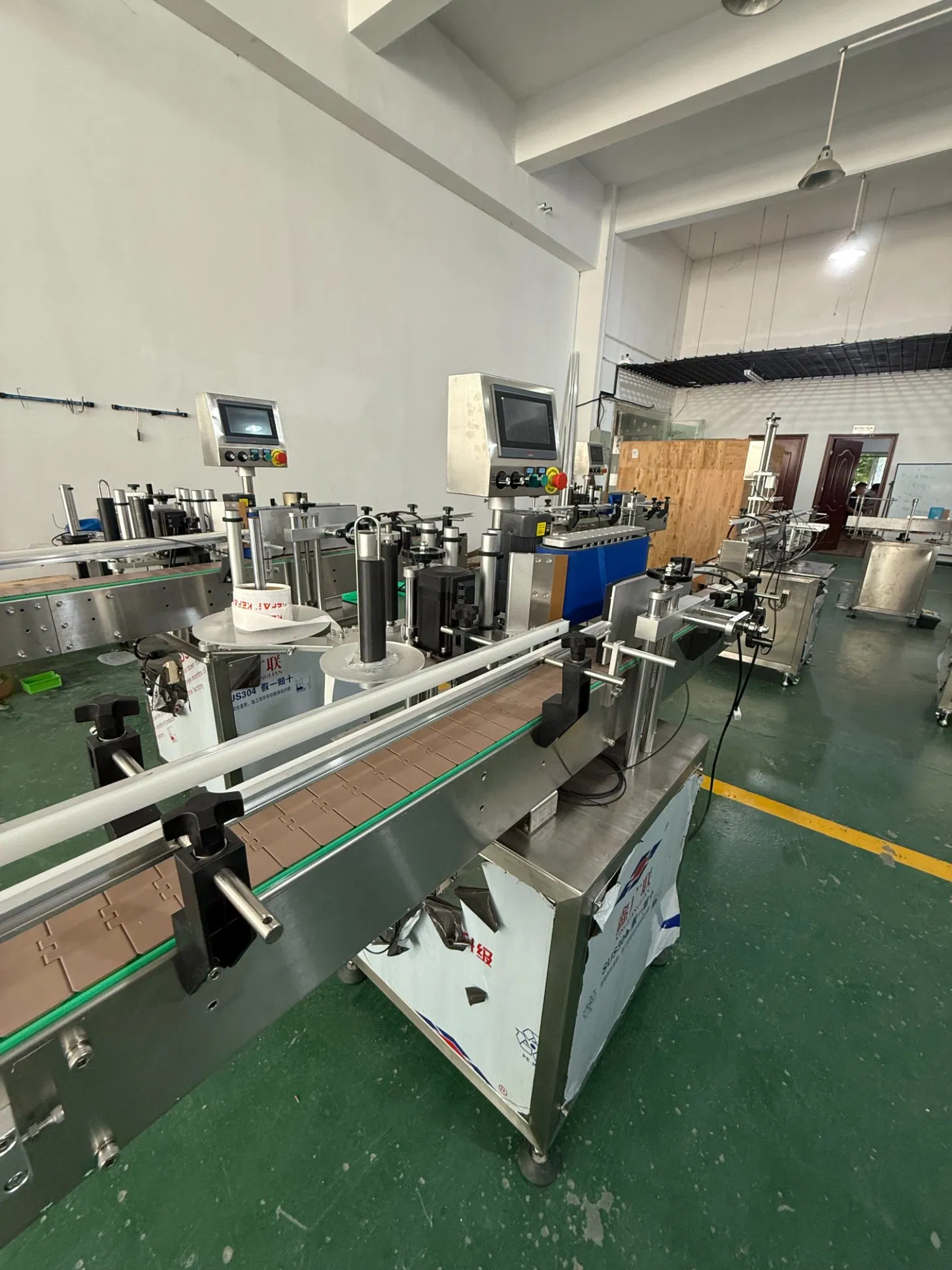

Features
Filling labeling packaging machine production line

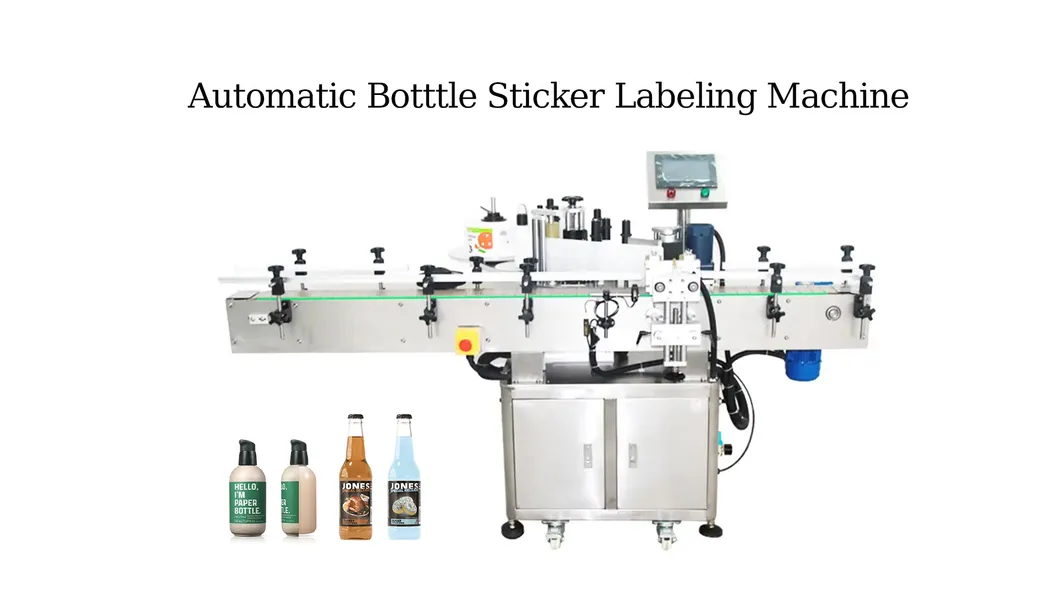

| Parameter | Specification |
|---|---|
| Applicable Product size | Diameter φ40-φ100mm; high 40-300mm |
| Applicable Label size | (L) 20-280mm (H) 30-140mm |
| Applicable label roll inner diameter | Φ76mm |
| Applicable label roll outer diameter | Max Φ300mm |
| Labeling accuracy (mm) | ±1mm |
| Labeling speed | 50-200pcs / min |
| Weight (kg) | 300kgs |
| Conveyor belt | 2000mm*320mm |
| Voltage (V) | AC220V 50Hz/60Hz,500W |
| Device Dimensions (mm) | (L × W × H): 1700 ×650 × 135 |

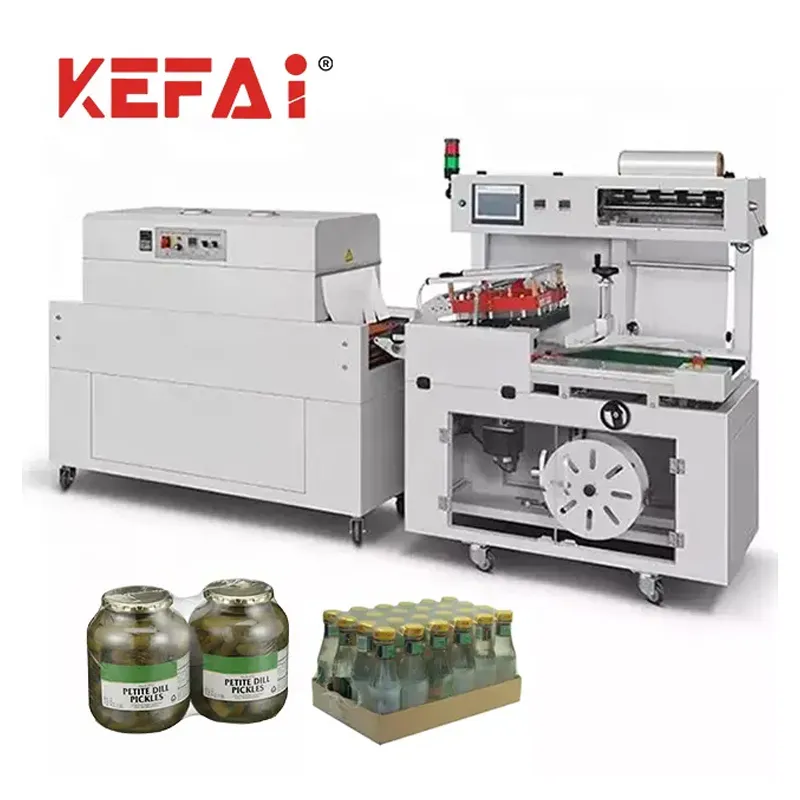

This film shrink wrapping machine is suitable for large-scale shrink packaging of software, food, cosmetics, printing, pharmaceutical and flooring, ceramics, beverage, hardware, and other industries.
| item | Automatic Shrink Wrapping Machine |
|---|---|
| Air pressure | 0.5Mpa |
| Wrapping speed | 15-30 boxes/min |
| Max wrapping size | 450*350*125mm |
| Max sealing wrapping size | 560*440mm |
| Machine dimension | 1450*730*1360mm |
| Weight | 300kg |
All the products before delivery should be tested by the assembly and debugging engineer, wiped up and cleaned, and then wrapped in stretch film to protect them from moisture. The precision part needs a flexible package. In addition, without standard tools, manuals, other documents, and ex-factory confirmation sheets, the machine cannot leave the factory. All the products will be packed in wooden cases. The exported products use plywood cases to pack. The foot margin of equipment is fixed tightly to allow the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
We can customize a suitable machine for you according to your requirements.
