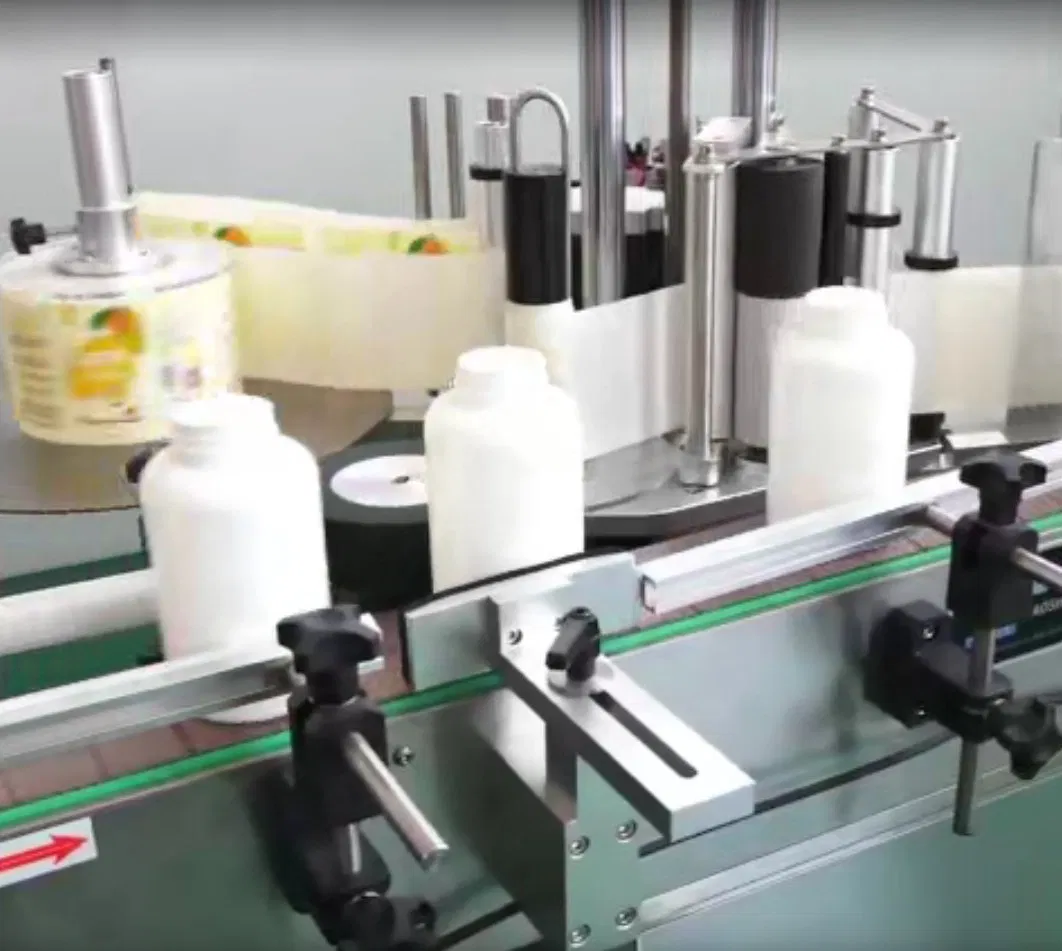

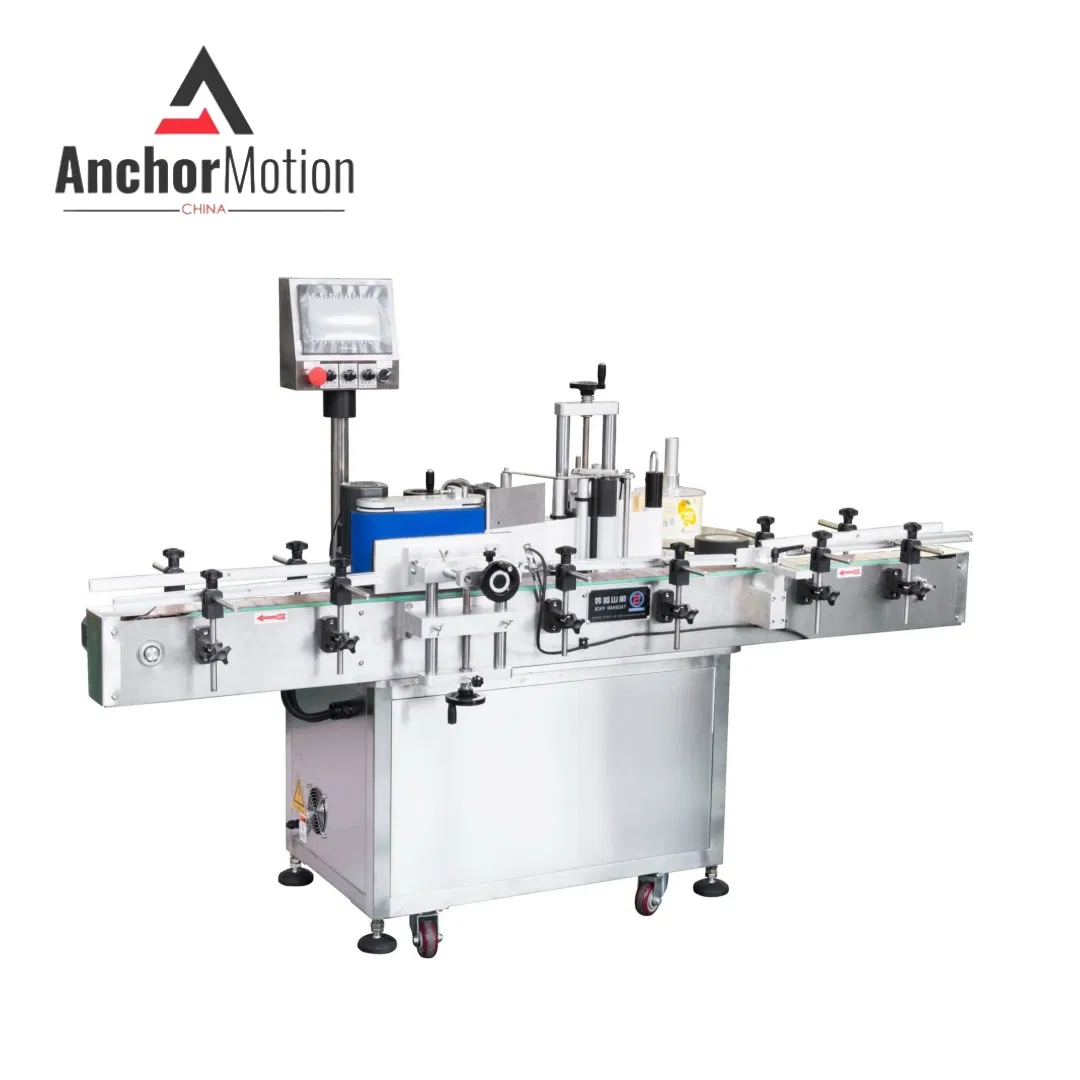

Factory Automatic Cans Wine Beverage Round Bottle Labeling Machine
It is an ideal equipment for high-precision and accurate labeling on small-size flat materials such as circuit boards, automotive precision parts, paper boxes, magazines, mobile phone batteries, medicine, daily chemicals, etc., to make product identification more beautiful.
Optional marking device to realize labeling on uneven surfaces (optional). The coding device can be flexibly added according to the needs, and the product batch number, production date and other related information can be printed on the product. It can be flexibly connected to automatic assembly line or stand-alone use. Improve production efficiency, reduce enterprise production costs, and improve labor intensity.
| Parameter Option | Specification Details |
|---|---|
| Product Name | Factory Automatic Cans Wine Beverage Round Bottle Labeling Machine Manufactured in China |
| Power Supply | AC220V 50/60HZ 1p |
| Max Power Supply | about 1.2KW |
| Labeling Speed | 40-200b/min |
| Labeling Accuracy | ±1mm (depends on label and bottle accuracy) |
| Air source | 5kg/cm² |
| Bottle Size | D20-150mm H40-350mm |
| Label Size | H15-180mm L10-250mm |
| Max Label Size | outer D 360mm inner D 76mm |
Critical Performance Factors Analysis
With the improvement of people's living standards, people have higher requirements for the appearance and packaging of consumer goods. For example, whether the trademarks of some famous wines and high-end wines are beautiful and pleasing to the eye, which plays an important role in the classification of alcoholic beverages. For another example, the relatively strict requirements for the position of the trademark on the container have resulted in a fully automatic labeling machine. The following analyzes several factors that affect the failure of the labeling machine:
From the perspective of the entire operation process of labeling, including: taking label, sending label, while container transport, positioning, then labeling, labeling, and rolling. From the perspective of the process route of the labeling machine, the factors that affect the labeling accuracy include: container positioning accuracy, labeling accuracy, labeling accuracy, and label rubbing accuracy.
Accurate positioning of the container: When the position of the meter label on the bottle has strict requirements, strict positioning is required. Common positioning methods mainly use the shape of the container, such as the concave point on the container, the mold line, the photoelectric positioning point, etc., and the servo mechanism is usually equipped to feedback and adjust the position of the container.

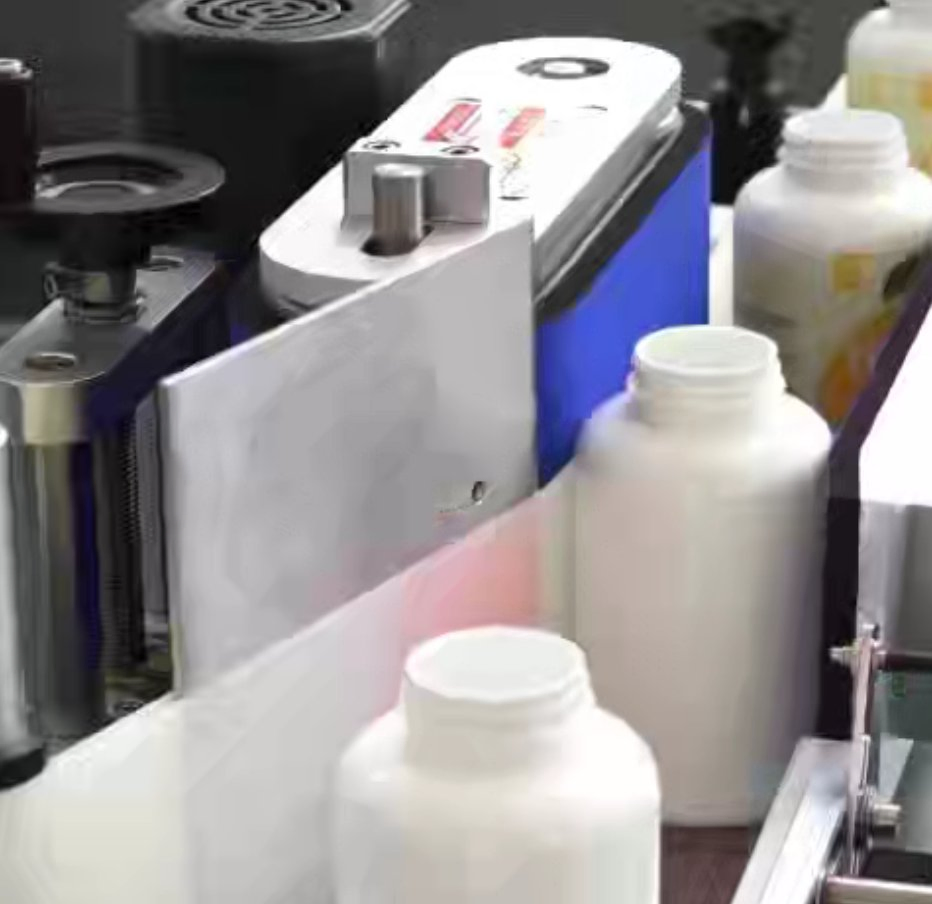

When labeling, there is a deviation when the bottle rotates and the label moves. This deviation is a fatal blow to the labeling accuracy. Therefore, it is necessary to design a synchronization mechanism. At the moment of labeling, the bottle rotation linear speed and the label extension speed are equal to achieve relative static and improve labeling accuracy.

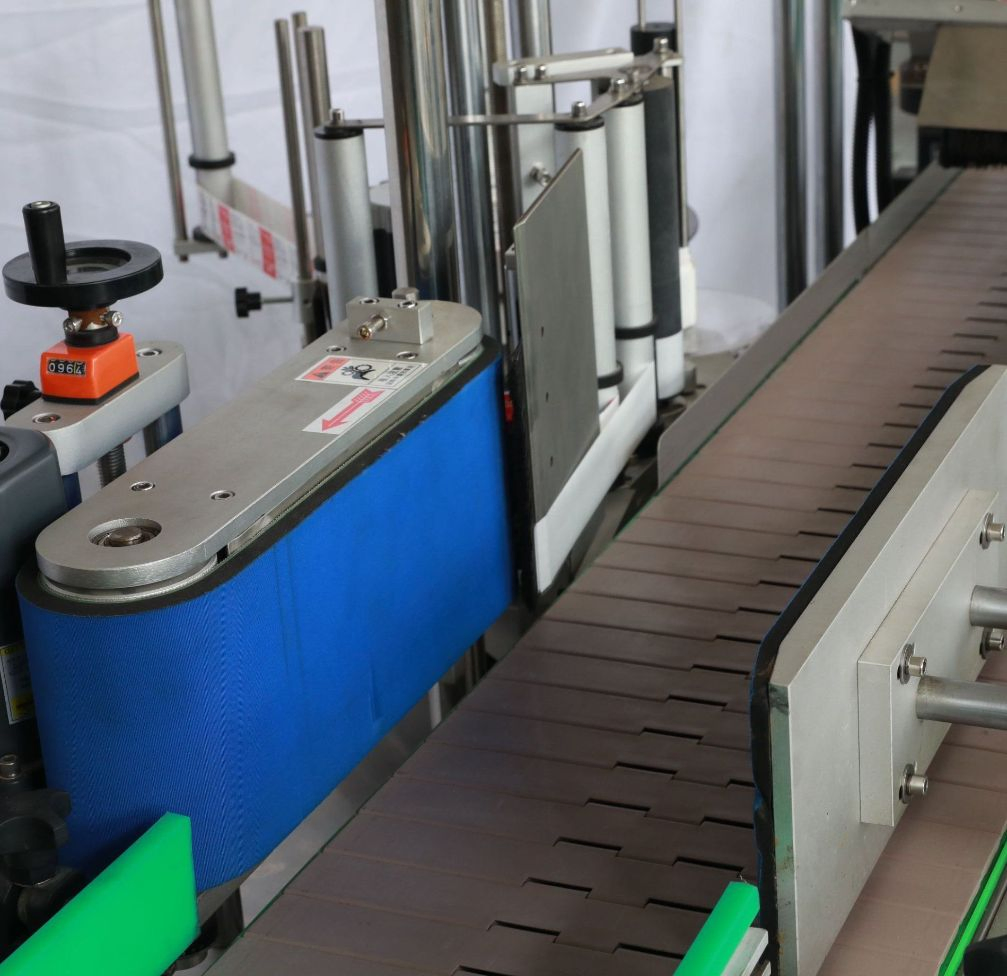

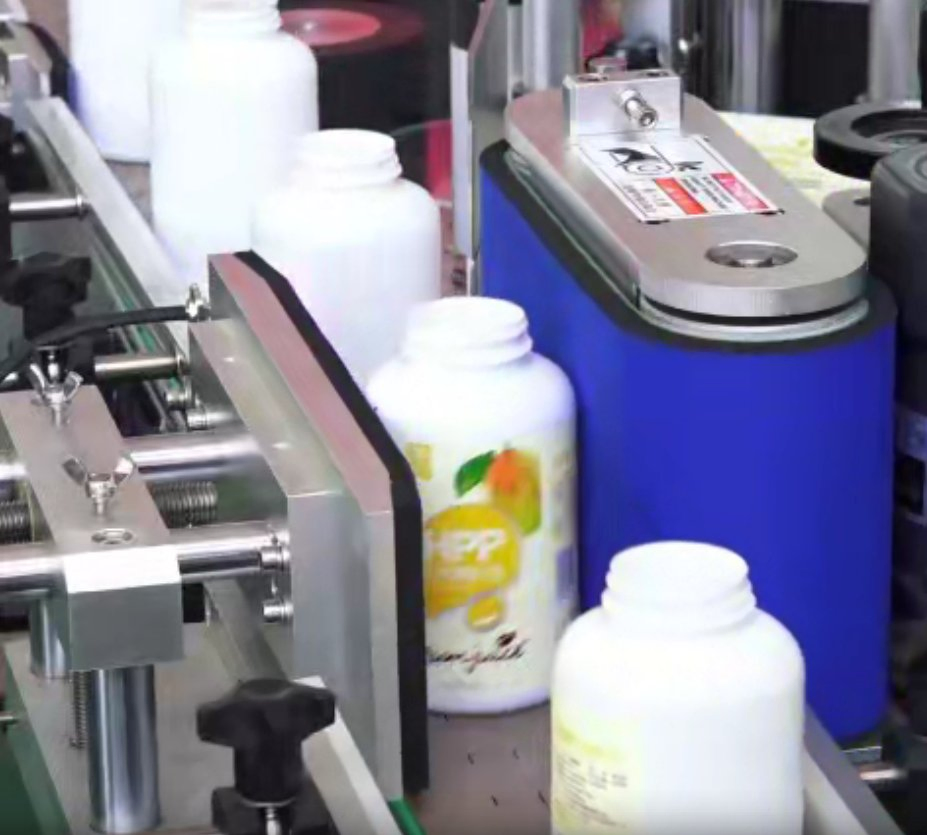

Accuracy of labeling and rubbing: The label to be applied needs labeling and rubbing device to make it closely adhere to the bottle, but at the moment of contact, the label and the bottle are easy to slide, which affects the accuracy. Therefore, the design of overriding and rubbing must be reasonable.
We are factory manufacturing packaging machines and we provide perfect after-sale service.
Quality is very important, we take much attention to control our quality from raw materials to the end. We will test every machine before it leaves our factory to make sure it's working good. Our factory has passed ISO. We also have audit periodically to make sure our products qualified.
We will finish installation and training within 1-2 weeks.
Show us the picture or video of the problem. If the problem is from small machine, we will send you solution by video. If the problem is from large machine, our engineer will go to your factory (customer will pay the fee during the trip).
All our machine have one year guarantee.
Before delivery, we shall test the machine working condition for you.
