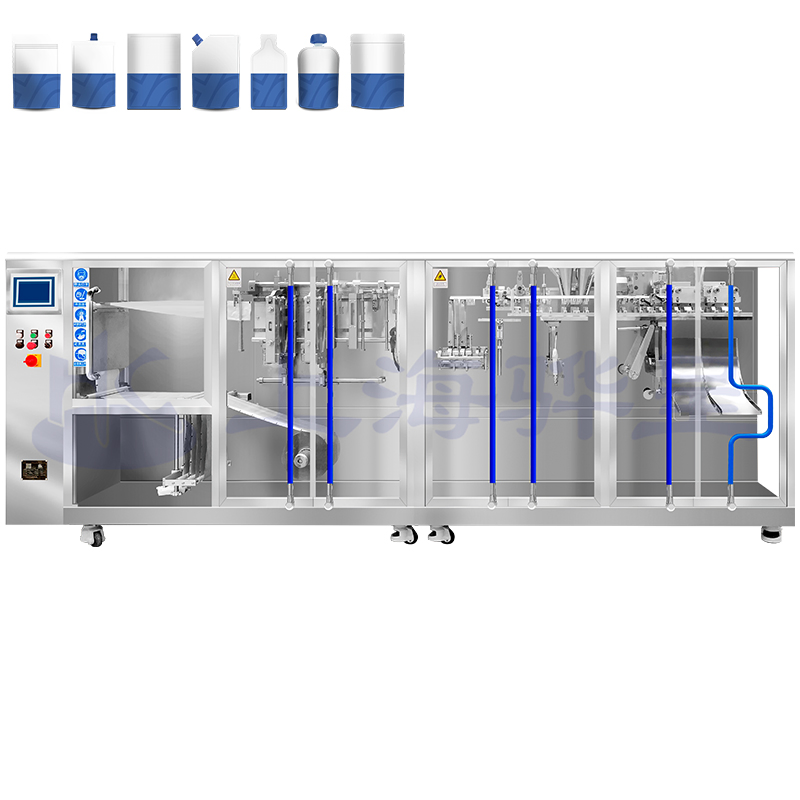

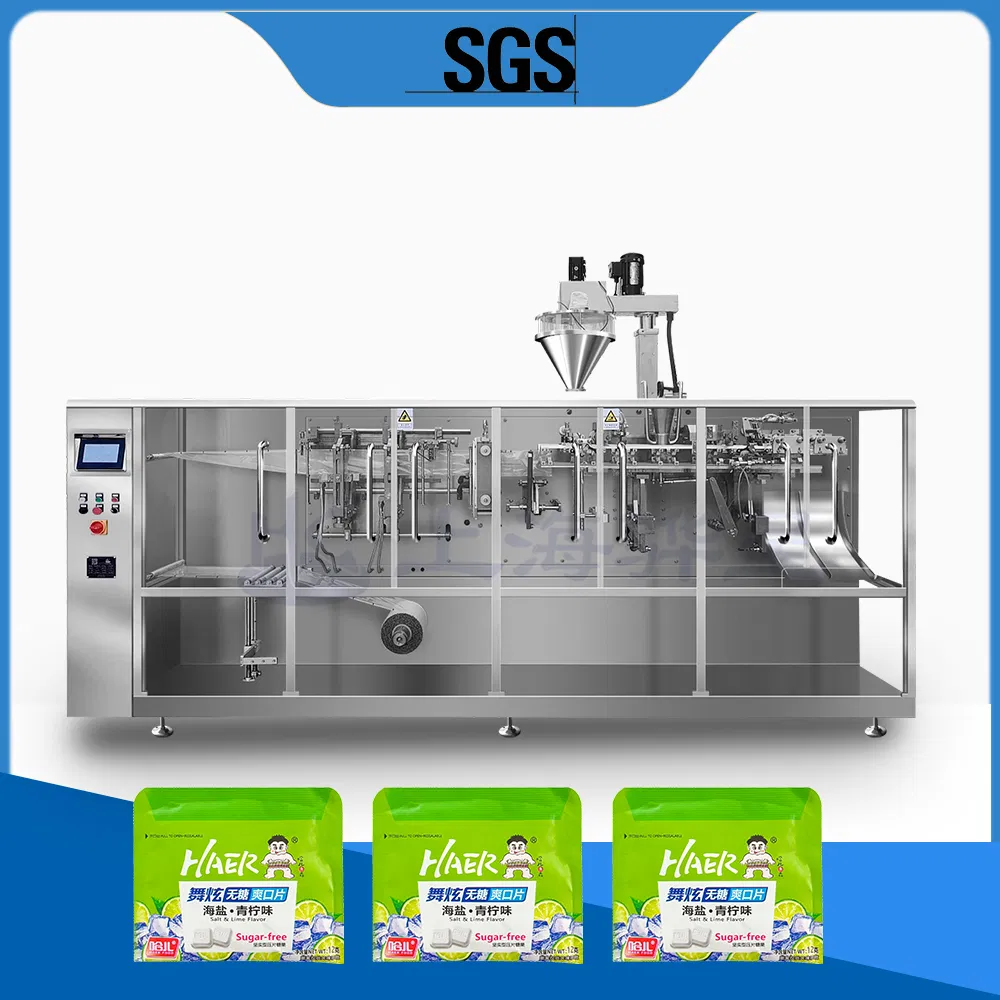

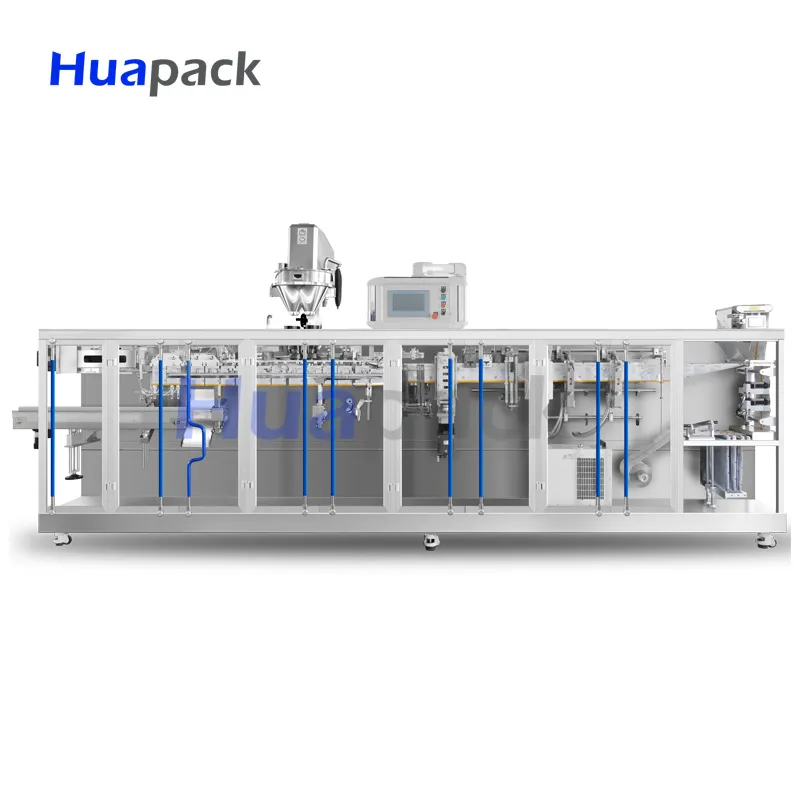

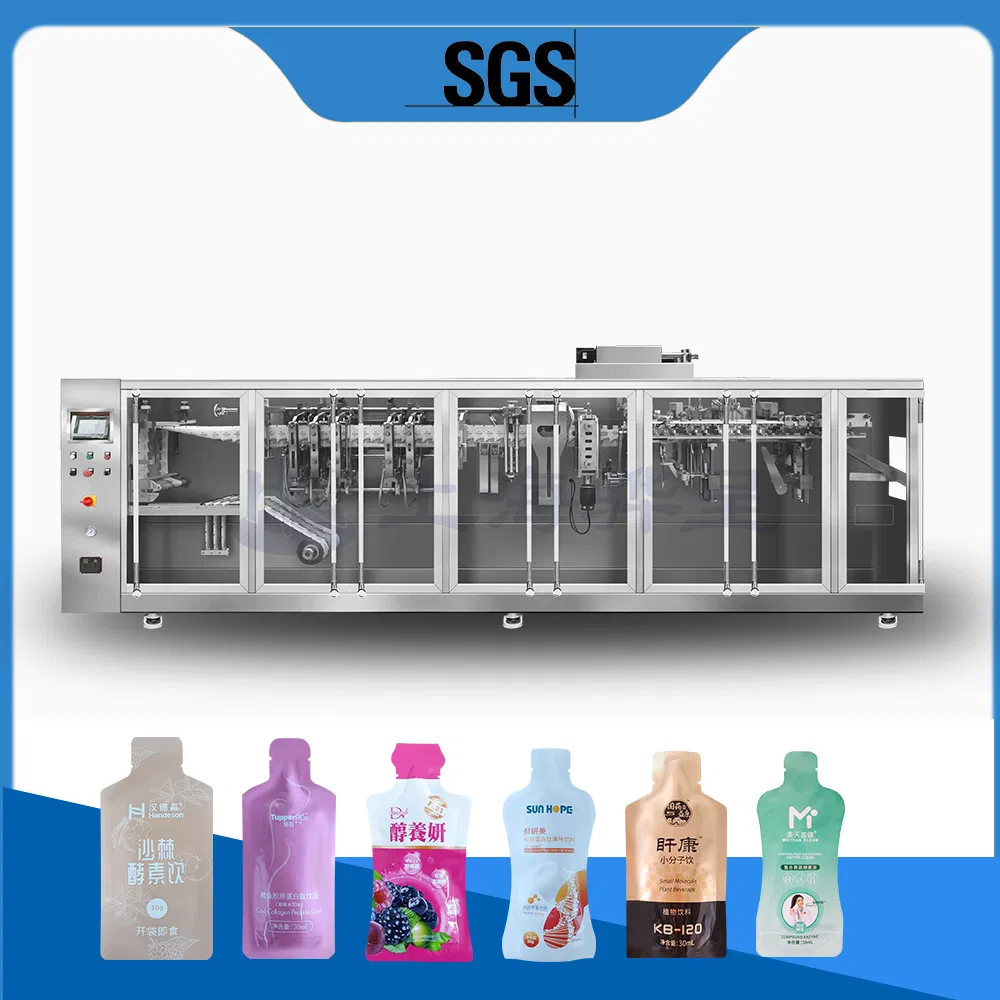

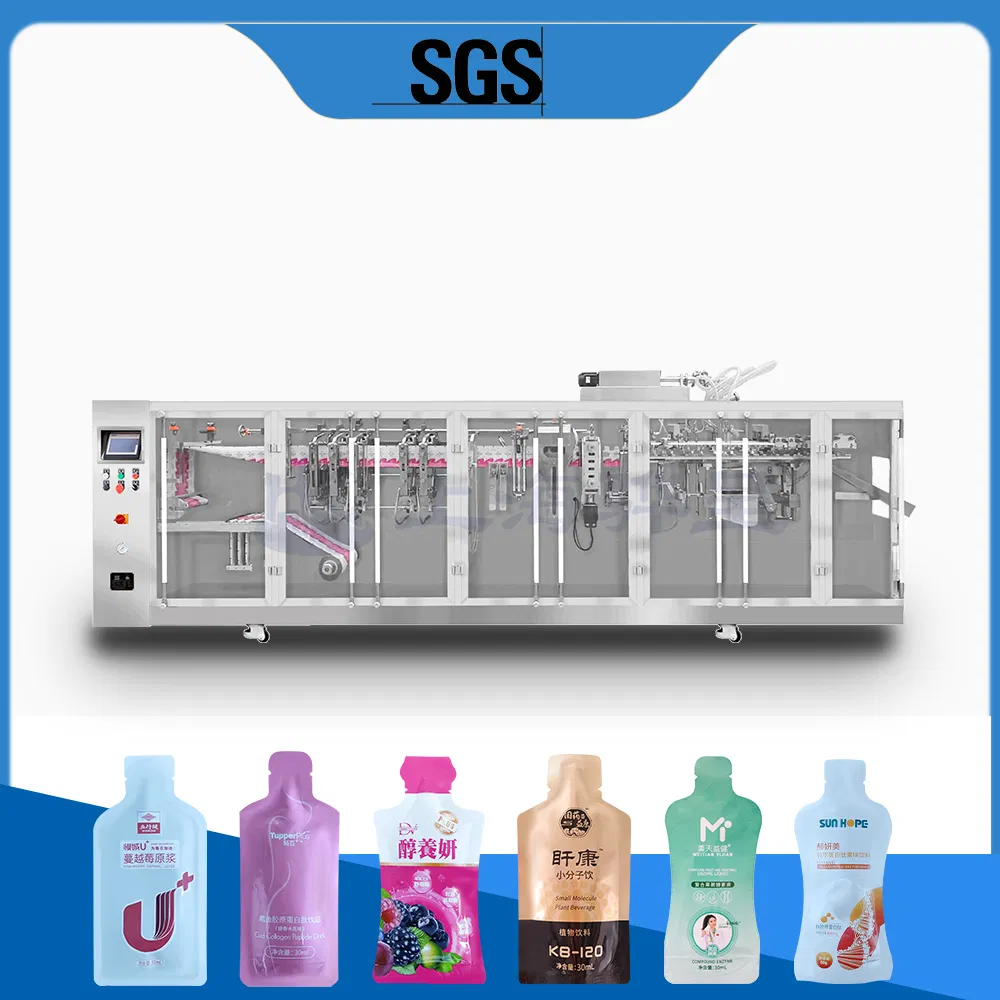

HC-N series designed for sachet with functions of making bag filling and sealing, hanging hole, special shape, zipper or spout.
Adopt Euro technology improving along with Chinese production status, coming up with machine high quality with competitive price.
Horizontal Form Fill Seal machines are packaging machines in which filling, and sealing of a package take place on the same machine. Filling occurs through the open-top part of the pouch.
HC packing machine has the wide range of Horizontal Form Fill and Seal machines in the market. Our machines cover all the applications and are customized to be adapted to our customers' needs.
| Simplex model | flat bag | 180N | 130N/130NZ | 110N/110NZ | 240N |
|---|---|---|---|---|---|
| Parameters | Min(W*H) | 75×85mm | 60×80mm | 20×80mm | 75×85mm |
| Max(W*H) | 180×225mm | 130×180mm | 50×100mm | 240x330mm | |
| packing vol max | 400ml | 160ml | 100ml | 2000ml | |
| speed(bag/min) | ≤70 | ≤70 | ≤70 | ≤60 | |
| film thickness | 60-140ų | 60-130ų | 60-130ų | 60-180ų | |
| film roll outer.dia | 500mm | 500mm | 500mm | 500mm | |
| film roll inner.dia | 70-80mm | 70-80mm | 70-80mm | 70-80mm | |
| machine size (mm) | 3500×970×1450 | 2850×920×1460 | 2650×900×1460 | 4500×9700×1460 | |
| Work Condition | machine weight | 900kg | 800kg | 800kg | 2100kg |
| temperature | -10ºC-+55ºC | -10ºC-+55ºC | -10ºC-+55ºC | -10ºC-+55ºC | |
| moisture | below 85% | below 85% | below 85% | below 85% | |
| vol. | AC380V,50Hz | AC380V,50Hz | AC380V,50Hz | AC380V,50Hz | |
| power | 5Kw | 3.5Kw | 3.5Kw | 5.5Kw | |
| air | 200L/min | 100L/min | 100L/min | 300L/min |
| Duplex model | 180ND | 360N quadruplex | 240N | 240ND |
|---|---|---|---|---|
| Parameters | 70×90mm | 75x80mm | 75×85mm | 75×85mm |
| 90×180mm | 130x180mm | 240x330mm | 120×225mm | |
| 100ml | 100ml | 2000ml | 2000ml | |
| ≤140 | 4*30-4*50 | ≤60 | 60-120 | |
| 70-130ų | 70-130ų | 60-180ų | 60-180ų | |
| 500mm | 500mm | 500mm | 500mm | |
| 70-80mm | 70-80mm | 70-80mm | 70-80mm | |
| 3500mm×970mm×1350mm | 6100mm×1100mm×1400mm | 4500mm×9700mm×1460mm | 5200mm×1100mm×1460mm | |
| 950kg | 1800kg | 2100kg | 2100kg | |
| Work Condition | -10ºC-+55ºC | -10ºC-+55ºC | -10ºC-+55ºC | -10ºC-+55ºC |
| below 85% | below 85% | below 85% | Below 85% | |
| AC380V,50Hz | AC380V,50Hz | AC380V,50Hz | AC380V,50Hz | |
| 0.6Mpa | 0.6Mpa | 0.6Mpa | 0.6Mpa | |
| 300L/min | 300L/min | 300L/min | 300L/min | |
| 5.5Kw | 9Kw | 5.5Kw | 5.5Kw |
| Feature Option | Description |
|---|---|
| 1. Coding | Cold press code or touch code form, date QR code, bar code can be realized |
| 2. Easy notch | Easy notch cutting |
| 3. Hanging hole | Round hole or euro hole |
| 4. Eyemark tracking | Advanced eyemark tracking system |
| 5. Zipper (optional) | Adding zipper device |
| 6. Top spout (optional) | Adding top spout inserting station |
| 7. Corner spout (optional) | Adding corner spout inserting station |
| 8. Double time filling | Increase the speed by double-head filling for big package |
| 9. Bag support | Adding bag support for big package |
| 10. Conveyor | Select the finished product conveyor belt to transport |
