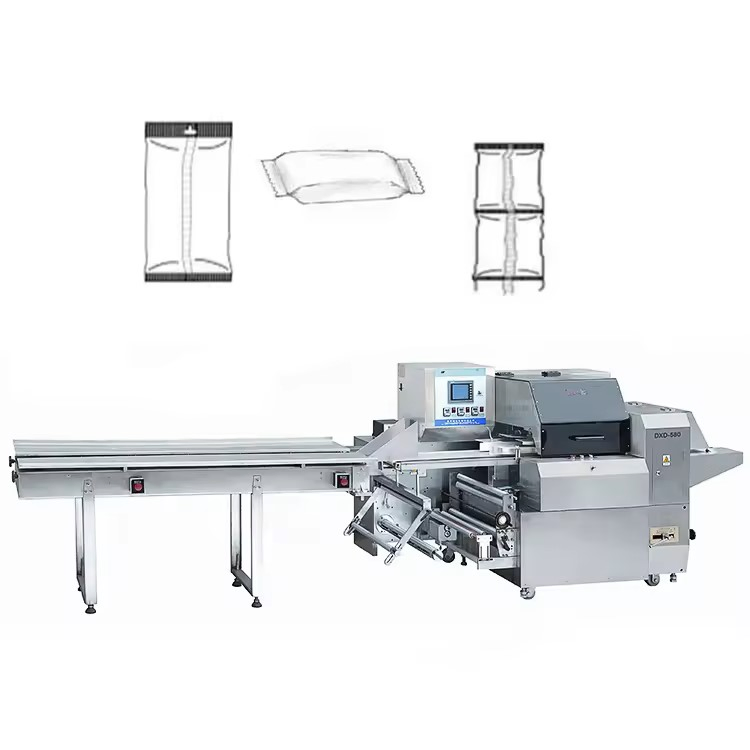

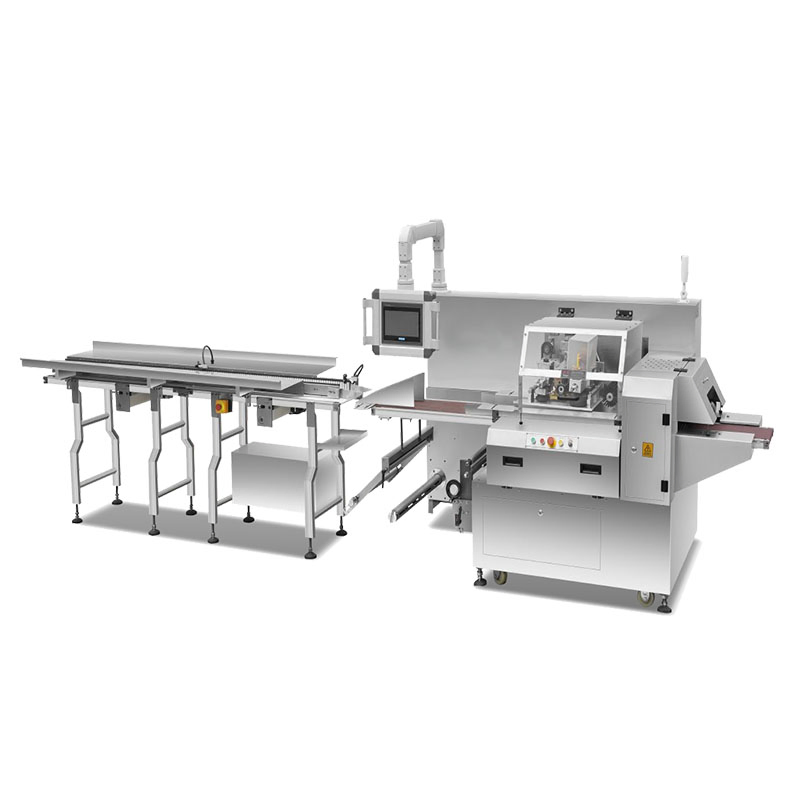

Automatic Flow Packing Machine for Whole Chicken

Customization:	Available
After-sales Service:	1 Year
Warranty:	1year

Basic Information

Model NO.:580

Applicable Goods:Bag

Type:Automatic Wrapping Machine

Driven Type:Electric

Application:Food, Medical, Electrical, Hardware

Automatic Grade:Automatic

Structure:Horizontal Winding Machine

Frame:SS304

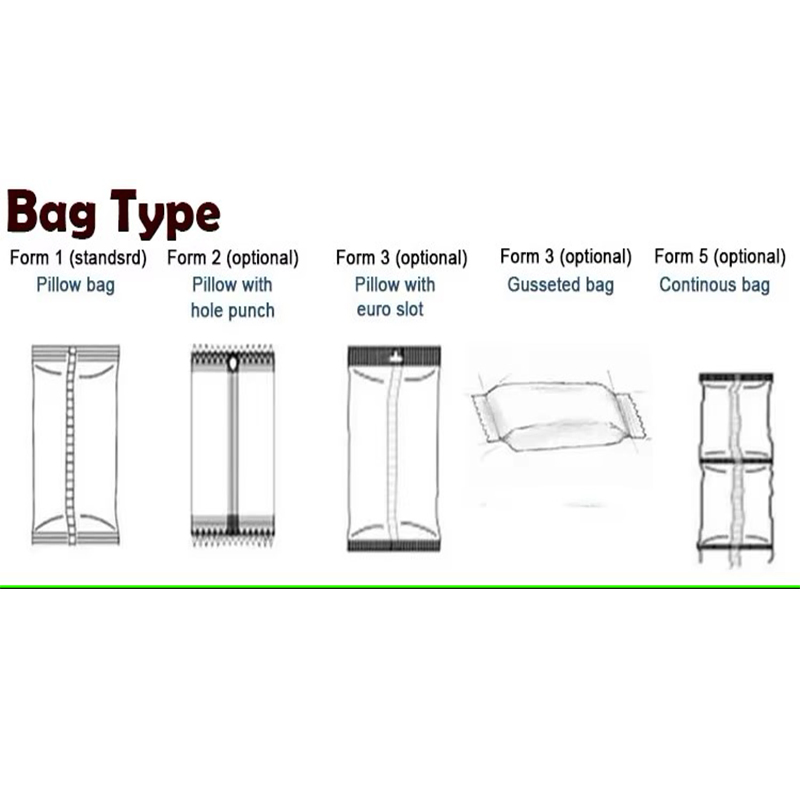

Pouch Type:Pillow Bag

Certification:CE/ISO9001

Specification:4000*1250*1500mm

Production Capacity:45sets/Month

Product Description

Adopts full servo intelligentized control and runs with low noise for comfortable working conditions.
Highly automated; can be connected to production lines directly for automatic feeding, forming, filling, and sealing.
Equipped with an industrial touch screen human-machine interface on a cantilevered stainless steel frame for intuitive operation.
Main shell constructed from 304 stainless steel with a thick steel plate frame; maximum speed up to 40 bags/min.
Standard left-to-right operating direction with a 2.5-meter long in-feed conveyor.
Longitudinal sealing system with height adjustment wheel for quick and easy settings.
10" color touch screen supports parameter settings, status info, and fault diagnostics.
Control system allows data storage for up to 99 different machine set-ups.
Stainless steel version specifically suitable for wet environments.

Technical Parameters

Model	280	300	380	420	460	580	630
Max Film Width (mm)	300	300	380	420	460	600	630
Bag Length (mm)	50-450	60-400	90-450	90-450	100-220	130-600	250-450
Bag Width (mm)	25-110	35-100	40-140	40-140	40-100	80-200	10-60
Product Height (mm)	max.50	max.60	max.60	max.80	max.80	max.110	10-100
Speed (bag/min)	50-190	30-350	35-260	35-260	30-100	10-90	15-80
Power	3KW	3KW	3KW	3KW	3.3KW	3KW	4KW

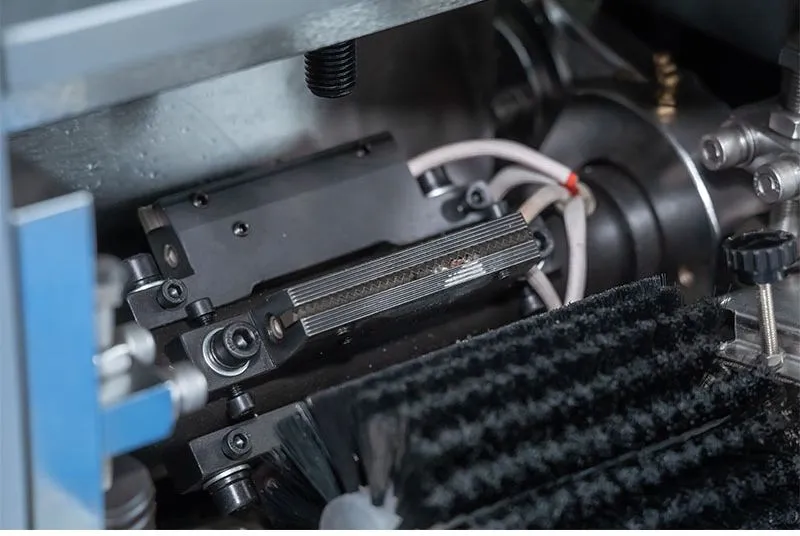

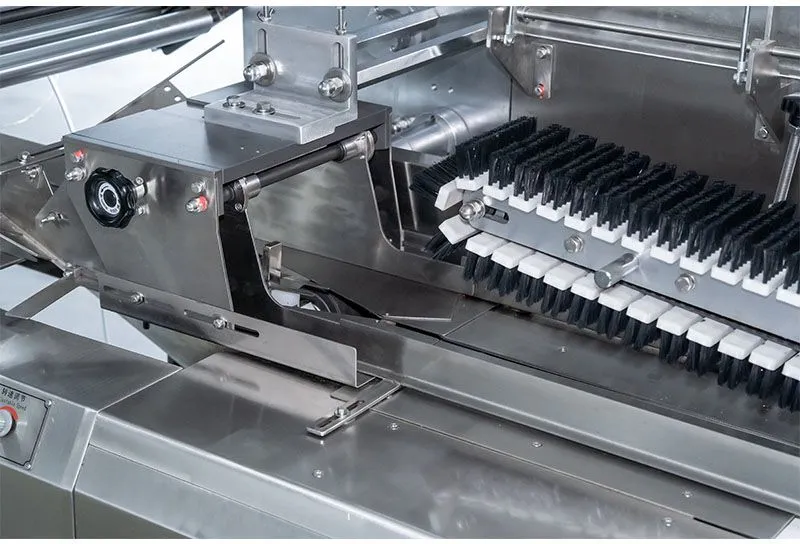

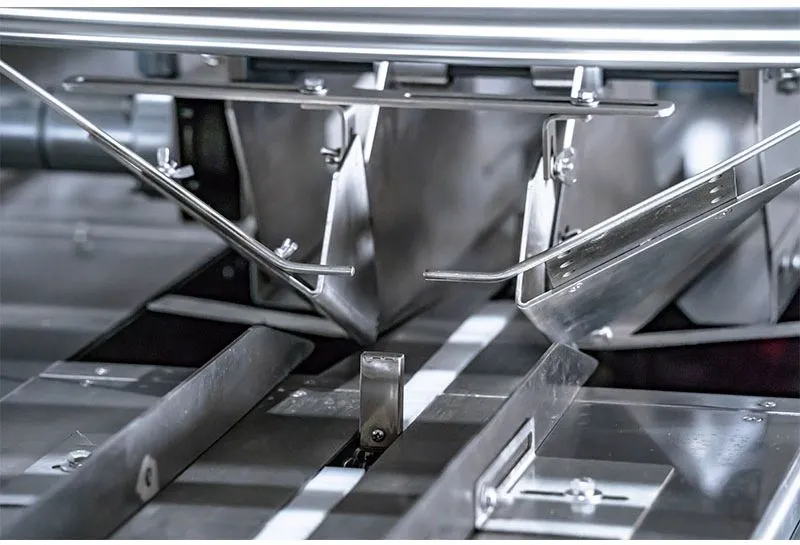

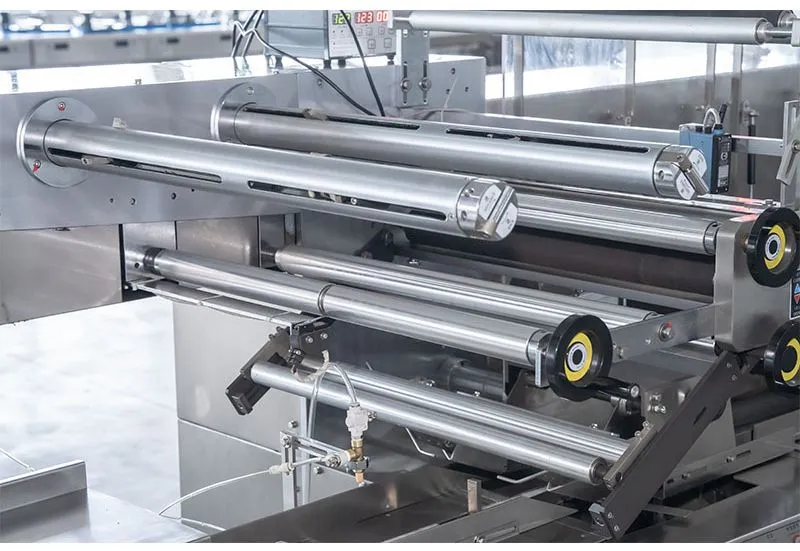

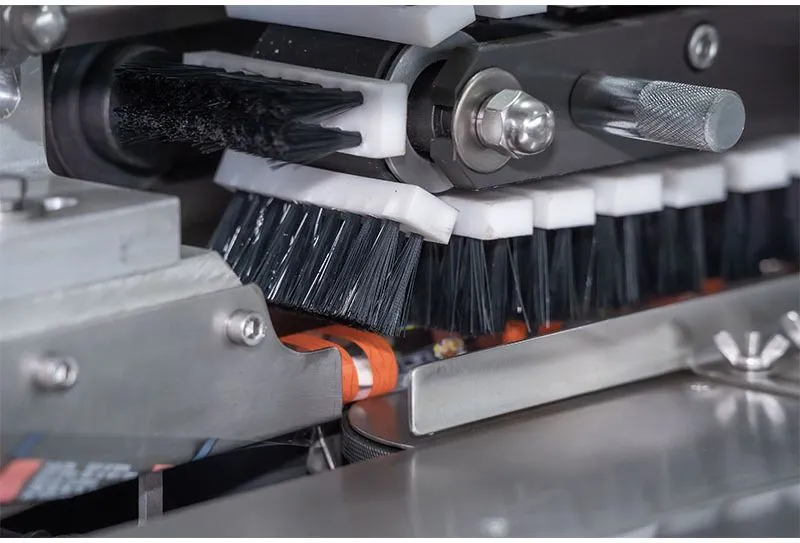

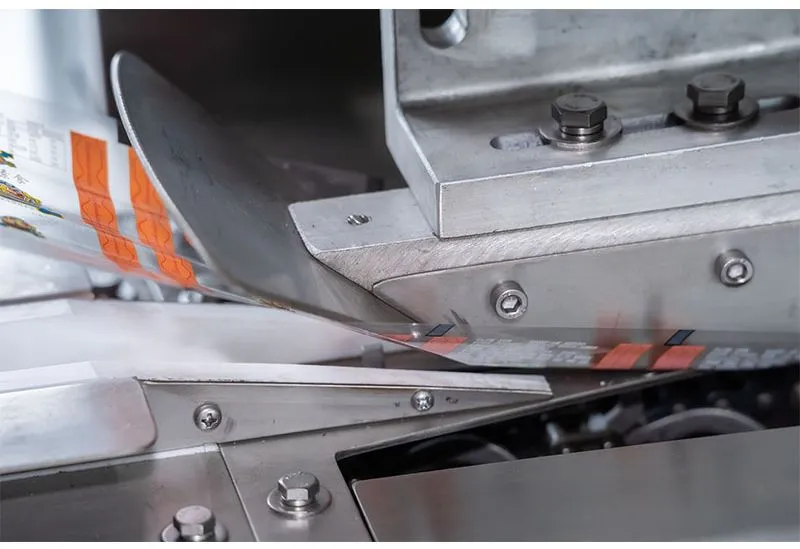

Detailed Photos

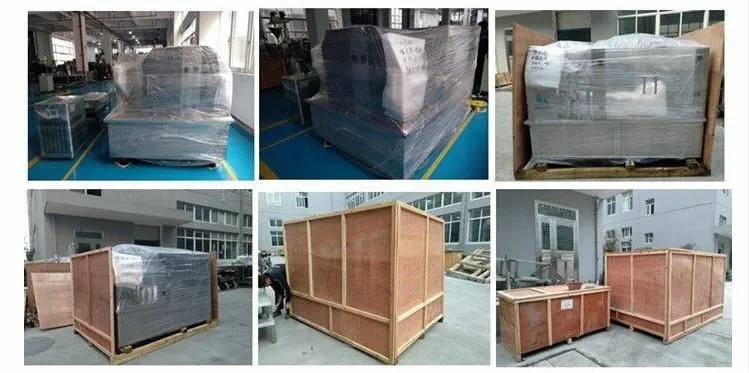

Packaging & Shipping

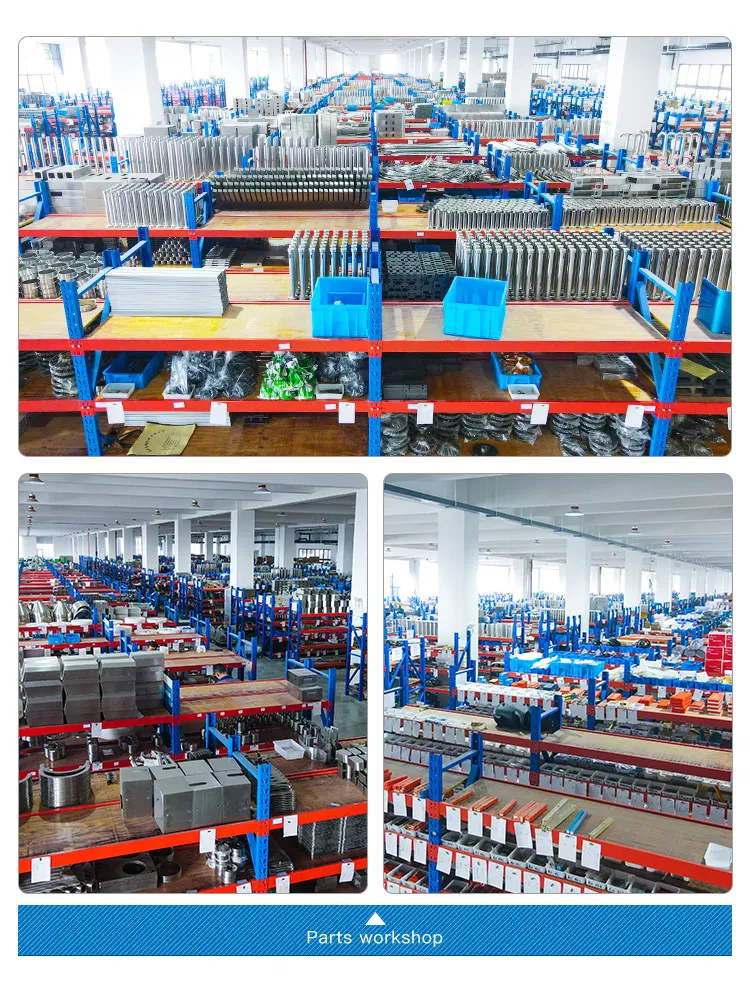

Company Profile

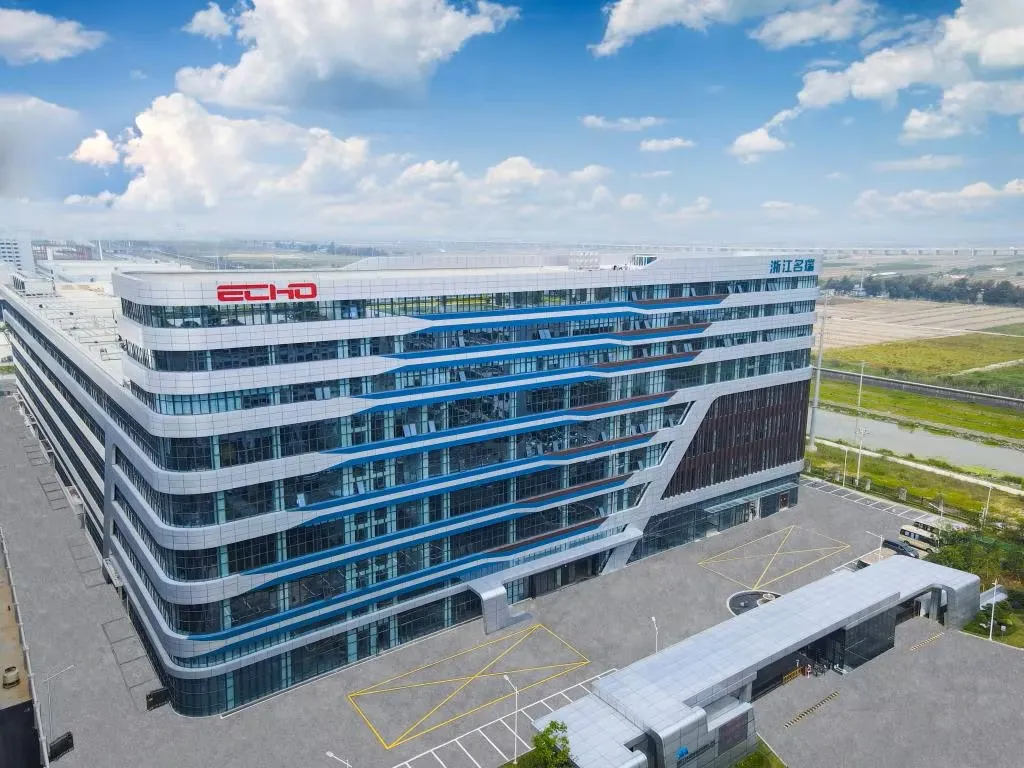

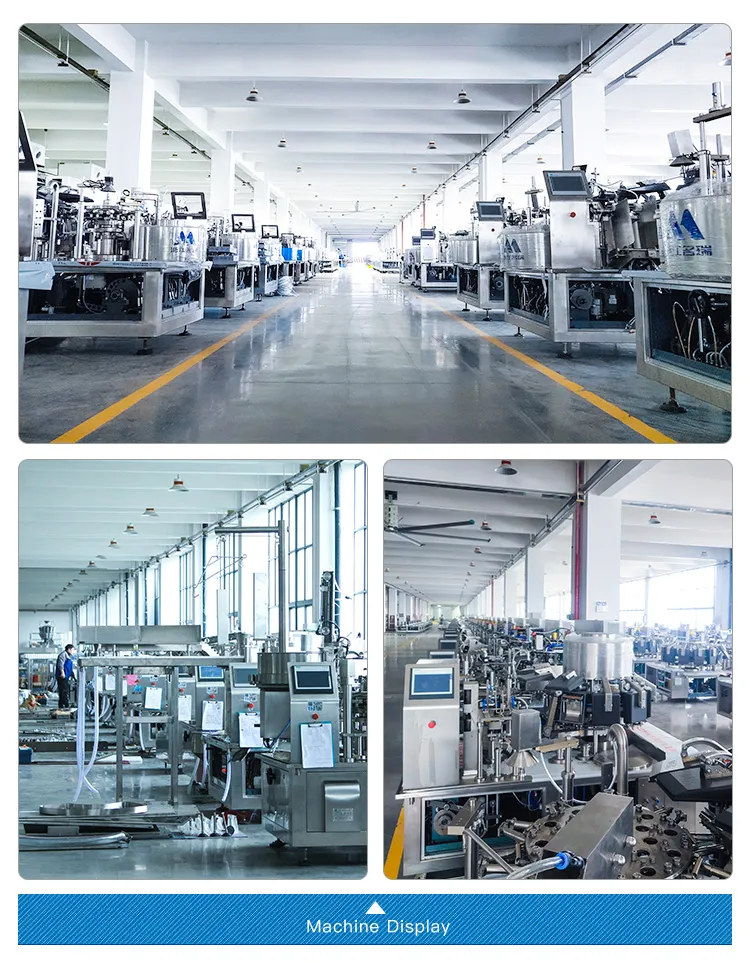

Our company has specialized in packing machinery for 24 years. Since 2000, we have focused on the research, design, and production of pre-made packing systems. We operate a facility covering 10,000 square meters with over 150 employees, achieving an annual output of more than 1,000 units. Our equipment is ISO 9001 certified and CE approved.

Our Strengths:

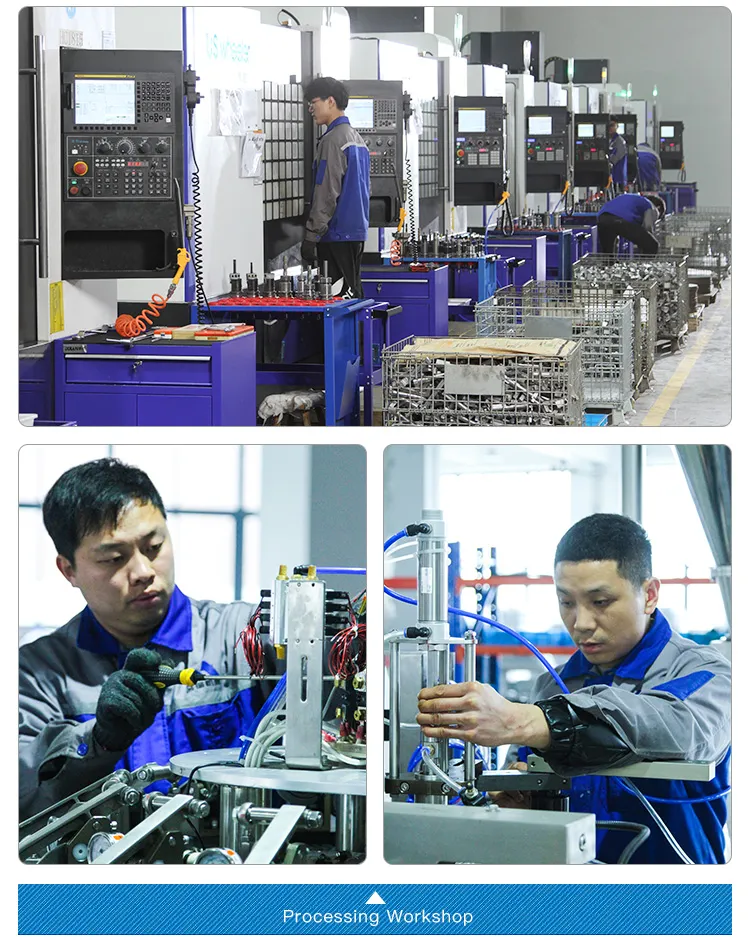

Strict assembly in accordance with CE and ISO 9001 standards using in-house CNC machining.
Extensive experience in the industrial packing sector with a dedicated after-sales support group.
Professional R&D team with multiple proprietary invention patents.
24-hour consultation for project design and technical solutions.
English-speaking engineers available for overseas service and maintenance.

Our Service

Pre-sale Service

1. Equipment model selection guidance.
2. Personalized customized products based on special requirements.
3. Free technician training for clients.
4. Professional engineers available for site planning and process design.

After-sales Service

1. One-year warranty with free replacement parts for non-human faults.
2. Lifelong maintenance support and engineer assignment for repairs.
3. Online technical instruction for immediate troubleshooting.
4. Regular feedback surveys to ensure equipment performance and service satisfaction.

Frequently Asked Questions

Q: What is your typical delivery date? A: Production is usually finished within 40 working days after receiving the 30% advanced payment, depending on the current production plan.

Q: What are your terms of payment? A: We accept T/T (30% in advance, 70% balance against B/L copy), L/C at sight, and Cash.

Q: How long does the installation process take? A: We typically complete installation and operational training within 15 days.

Q: How long is the warranty period for your machines? A: All machines come with a one-year guarantee, starting from the date installation is completed.

Q: What happens if parts are broken during the warranty period? A: We will provide free replacement parts via express delivery during the warranty period.

Q: How many workers are required to run these machines? A: For most printing, slitting, and die-cutting machines, only one person is needed to manage the operation.
