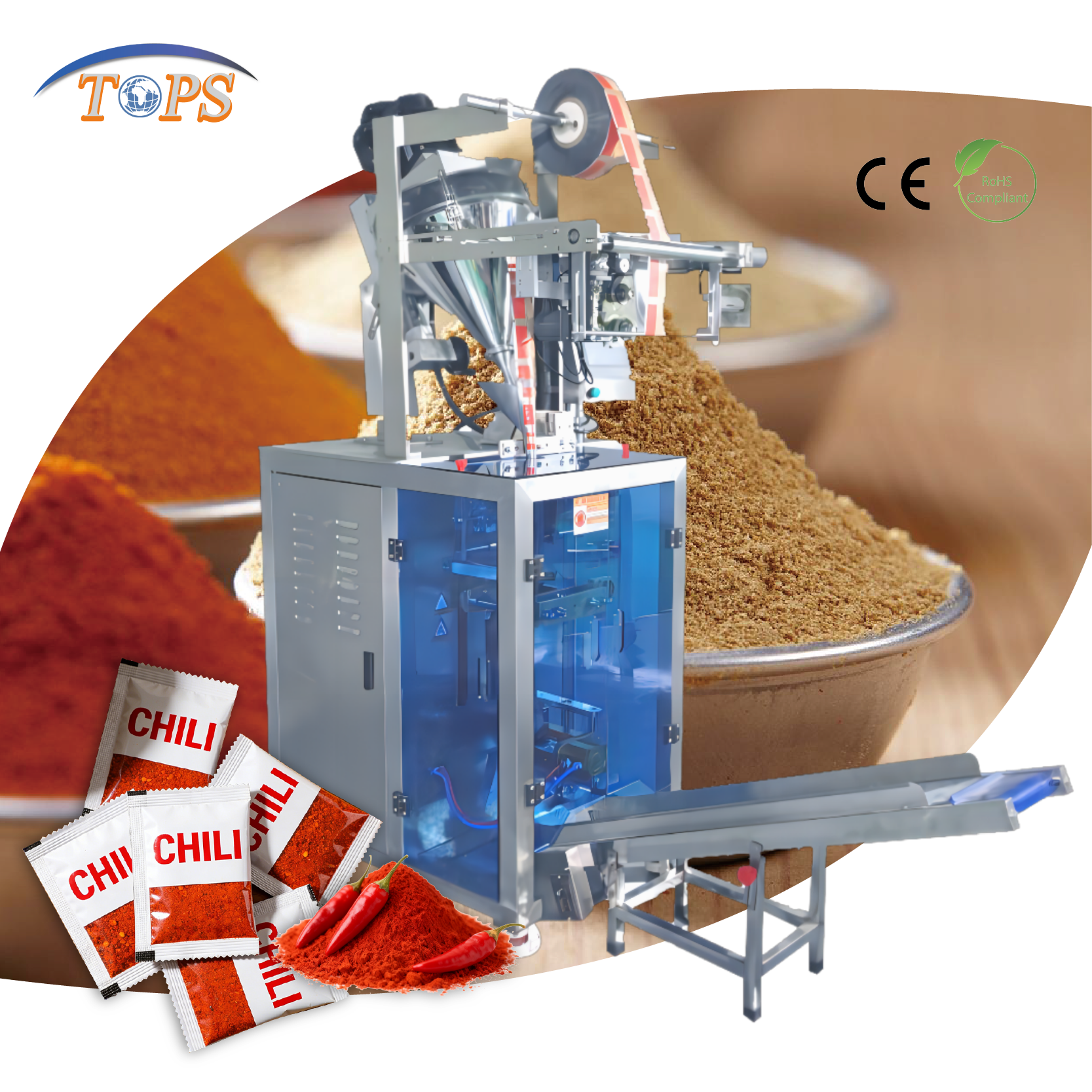

Durable Automatic Sachet Packing Machine for Powder Dried Banana Fruit with Labeling and High Capacity Bags/Pouch Packaging
Durable Automatic Sachet Packing Machine for Powder Dried Banana Fruit with Labeling and High Capacity Bags/Pouch Packaging
Durable Automatic Sachet Packing Machine for Powder Dried Banana Fruit with Labeling and High Capacity Bags/Pouch Packaging
Durable Automatic Sachet Packing Machine for Powder Dried Banana Fruit with Labeling and High Capacity Bags/Pouch Packaging
Durable Automatic Sachet Packing Machine for Powder Dried Banana Fruit with Labeling and High Capacity Bags/Pouch Packaging
1 / 5
Durable Automatic Sachet Packing Machine for Powder Dried Banana Fruit with Labeling and High Capacity Bags/Pouch Packaging
Durable Automatic Sachet Packing Machine for Powder Dried Banana Fruit with Labeling and High Capacity Bags/Pouch Packaging
Durable Automatic Sachet Packing Machine for Powder Dried Banana Fruit with Labeling and High Capacity Bags/Pouch Packaging
Durable Automatic Sachet Packing Machine for Powder Dried Banana Fruit with Labeling and High Capacity Bags/Pouch Packaging
Durable Automatic Sachet Packing Machine for Powder Dried Banana Fruit with Labeling and High Capacity Bags/Pouch Packaging

Durable Automatic Sachet Packing Machine for Powder Dried Banana Fruit with Labeling and High Capacity Bags/Pouch Packaging

Send Inquiry

Product Description

Automatic Sachet Packaging Machine

Automatic Sachet Packaging Machine

This series installed powder auger dosing system, can pack powder products such as milk powder, drinking powder, medicine and chemicals powder, etc.
Machine Details
  • Bag-making, measuring, filling, sealing, cutting and counting are all finished automatically.
  • Servo film pulling, sachet specification more accurate. With PLC and touch screen, easy operation.
  • Temperature independent PID control, suitable for various packaging materials.
  • High-sensitivity photoelectric eye color mark tracking, making the sealing and cutting position more accurate.

Optional Features

1. Coding machine
2. Filling device: measuring cups/auger filler/scales/liquid pumps
Specifications

Technical Specifications

ModelTP-PF-V180
Control systemTouch screen
Hopper15L
Film width40-180mm
Dosing typeBy auger
Capacity20-70 bags/ min (Depend on Products)
Packing accuracy≤ 100g, ≤±2%
Bag widthW20-75(mm)
Bag lengthL50-200(mm)
Power Supply220v 50HZ 1P (can be add transformer)
Total Power1.8 KW
Total Weight250kg
Overall Dimensions1100x820x1600mm

Film Application

Applied film material: PP, PE, PVC, PS, EVA, PET, PVDC+PVC, OPP+CPP etc.
Film thickness: 0.05-0.12mm

One Stop Service

We can also supply packing film & packaging bags for the packing machine. The composite film is suitable for various automatic packaging machines. Different materials provide different functions, such as aluminum foil film, aluminized film, easy tear film, easy peel film, nylon film, PET film, cooking film, boiling film, etc.
Main Material
PET/OPP/PA/PAPER + VMPET/AL/PET/PA + PE/CPP/CPE

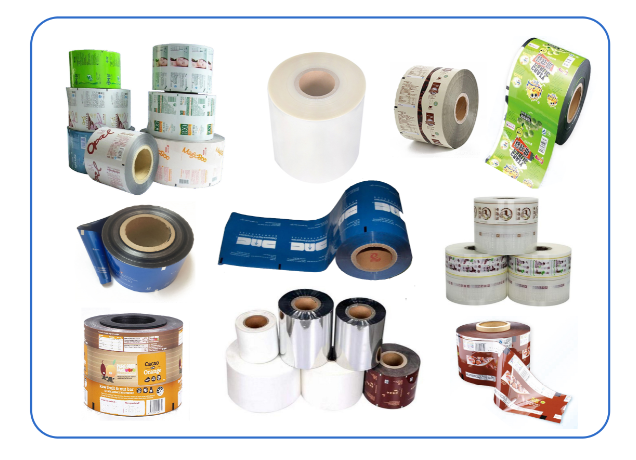

Film Structure
Packaging Samples

Core Components & Details

Component 1
Component 2
Component 3

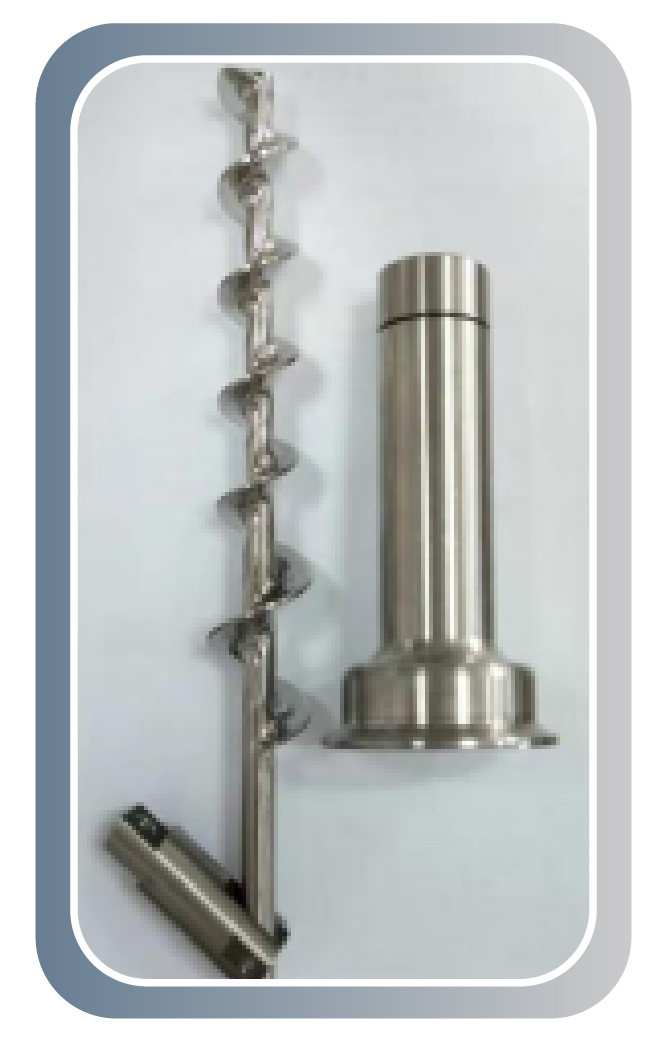

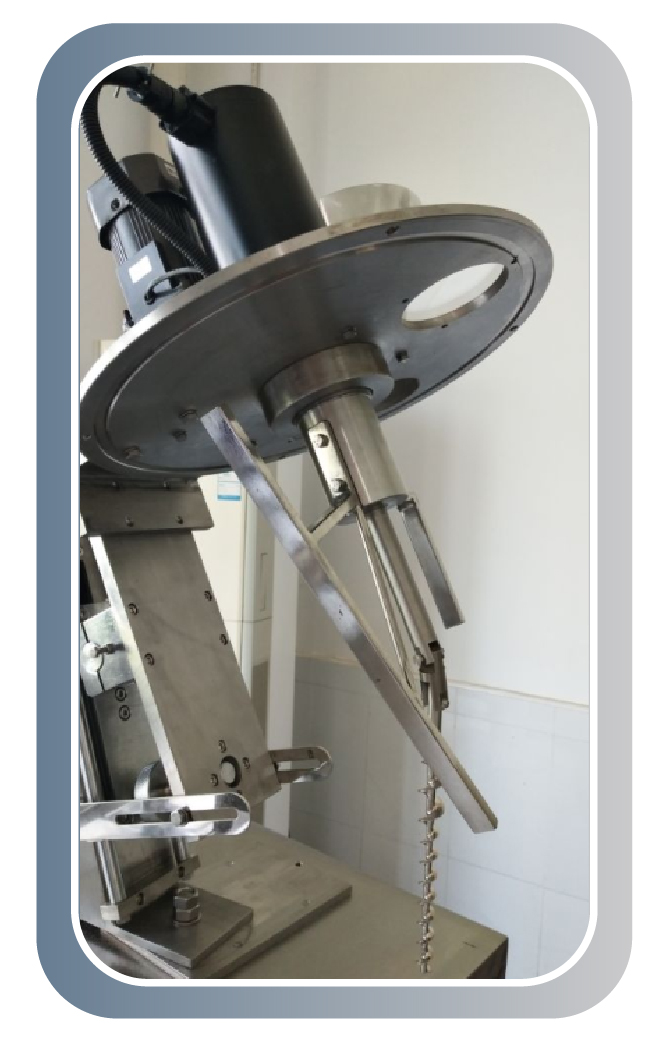

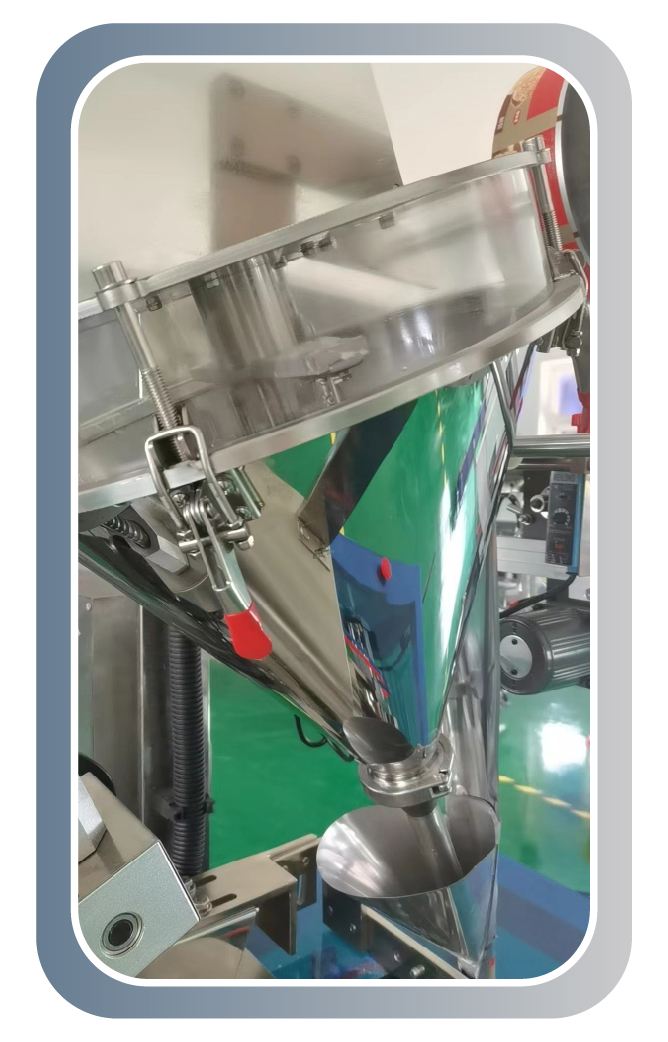

1. Powder dosing system - auger filler, controlled by a motor, offers high precision. The system requires no adjustments to other parts for changing bag length, ensuring accurate results.

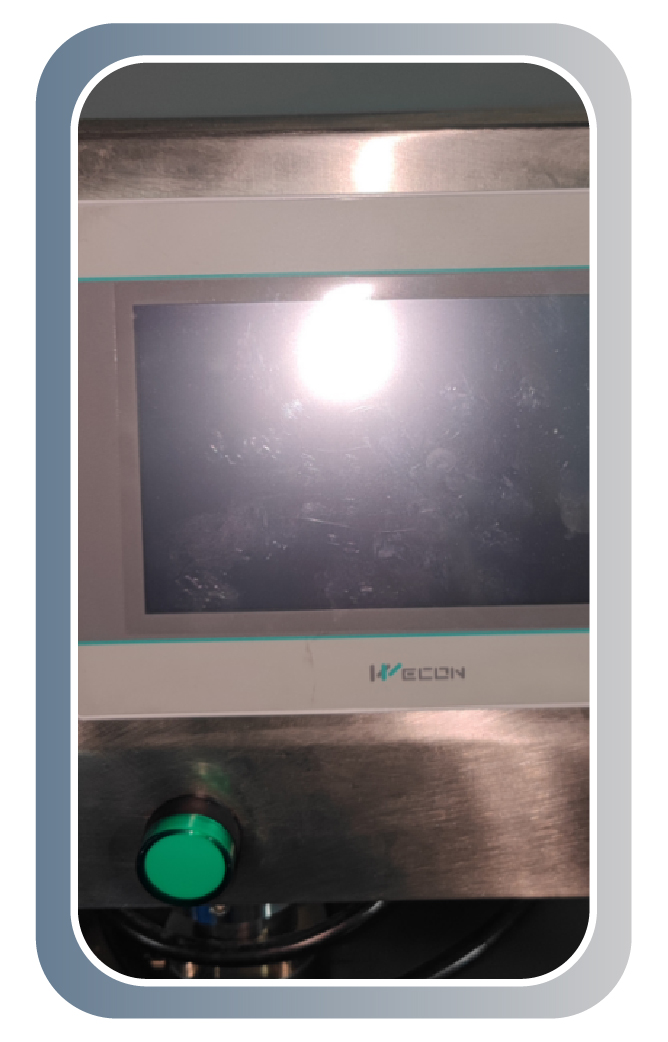

Control System
Touch Screen
Mechanism
2. Equipped with PLC and touch screen for convenient and quick parameter setting.

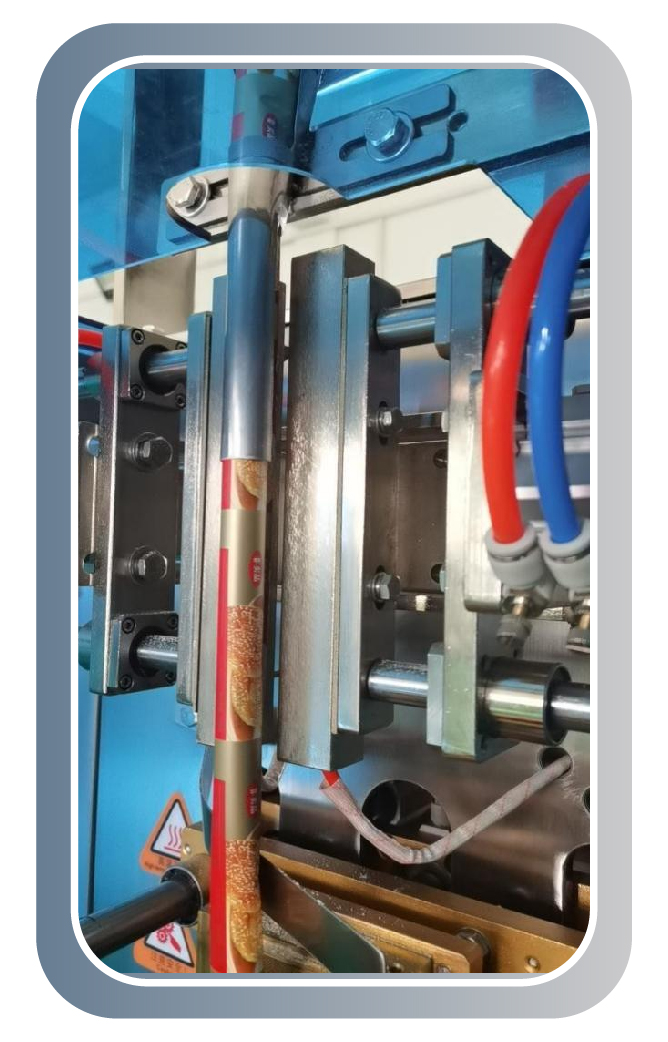

3. Film pulling mechanism controlled by servo motor for superior precision.

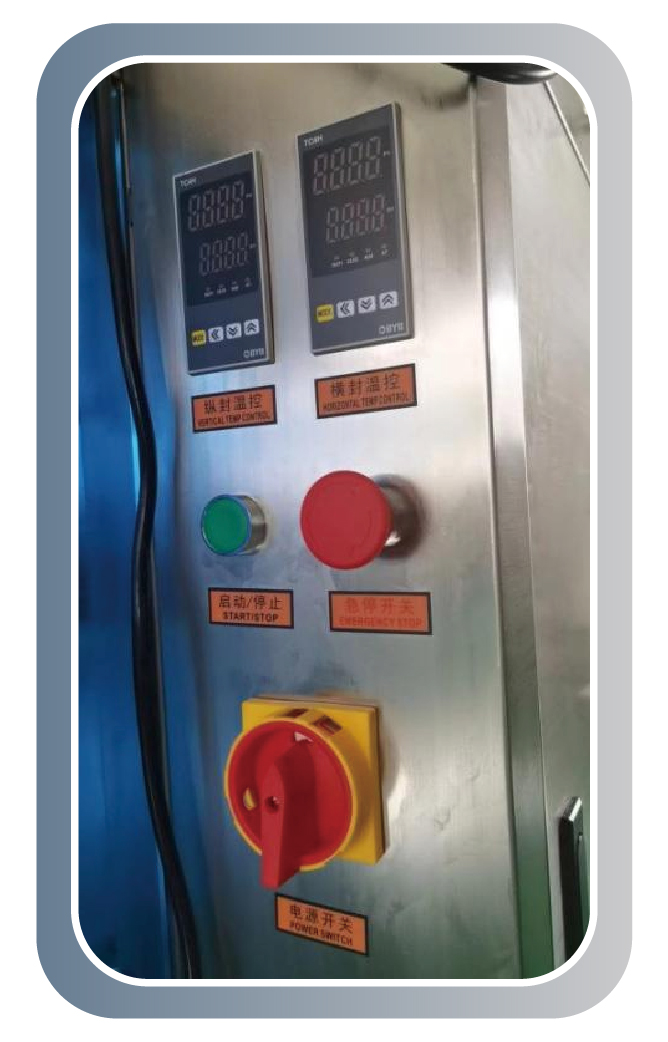

PID Control
Printer

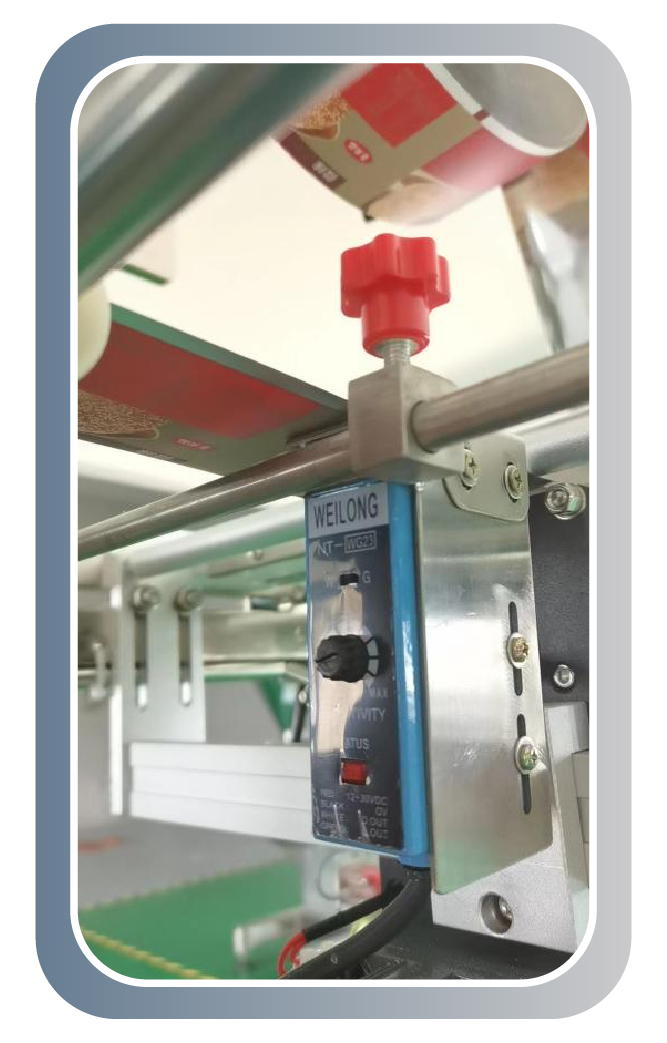

Tracking
4. Temperature independent PID control, suitable for various packaging materials.

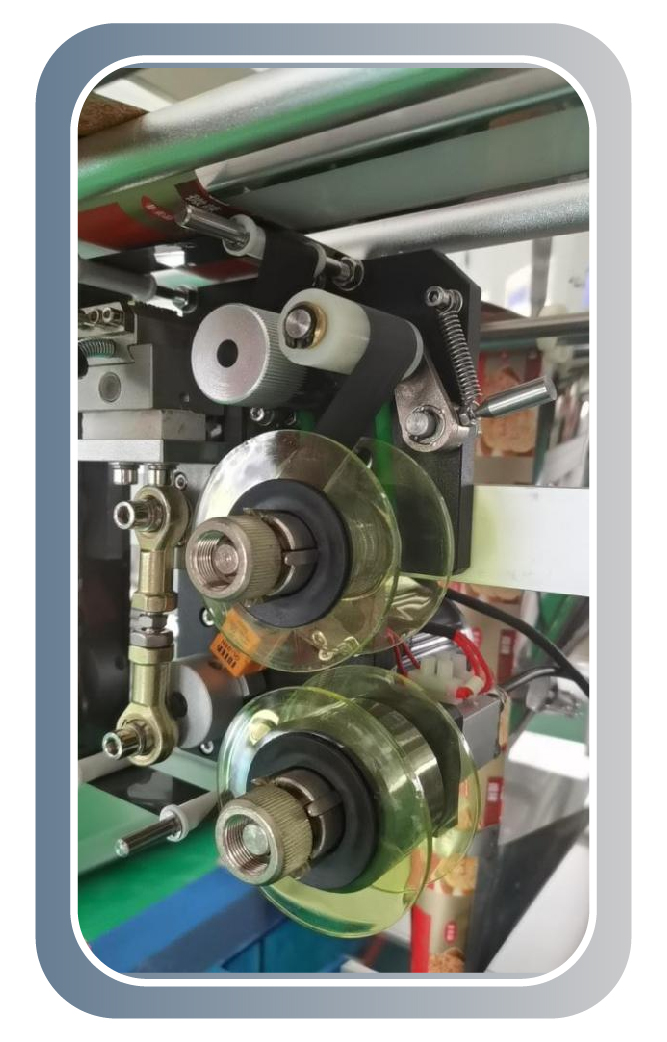

5. Integrated date printer.
6. High-sensitivity photoelectric eye color mark tracking with digital input of sealing and cutting position.
Option 1
Option 2
Option 3

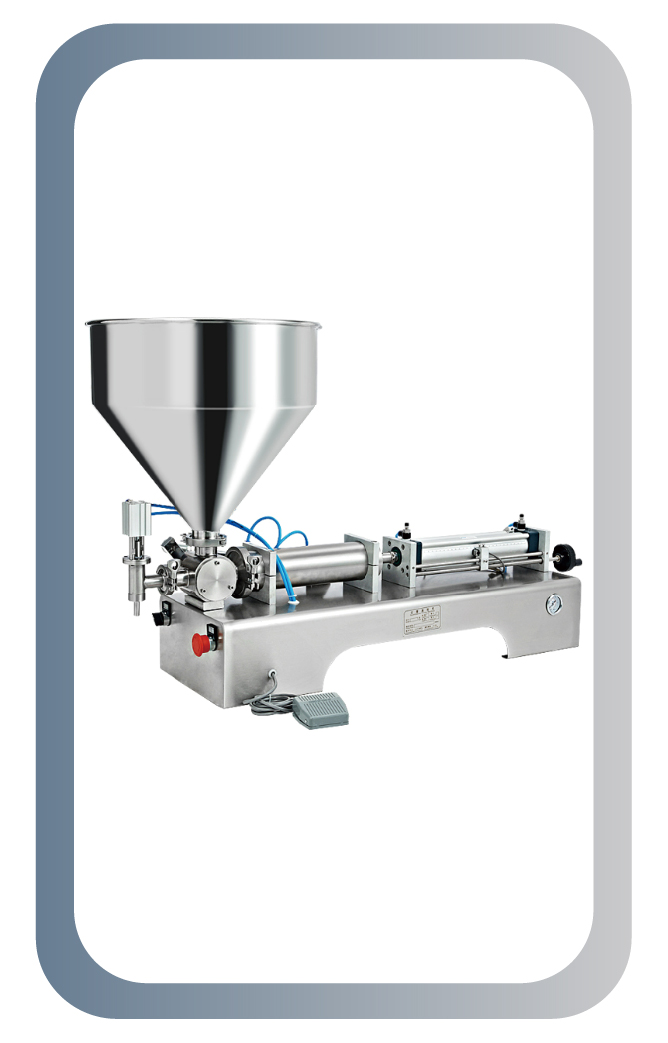

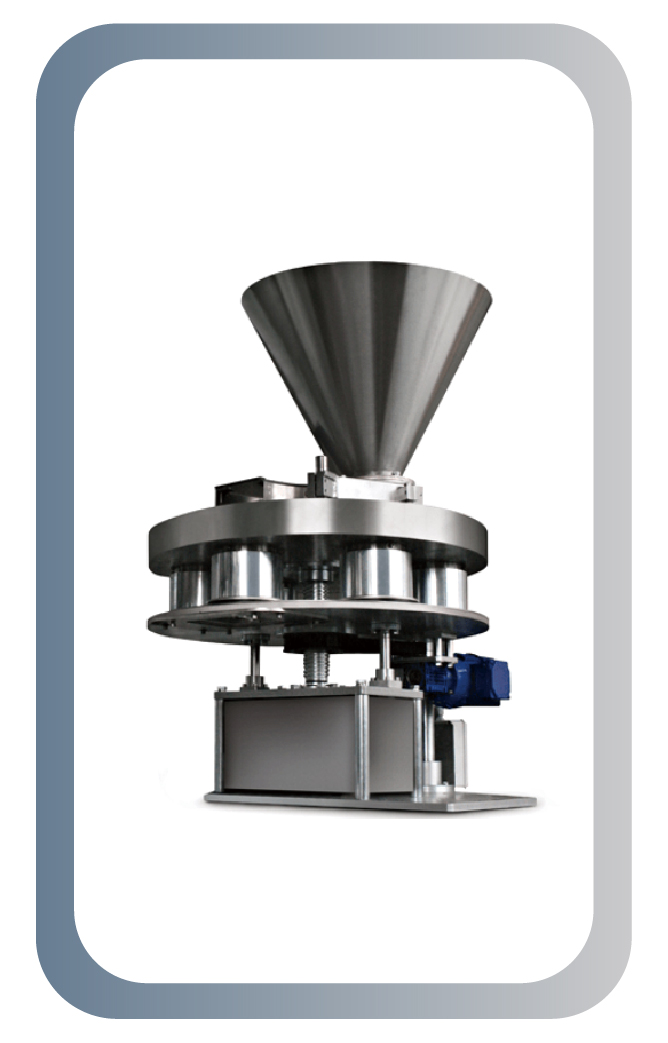

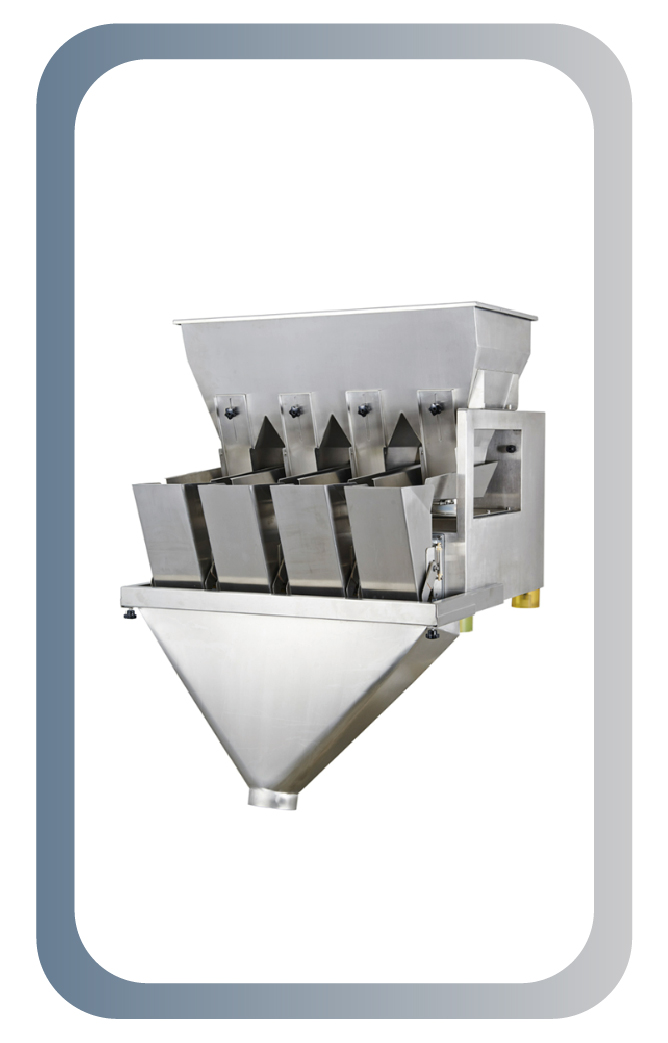

7. According to different materials, measuring cups, auger fillers, scales, or liquid pumps are optional.
Machine View 1
Machine View 2
Machine View 3
Machine View 4
Machine View 5
Machine View 6

Frequently Asked Questions

Q1: What materials can this sachet machine pack?

A: This machine is ideal for powders like milk powder, coffee powder, medicines, chemical powders, and other fine granules using the auger dosing system.

Q2: Can the bag size be adjusted?

A: Yes, bag length and width can be adjusted within the machine's technical range (Width 20-75mm, Length 50-200mm) through the PLC touch screen interface.

Q3: Does the machine support different film materials?

A: Yes, it is compatible with various composite films including PP, PE, PVC, PET, and aluminum foil films with a thickness of 0.05-0.12mm.

Q4: How accurate is the filling process?

A: The machine uses a motor-controlled auger filler providing high accuracy of ≤±2% for weights under 100g.

Q5: Is the machine easy to operate for new users?

A: Yes, it features a user-friendly PLC touch screen system where all parameters like speed and bag length can be set easily.

Q6: What is the production speed of this machine?

A: The capacity ranges from 20 to 70 bags per minute, depending on the specific product characteristics and bag dimensions.
