Heavy-Duty Collaborative Palletizing Robot System for Packaging Line Integration

Product Description

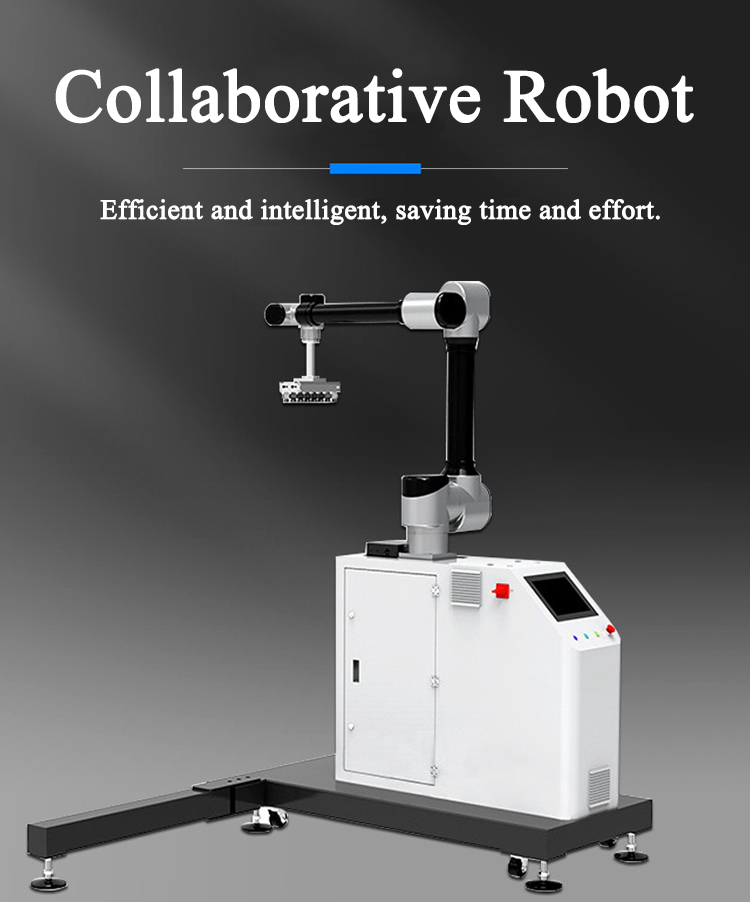

Collaborative Robot Palletizing System
Collaborative Robot Palletizing System

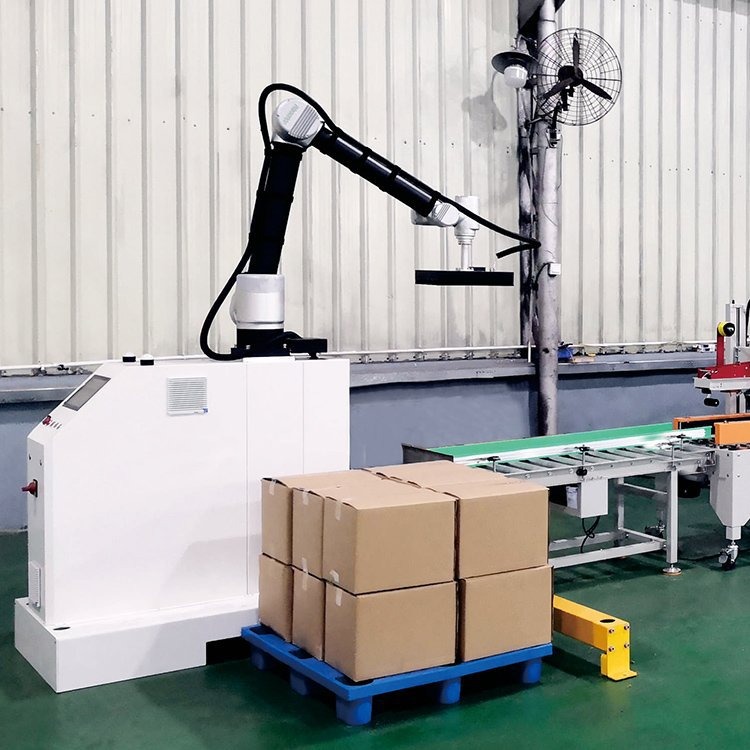

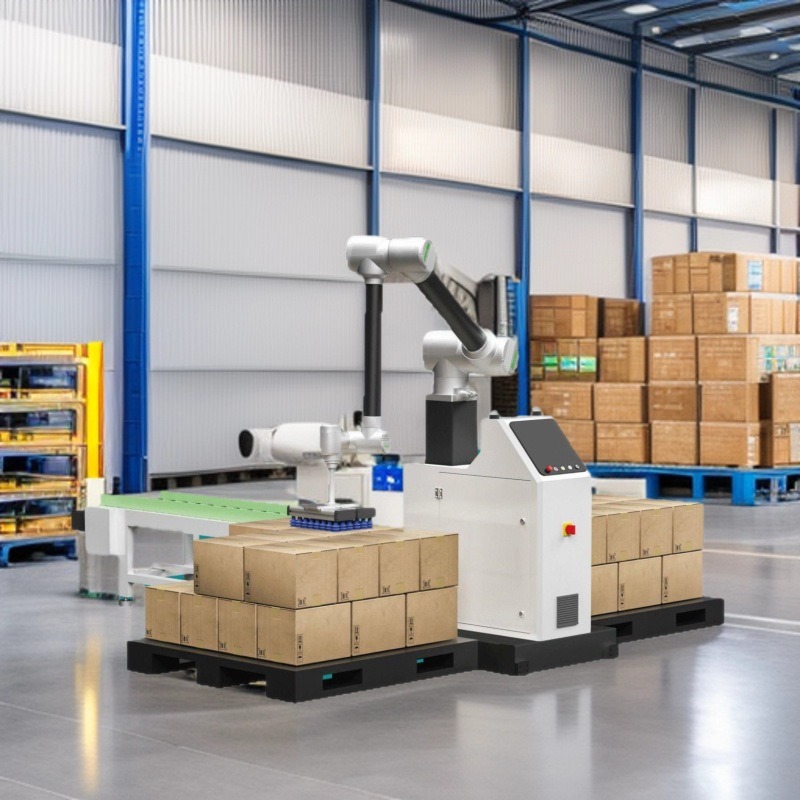

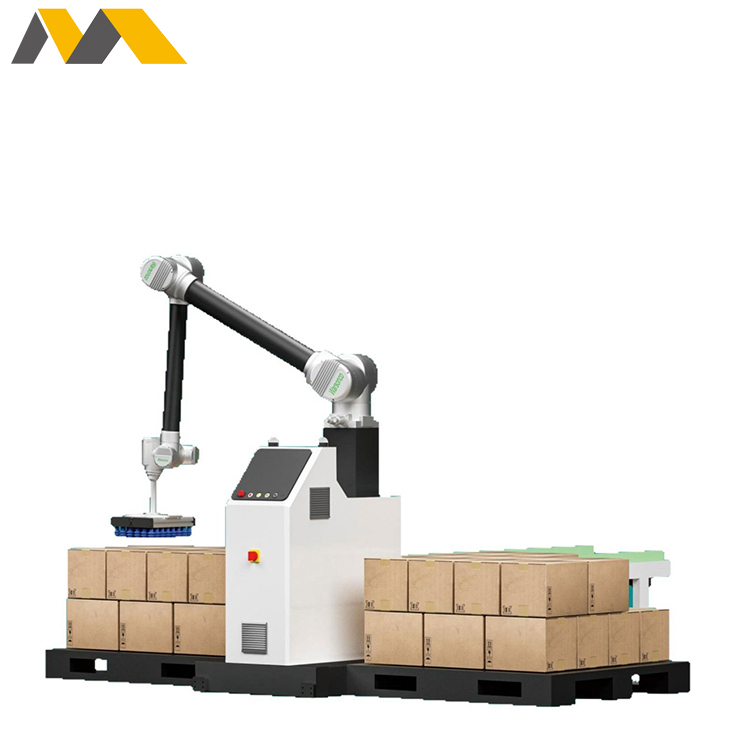

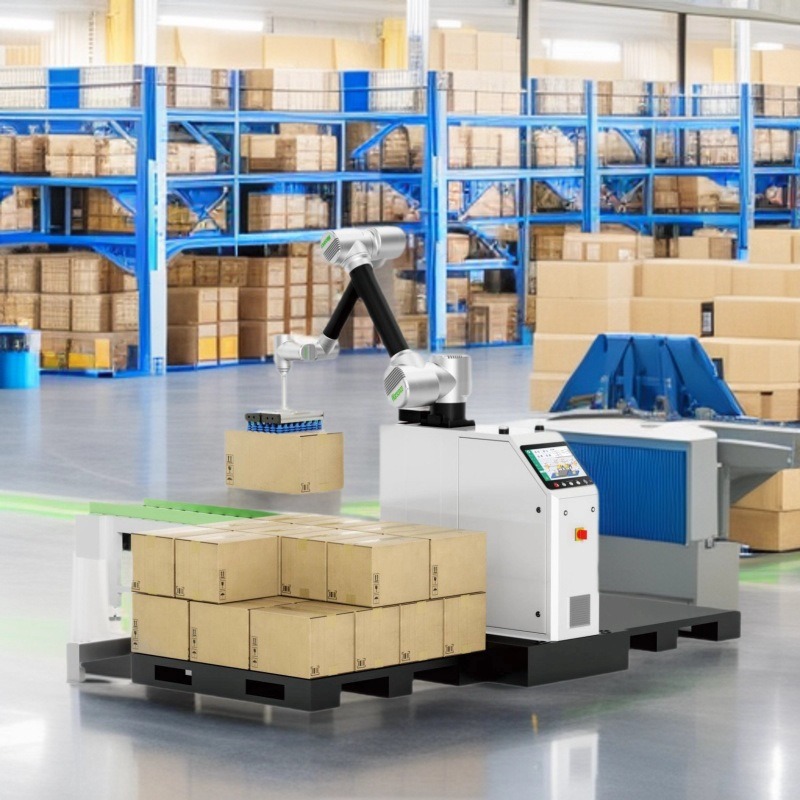

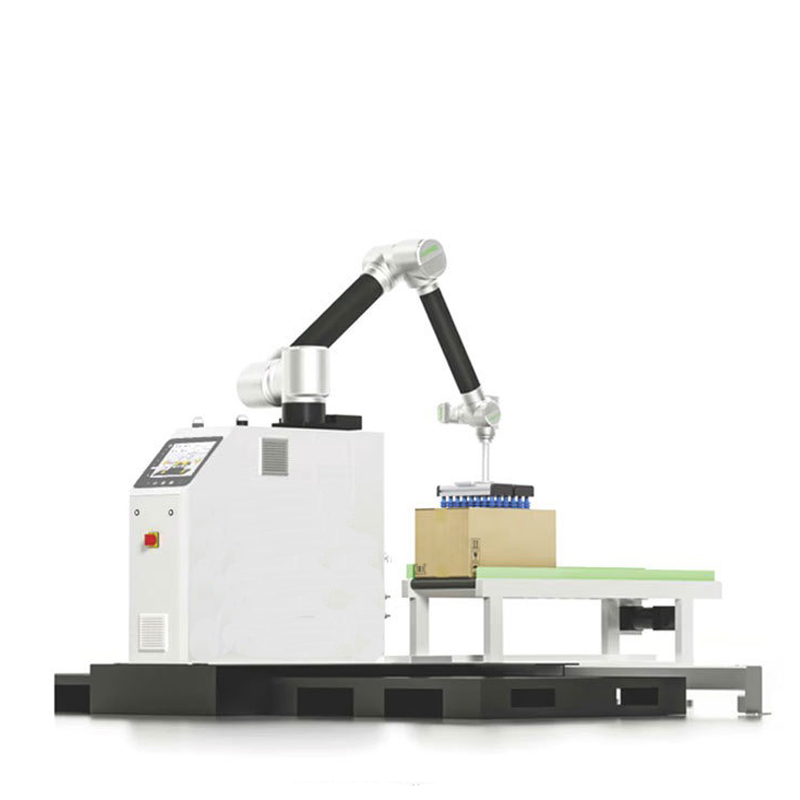

This collaborative robot palletizing system is a cutting-edge end-of-line automation solution designed to enhance efficiency, safety, and flexibility in packaging and logistics applications. Featuring a 6-axis collaborative robotic arm equipped with a high-performance vacuum gripper, it handles a wide variety of cartons, bags, and containers with speed and accuracy.

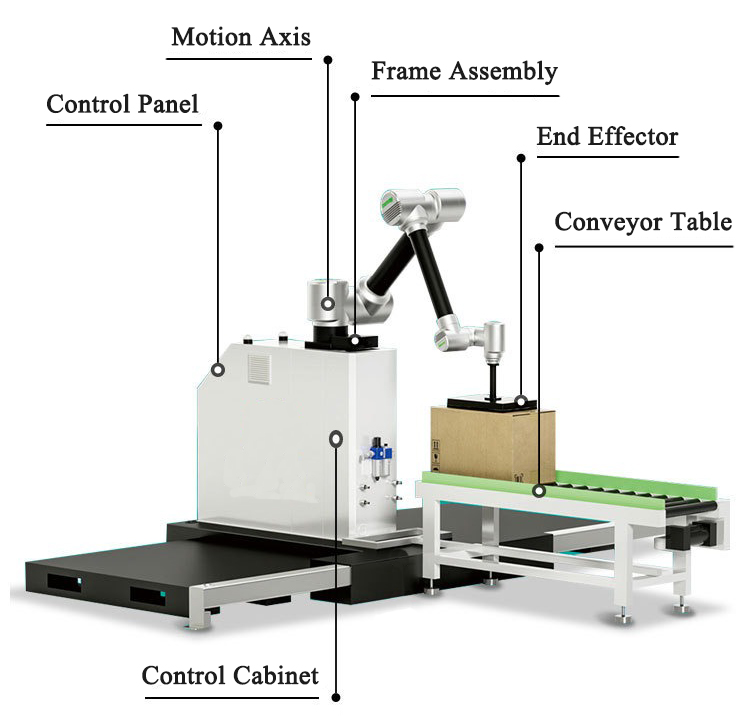

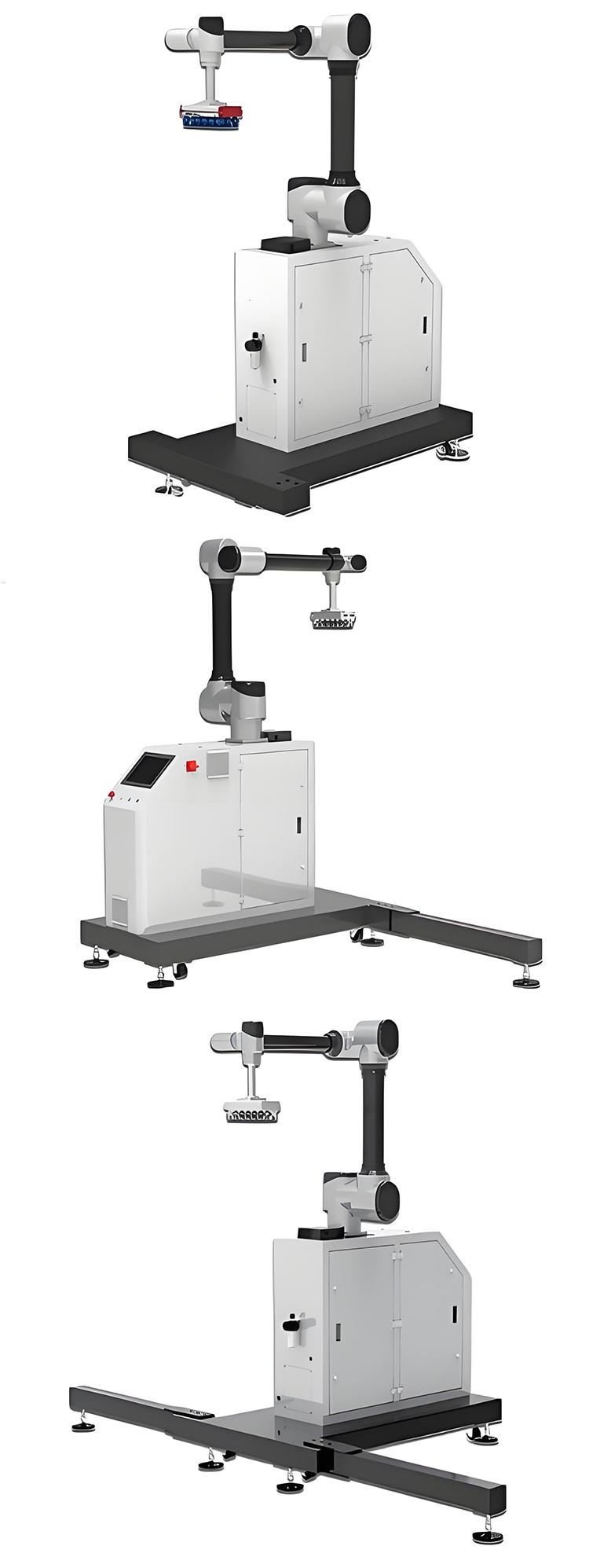

The robot is mounted on a mobile base with an extended track, allowing it to cover multiple palletizing positions and maximize workspace utilization. The compact structure and modular design ensure smooth integration into existing production lines. The system supports quick deployment with an intuitive interface and minimal programming requirements.

Key Features
Safe and flexible 6-axis collaborative robotic arm

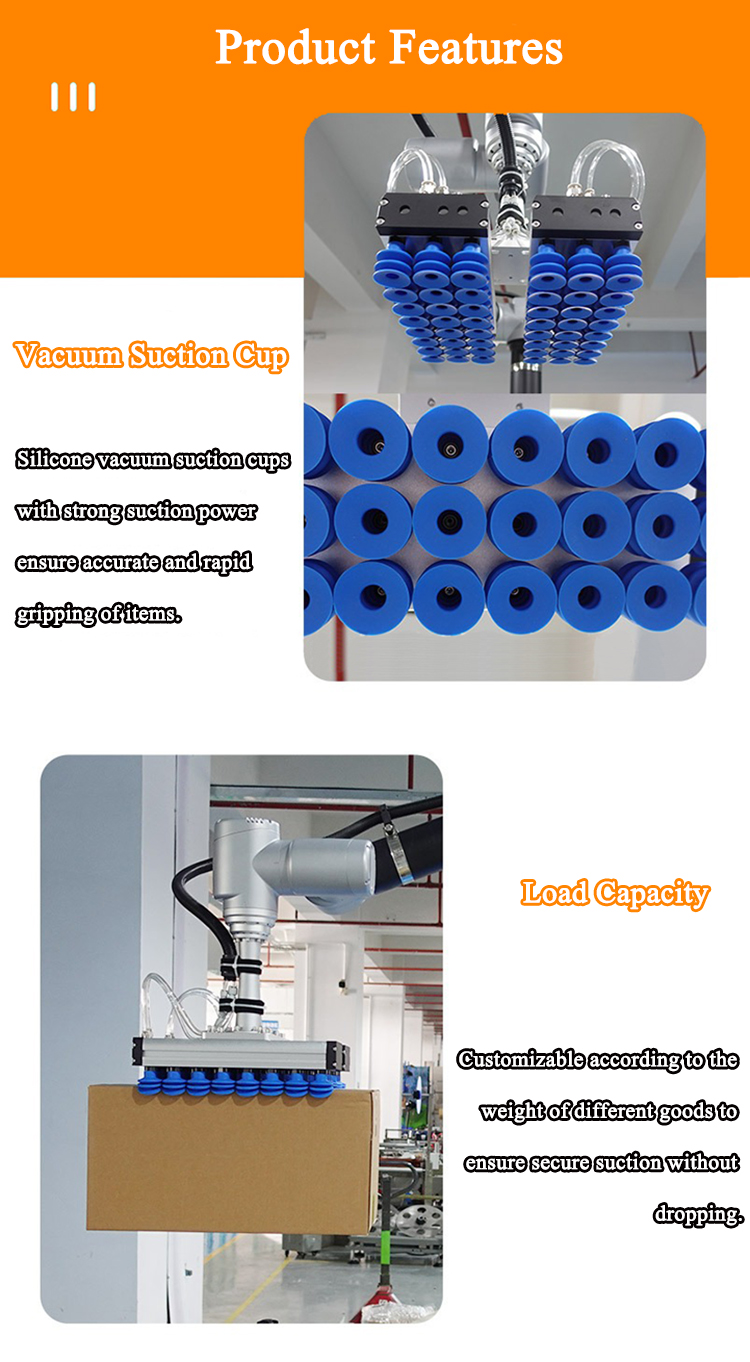

Powerful vacuum gripper for stable and efficient product pickup
Linear motion track for broader palletizing coverage
Compact, modular structure for easy integration

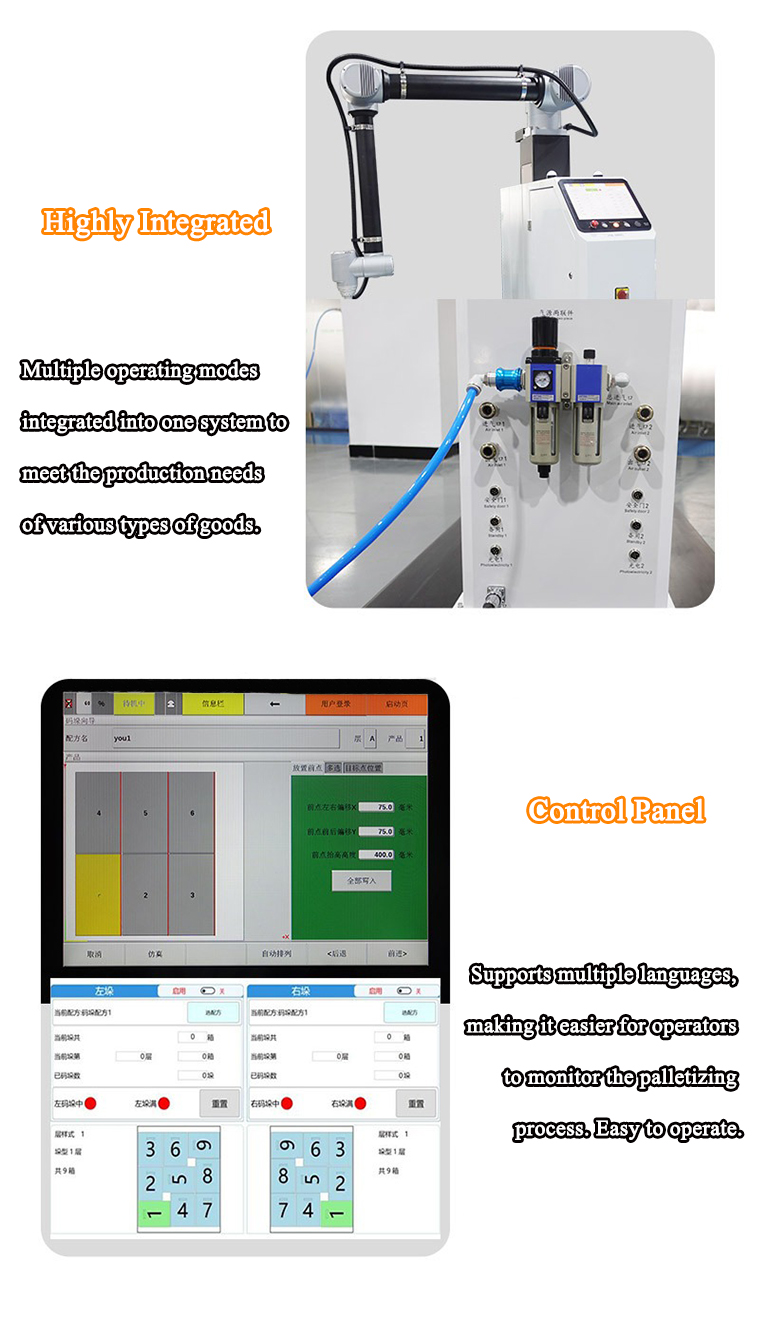

Intuitive control panel with multilingual support
Ideal for industries such as food, beverage, consumer goods, and electronics

This system reduces labor intensity, improves palletizing quality, and supports flexible production needs—an excellent solution for smart factories and automated packaging lines.

Item Specification
Brand & ModelMW-MD20
Product NameCollaborative Palletizing Robot
Power Supply220V / 50Hz
Power Consumption0.33 Kw
Temperature Range0-55°C

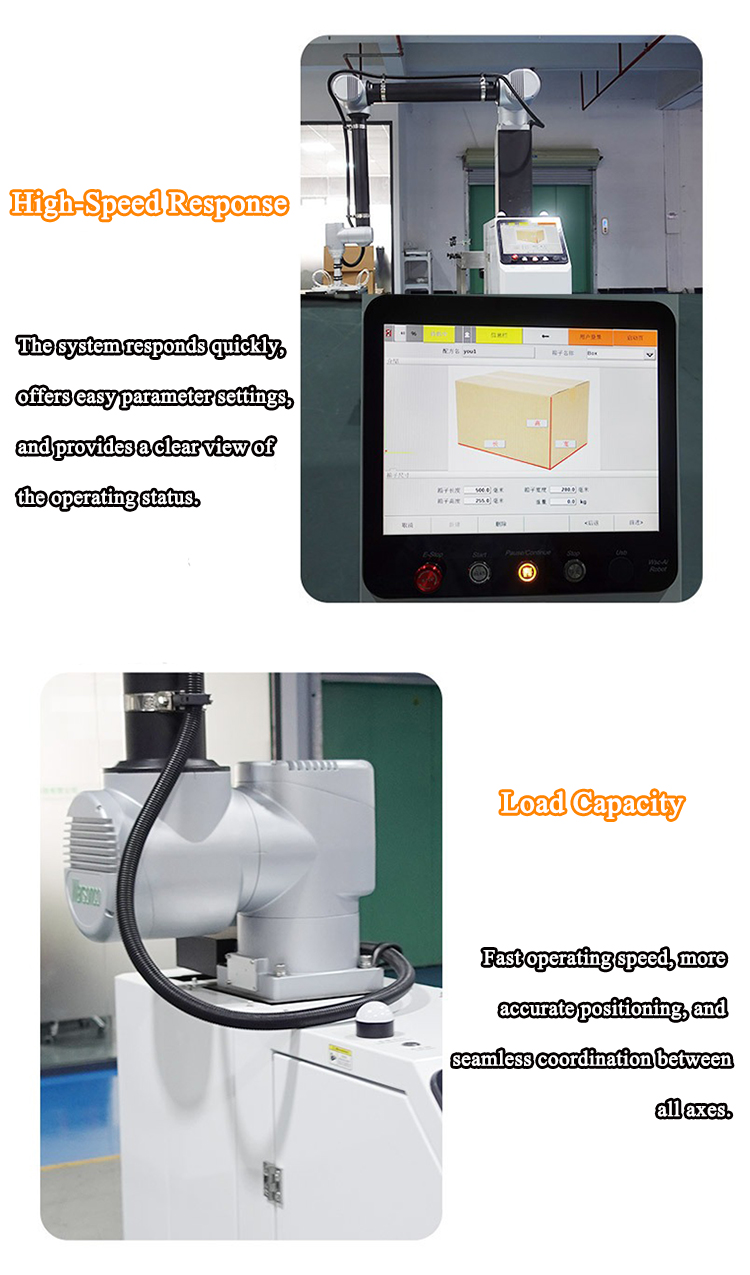

Load Capacity25 Kg

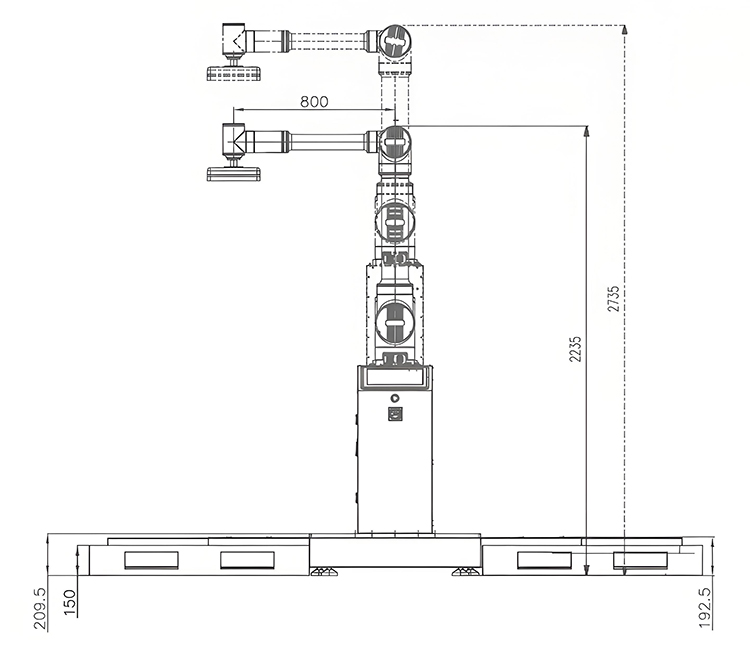

Vertical DistanceFixed HI = 2100 mm
Positioning Accuracy±0.04 mm

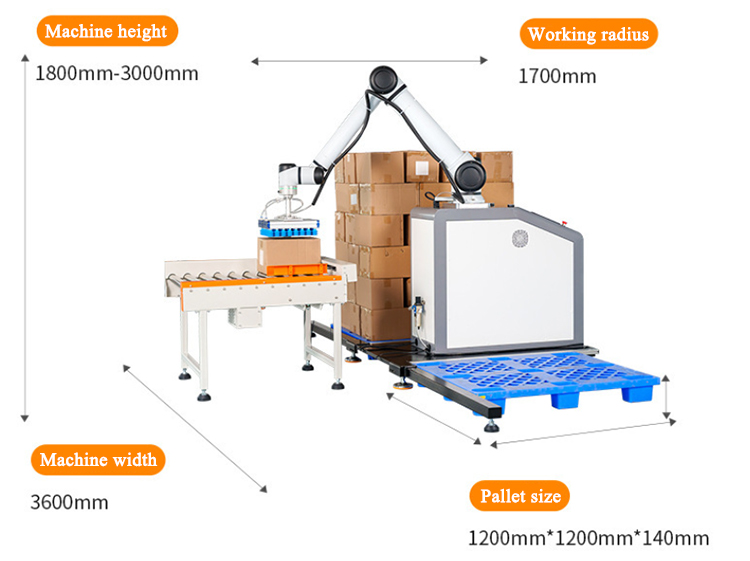

Working Radius1900 mm
Product Weight≈ 300 Kg
Palletizing Speed6-8 Pcs / min

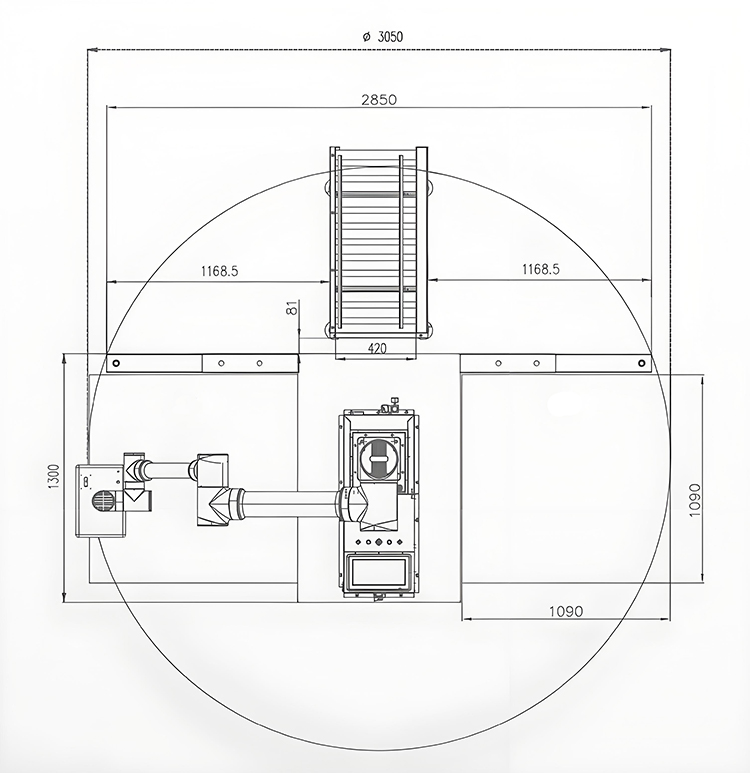

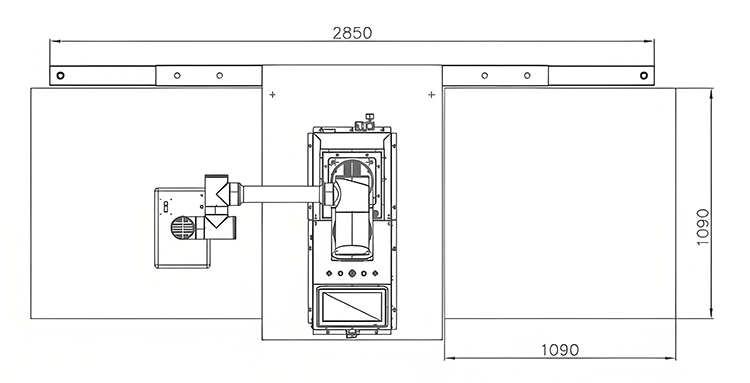

FootprintL 1505 × W 1716 mm
Frequently Asked Questions
  What is the maximum load capacity of the MW-MD20 robot?
The system features a robust load capacity of 25 Kg, making it suitable for various cartons and heavy packaging needs.
  How accurate is the robot's positioning during palletizing?
The robot offers high precision with a positioning accuracy of ±0.04 mm, ensuring stable and neat stacking.
  What industries can benefit from this collaborative system?
It is ideal for a wide range of industries, including food and beverage, consumer goods, electronics, and general logistics.
  Does the system require complex programming?
No, the system is designed with an intuitive control panel and minimal programming requirements for quick deployment and ease of use.
  What is the working radius and speed of the palletizing robot?
The robot has a working radius of 1900 mm and can achieve a palletizing speed of 6-8 pieces per minute depending on the application.
  Is the robot safe to work alongside human operators?
Yes, this is a 6-axis collaborative robotic arm specifically designed to work safely and flexibly in shared workspaces.
