Basic Information
Model NO.YLG45
CertificationCE, ISO9001
Power SourceElectric
ProcessFrozen and Chilled
Automatic GradeAutomatic
CustomizedCustomized
Filling MaterialSoft Drink, Beer
Filling Temperature3-5degree
Filling Speed1000-9000cph
Voltage220/380V or Customerized
Capacity15sets/Month
OriginChina
Packaging & Delivery
Package Size: 8000.00cm * 1800.00cm * 2200.00cm
Package Gross Weight: 8000.000kg
Transport Package: Wooden Case
Product Description

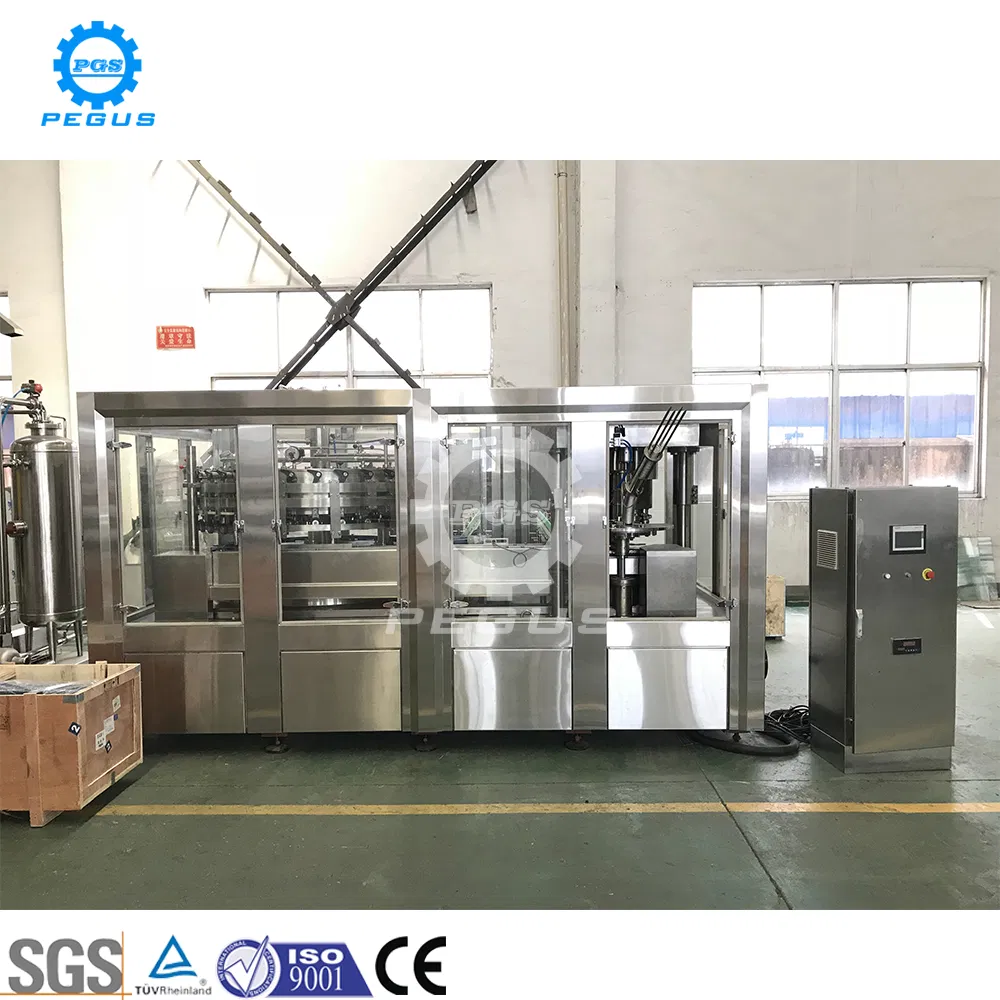

Can Filling Machine [ Filling Capping 2 in 1 type ]
This machine is an equipment developed for airless can filling and sealing. It uses atmospheric pressure to fill the original raw material. After the can is set up, the filling sink and the air are centered, the empty can is lifted and sealed, and the mouth of the filling tiger is automatically opened at the same time. The filling stops when the liquid level blocks the air return pipe of the valve.

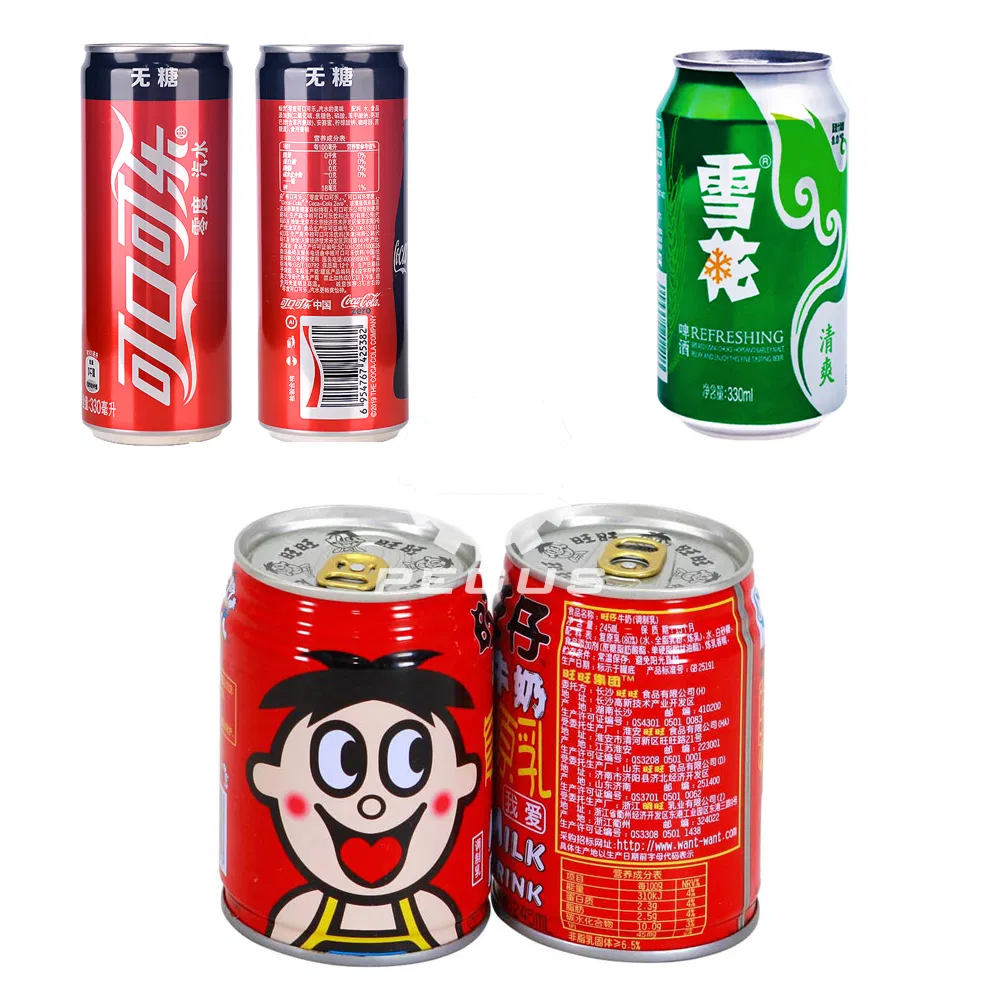

It is used for filling carbonated beverages in cans, such as beer, cola, energy drinks, and soda water. Compatible with various materials like plastic, iron, and aluminum in different sizes. The filling and sealing system are synchronized for absolute coordination.

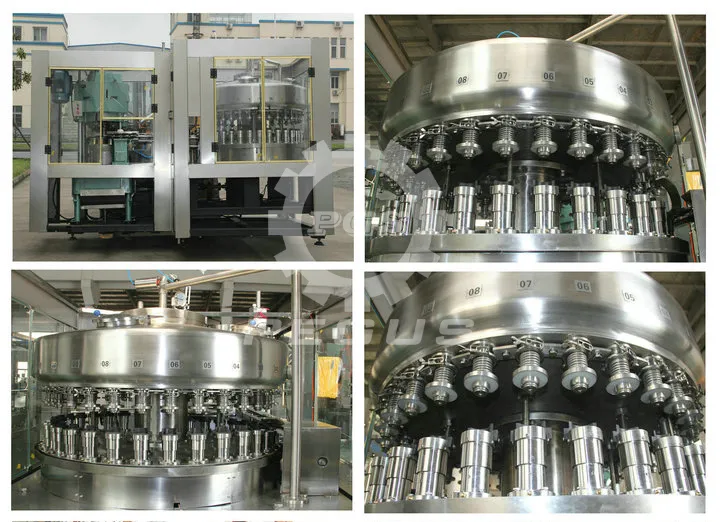

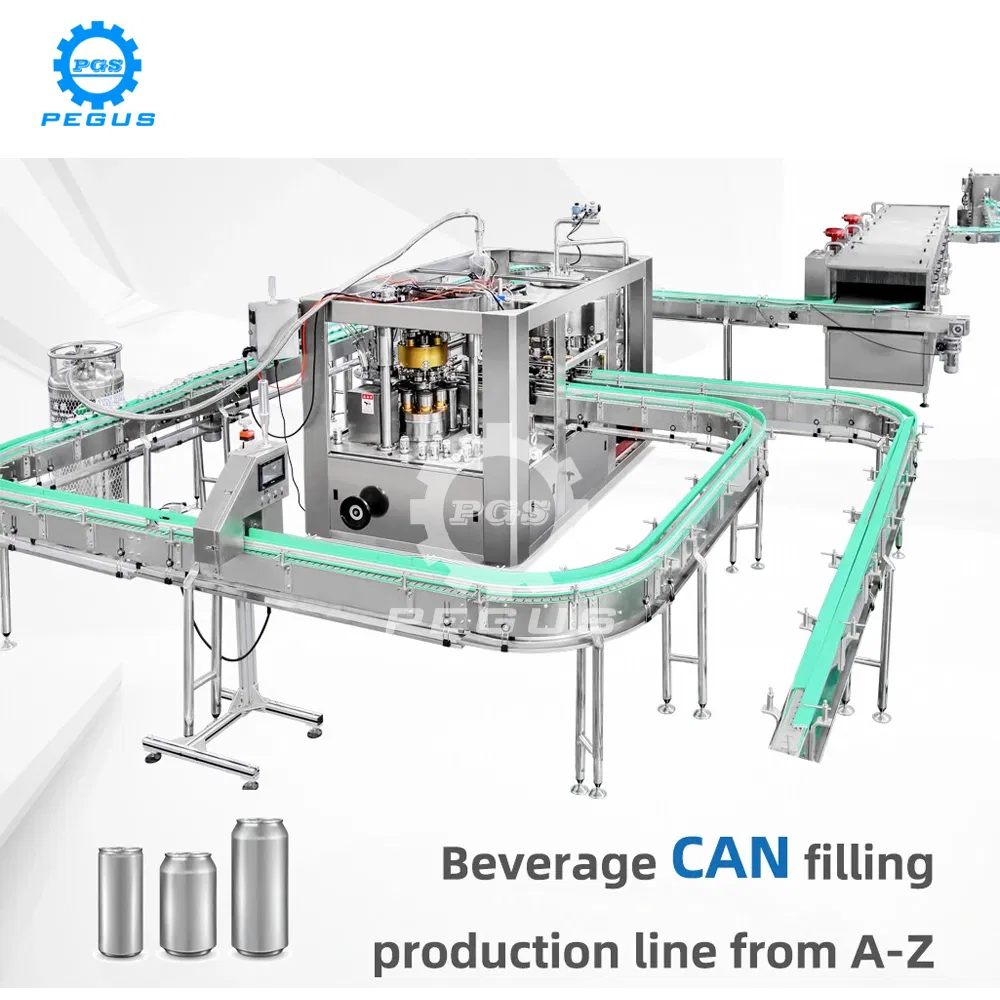

Full Solution Provider: We supply complete production lines including can depalletizers, rinsing machines, monoblock filling & sealing, leakage checks, liquid nitrogen dosing, can warmers, and film wrapping systems.

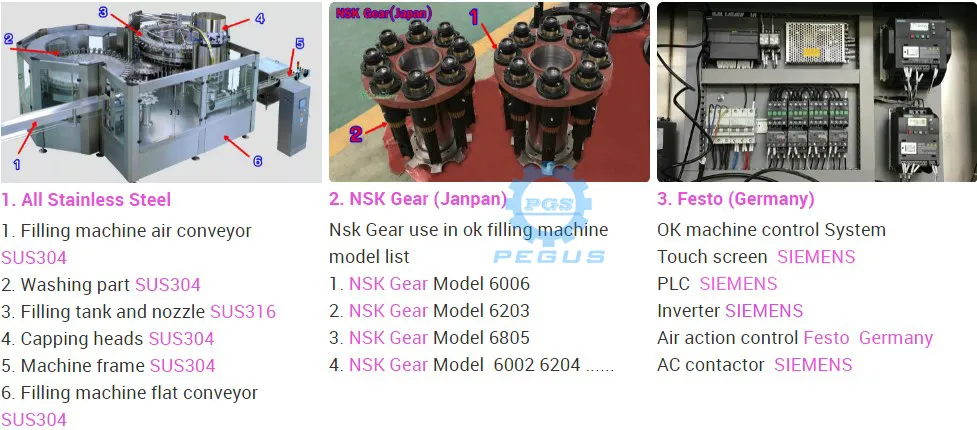

Detailed Components

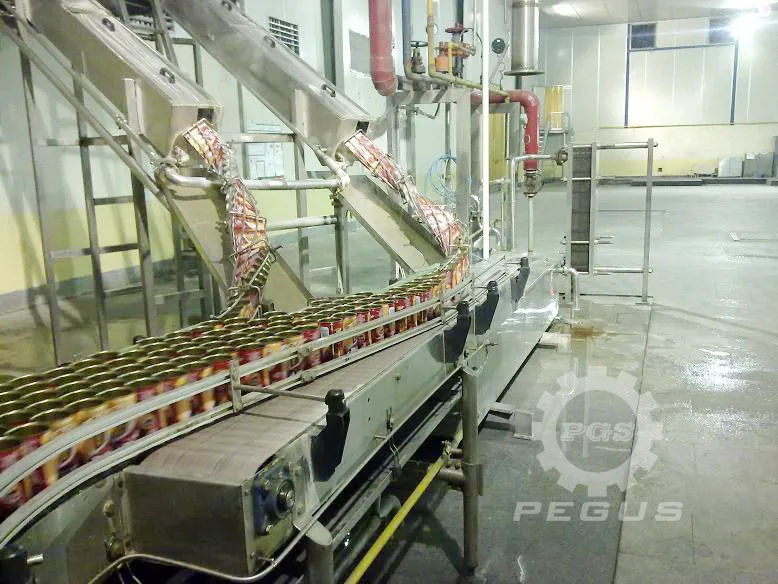

Can Washing Part
Function: Cleaning dust inside and outside the cans.
- 304/316 stainless steel rinse heads with water spray design.
- Stainless steel gripper with plastic pads to prevent bottle damage.
- High-efficiency stainless steel washing pump.

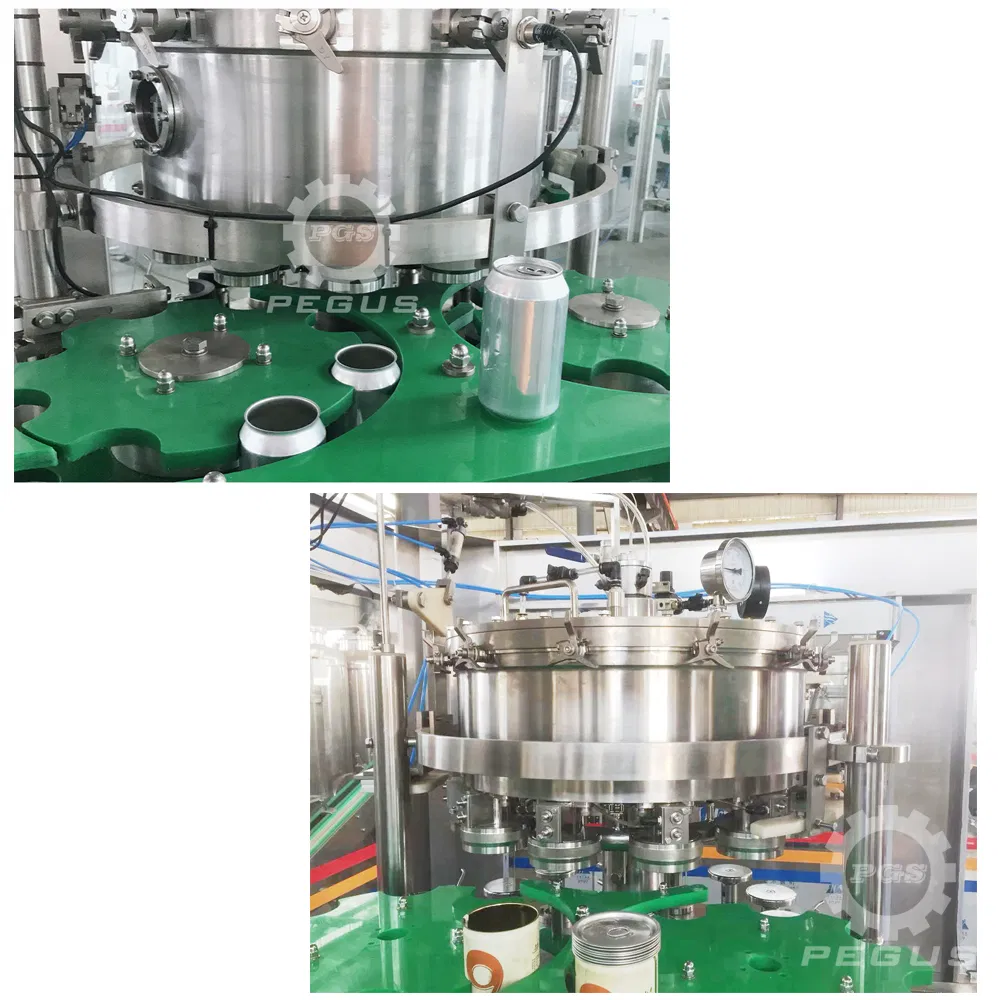

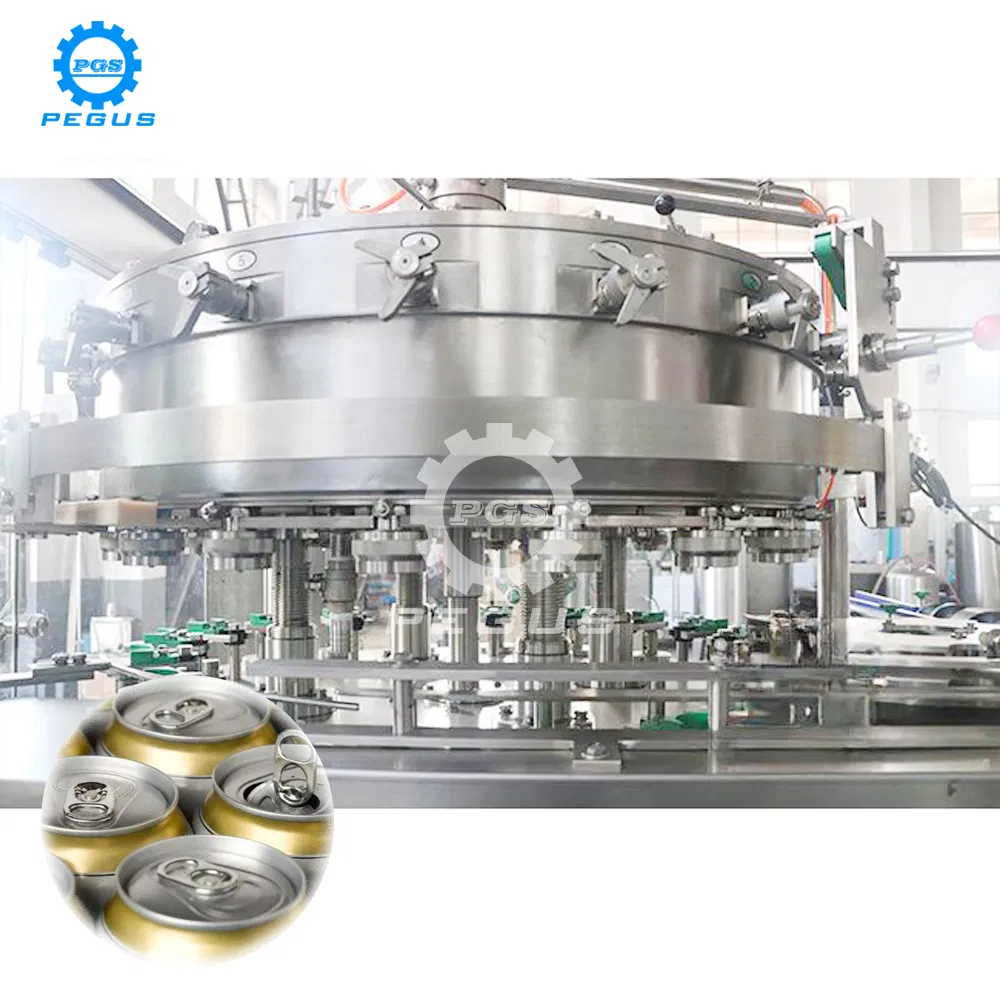

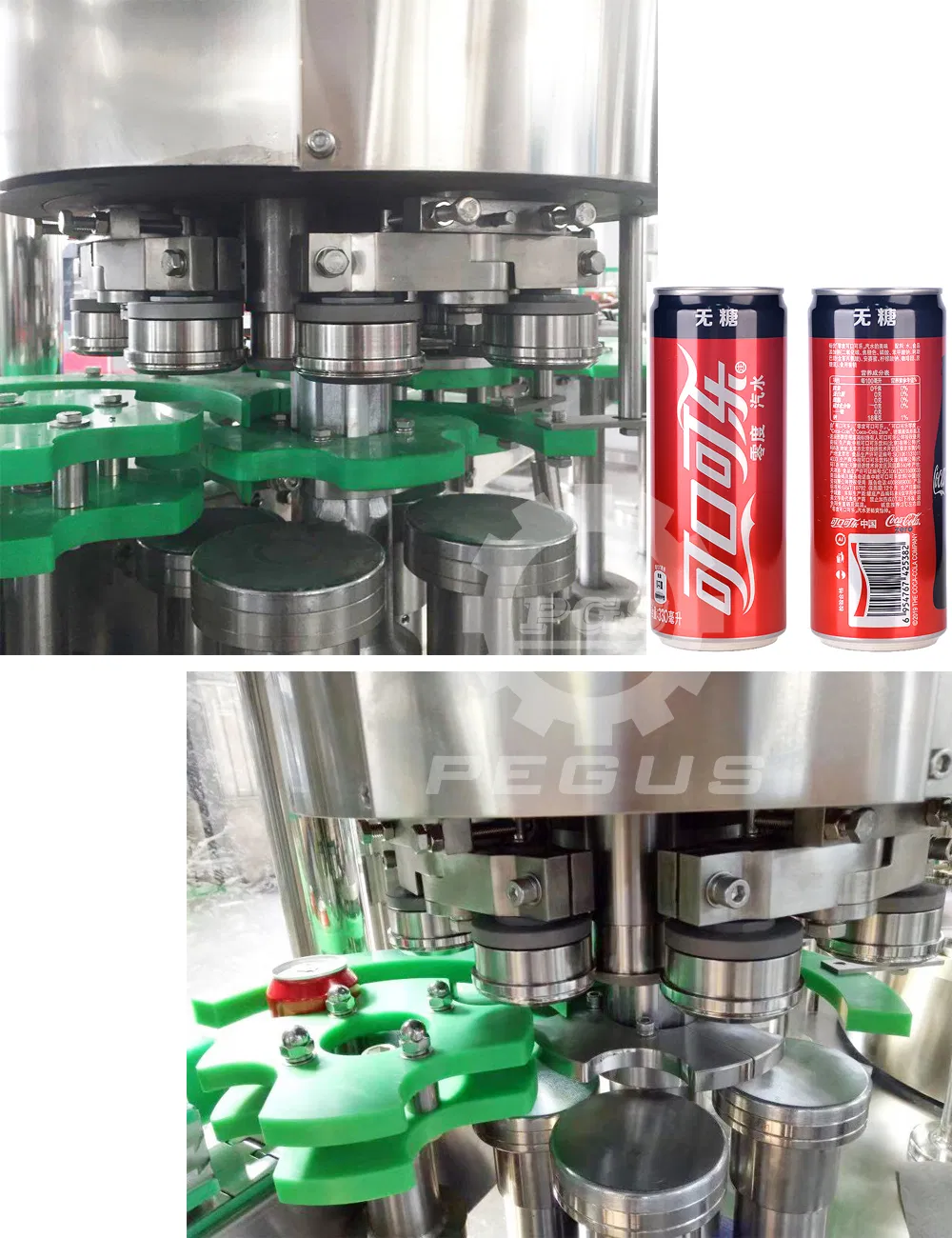

Filling Part
Function: Precise filling of beverage into cans.
- High precision filling nozzles with adjustable volume.
- All contact parts made of SUS304/316 stainless steel, finely polished.
- No dead corners, easy to clean design.

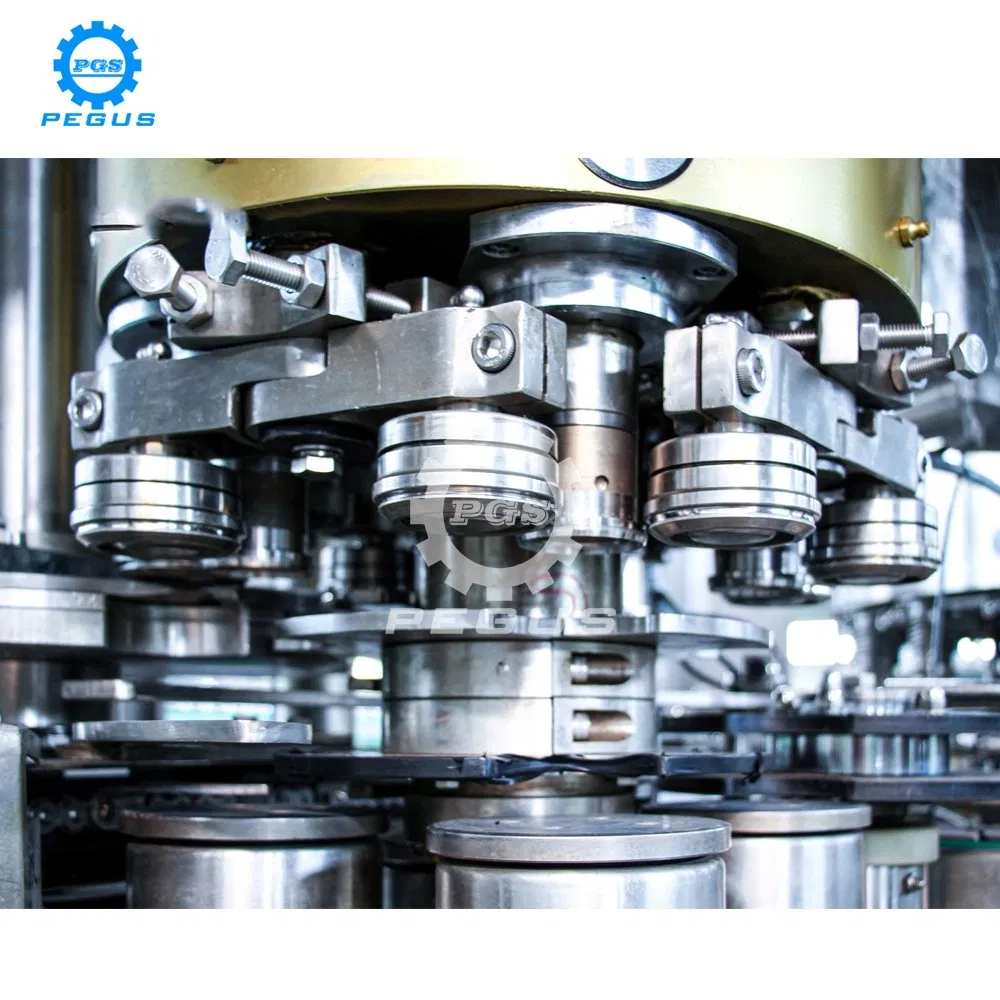

Capping Part
Function: Secure sealing of the cans.
- Electromagnetic capping heads with discharge function to minimize can crash.
- "No Cans - No Sealing" and "Automatic Stop" safety features.
Technical Parameters
| Model |
GF12-1 |
GF18-4 |
GF24-6 |
GF32-8 |
| Capacity |
1200-1500 CPH |
5000-6000 CPH |
7000-9000 CPH |
10000-12000 CPH |
| Can Volume |
200ml-1000ml |
200ml-1000ml |
200ml-1000ml |
200ml-1000ml |
| Can Diameter |
50-70mm |
50-70mm |
50-70mm |
50-70mm |
| Machine Power |
1.5KW |
2.2KW |
3.7KW |
5.5KW |
| Machine Size (cm) |
175x120x195 |
305x175x220 |
340X195X220 |
350x235x225 |

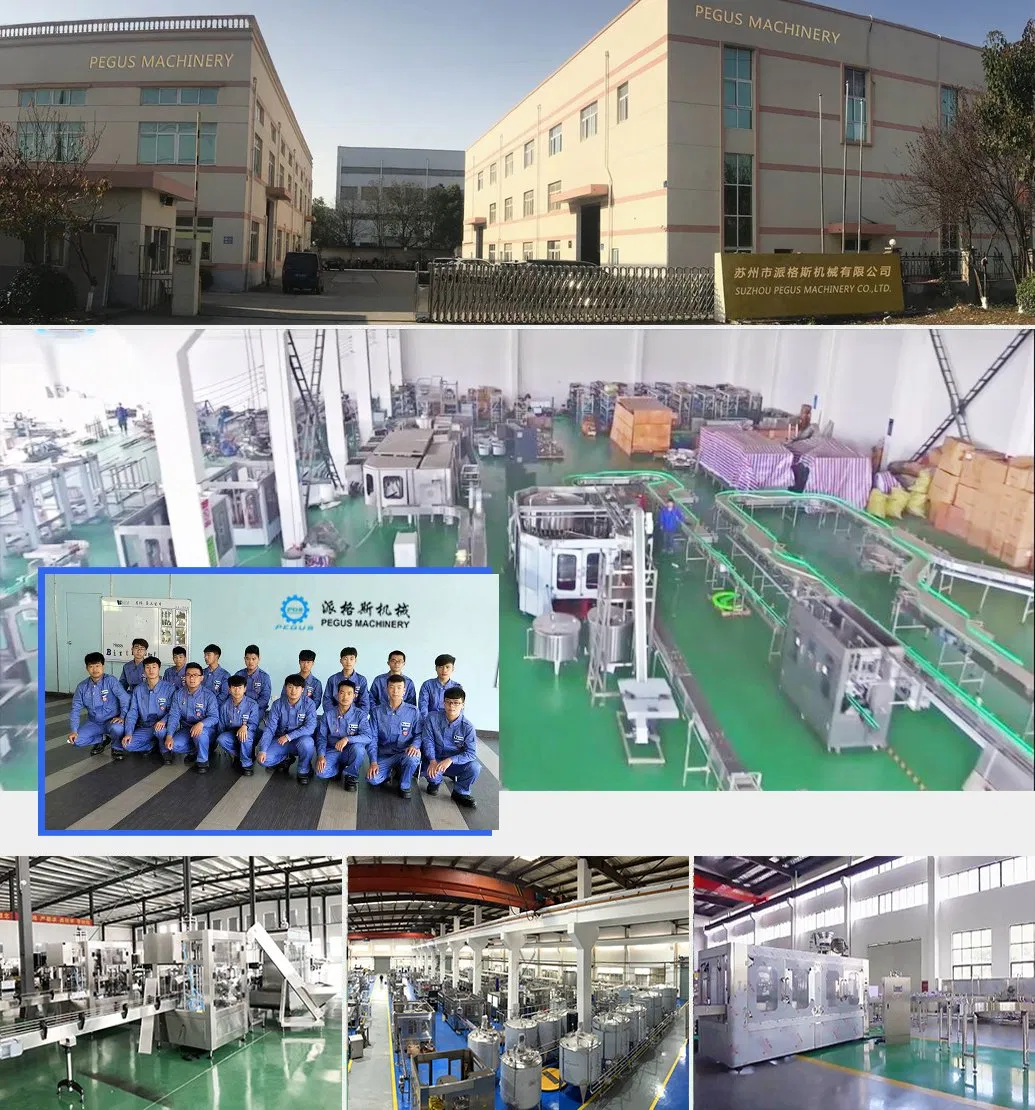

Factory Display & Advantages
Service & Support
1. Installation & Commissioning
Seasoned technicians are arranged for equipment installation and test production once the machinery reaches the site. We ensure the equipment achieves the rated production capacity.
2. Technical Training
We offer comprehensive training on equipment structure, maintenance, and operation to ensure your technicians can handle daily processes and troubleshooting independently.
3. Quality Guarantee
We guarantee all equipment is new and made with suitable materials. A 1-year quality warranty is provided for the entire production line.
4. Long-term After Sales
Beyond the warranty period, we offer lifelong technical support and spare parts at the lowest possible cost.
Frequently Asked Questions
Do you have reference projects?
We have reference projects in most countries. You are welcome to visit our facility to see machines running or visit nearby customer factories upon permission.
Do you have agents and after-service stations?
Currently, we have agents in several regions including Indonesia, Malaysia, Vietnam, South Africa, and Thailand.
Do you provide customized services?
Yes, we design machines according to your specific requirements (material, power, filling type, bottle kinds) and provide professional industry suggestions.
What is your quality guarantee or warranty?
We offer high-quality machines with a 1-year guarantee and supply life-long technical support.
How long does installation take?
Depending on the machine order, installation and commissioning typically take between 10 to 25 days.
What materials can your filling machines handle?
Our machines are designed for a wide range of beverages including beer, carbonated soft drinks, energy drinks, and soda water, compatible with aluminum, plastic, or tin cans.
