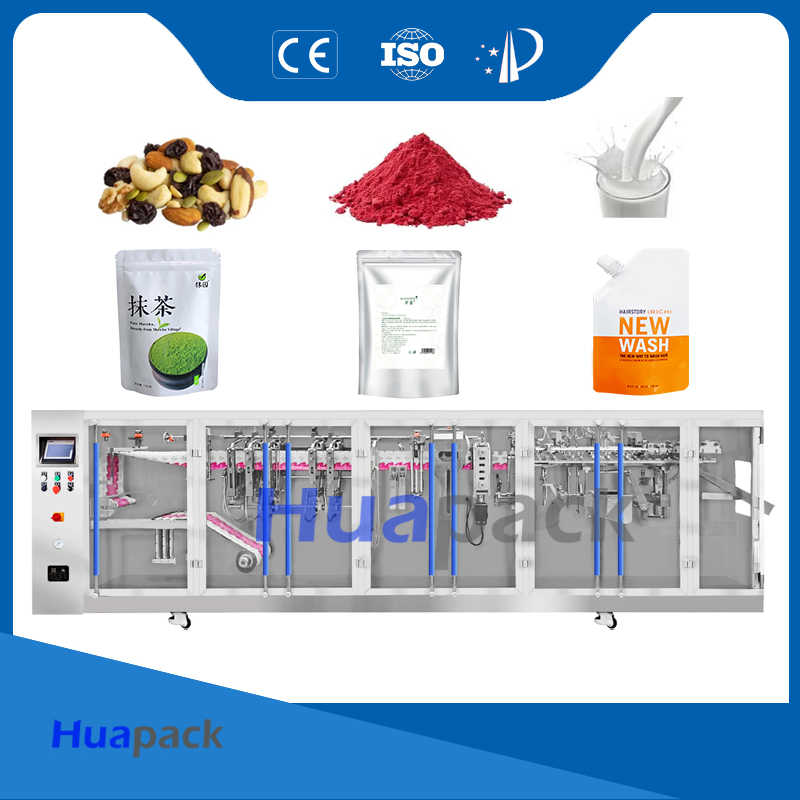

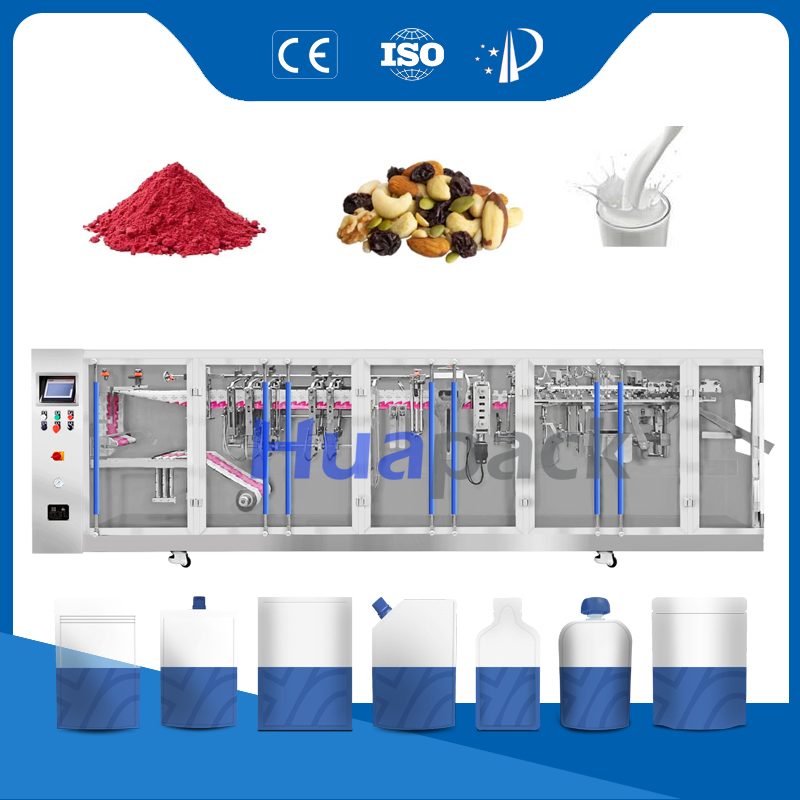

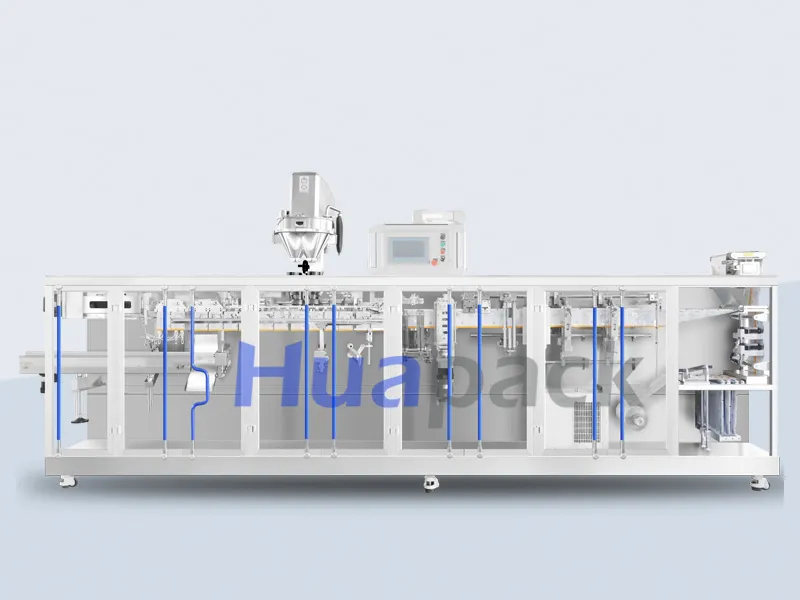

Horizontal Flat Bag Form Fill Seal Sachet Packing Machine
HC-N series is designed for sachets with functions of bag making, filling, and sealing, hanging hole, special shape, zipper, or spout. It adopts advanced European technology refined to offer high quality at competitive pricing.
Horizontal Form Fill Seal (HFFS) machines perform filling and sealing of a package on the exact same machine. Filling occurs directly through the open-top part of the pouch.
Our machines cover a wide range of applications and are fully customized to adapt to distinct operational needs. The modular design features three independent structures: unwinding, pouch forming, and dosing-sealing.
Pouches/sachets produced using HFFS technology offer a highly cost-efficient solution compared to pre-made alternatives.
Simplex Model Specifications
| Model Type | Flat Bag Style | 180N | 130N / 130NZ | 110N / 110NZ | 240N |
|---|---|---|---|---|---|
| Parameters | Min Size (W*H) | 75×85mm | 60×80mm | 20×80mm | 75×85mm |
| Max Size (W*H) | 180×225mm | 130×180mm | 50×100mm | 240×330mm | |
| Max Packing Vol. | 400ml | 160ml | 100ml | 2000ml | |
| Speed (bag/min) | ≤70 | ≤70 | ≤70 | ≤60 | |
| Film Thickness | 60-140μ | 60-130μ | 60-130μ | 60-180μ | |
| Film Roll Outer Dia. | 500mm | 500mm | 500mm | 500mm | |
| Film Roll Inner Dia. | 70-80mm | 70-80mm | 70-80mm | 70-80mm | |
| Machine Size (mm) | 3500×970×1450 | 2850×920×1460 | 2650×900×1460 | 4500×9700×1460 | |
| Work Conditions | Machine Weight | 900kg | 800kg | 800kg | 2100kg |
| Temperature Range | -10ºC to +55ºC | -10ºC to +55ºC | -10ºC to +55ºC | -10ºC to +55ºC | |
| Relative Humidity | Below 85% | Below 85% | Below 85% | Below 85% | |
| Voltage | AC380V, 50Hz | AC380V, 50Hz | AC380V, 50Hz | AC380V, 50Hz | |
| Power | 5Kw | 3.5Kw | 3.5Kw | 5.5Kw | |
| Air Source Needed | 200L/min | 100L/min | 100L/min | 300L/min |

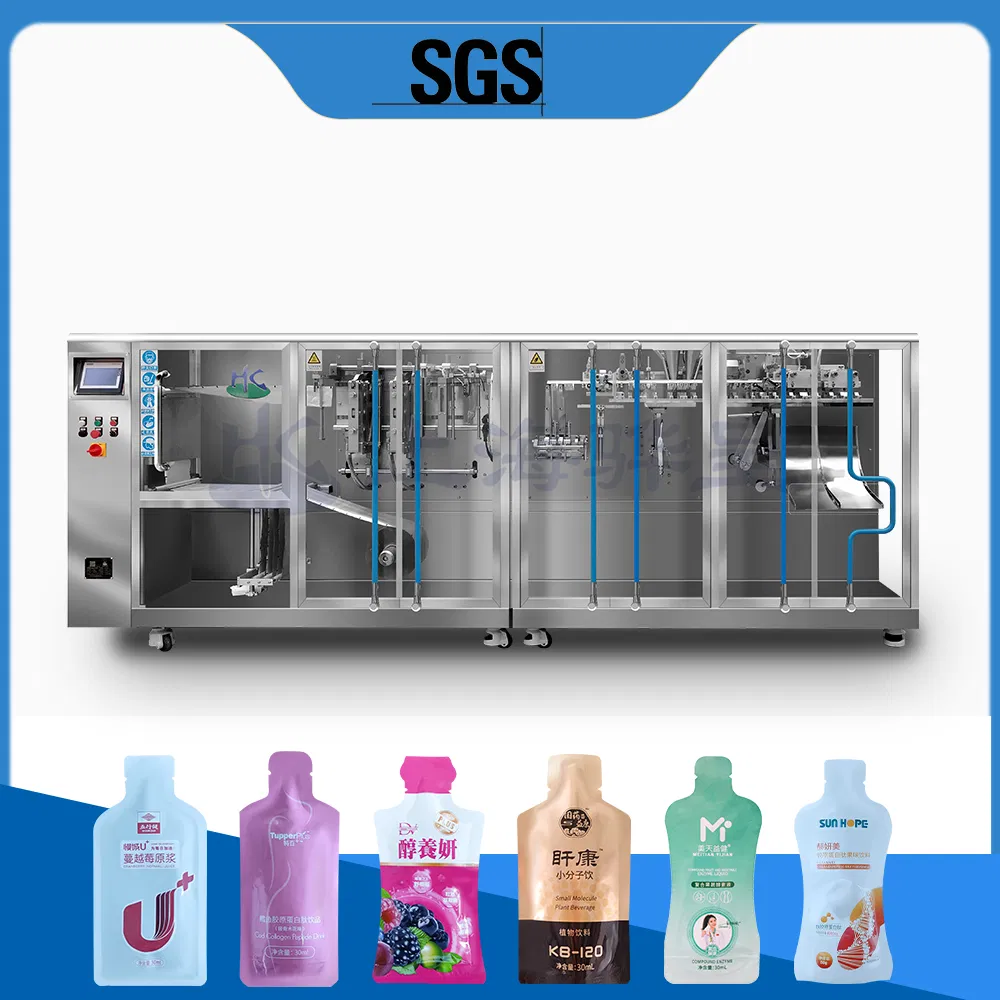

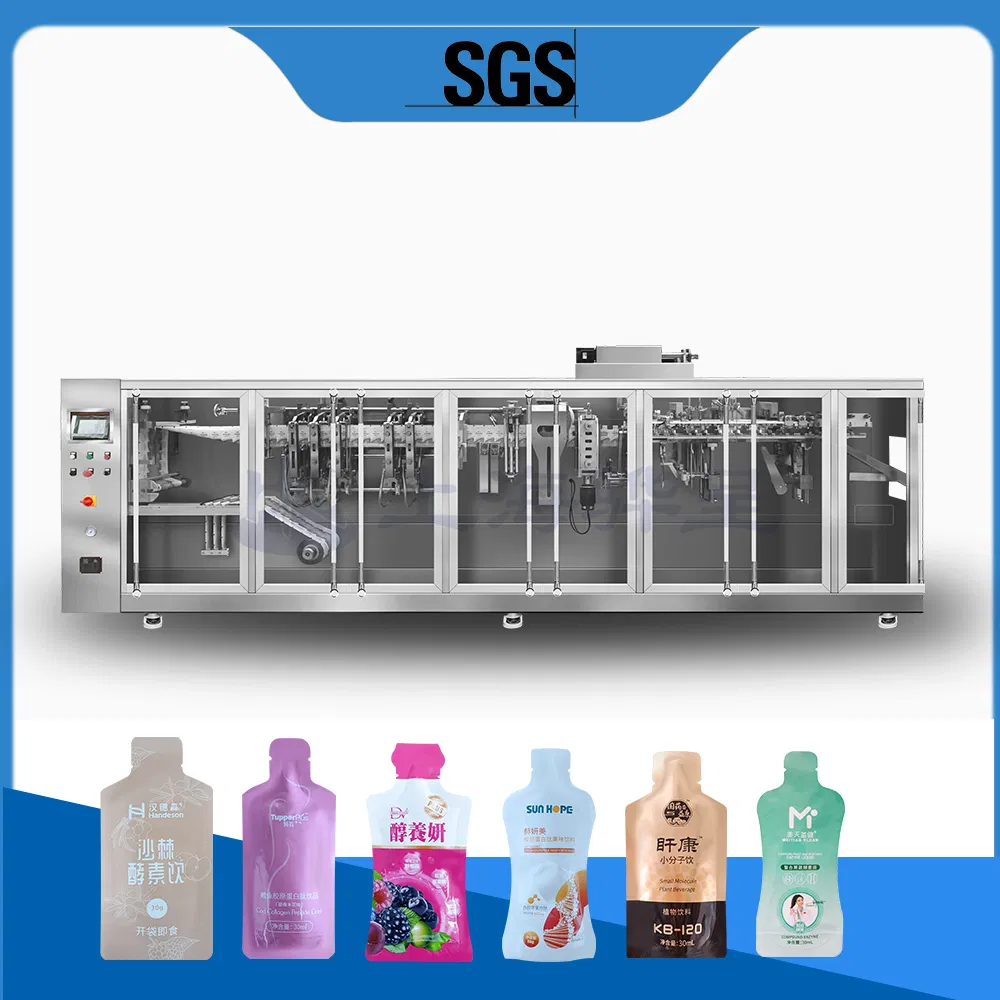

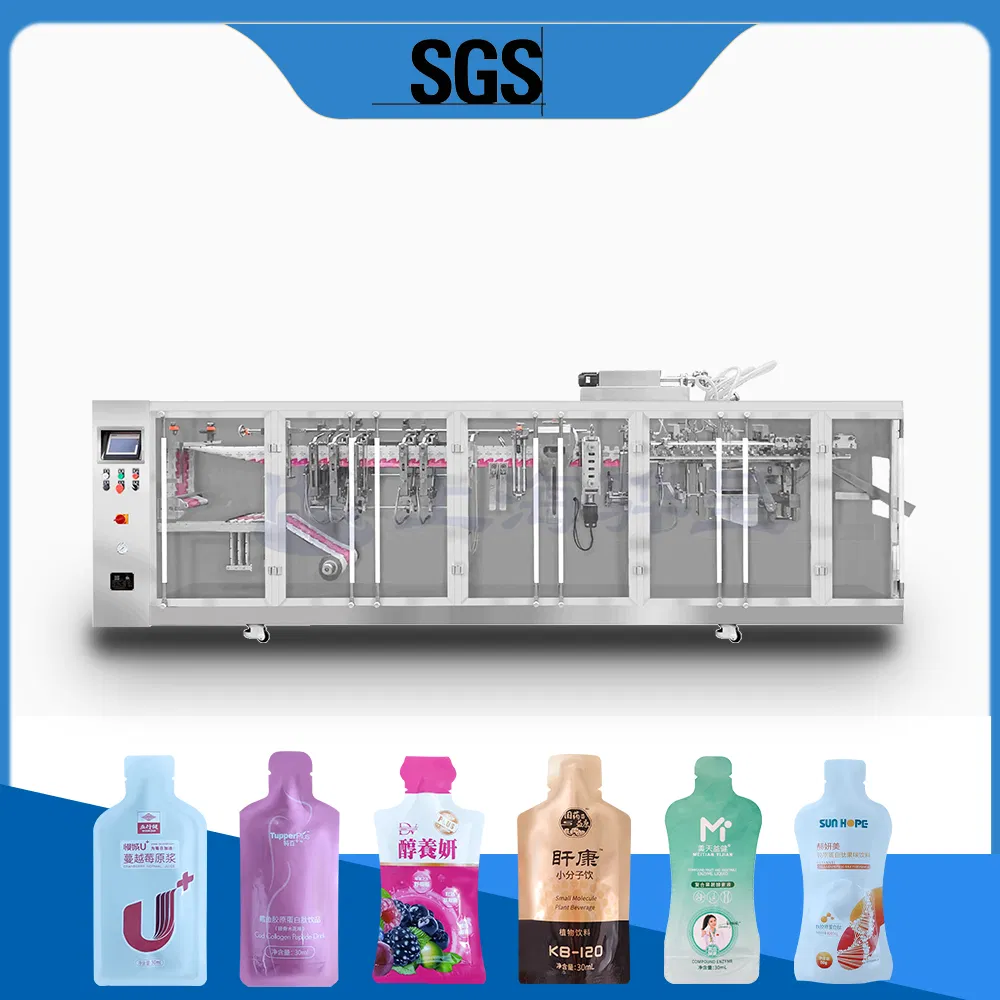

Duplex Model (Double Doypack Bags Output)
| Model Type | 180ND | 360N Quadruplex | 240N | 240ND | |
|---|---|---|---|---|---|
| Parameters | Min Size (W*H) | 70×90mm | 75×80mm | 75×85mm | 75×85mm |
| Max Size (W*H) | 90×180mm | 130×180mm | 240×330mm | 120×225mm | |
| Max Packing Vol. | 100ml | 100ml | 2000ml | 2000ml | |
| Speed (bag/min) | ≤140 | 4*30 to 4*50 | ≤60 | 60-120 | |
| Film Thickness | 70-130μ | 70-130μ | 60-180μ | 60-180μ | |
| Film Roll Outer Dia. | 500mm | 500mm | 500mm | 500mm | |
| Film Roll Inner Dia. | 70-80mm | 70-80mm | 70-80mm | 70-80mm | |
| Machine Size (mm) | 3500×970×1350 | 6100×1100×1400 | 4500×9700×1460 | 5200×1100×1460 | |
| Machine Weight | 950kg | 1800kg | 2100kg | 2100kg | |
| Work Conditions | Temperature Range | -10ºC to +55ºC | -10ºC to +55ºC | -10ºC to +55ºC | -10ºC to +55ºC |
| Relative Humidity | Below 85% | Below 85% | Below 85% | Below 85% | |
| Voltage | AC380V, 50Hz | AC380V, 50Hz | AC380V, 50Hz | AC380V, 50Hz | |
| Air Pressure Needed | 0.6Mpa | 0.6Mpa | 0.6Mpa | 0.6Mpa | |
| Air Source Needed | 300L/min | 300L/min | 300L/min | 300L/min | |
| Power | 5.5Kw | 9Kw | 5.5Kw | 5.5Kw |

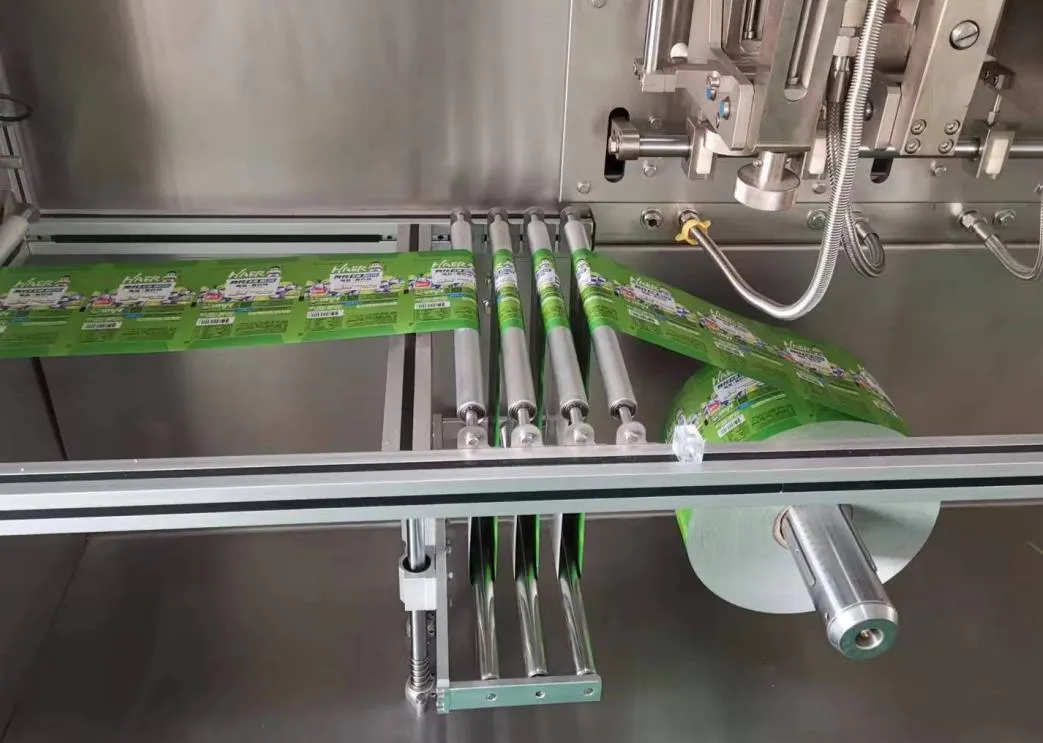

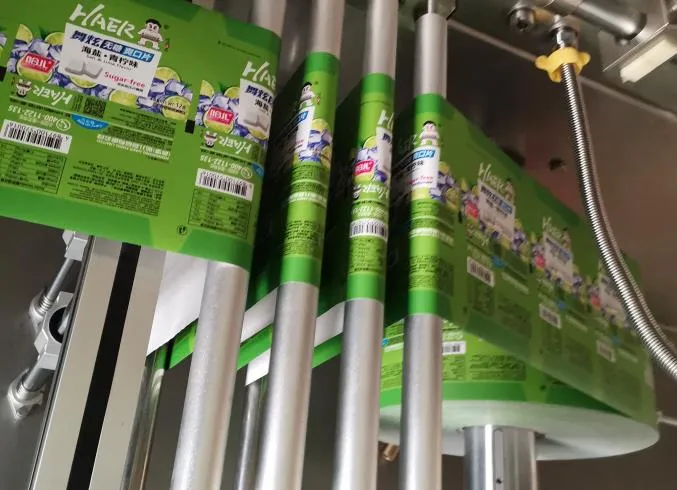

1. Film Unwinding Design (Ensures accurate alignment)

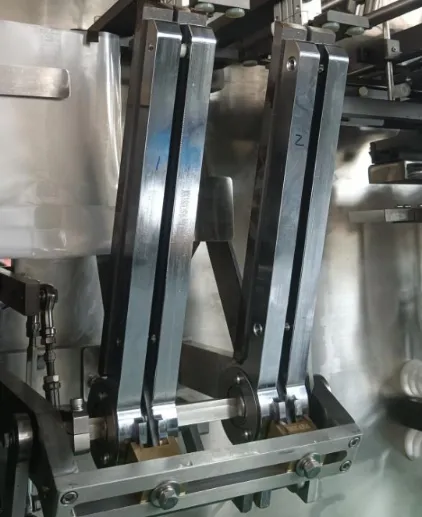

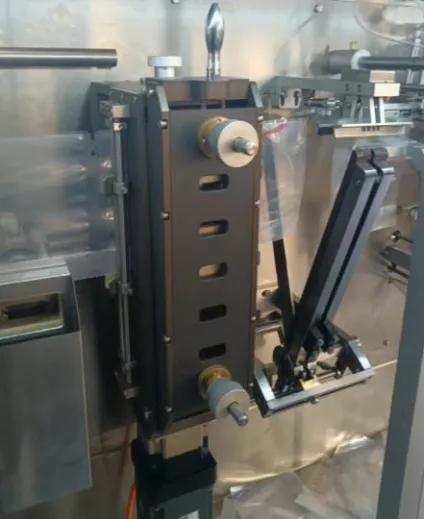

2. Servo Film Pulling (Stable pulling & easy size adjustment, equipped with heavy-duty knife)

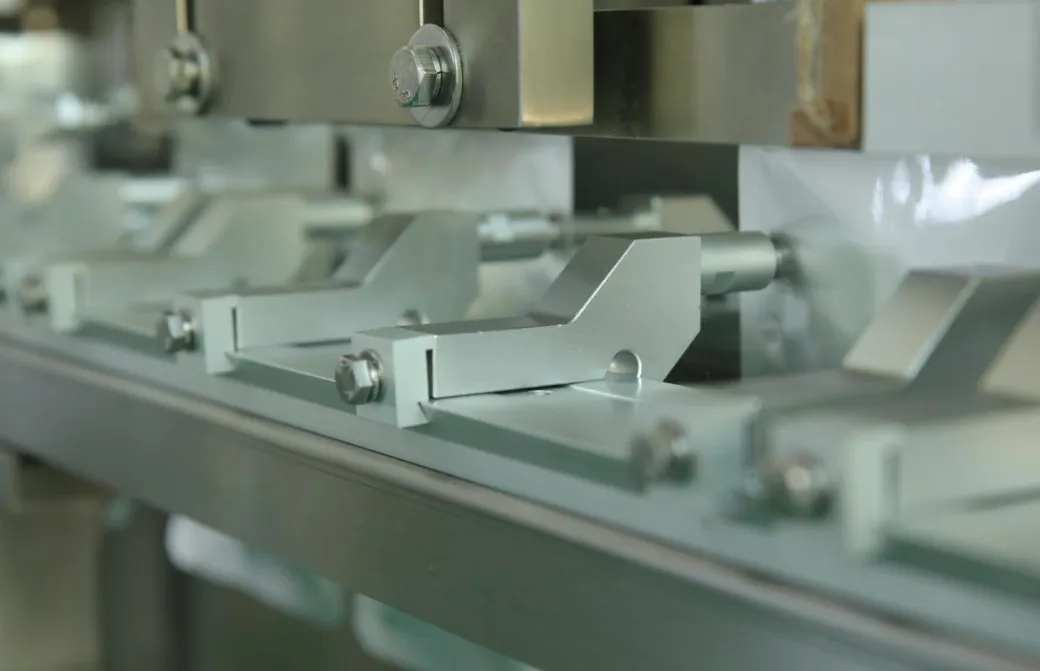

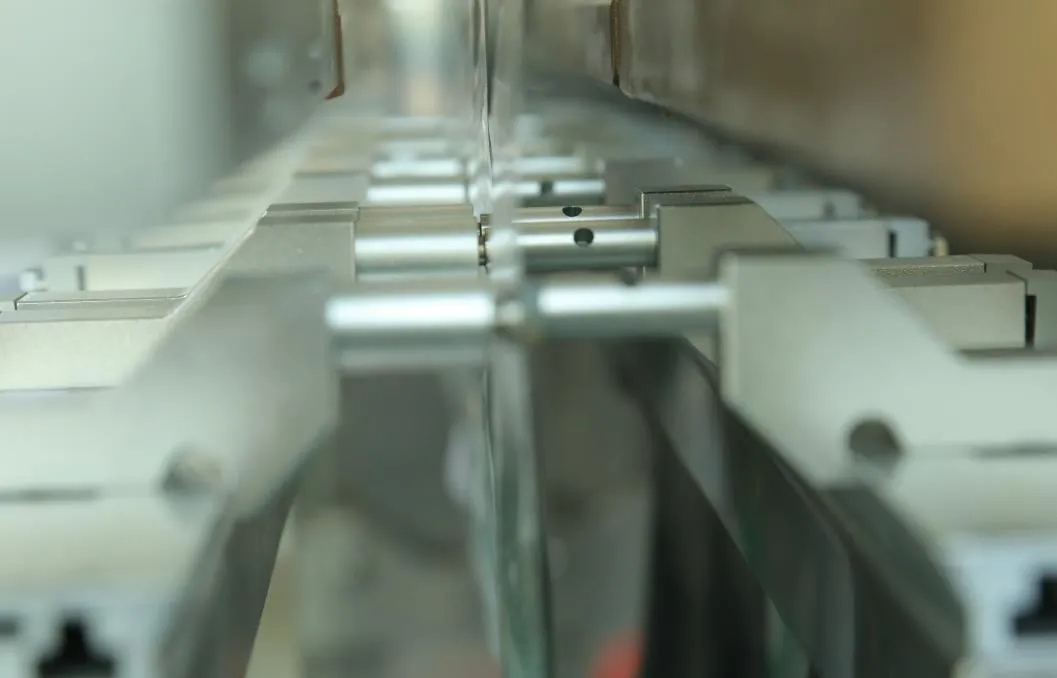

3. Lightweight Working Beam (Faster operational speed, extended machinery lifetime)
Feature Configurations List

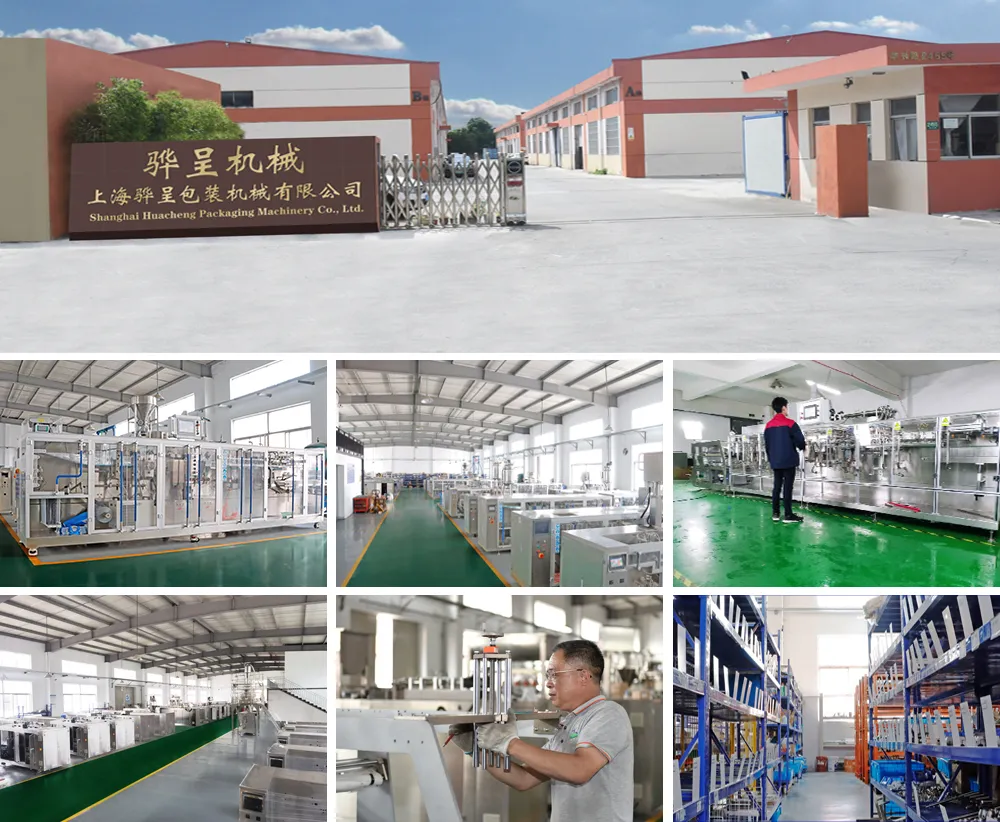

We are a technically driven company specializing in the design and manufacture of horizontal sachet and pouch packaging machinery, alongside specialized liquid/bottle filling lines. Our systems support multiple sectors, including retail Food & Beverages, Pharmaceuticals, Cosmetics, and Chemicals. We build adaptable systems that support rollstock operations and pre-made pouch processes.
