Automatic Back-Sealing Round-Corner Baking Soda Powder Food Powder Packaging Machine

Customization: Available
After-sales Service: Video Online Guide
Warranty: 1 Year Warranty

Product Description

Overview Product Description Product Parameters Detailed Photos Packaging & Shipping Certifications Company Profile
Overview
Basic Info.
Model NO. JD-BF50-RL
Automatic Grade Automatic
Application Cleaning, Detergent, Drinks, Skin Care Products, Dairy Products, Hair Care Products, Rice, Flour, Seasoning
Type Forming Filling Sealing Machine
Forming Species Bag Moulding
Forming Function Forming, Filling, Seal, Cutting
Driven Type Pneumatic+Electric
Material Type Powder
Packaging Bag
Packaging Material Composite Materials
PLC Control System Imported Fatek PLC Control System
Color Touch Screen Mcgs Color Touch Screen
Photocell Julong Photocell
Power 1100W, 220V/50-60Hz, Single Phase
Key Selling Points Automatic
Speed 30-70bag/Min
Fill Range 1-100g
Net Weight 250kg
Measuring Way Auger Screw
Bag Type Back Side Sealing Rounded Edge
Sachet Size W:25-100;L:30-160
Max.Roll Width 220mm
Transport Package Sea-Worthy Wooden Case
Specification 660x850x1820
HS Code 8422303090
Production Capacity 1000 Sets/ Year
Packaging & Delivery
Package Size 66.00cm * 85.00cm * 182.00cm
Package Gross Weight 250.000kg
Product Description

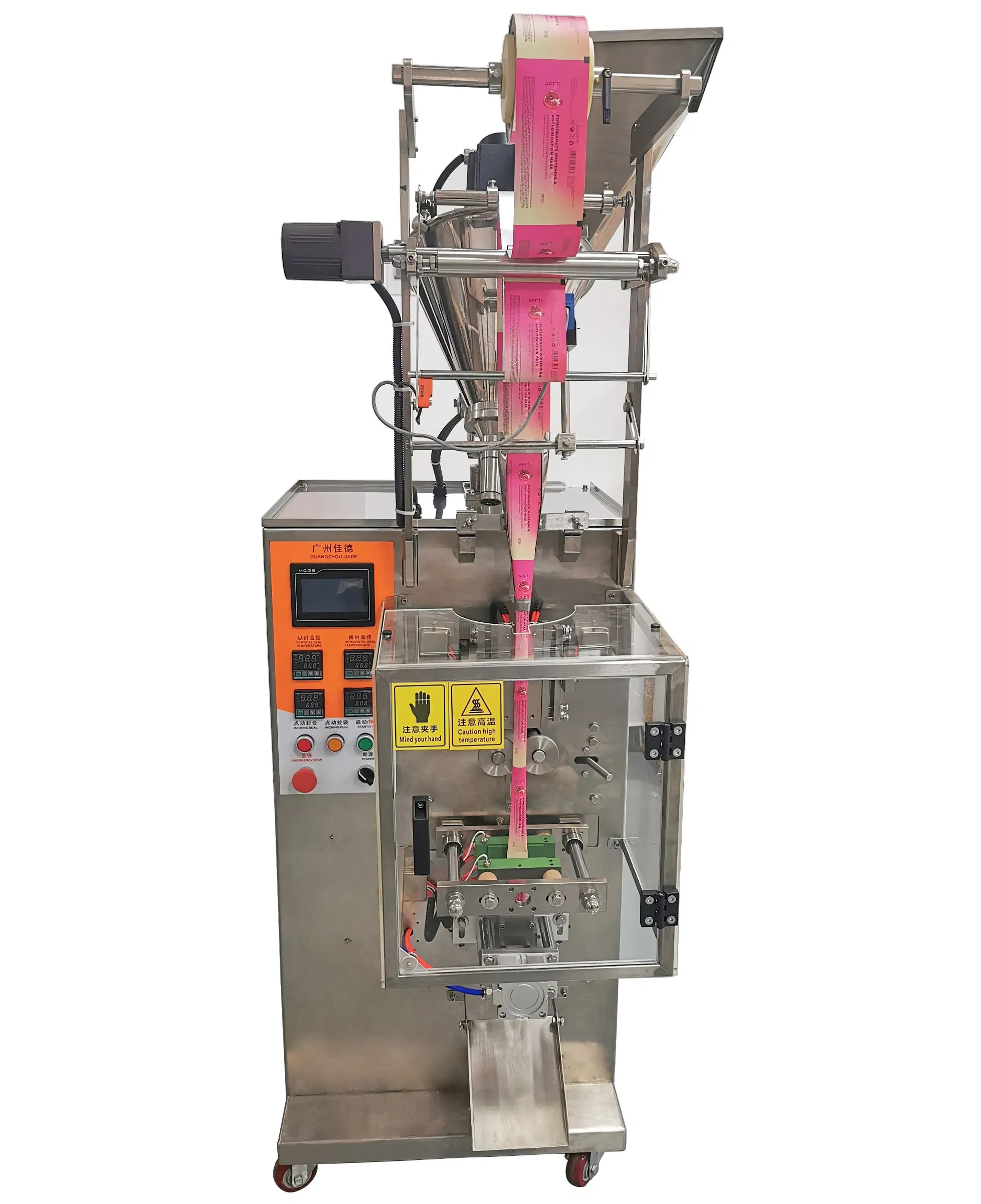

Automatic Back Side Sealing Rounded Edges Sachet Powder Packing Machine
Automatic Back-Sealing Round-Corner Baking Soda Powder Food Powder Packaging Machine
Usage:

Automatic Packaging For All Kinds of Powder Materials In Foodstuff Industry, Cosmetic; Chemical Industry, Pharmacy Industry, Such As Milk Powder, Protein Powder; Legume Powder; Cosmetic Powder; Tea and Medical Powder, etc…Powder Products.

Main Features:

To Be Able To Weigh, Fill, Print Date (Manufacturing Date/Expiry Date/Lot Number), Make Bag, Seal, Cut Easy-Tearing Notch, Cut Off, Count (To Reach The Quantity To Be Set, The Machine Can Give Signal and Stop Itself) Automatically.

Full Features:
  • 1) Be Able To Measure Weight, Bag-making, Filling, Sealing, Cutting, Lot Number, Cut Easy-tearing notch etc. Automatically.
  • 2) It Has Color Control System (Photocell) Which Can Get The Complete Trade Mark Design (Photocell Inspects Spot (Eyemark) of Printing Guarantee Design of Package In good order and exact site).
  • 3) The Machine Adopts Servo Motor, Its Advantage Is Precise, Needless To Adjust Other Parts.
  • 4) Intelligent temperature control by temperature controller to make heat balance better. Use bilingual display screen control system and Food Grade Stainless Steel cabinet.
  • 5) Fine Packaging Performance, Low Noise, Clear Sealing Texture and Strong Sealing Performance.
  • 6) With Safe Plastic Glass Door Box On Sealing and Punching Rounded Edges To Avoid Hurting Operators' Hands.
  • 7) Operation Manual and Warranty Card Will Be Delivered Together With Machine To The Clients.
  • 8) Optional Parts: Ribbon Date Printer To Print Batch Number (MFG: Manufacture Date, Expiry Date and Lot Number), If You Need To Add It, should Add Cost.
  • 9) Material is Stainless Steel 304, Adopts Imported PLC Control System and Color Touch Screen.
Product Parameters
Technical Parameters
Model-Type JD-BF50-RL
Dimension of Machine (L)700 * (W)850 * (H)1820 mm
Weight Net: 200KG; Gross: 280KG
Machine Material Food Grade Stainless Steel 304
Filling System High Accuracy Auger Filler
PLC Control System Imported Fatek PLC Control System
Color Touch Screen MCGS Color Touch Screen
Weight Measuring Range (Auger Filling Range) One Set To Be Installed On Machine (Based On Your Filling Weight to customize the auger filler. Such As: 0.5-3g; 3-10g; 10-25g; 10-30g; 20-50g; 50-100g)
Accuracy ±0.5-1%
Sealing Type Hot Seals
Bag Size (mm) (W)25-100mm; (L)40-180mm
Bag Type Back Side Sealing Rounded Edge With Easy-Tear Notch
Maxi.Roll Film Width 220mm
Notch Type Round Corner With Easy-Tear Notch
Capacity Bags Per Minute 30-70 Bags/Minute (Depends On Filling Weight (Volume) and Bag Size and Materials' Nature)
Output Bag / Hour 1800-3000 Bags/Hour
Power Supply & Voltage Main 1.1 KW
Temperature Controller (Sealing Temperature) 105-145 Celsius Degree
Driving Way Pneumatic + Electric
Air Consumption 0.6Mpa, 0.25CBM/min
Main Feature To Be Able To Weighing, Filling, Print Date (manufacturing date/expiry date/lot number, this need adding ribbon date printer), forming bag, sealing, cut easy-tearing notch, cut off, count (to reach the quantity to be set, the machine can give signal and stop itself) Automatically.
Detailed Photos

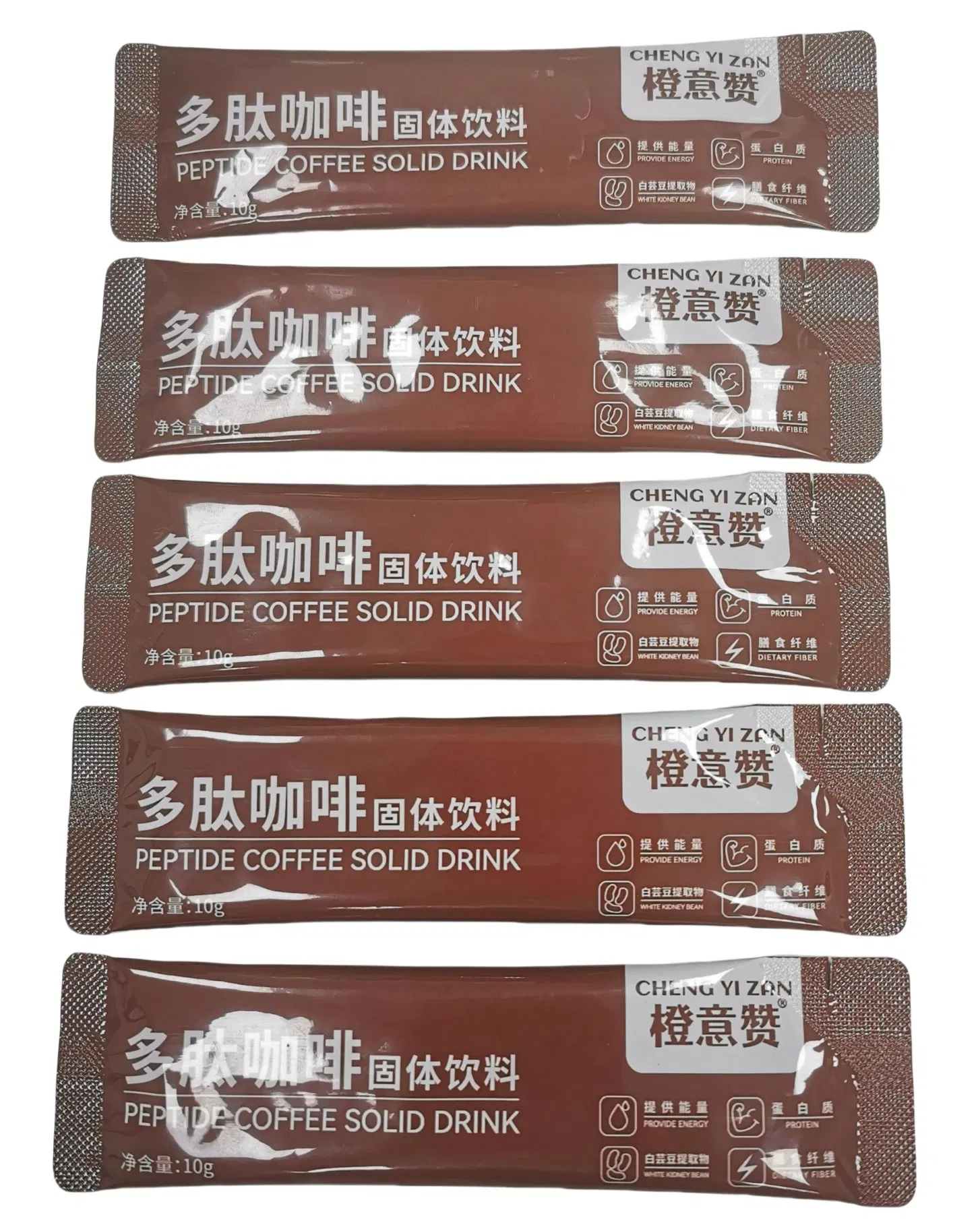

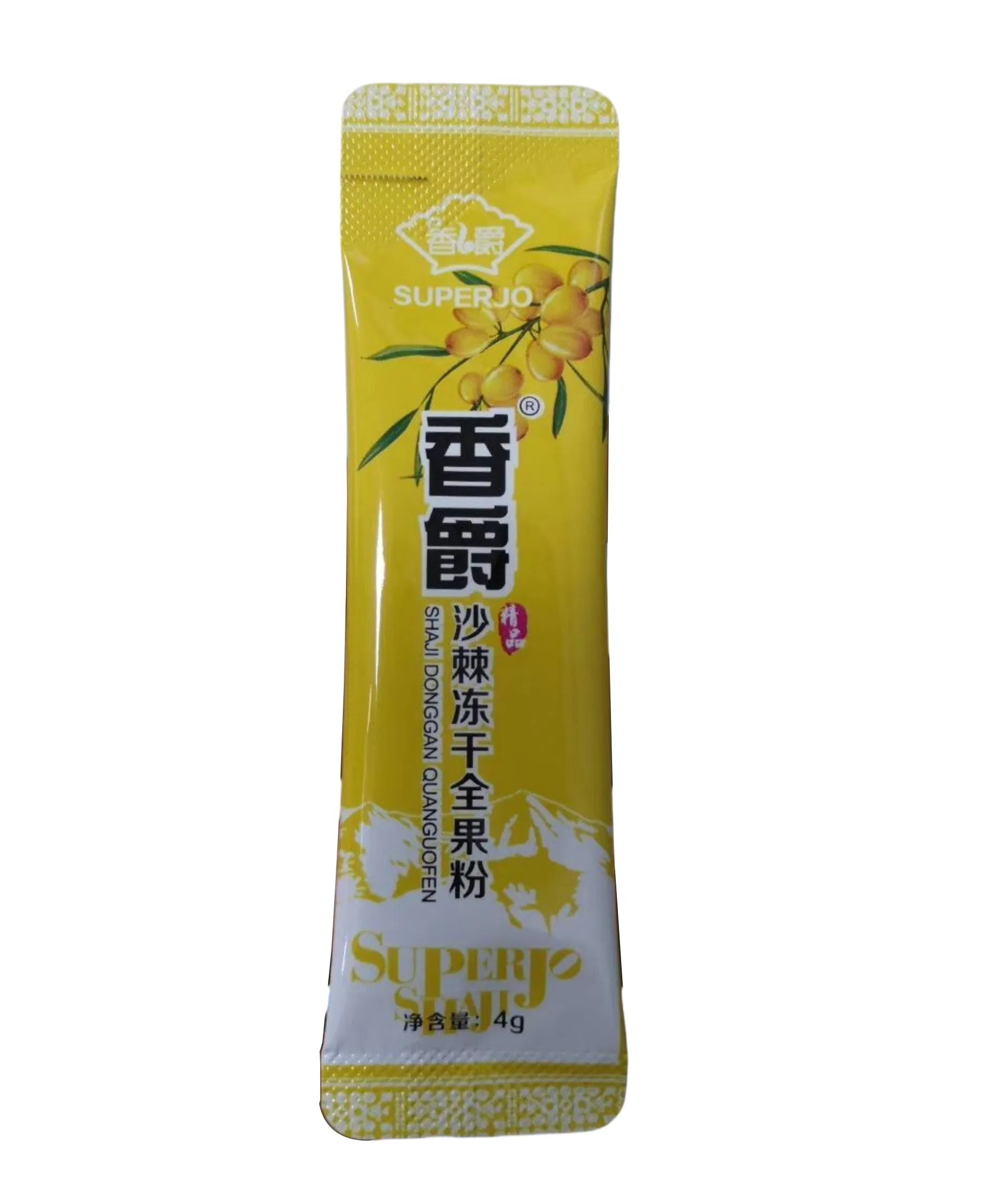

Below Are Some Sample Photos For Your Reference.

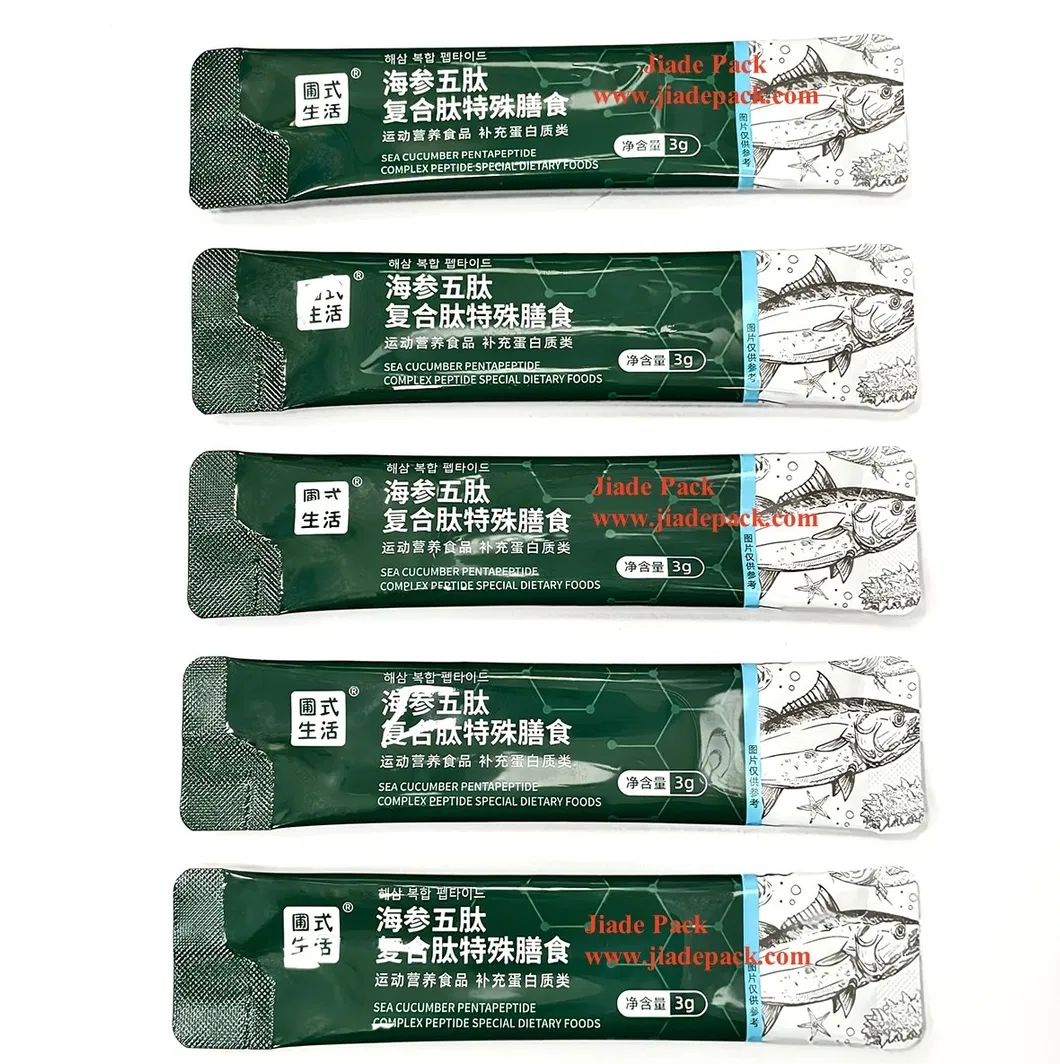

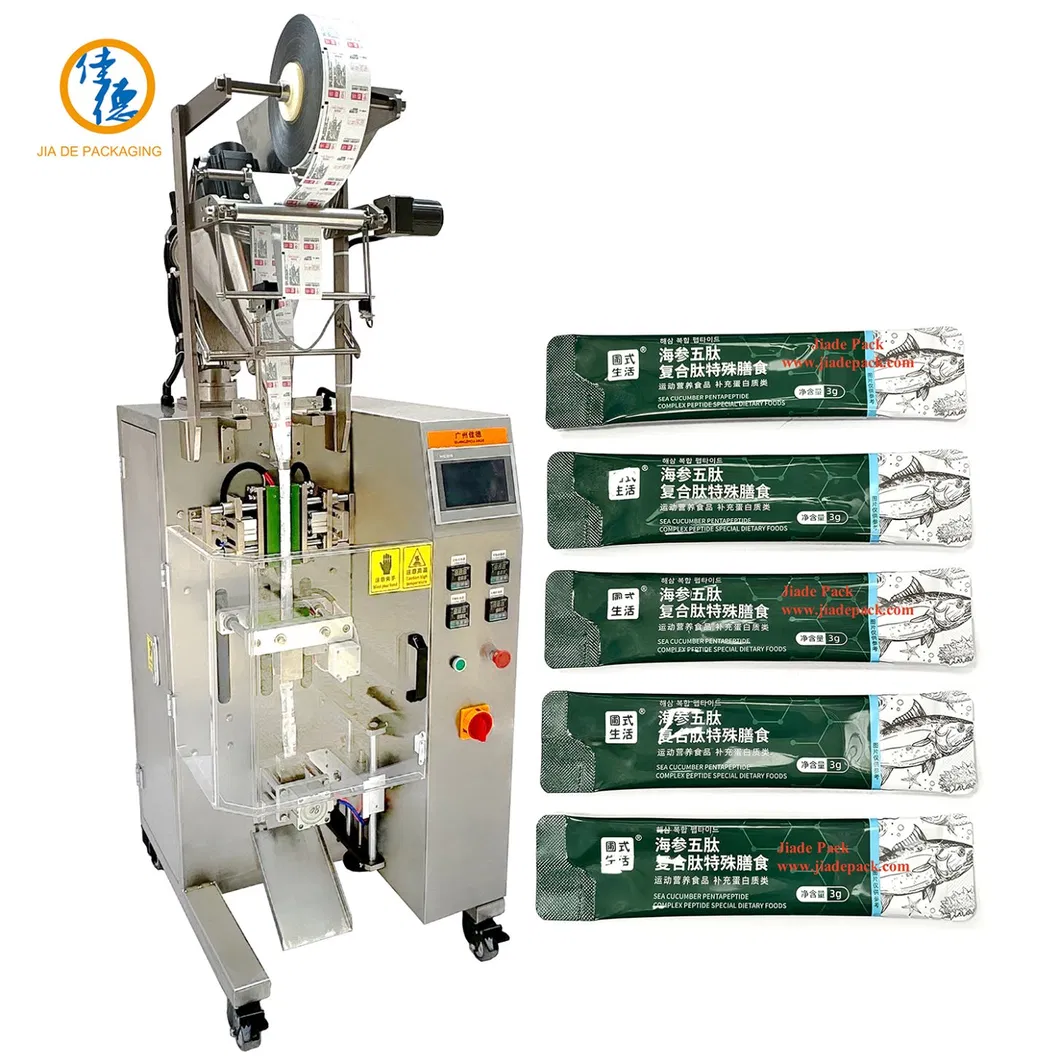

Automatic Back-Sealing Round-Corner Baking Soda Powder Food Powder Packaging Machine Setup
Sachet Powder Packing Machine Components
High Accuracy Auger Filler Close-up
Operation Panel Control Board
Packaging & Shipping
By Air Package

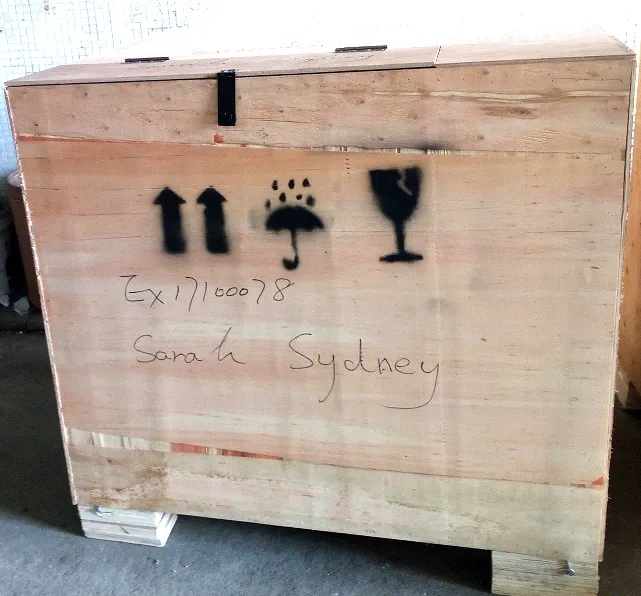

Secure Air Cargo Packaging
By Sea Shipping Package

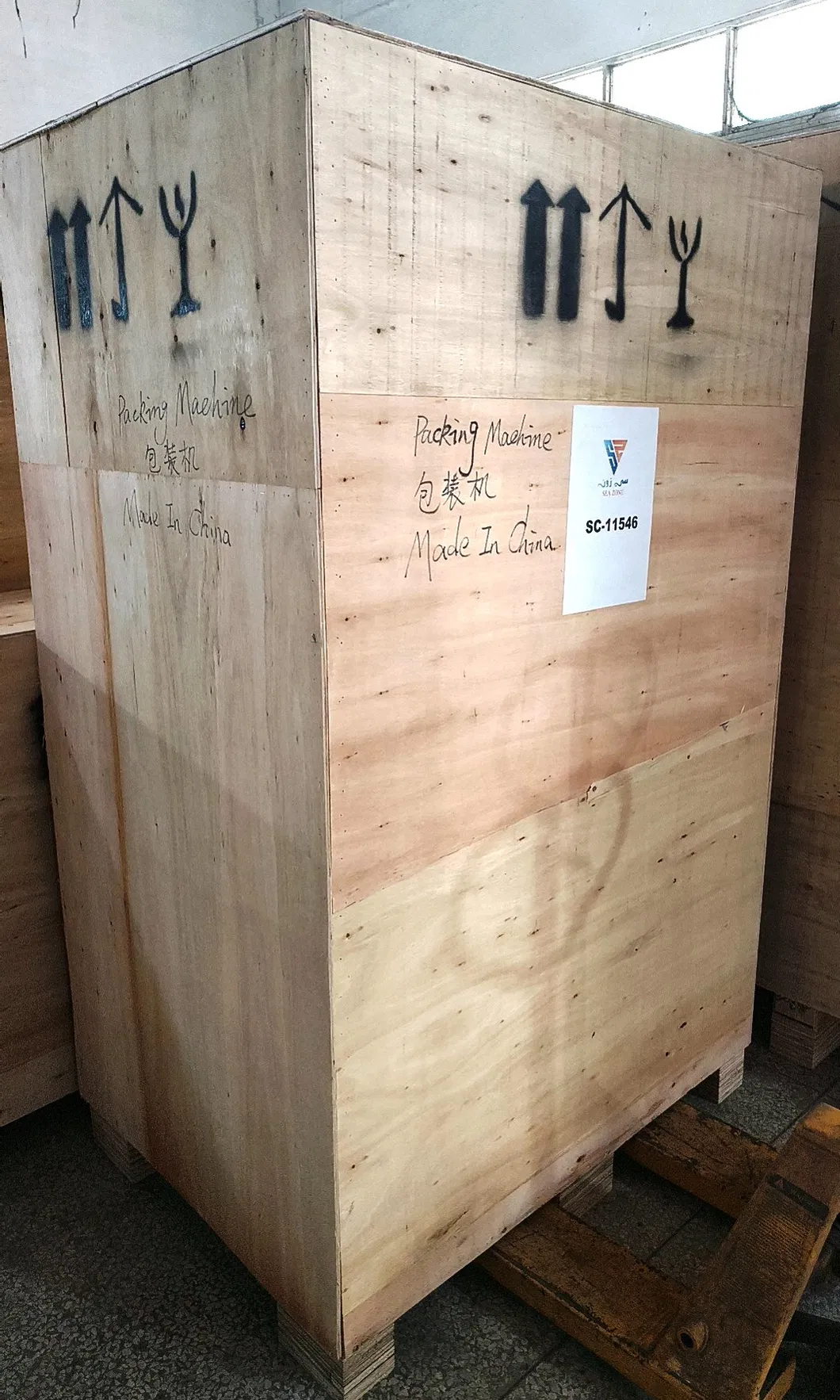

Sea-Worthy Standard Wooden Case Packing
Certifications

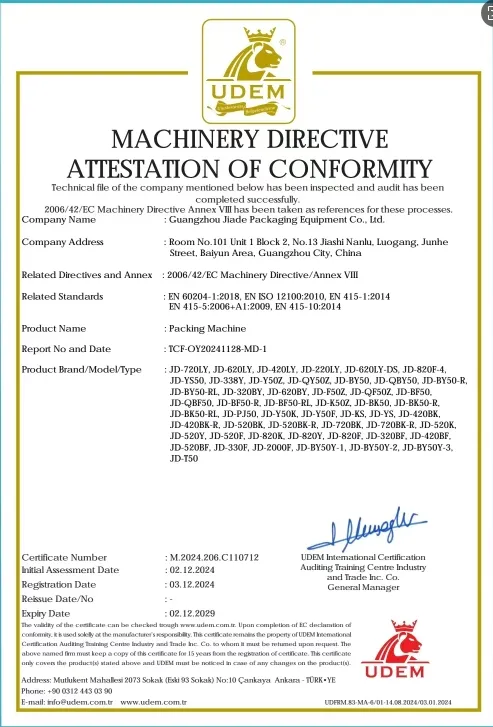

CE Certificate:
CE Quality Certification
Company Profile

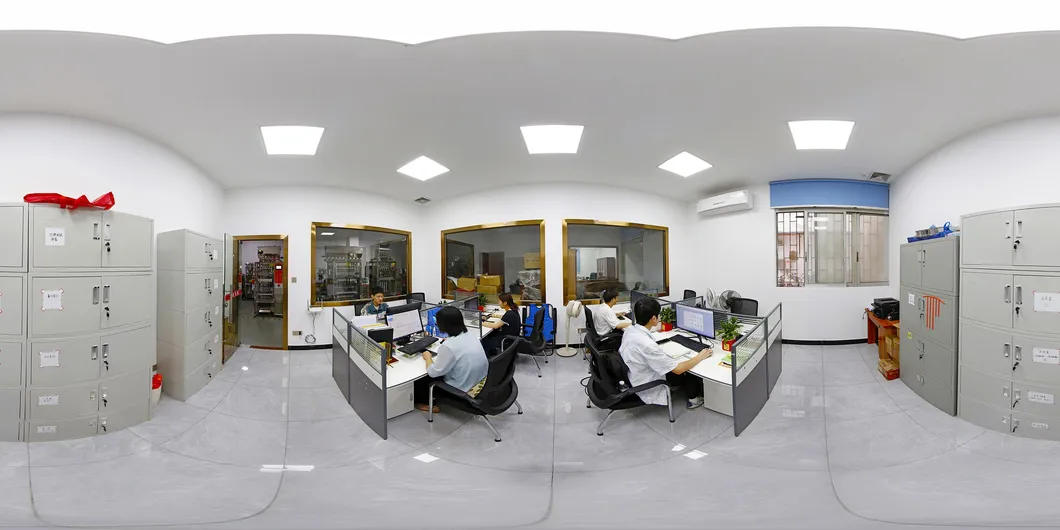

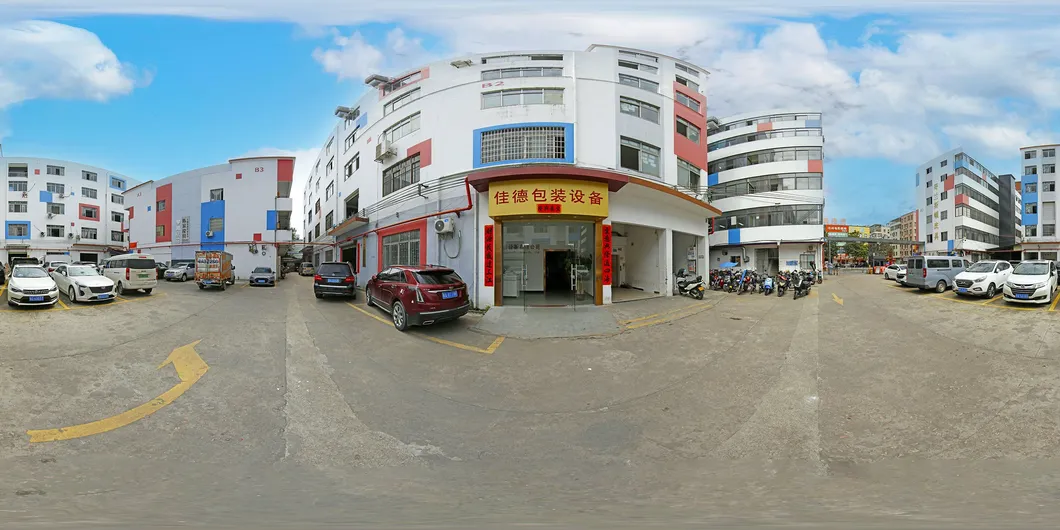

Factory Office Environment

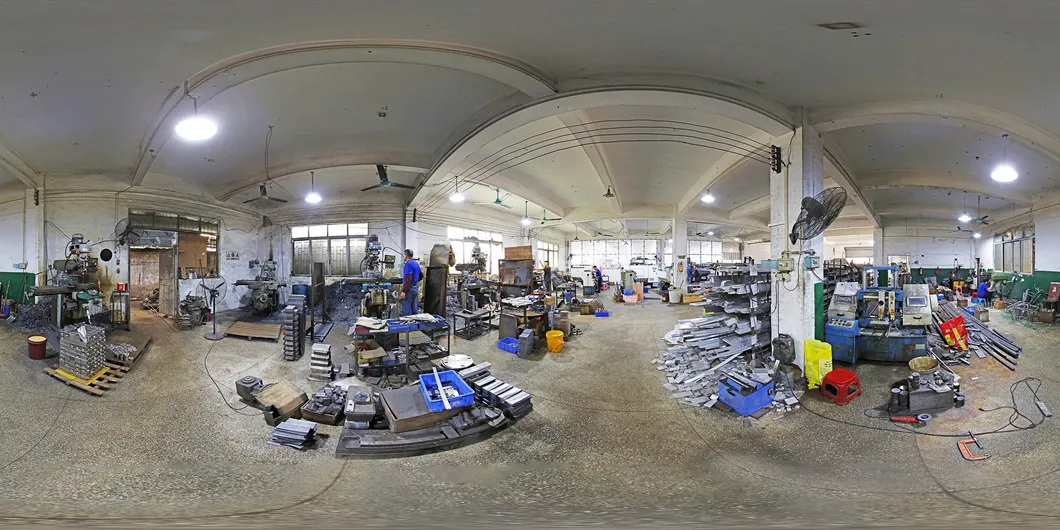

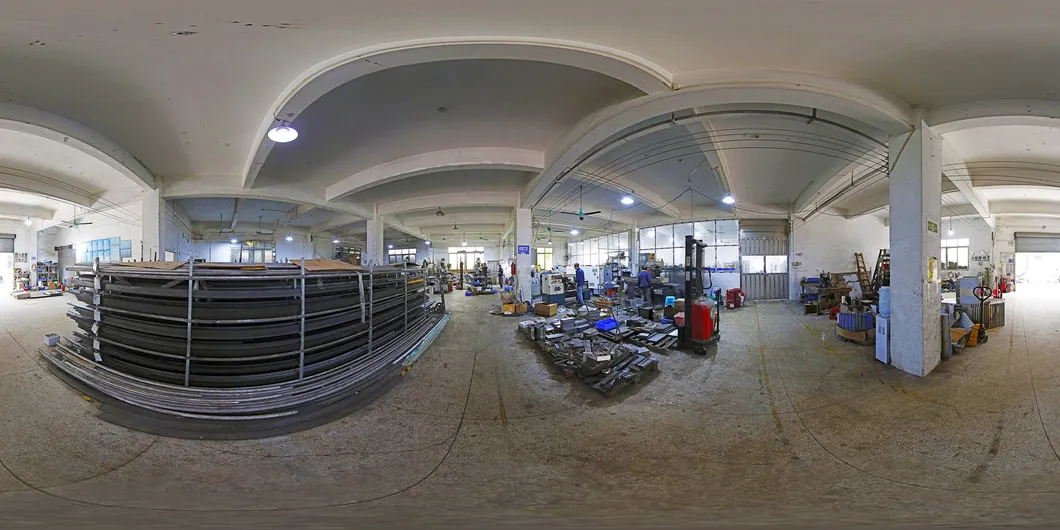

Machining Workshop Facility

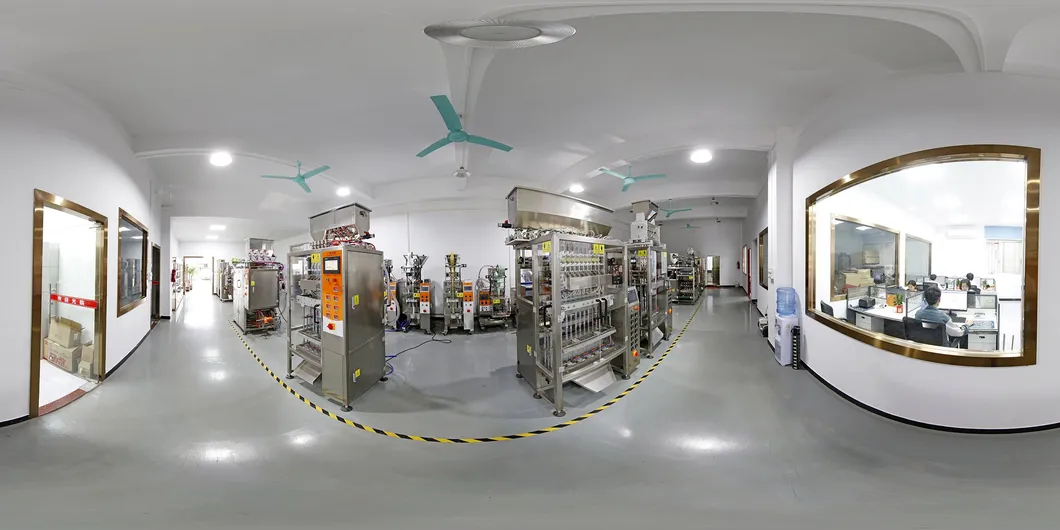

Assembly Workshop

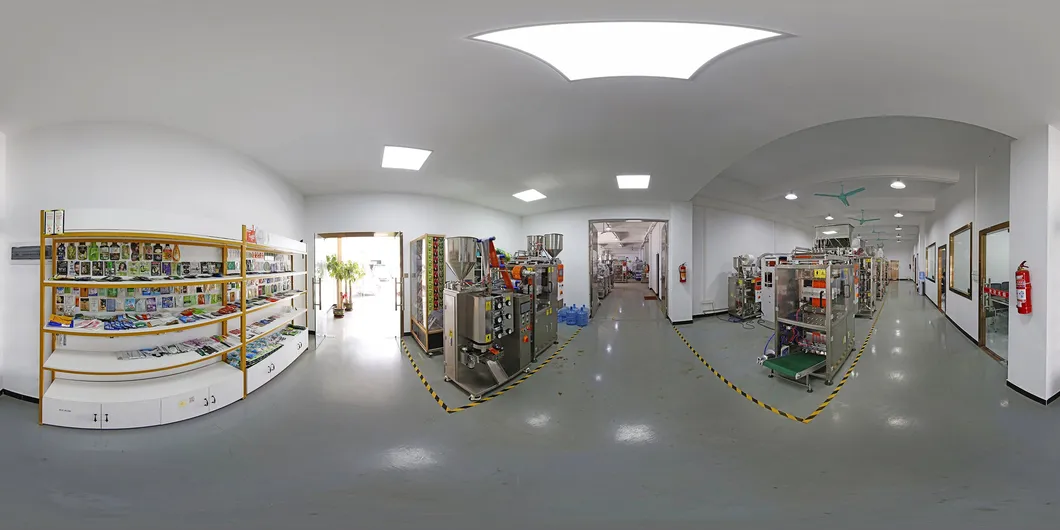

Finished Products Area

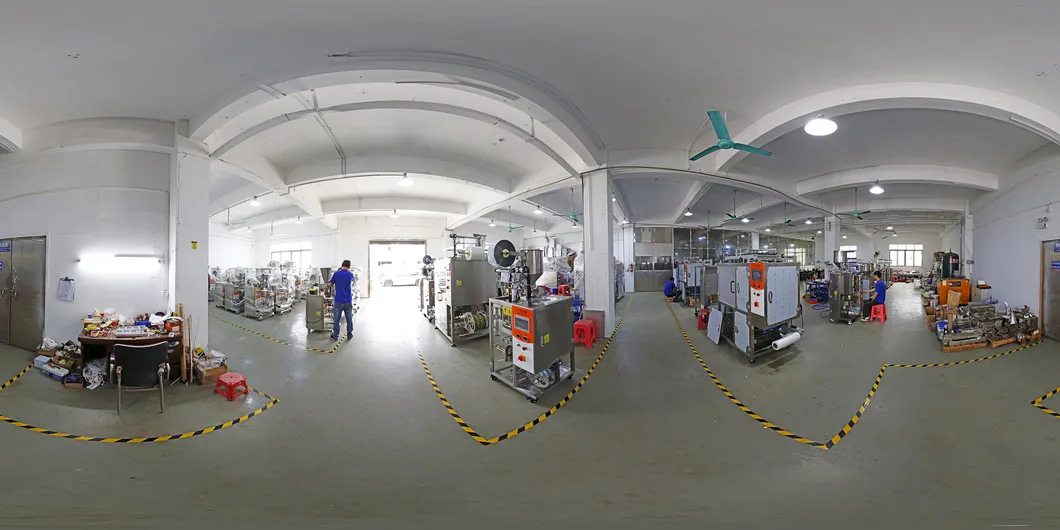

Exhibition Showroom
Testing and Calibration Room
Packaging Line Setup
Frequently Asked Questions (FAQ)
Q1. How to choose the most suitable packing machine?
It depends on the products, weight of package, and bag type and bag's sizes.
Q2. What is the MOQ (Minimum Order Quantity)?
The MOQ is 1 set.
Q3. Is the machine easy to operate?
Yes, every machine will be adjusted well before shipping. We offer an operation manual and video too, so you can operate it easily.
Q4. How about the transport options?
Transport is available by air, sea, or rail. If this is your first time importing and you are unfamiliar with shipping processes, simply provide your address details and we will check all freight details for your reference.
Q5. How do we repair or replace broken parts?
We provide troubleshooting videos and will send new parts if needed (free within the warranty period). For specific technical issues, we will assist you via online support channels.
Q6. What is the delivery time?
Typically 10-30 days after receipt of deposit, depending on the machine's structure and overall configuration size.
