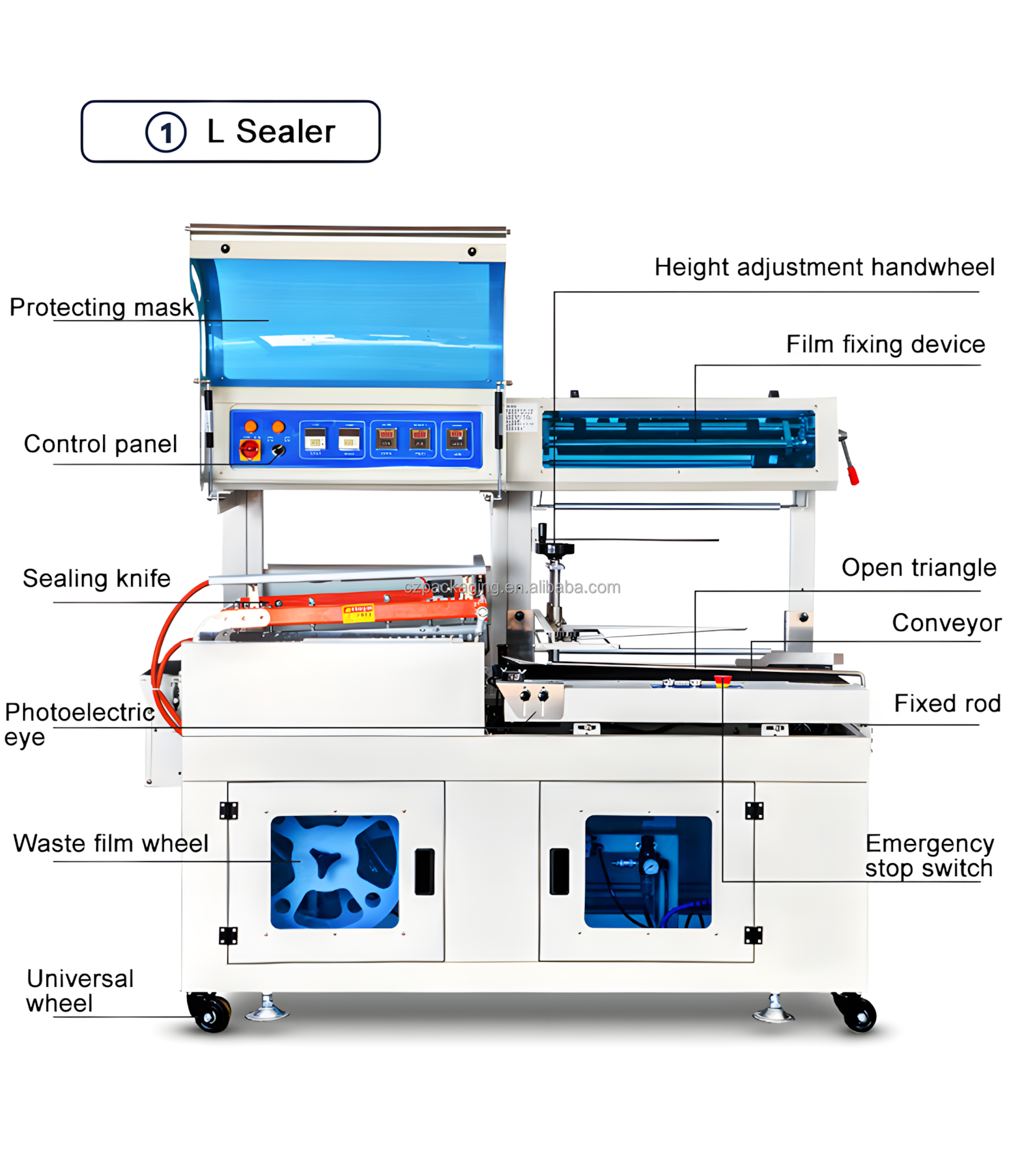

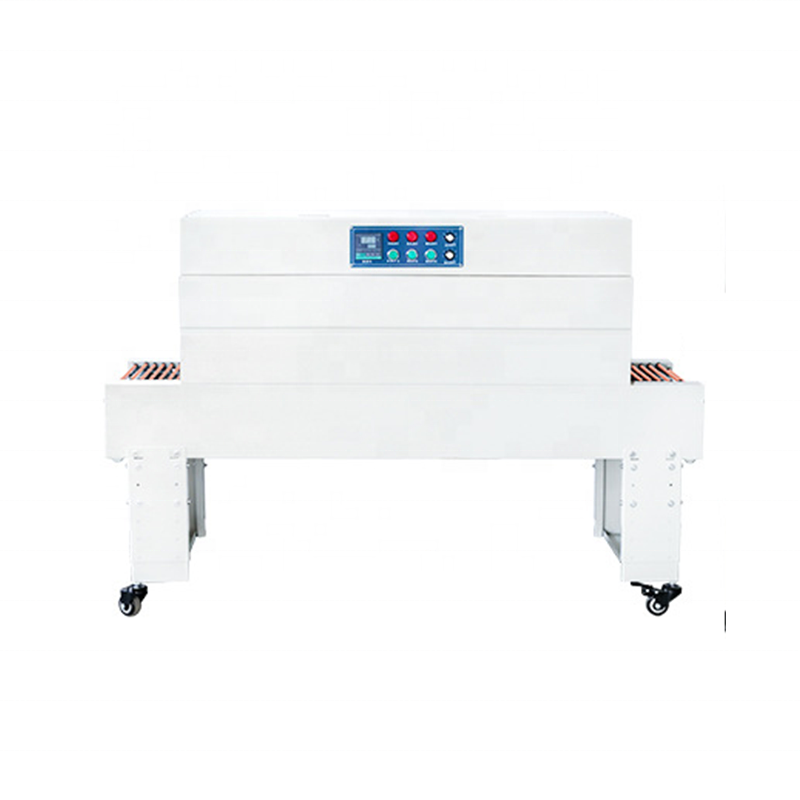

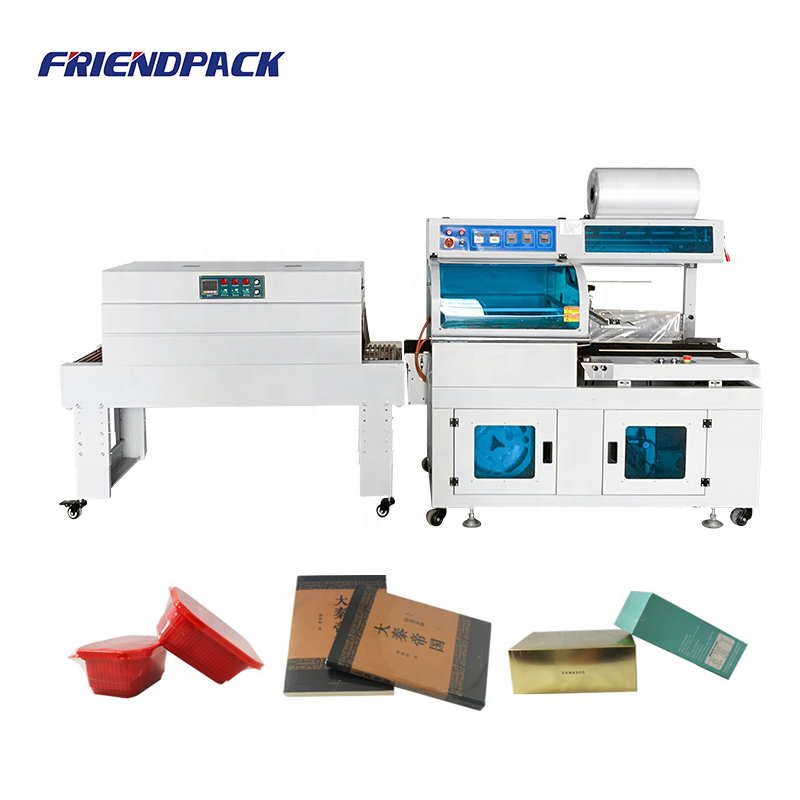

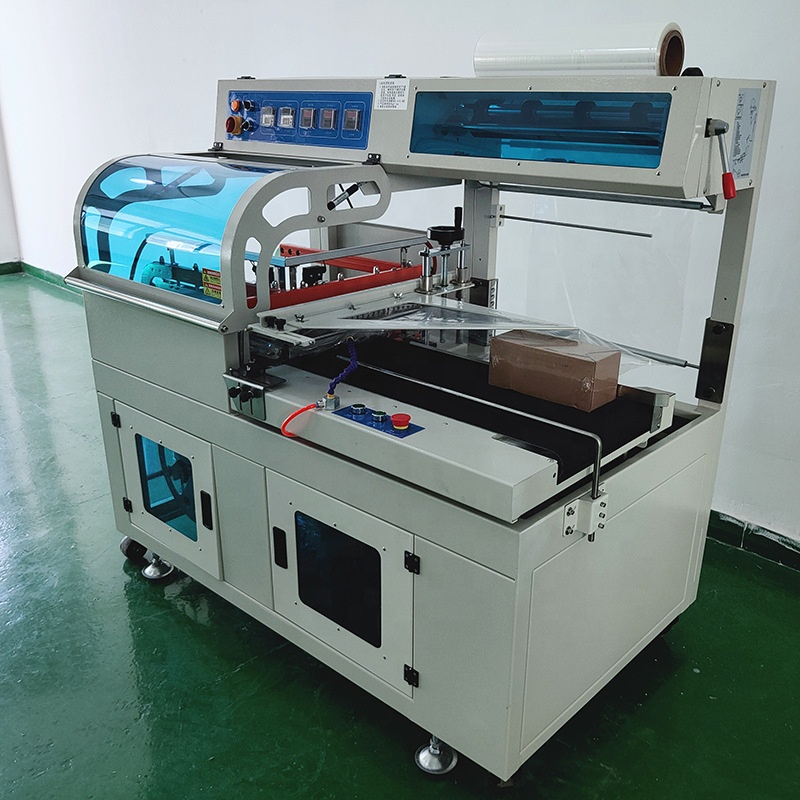

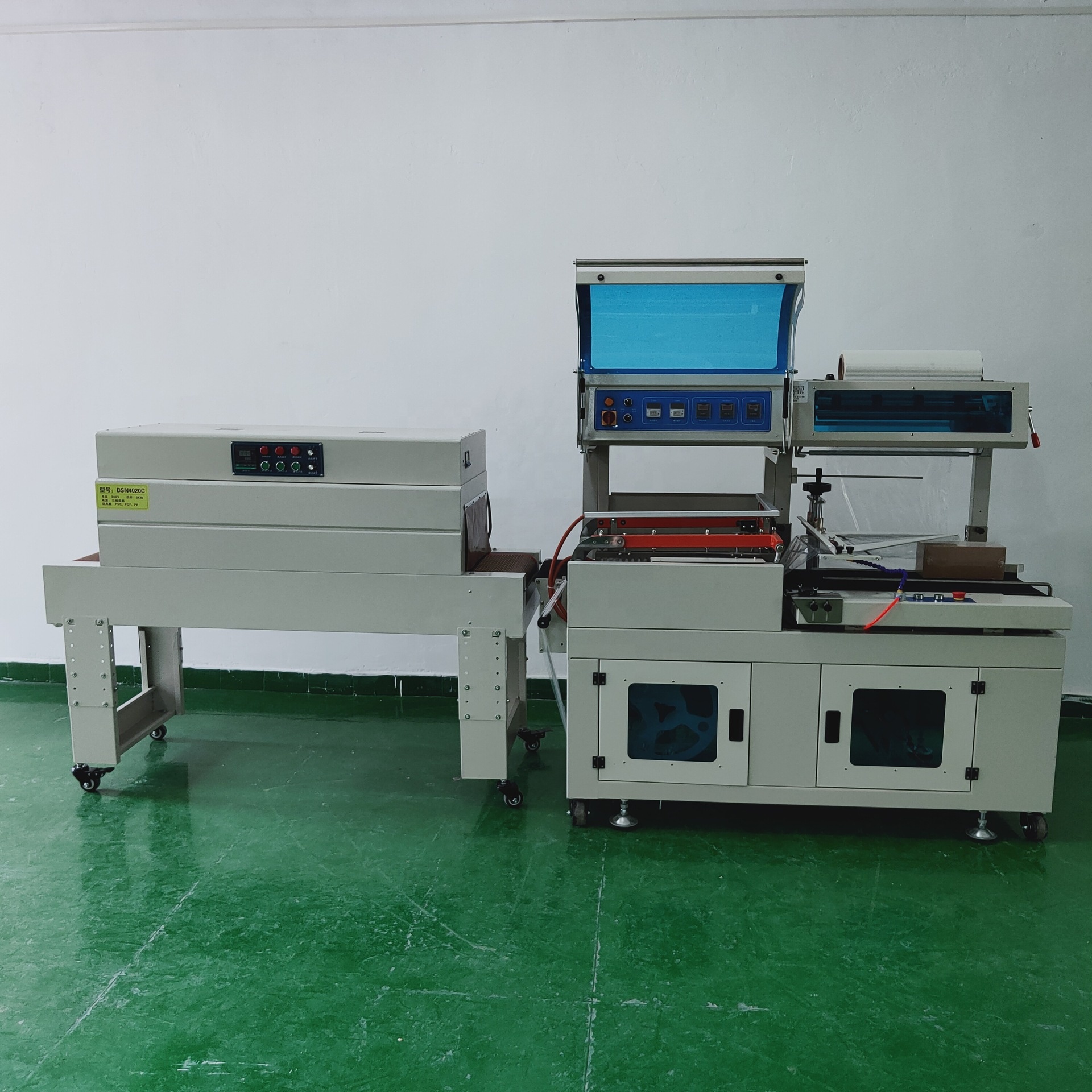

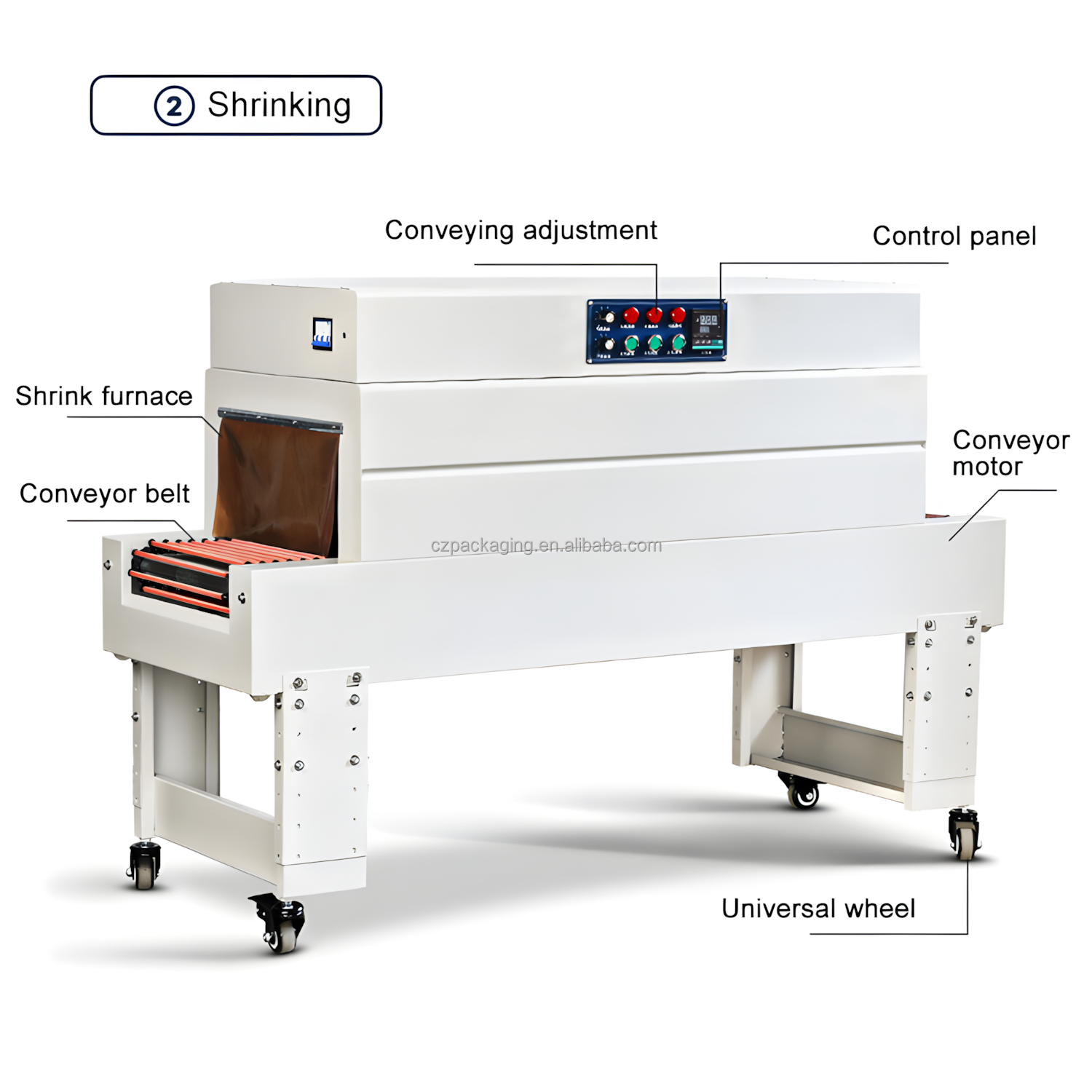

| Film Cutting Machine | FQL450 L Sealer | Shrinking Machine | BSN4020C Shrink Machine |
|---|---|---|---|
| Power Voltage | 220V/50-60HZ | Power Voltage | 380v 50-60HZ/220V 50Hz |
| Gas source | 5-7kg/cm³ | Power | 9 KW |
| Power | 1.5KW | Heat shrink Box(L*W*H) | 1200*400*200mm |
| Packing Speed | 15-30bags/min | Produce Size (W*H) | 350x150mm |
| L+H (H<150) | <500mm | Conveyor Speed | 0-15m/min |
| W+H (H<150) | <400MM | Conveyor material | roller chain |
| Max Height | <150mm | Roller Chain | Several Spare pieces |

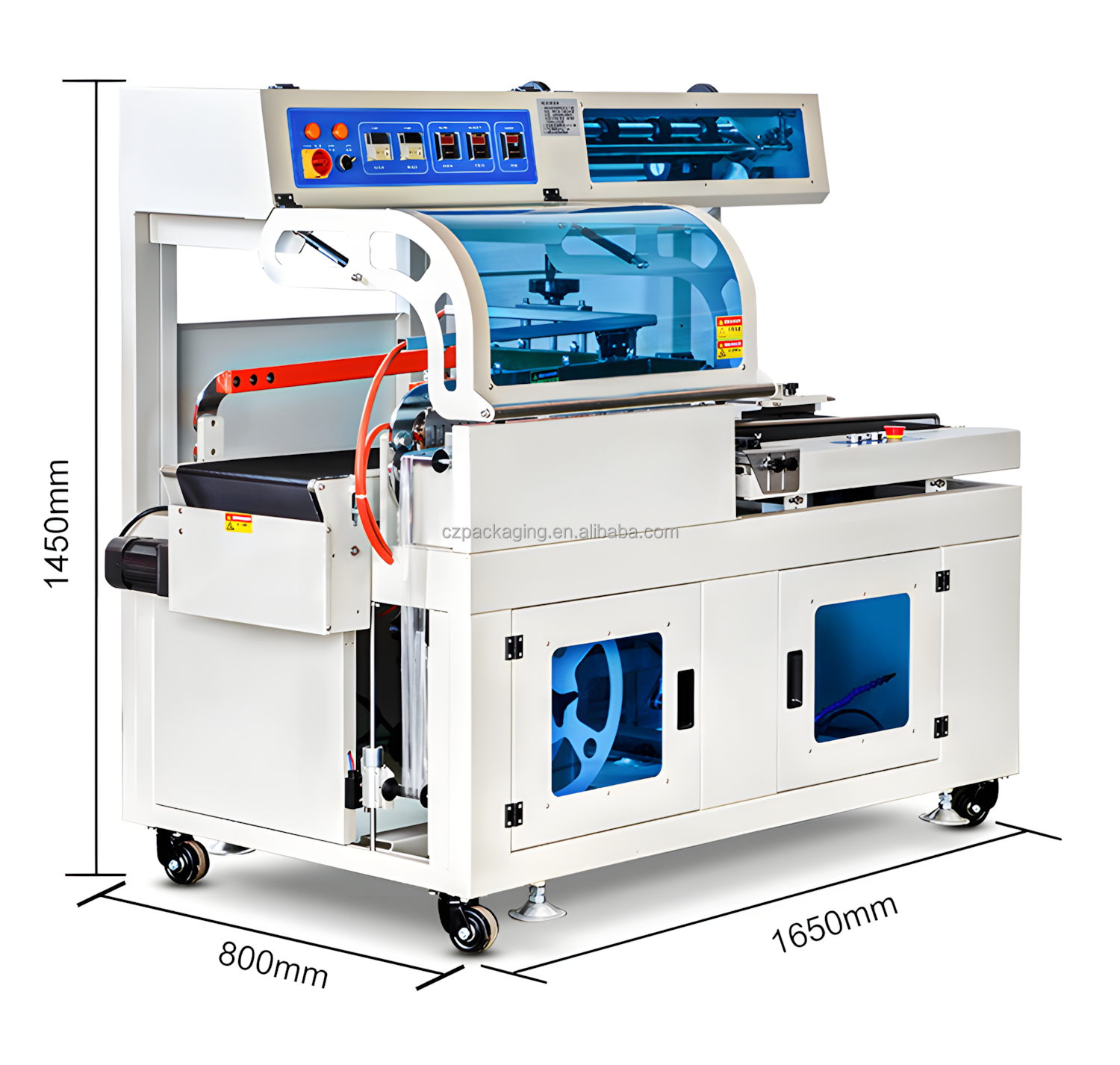

| External Dimensions | 1650x800x1450mm | Machine Size(L*W*H) | 1400x560x660mm |
| Weight of Machine | 350kg | Weight of Machine | 100kg |
| Applicable Film | POF/PE | Applicable Film | POF.PVC.PP |
| Name | Qty | Parts Original Manufacturer |
|---|---|---|
| cylinder | 1 | AIRTAC |
| Motor | 1 | Maili China |
| Photoelectric switch | 1 | Omron |
| Intermediate relay | 1 | Omron |
| Digital display (temperature controller) | 1 | Xinpu China |
| Time Relay | 1 | C-Lin |
| Micro Switch | 1 | Omron |

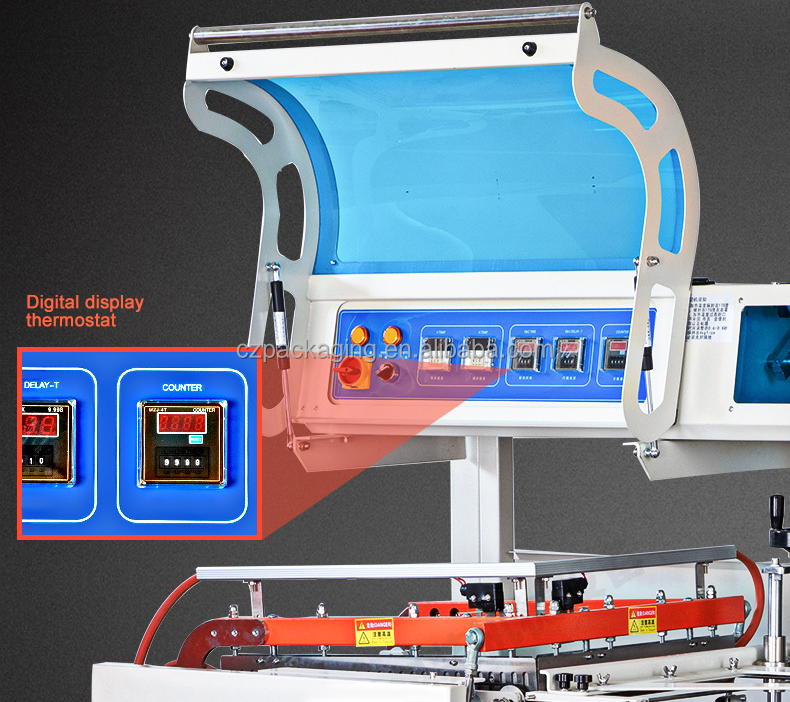

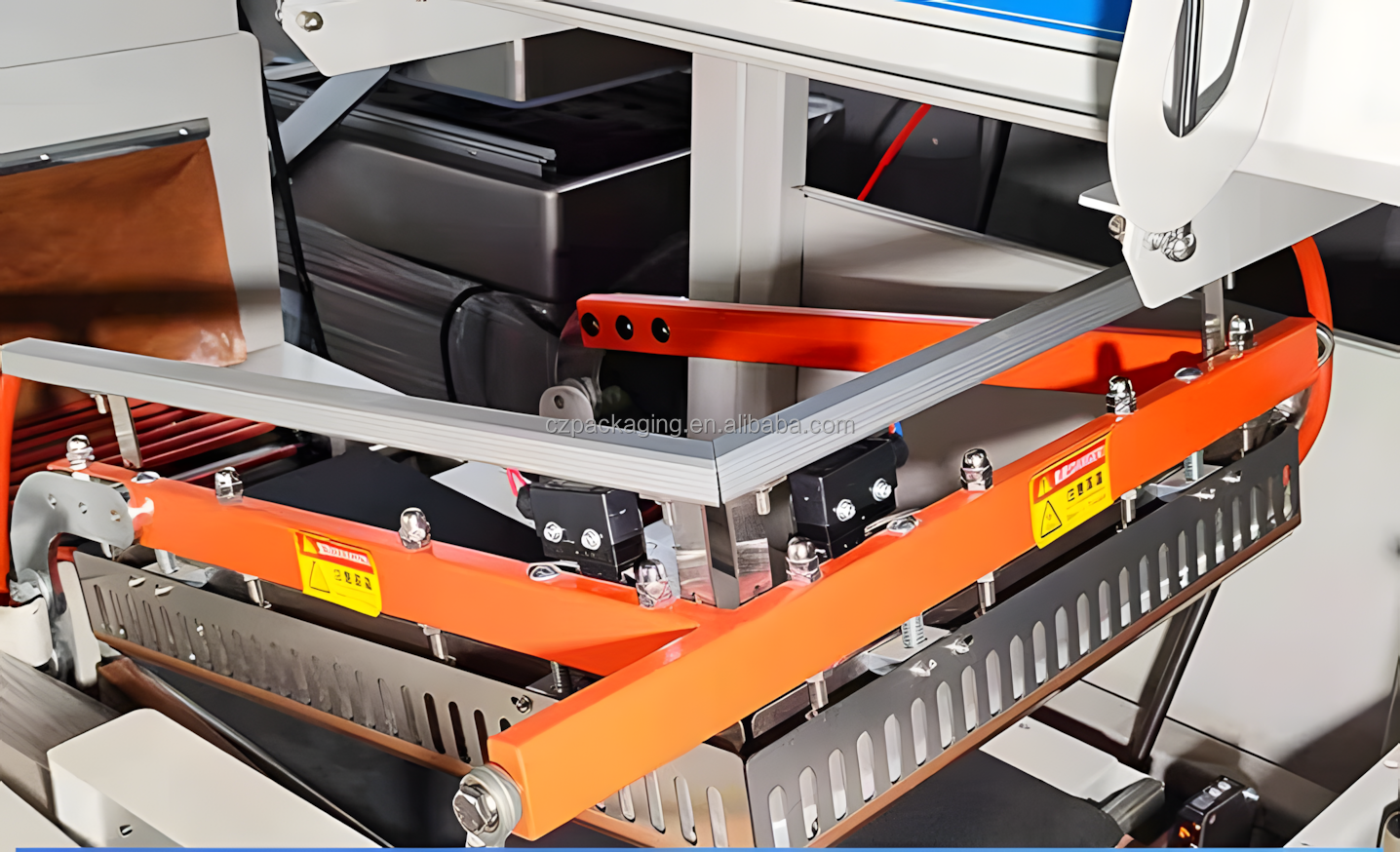

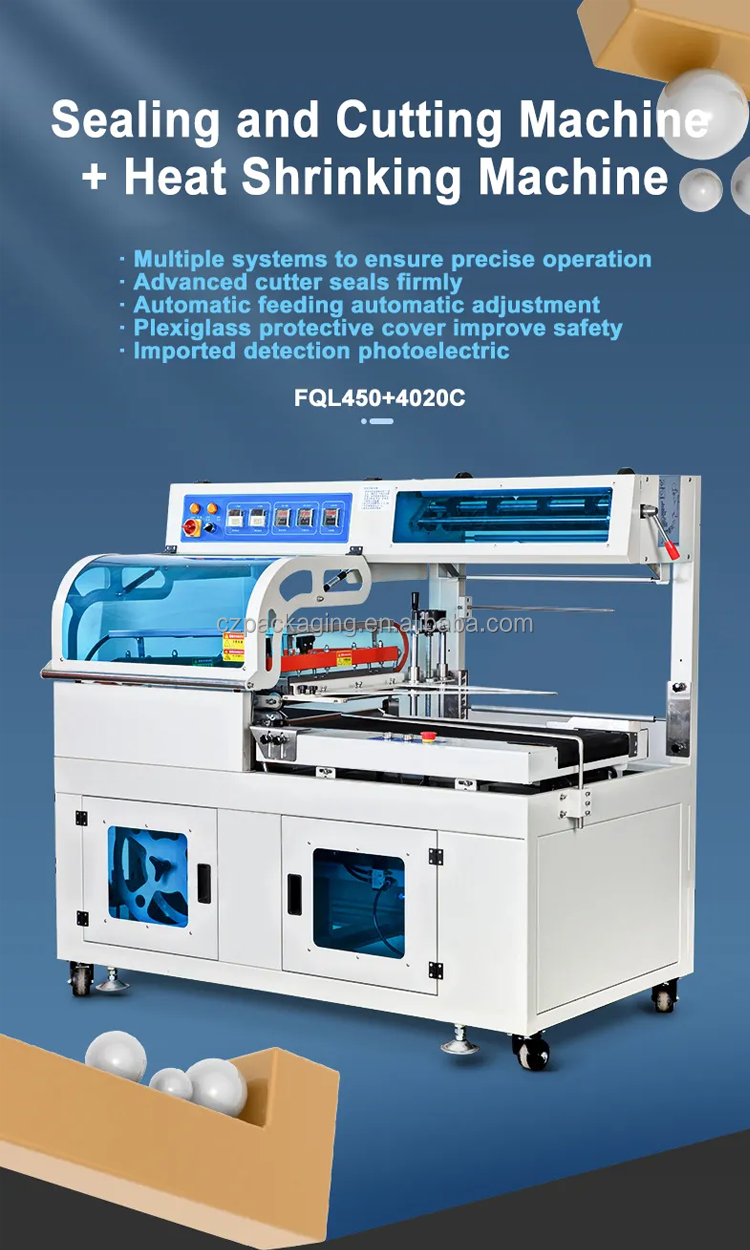

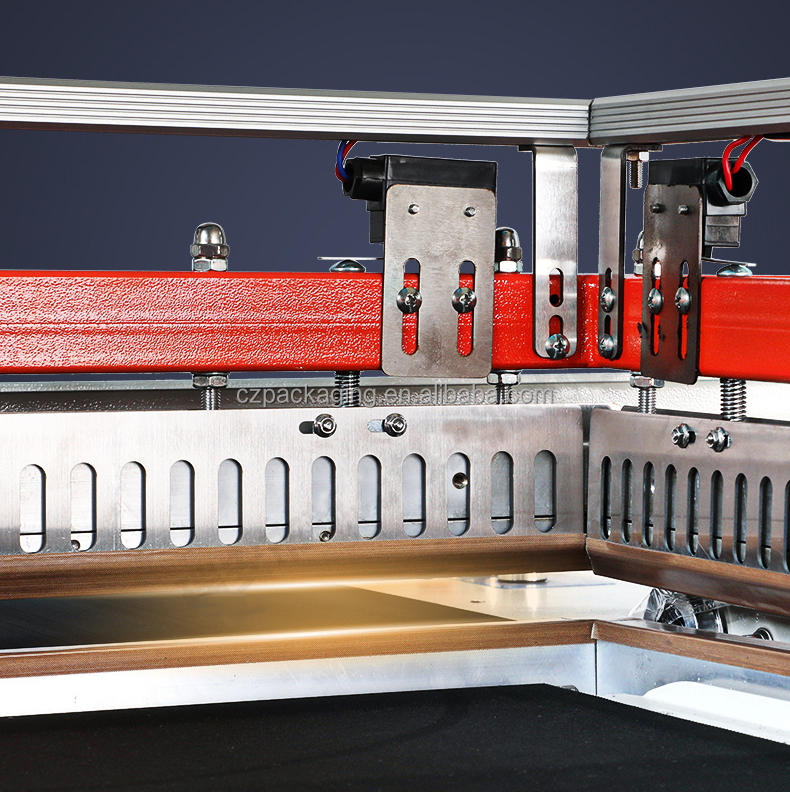

The thermostat adopts a digital display thermostat with built-in PLD function. The temperature of the sealing knife is sensitive and accurate. The sealing knife also has an automatic protection function to prevent accidental cutting.
The sealing and cutting knife adopts Teflon coating, resistant to adhesion and high temperature. The sealing does not crack or smoke. The frame is made of high-quality alloy steel for durability.
Automatic feeding with length adjustment via electric eye and timer. Equipped with an induction motor to automatically take up waste film.

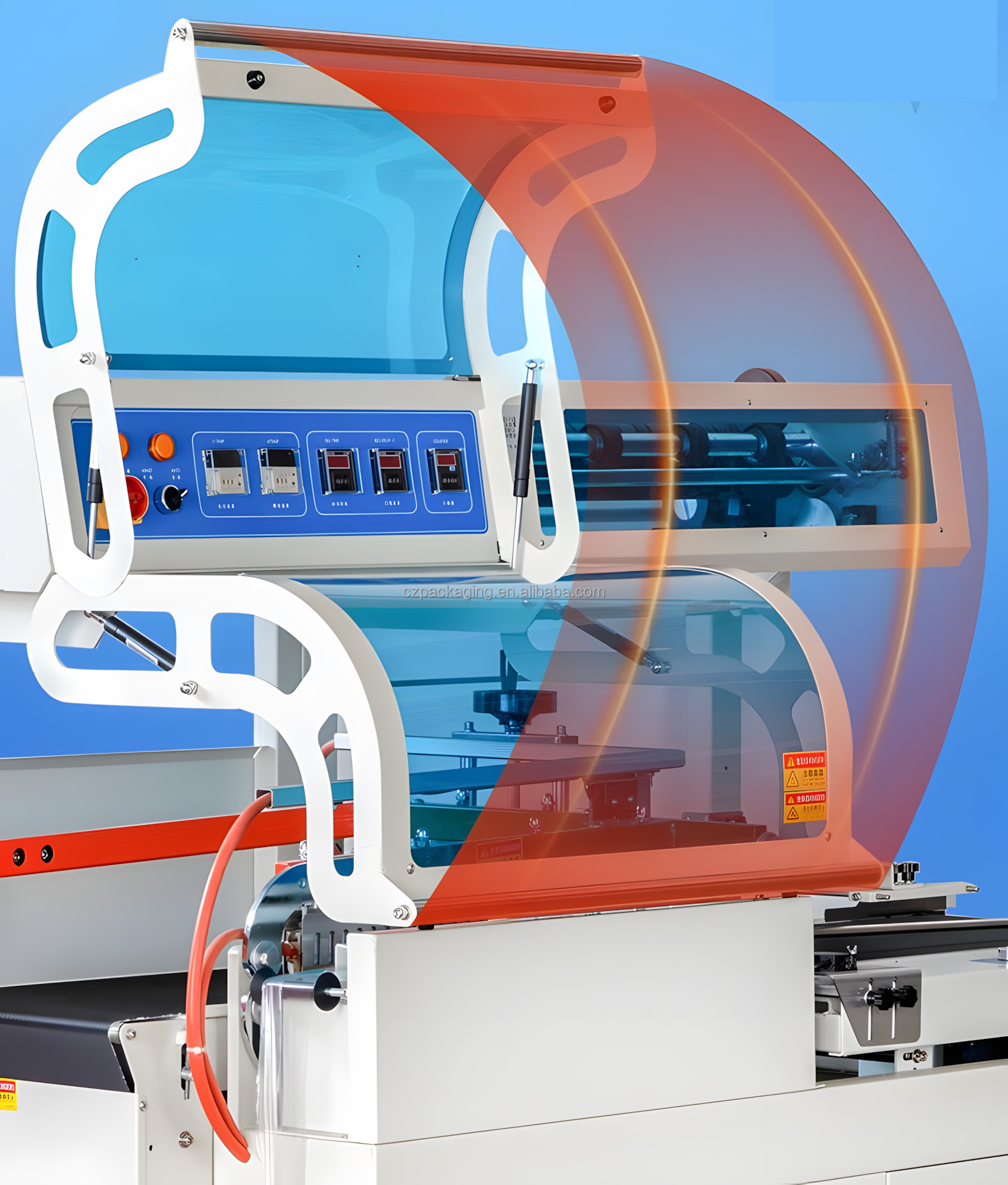

Equipped with a plexiglass protective cover and automatic alarm function, significantly improving operator safety during the sealing process.
As a Professional One-Stop Packing Solution Provider, we focus on the Fill-Label-Cap-Shrink-Carton-Seal-Strap-Wrap-Convey-Stack process. Our expertise lies in the planning, R&D, and manufacturing of automatic packaging production lines, such as automatic carton packing lines, shrinking wrapping lines, and fully automatic pallet strapping lines. Our products are exported to Europe, North America, the Middle East, Southeast Asia, and more than 30 other countries.
